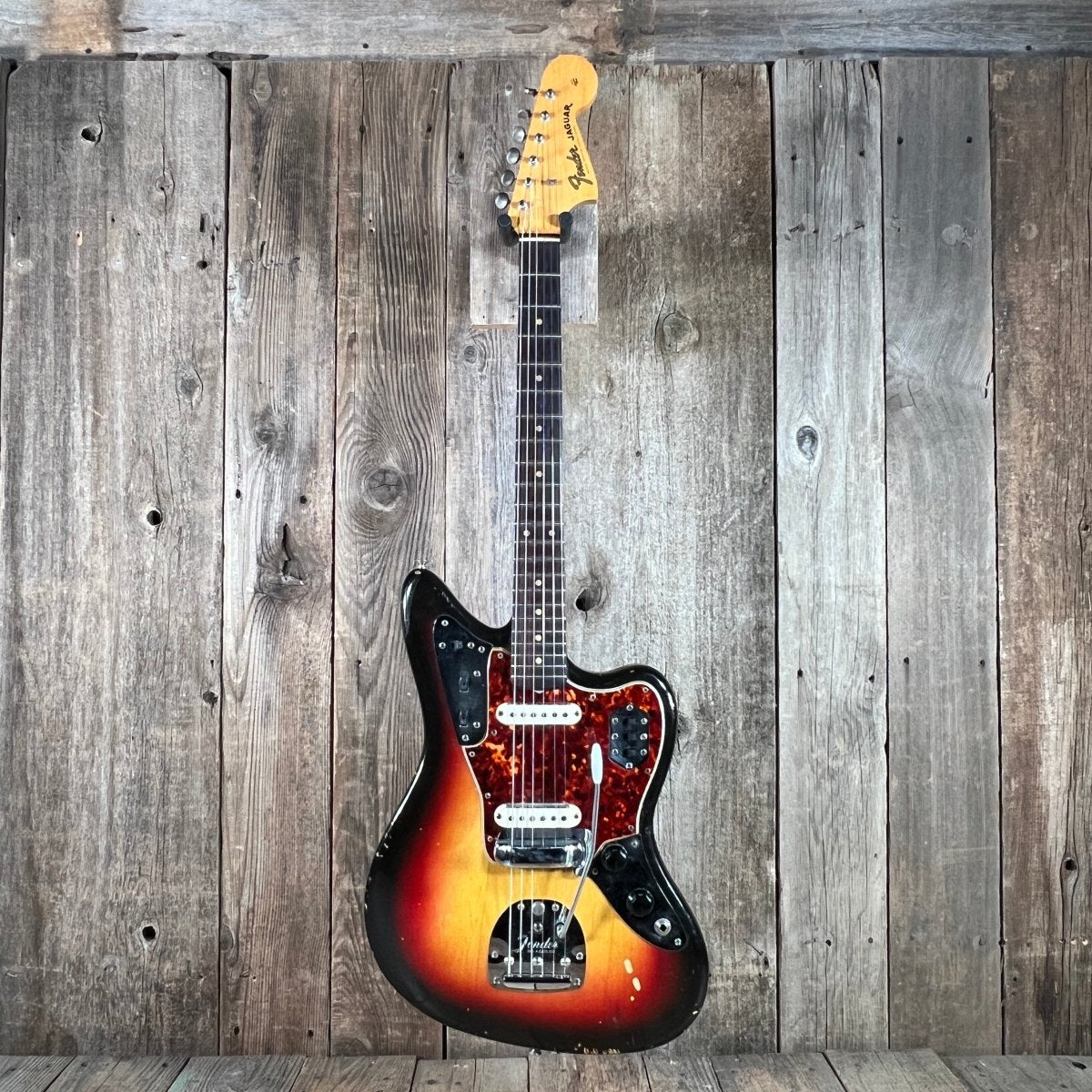

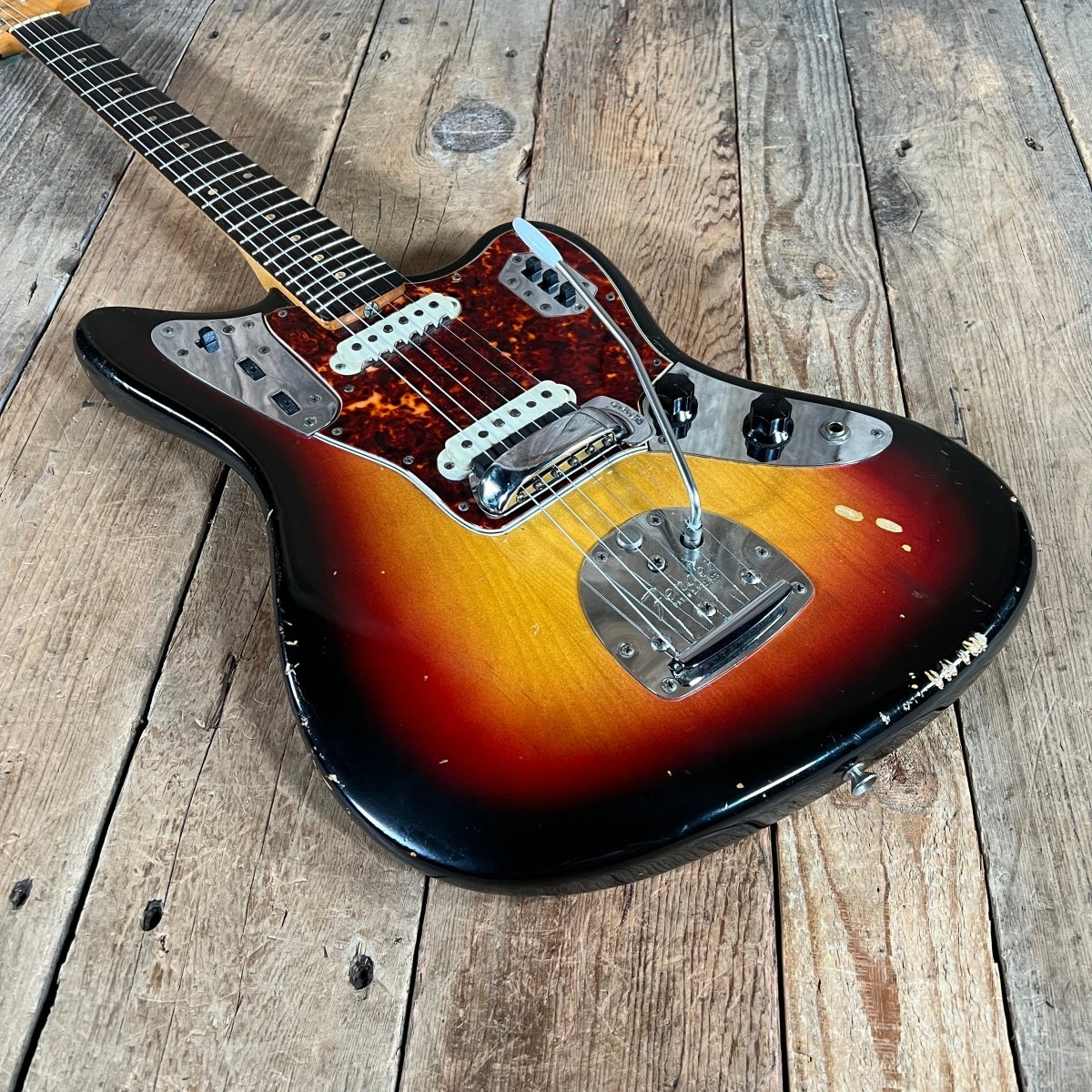

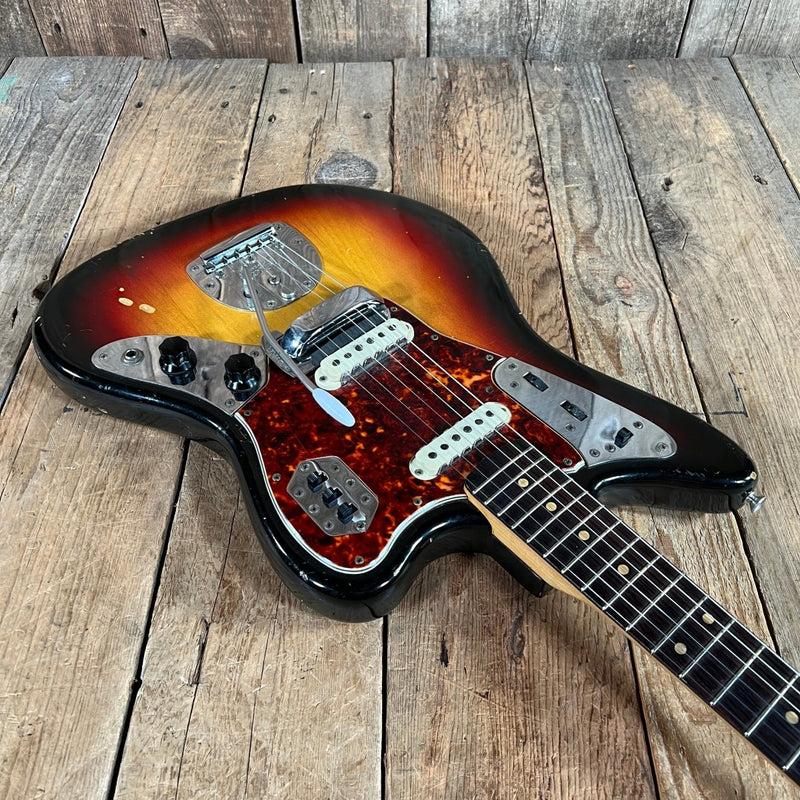

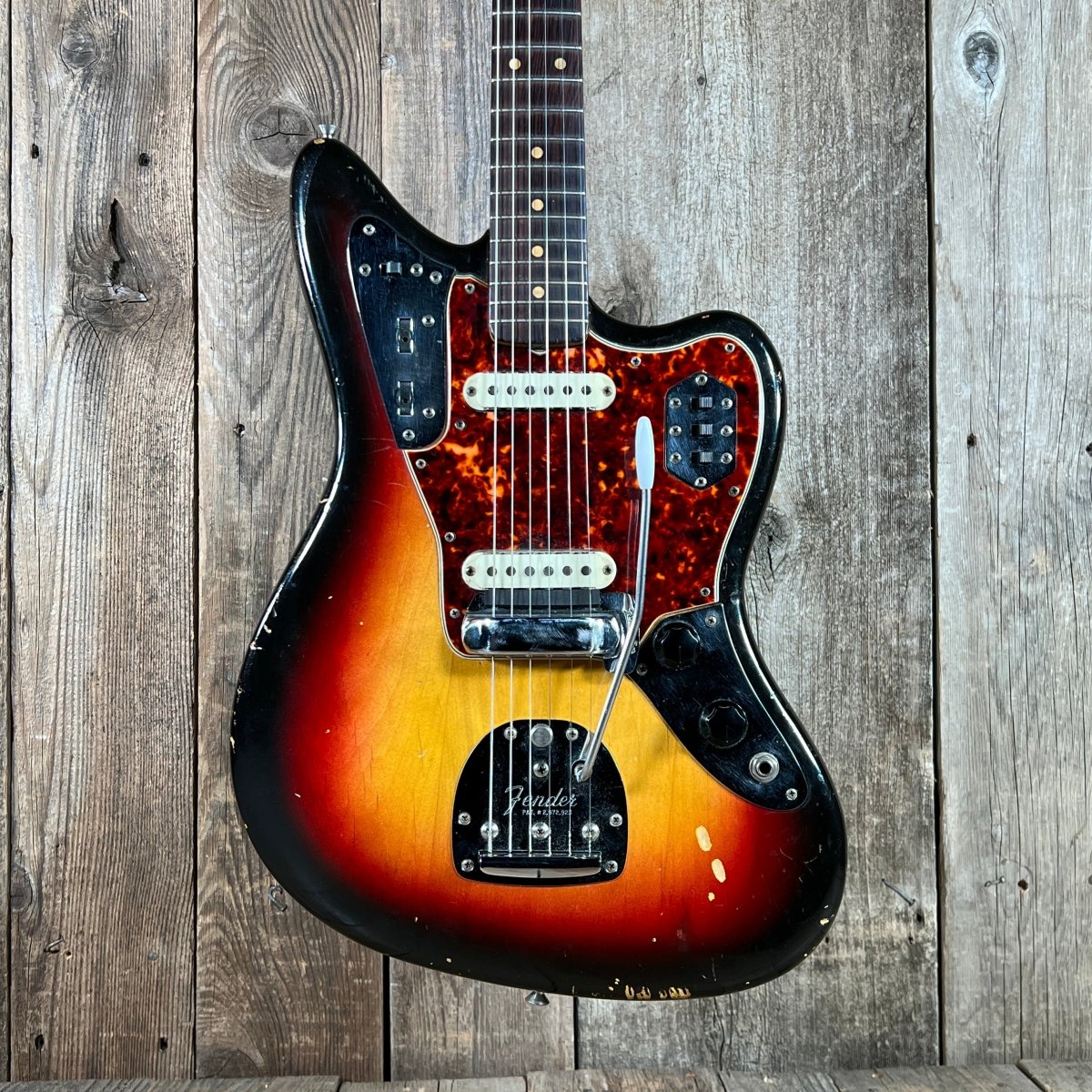

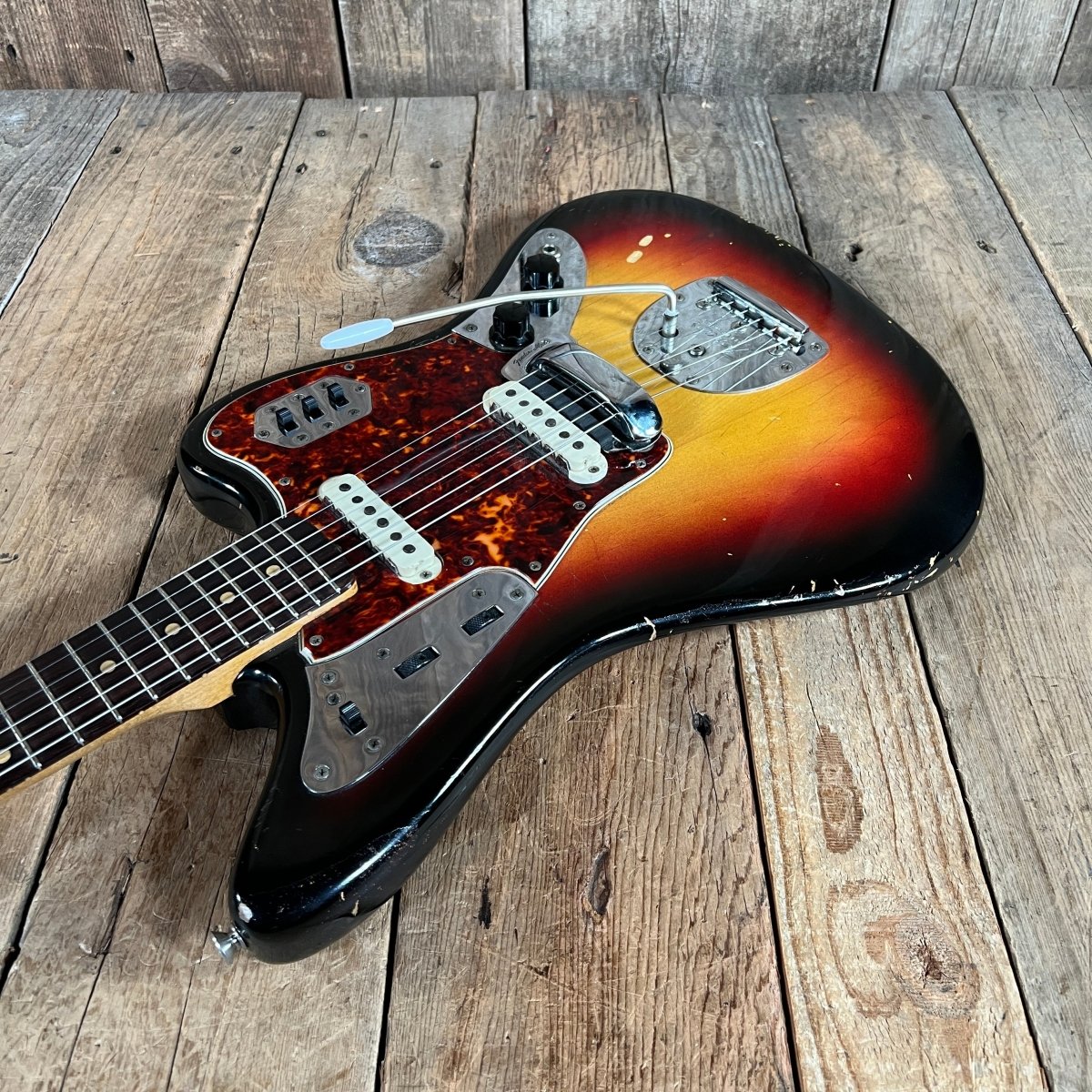

SOLD - Fender Jaguar Factory Refin or Restore 1963 body date L Plate 1964 Sunburst

Shipping calculated at checkout.


Who buys vintage guitars?  We do!

Call 530-570-1525 or email to sell your vintage guitar, bass, amplifier, etc - one piece or a collection!  We are always ready to buy instruments, amps and effects from Fender, Gibson, Martin, Epiphone, Rickenbacker, Gretsch, Marshall, Vox and just about anything else related to musical instruments.   You can also click here for more info on selling us vintage instruments, amps, parts, etc.

No sales tax for customers outside California.

This guitar arrived recently and had time to make it through our process before it was whisked away for the Nashville Guitar Show in Franklin, TN on March 23rd and 24th.  See it there!

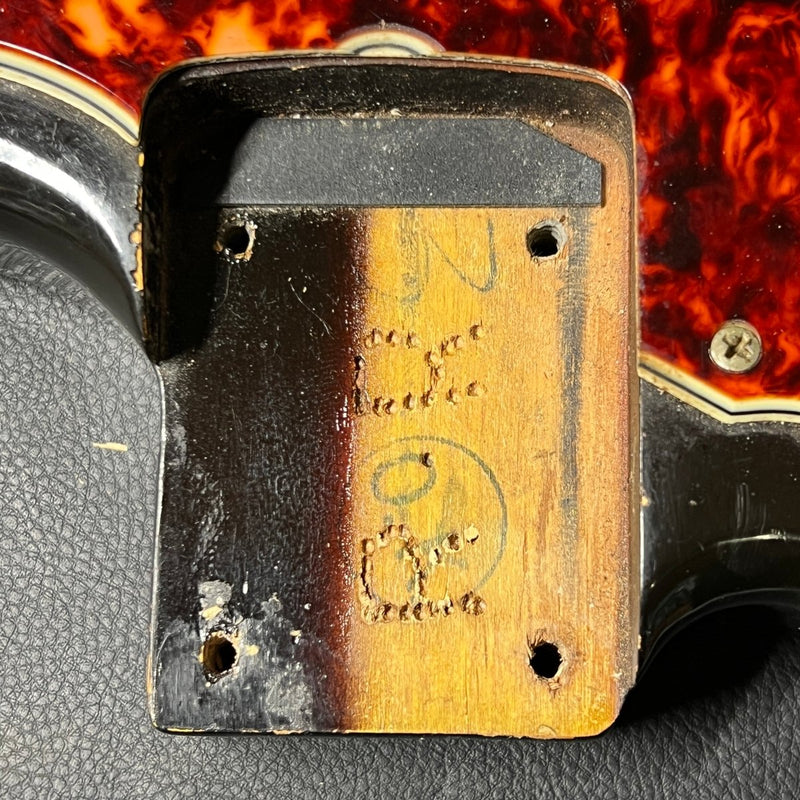

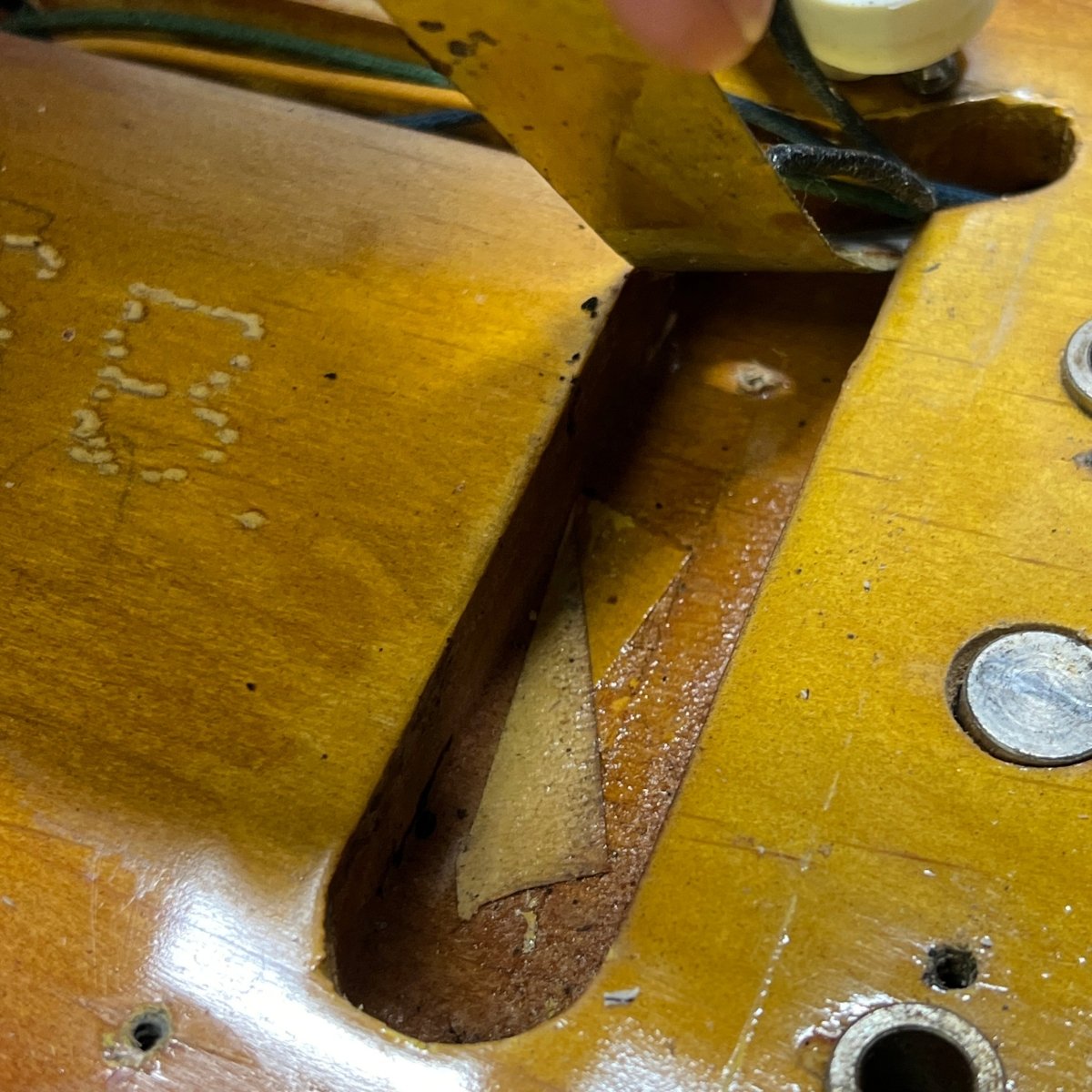

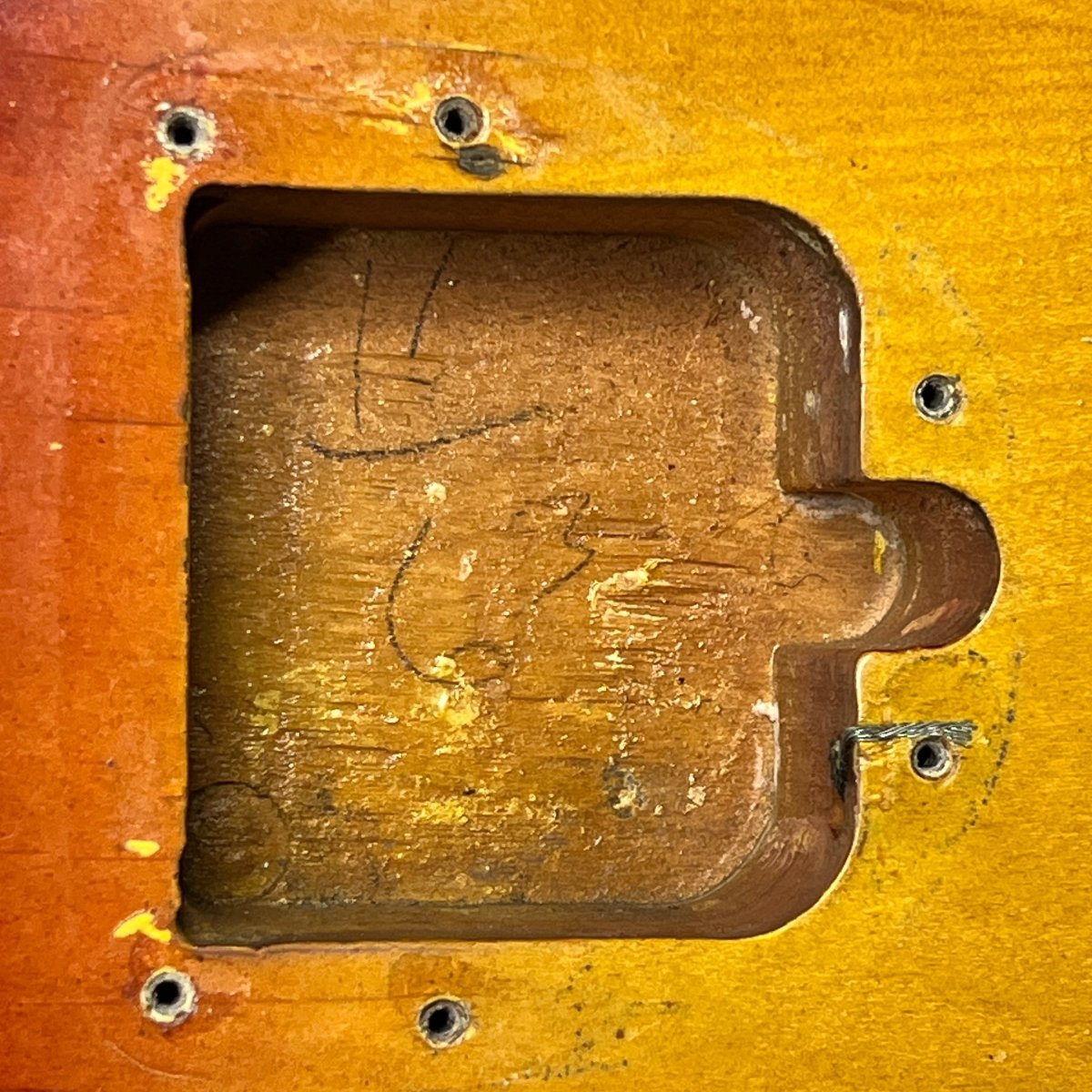

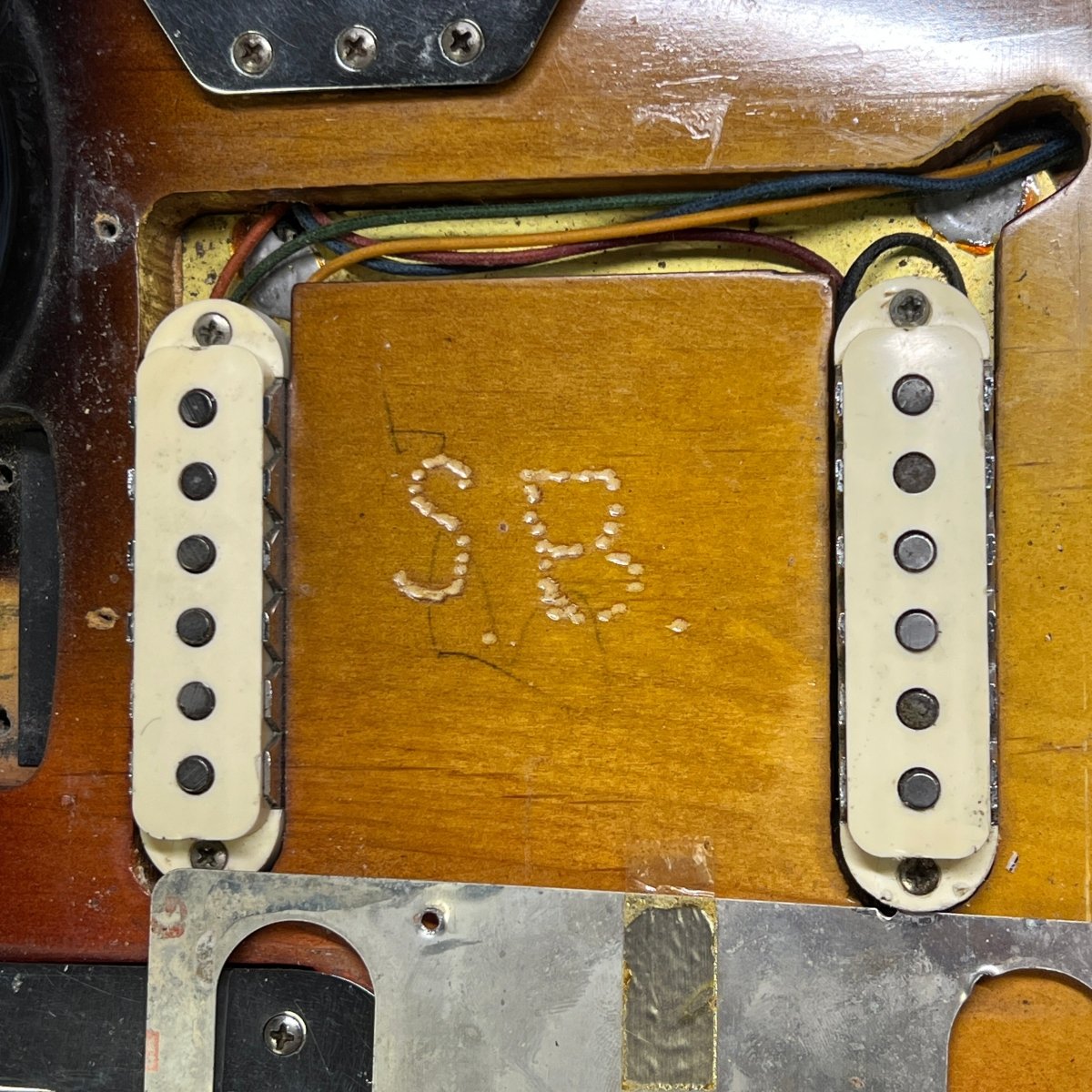

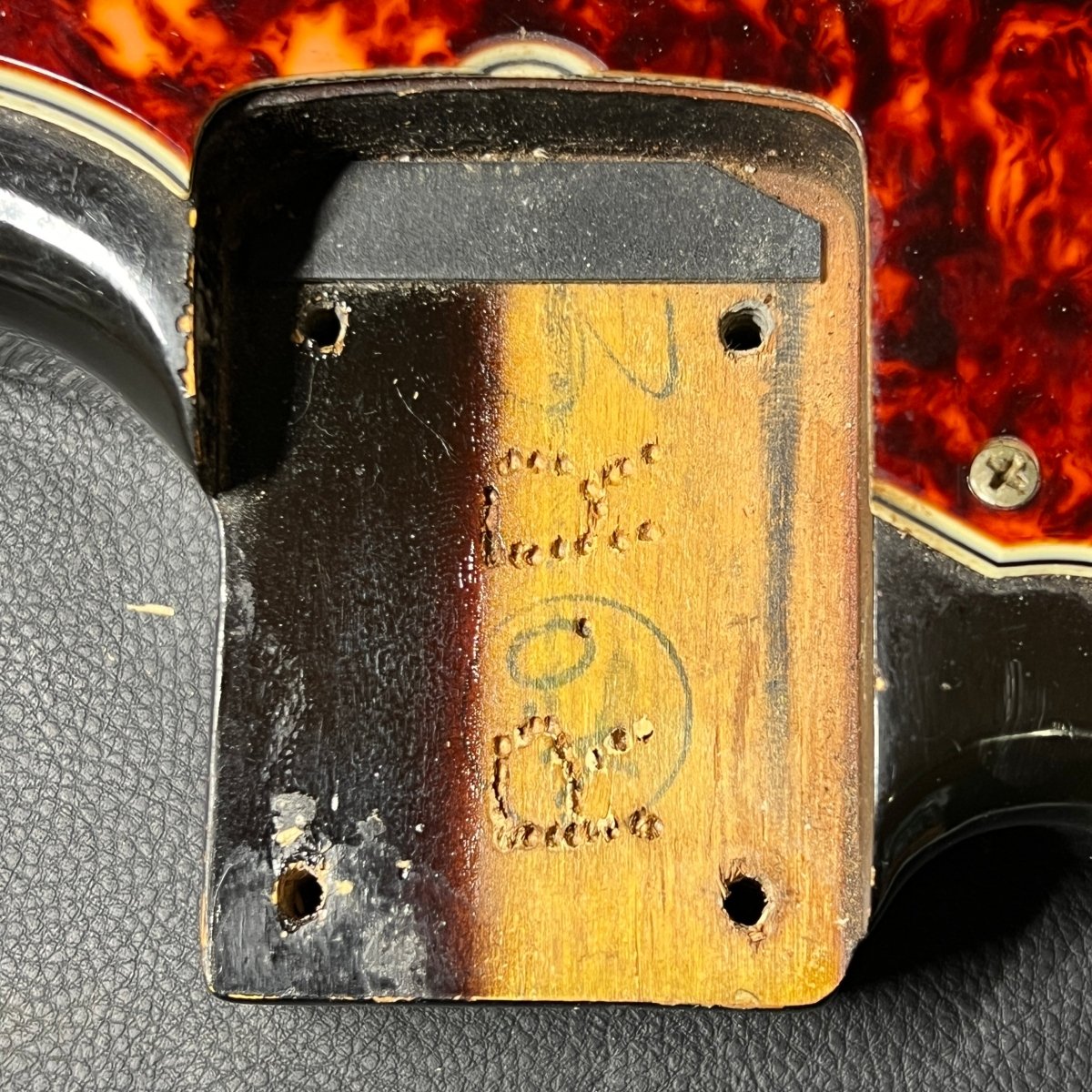

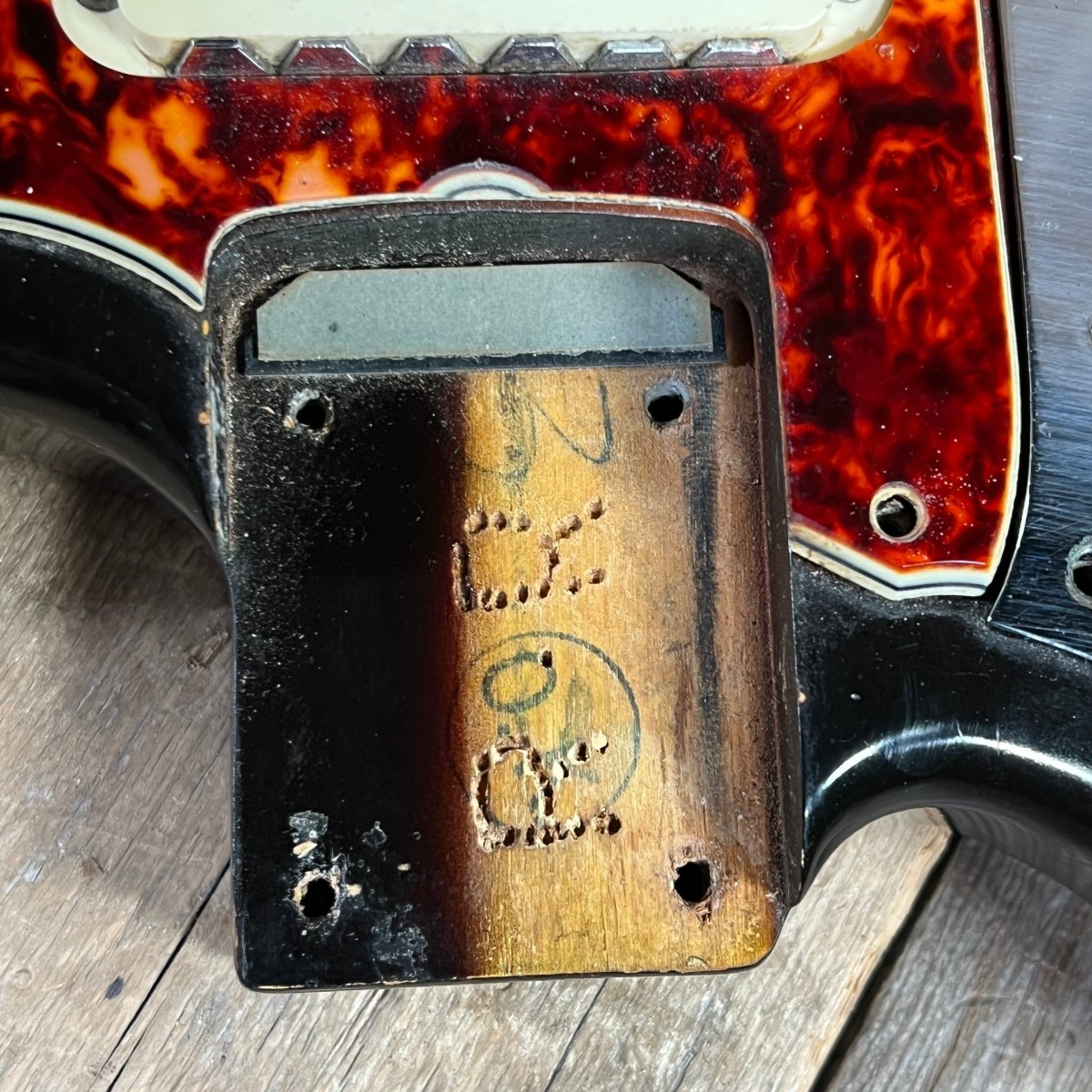

While it looks all original, the guitar went back to Fender at some point.  It is well documented that Fender would tag incoming warranty work with the letters RR, usually in the neck pocket.  This guitar has that mark, as well as the letters SB (presumably for Sunburst), and what looks like the letters DO just above.

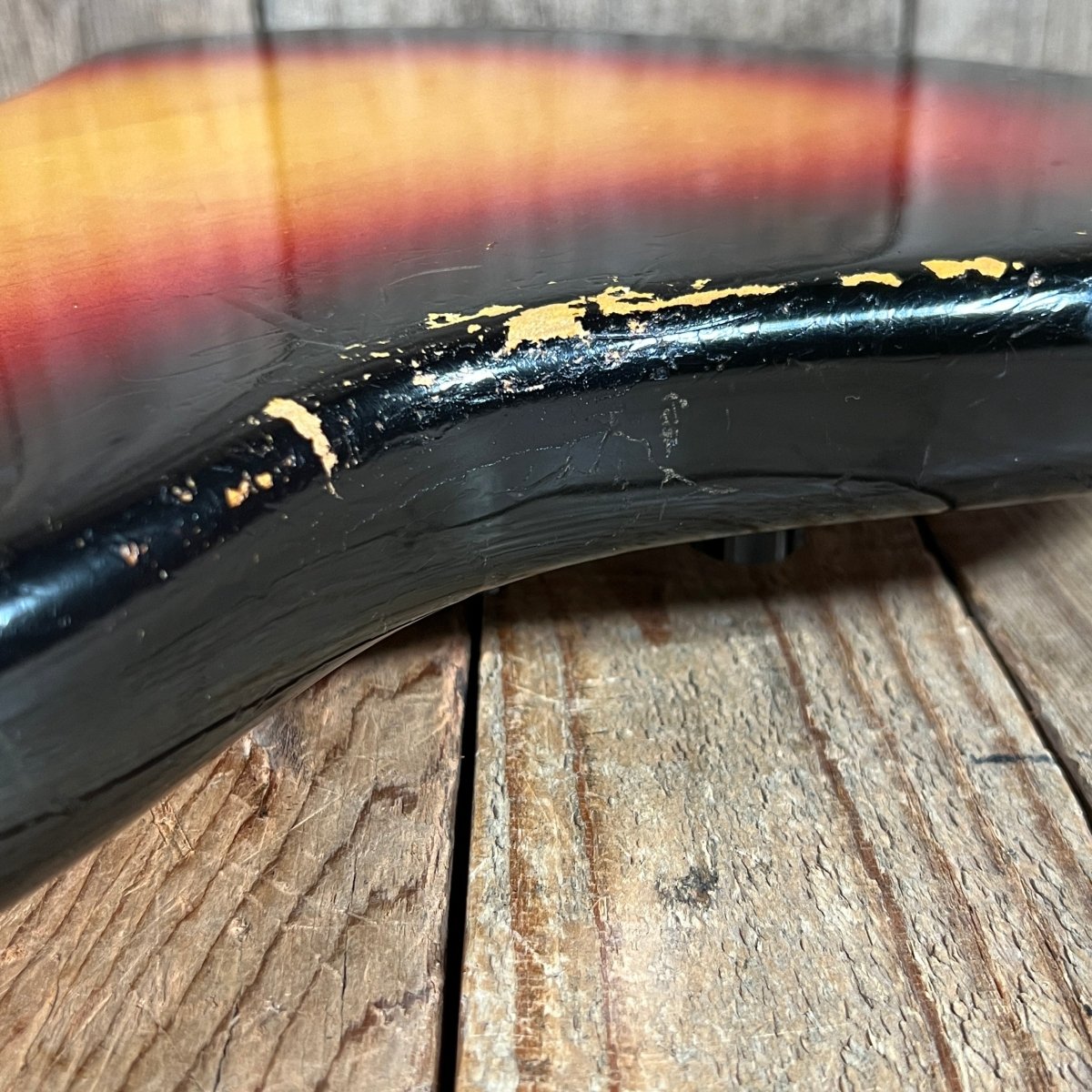

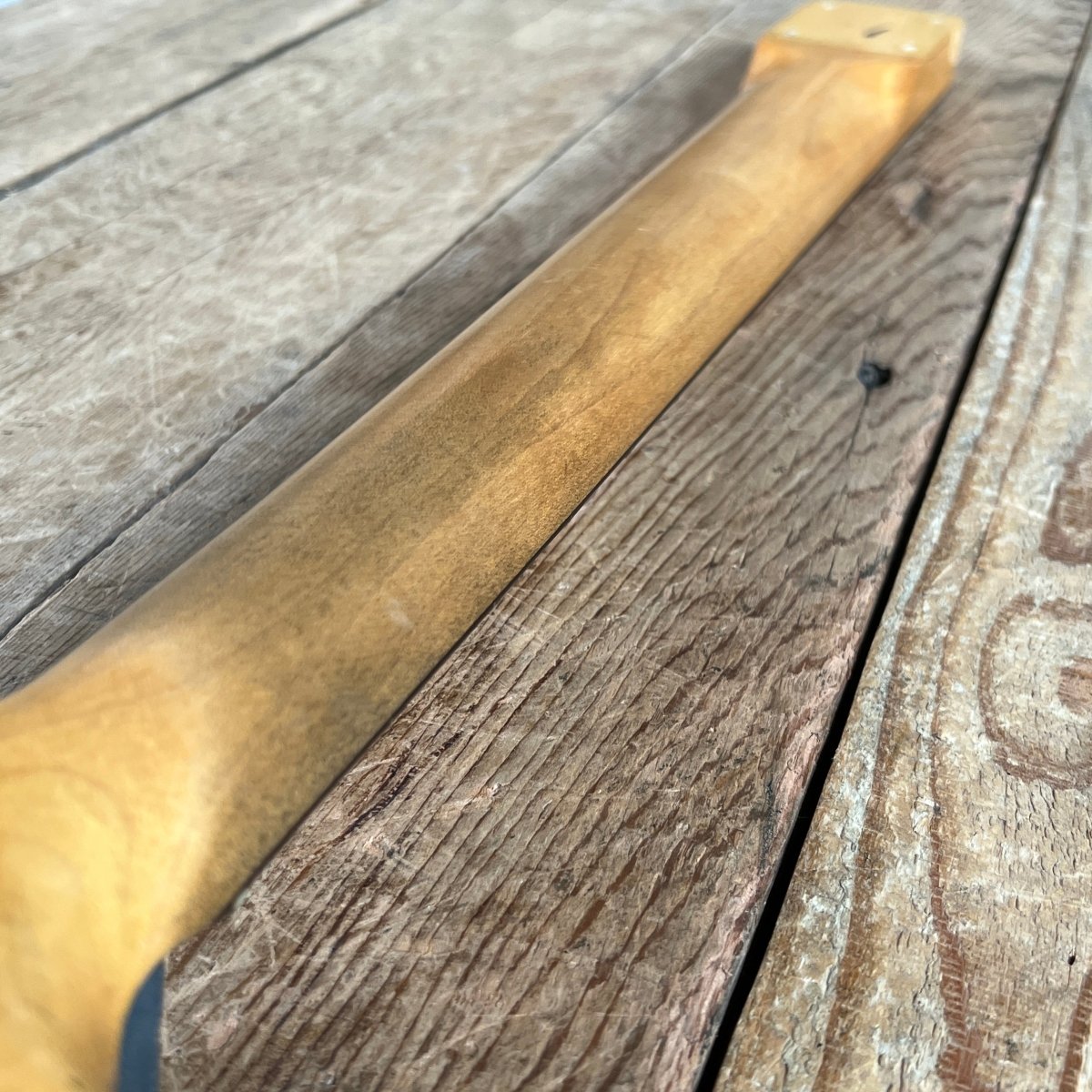

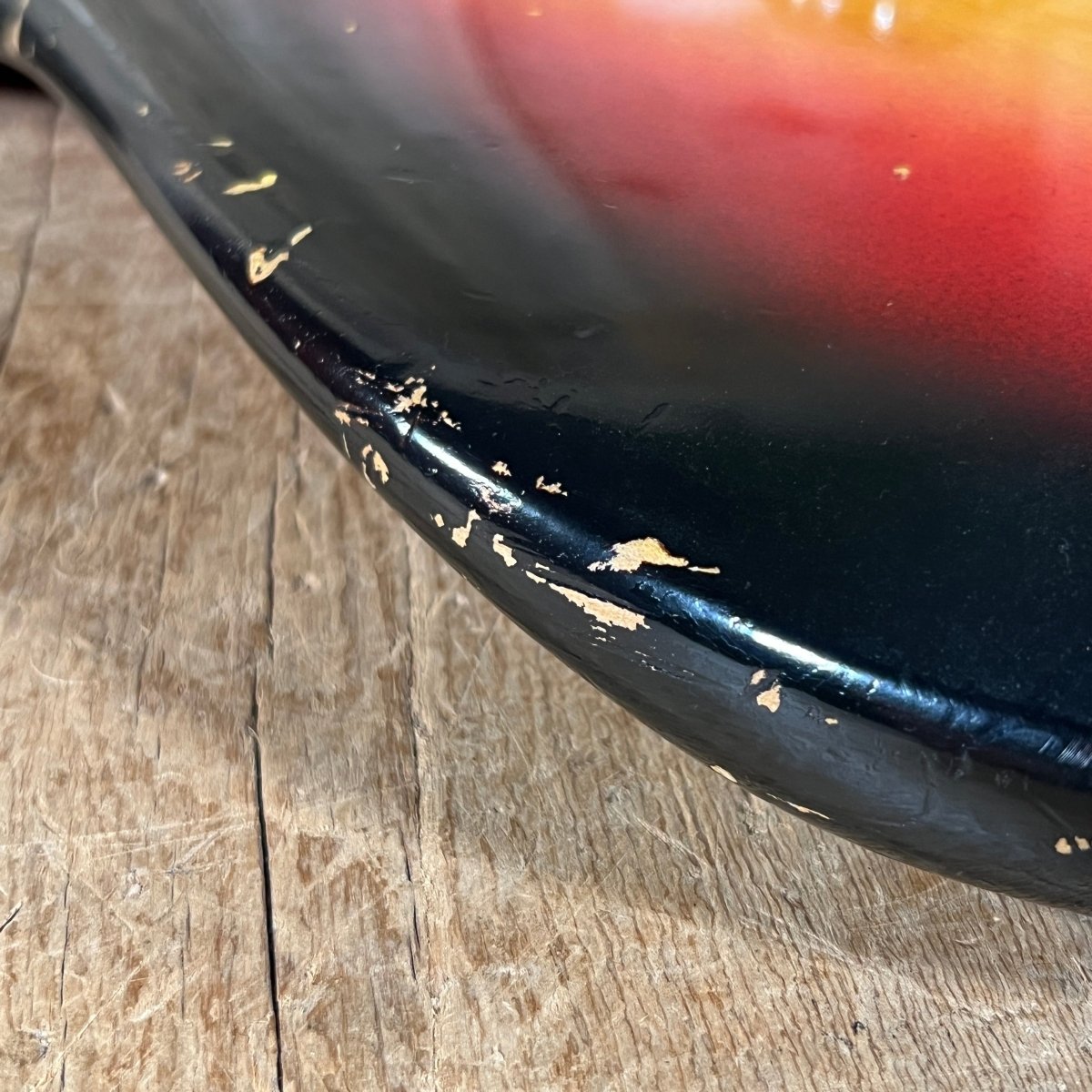

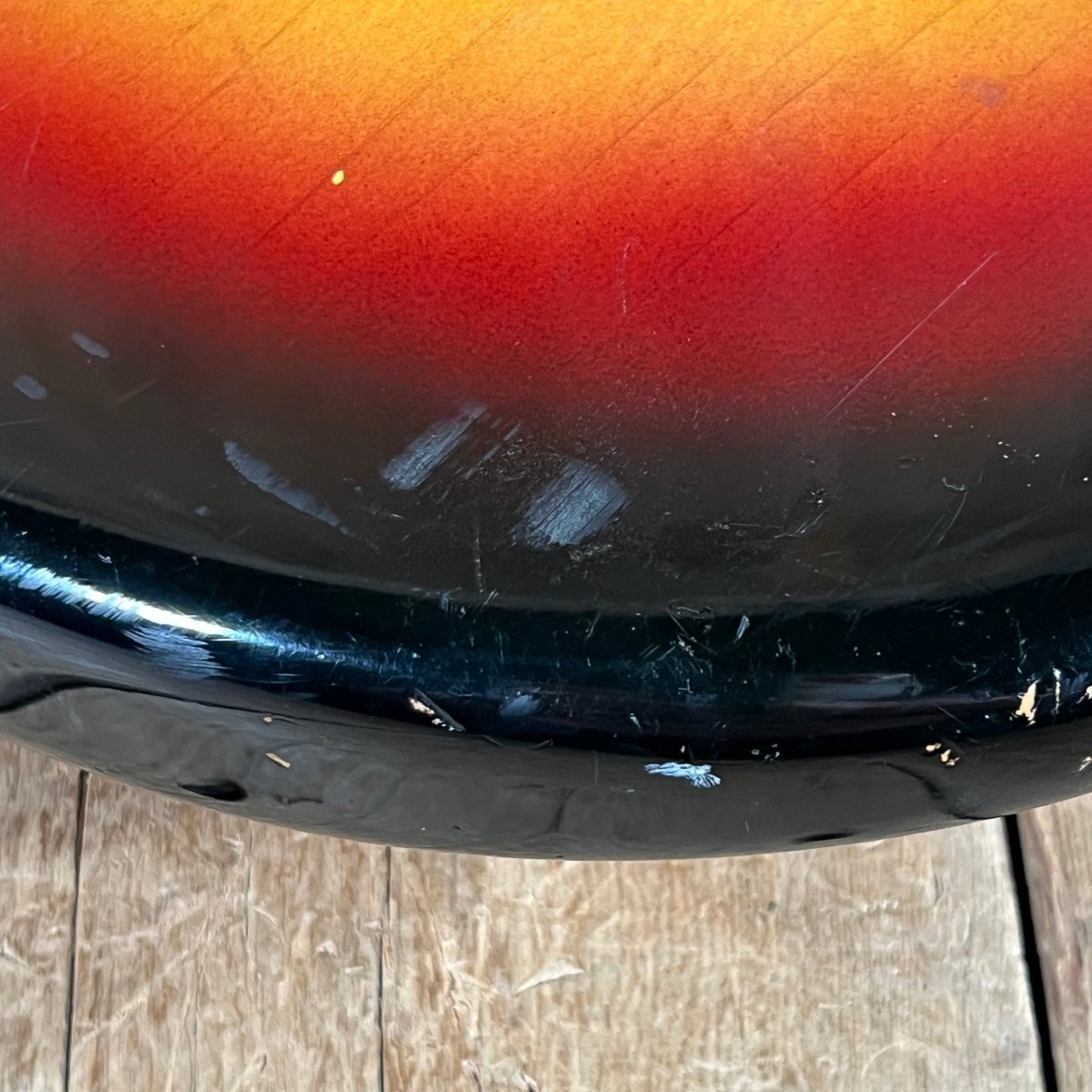

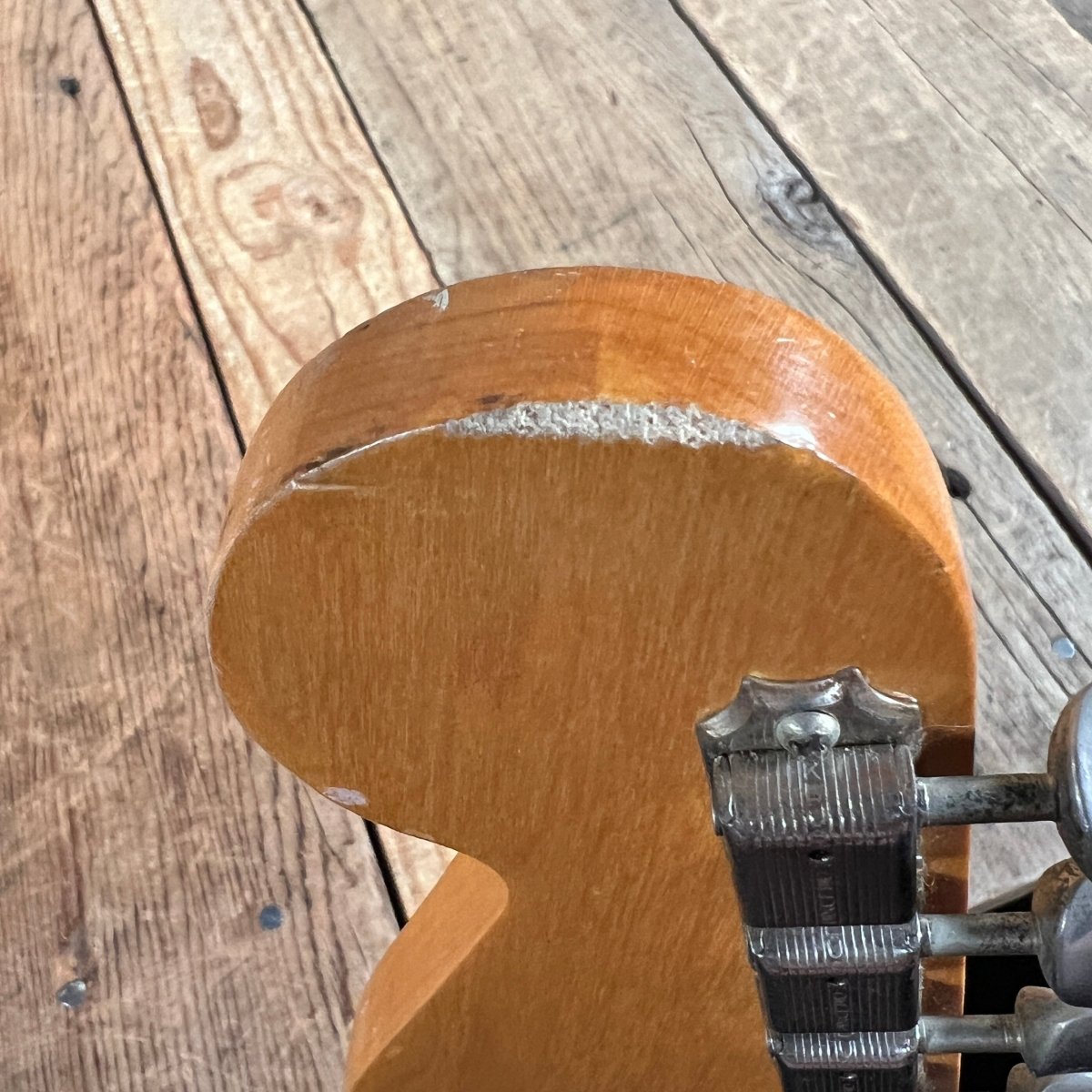

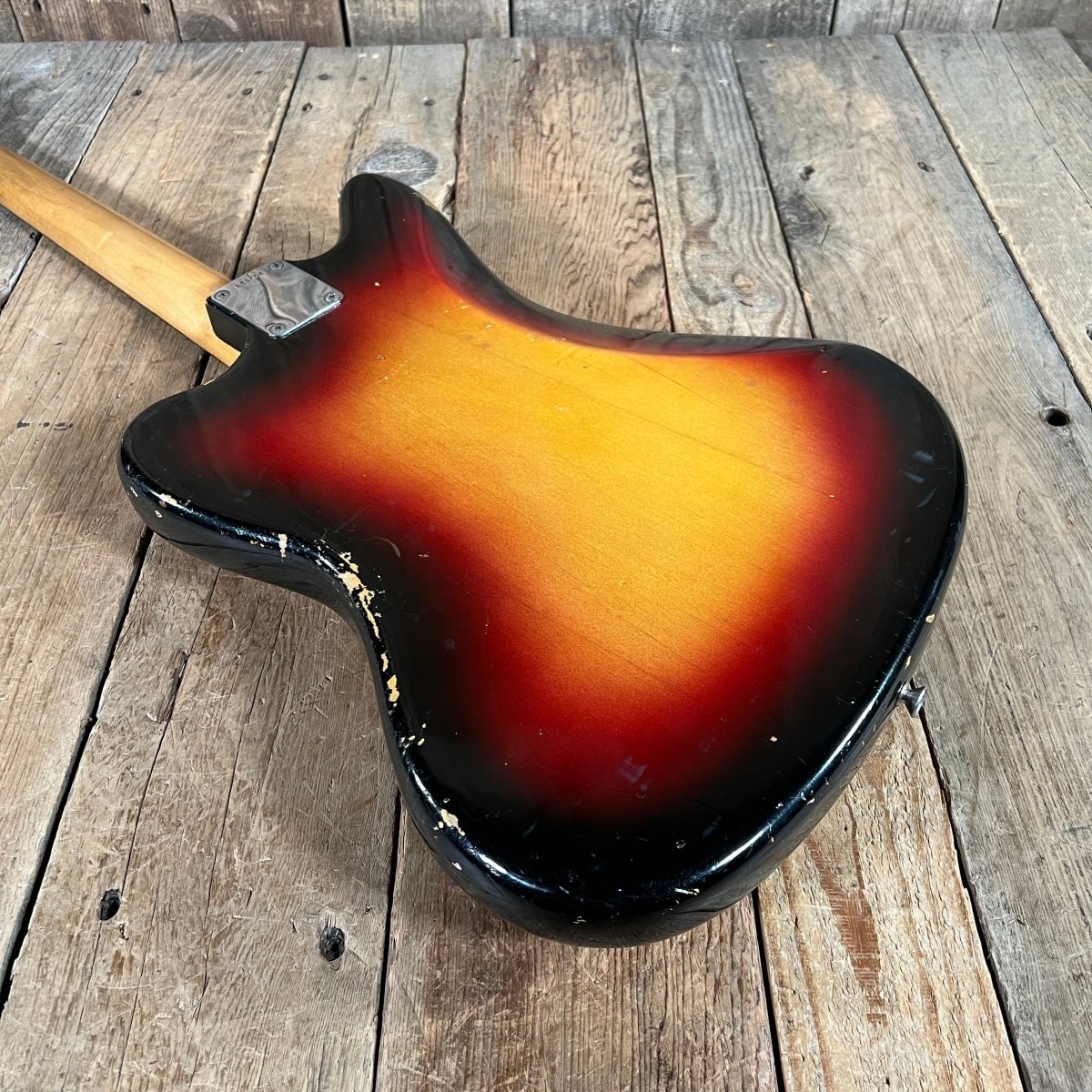

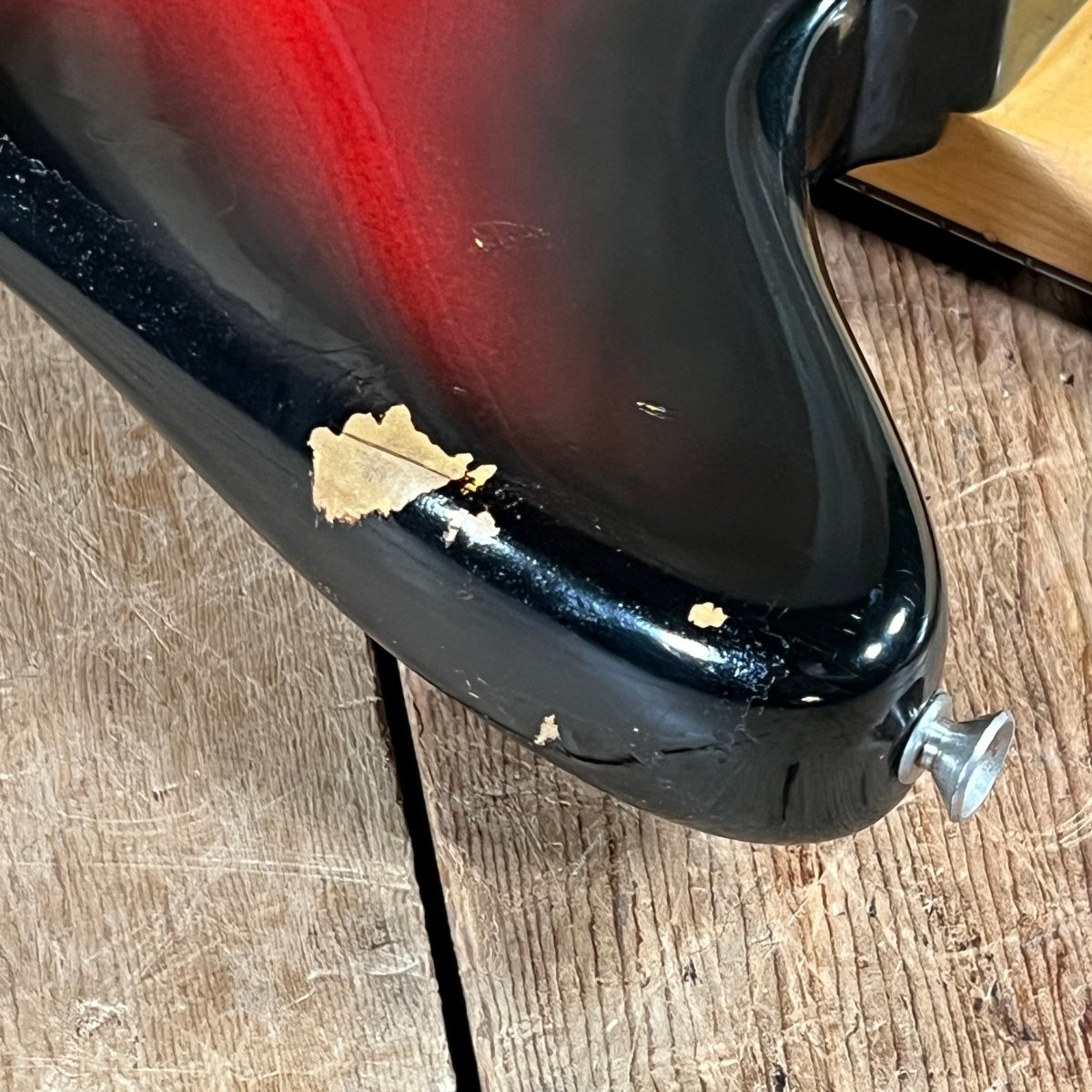

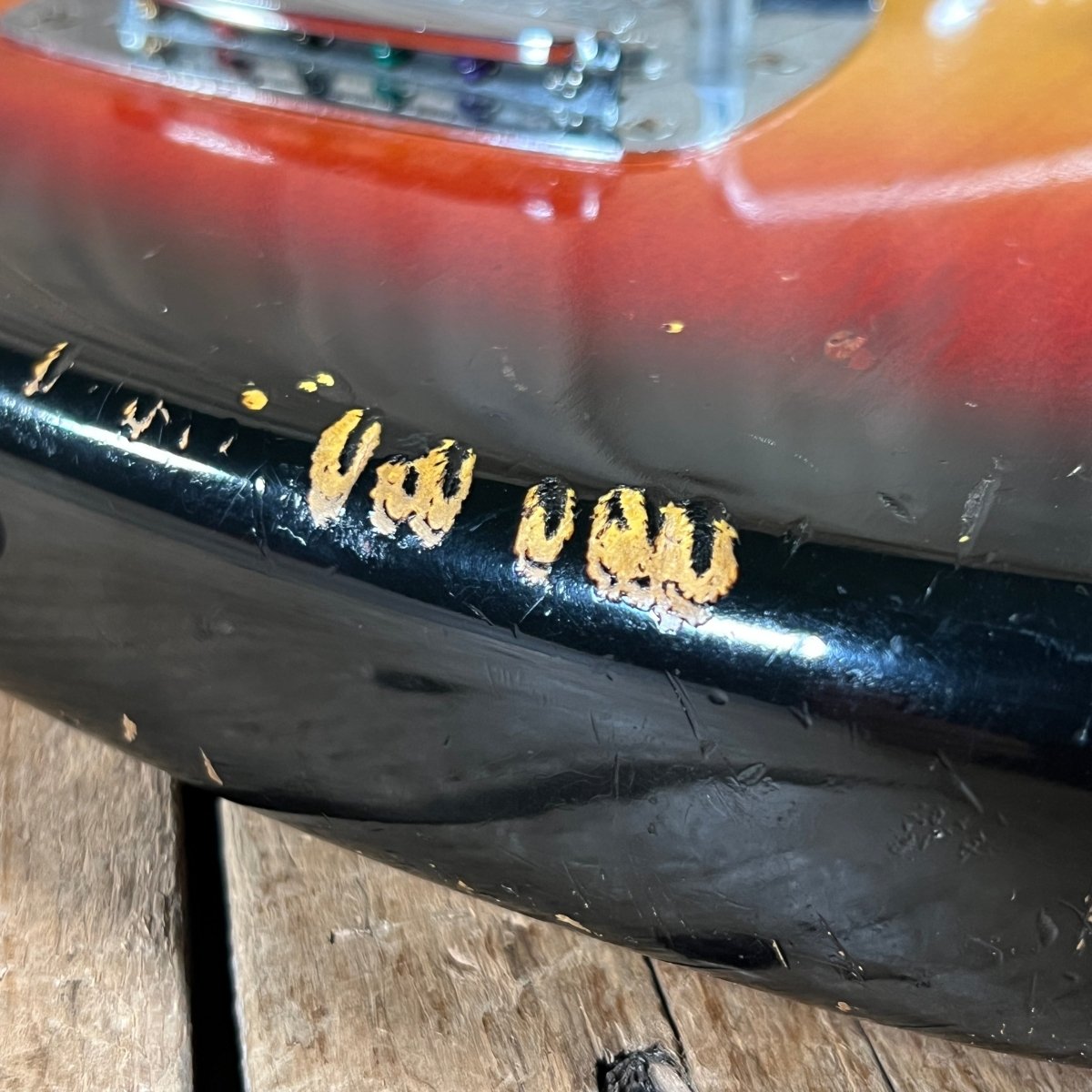

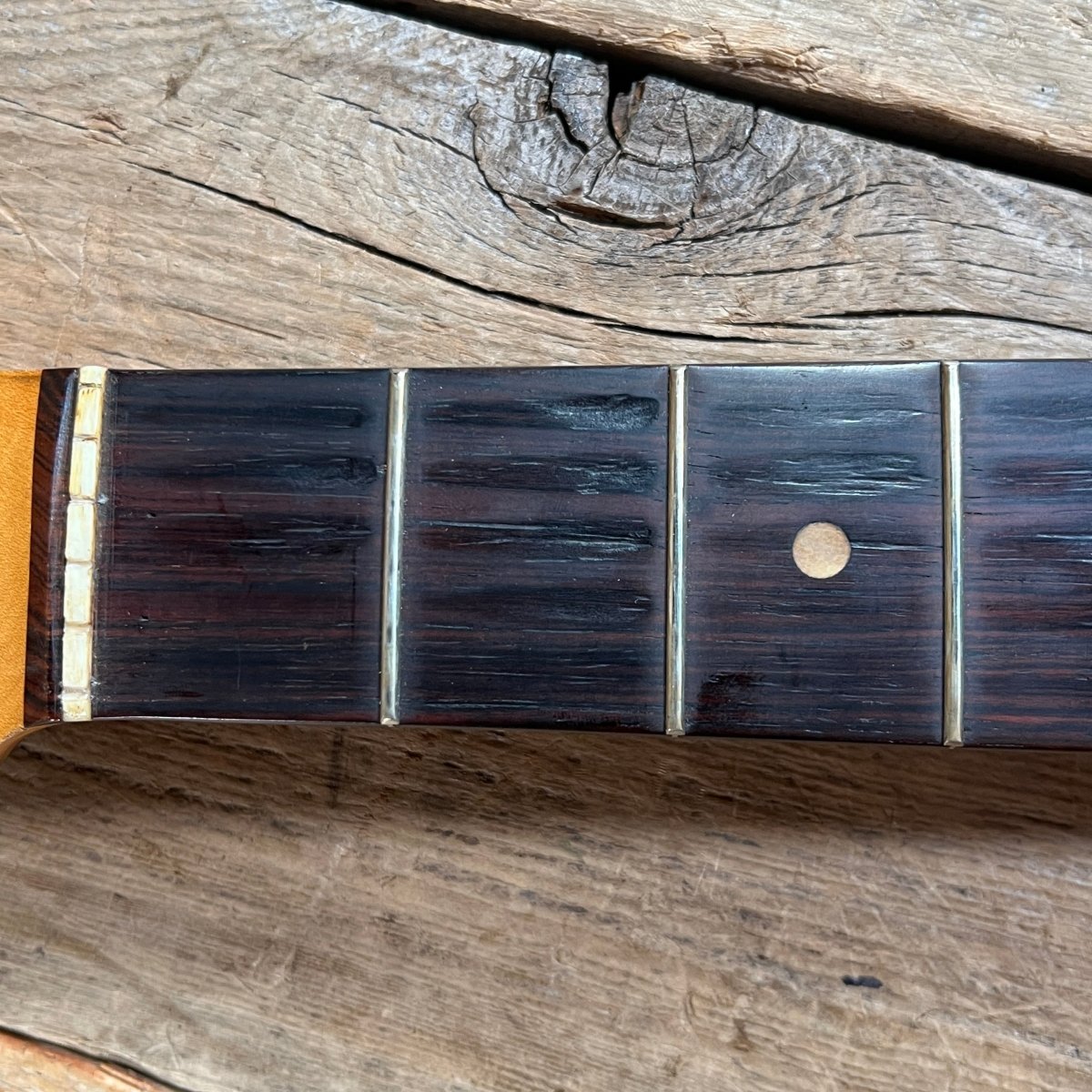

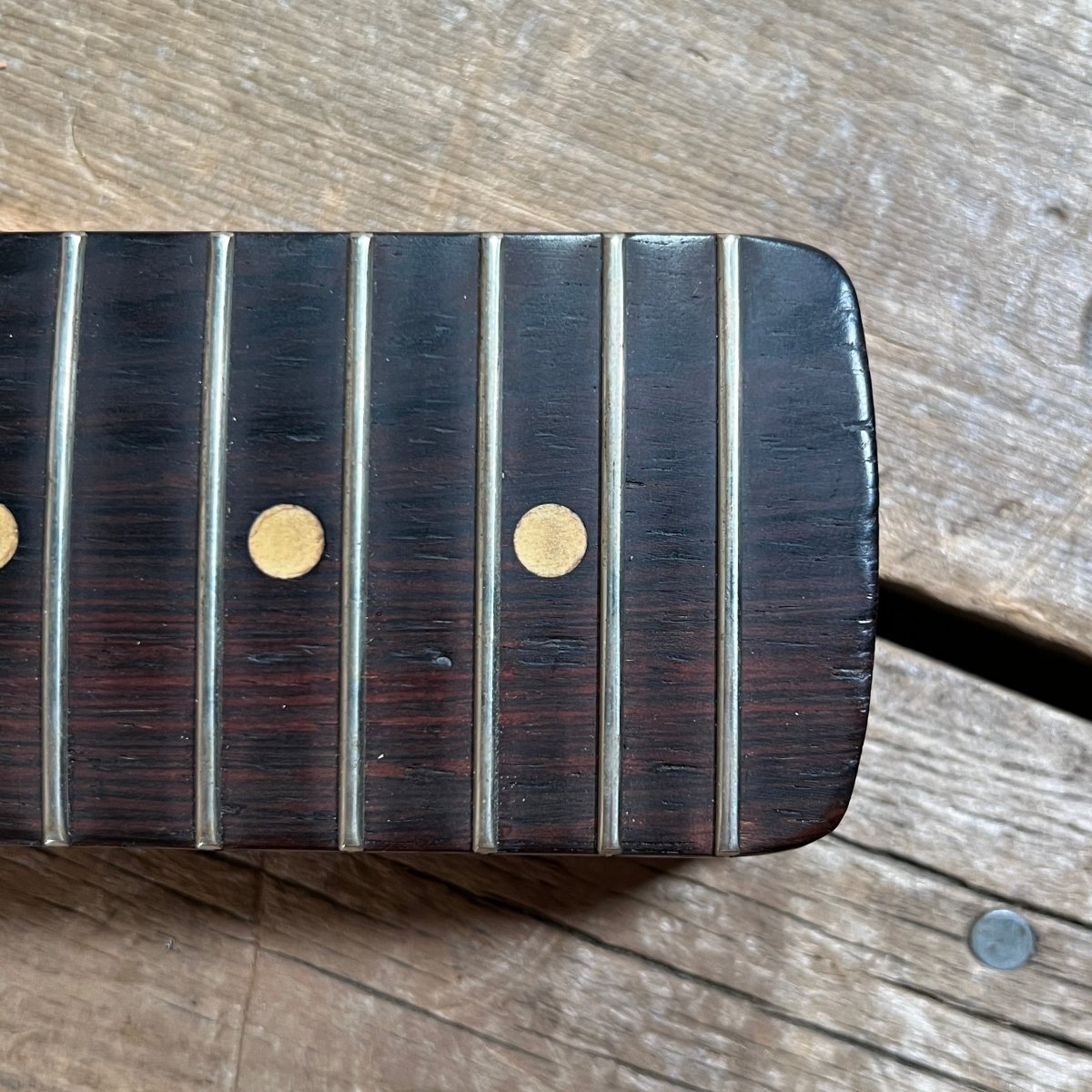

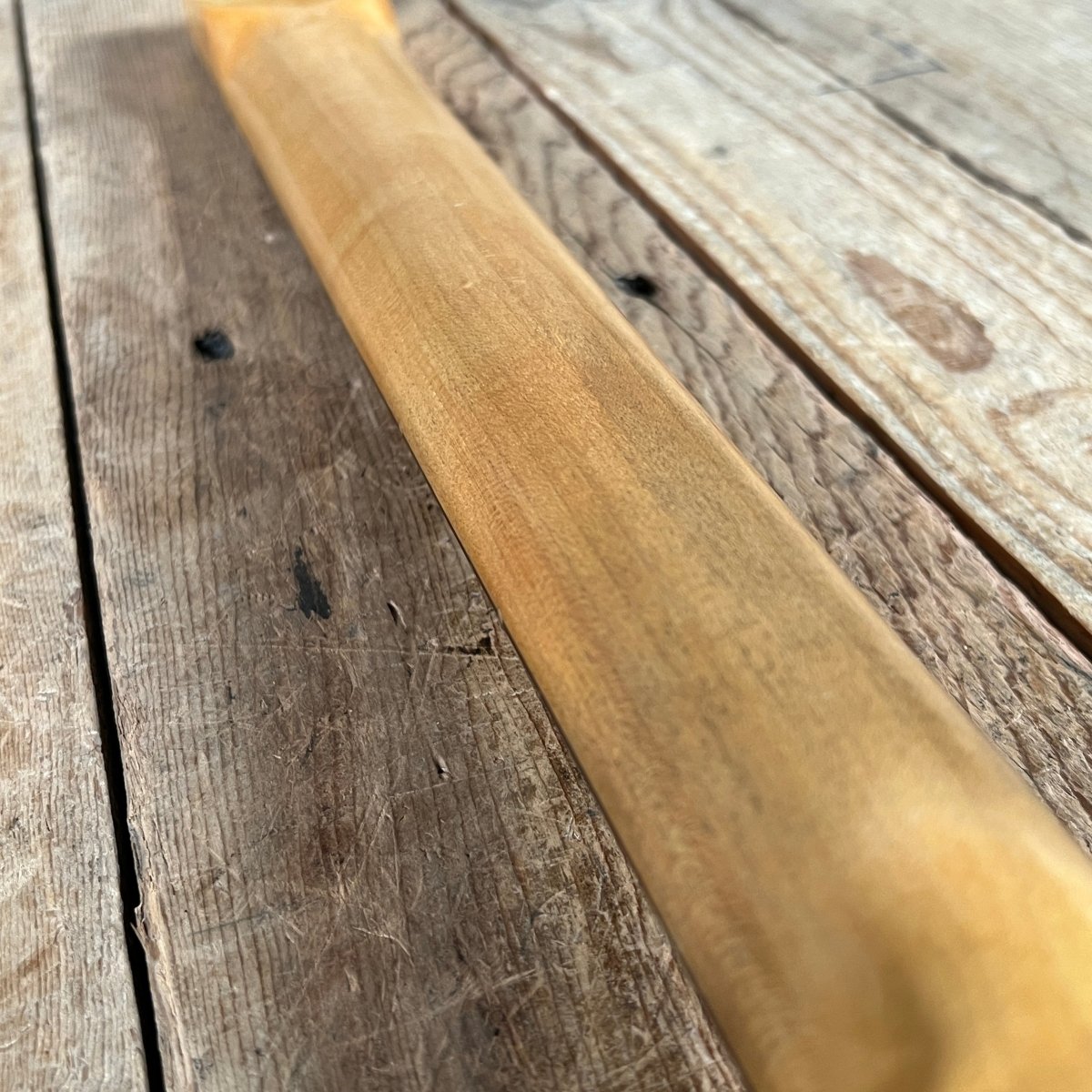

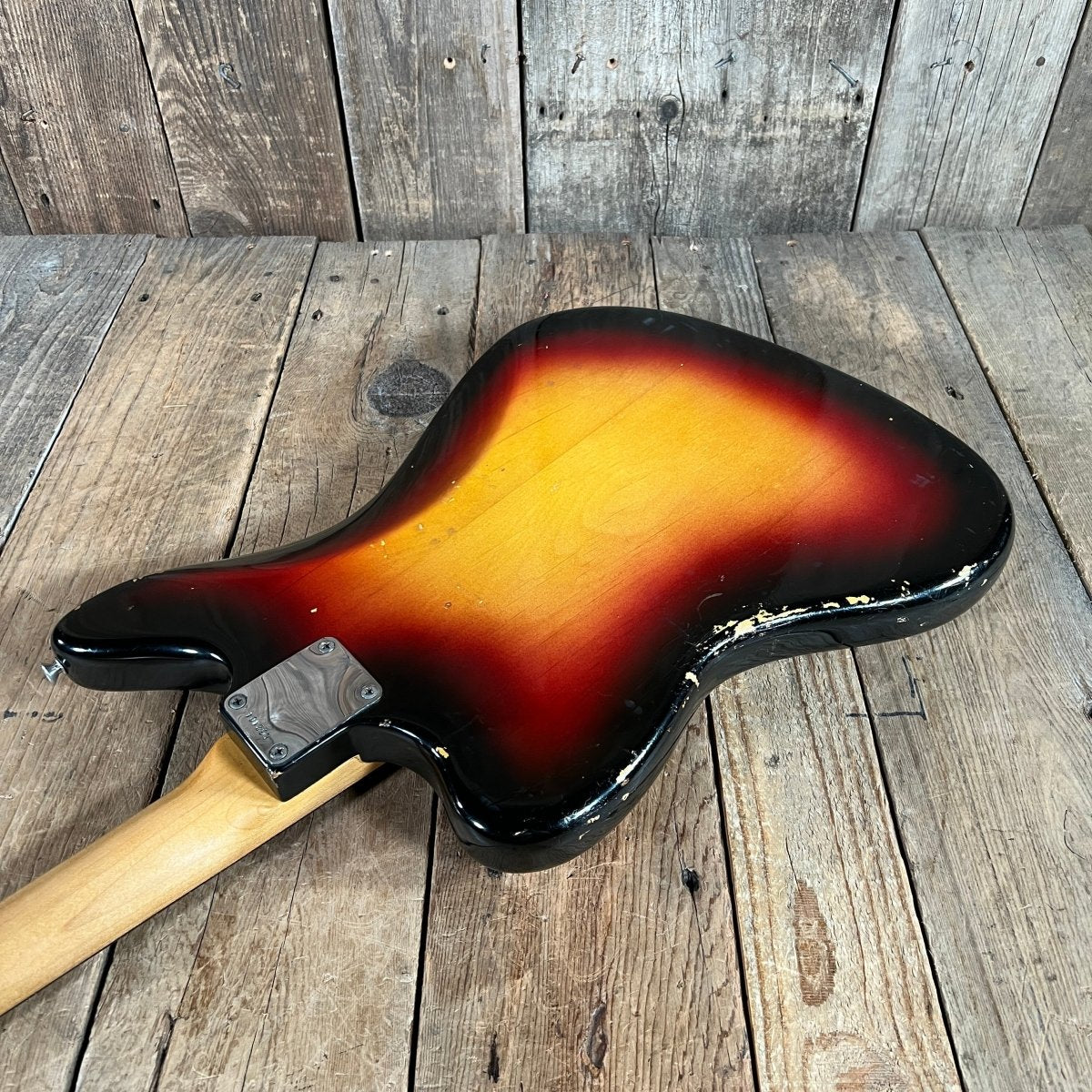

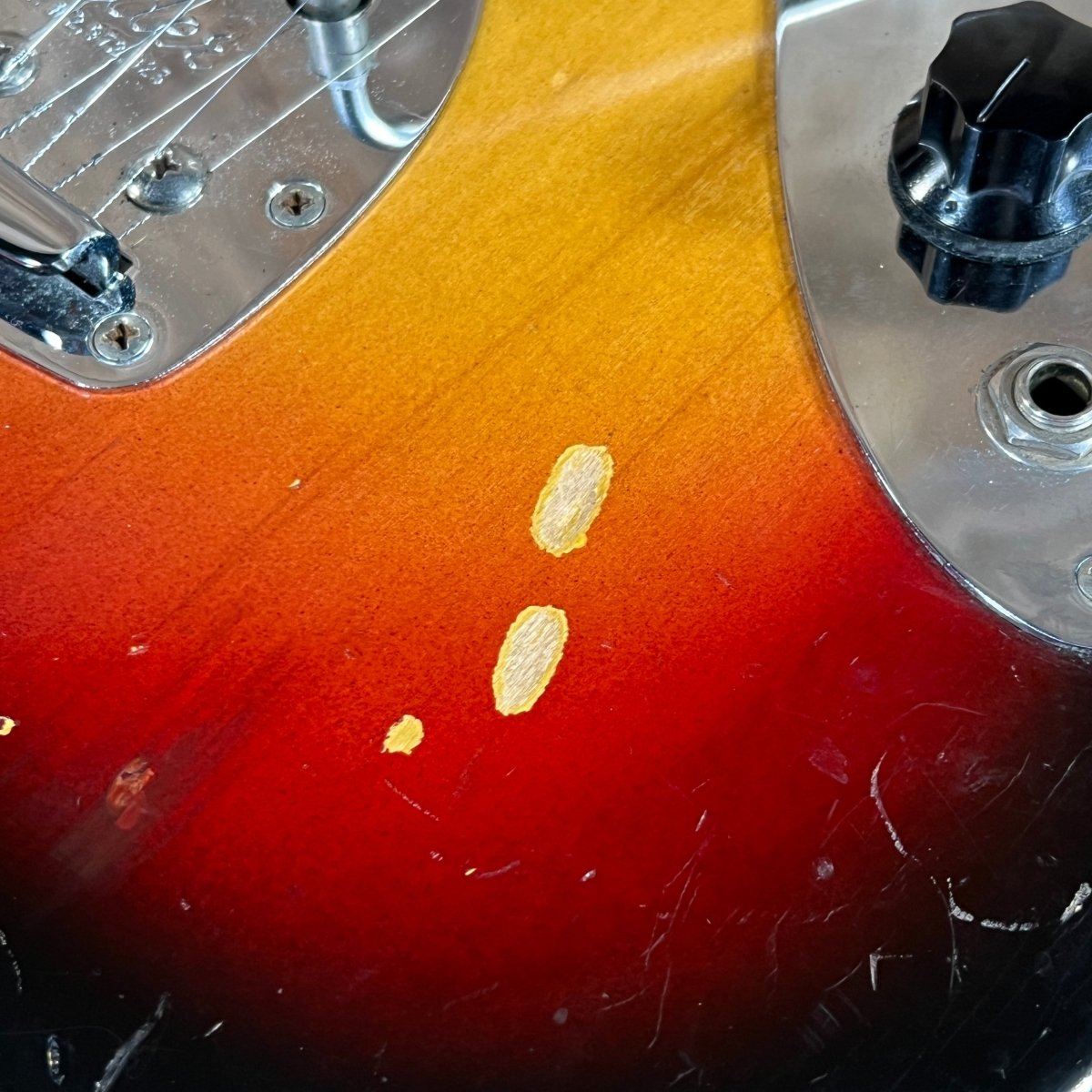

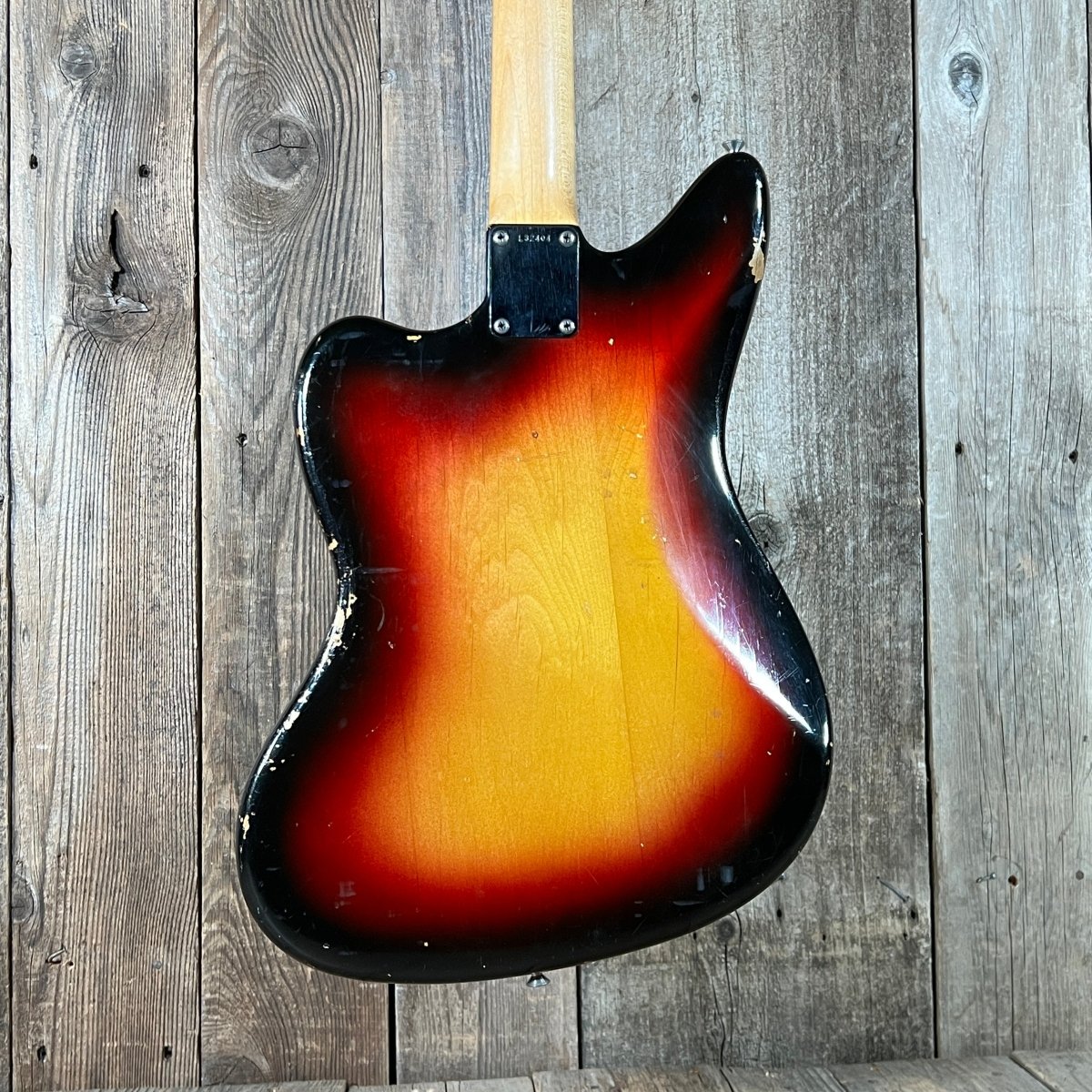

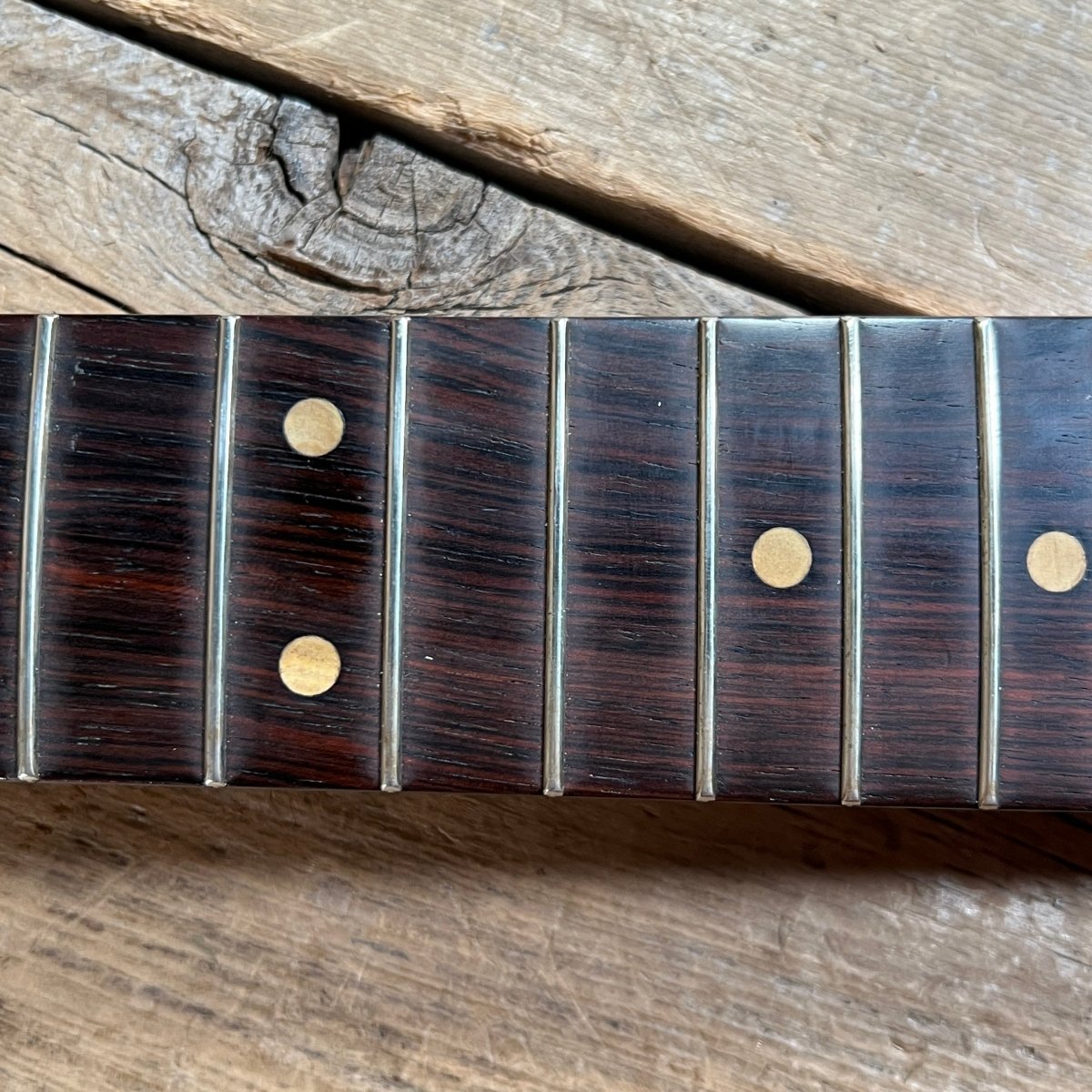

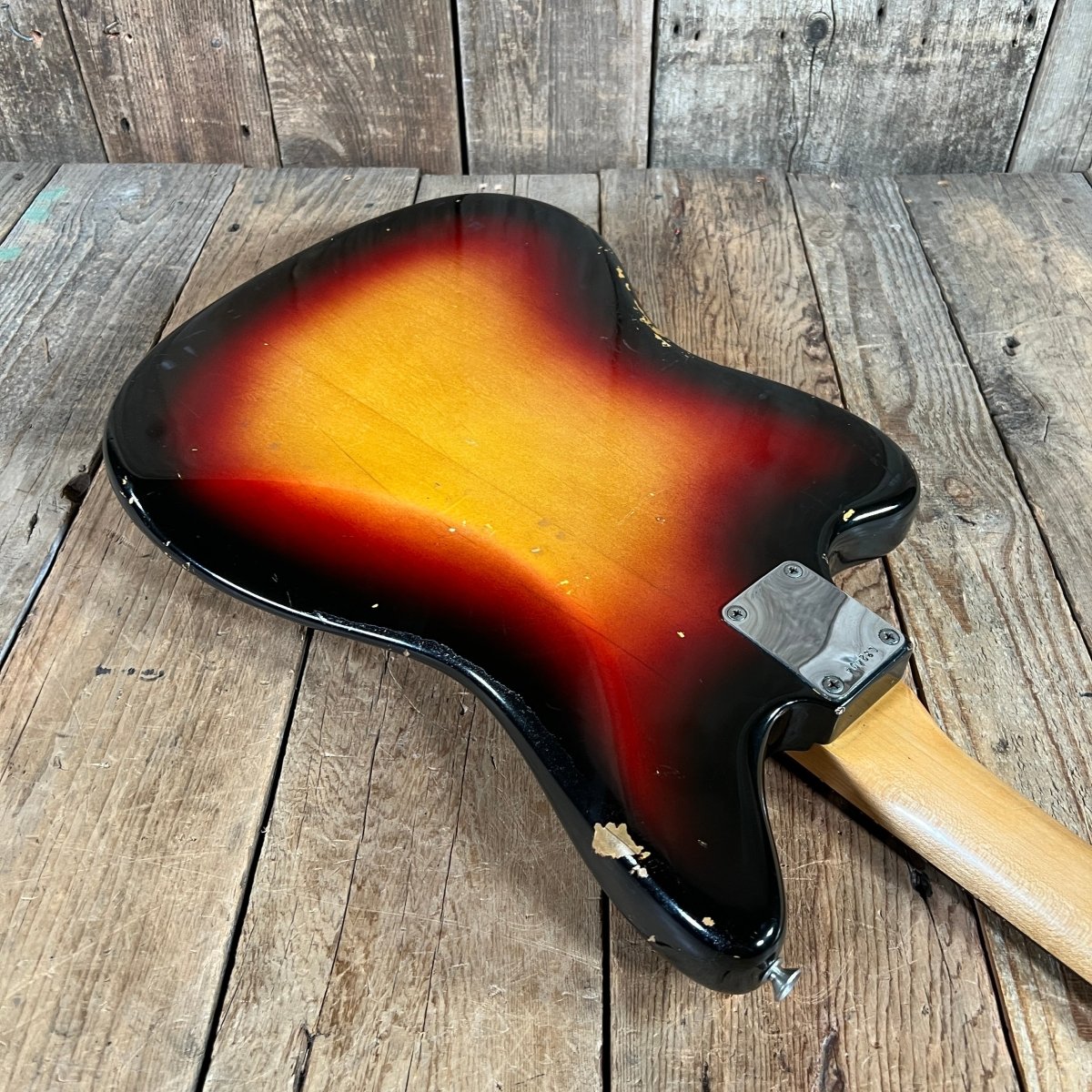

While there is no way to tell for sure, it looks as though the guitar was oversprayed.  Using a blacklight, one can see differences in the finish around the body's edges.  The finish looks to be very much like an original.  It is definitely nitrocellulose, so I am assuming that the guitar went back for the work prior to 1968.  The neck does not appear to have been refinished or oversprayed.  A professional refret was performed however, perhaps when the guitar was at Fender.  The frets are full and they are of appropriate size for the vintage of the guitar.

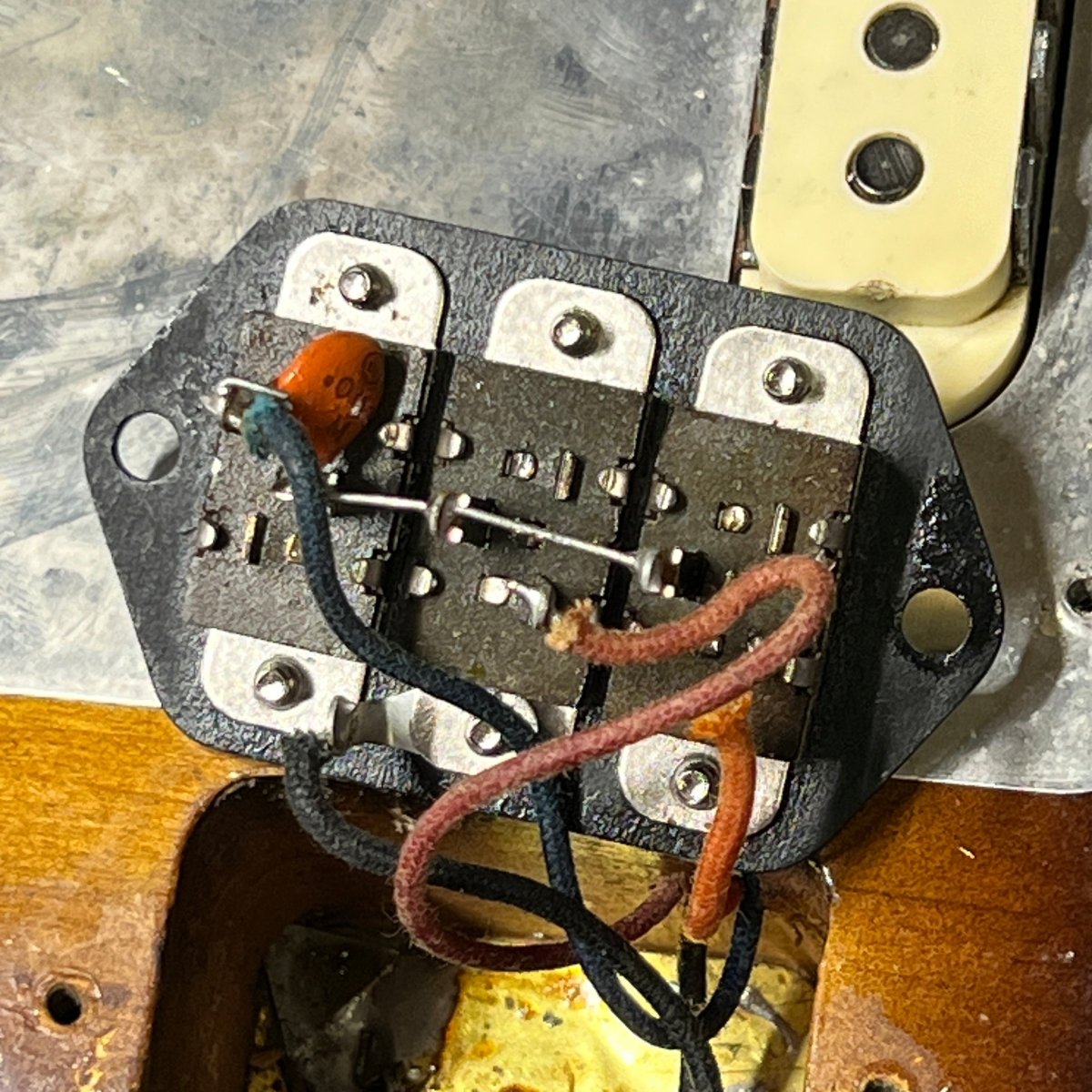

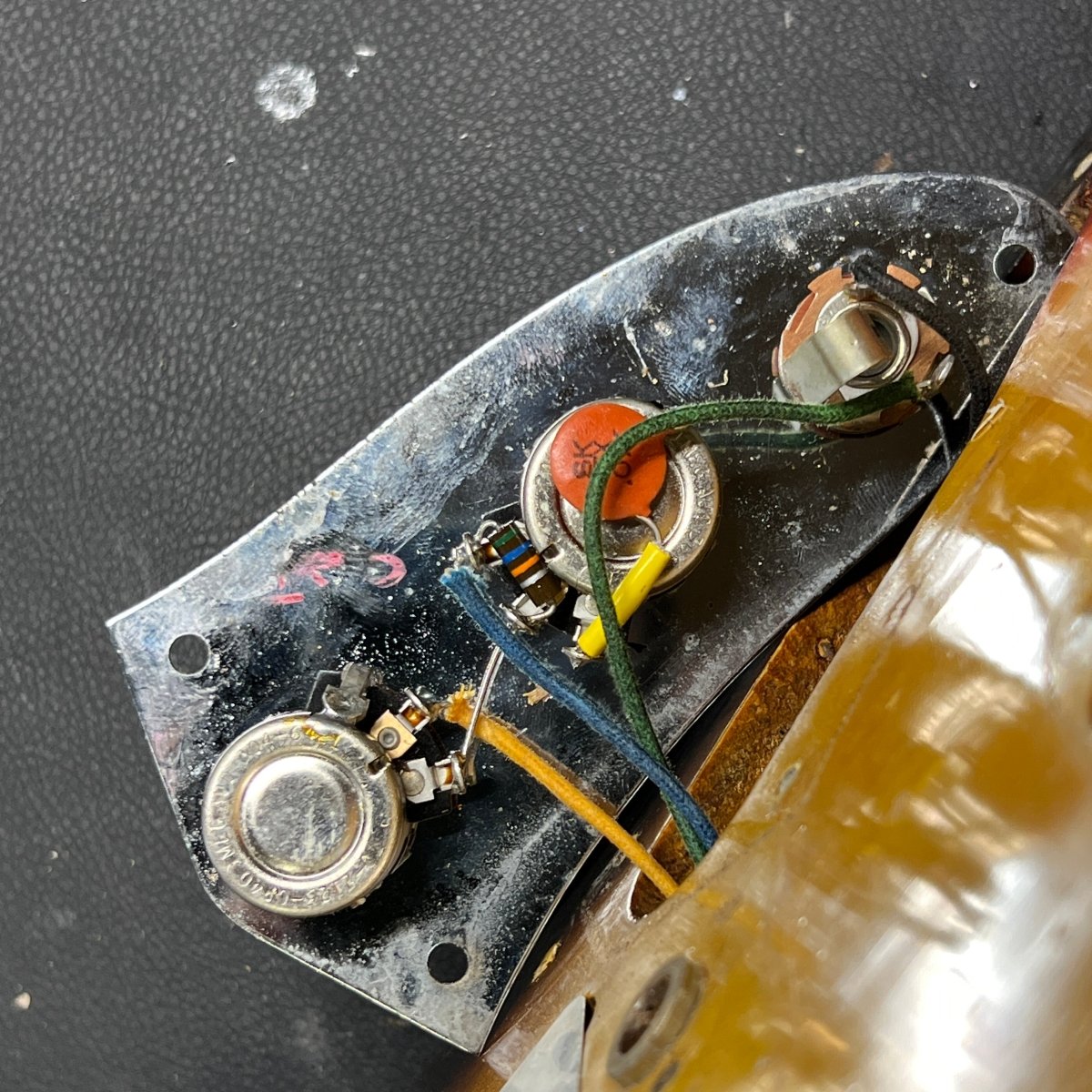

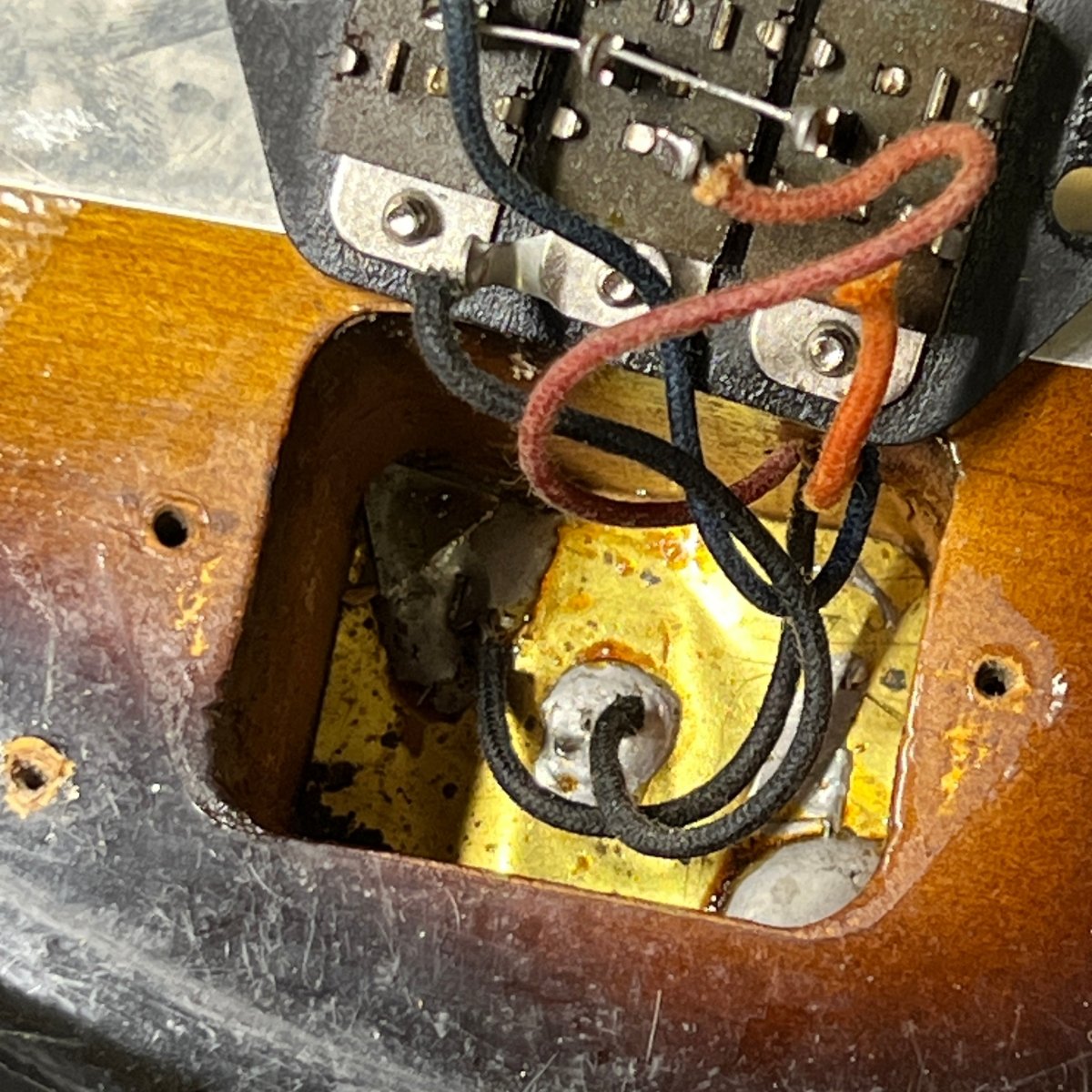

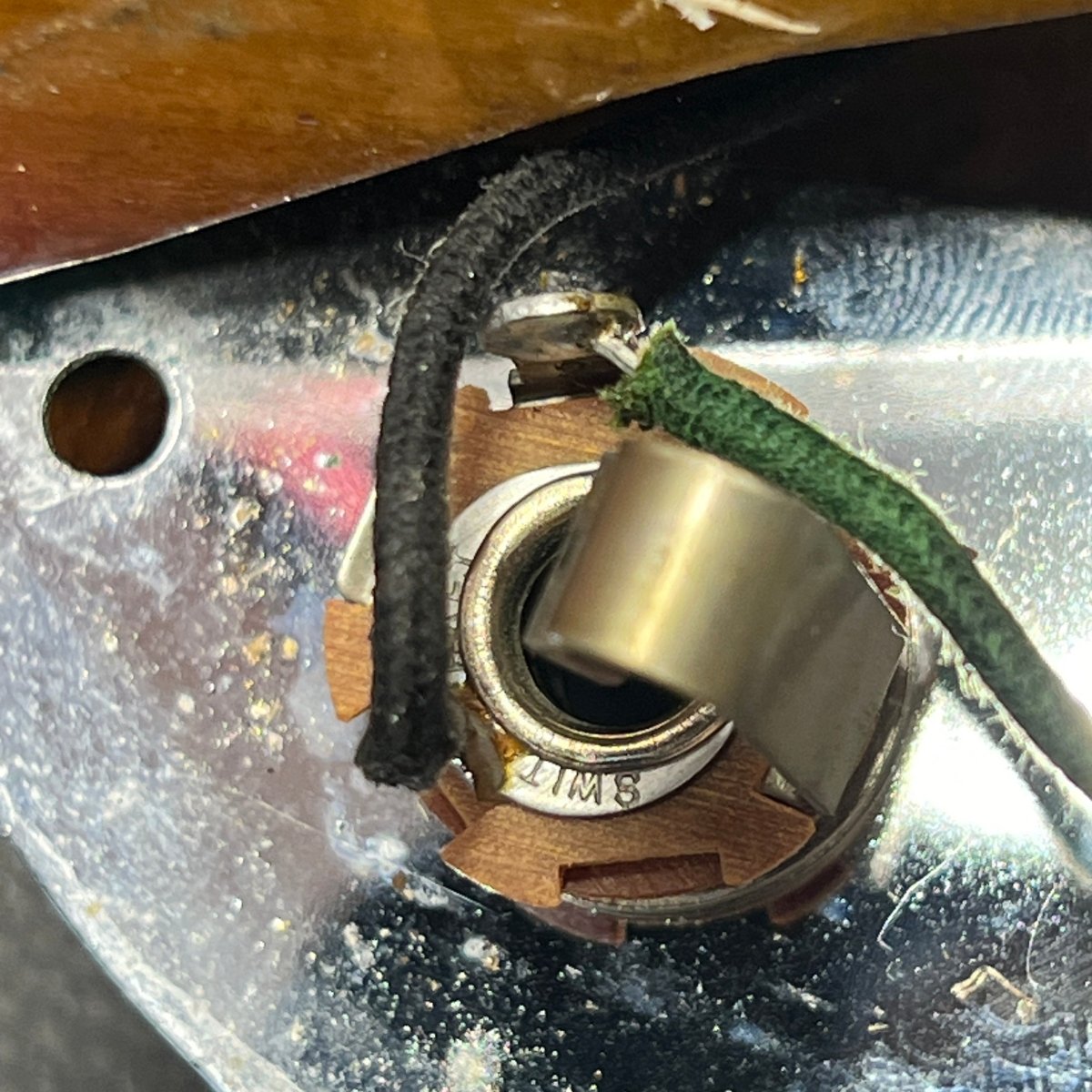

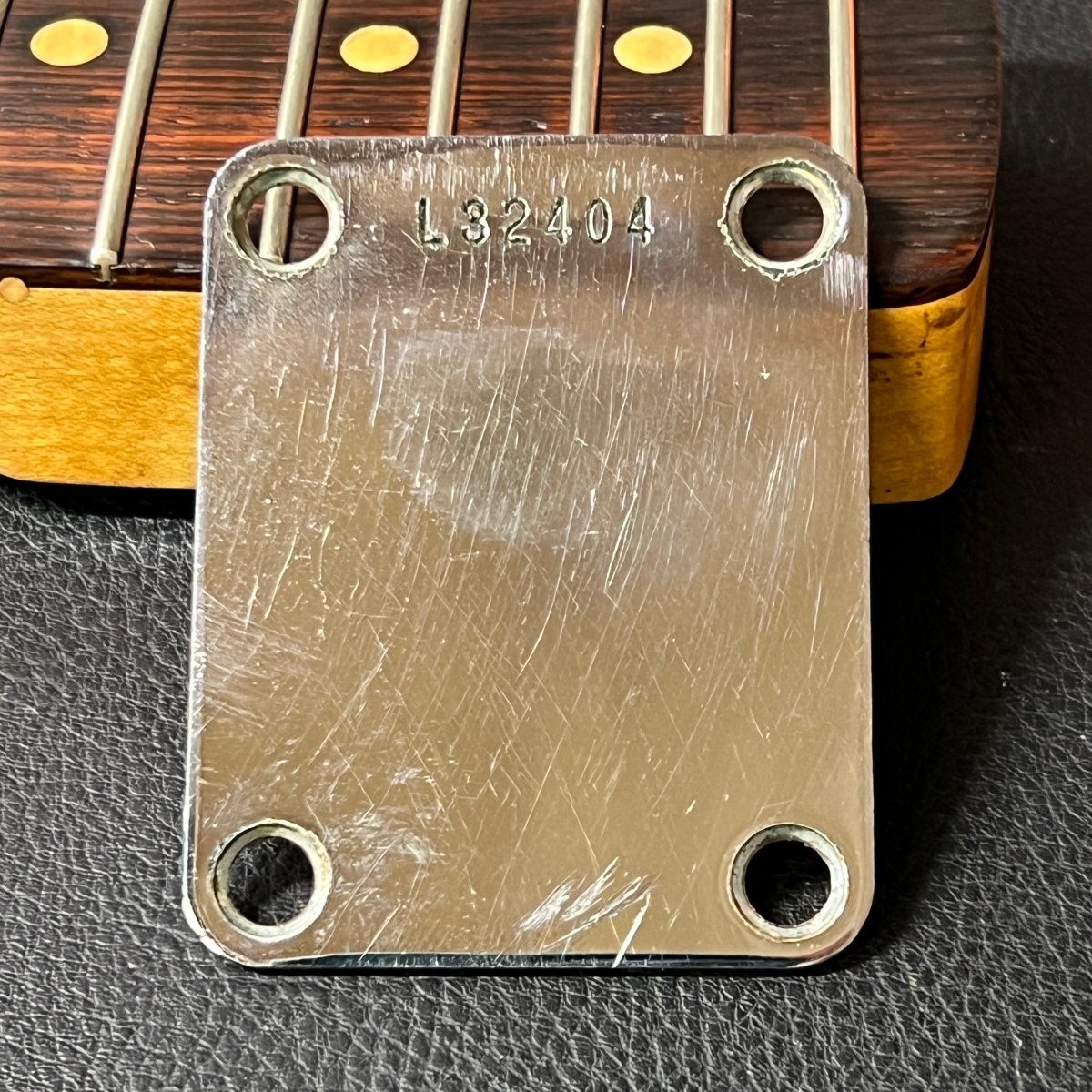

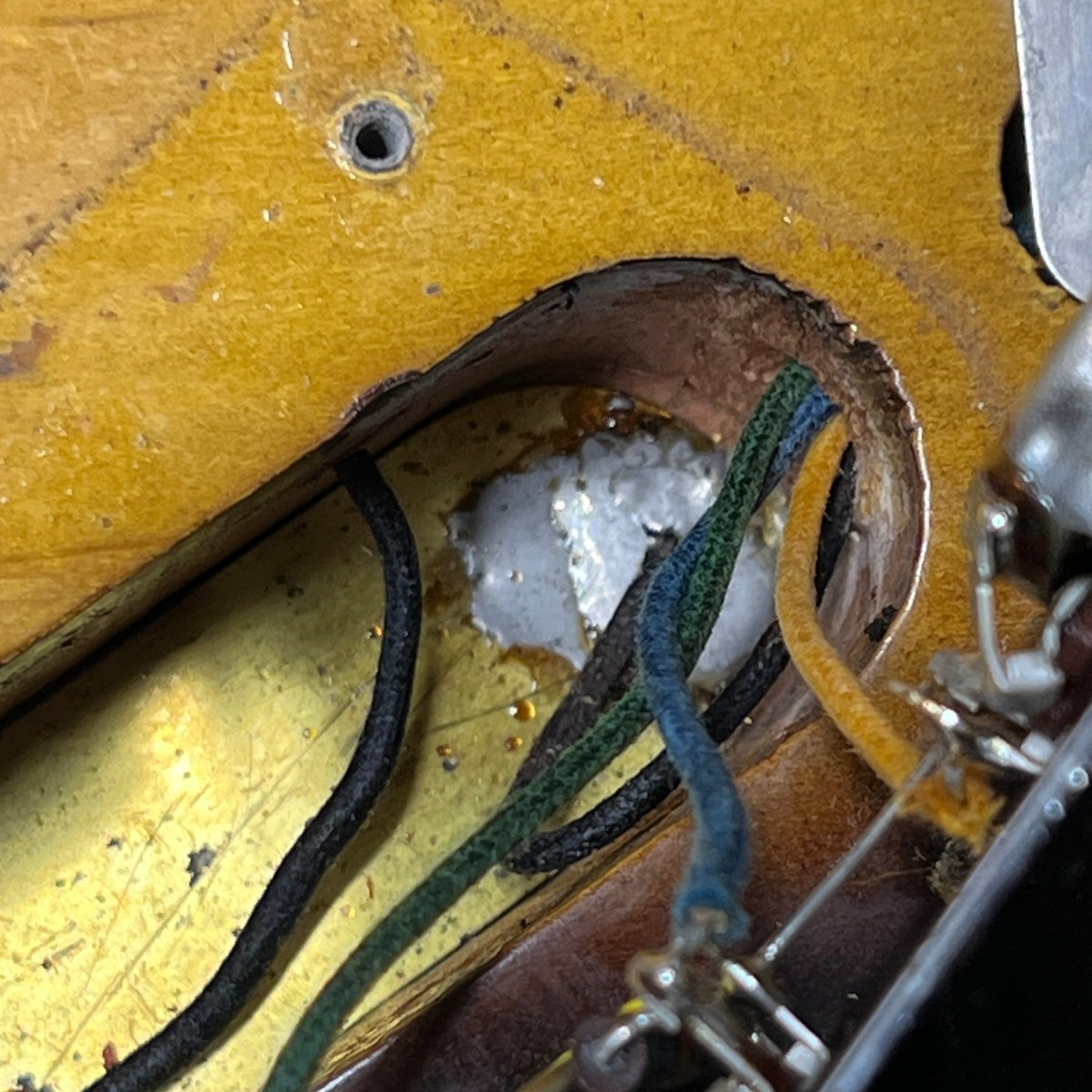

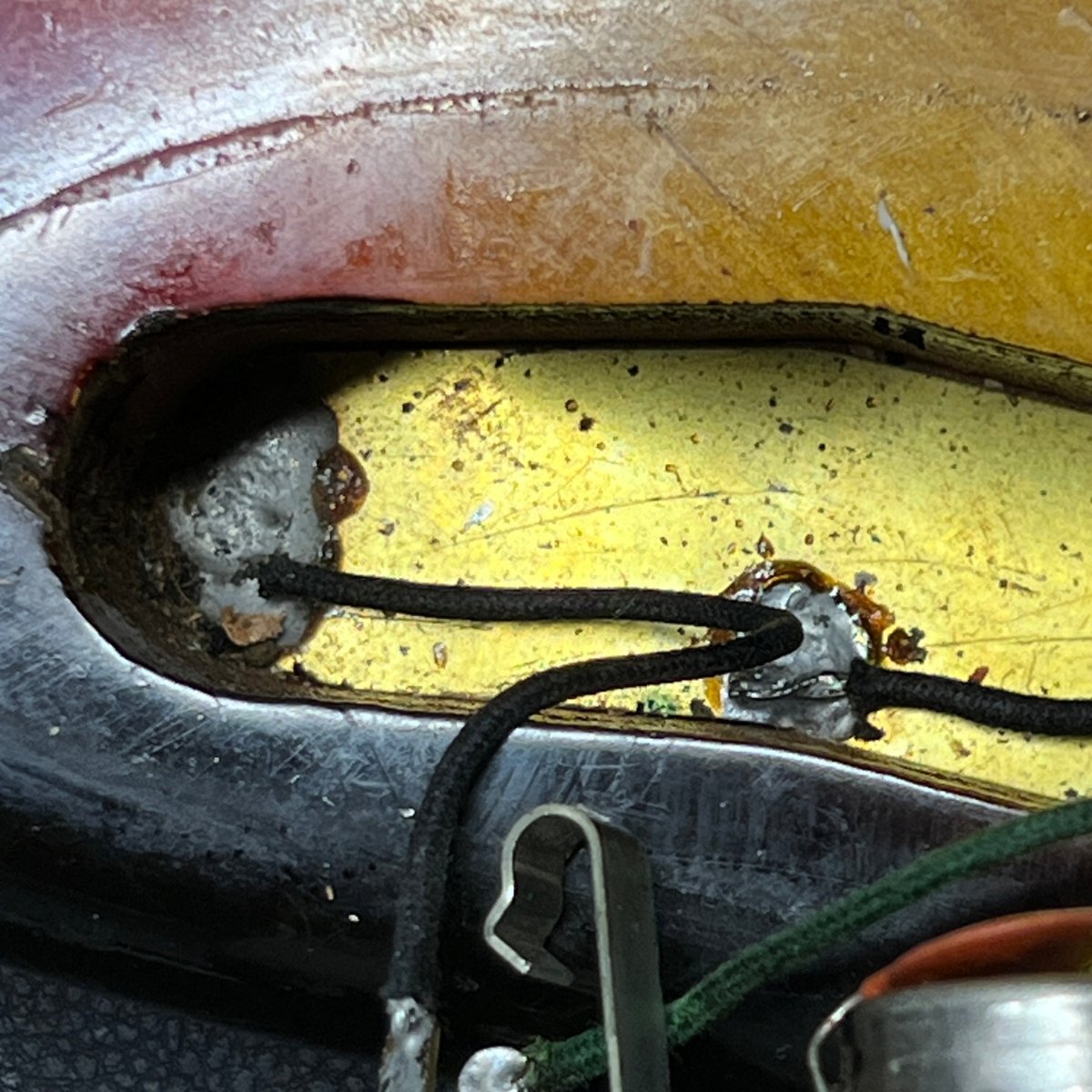

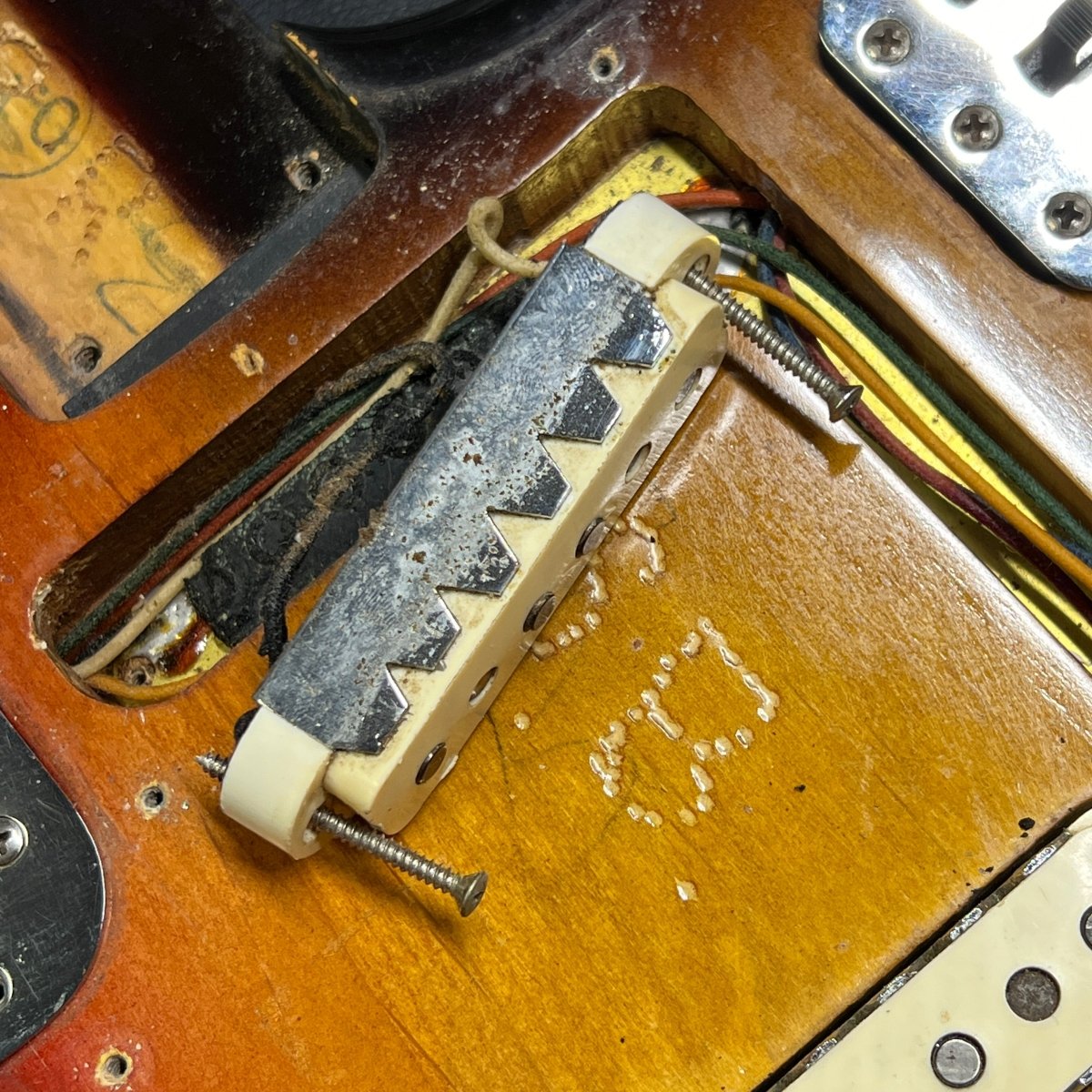

All the electronics are original.  The body date is from late 1963 and the neck date and serial number is from early 1964.

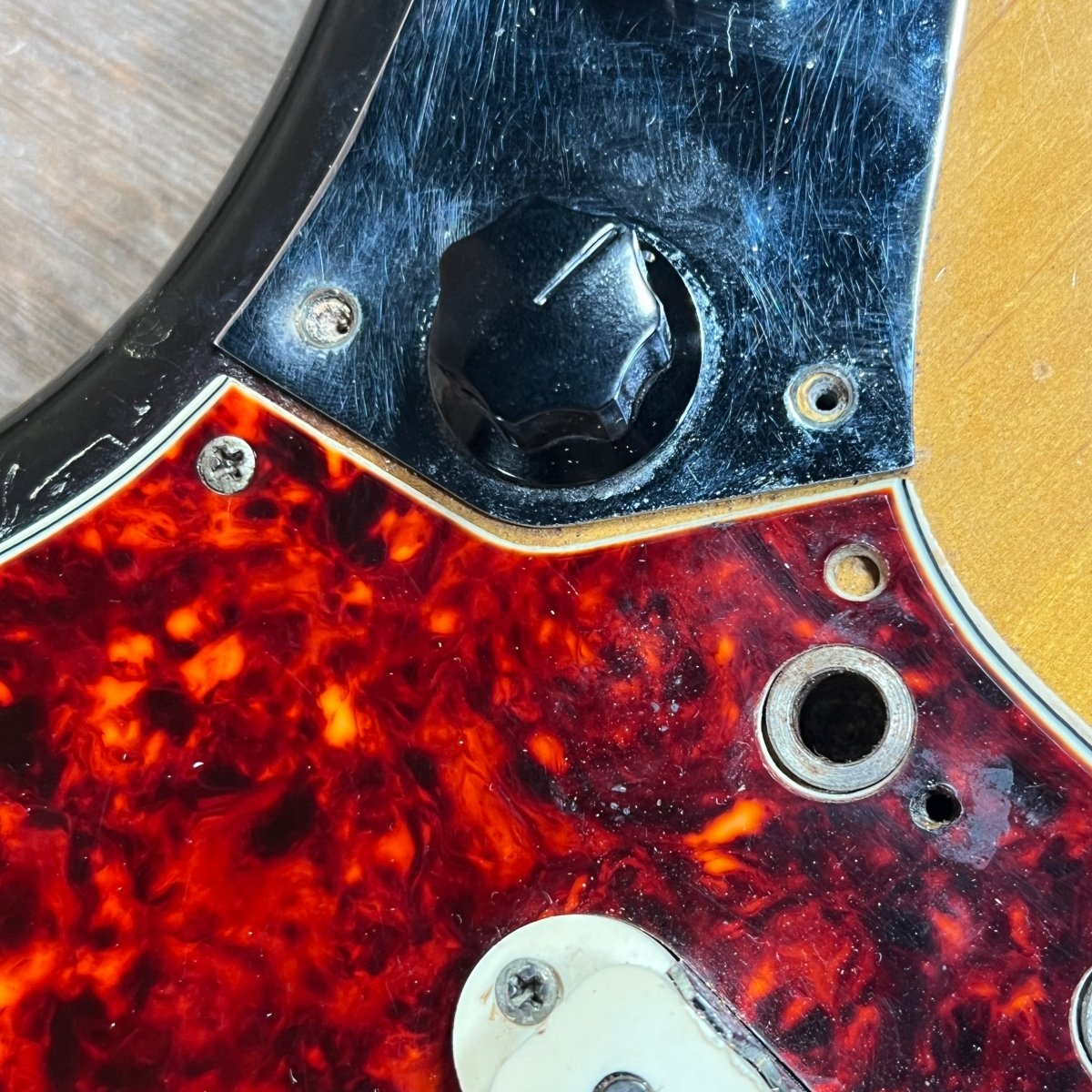

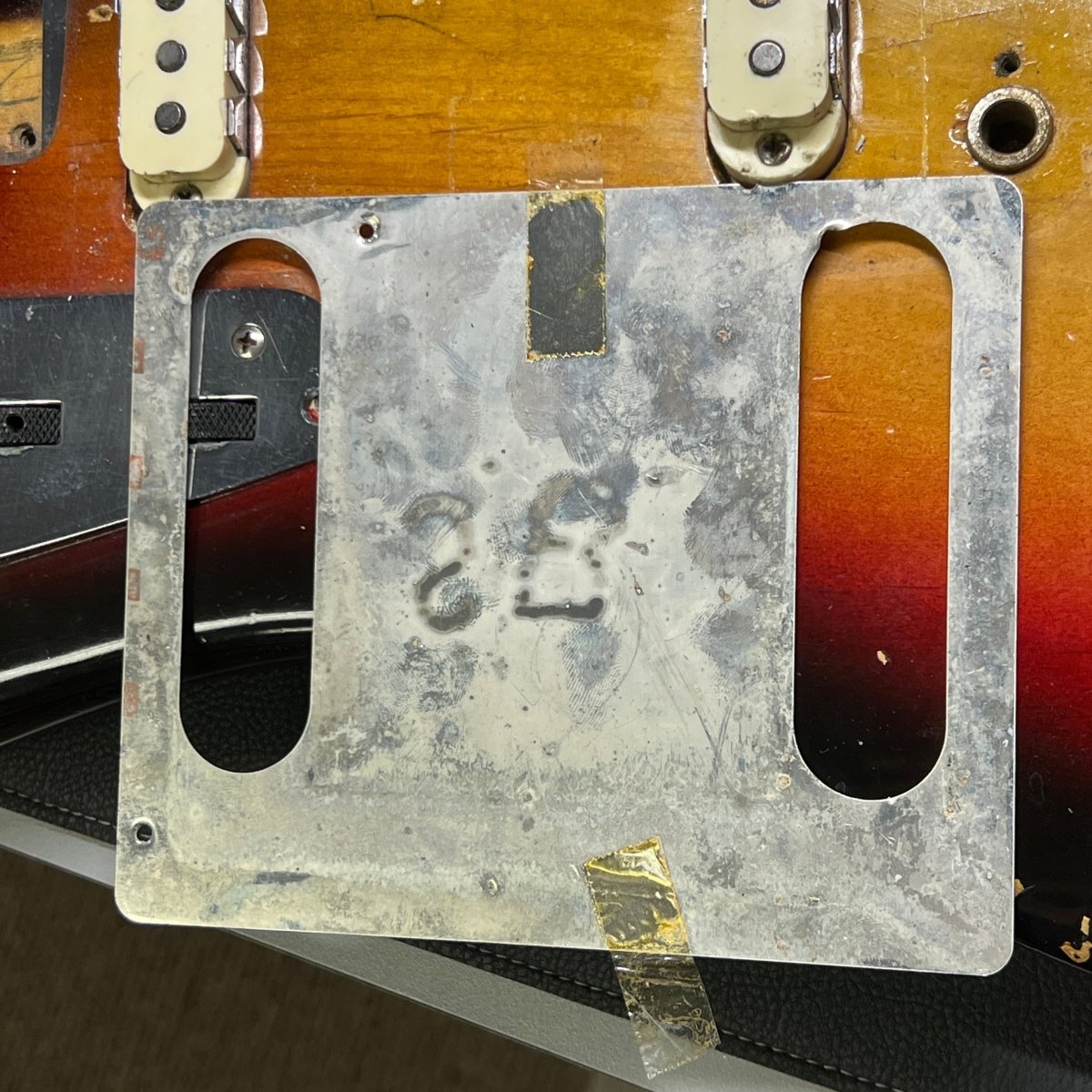

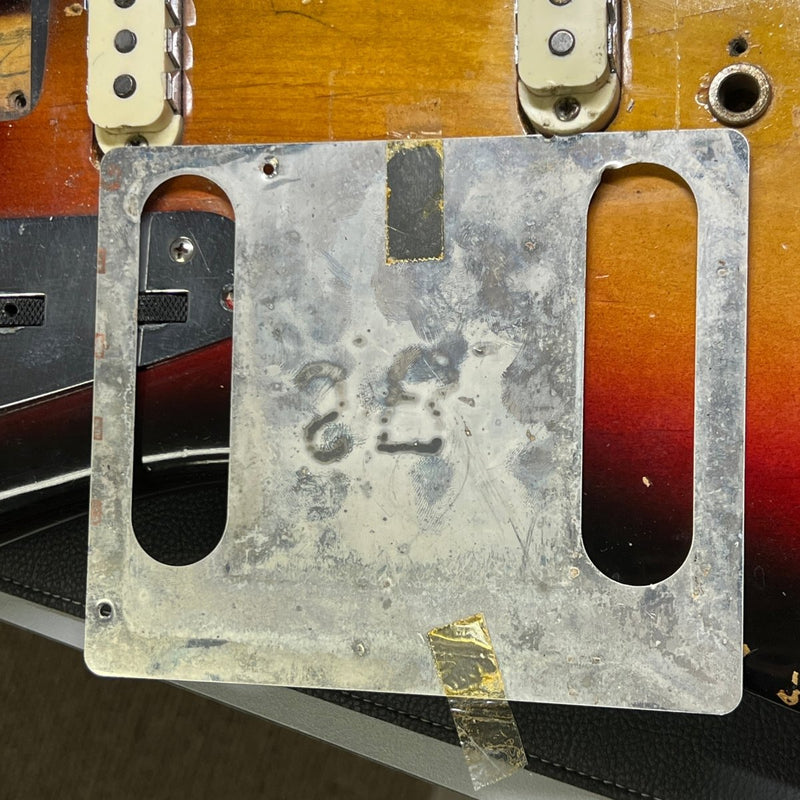

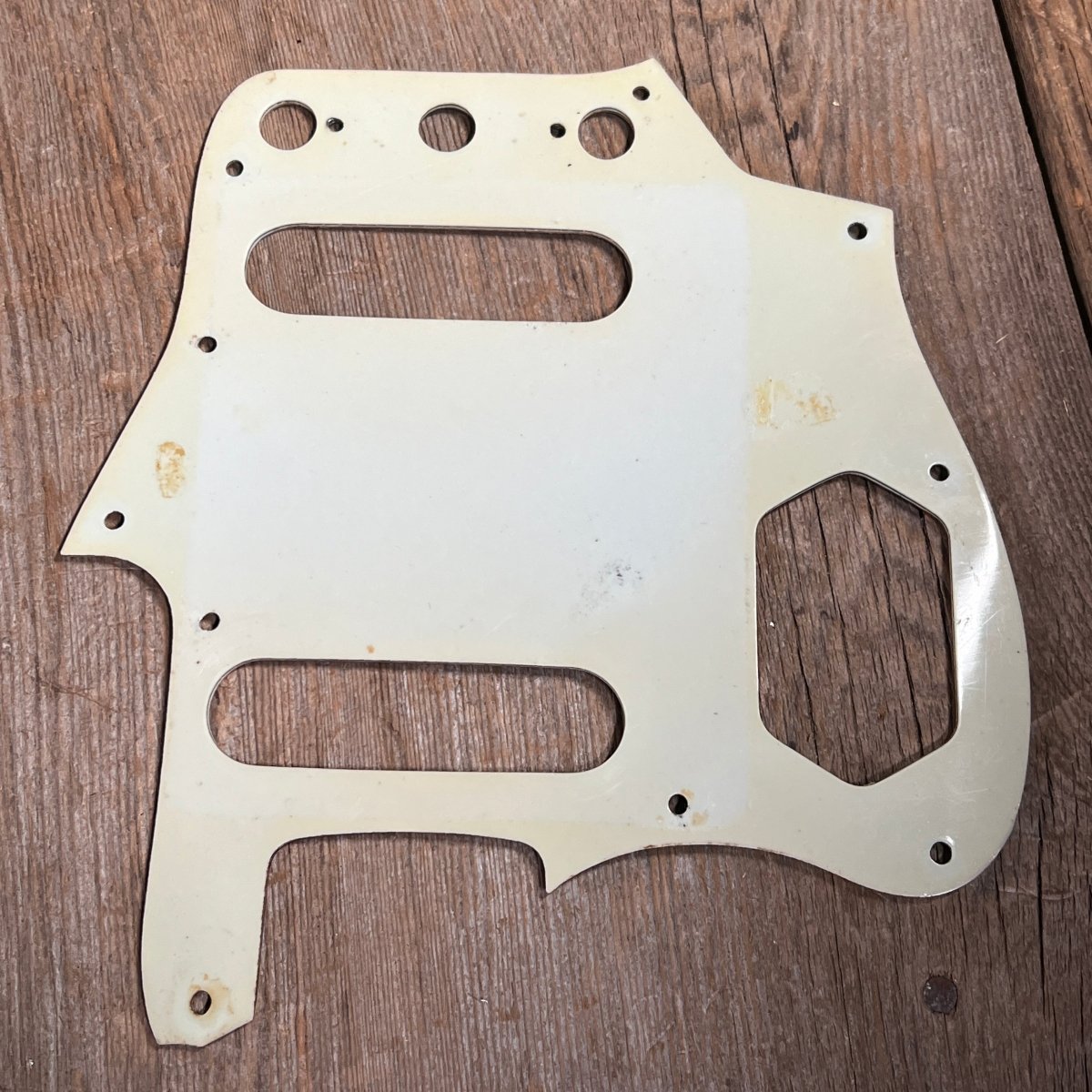

The pickguard is a genuine 60s Fender part, but there is no hole in the body that matches up with one of the pickguard holes.  I assume that this pickguard was changed by Fender when the guitar was there for R&R.

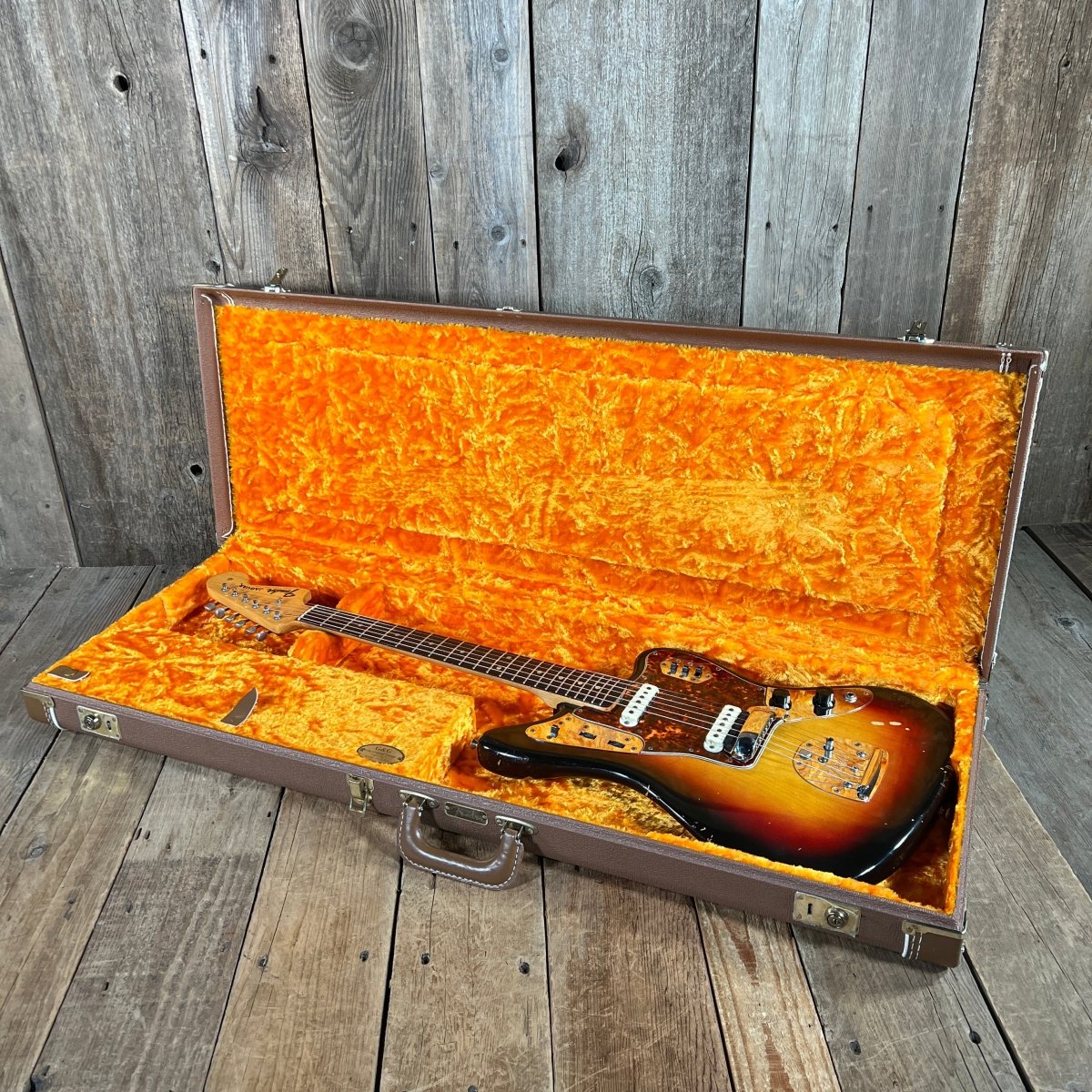

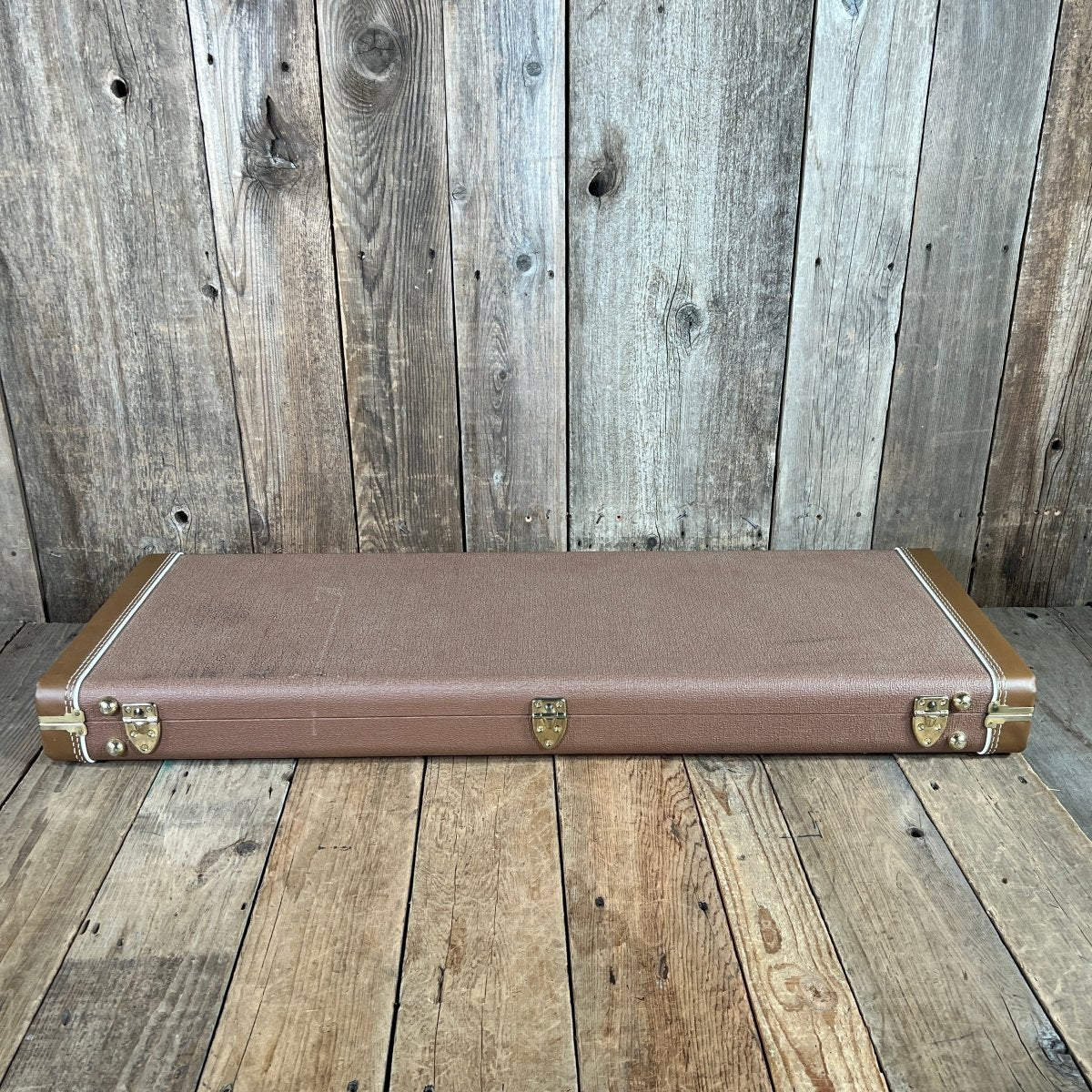

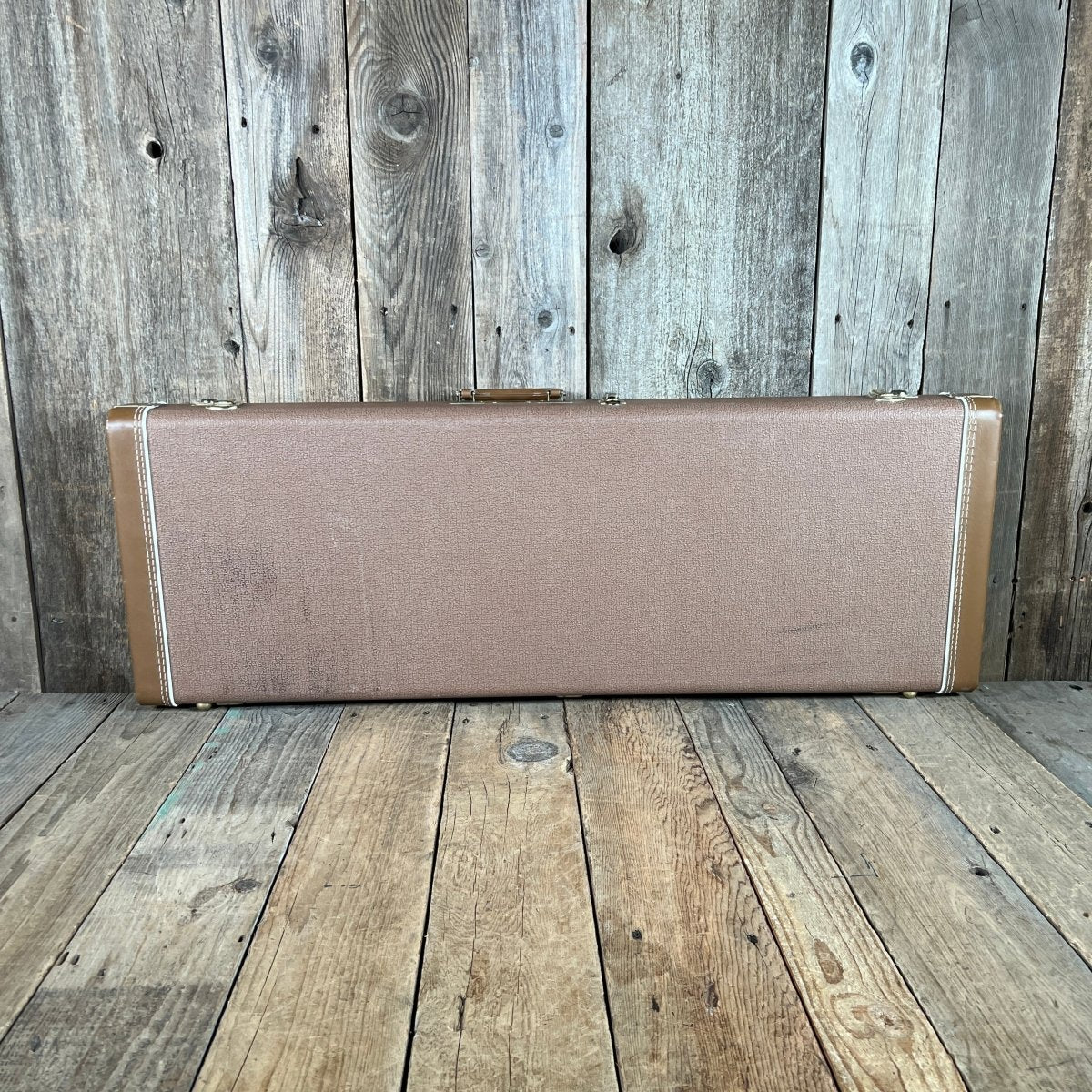

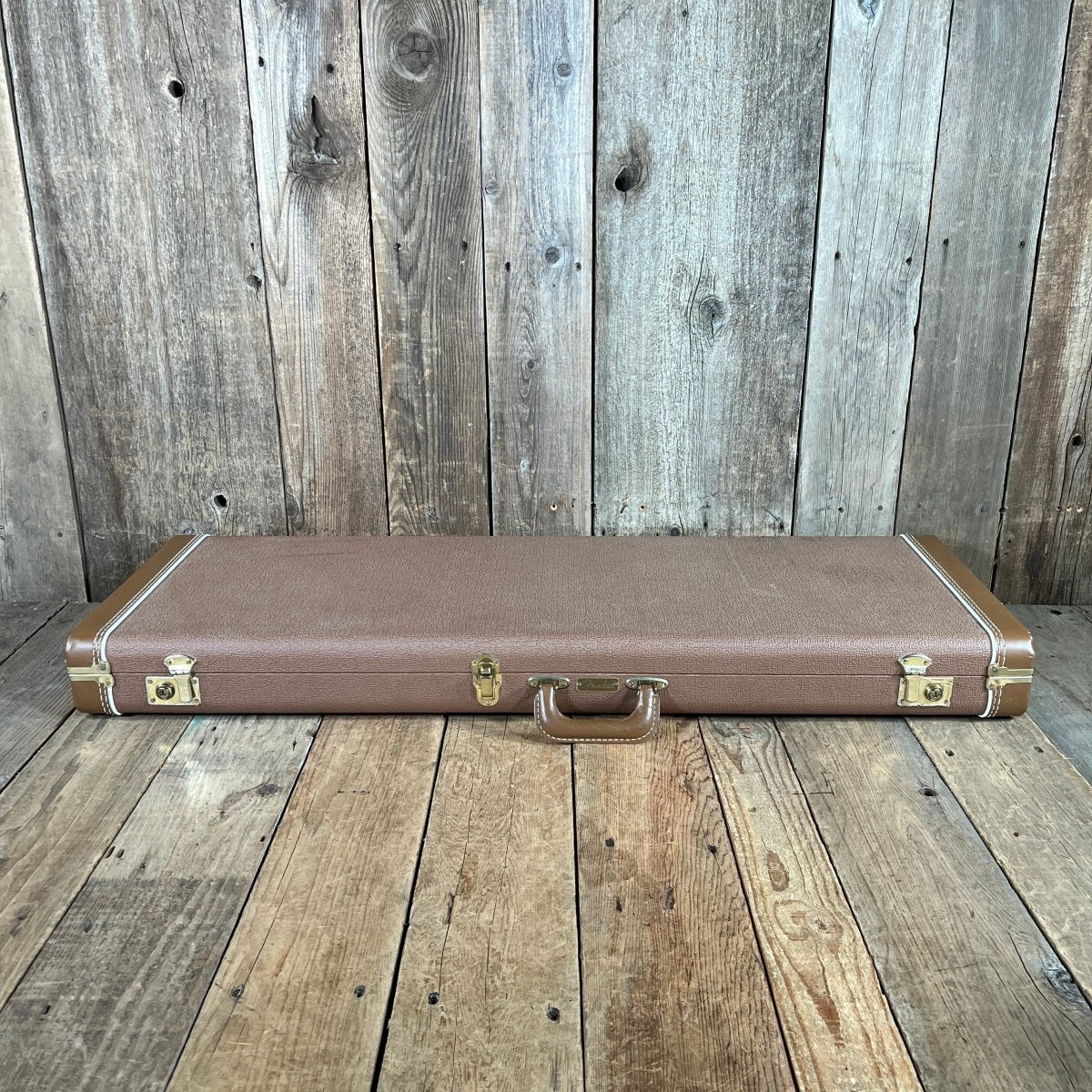

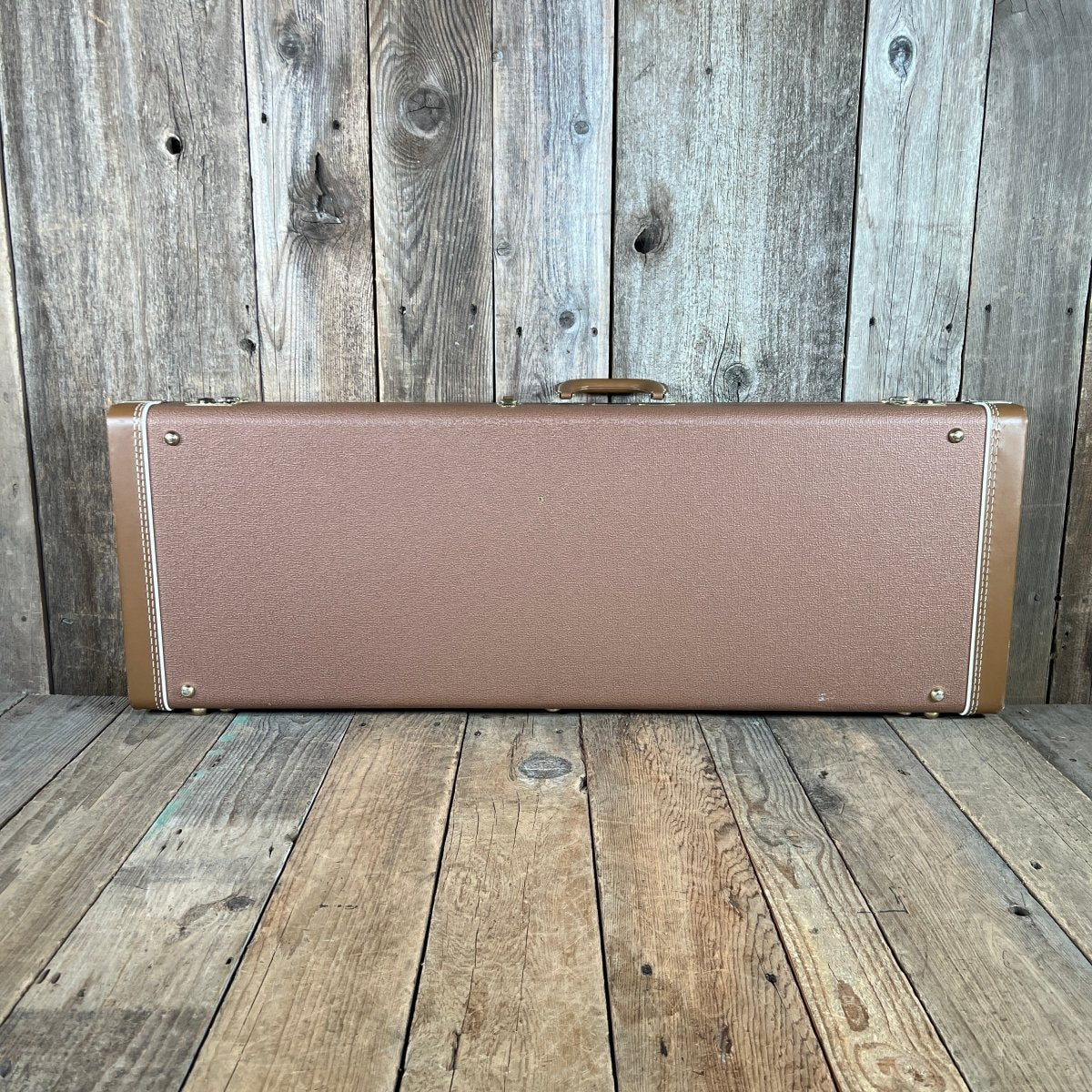

The case is a modern Fender hardshell.

Shipping policy:

Three day UPS air shipments will be automatic for buyers including these states and those to the east of them: Montana, South Dakota, Nebraska, Kansas, Oklahoma, Texas.  Shipments will require signature on delivery, no exceptions.  If there is damage, the buyer must retain all packing materials intact and picture them immediately and send them to  Less than 1% of our shipments are damaged in transit, and we are committed to making sure your item arrives safely, but we are taking these additional measures to make sure you are happy with your purchase.

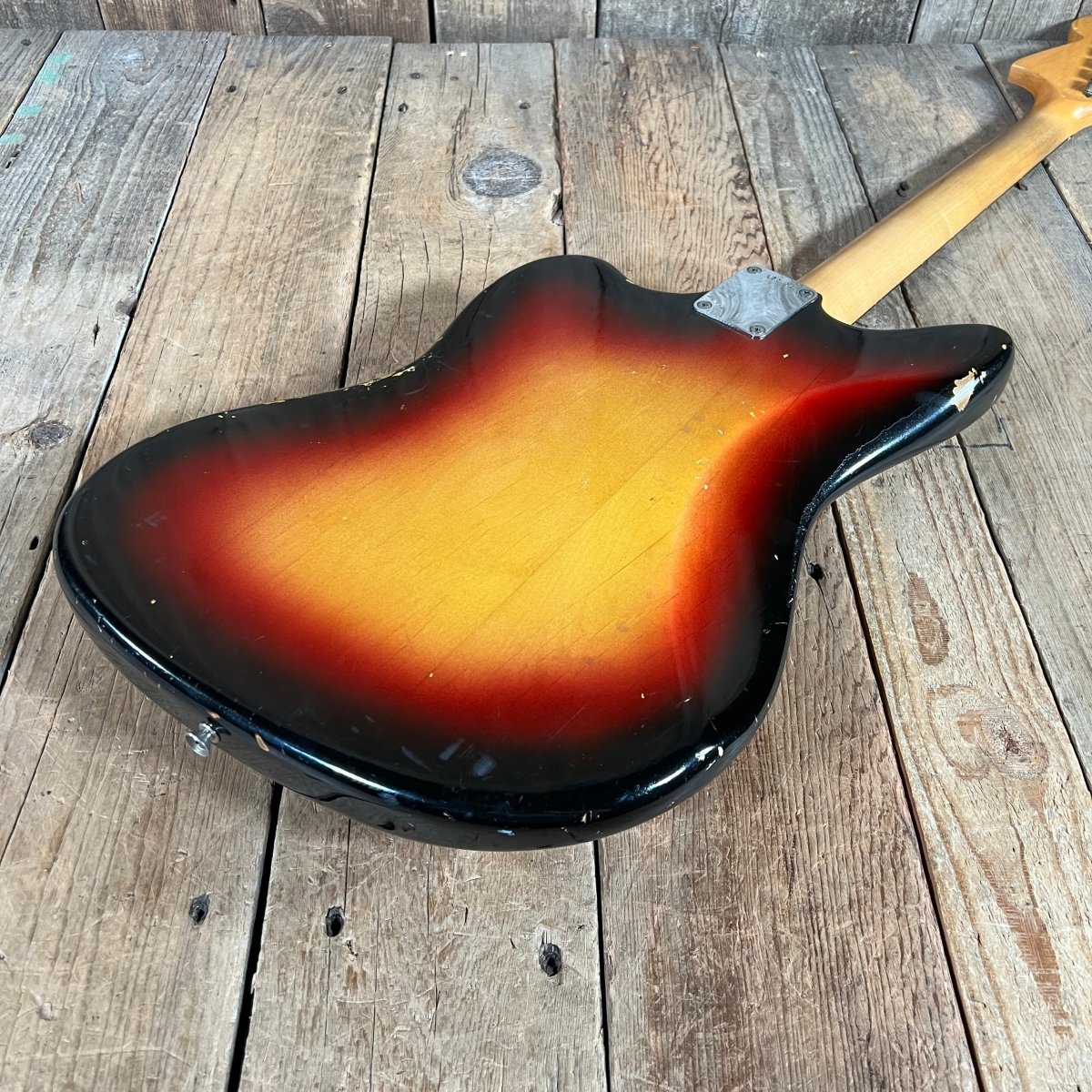

  • Color: Sunburst
  • Weight: 8lbs 9.5ozs
  • Body: Alder
  • Body Date/Code: 11/63
  • Neck: Maple

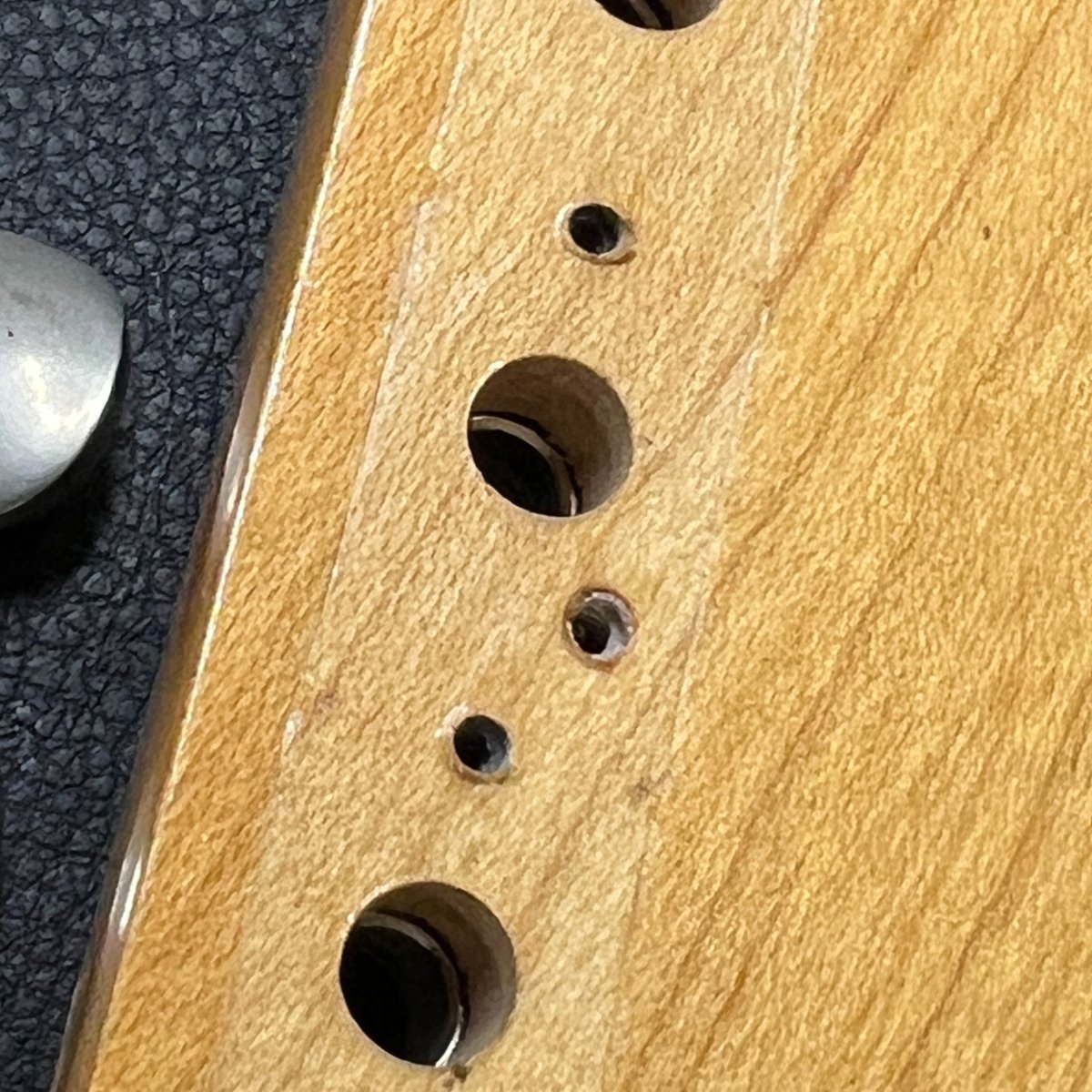

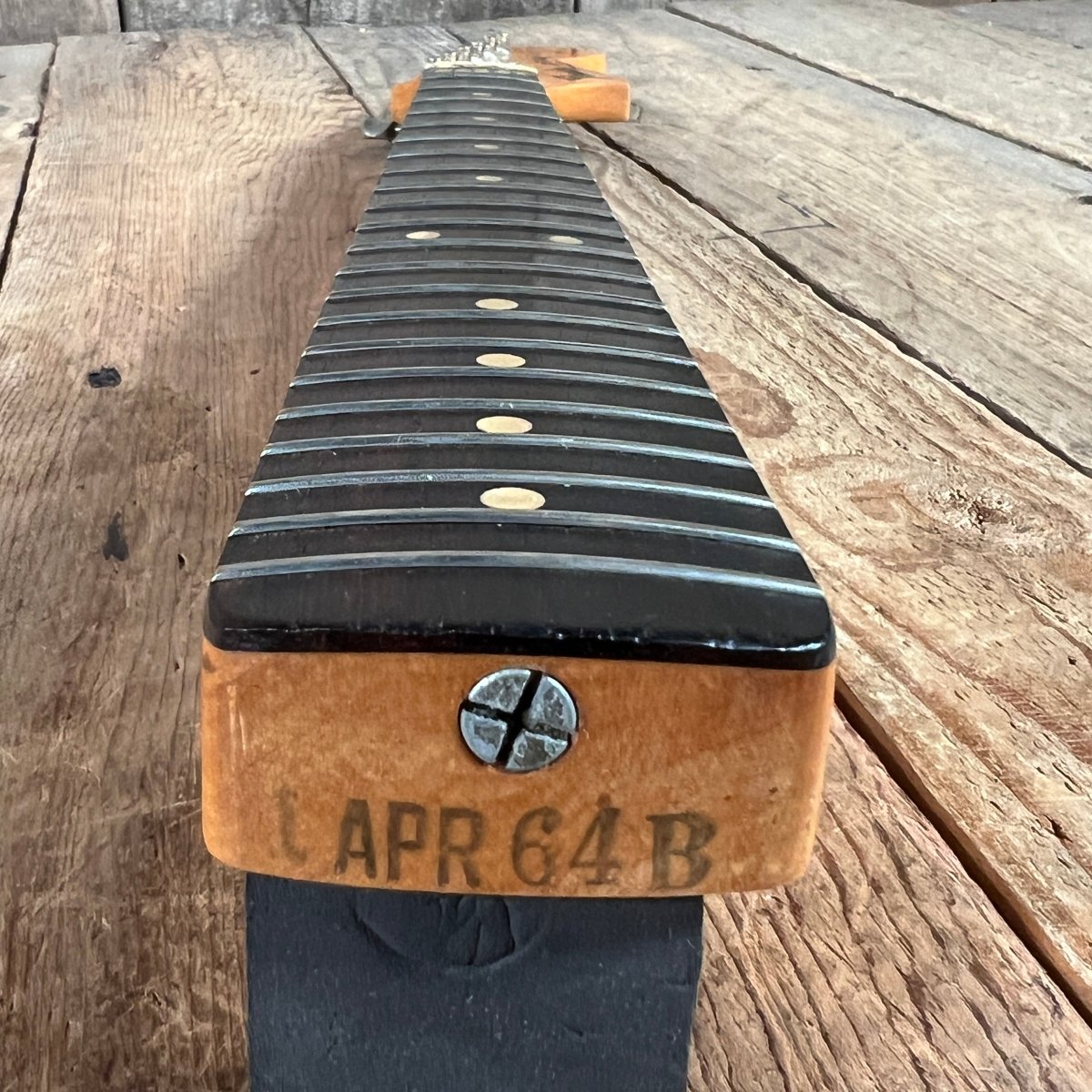

  • Neck Date/Code: APR64B
  • Fretboard: Brazilian Rosewood

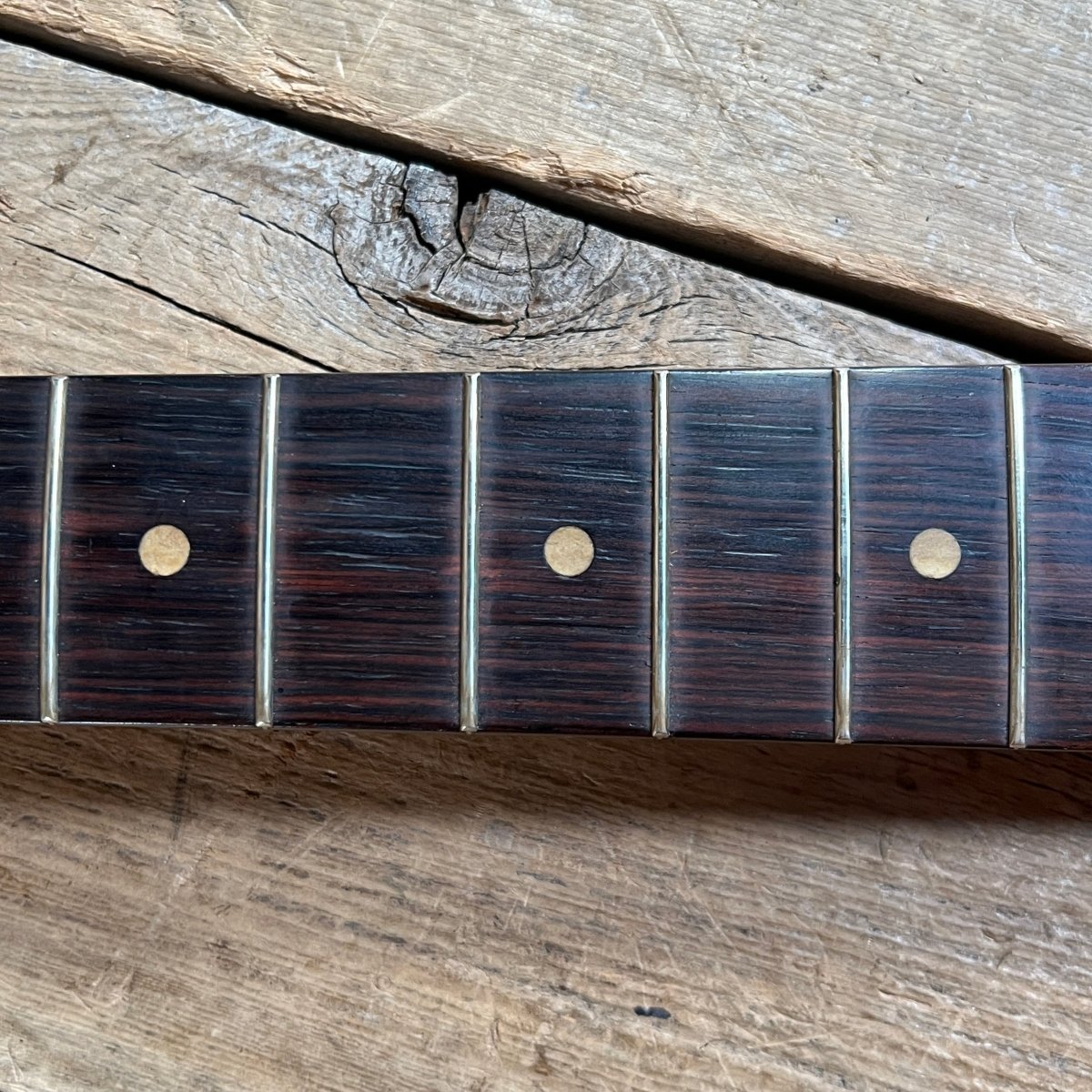

  • Inlays: Clay dots
  • Frets: Re-fret
  • Fret count: 22
  • Nut: Replaced, bone
  • Nut width: 1 5/8"
  • Scale: 25.5"
  • Radius: 7.25"

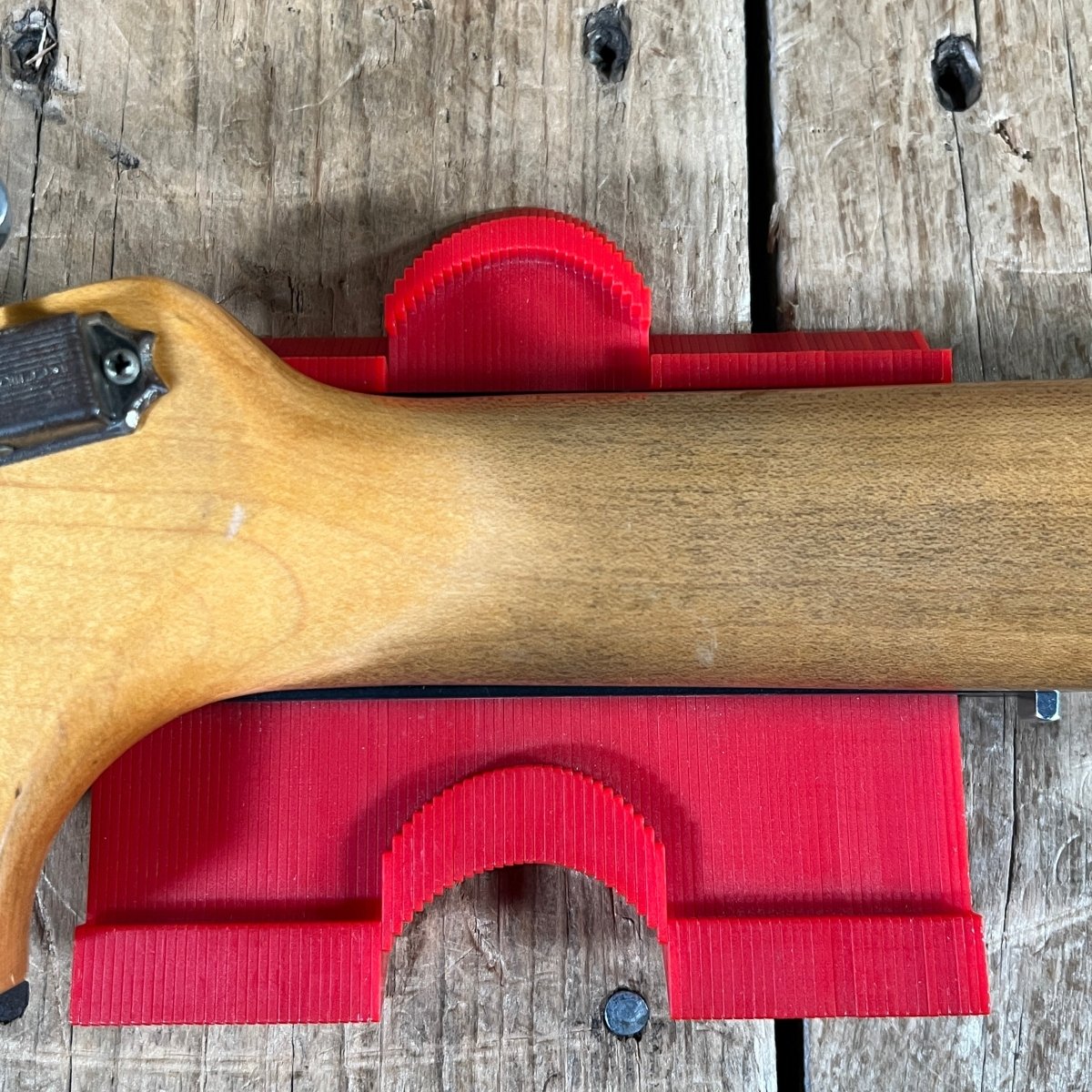

  • Neck thickness at 1st fret: 0.80"
  • Neck thickness at 12th fret: 0.98"
  • Action 1st String at 12th Fret: 2/32"
  • Action 6th String at 12th Fret: 3/32"
  • Total length: 39 7/8"
  • Lower bout: 13 1/2"
  • Waist: 9 1/2"
  • Upper bout: 11"
  • Body depth/thickness: 1 5/8"
  • String gauge: .010-.046"
  • Hardware Color: Chrome

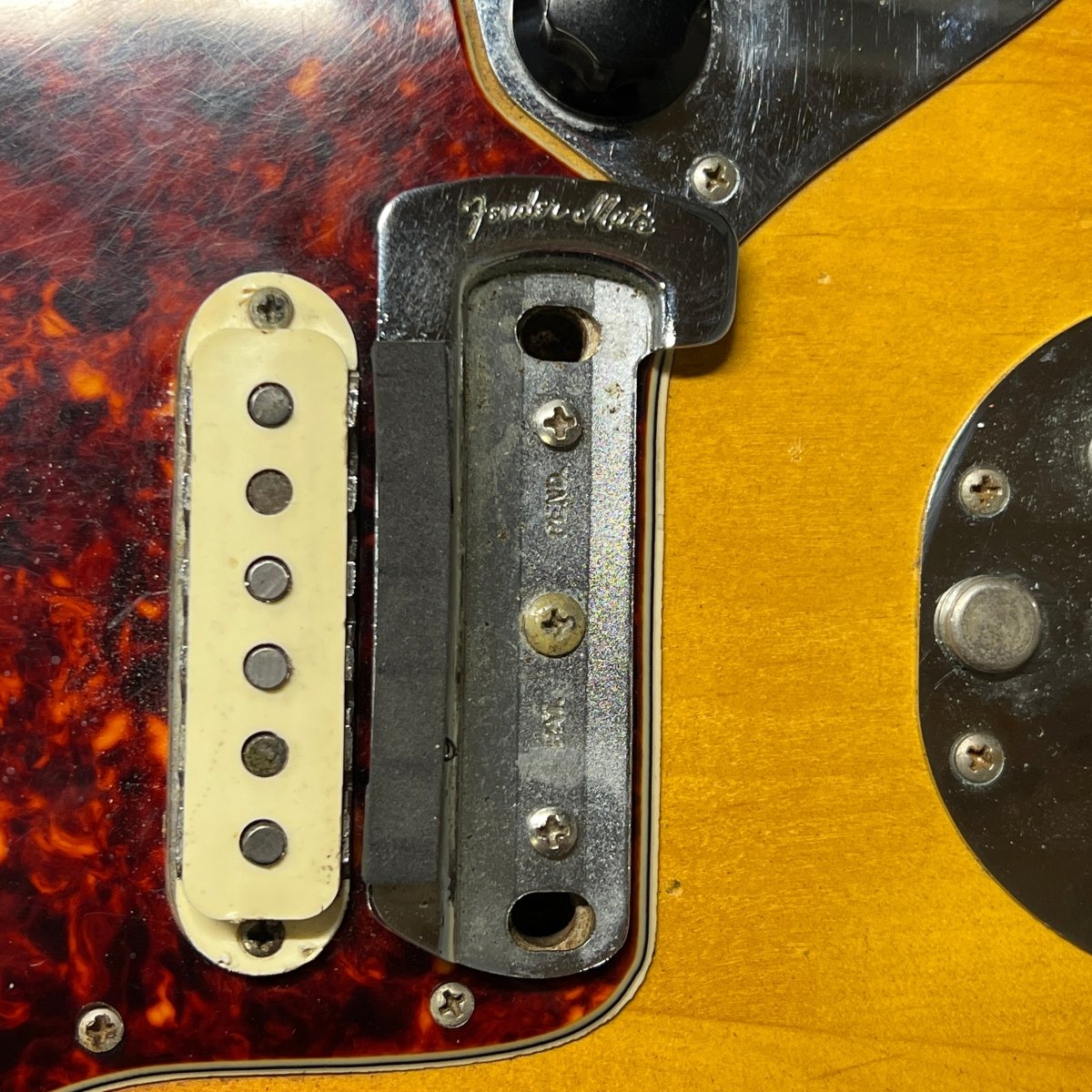

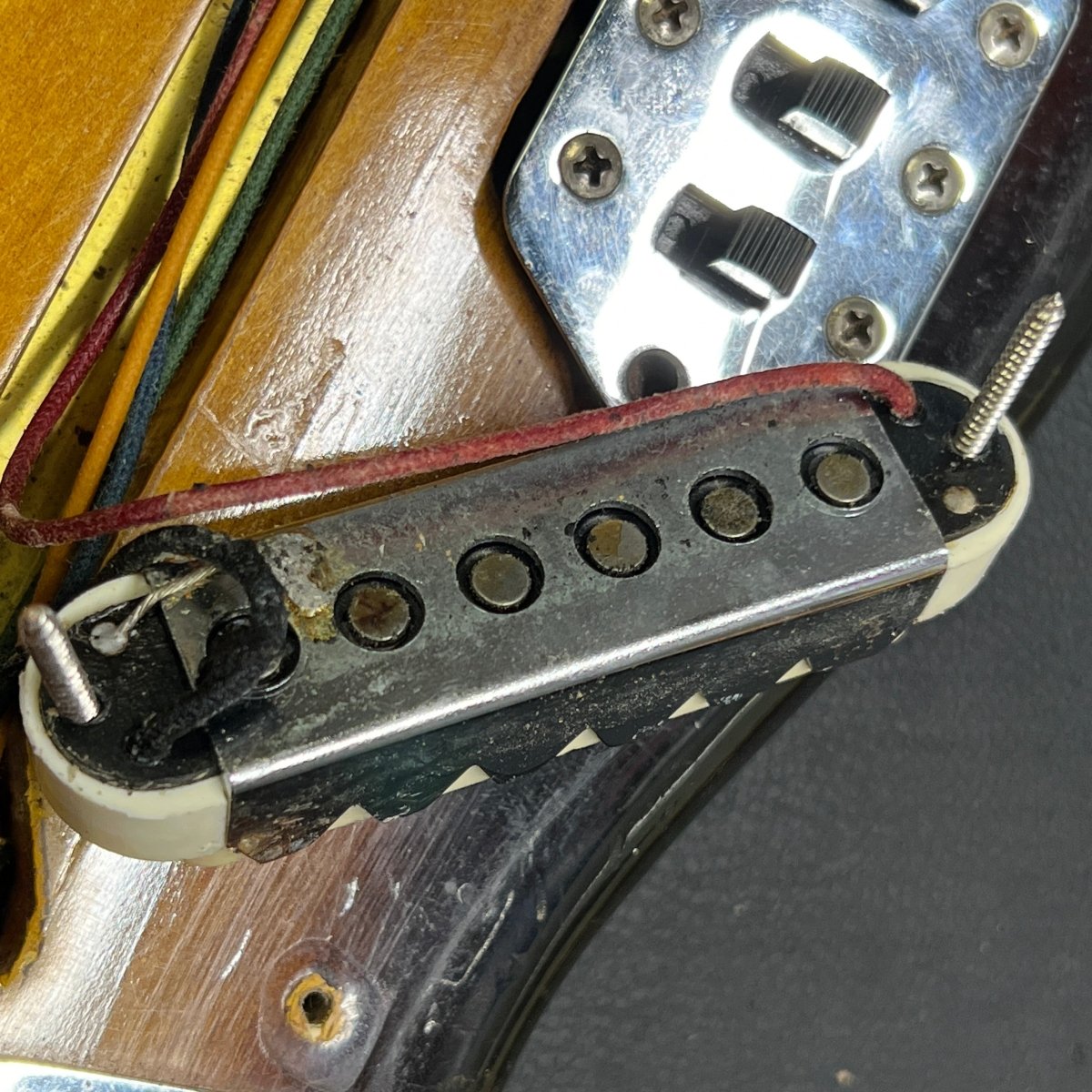

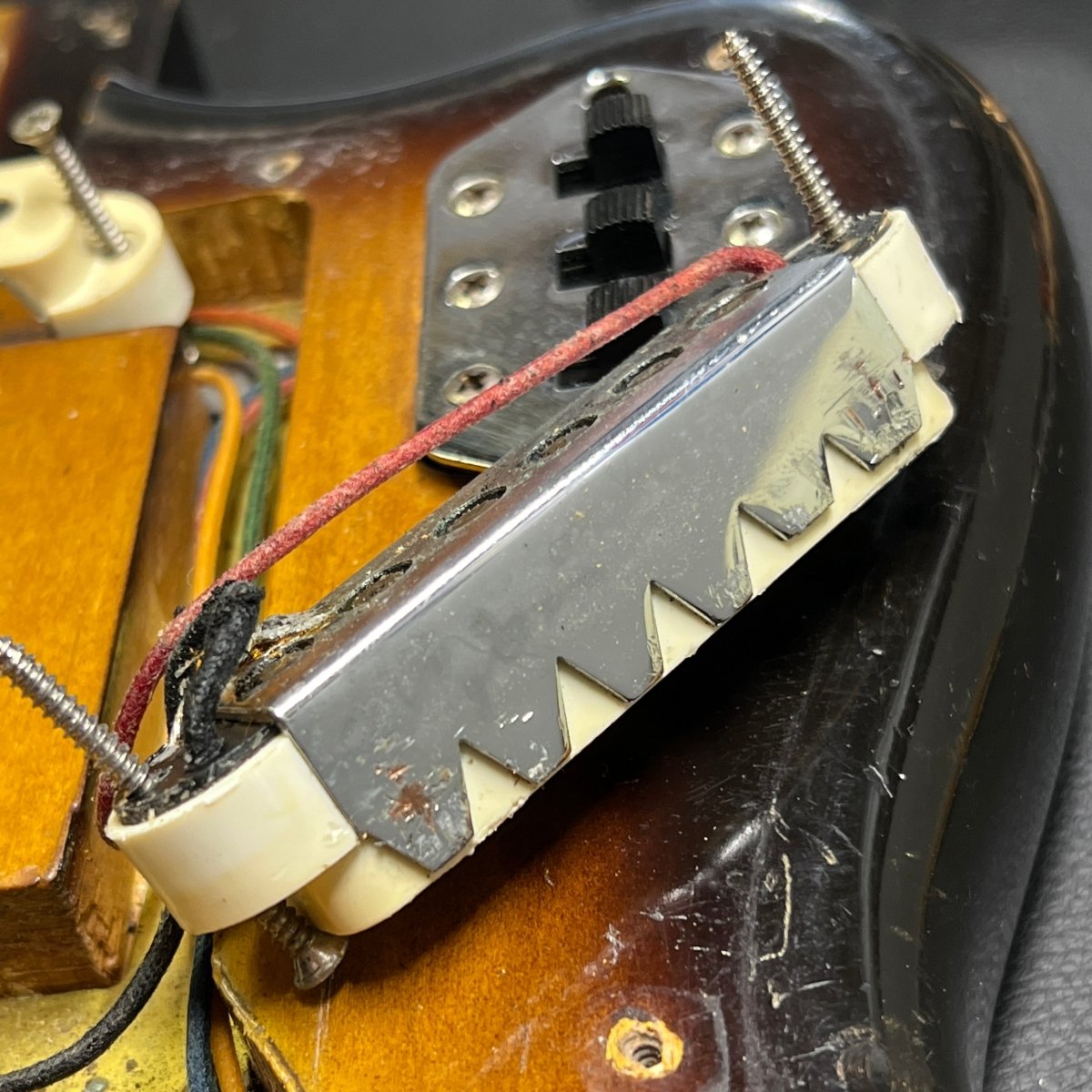

  • Bridge Pickup/Brand: Fender
  • Bridge Pickup Reading:
  • Pickup Original?: Yes

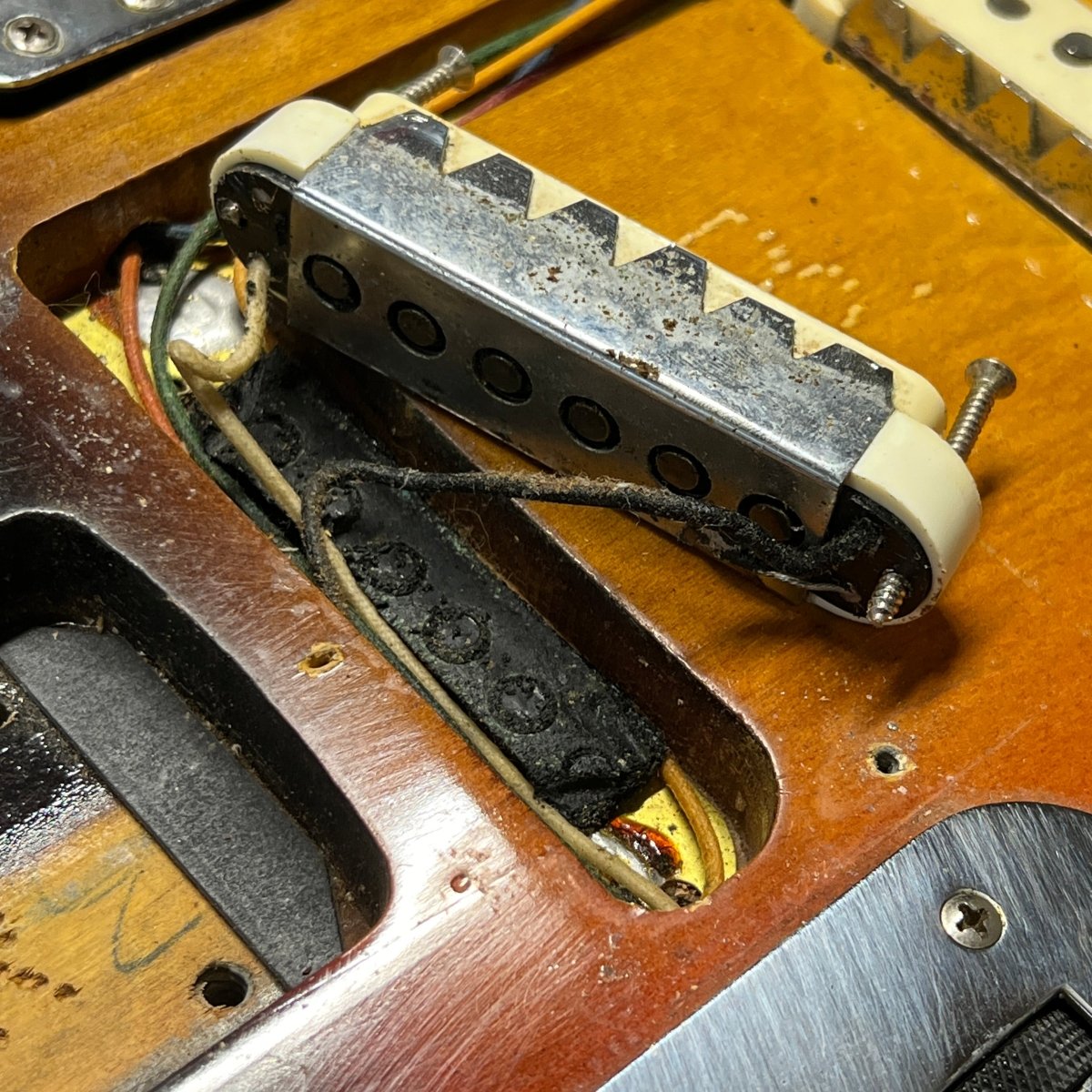

  • Neck Pickup/Brand: Fender
  • Neck Pickup Reading: 6.9k
  • Pickup Original?: Yes
  • Pickguard: Original
  • Bridge: Original

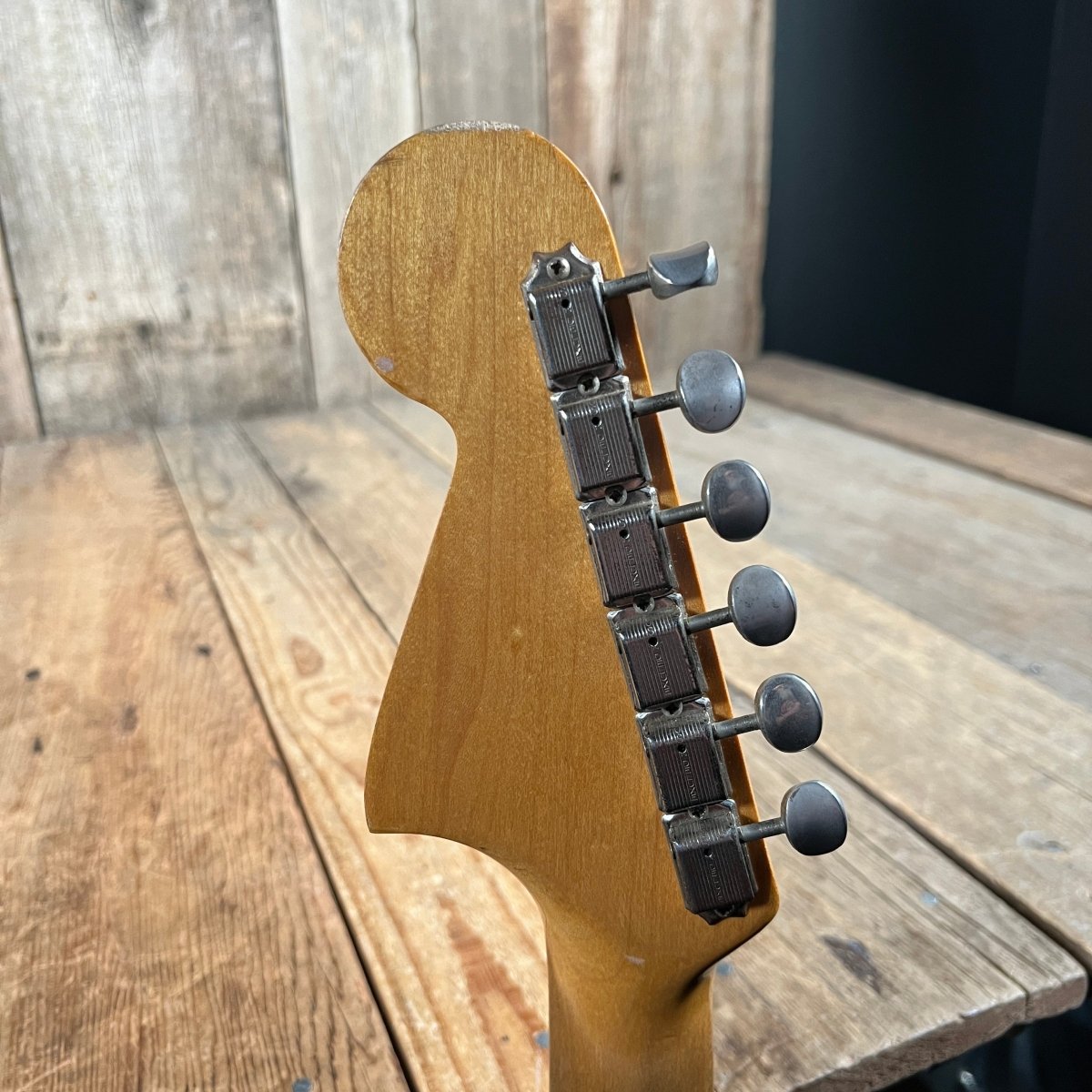

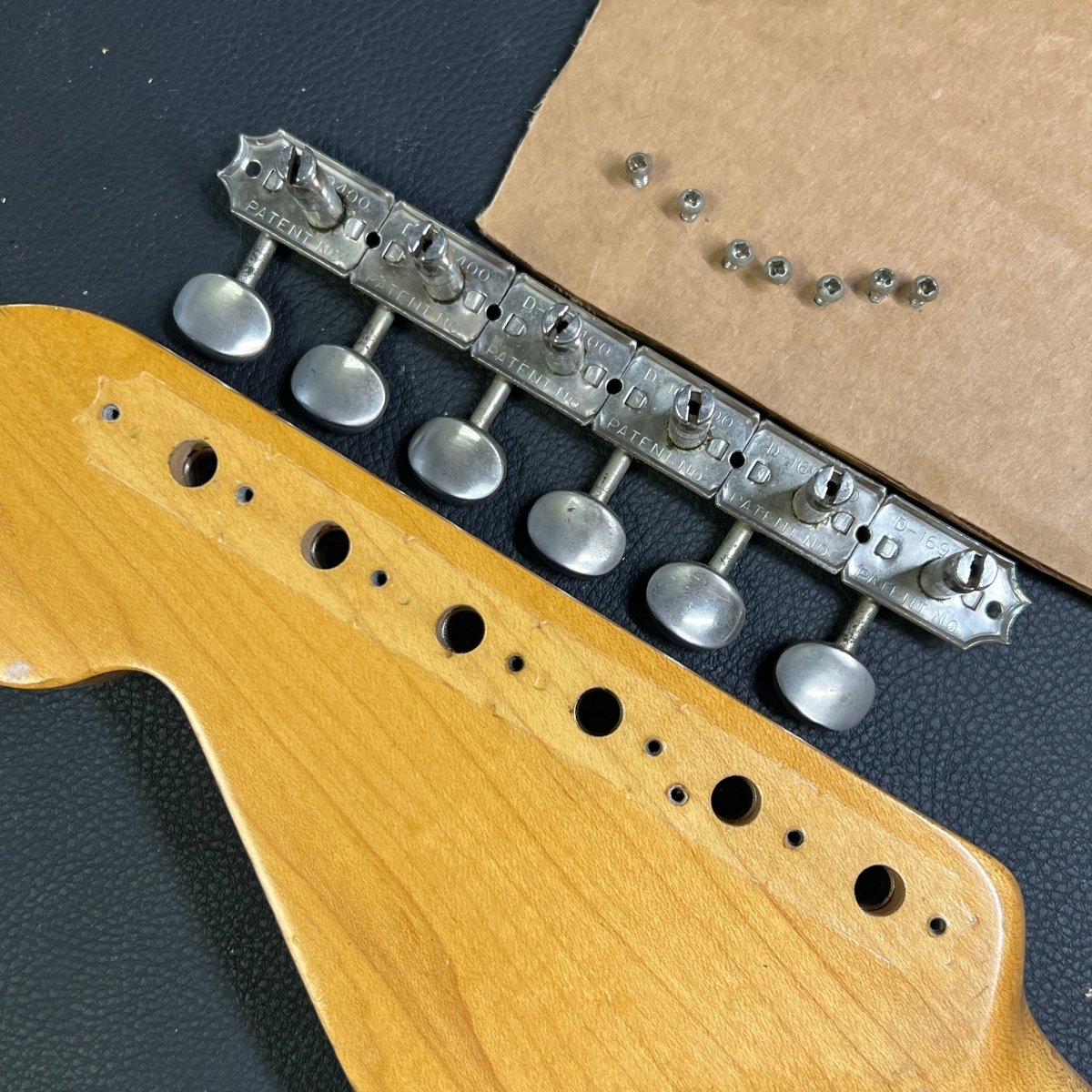

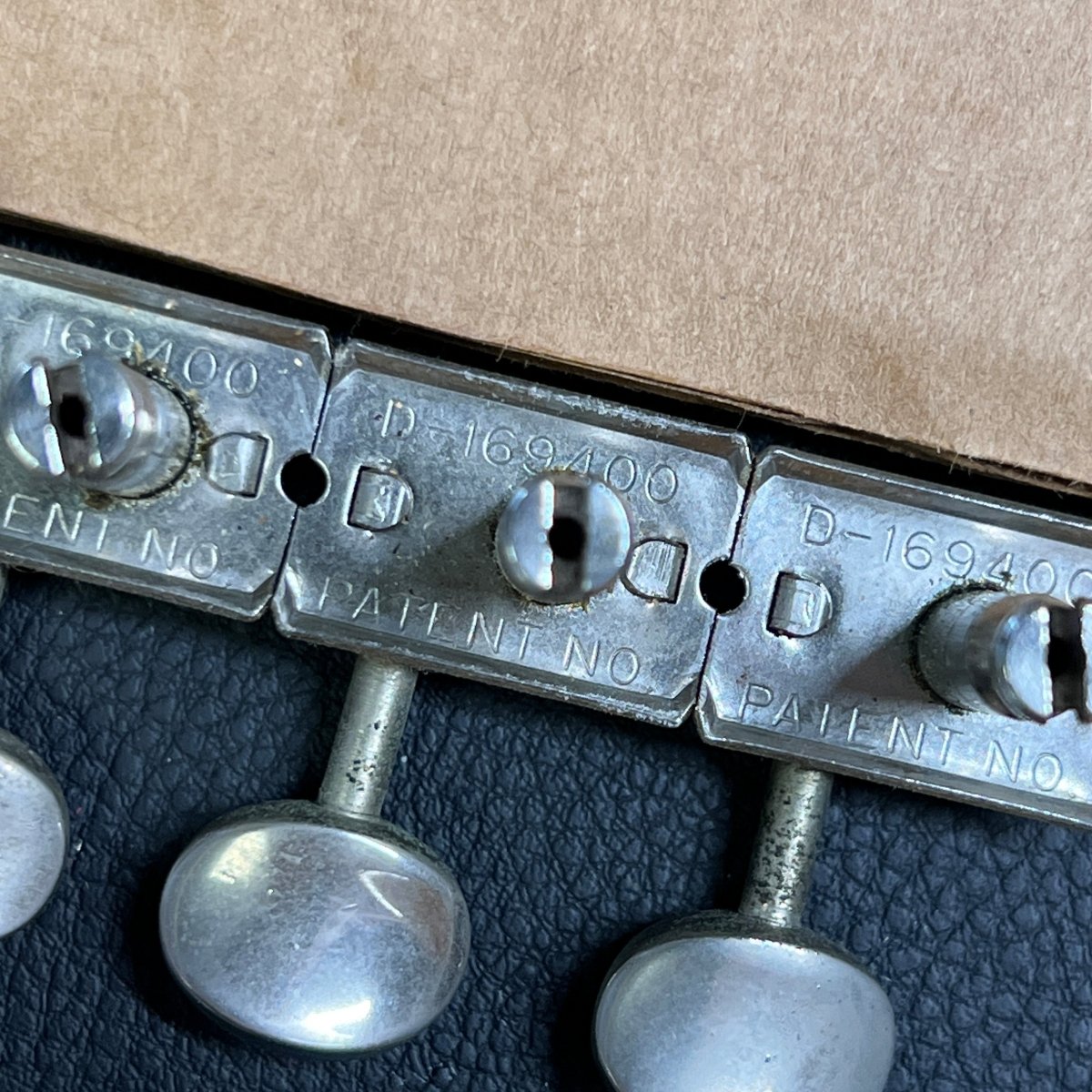

  • Tuners: Original
  • Switch: Original

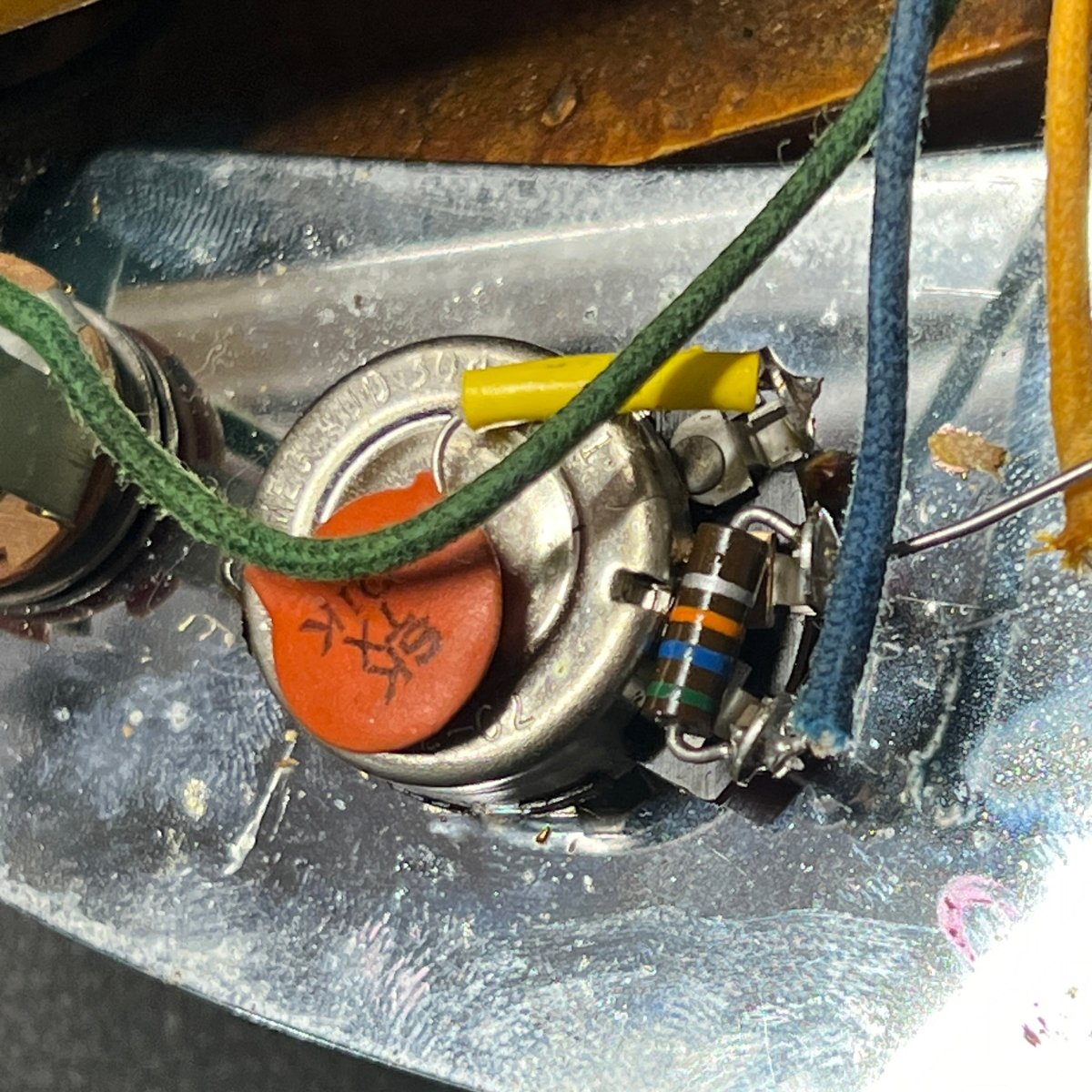

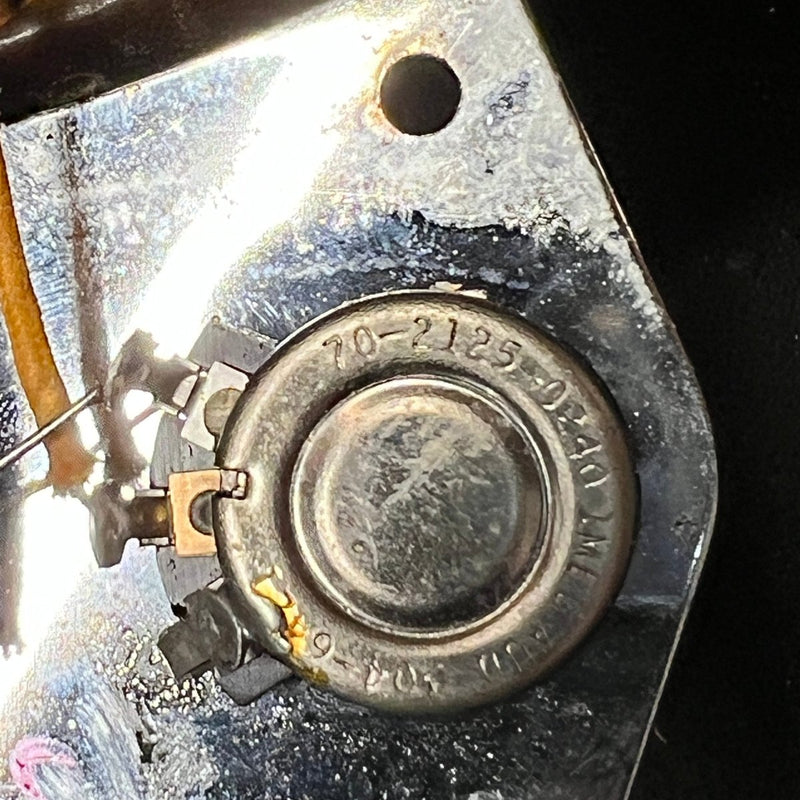

  • Pots/Codes: 304 64xx
  • Case: HSC
  • Notes: *missing hole in body for pickguard mounting screw by lower control plate, nut replaced, re-fret
