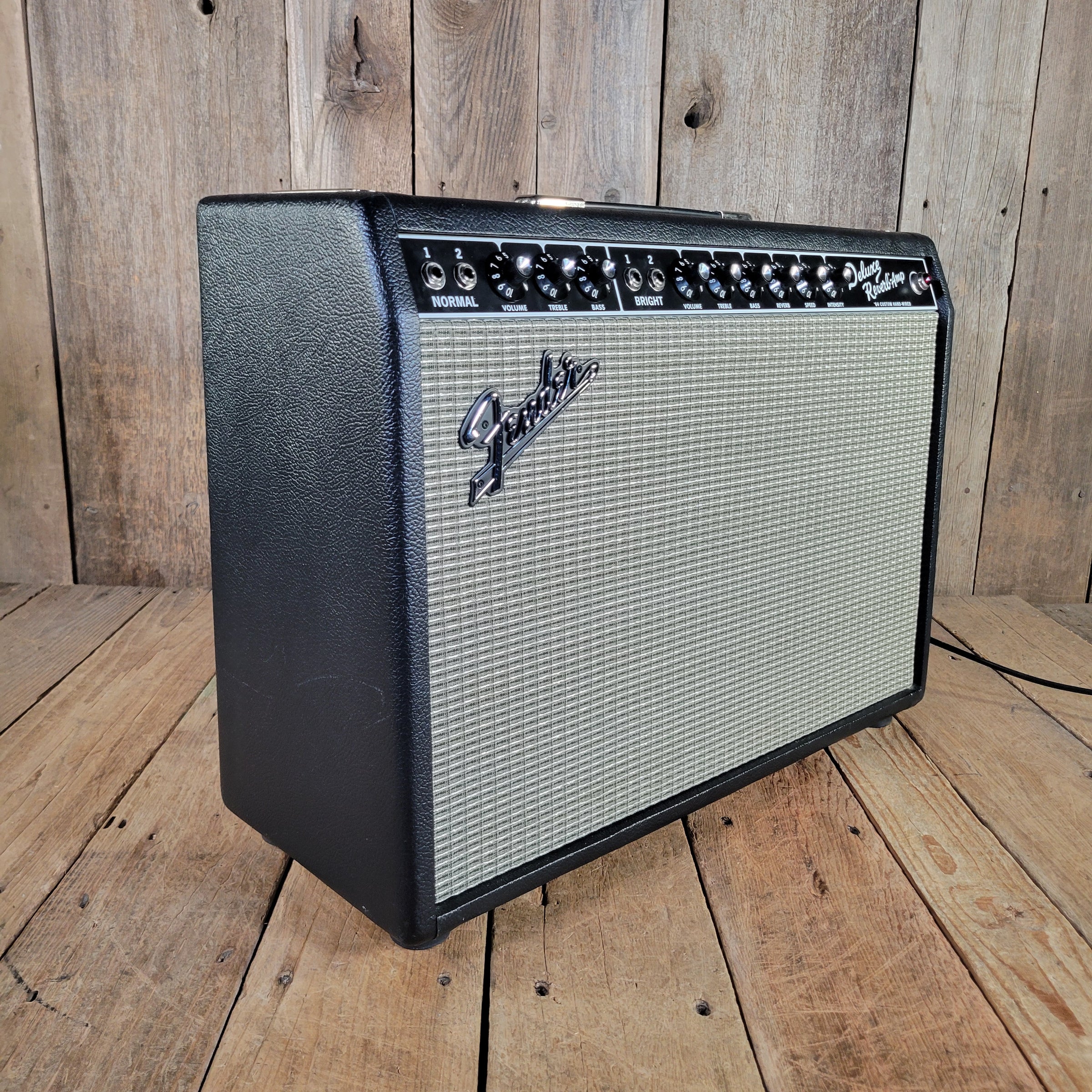

Fender 2023 Custom '64 Hand-Wired Deluxe Reverb Amp Near Mint

No sales tax for US customers outside California.

We've spent a good deal of time around here comparing this model, the Fender Custom Hand Wired Deluxe Reverb reissue, with vintage Deluxe Reverbs.  The amp comes very close to the original!  There is a difference, perhaps found in the modern transformers, speaker, caps and resistors - it would be hard to say exactly where the magic of the vintage version lies, but trust us when we say that this is a great sounding amp!

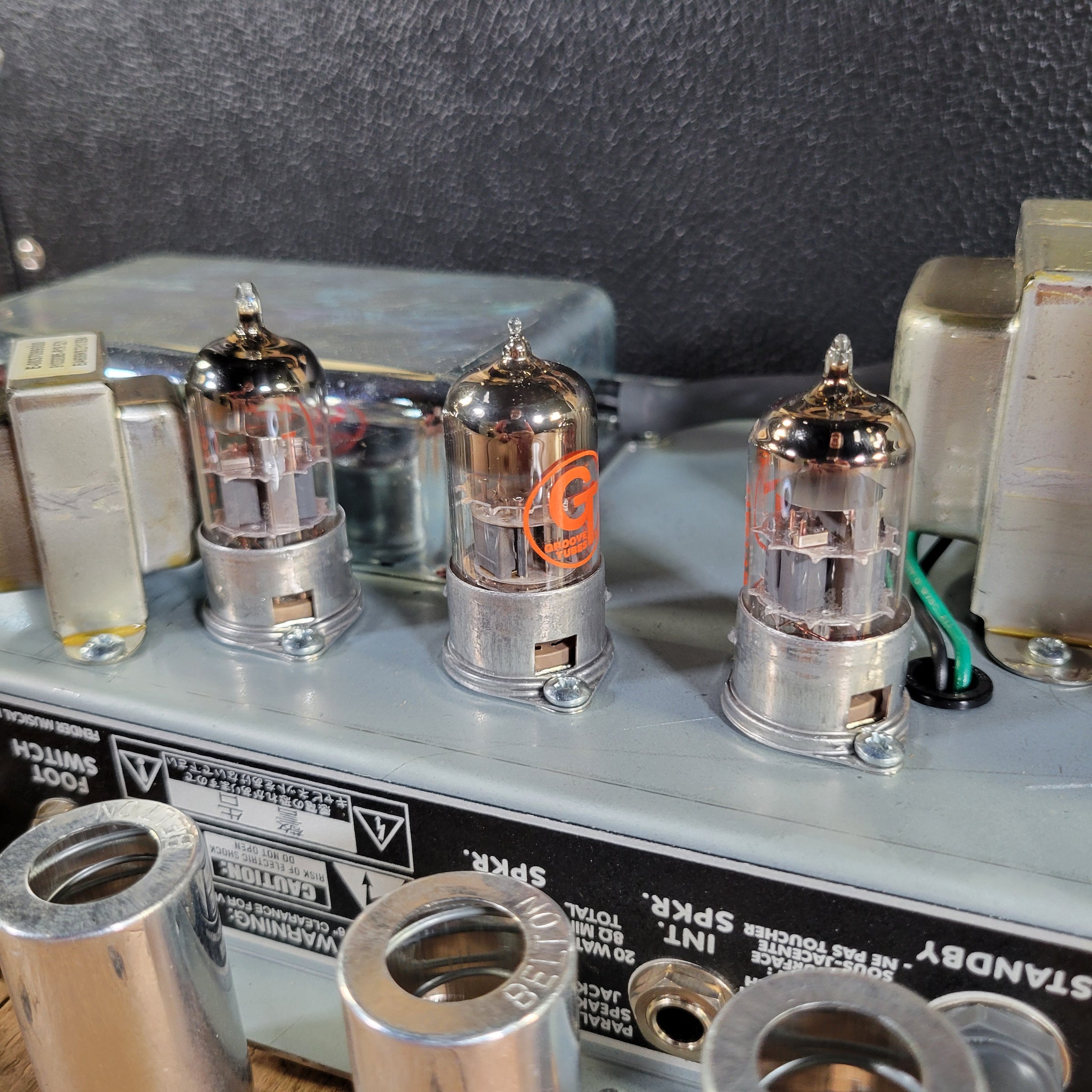

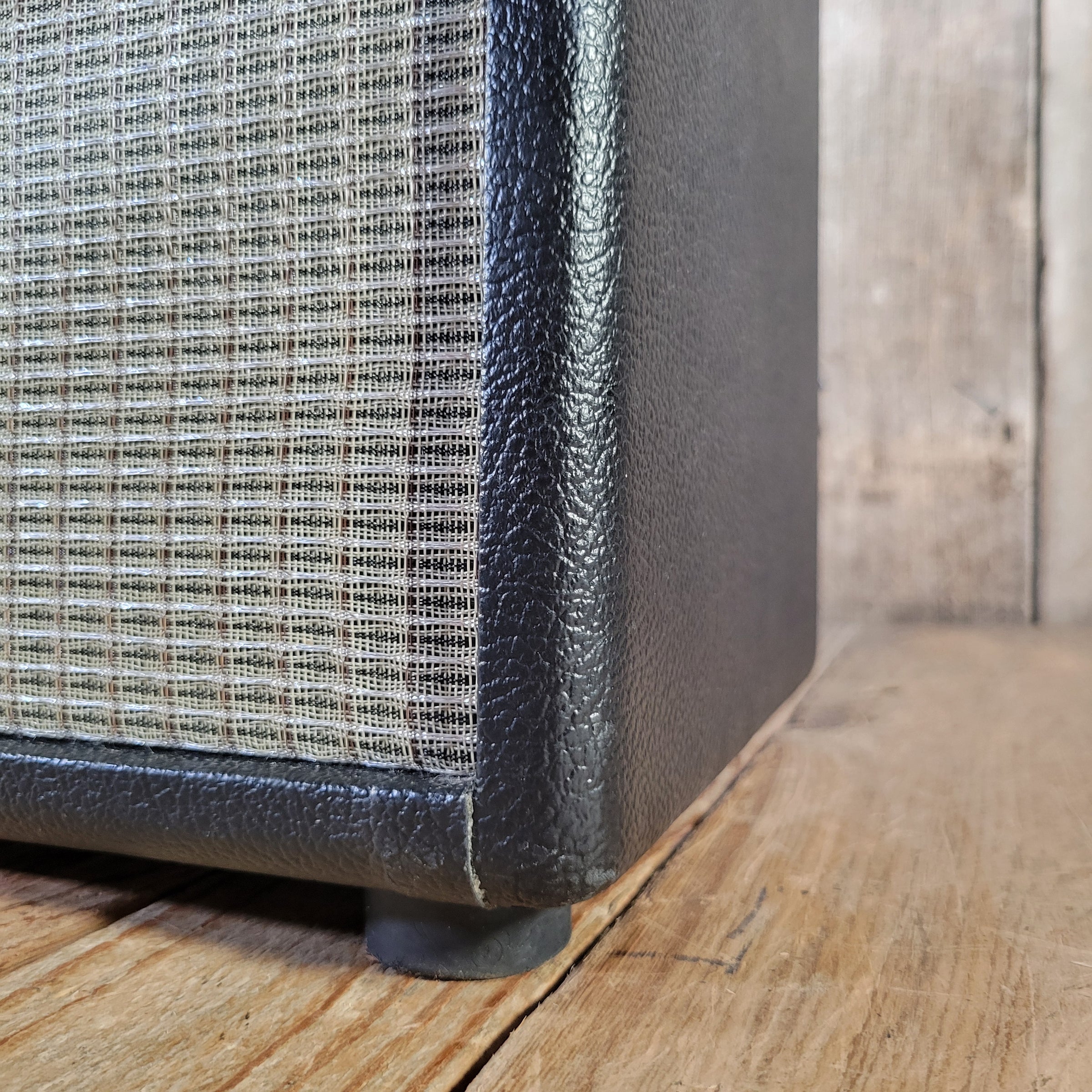

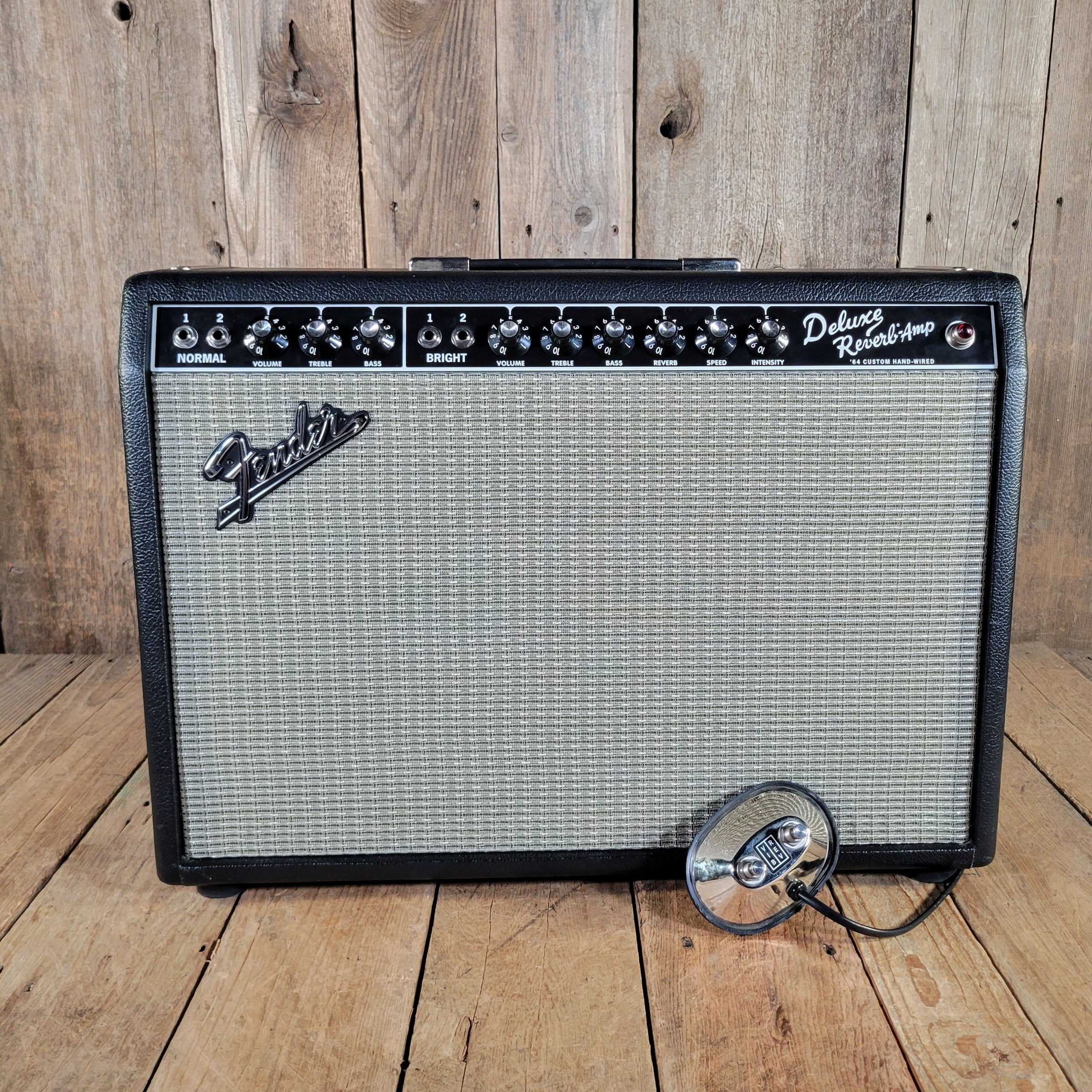

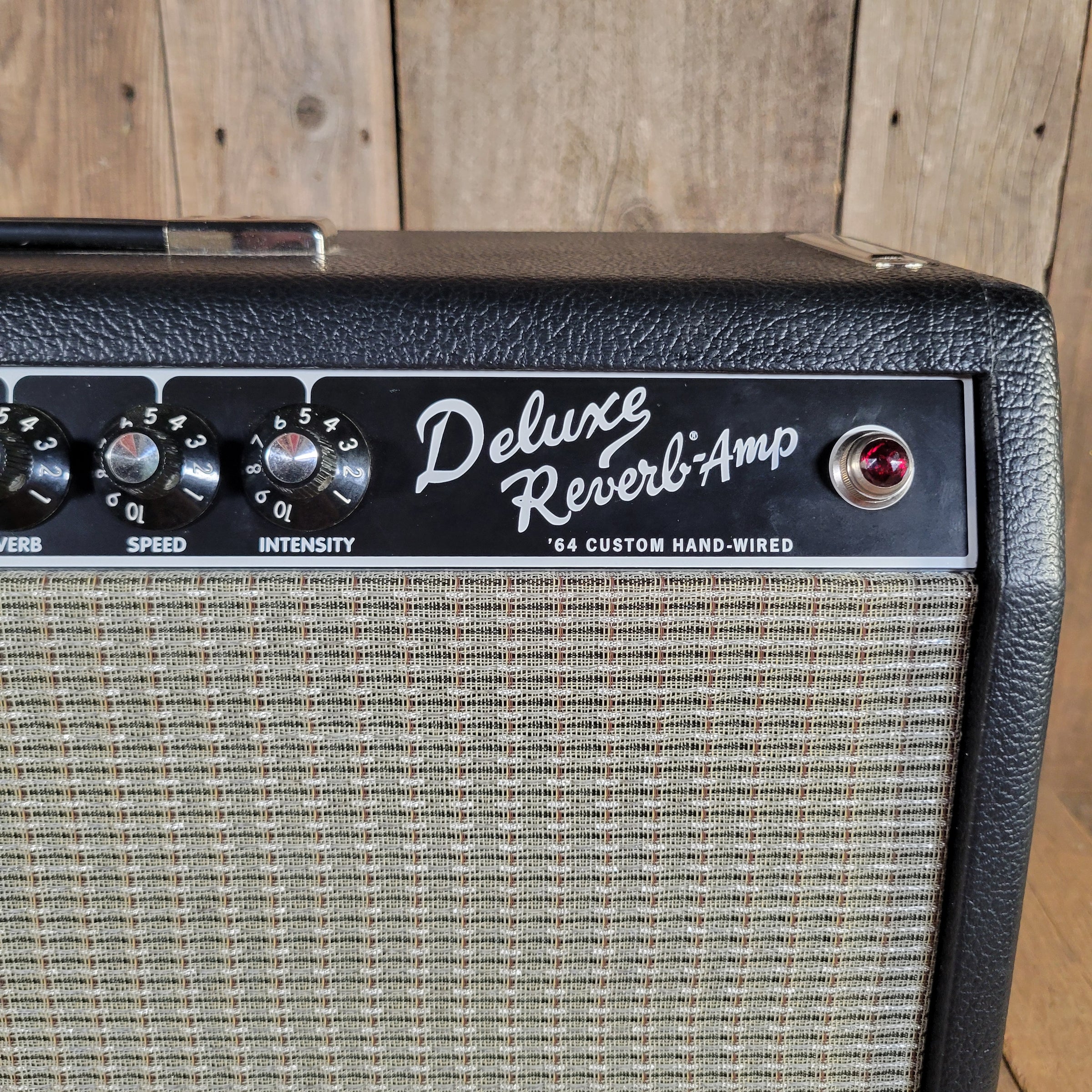

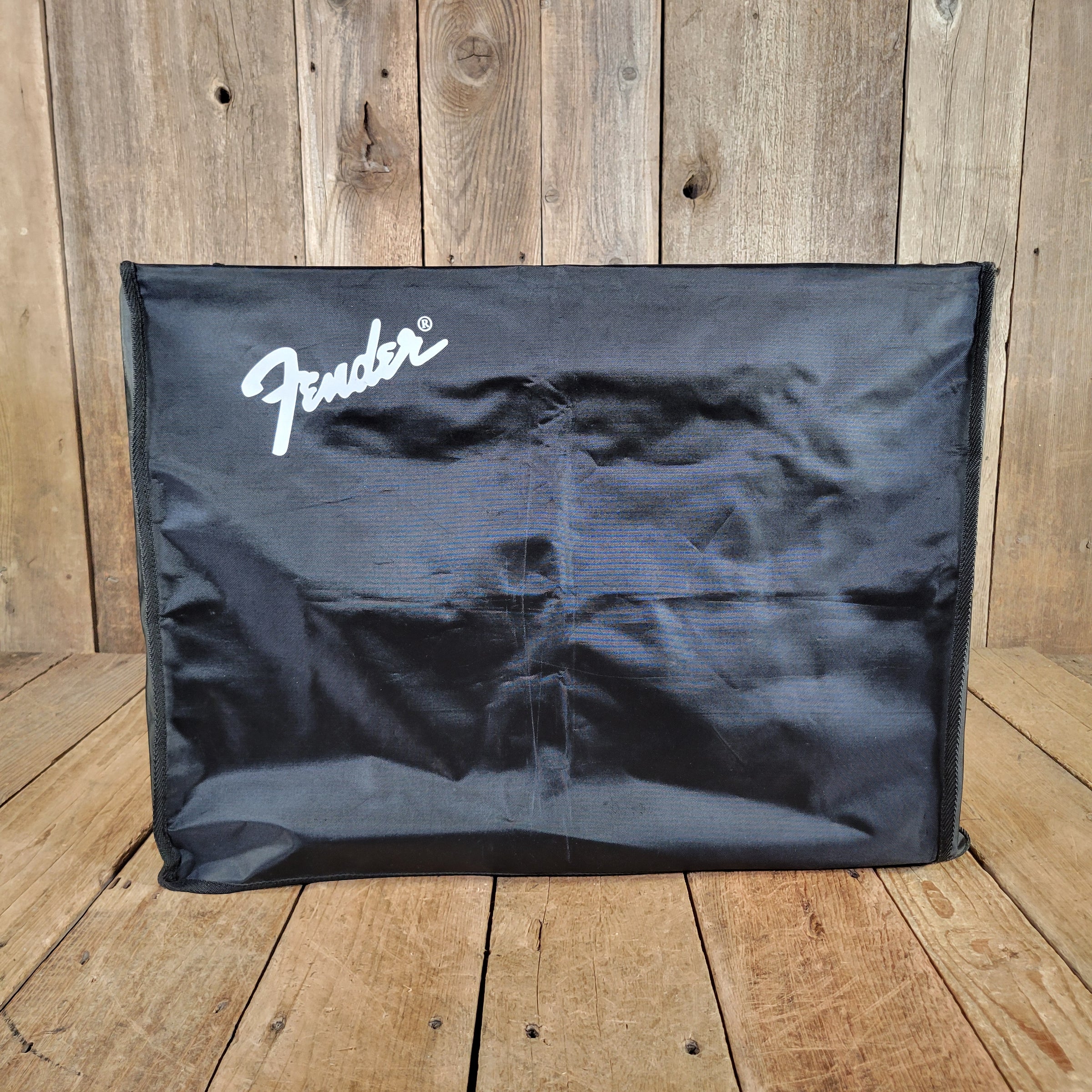

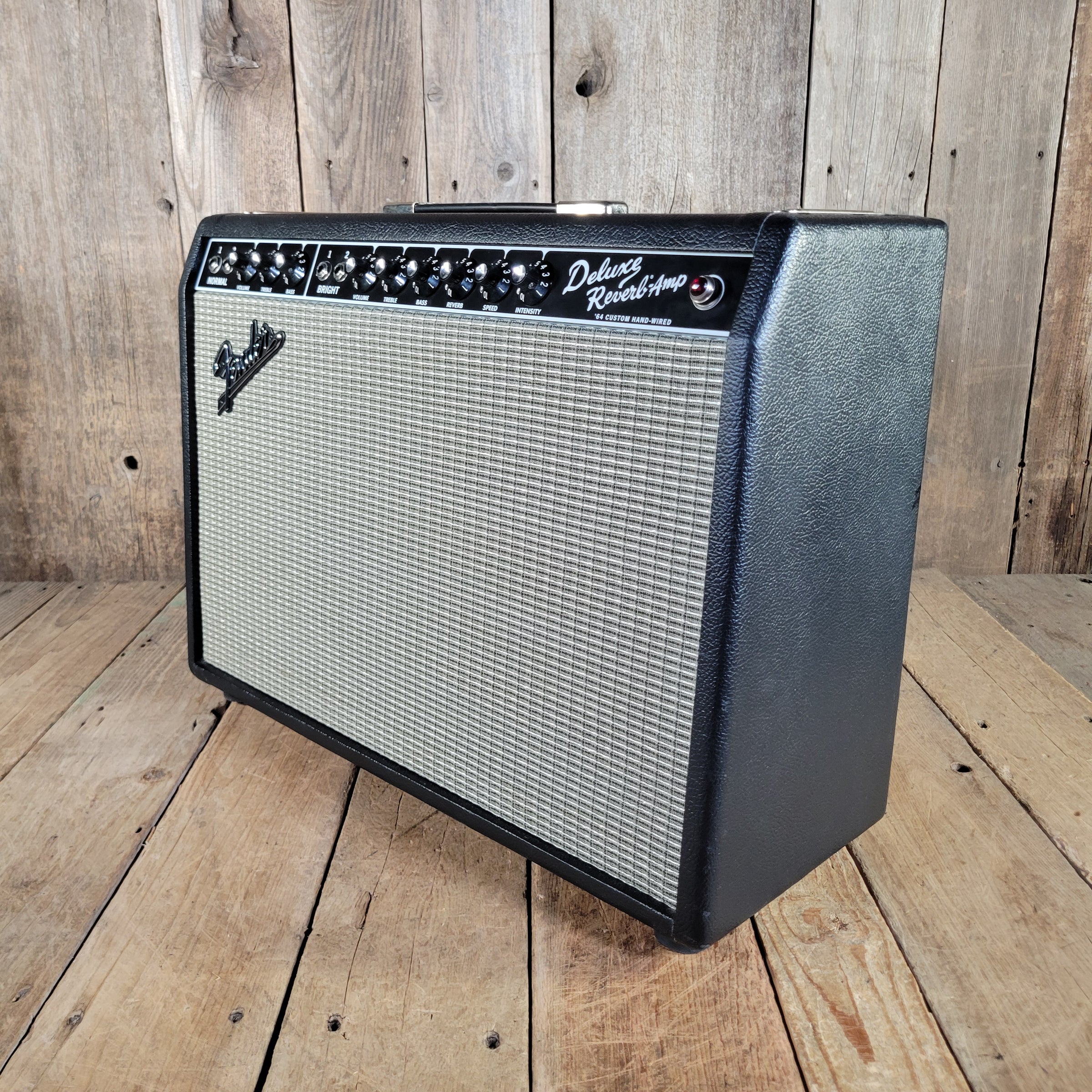

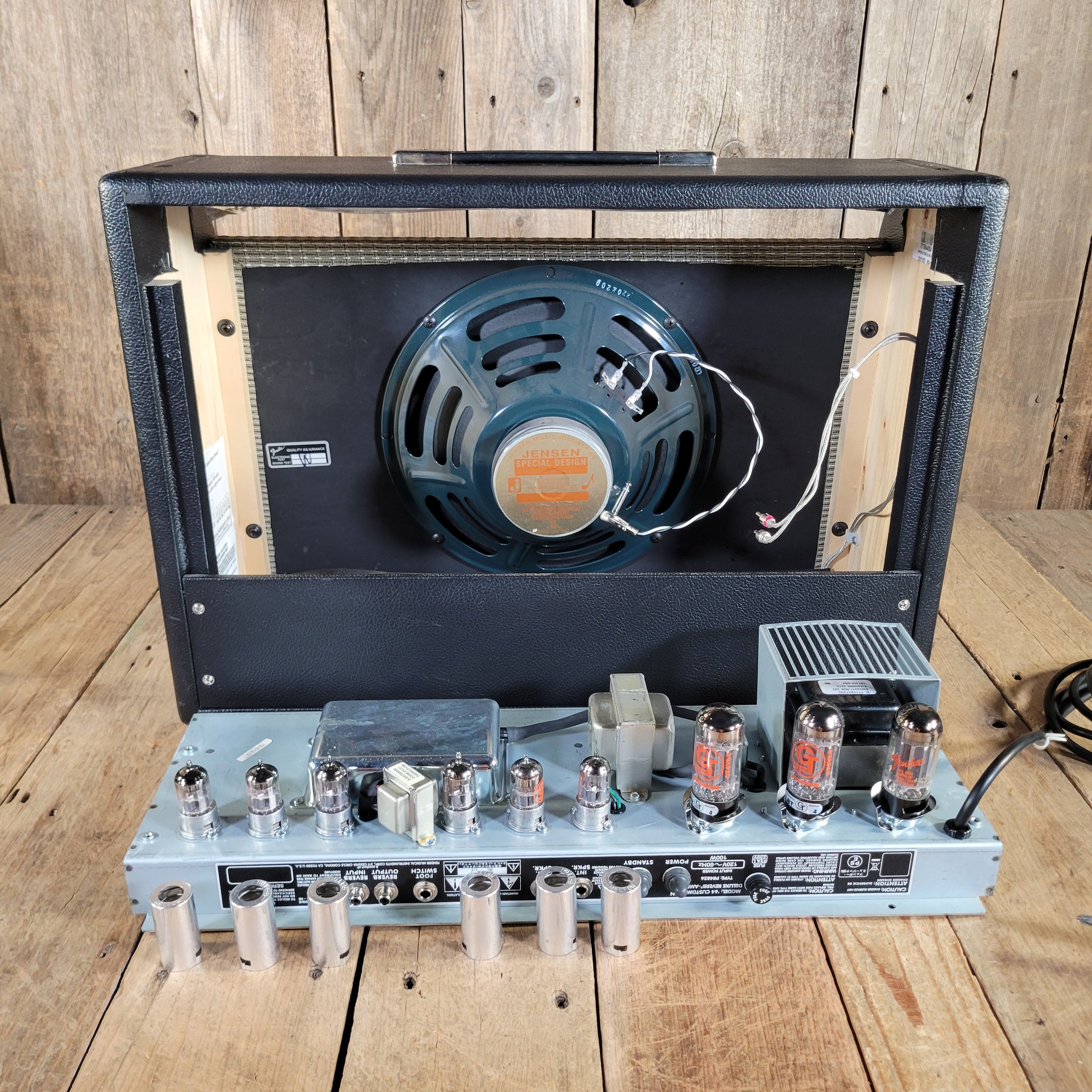

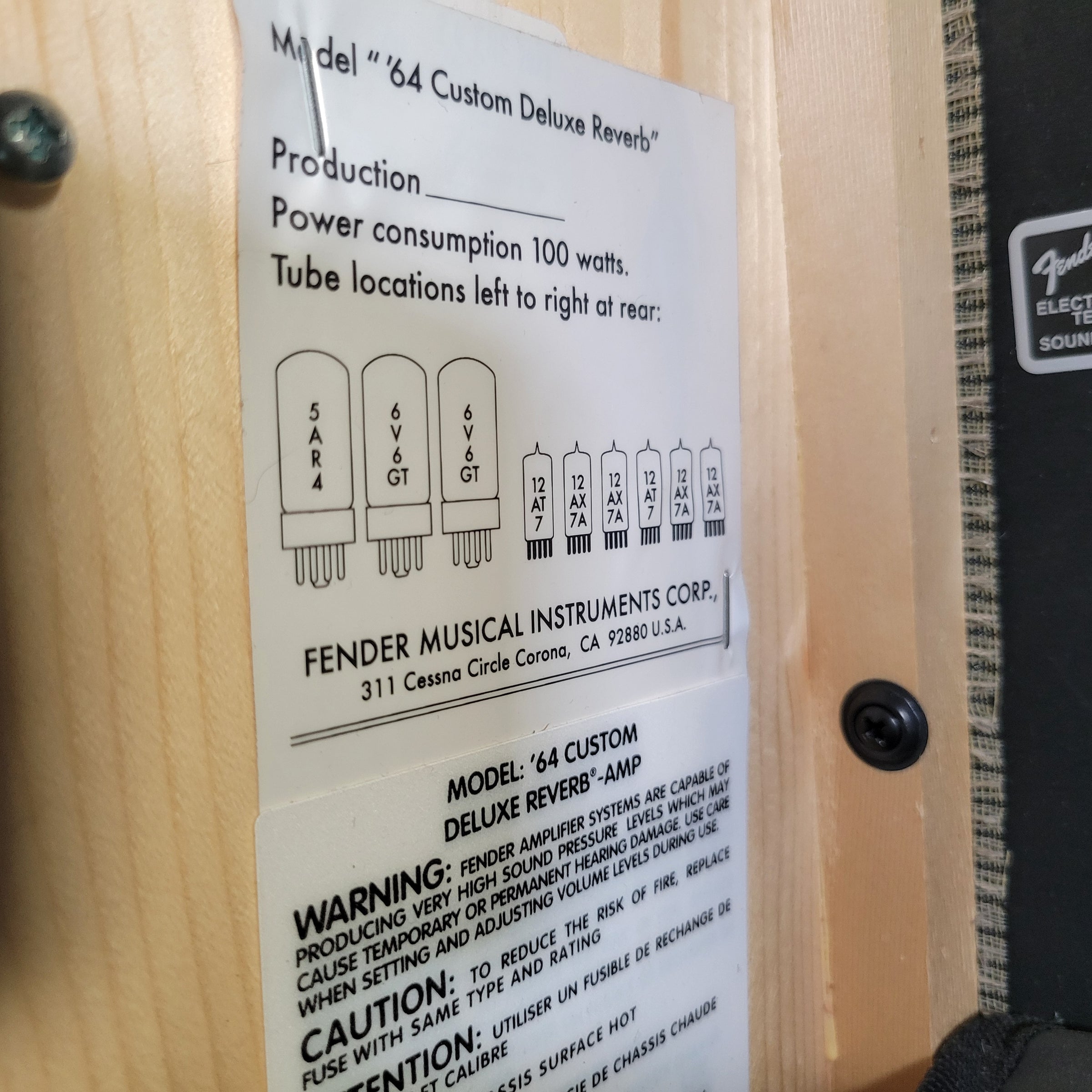

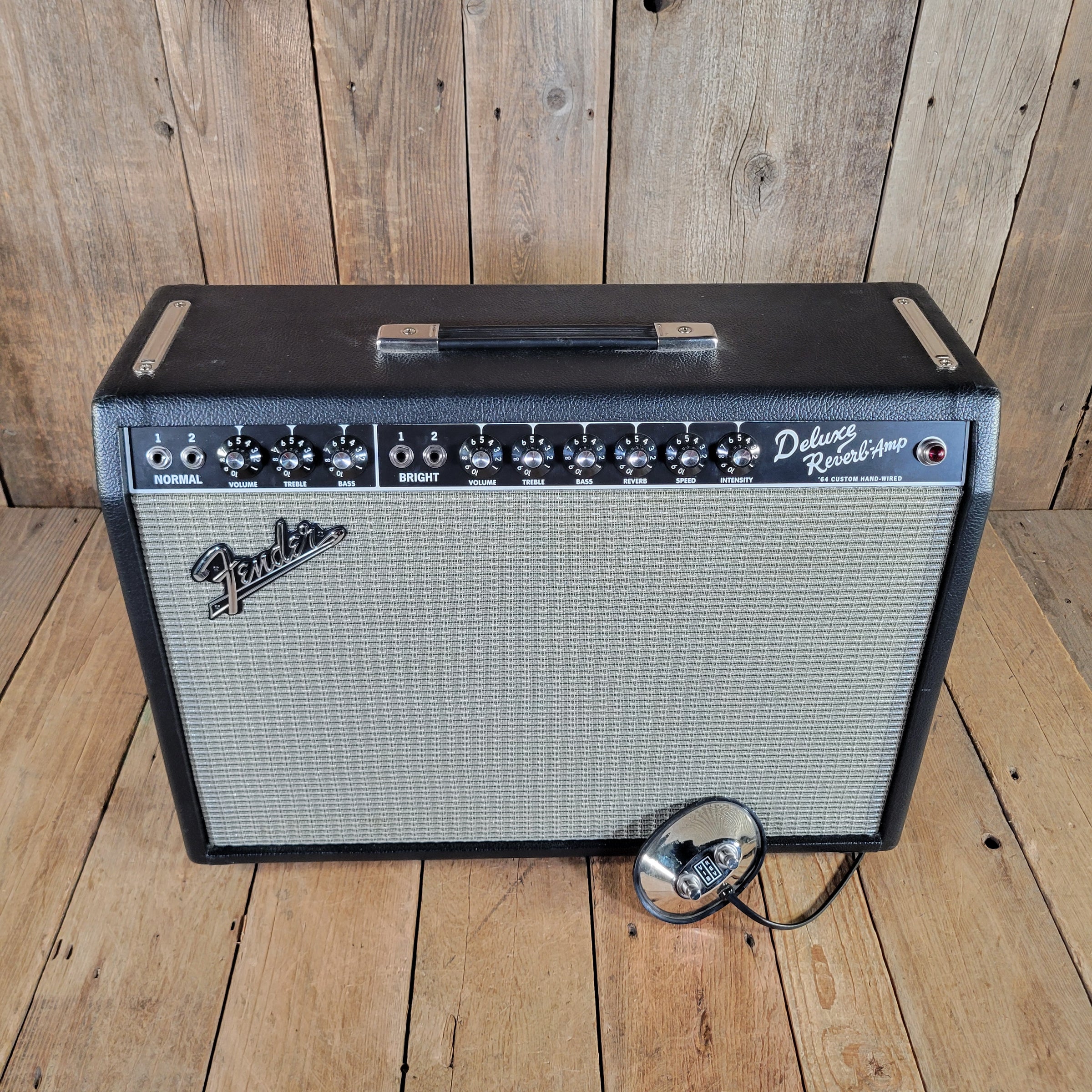

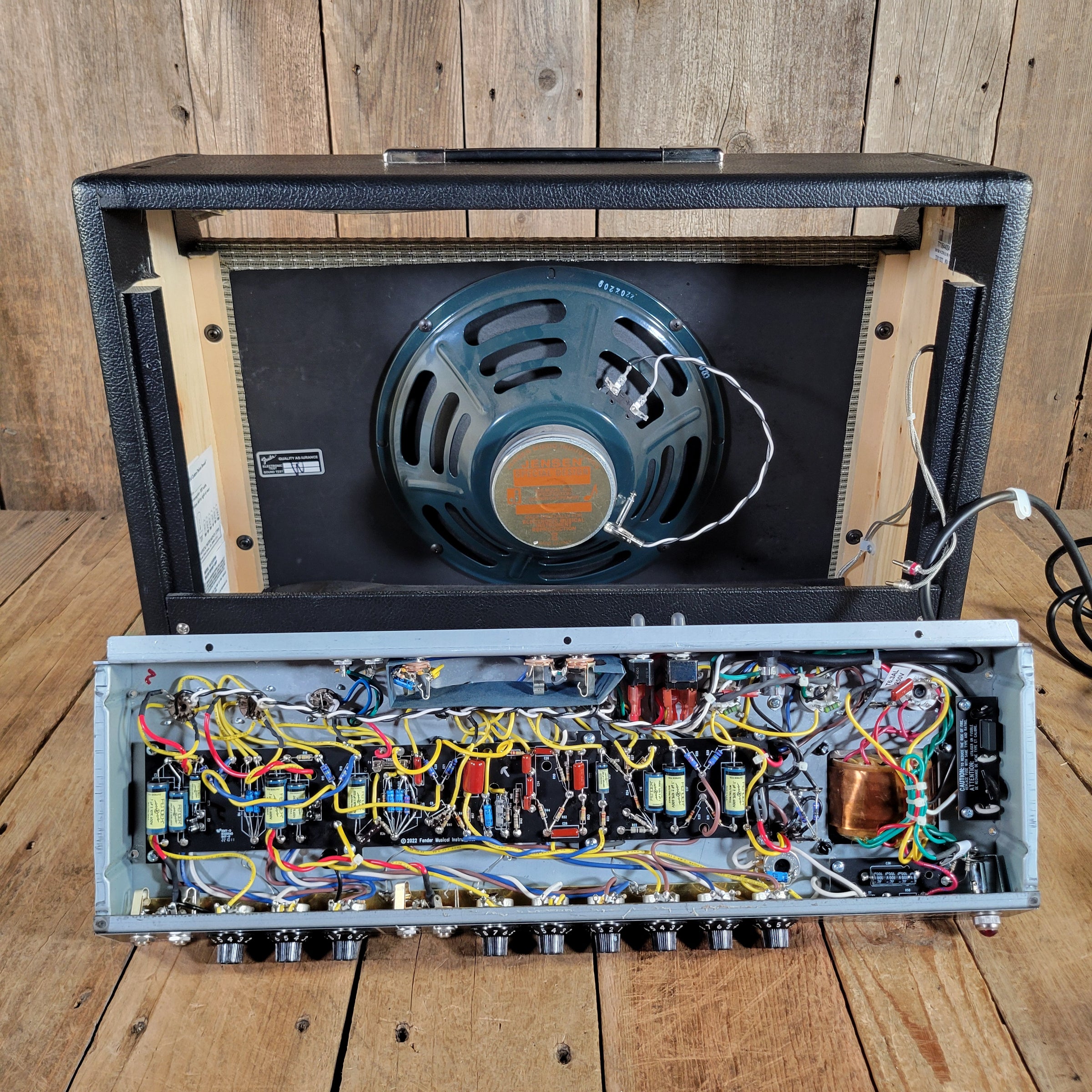

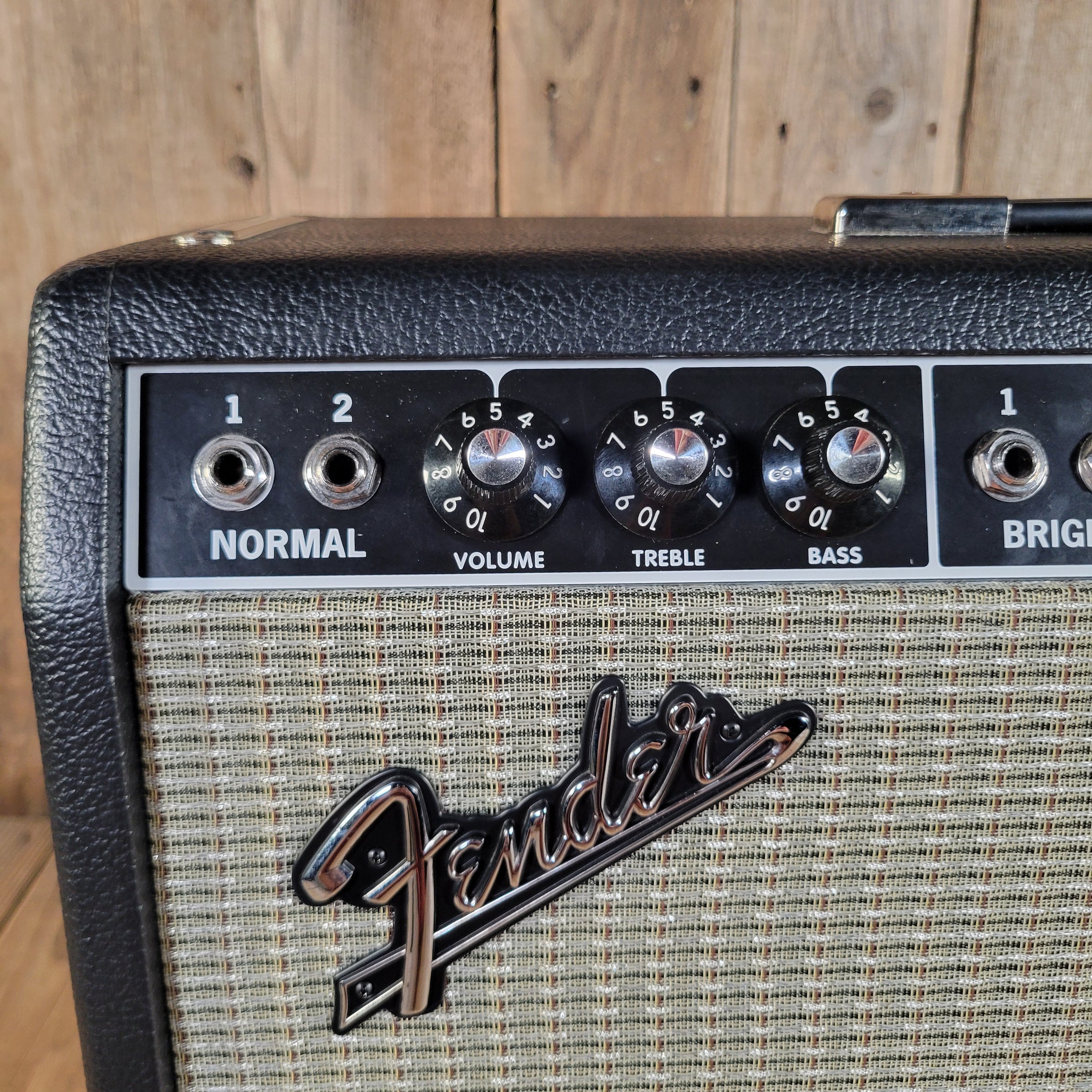

This example is in near-mint condition.  The cabinet, baffle, grille cloth, chassis, knobs, handle, and tolex covering are all original and in excellent condition. No internal repairs have been made. Tubes are GT-branded 6V6 power tubes and GT preamp tubes (2x 12AT7, 4x 12AX7), with a Fender-branded 5AR4 rectifier. We tested all the tubes to make sure they're solid for you.  The original Fender cover and the original footswitch pedal are included, both in excellent condition. No documentation is included.

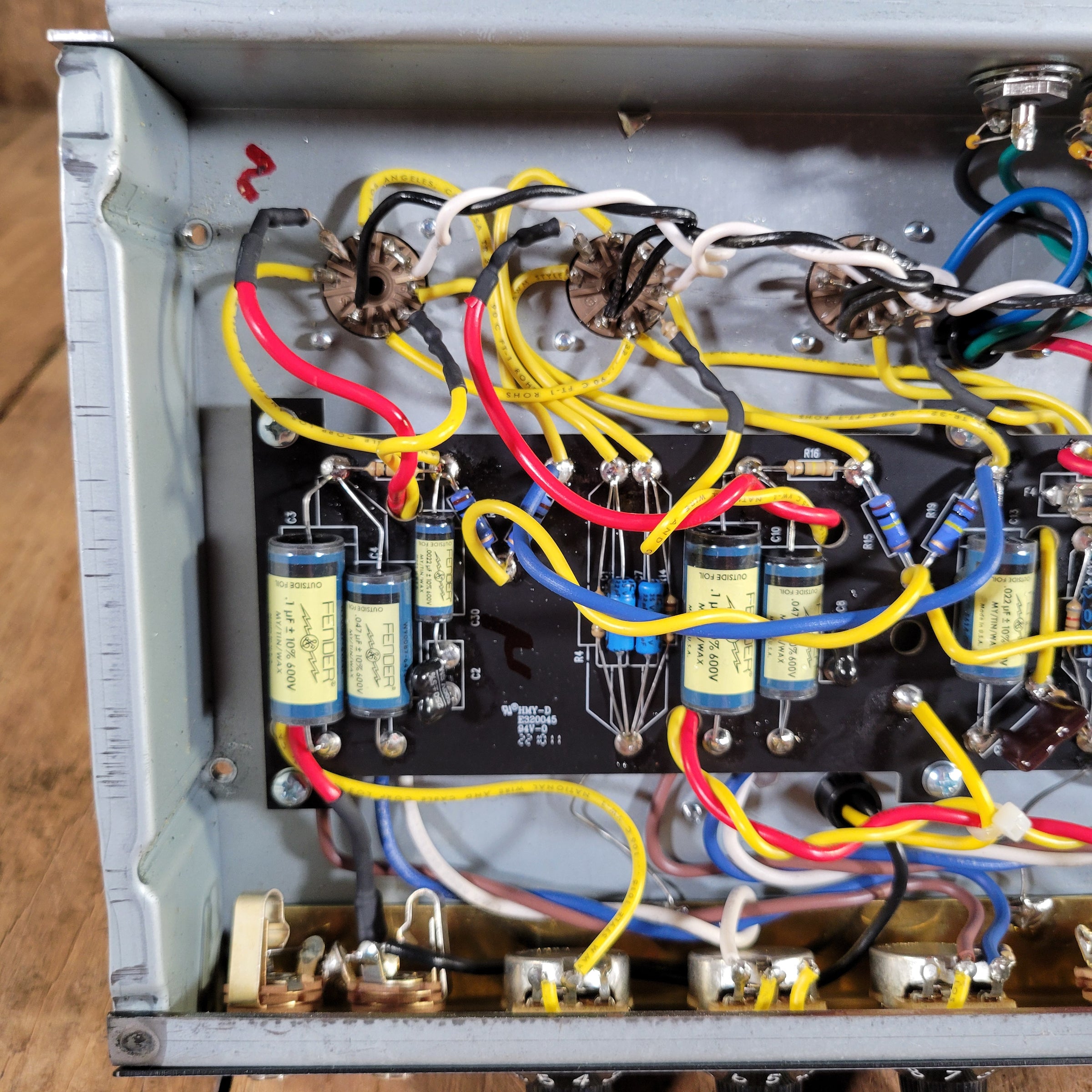

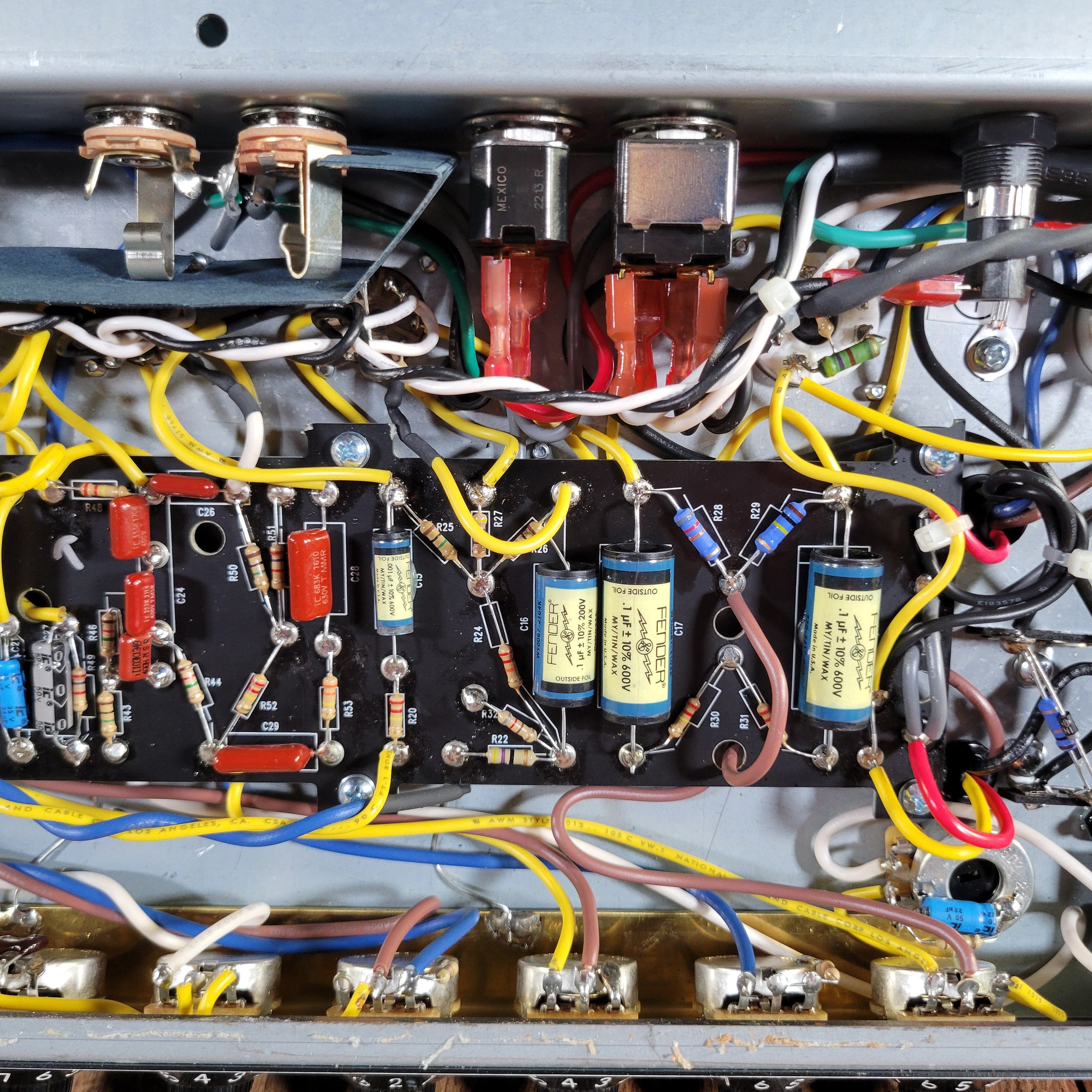

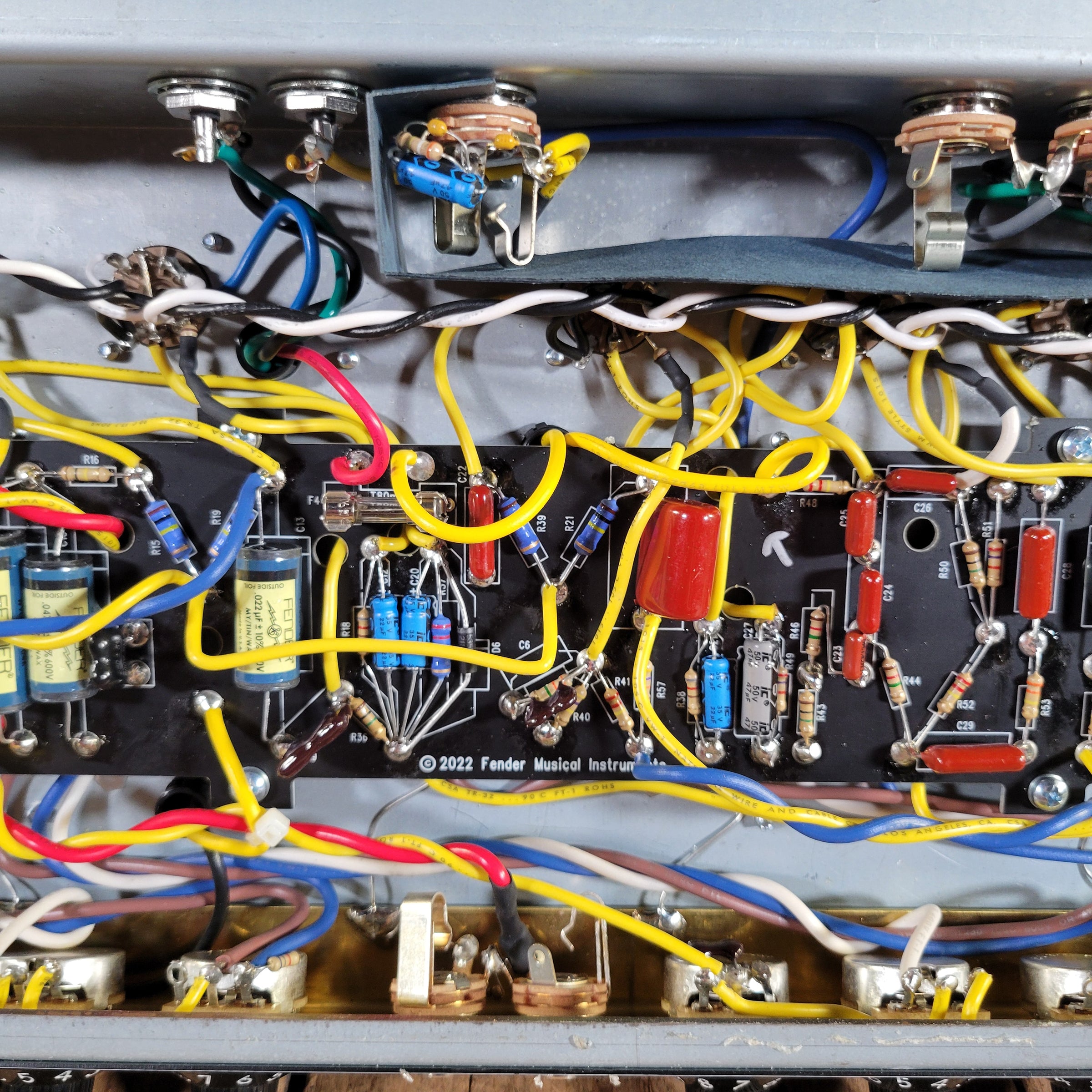

The Custom '64 Hand-Wired Deluxe Reverb is Fender's attempt to faithfully recreate the circuit topology of the original 1964 Deluxe Reverb — and it does so with point-to-point hand-wired construction rather than a printed circuit board, which is what separates this amp from the standard reissue. Spruce-and-pine cabinet construction, a Jensen C12Q 12" speaker, tube rectification via a 5AR4/GZ34, and a pair of 6V6 power tubes in a 20-watt configuration produce the warm, touch-responsive character that made the original Deluxe Reverb a studio and stage staple. Onboard spring reverb and vibrato circuits round out the feature set exactly as specified on the original. This example is in excellent condition throughout — cabinet, chassis, grille, and baffle all present cleanly with no noted repairs or modifications.

SPECIFICATIONS

• Date: 2022-2023
• Where Is Date Noted?: Codes and circuit board
• Weight: 38lbs
• Dimensions: 24-1/2"W x 17-1/2" H x 9.5" D
• Watts: 20 watts
• Case/Cover?: original
• Case/Cover Brand: Fender
• Case/Cover Condition: excellent

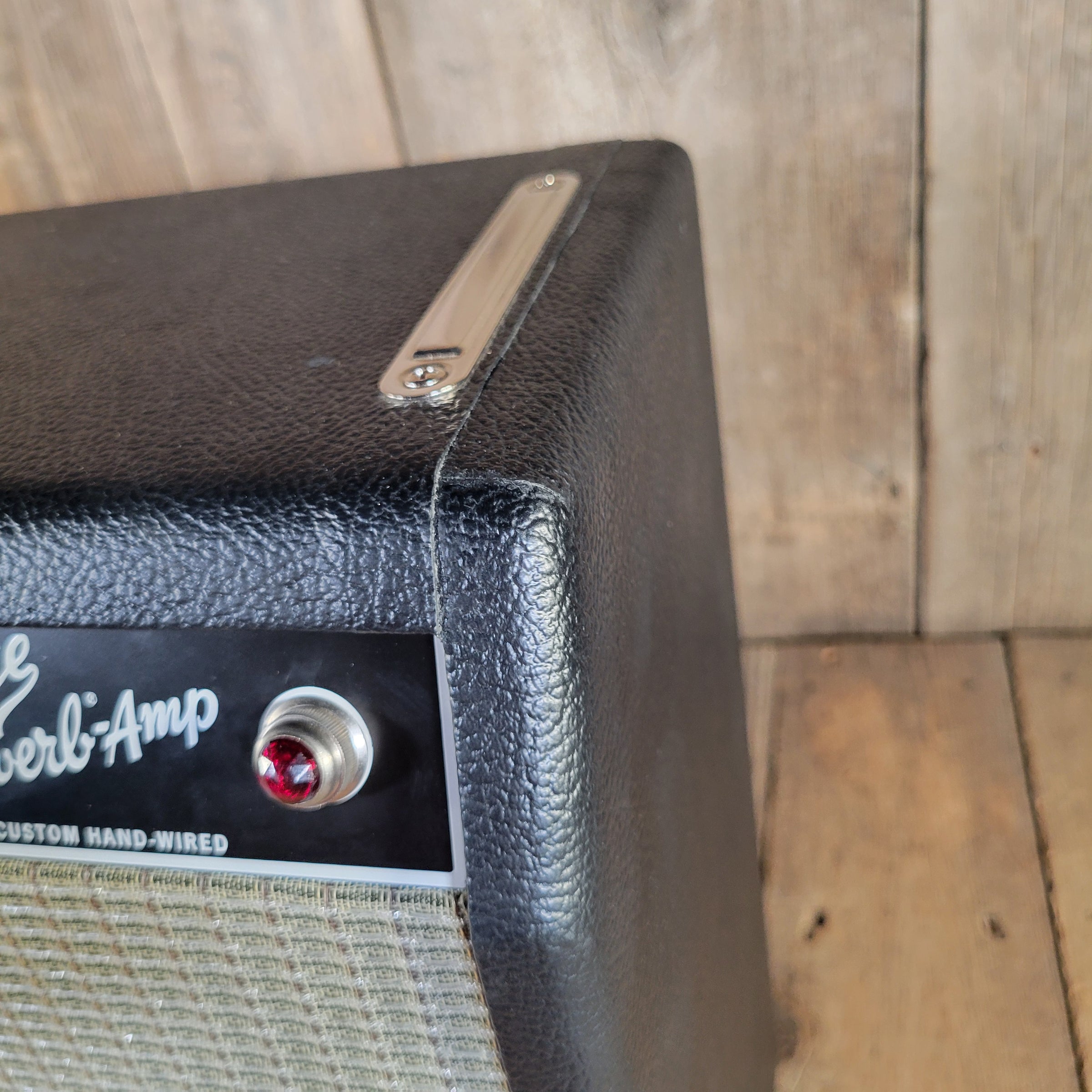

• Covering Material: tolex
• Covering Color: black
• Covering Original?: yes
• Cabinet Material: pine
• Cabinet Condition: excellent
• Cabinet Repairs/Changes: none
• Cabinet Original?: yes

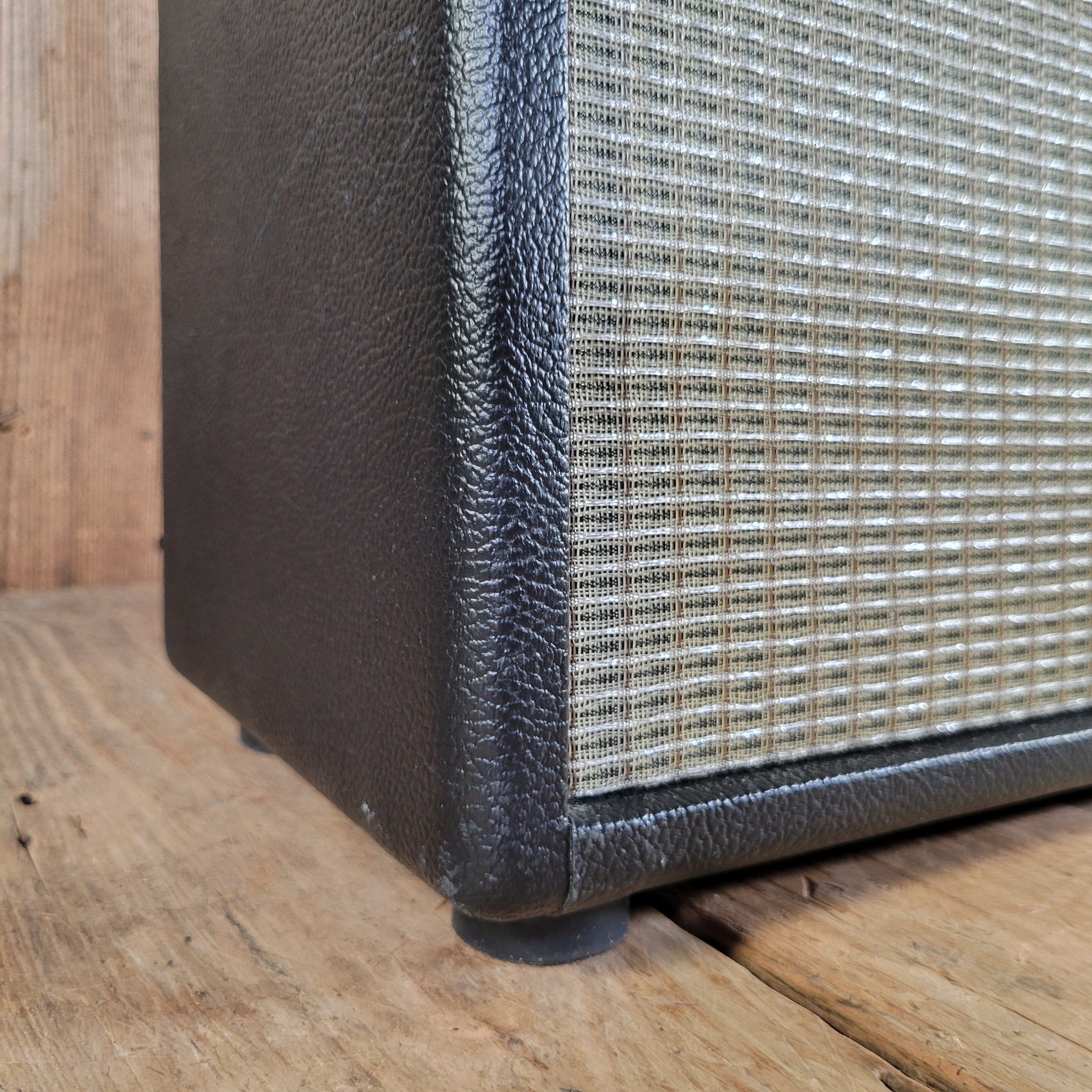

• Grille Style: silver weave
• Grille Condition: excellent
• Grille Original?: yes
• Baffle Material: plywood
• Baffle Condition: excellent
• Baffle Original?: yes
• Baffle Repairs/Changes: none
• Chassis Material: metal
• Chassis Condition: excellent
• Chassis Original?: yes
• Chassis Repairs/Changes: none

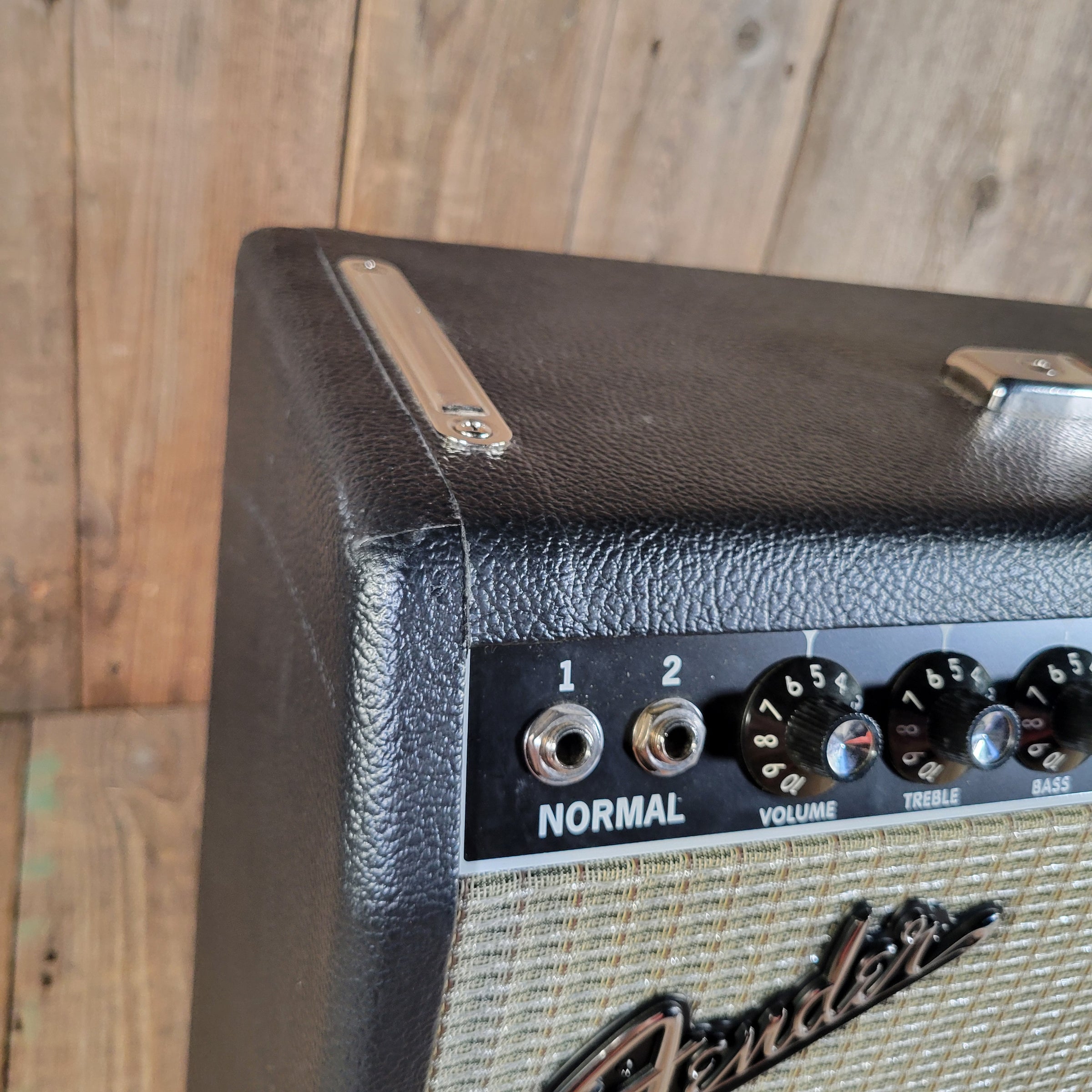

• Knobs Original?: yes
• Handle Material: rubber
• Handle Original?: yes

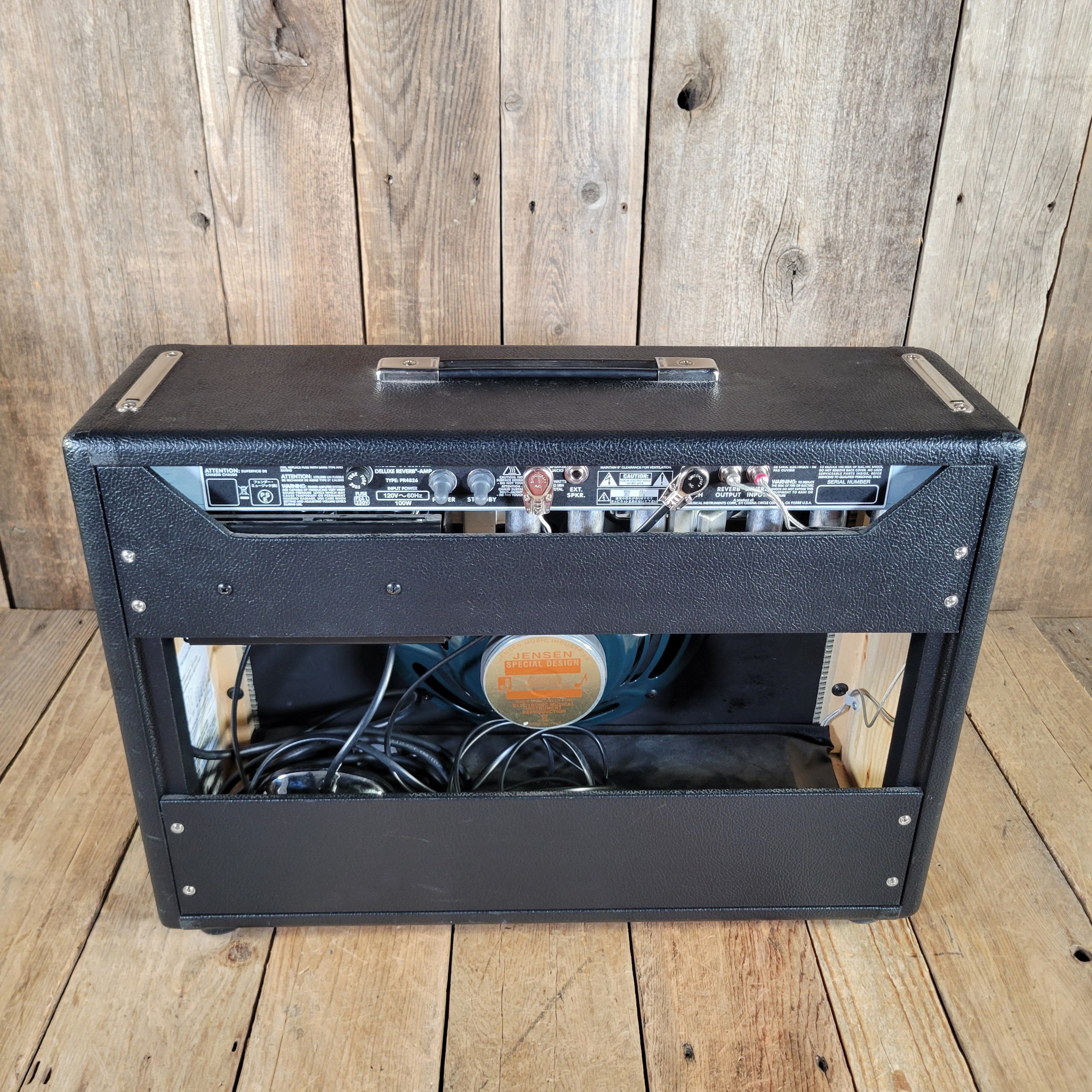

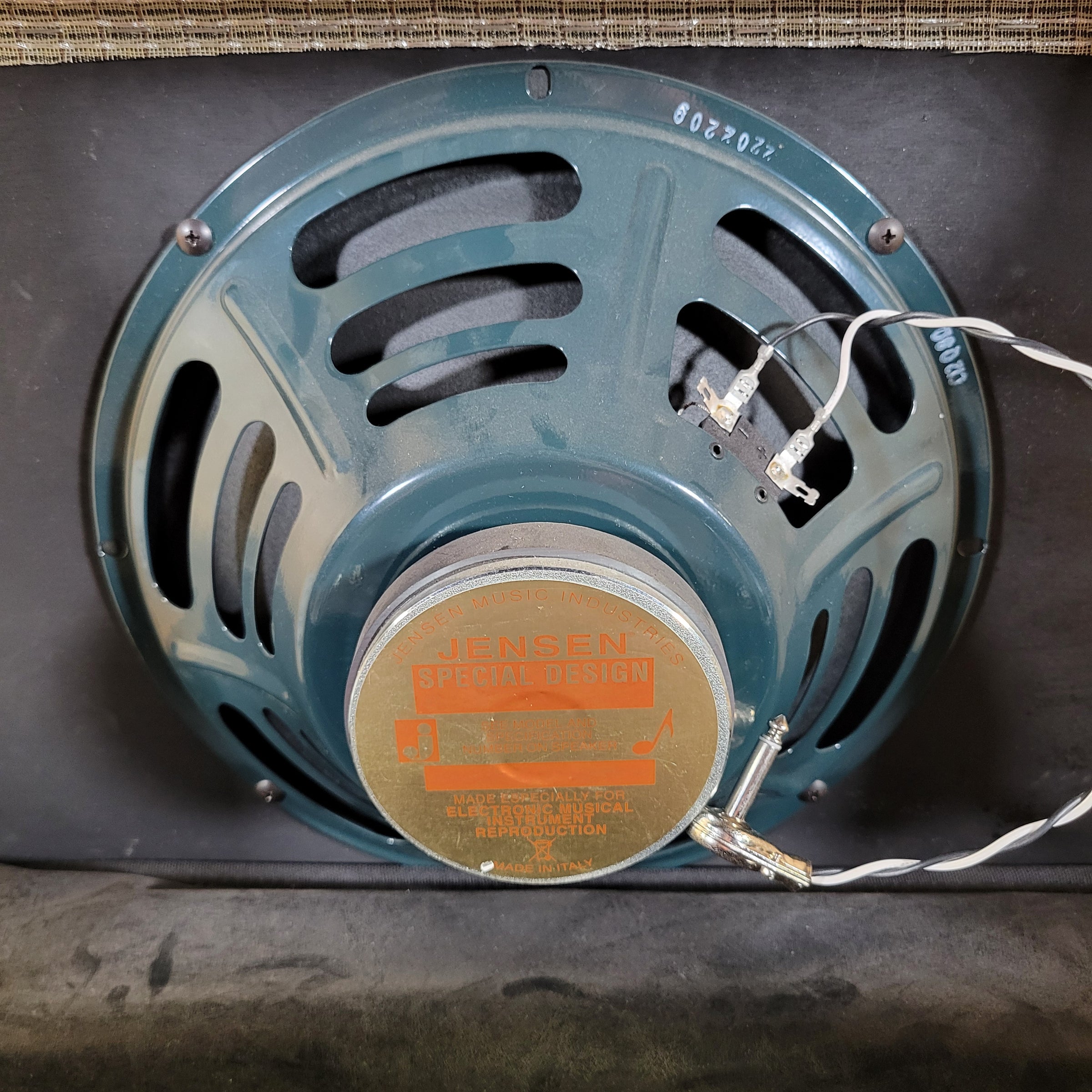

• Speaker 1 Brand: Jensen C 12Q
• Speaker 1 Size: 12"

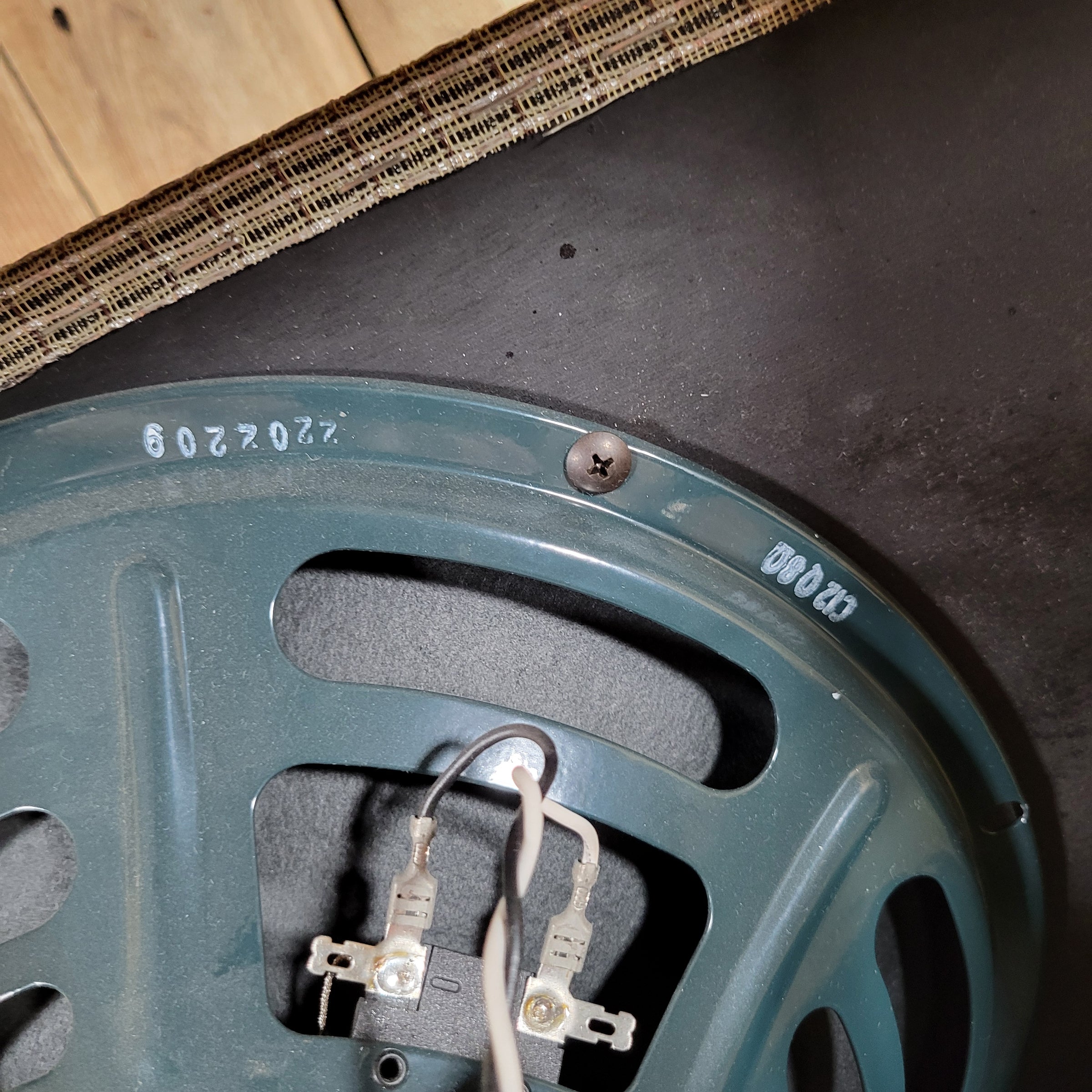

• Speaker 1 Manufacturer Code: 220
• Speaker 1 Date Code: 2209
• Speaker 1 Cone Code: none
• Speaker 1 Cone Original?: yes
• Speaker 1 Condition: excellent

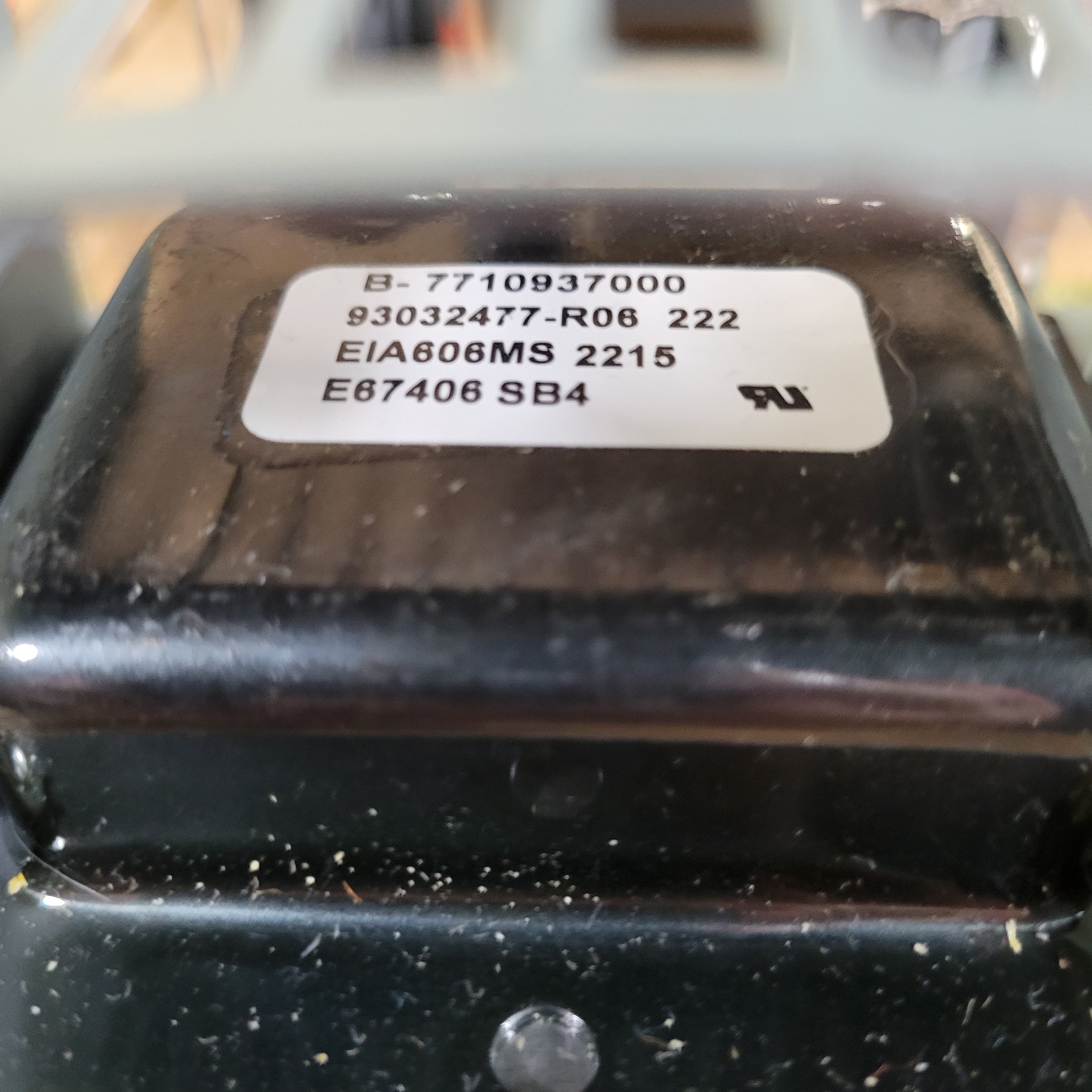

• Power Transformer Manufacturer: Schumacher
• Power Transformer Manufacturer Code: 606
• Power Transformer Date Code: 2215
• Power Transformer Original?: yes

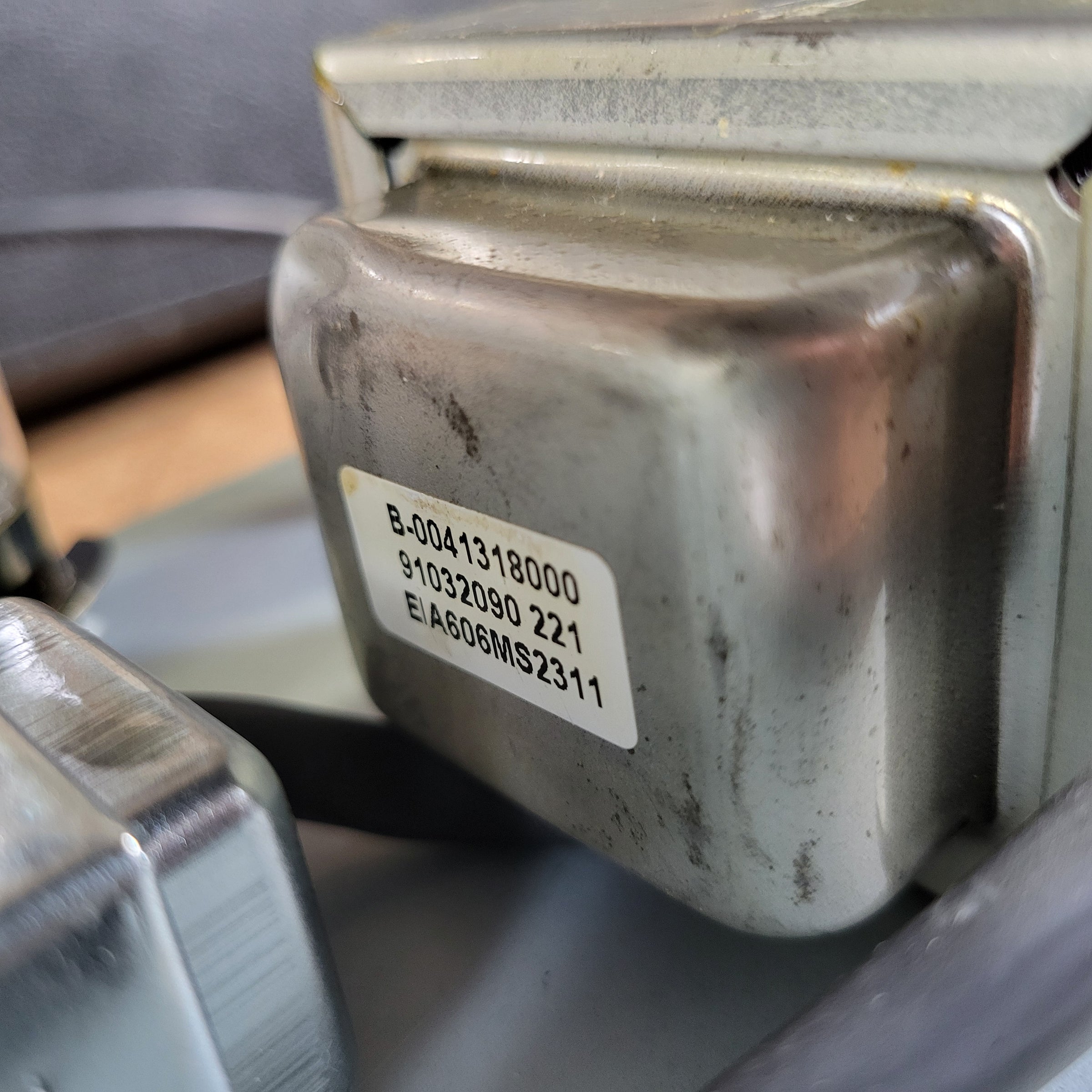

• Output Transformer Manufacturer: Schumacher
• Output Transformer Manufacturer Code: 606
• Output Transformer Date Code: 2311
• Output Transformer Original?: yes

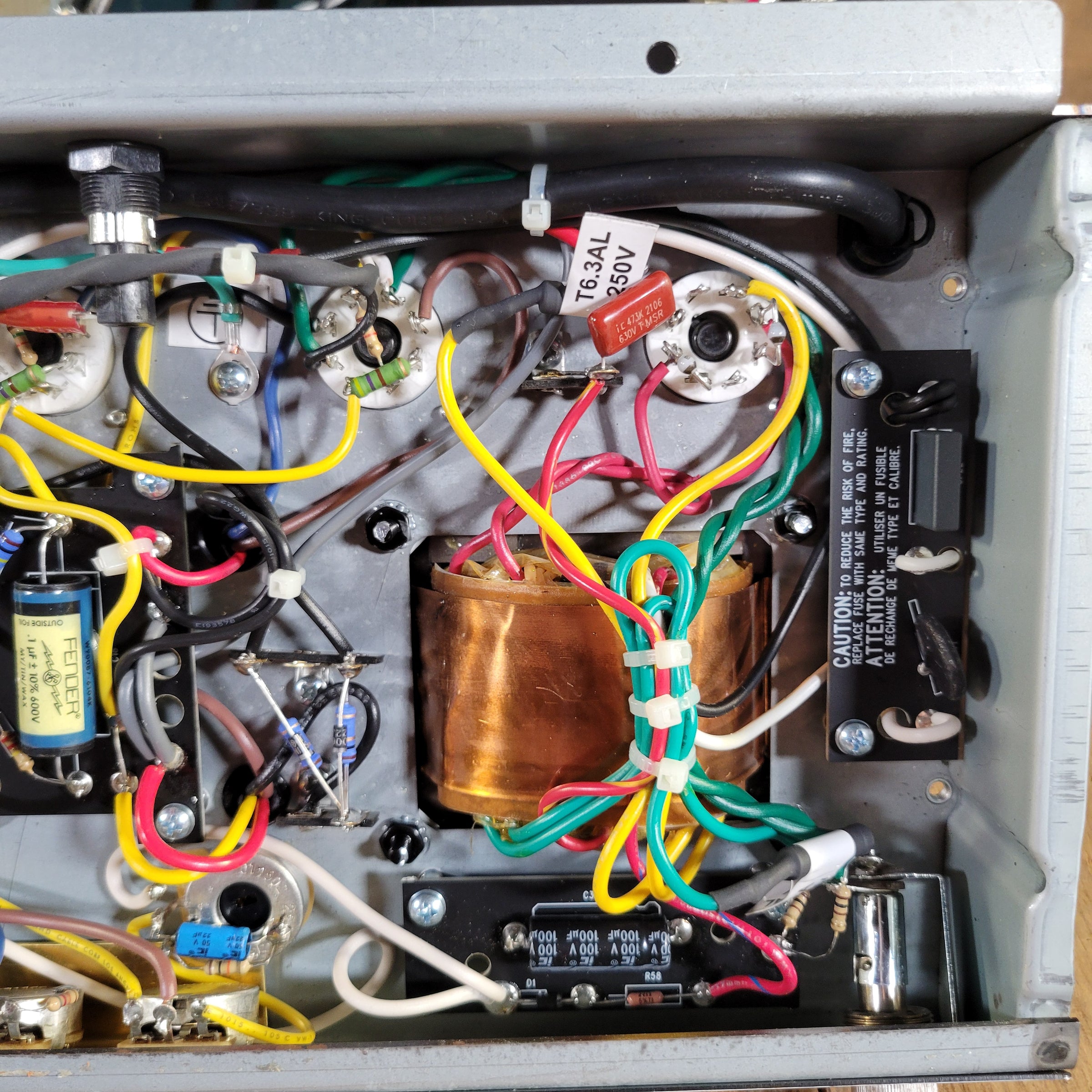

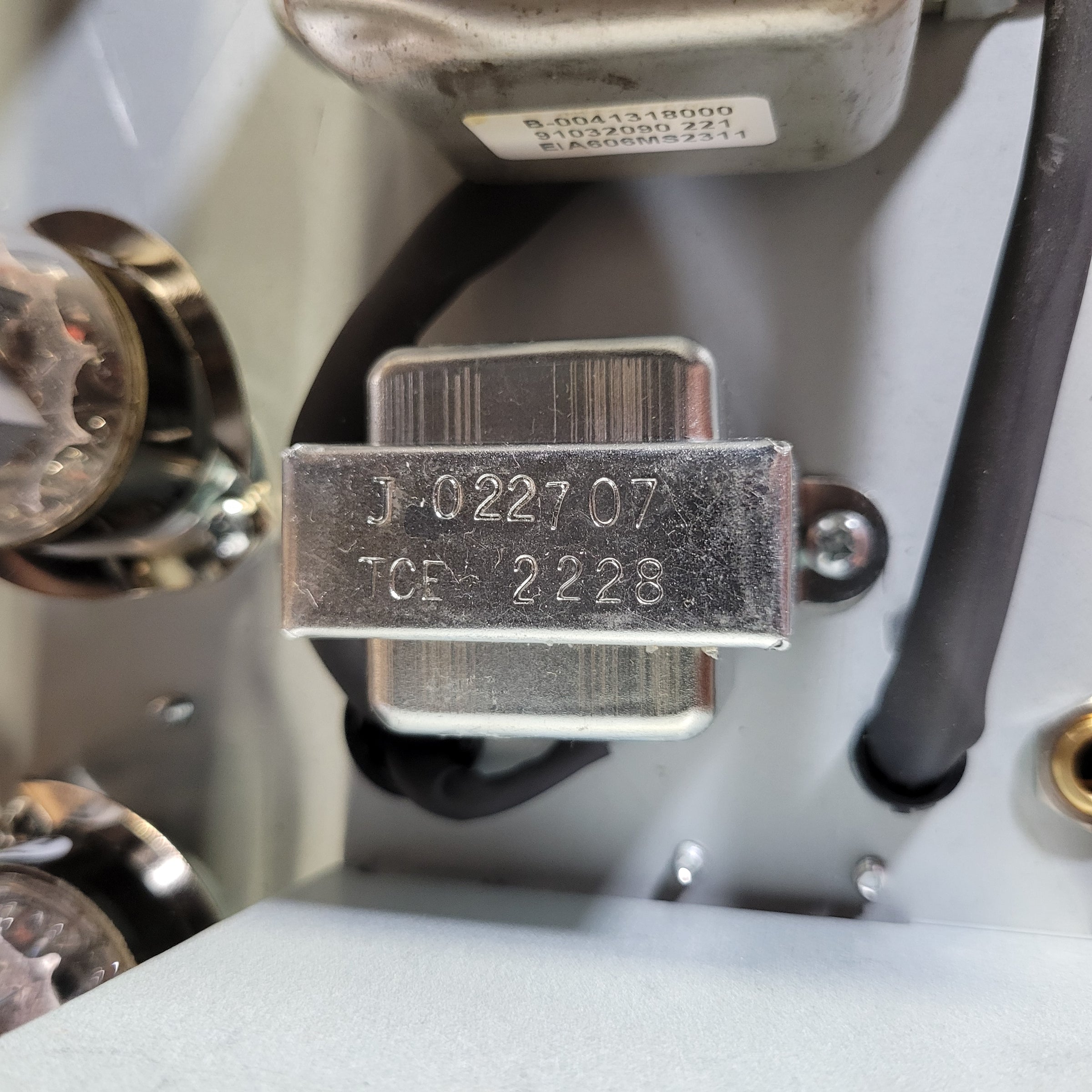

• Choke Transformer Manufacturer: Shenzhen Electronics Co
• Choke Transformer Manufacturer Code: TCE
• Choke Transformer Date Code: 2228
• Choke Transformer Original?: yes

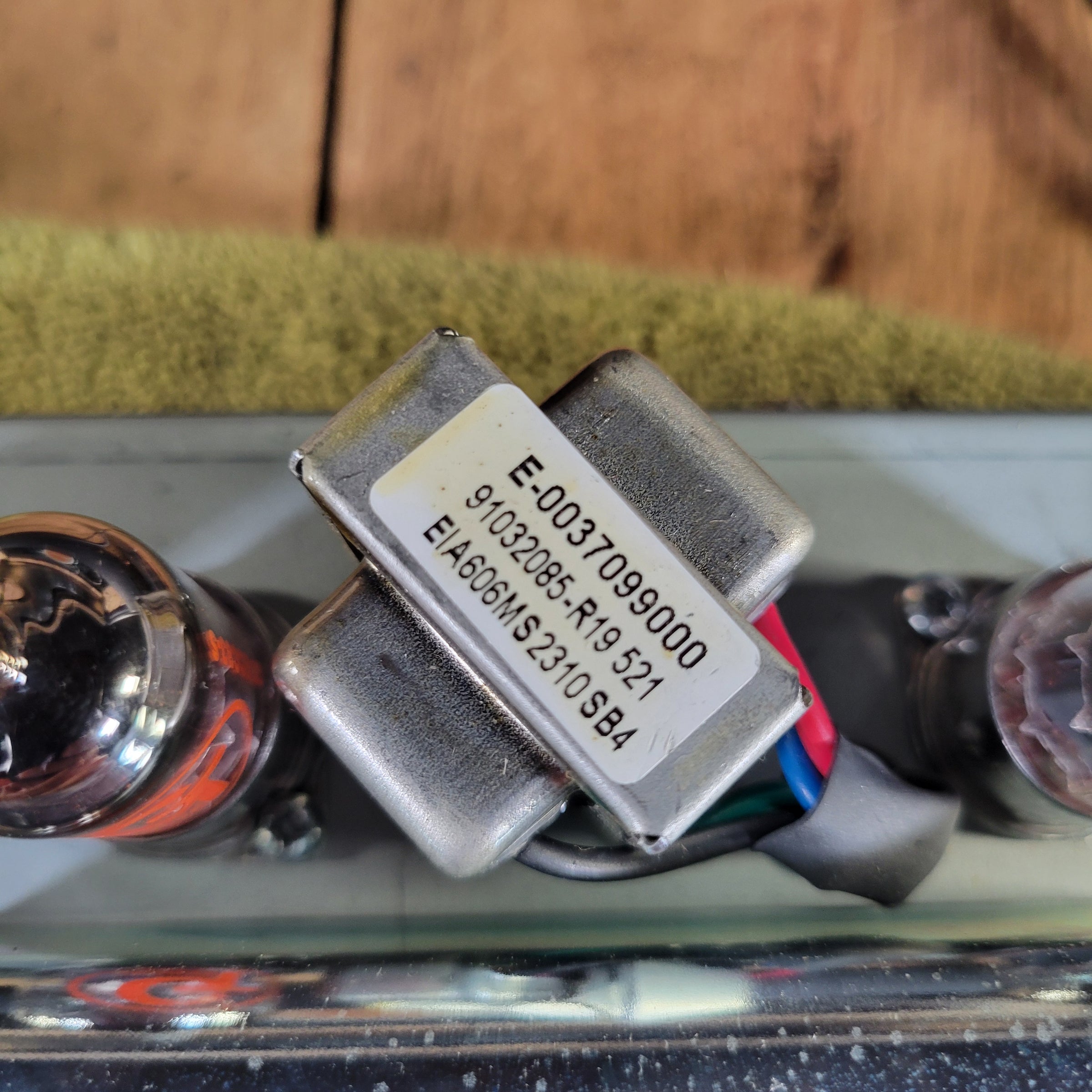

• Reverb Transformer Manufacturer: Schumacher
• Reverb Transformer Manufacturer Code: 606
• Reverb Transformer Date Code: 2310
• Reverb Transformer Original?: yes

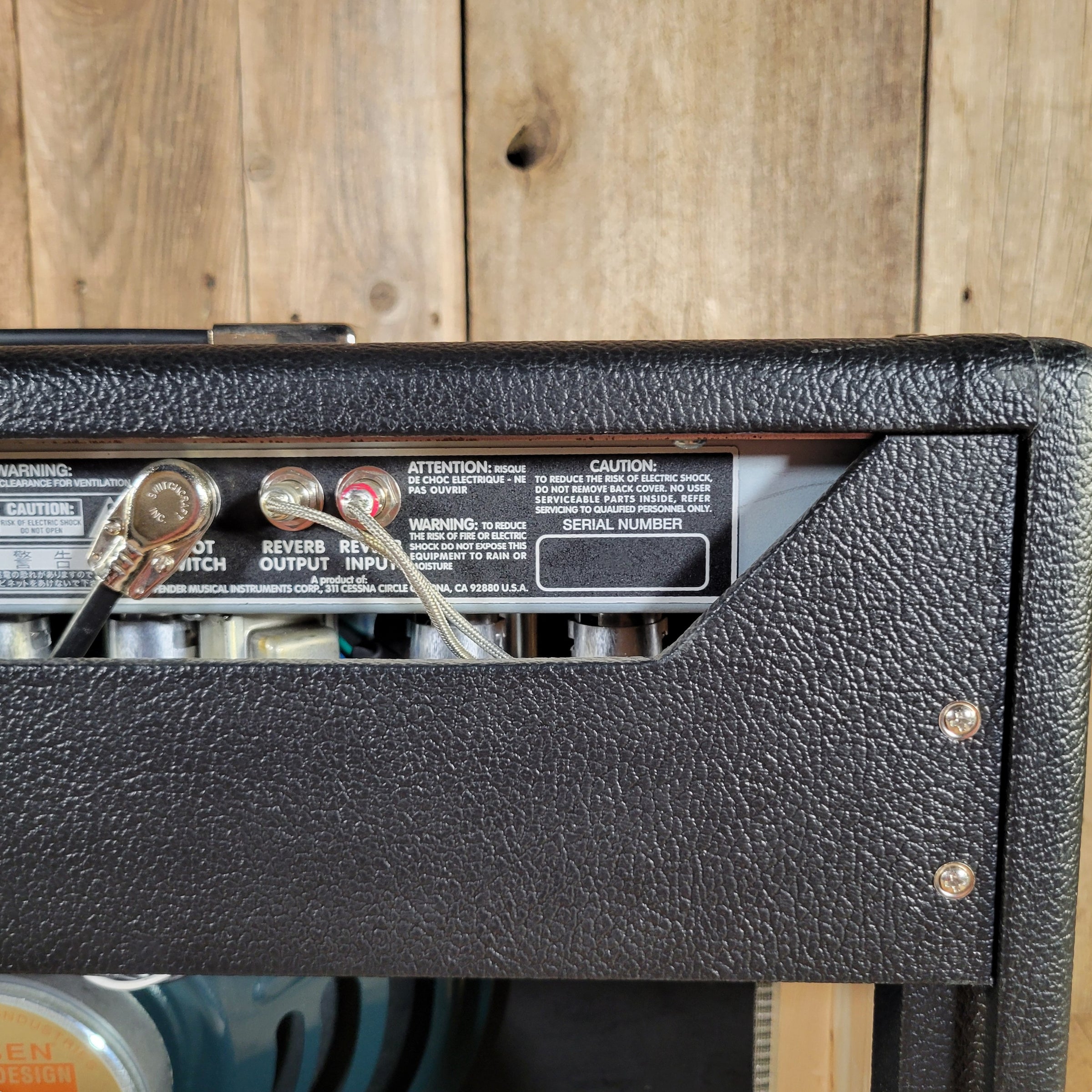

• Reverb Onboard: yes
• Reverb Tank Original?: yes
• Tremolo Or Vibrato Onboard: vibrato
• Pedal Included?: yes
• Pedal Condition: excellent
• Pedal Original?: yes

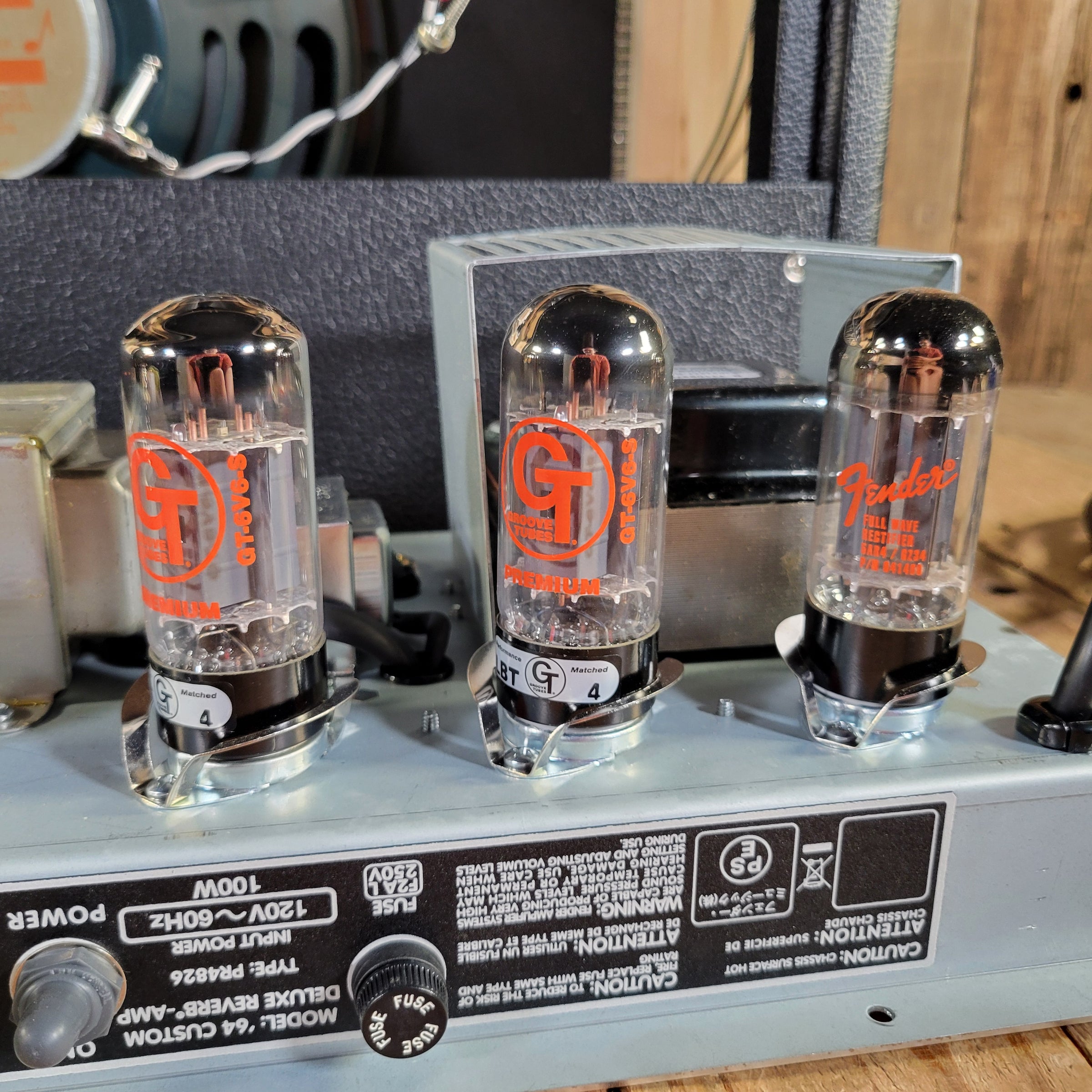

• Rectifier Tube: 5AR4/GZ34
• Rectifier Tube Brand: Fender
• Power Tubes: 2 x 6V6
• Power Tube Brand: GT

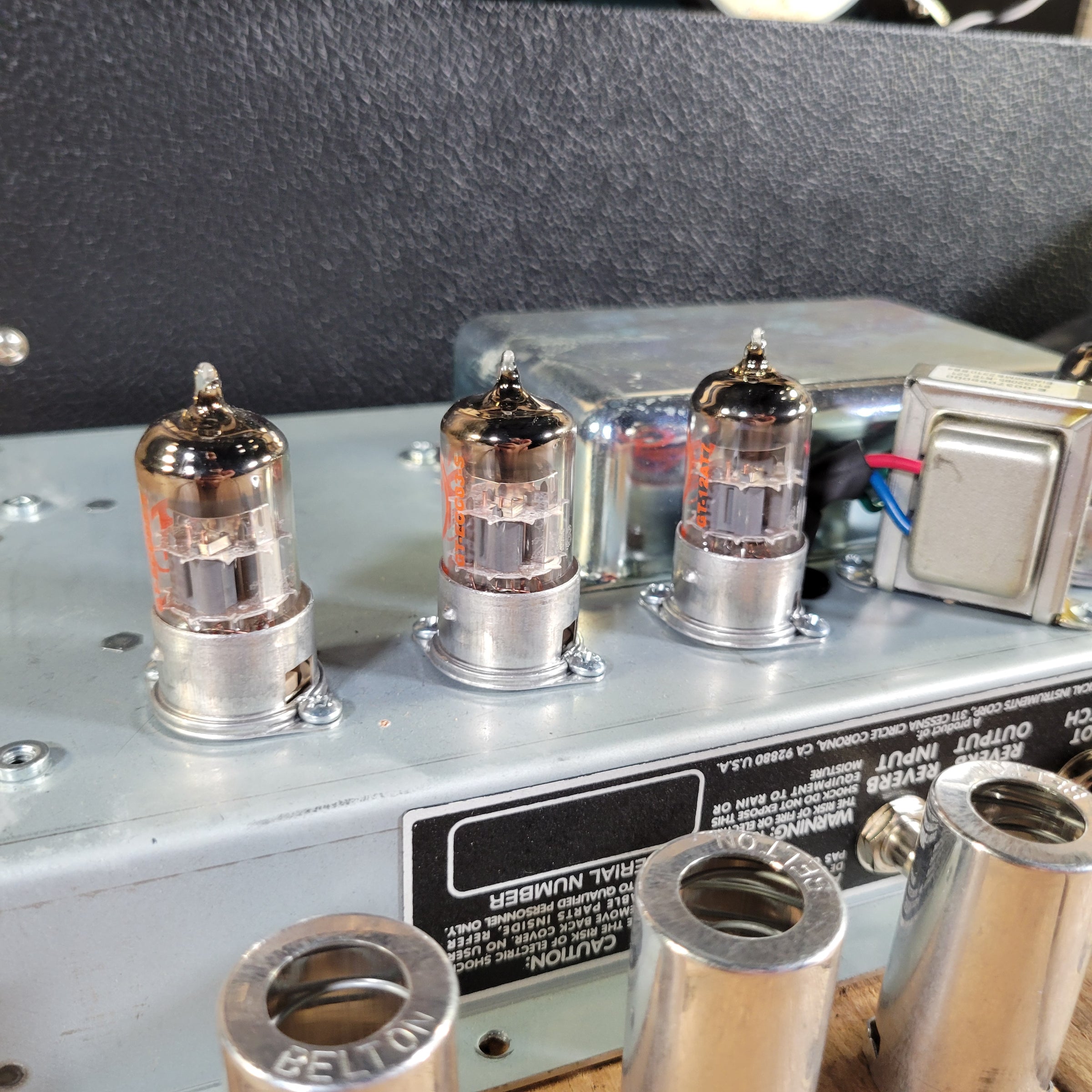

• Preamp Tubes: 2 x 12AT7, 4 x 12AX7
• Preamp Tube Brand: GT

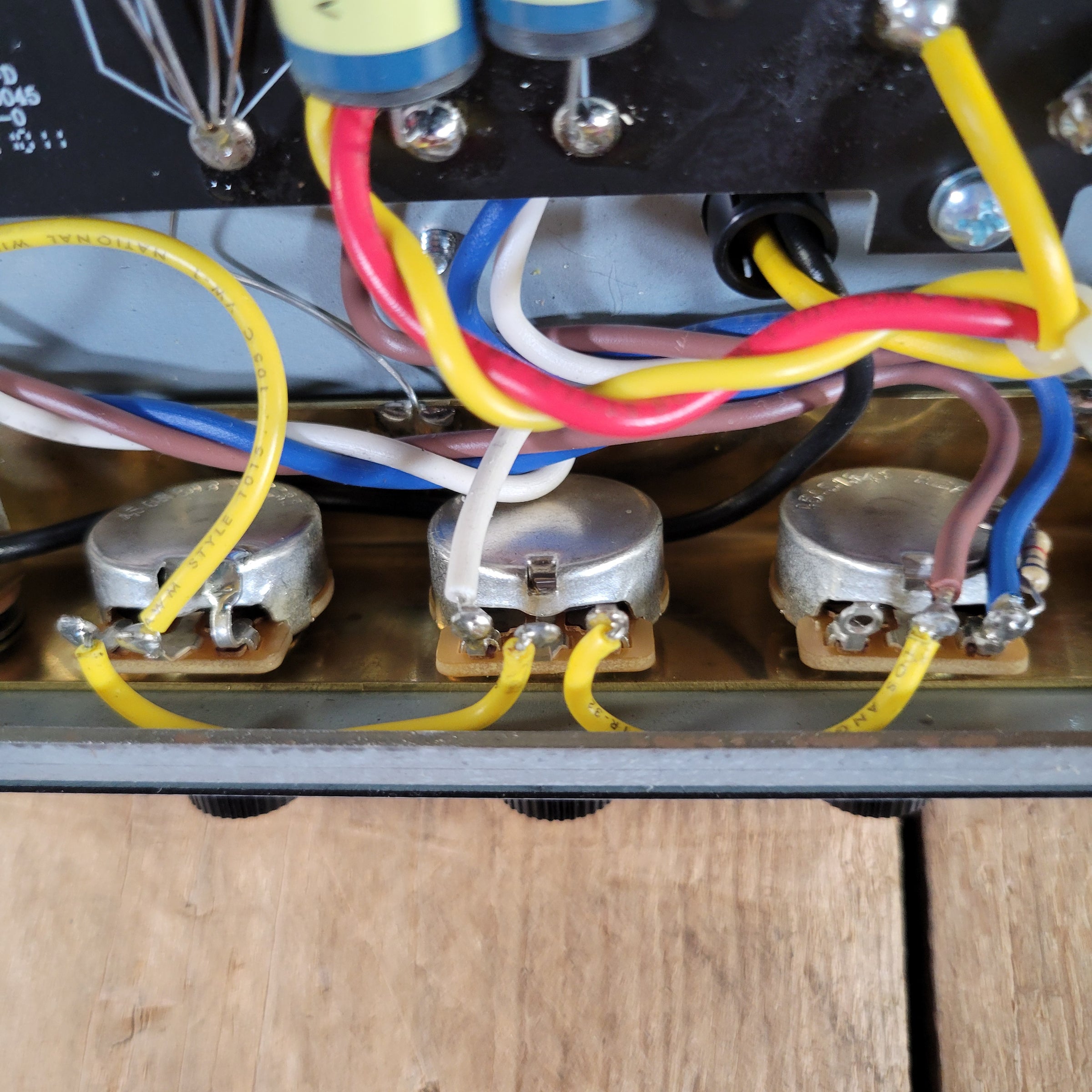

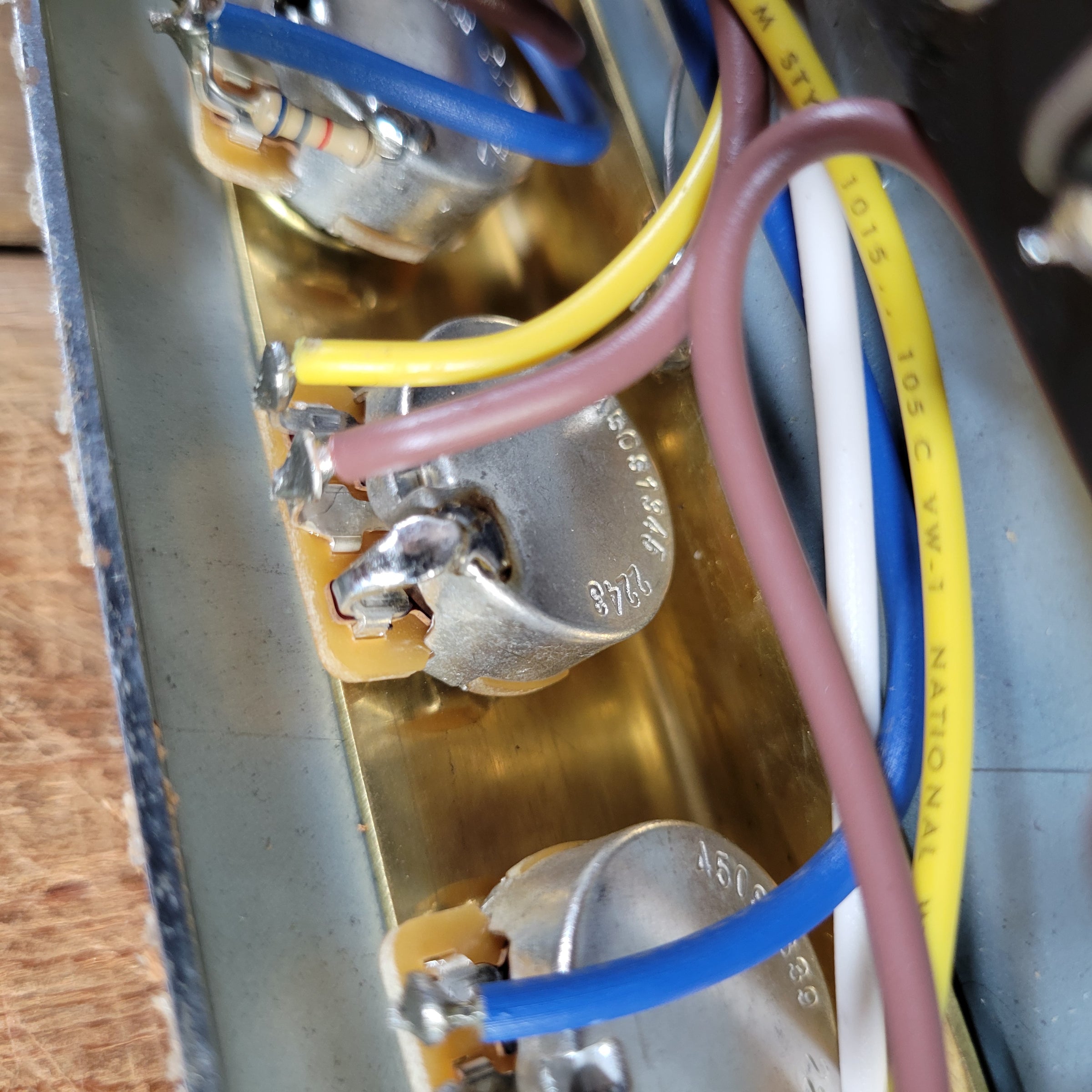

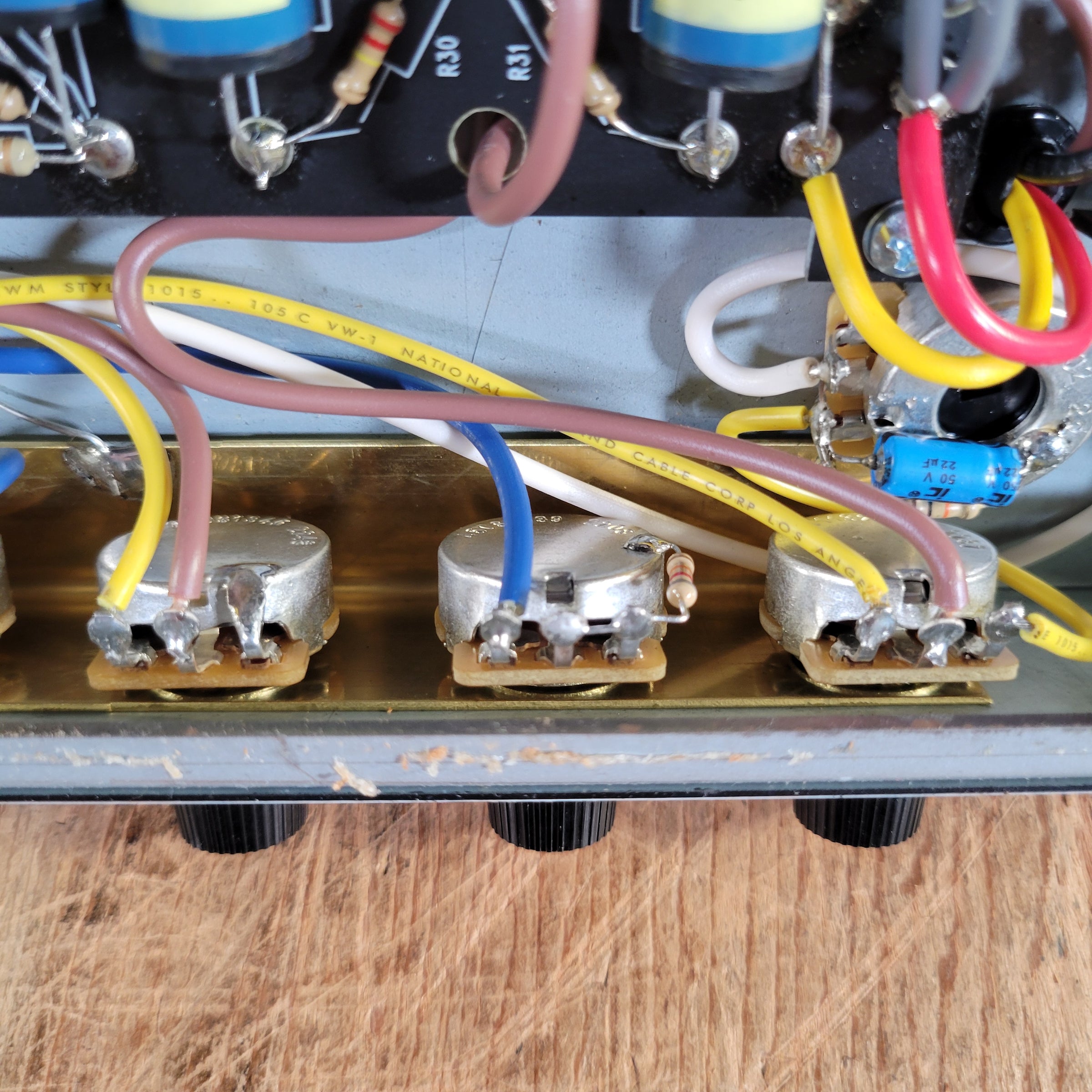

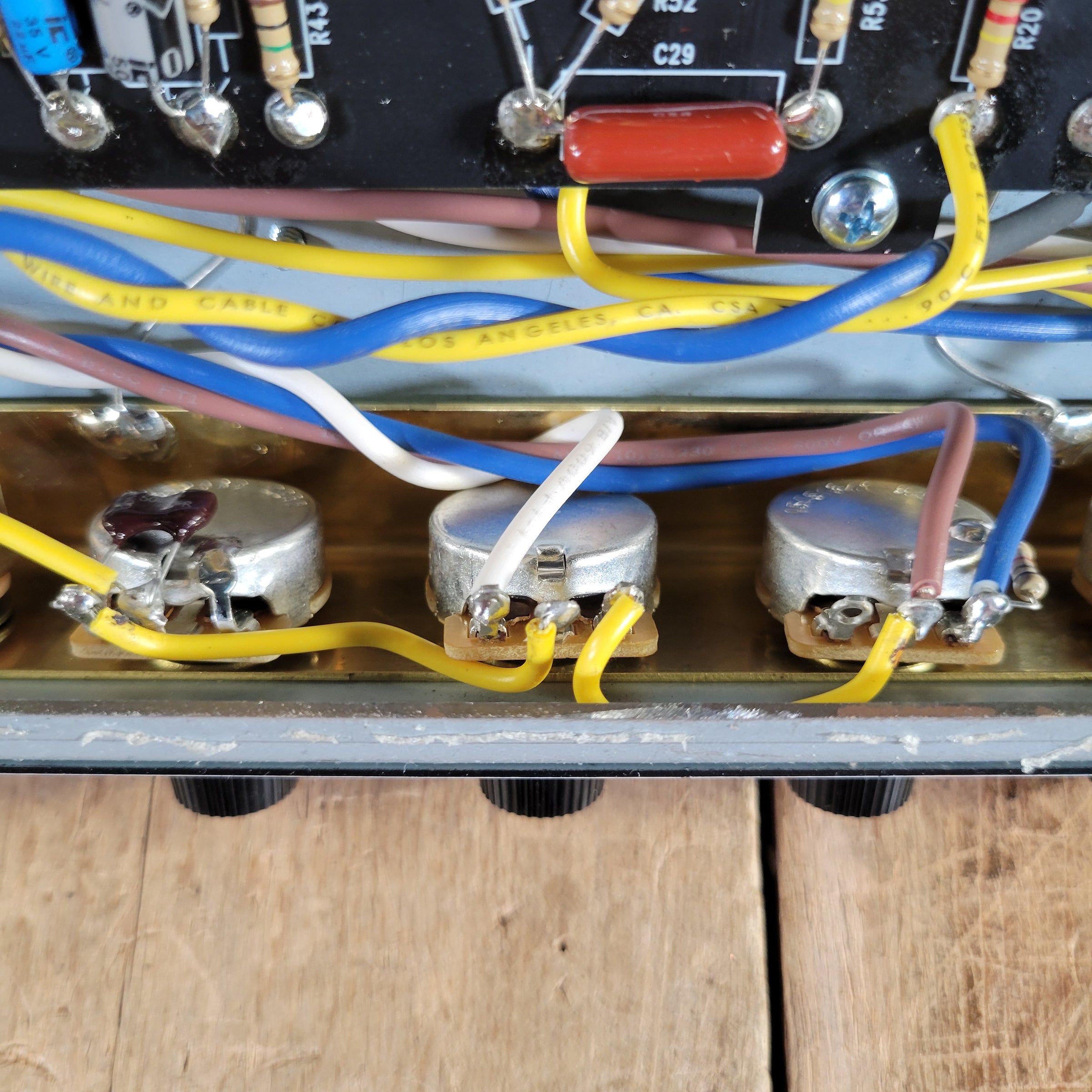

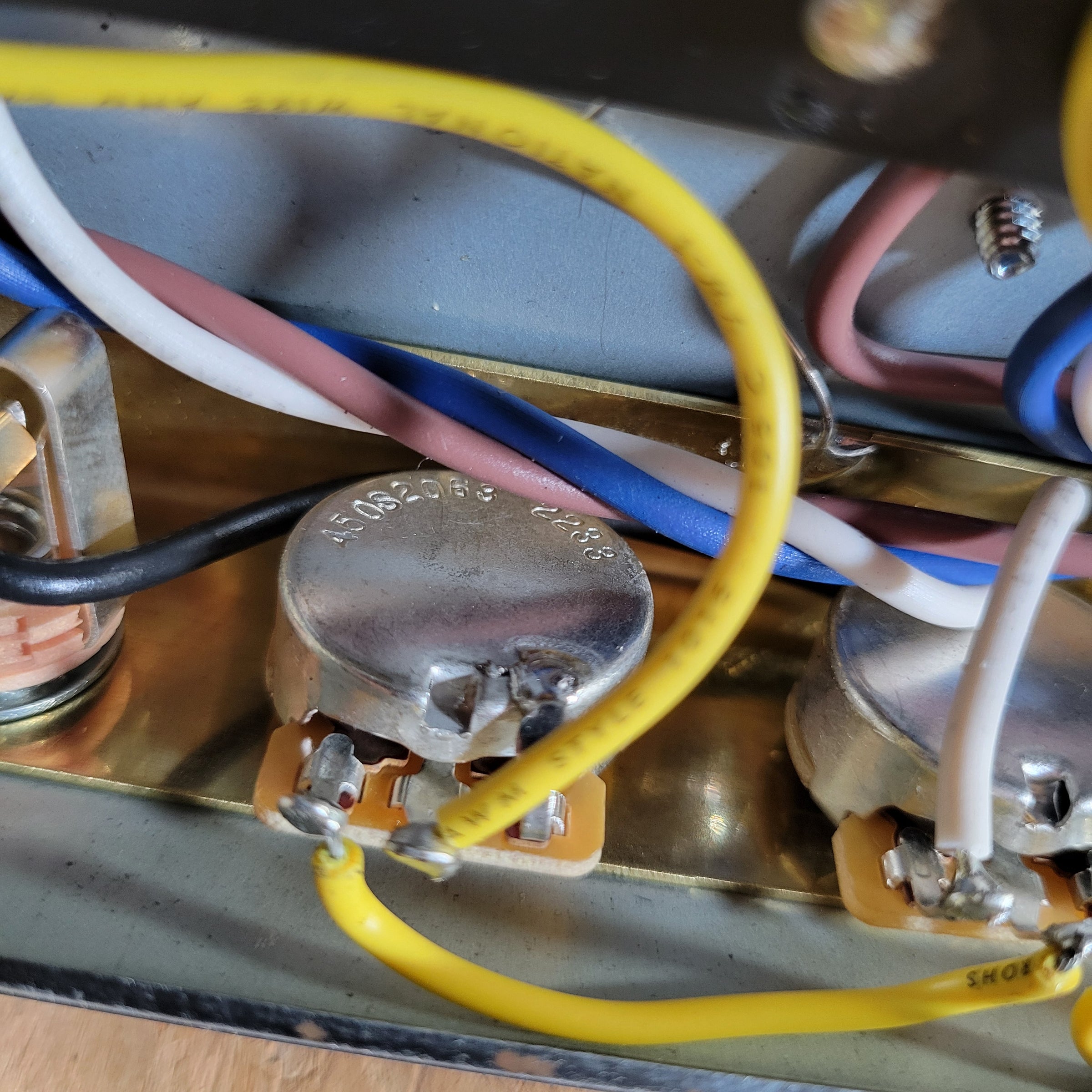

• Potentiometers Original?: yes

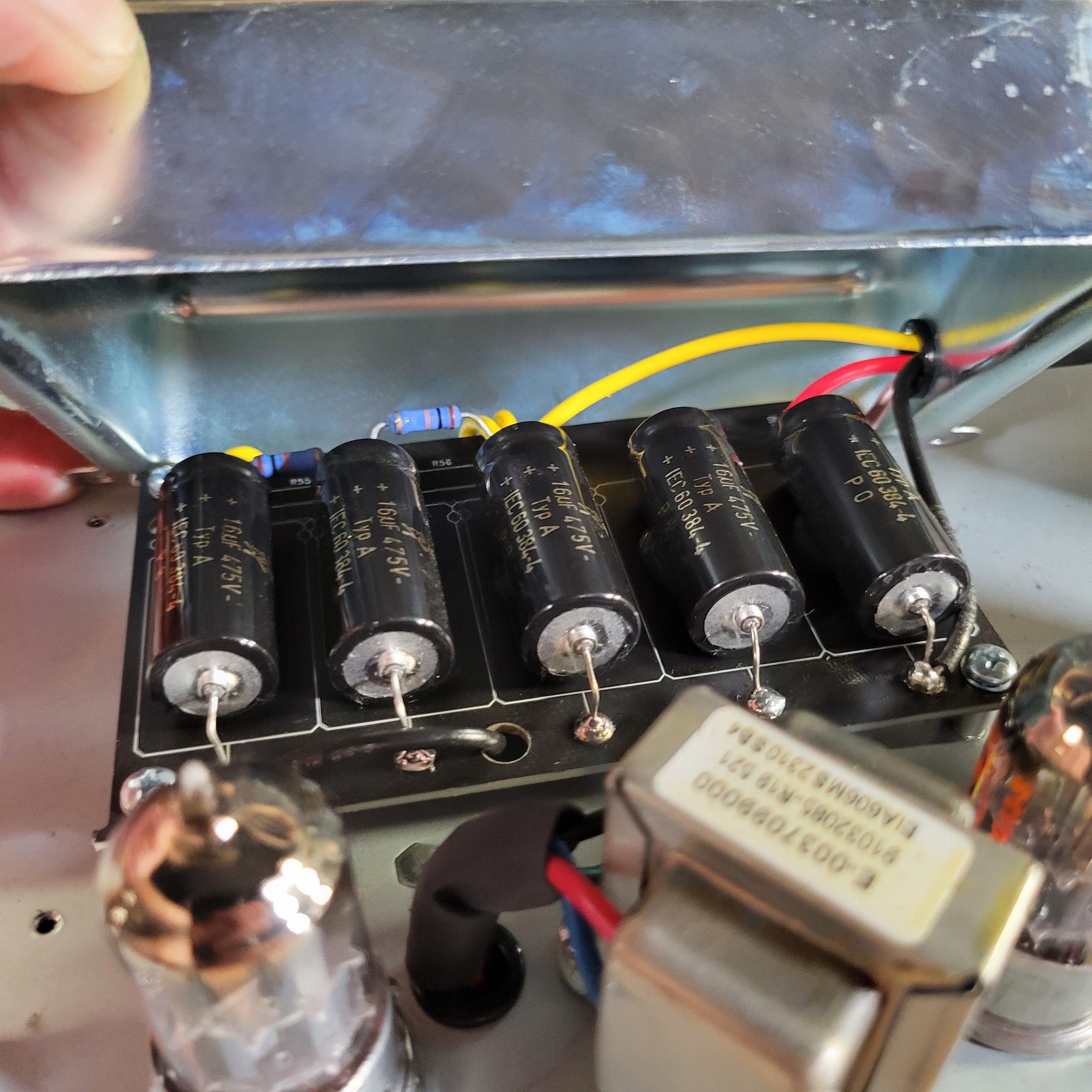

• Filter Caps: original
• Internal Repairs: none
• Power Cable: grounded
• Accessories Included: cover, pedal
• Documentation: none
• Smells?: none
• Speaker 1 Original?: yes
