Fender 1965 Deluxe Amp AB763 Serviced, Excellent

No sales tax for US customers outside California.

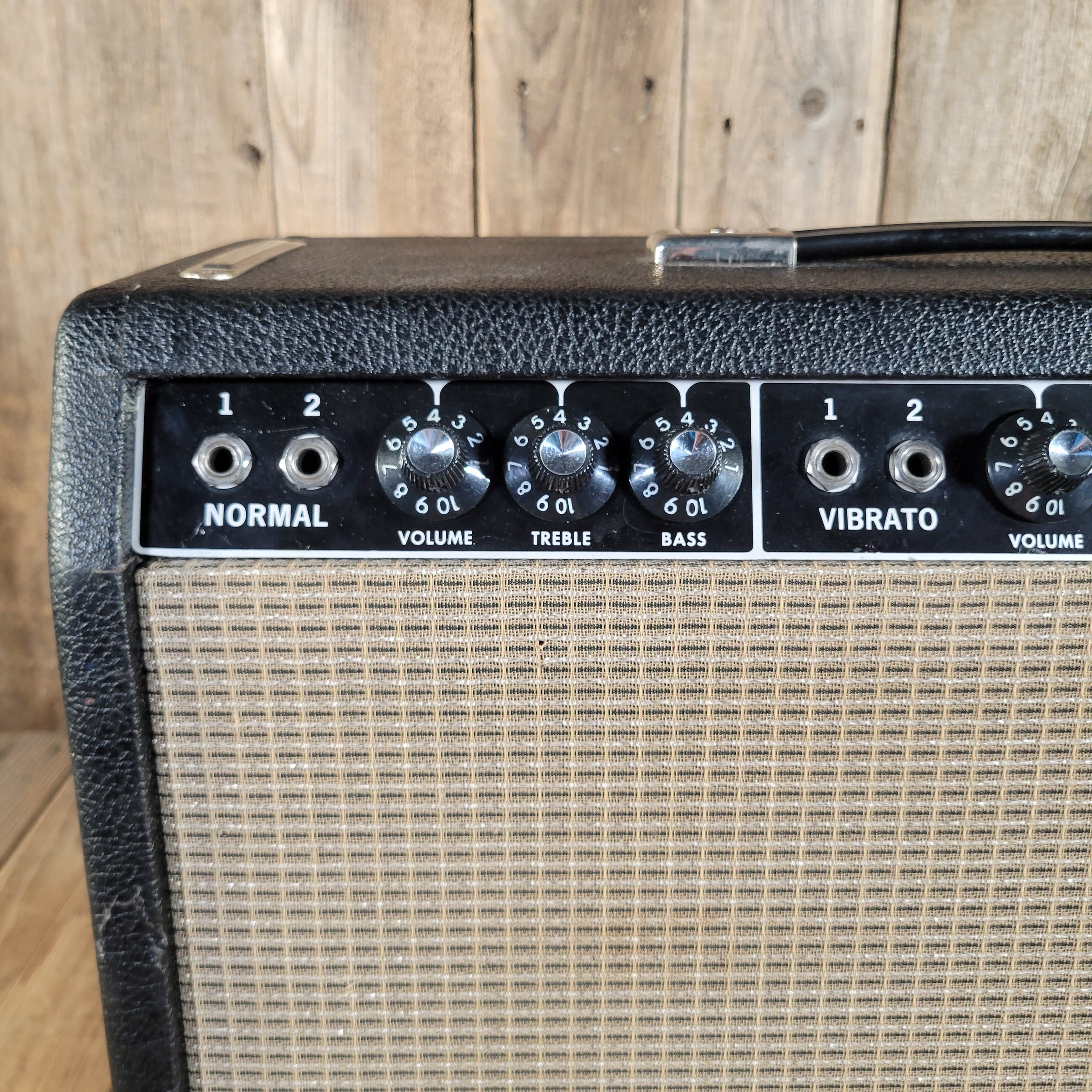

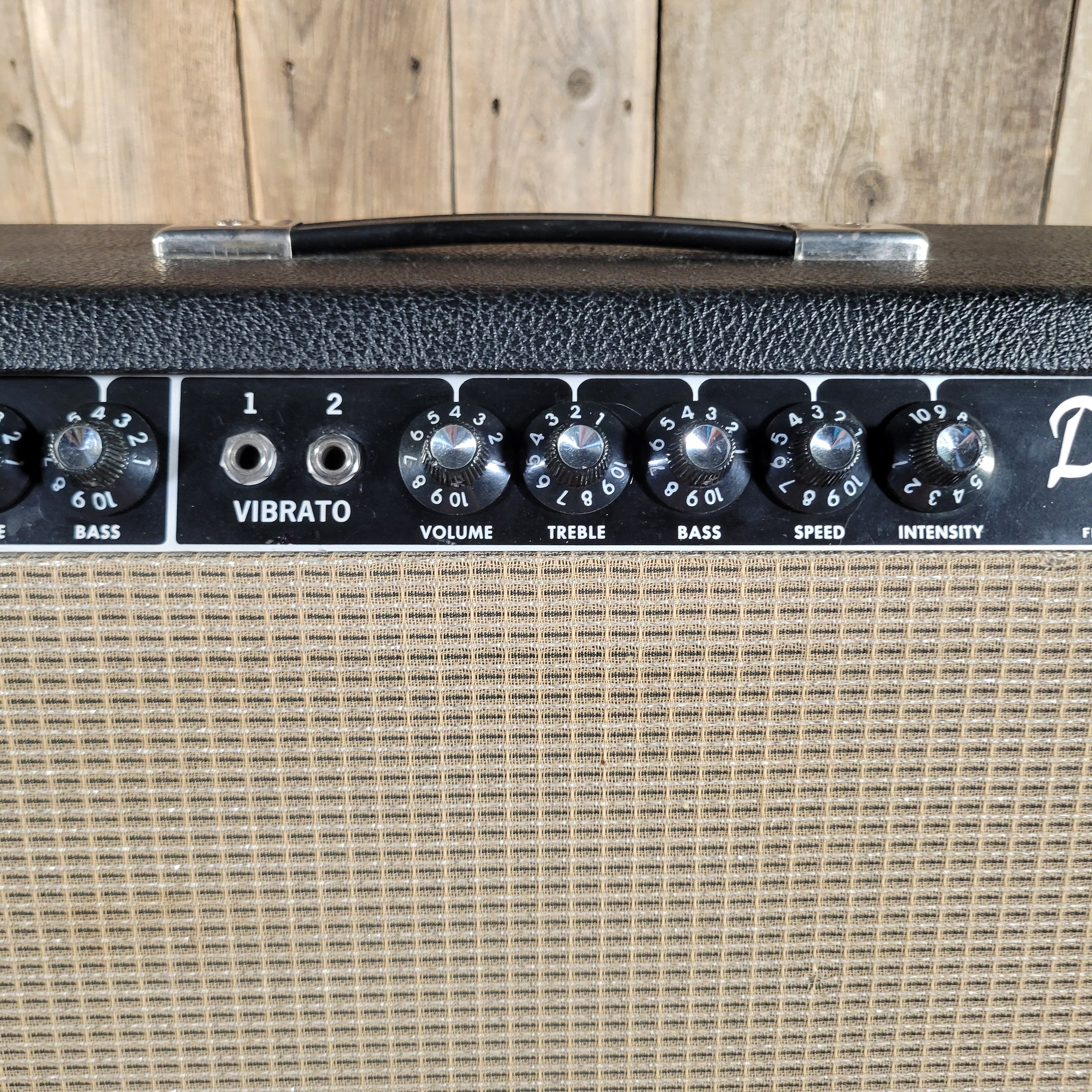

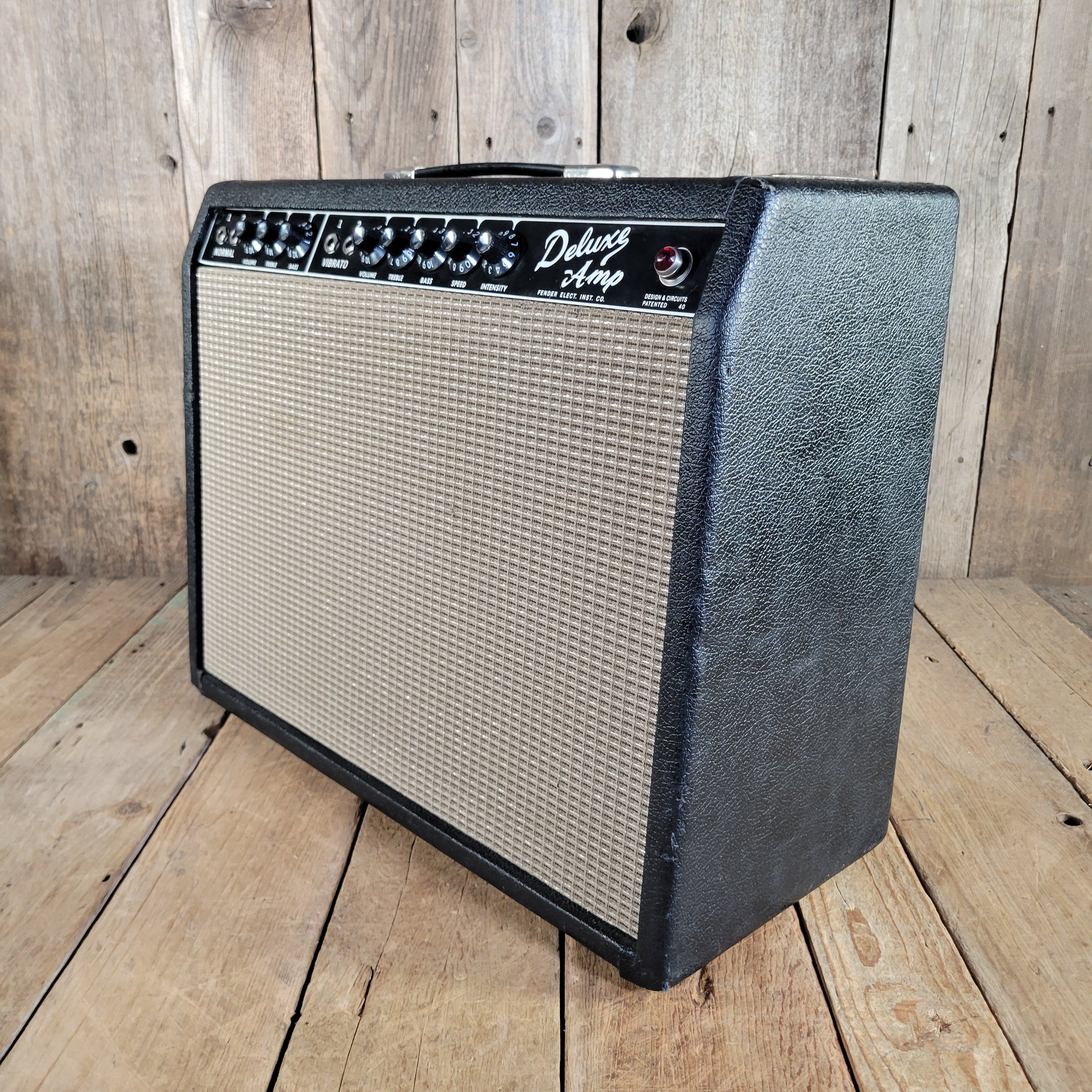

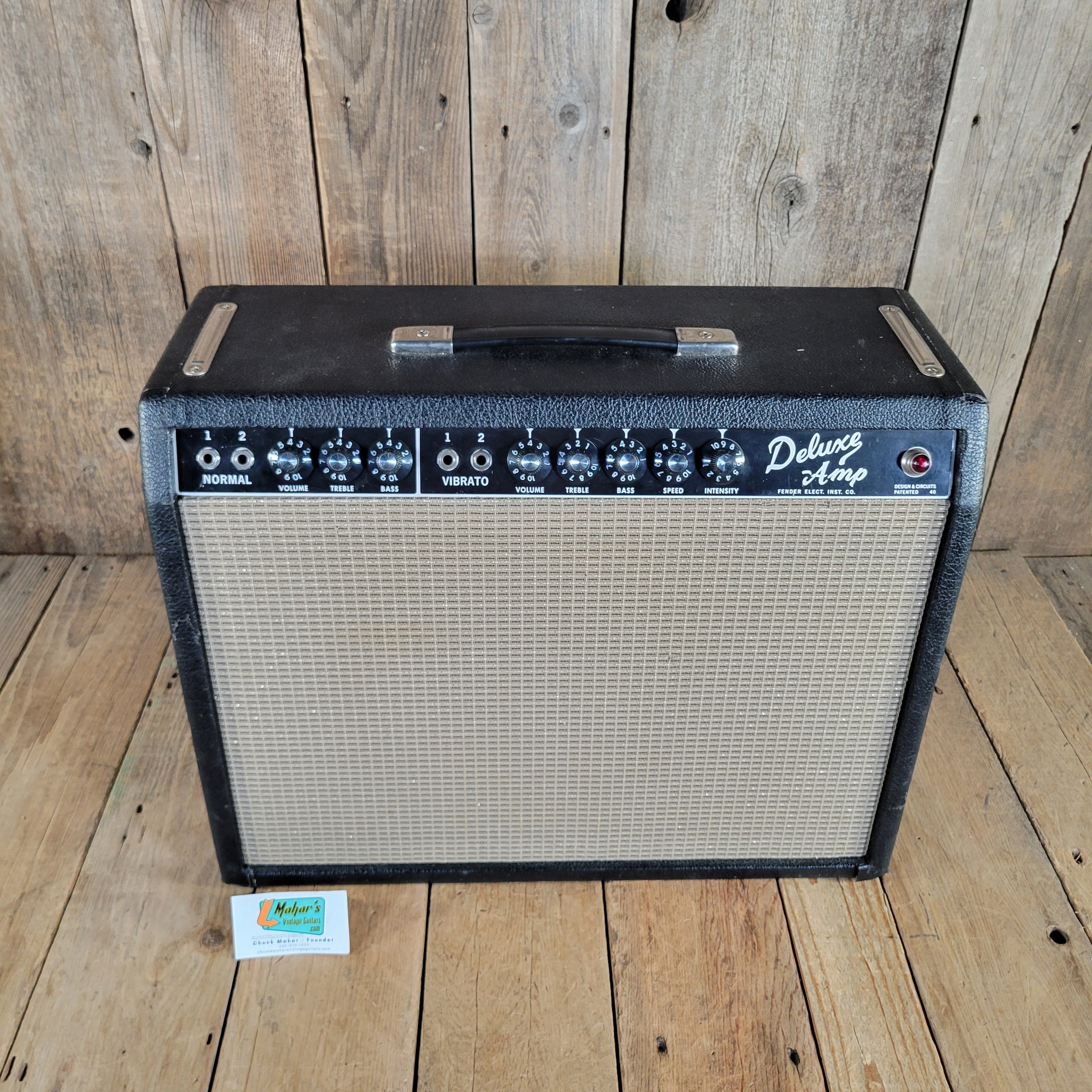

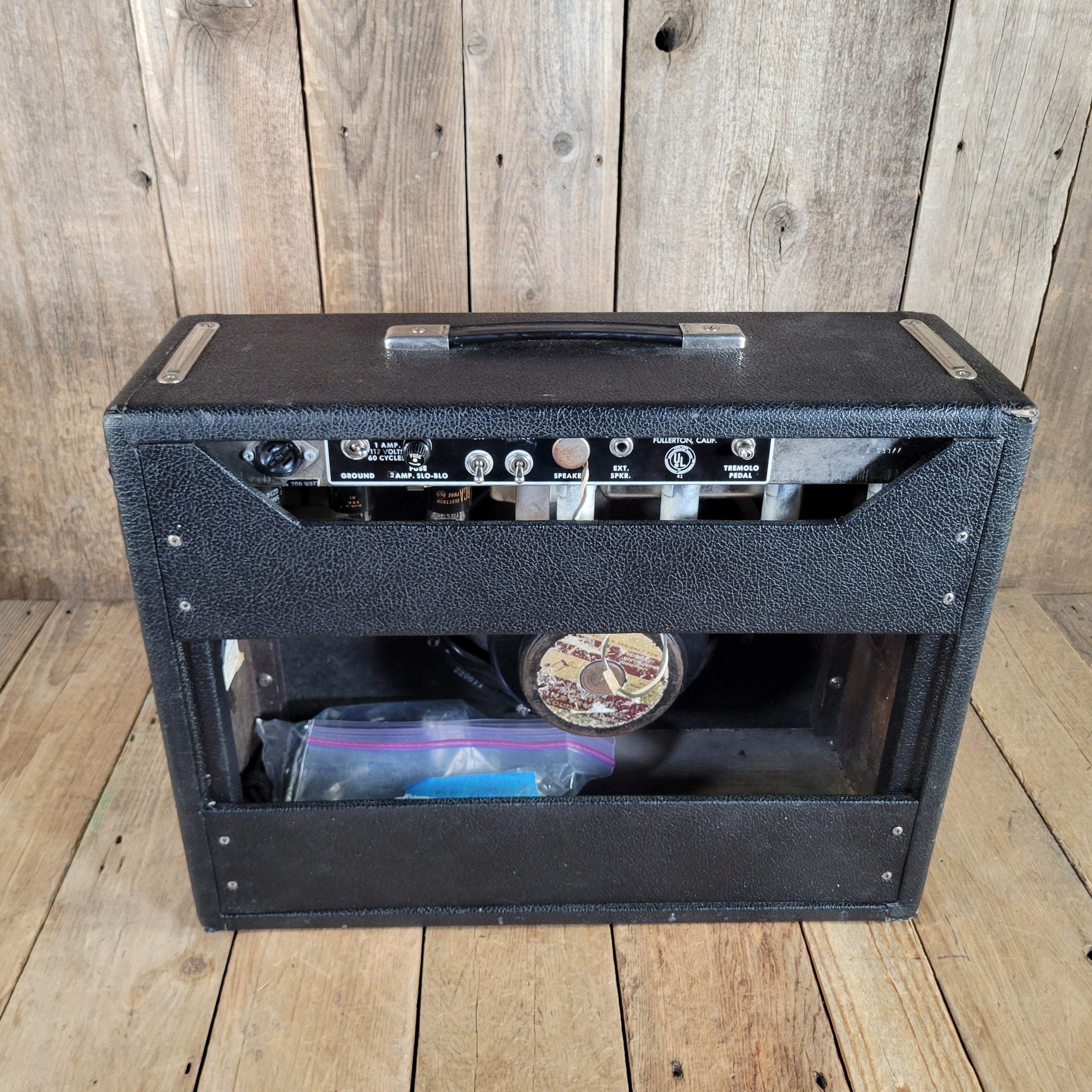

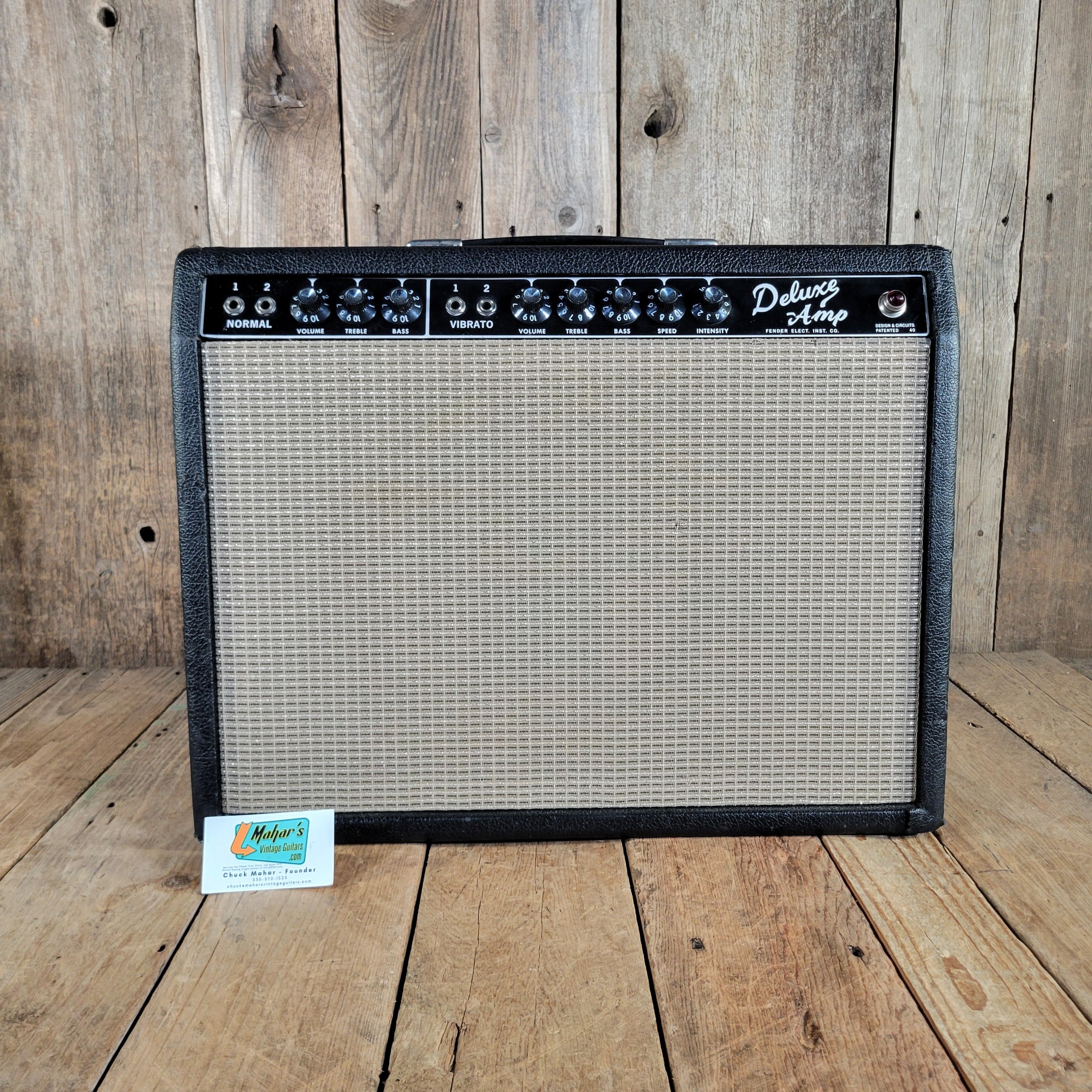

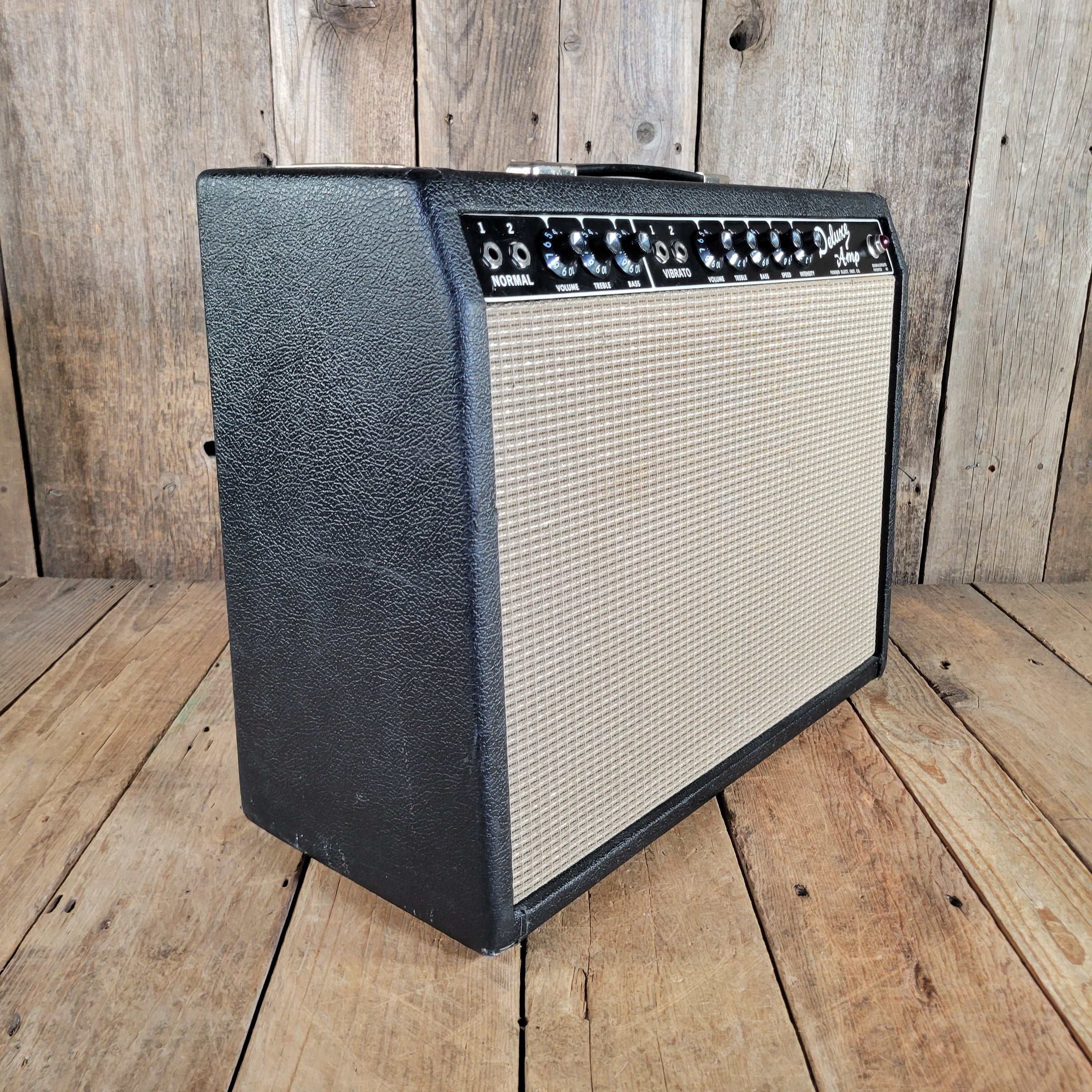

This 1965 Fender Deluxe Amp AB763 is an excellent example in black.  It runs perfectly and  was professionally serviced here in our shop.

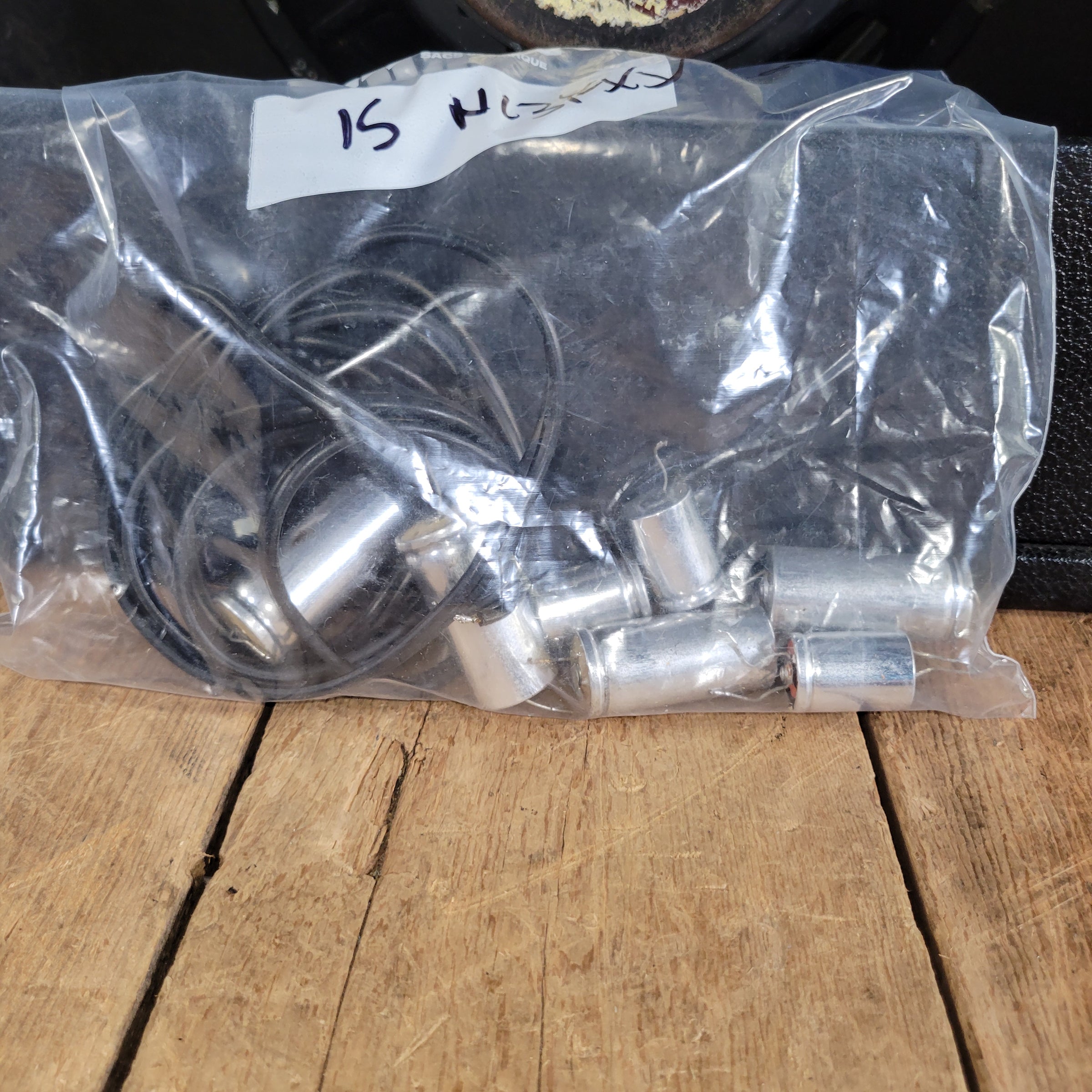

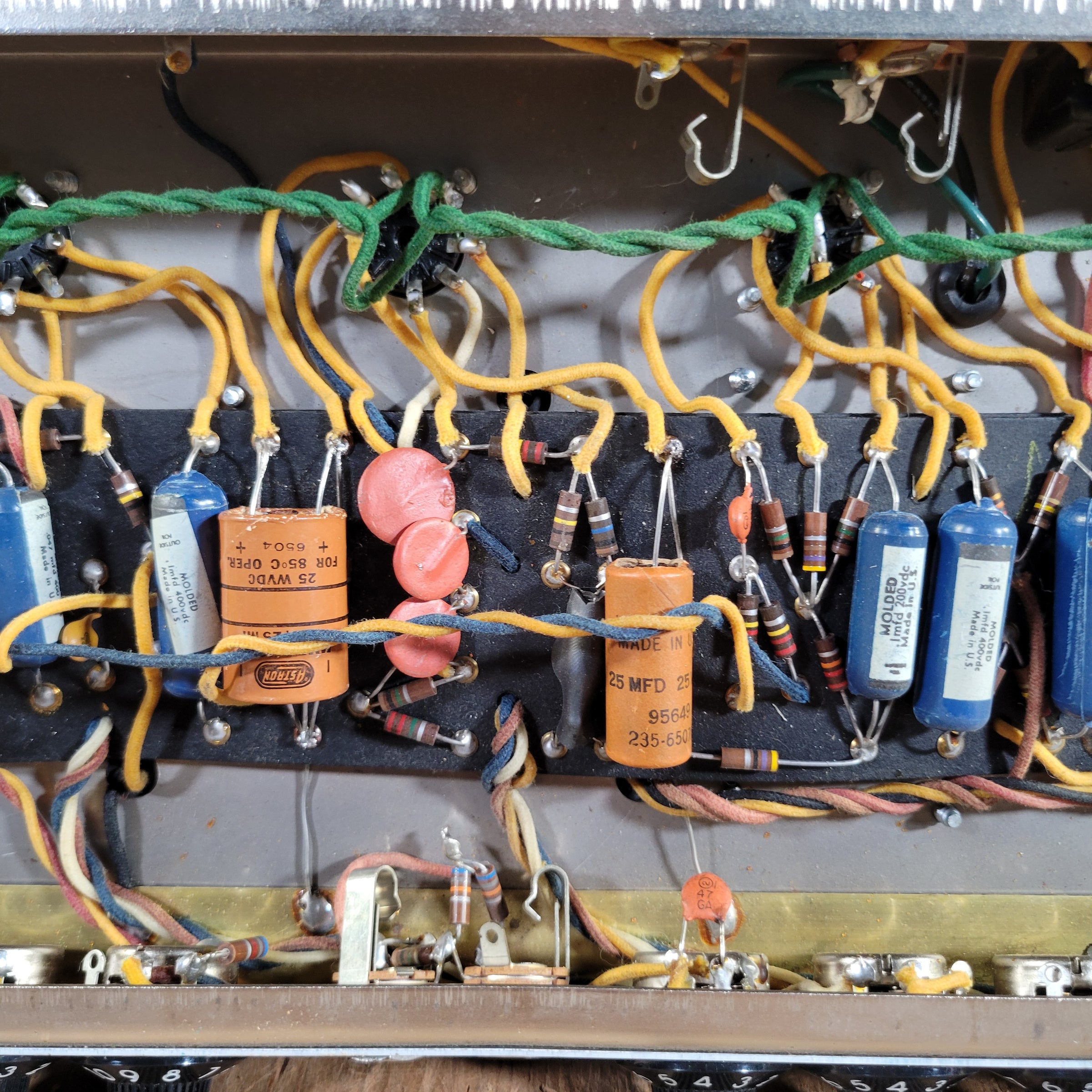

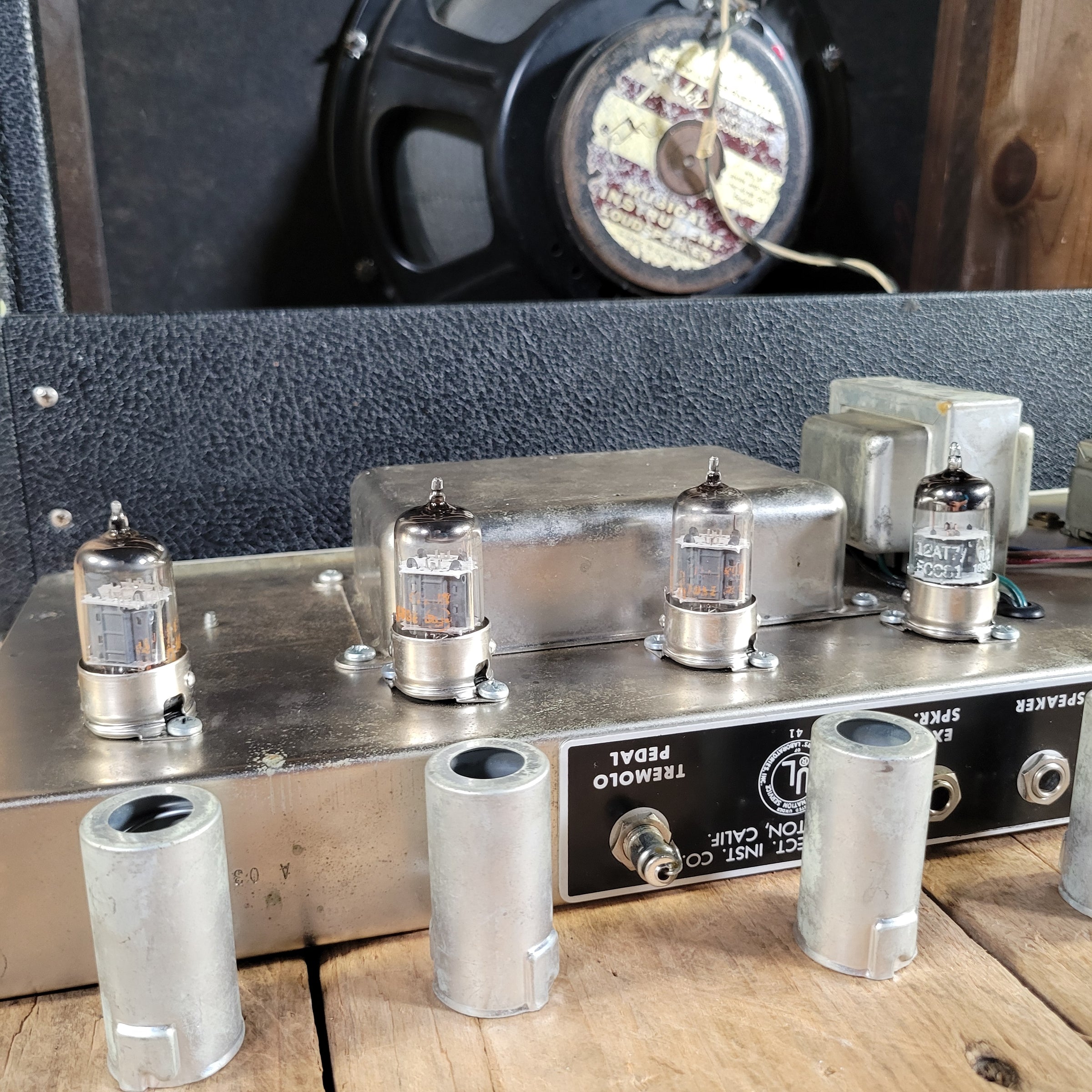

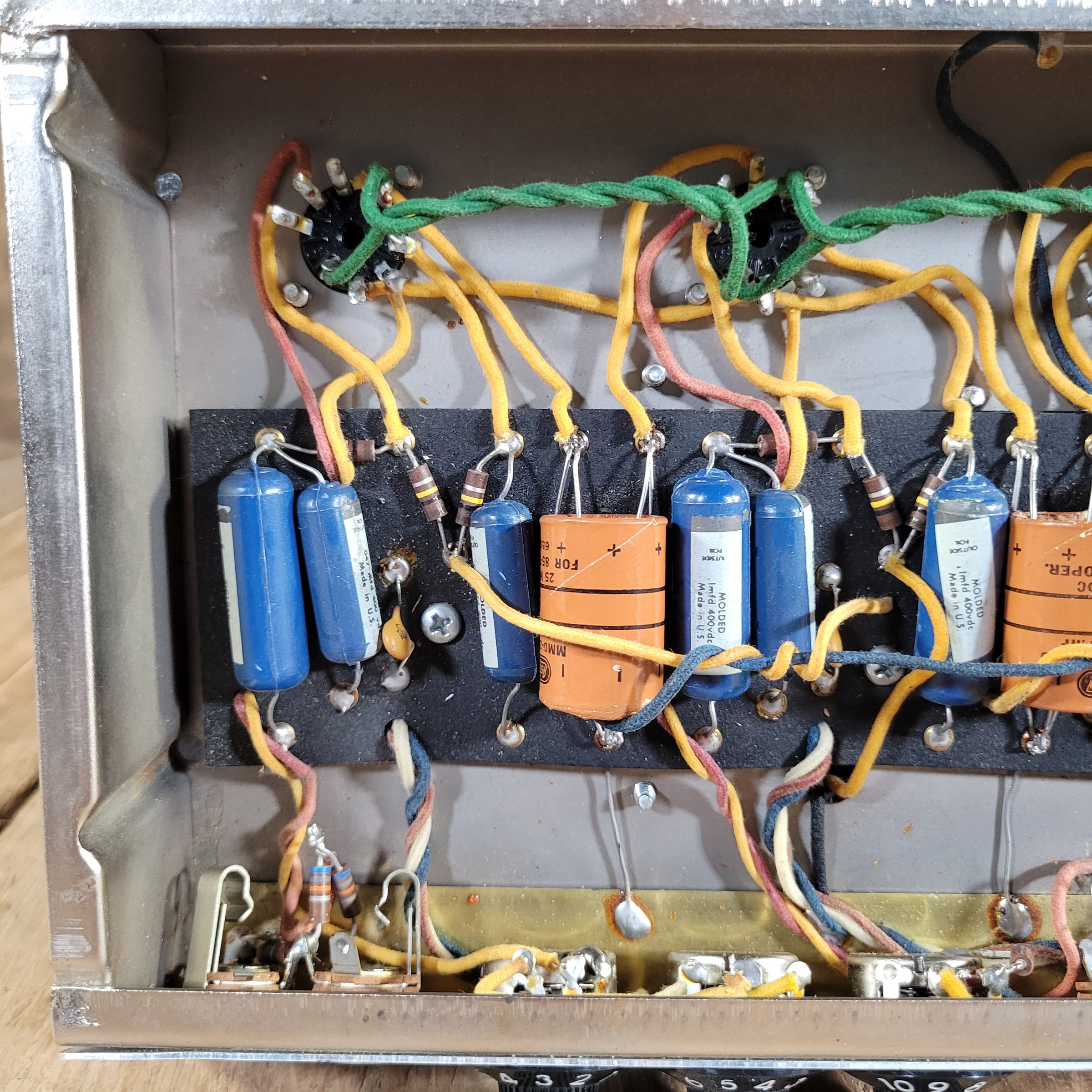

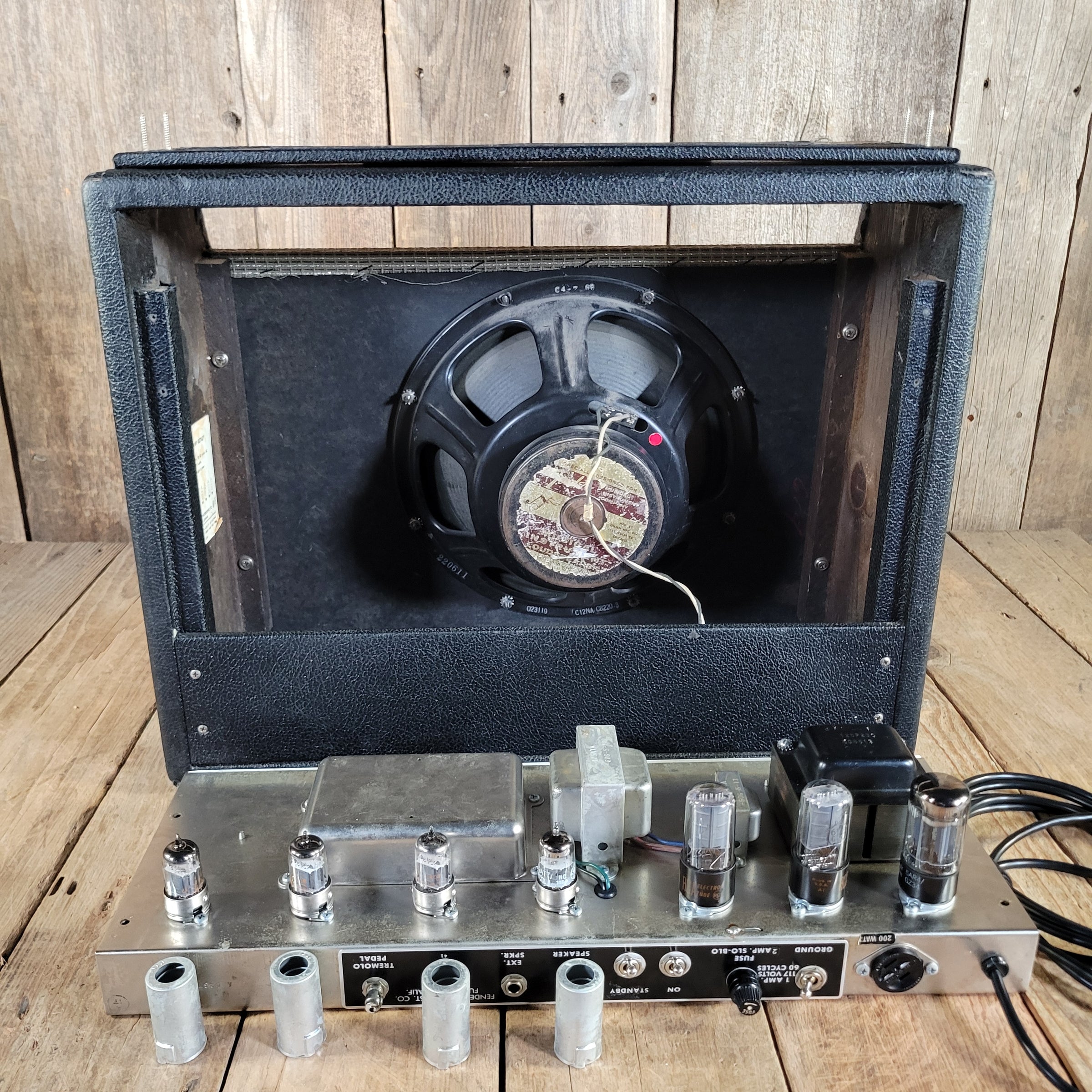

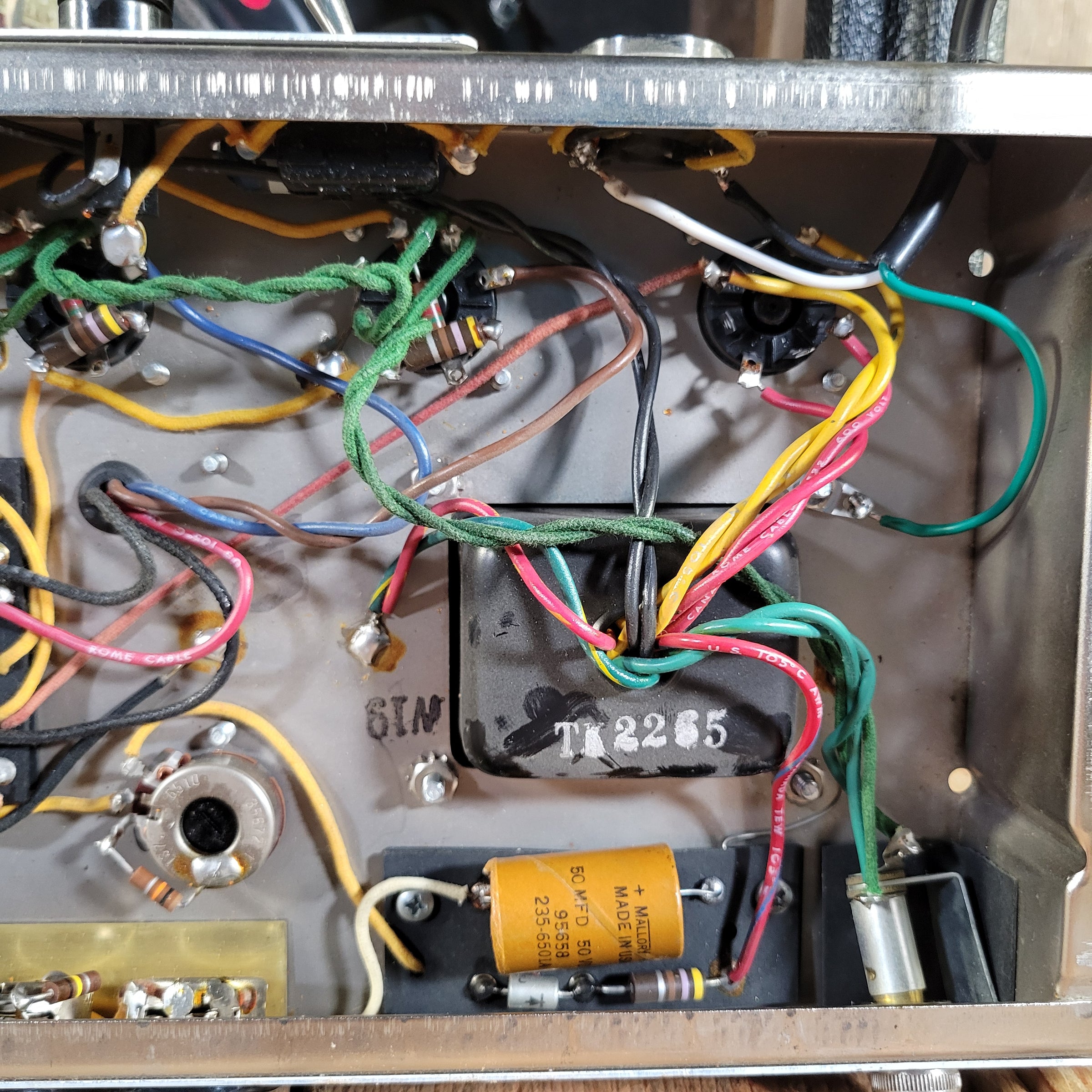

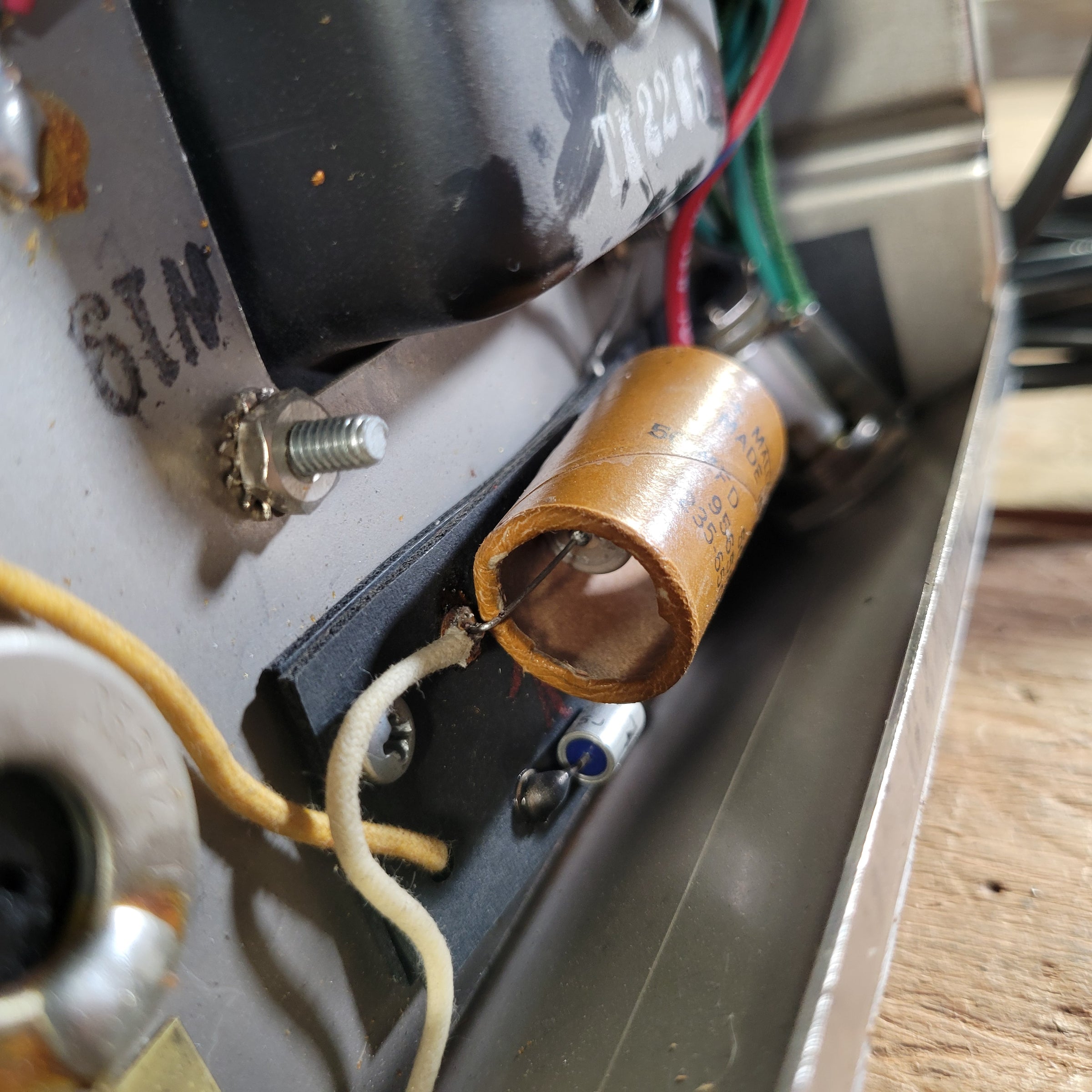

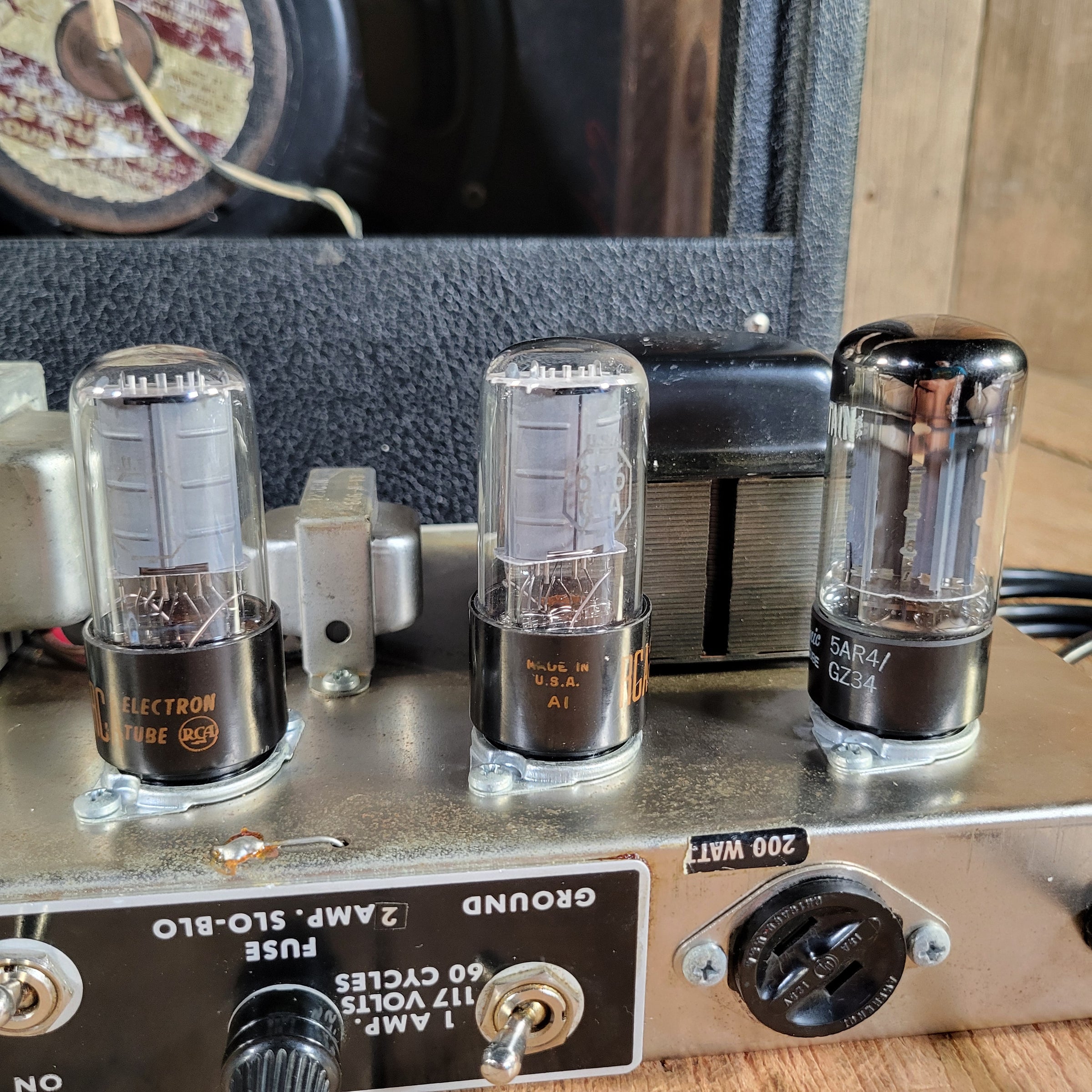

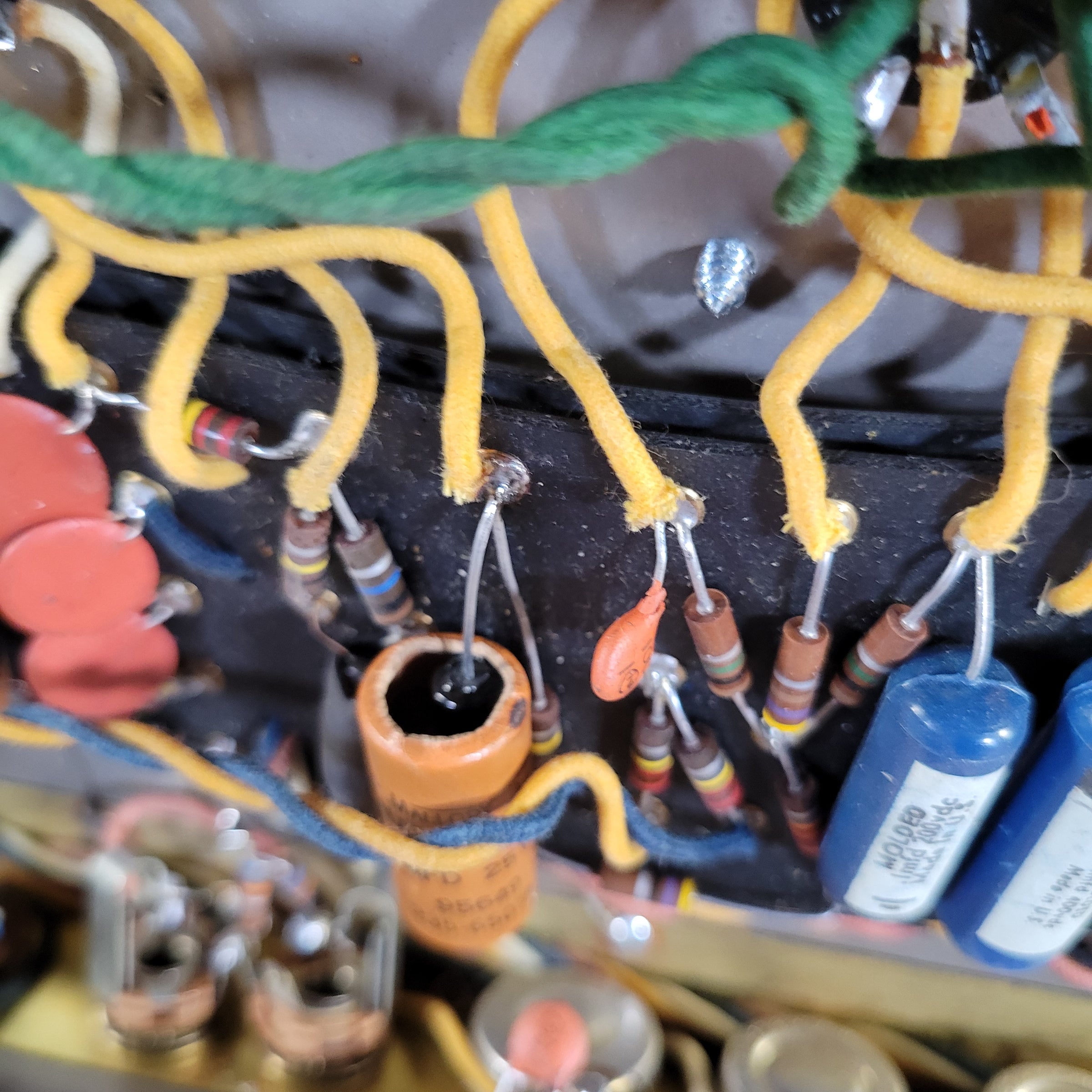

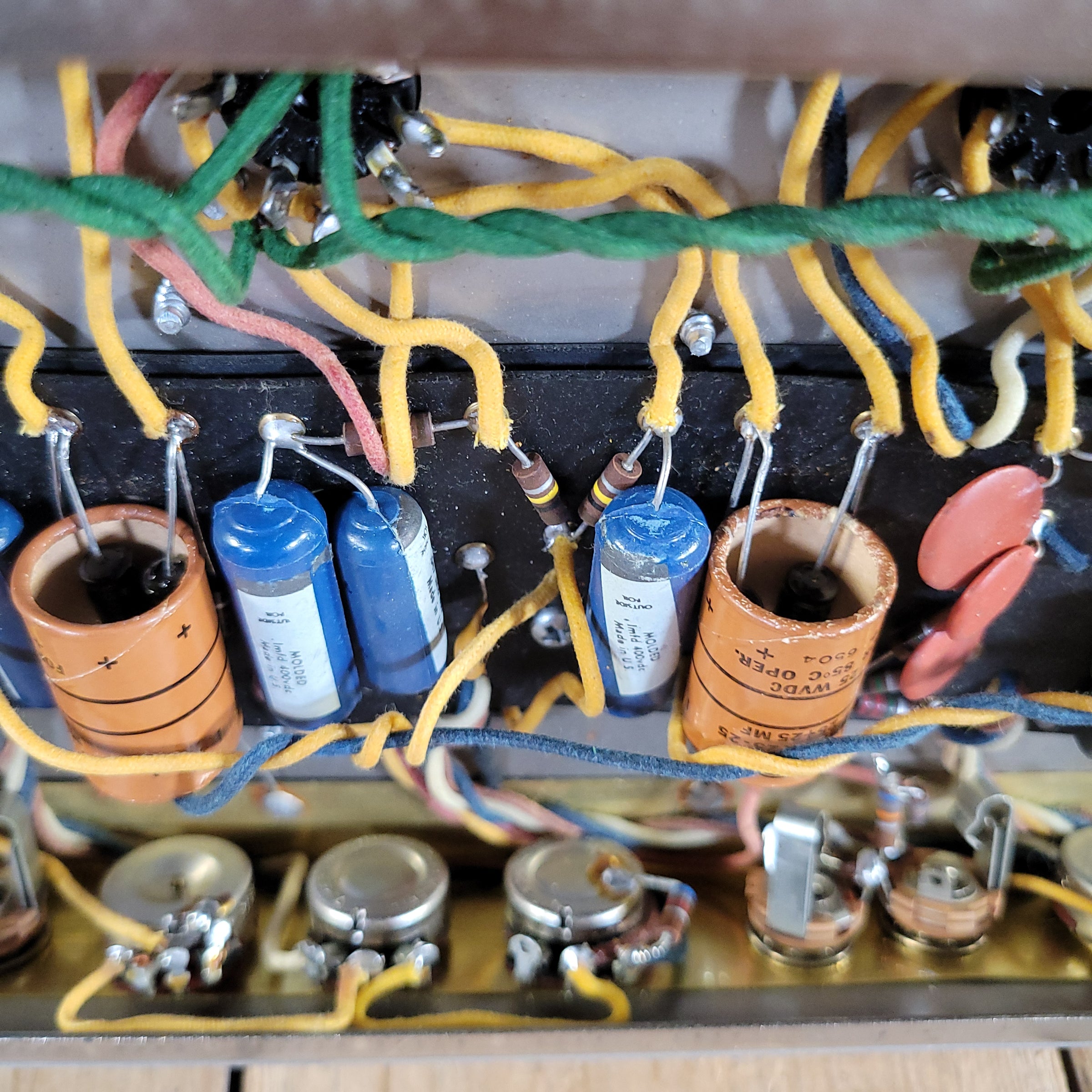

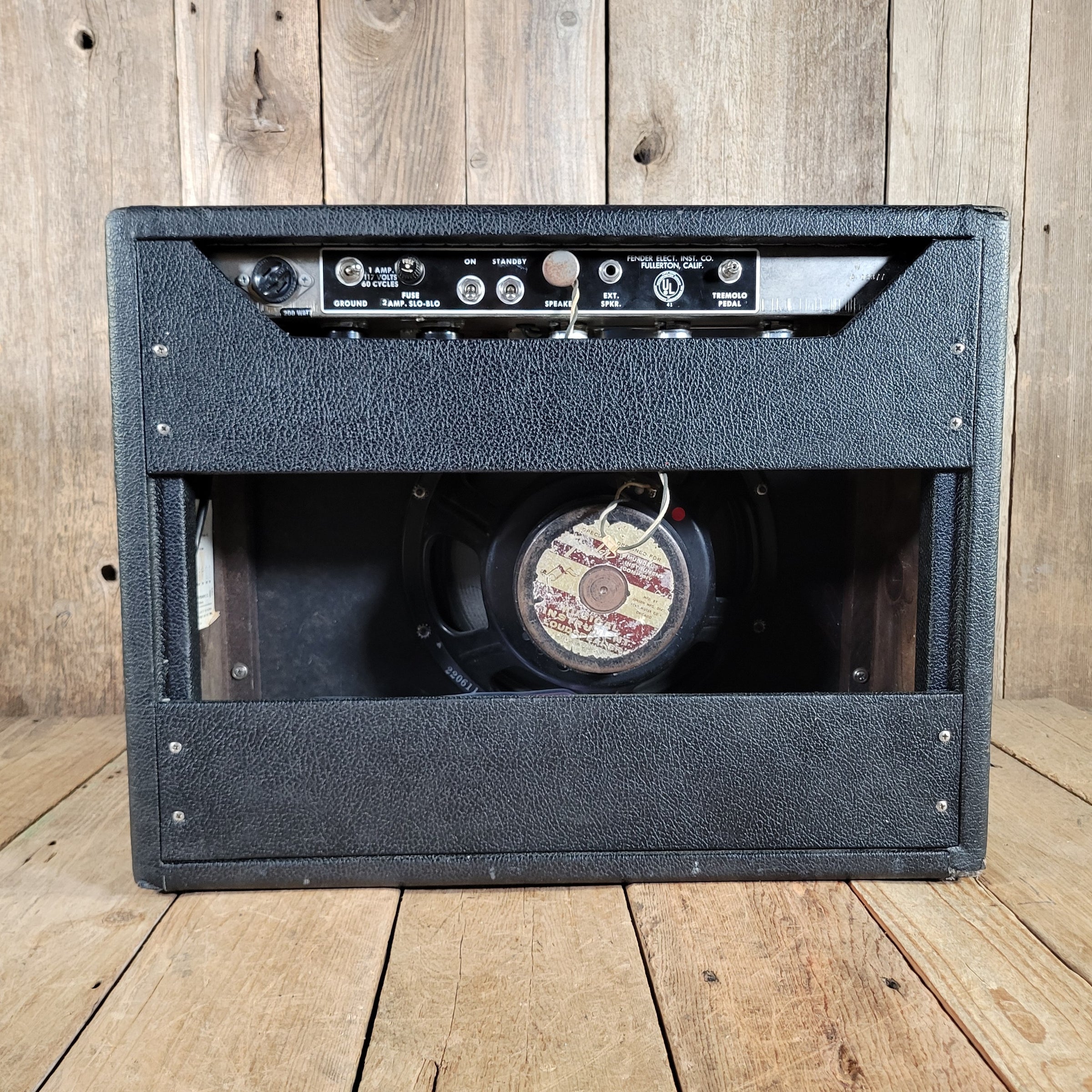

The AB763 circuit runs two 6V6 power tubes through a Schumacher output transformer, delivering approximately 22 watts into a single 12" Jensen C12NA speaker.  All transformers are original Schumacher units: the power transformer carries date code 513 (week 13 of 1965), the choke 513, and the output transformer 512. The speaker is an a Jensen C12NA with manufacturer code 220 and date code 611 (early 1966); cone originality is unknown. These speakers are the perfect match for a Deluxe or Deluxe reverb - it is not the original speaker however.  The rectifier is a GE 5AR4, power tubes are RCA 6V6s, and preamp tubes are a mix of GE and RCA — 12AT7 and three 12AX7s. All potentiometers, knobs, chassis, baffle, and cabinet are original. I updated the electrolytic caps here in the shop, along with the power cable.  The original parts are included. No other internal repairs are noted.

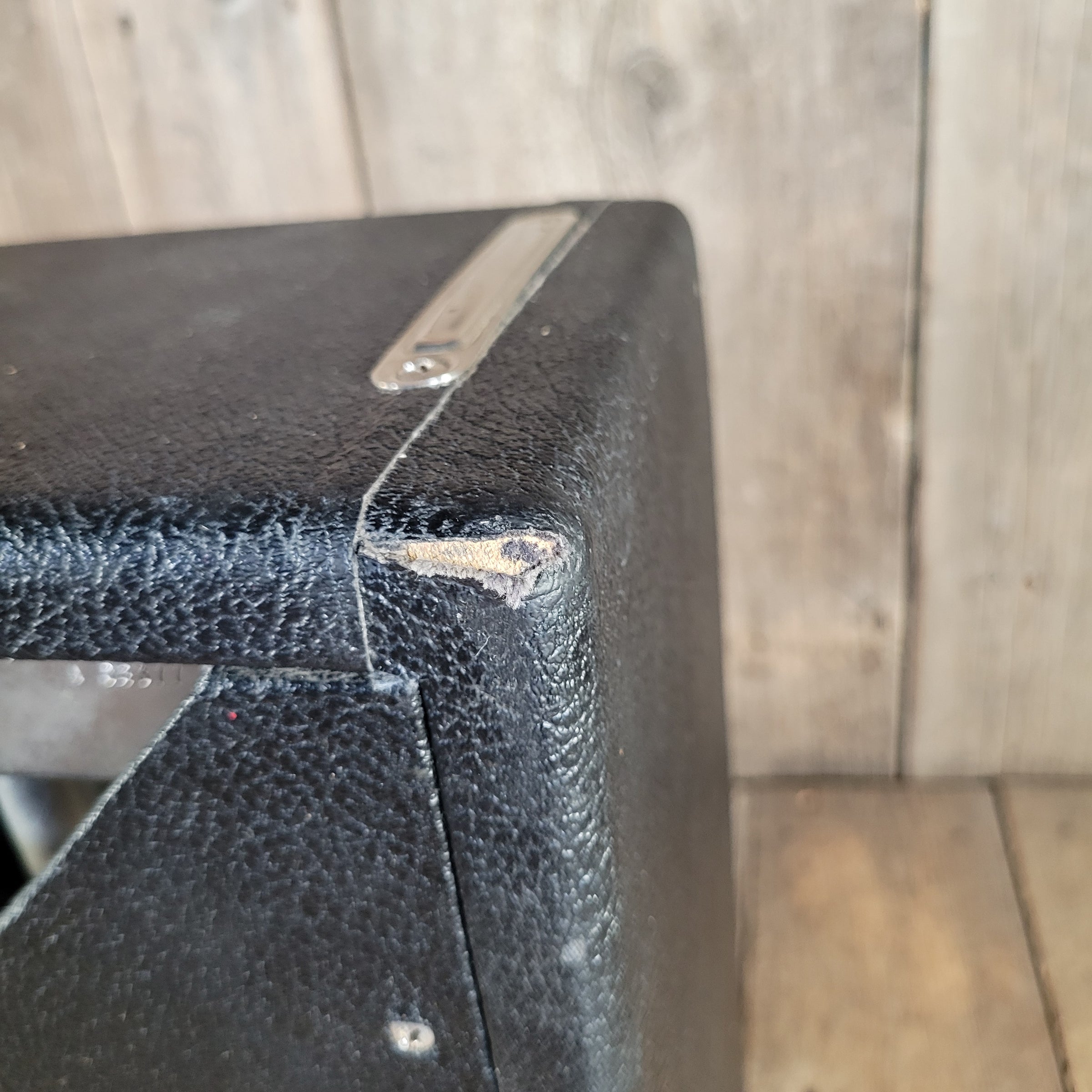

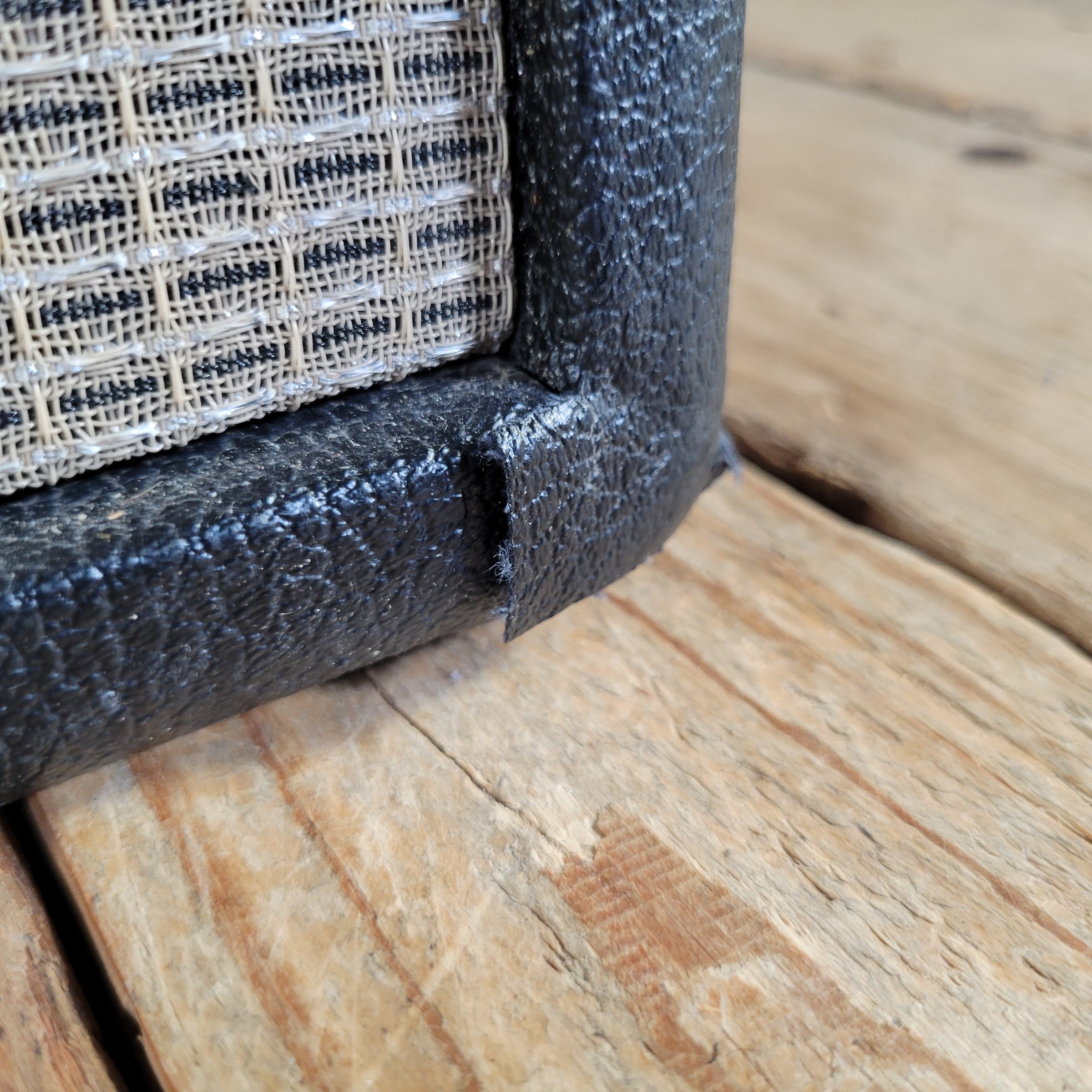

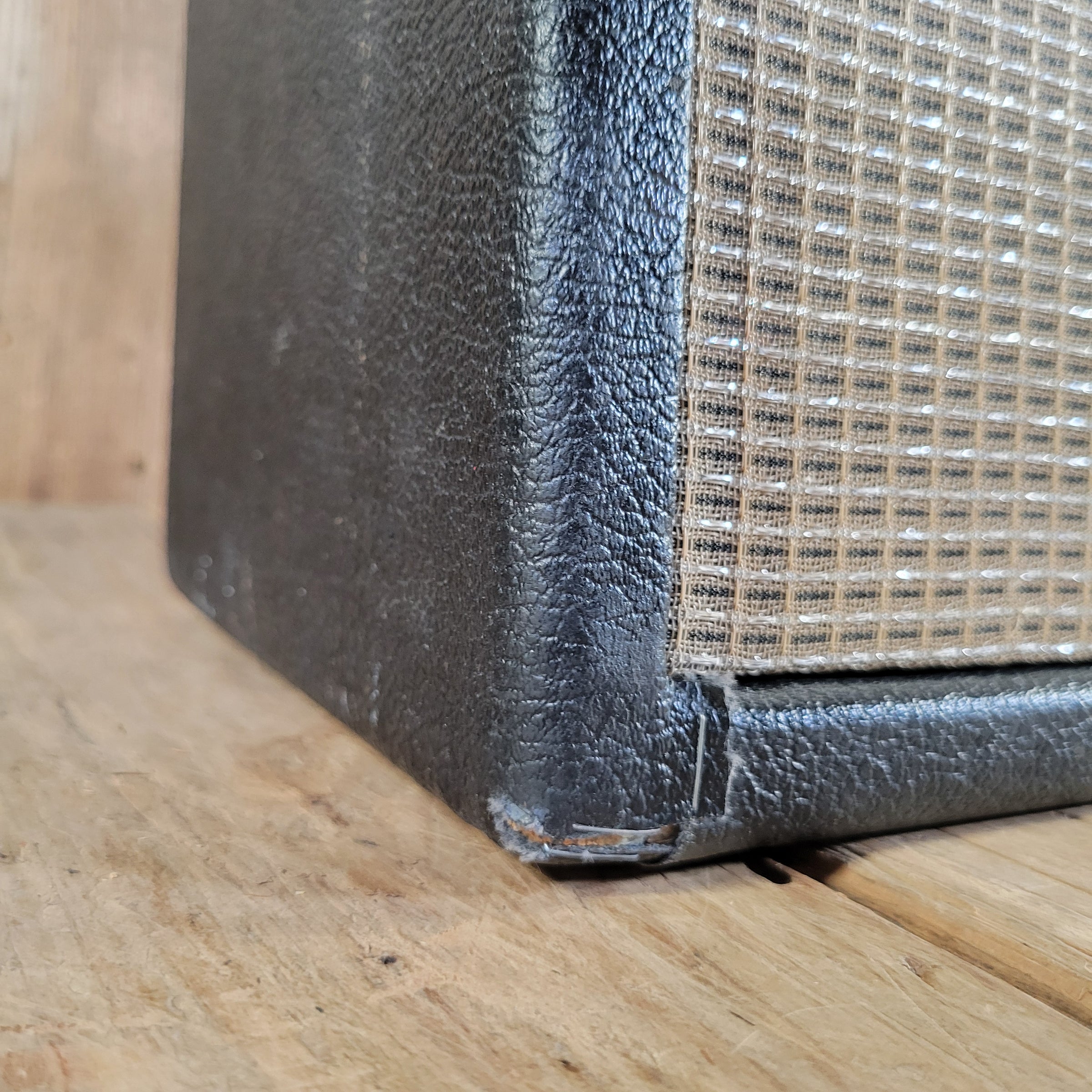

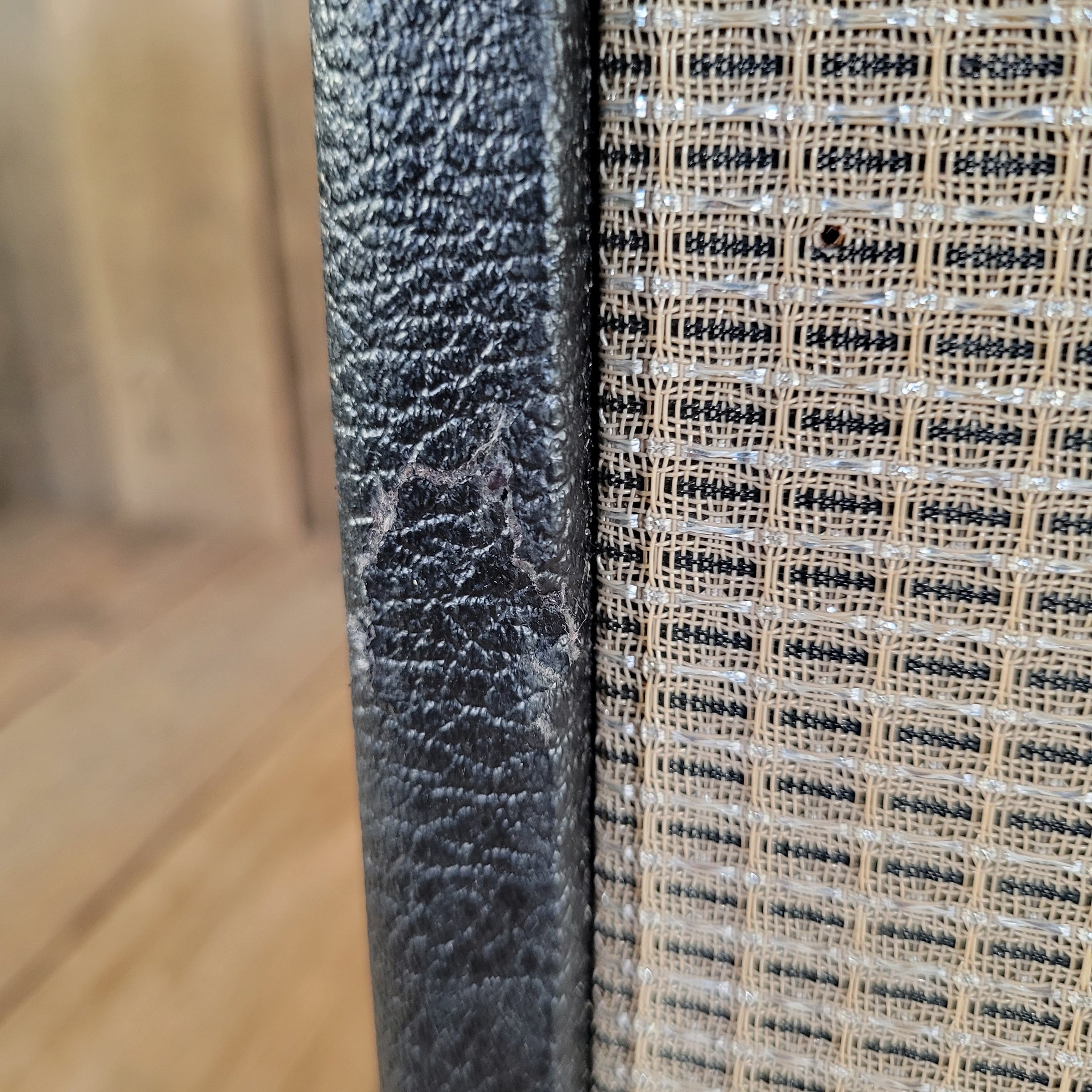

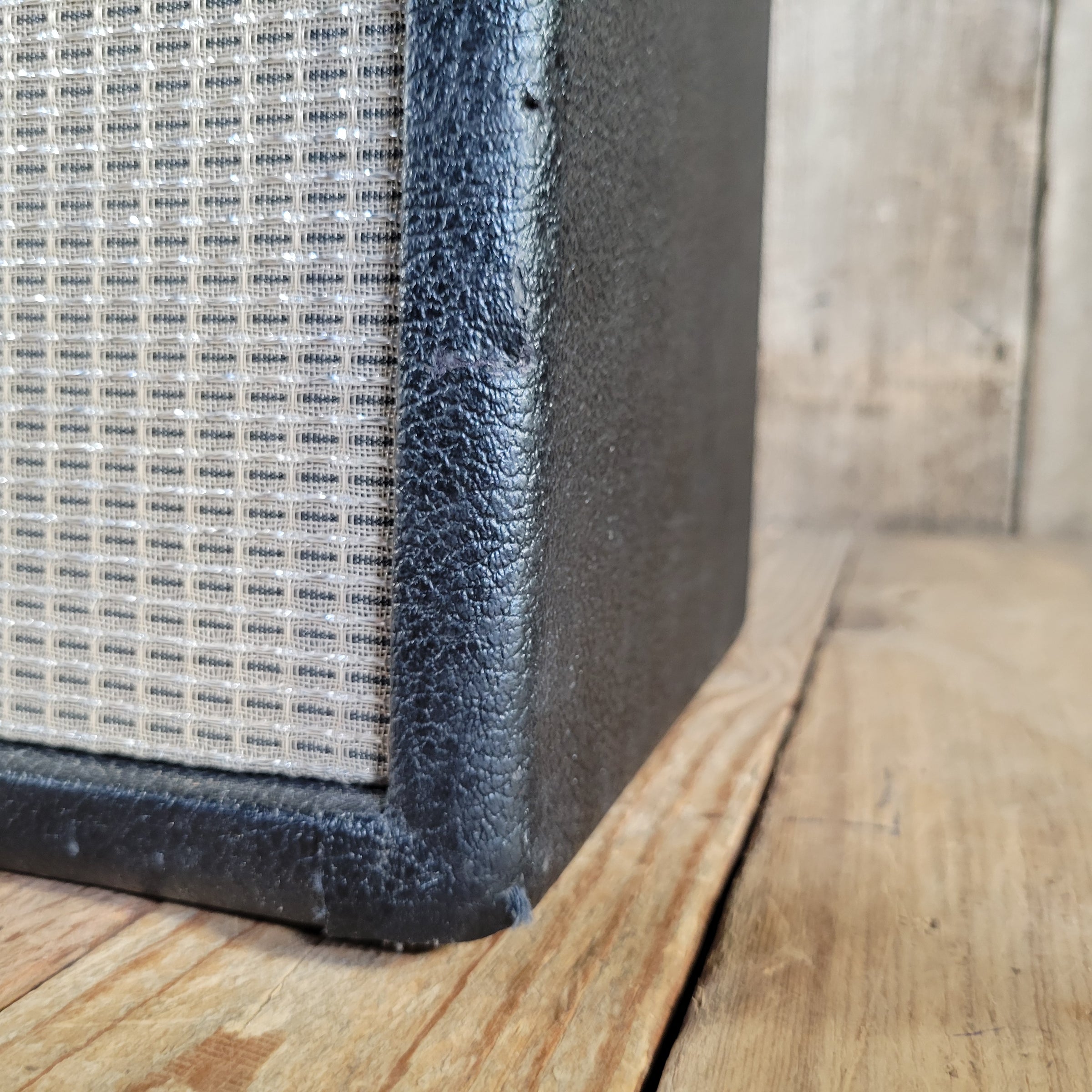

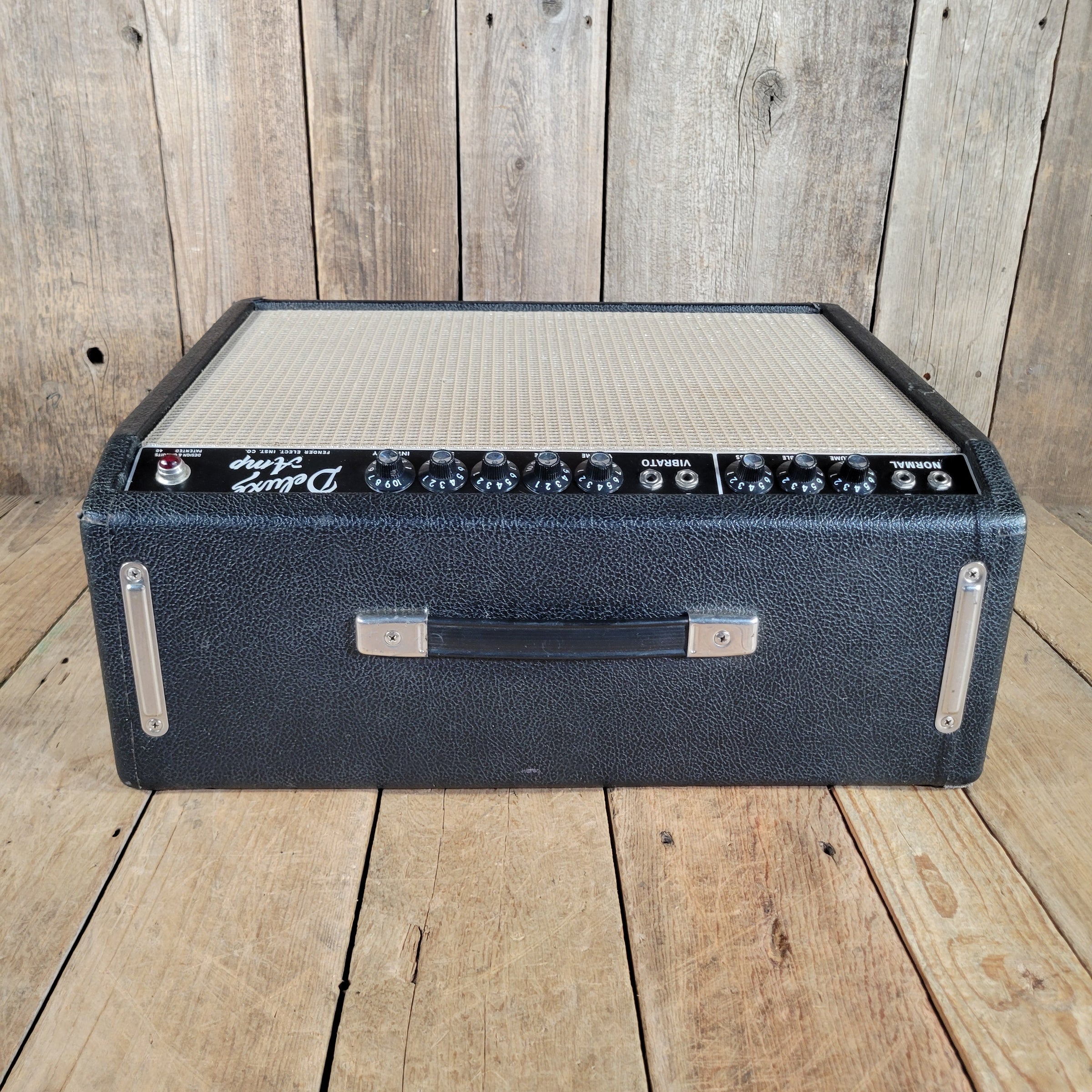

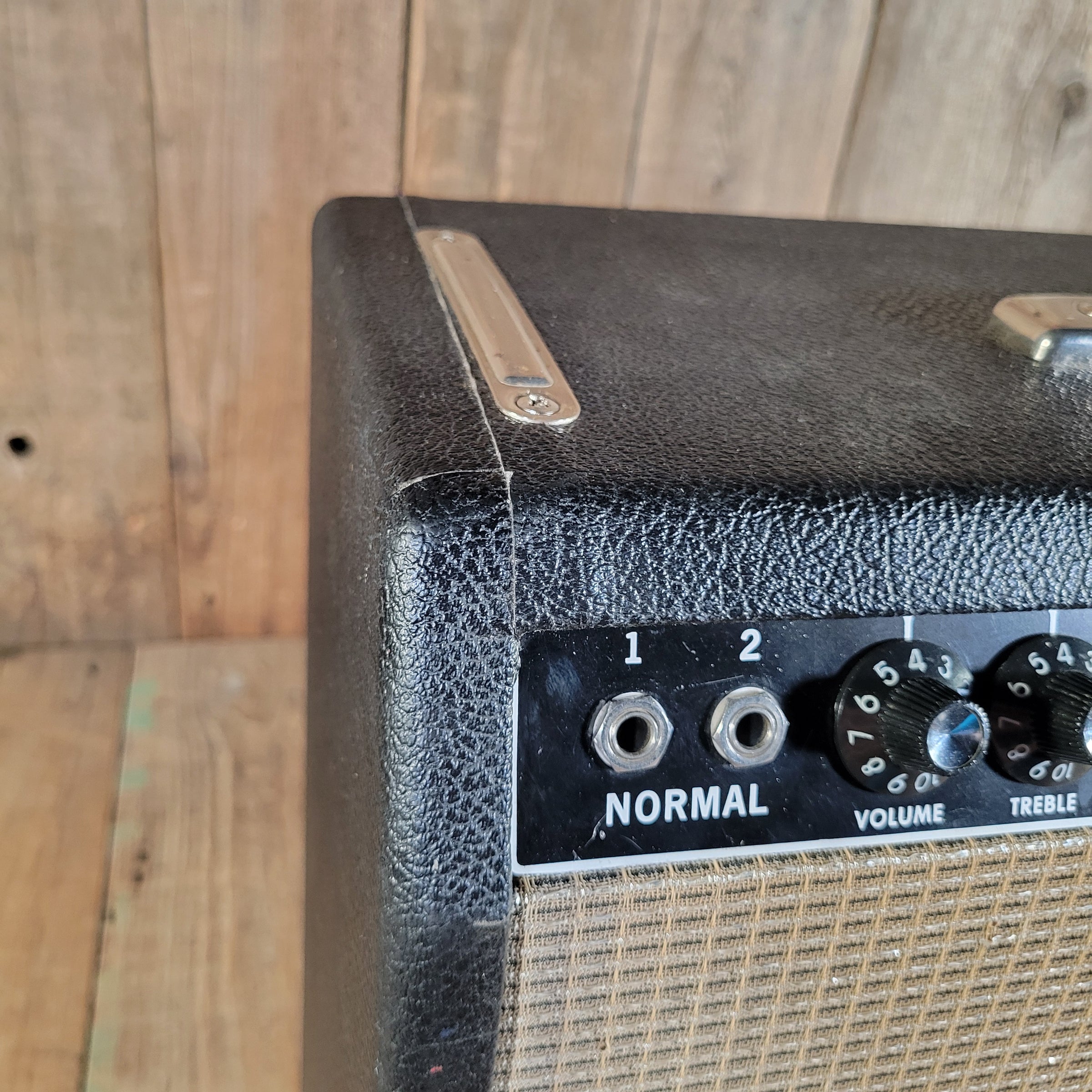

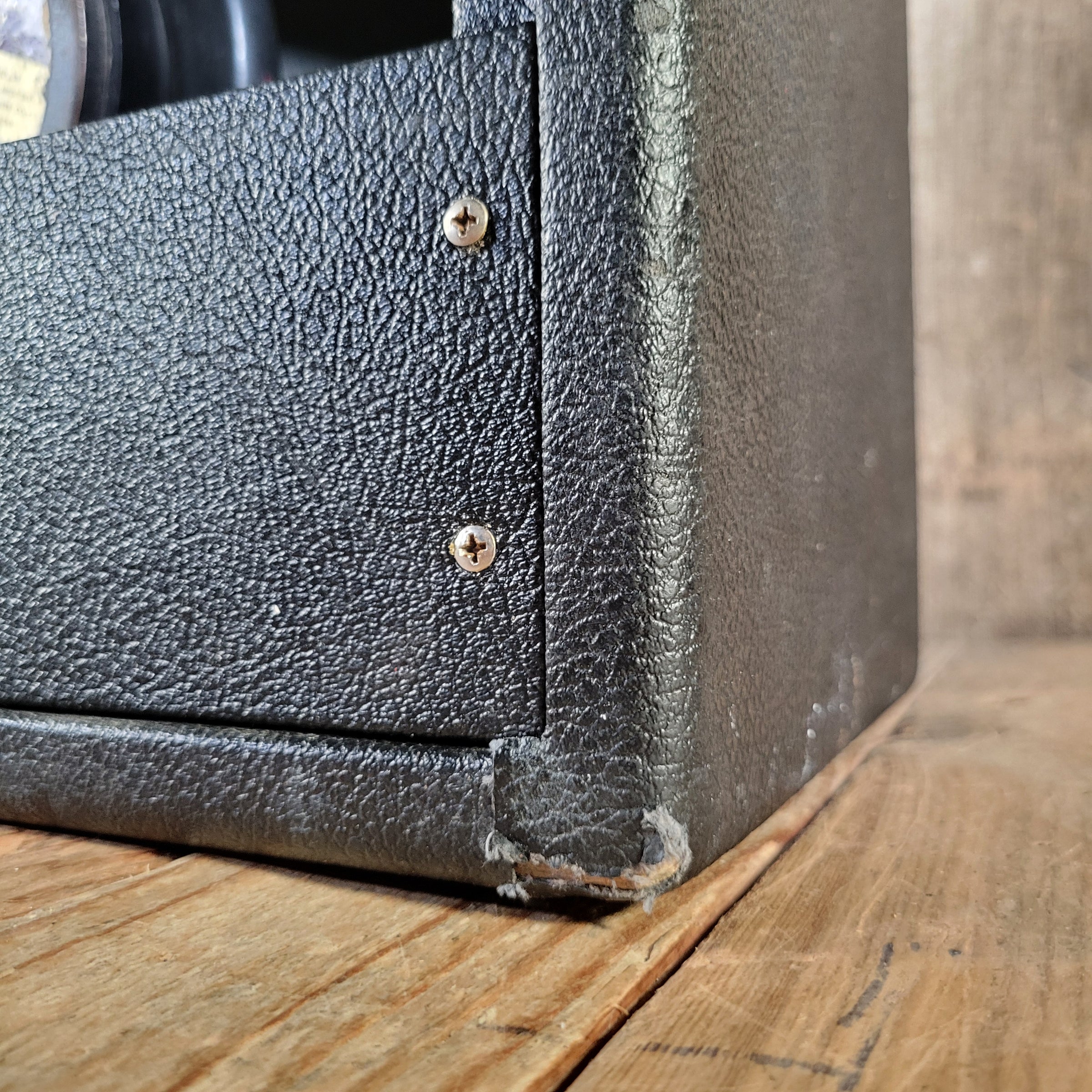

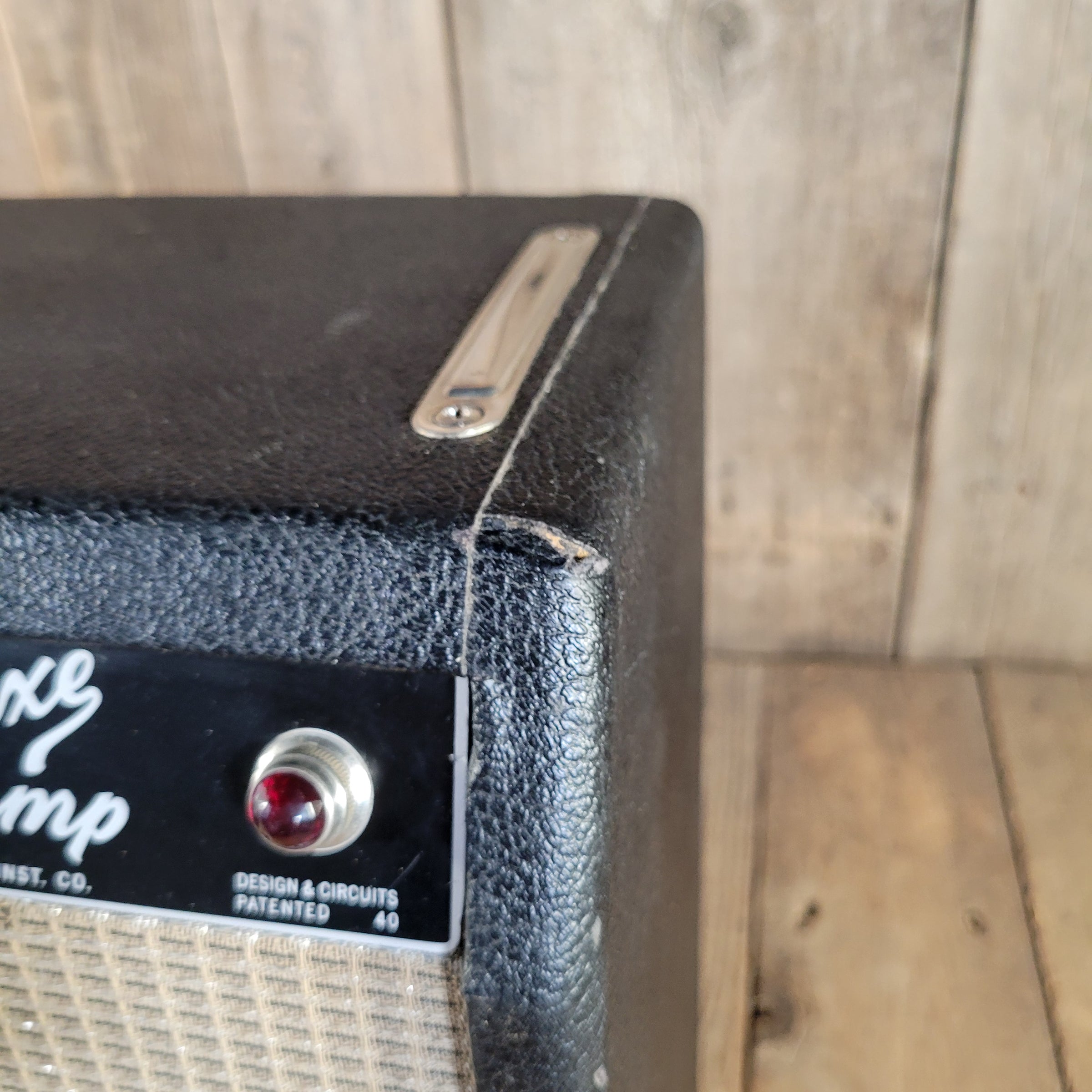

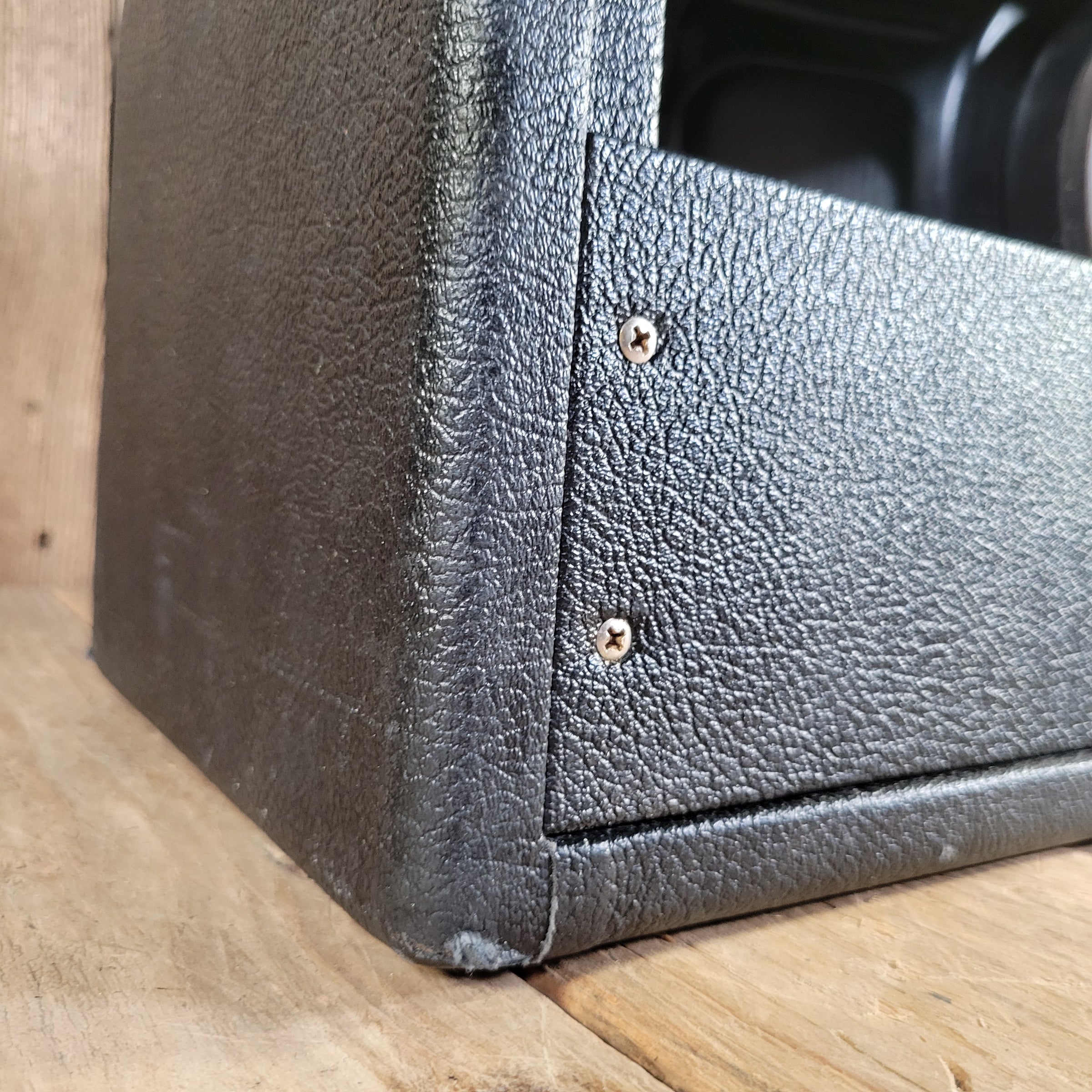

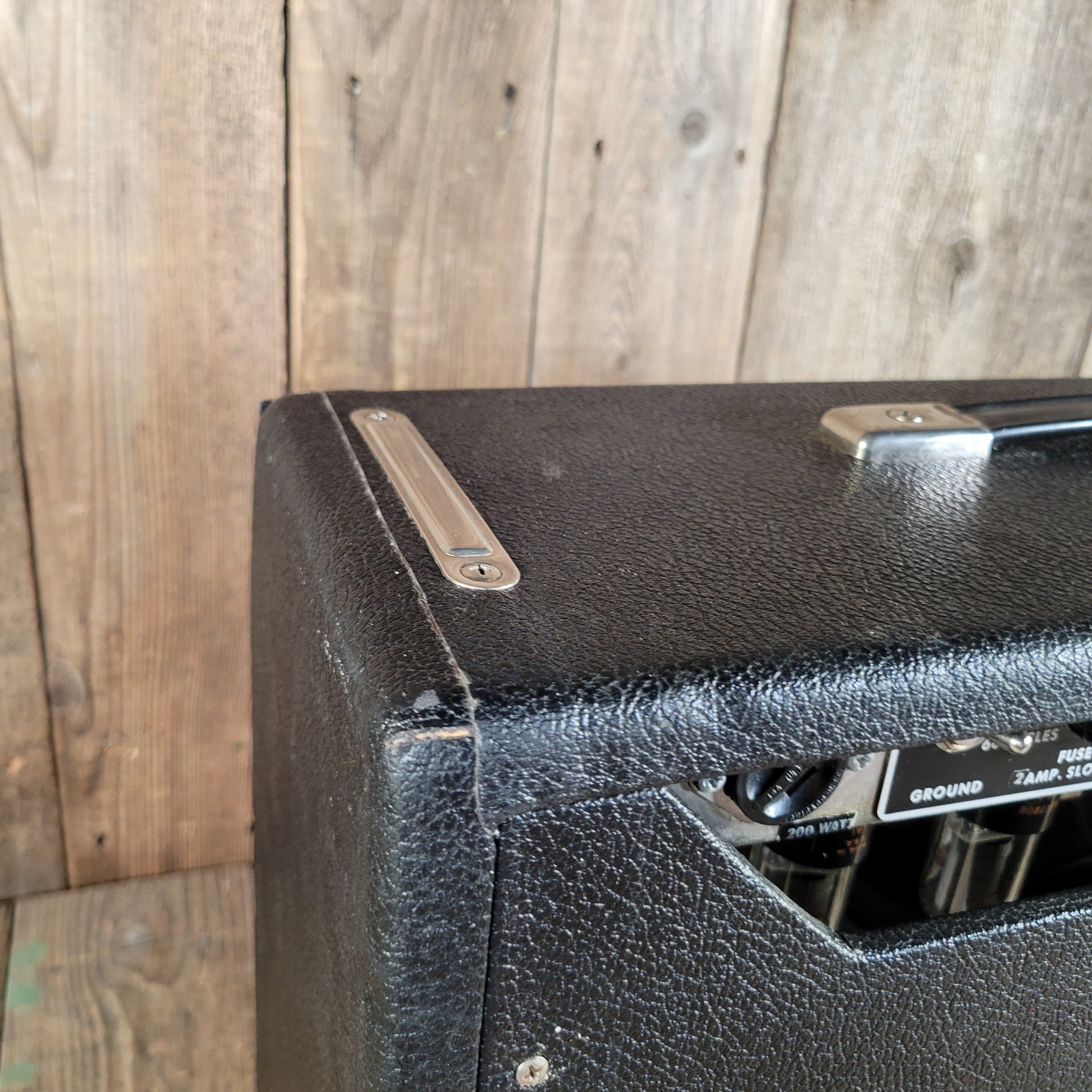

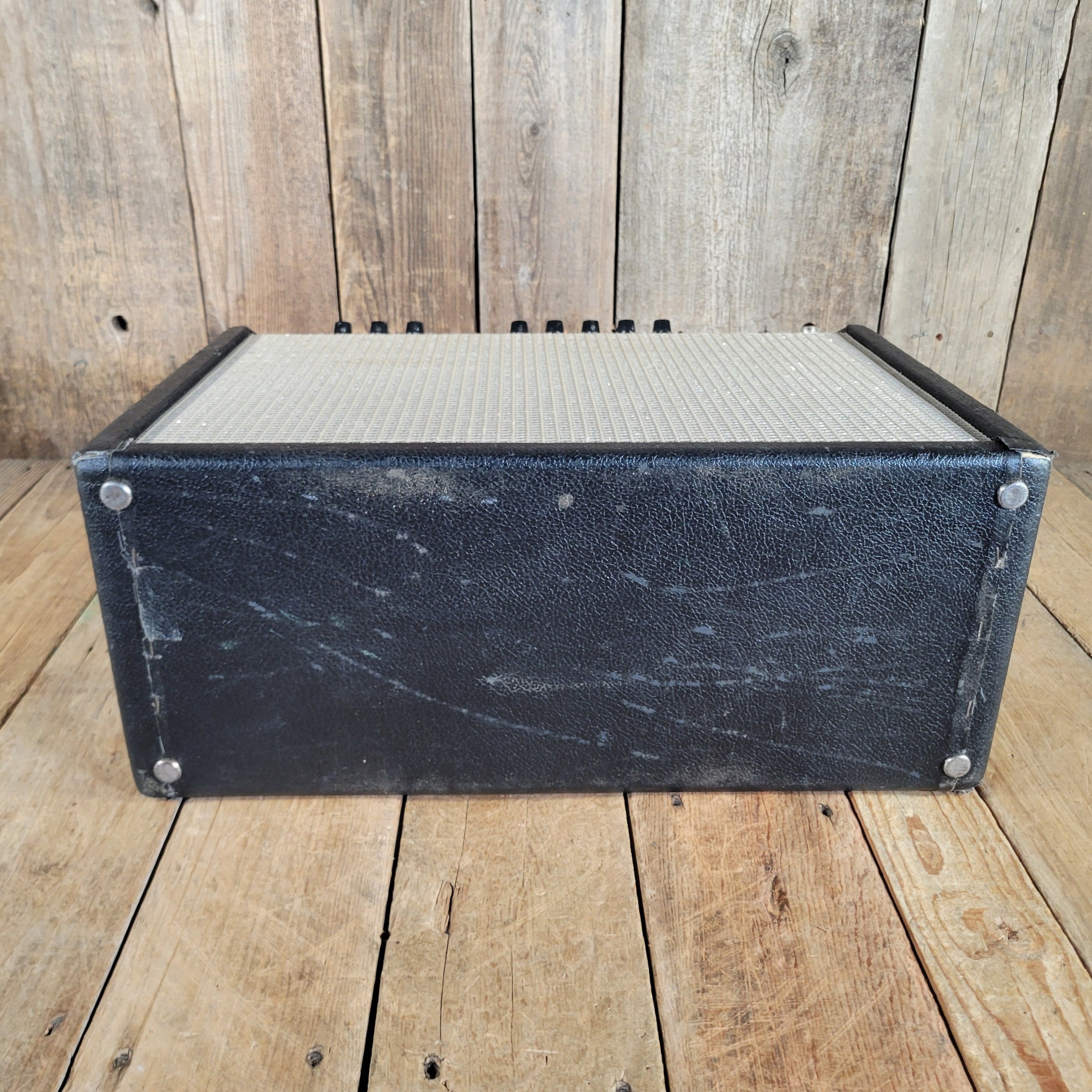

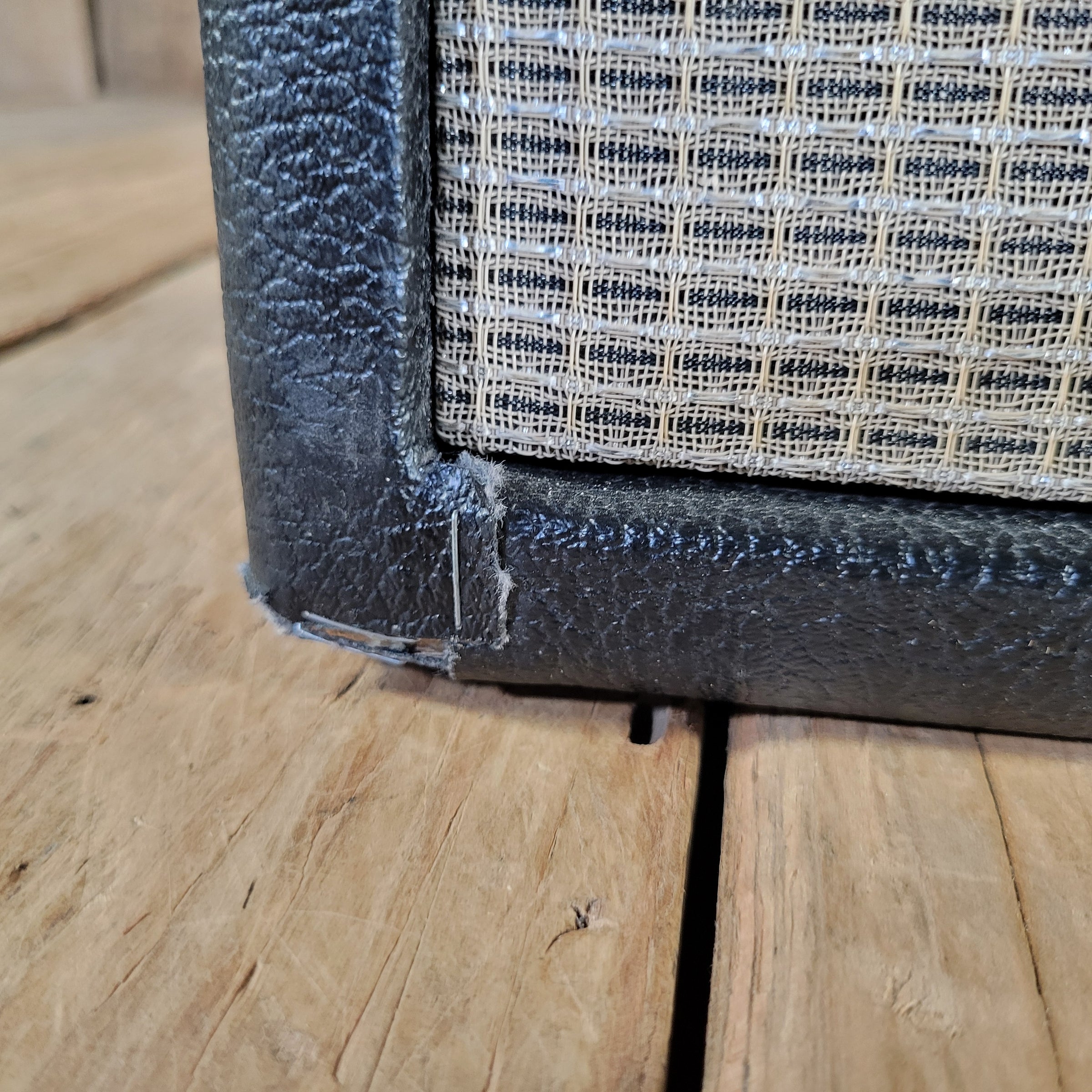

The tolex covering is original black and shows honest wear. The cabinet is in excellent condition with no repairs or changes. The silver sparkle grille is original and in very good condition. The chassis is in excellent condition with no alterations. The amp has no odor.

SPECIFICATIONS

• Date: 1965
• Where Is Date Noted?: Serial#, codes
• Weight: 33lbs 1.5oz
• Dimensions: W 22" x H 17" x D 9.5"
• Watts: 22 watts
• Case/Cover?: none
• Covering Material: tolex, some reglue and repairs evident. see pics.
• Covering Color: black
• Covering Original?: yes
• Cabinet Material: pine
• Cabinet Condition: excellent
• Cabinet Repairs/Changes: none
• Cabinet Original?: yes

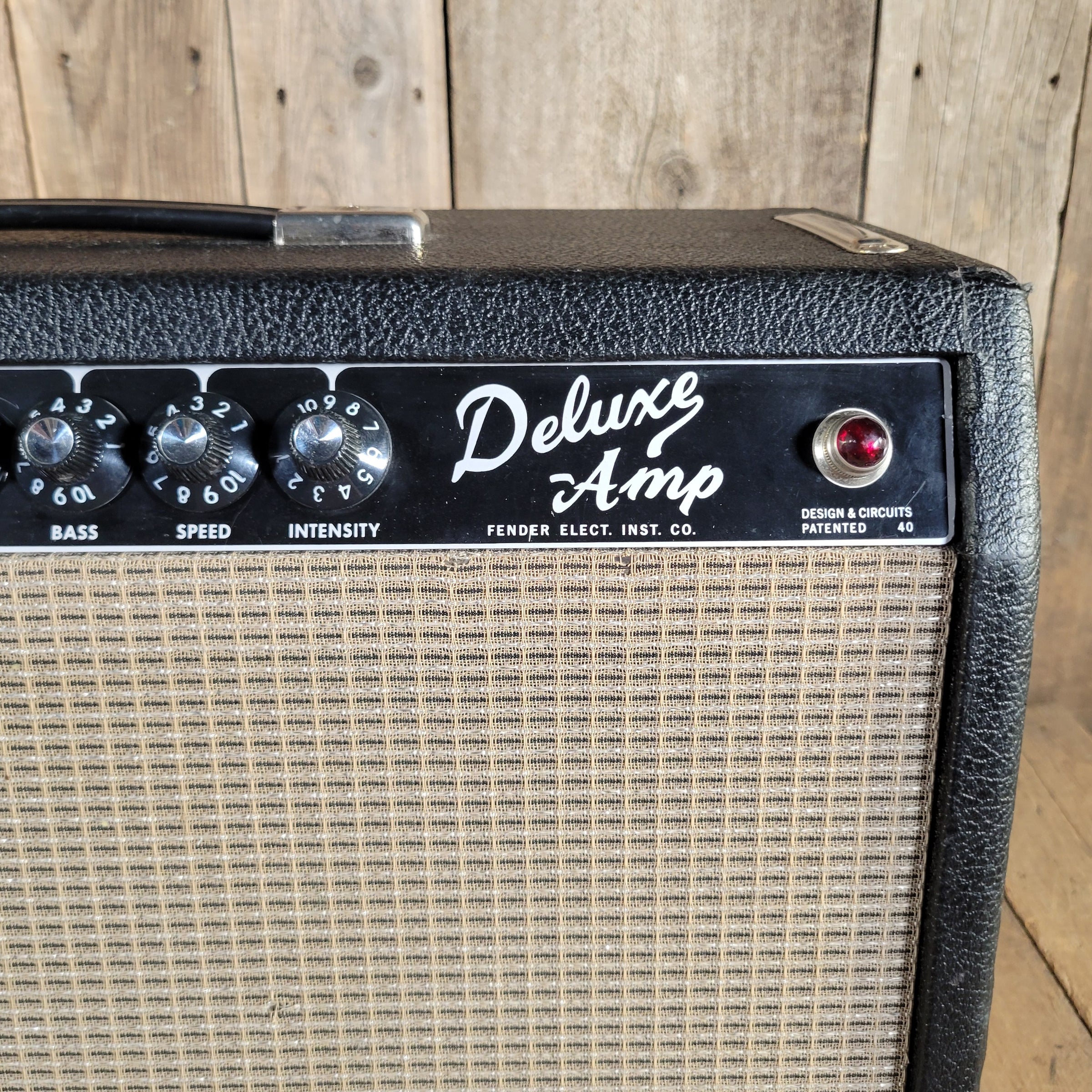

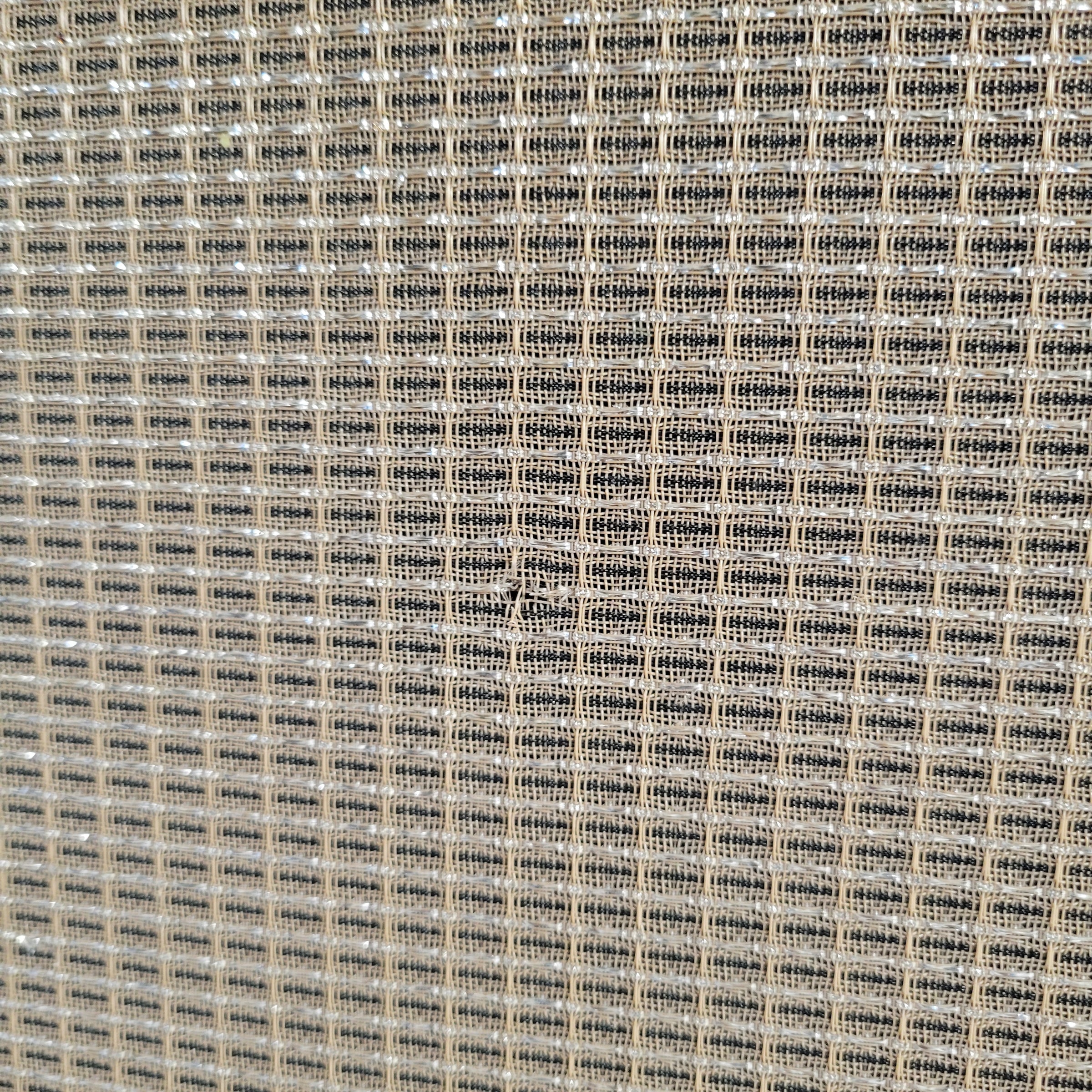

• Grille Style: silver sparkle
• Grille Condition: very good
• Grille Original?: yes
• Baffle Material: plywood
• Baffle Condition: excellent
• Baffle Original?: yes
• Baffle Repairs/Changes: none

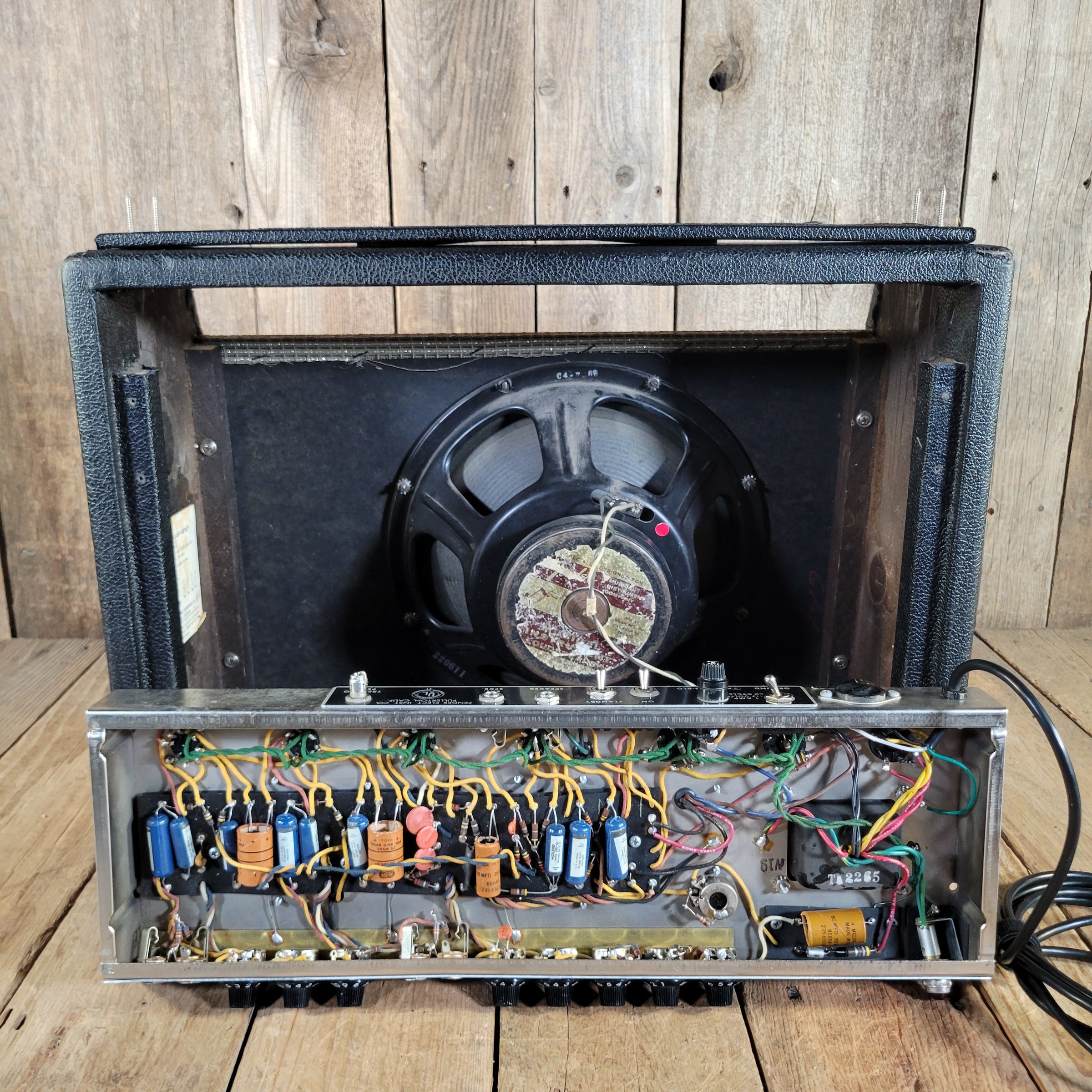

• Chassis Material: metal
• Chassis Condition: excellent
• Chassis Original?: yes
• Chassis Repairs/Changes: none
• Knobs Original?: yes
• Handle Material: rubber
• Handle Original?: yes

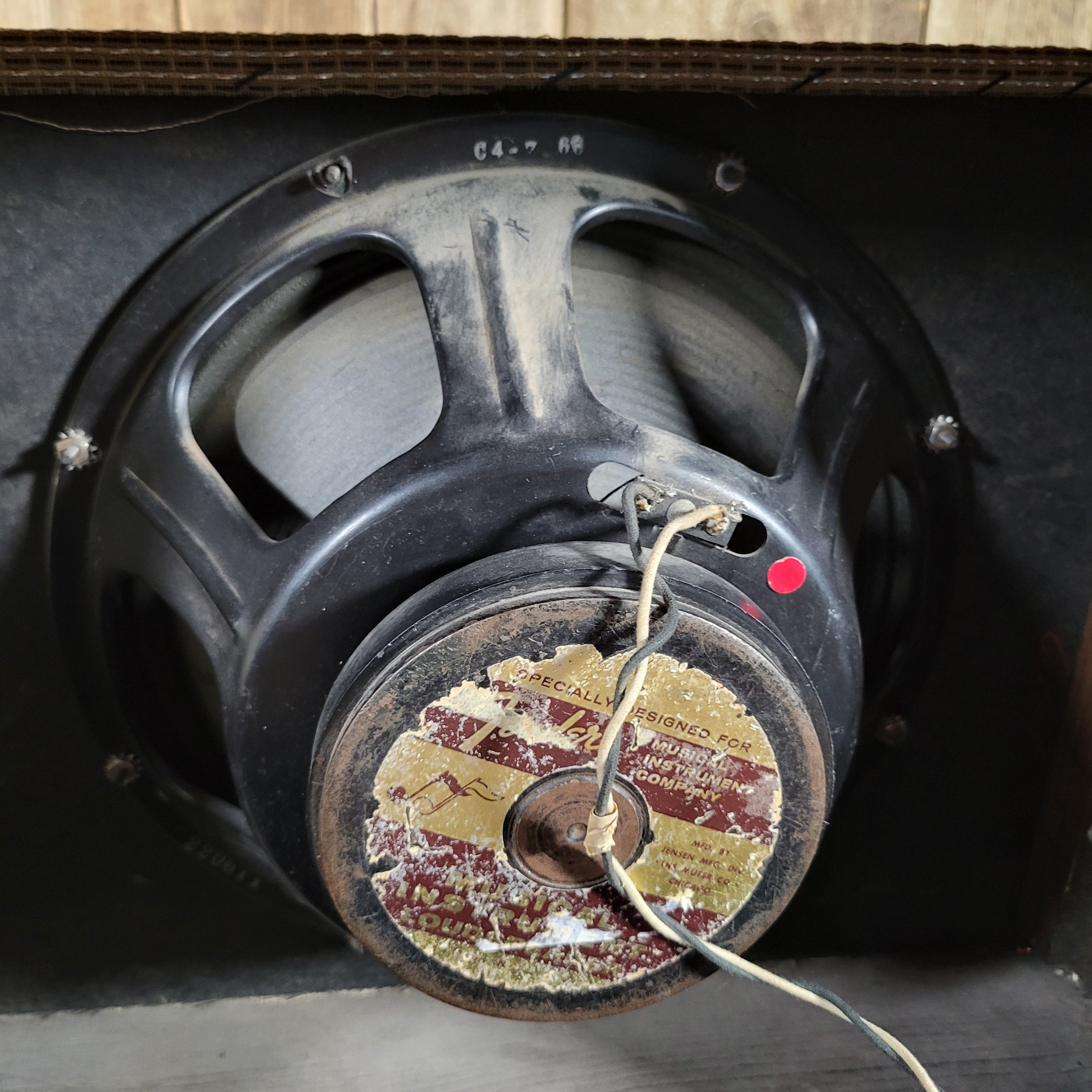

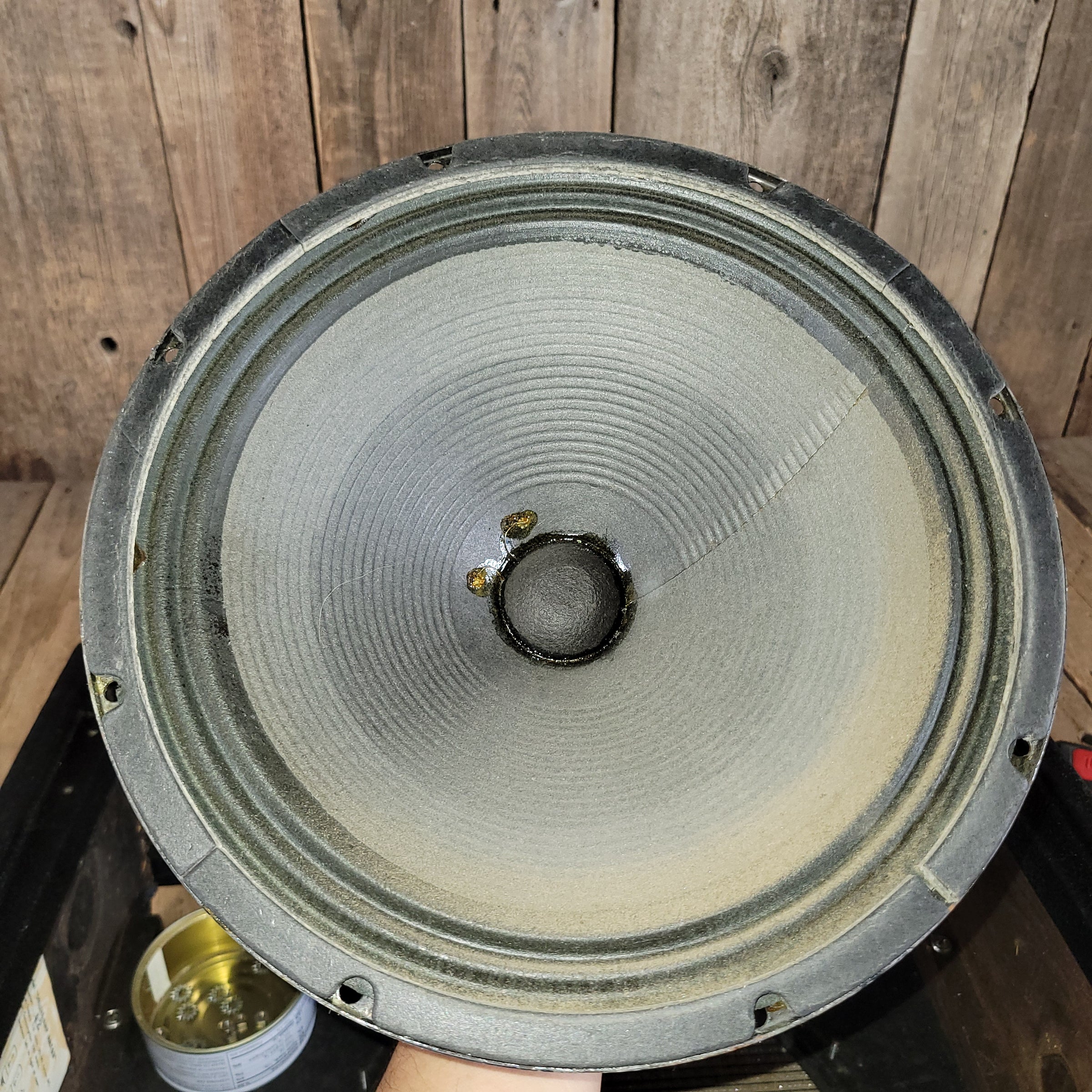

• Speaker 1 Brand: Jensen C12NA
• Speaker 1 Size: 12"

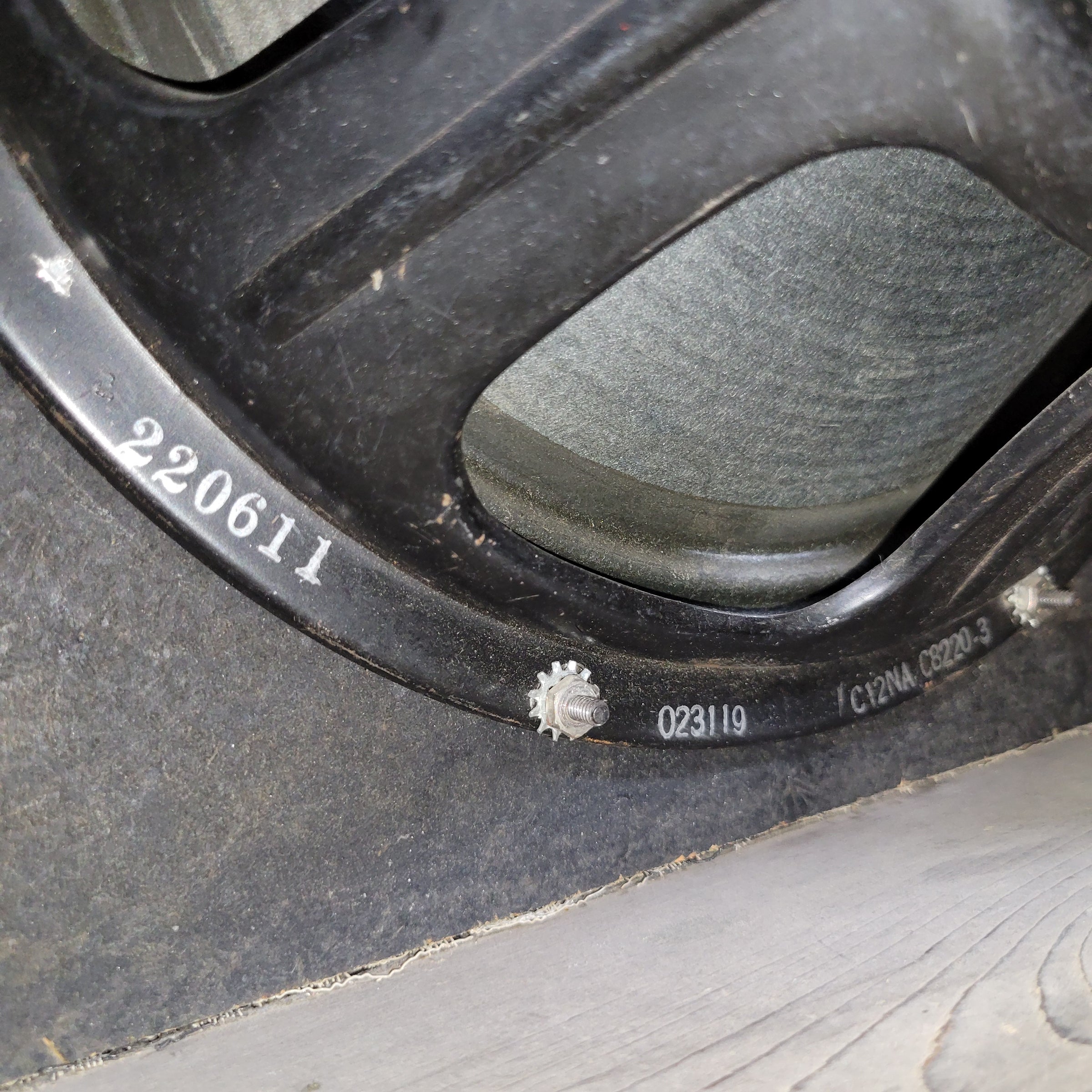

• Speaker 1 Manufacturer Code: 220

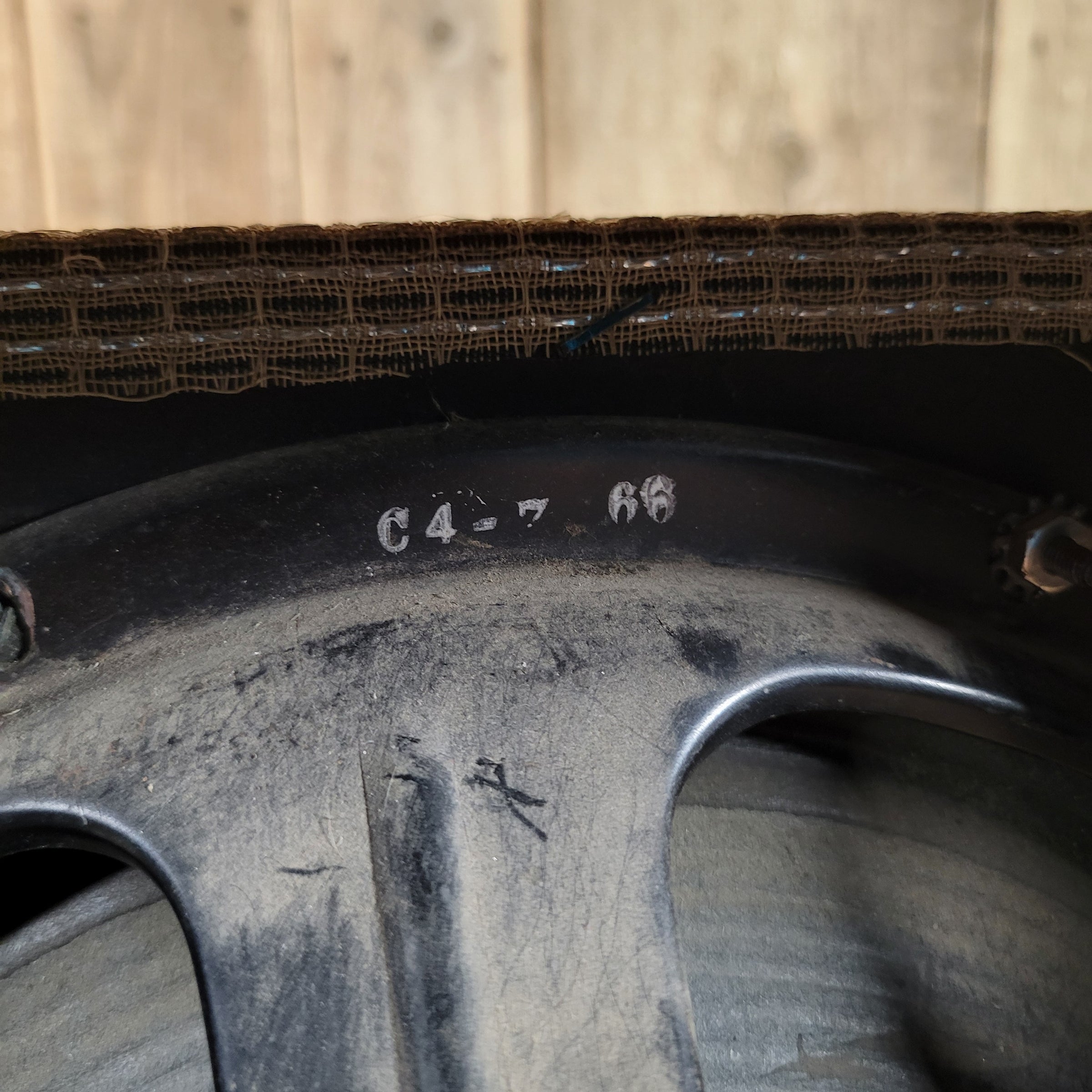

• Speaker 1 Date Code: 611
• Speaker 1 Cone Original?: ?
• Speaker 1 Condition: excellent

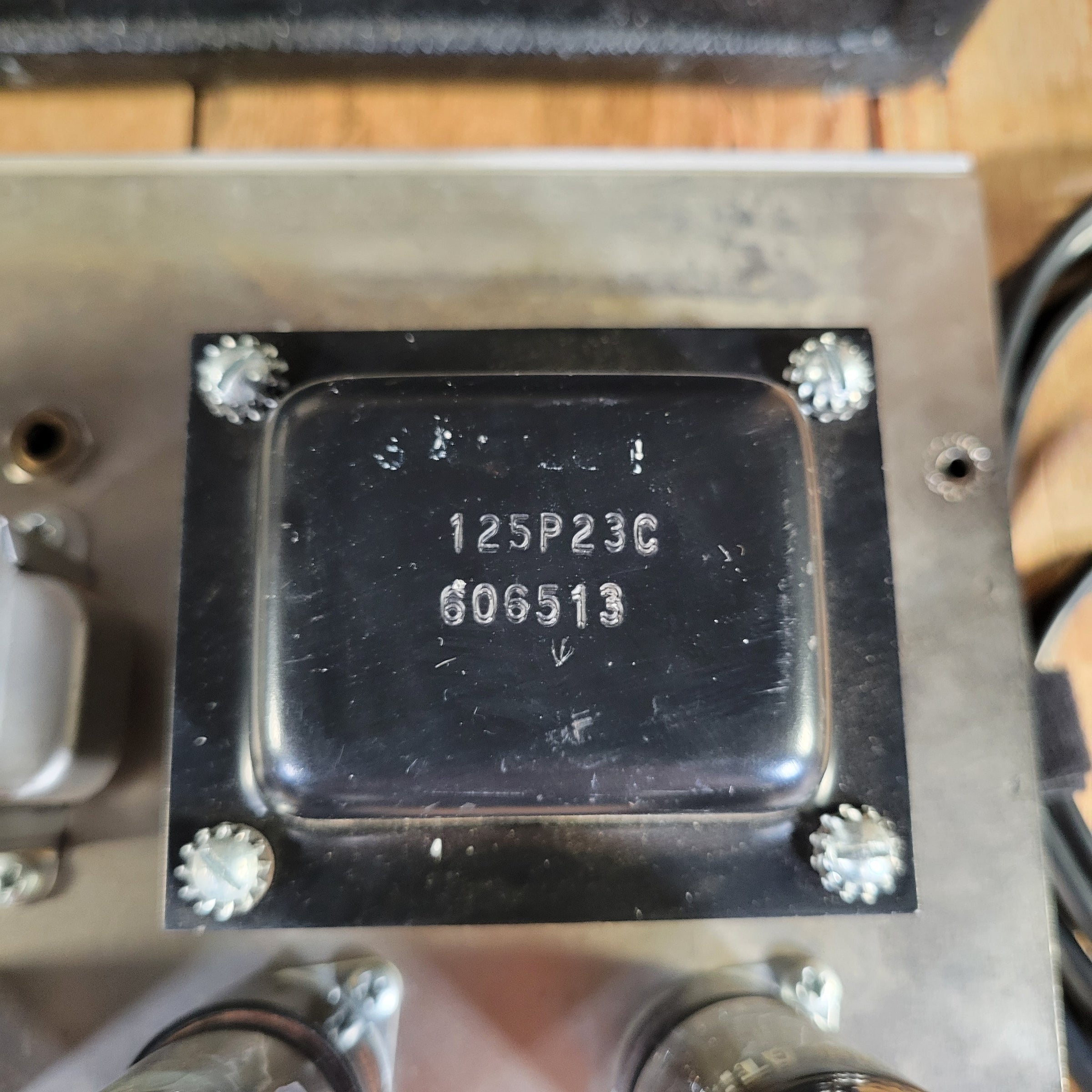

• Power Transformer Manufacturer: Schumacher
• Power Transformer Manufacturer Code: 606
• Power Transformer Date Code: 513
• Power Transformer Original?: yes

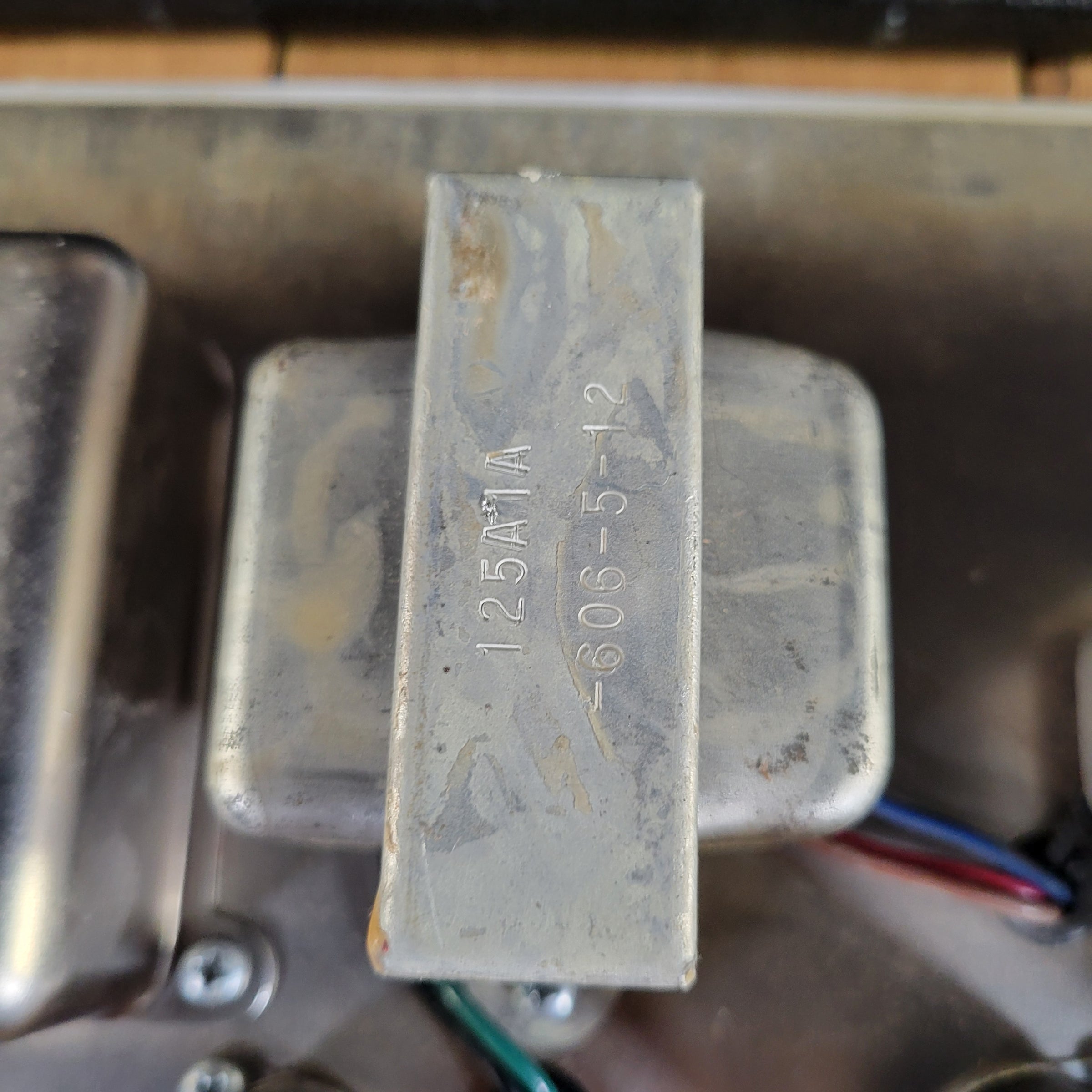

• Output Transformer Manufacturer: Schumacher
• Output Transformer Manufacturer Code: 606
• Output Transformer Date Code: 5-12
• Output Transformer Original?: yes

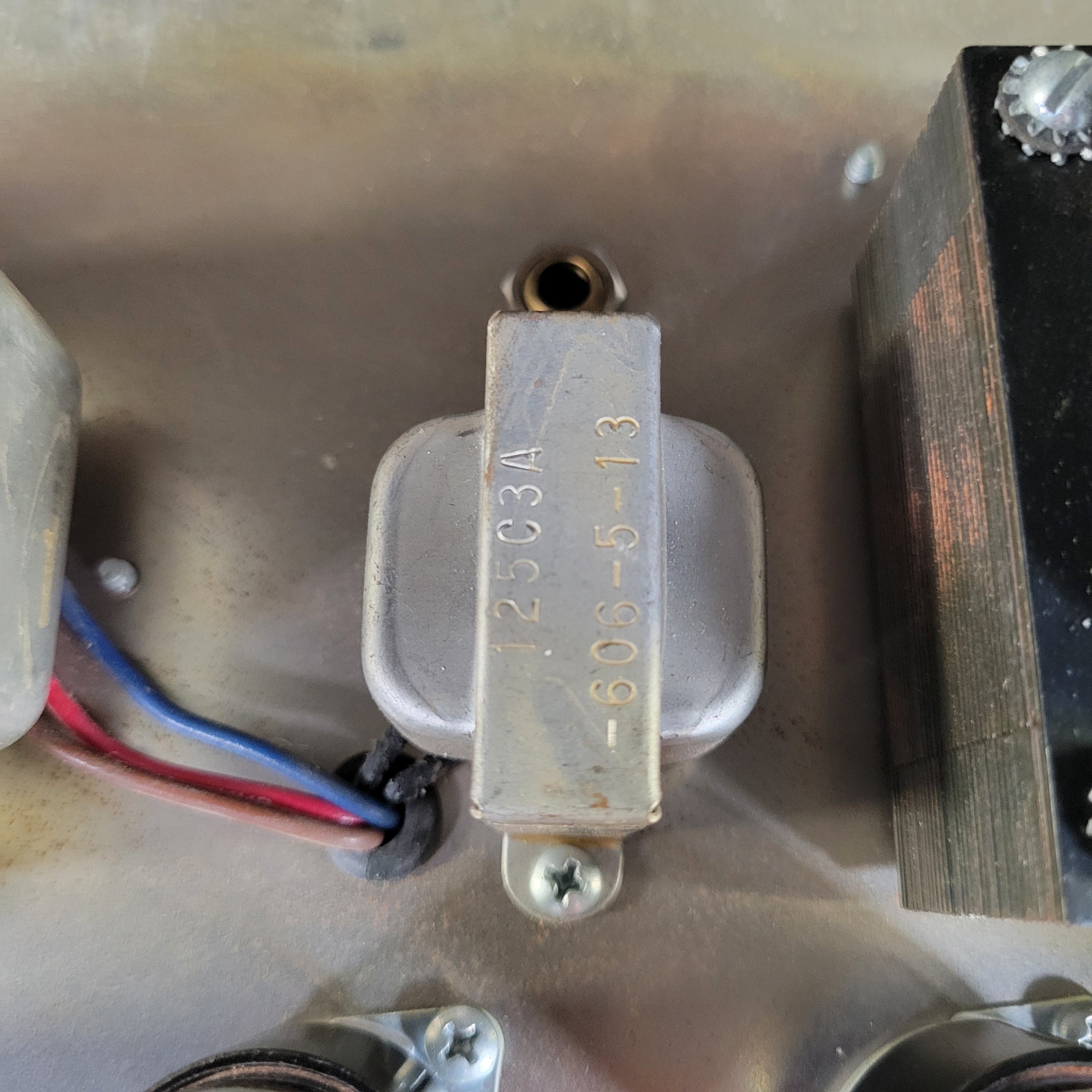

• Choke Transformer Manufacturer: Schumacher
• Choke Transformer Manufacturer Code: 606
• Choke Transformer Date Code: 5-13
• Choke Transformer Original?: yes
• Reverb Onboard: no
• Tremolo Or Vibrato Onboard: vibrato
• Pedal Included?: no
• Rectifier Tube: 5AR4
• Rectifier Tube Brand: GE
• Power Tubes: 2 x 6V6
• Power Tube Brand: RCA
• Preamp Tubes: 12AT7, 3 x 12AX7
• Preamp Tube Brand: GE, RCA

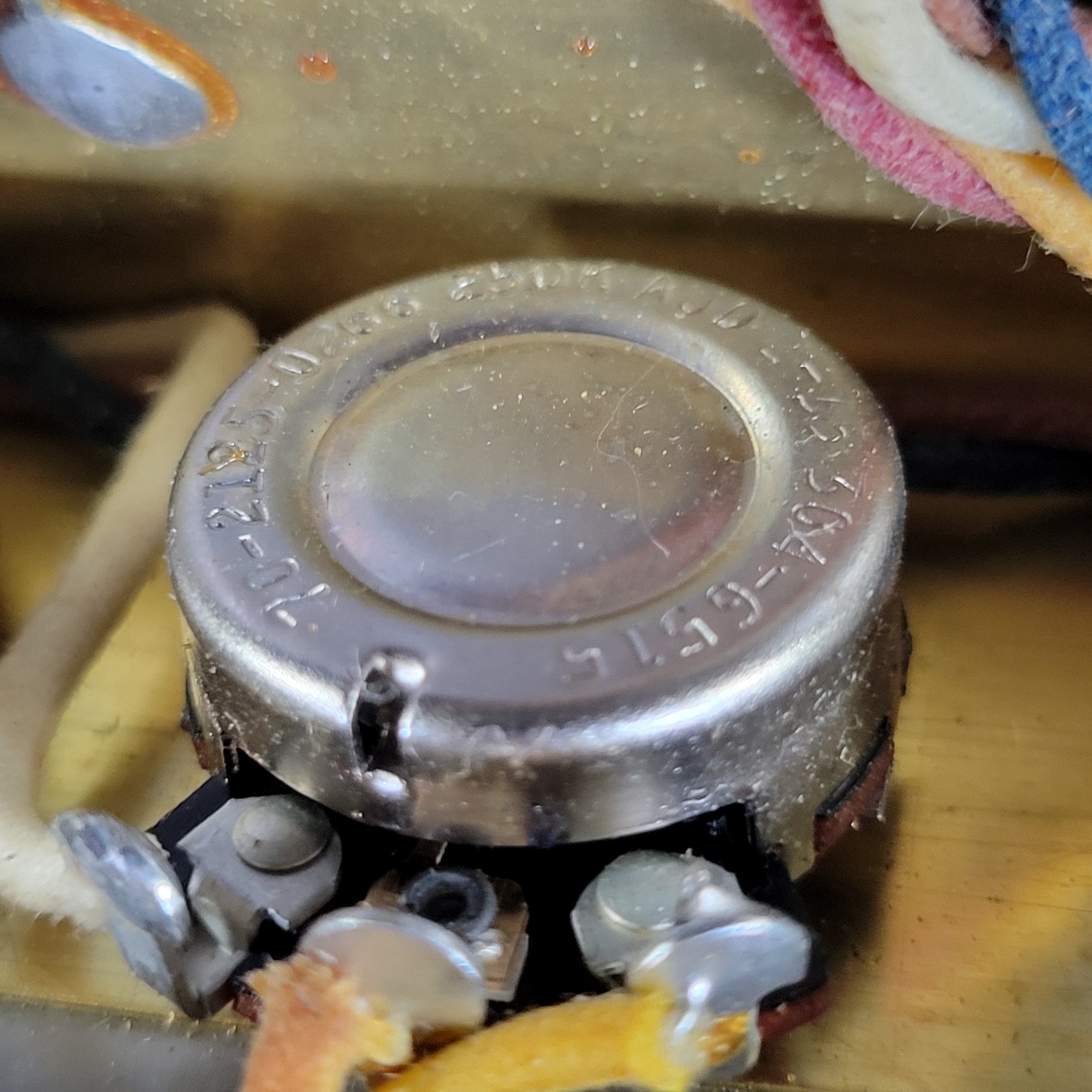

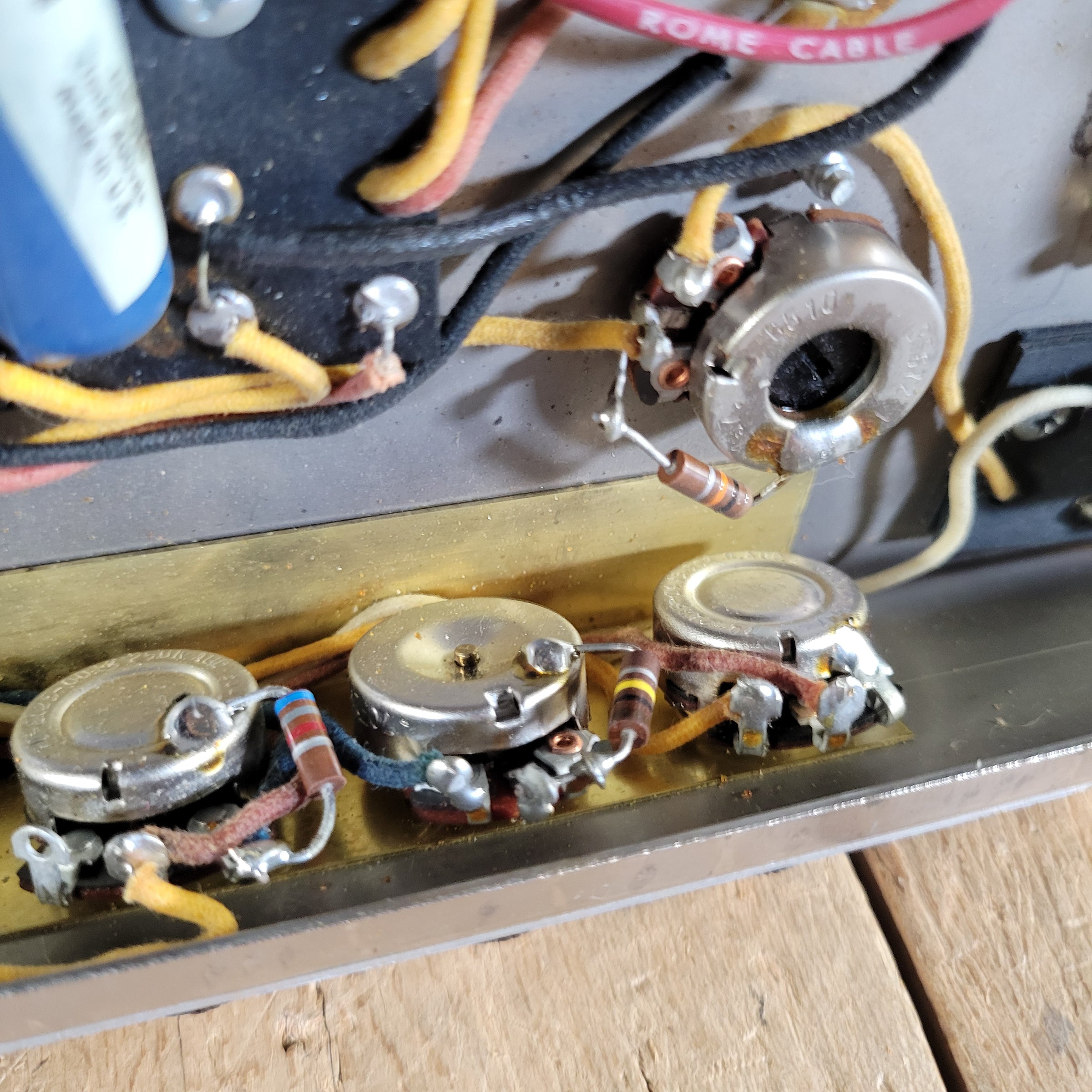

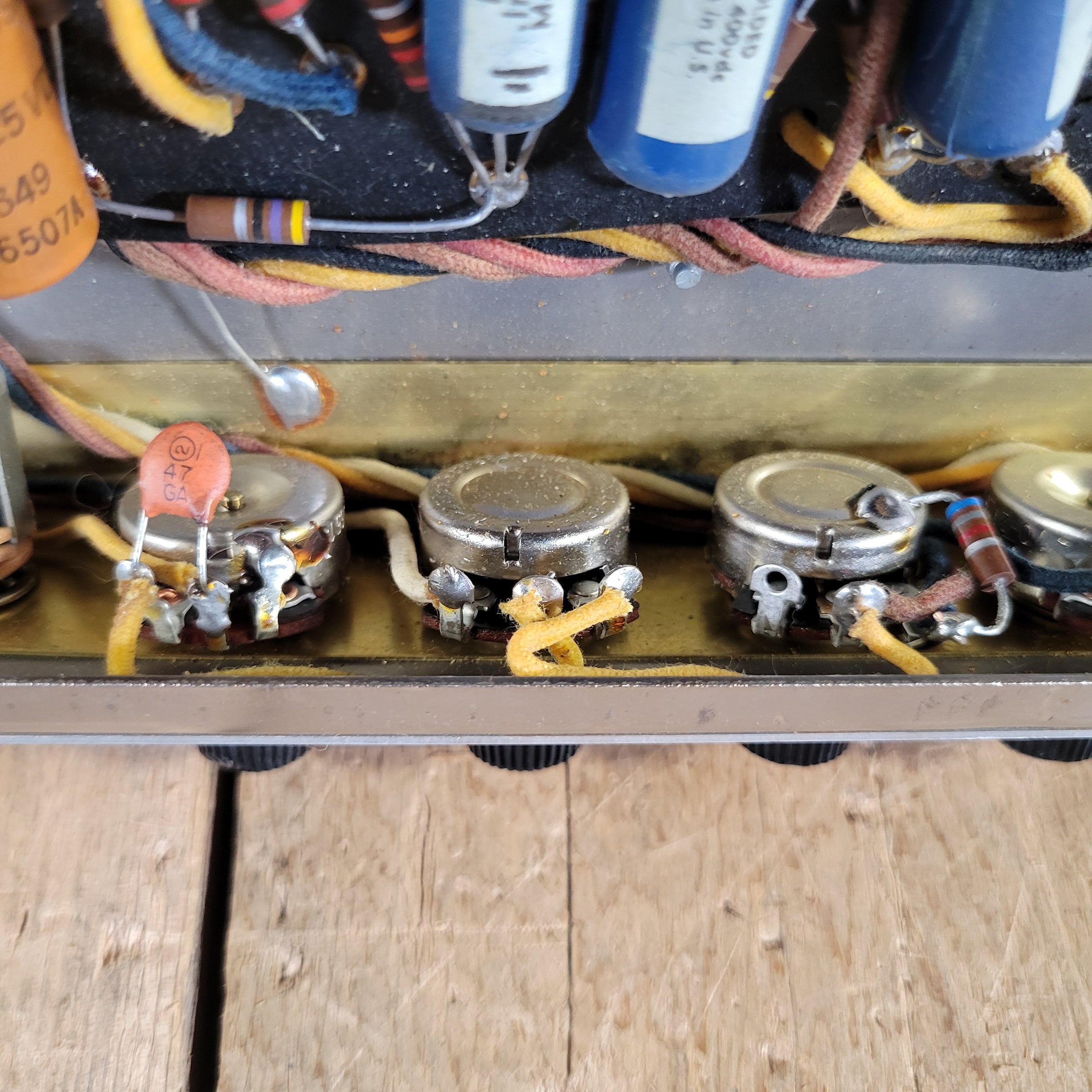

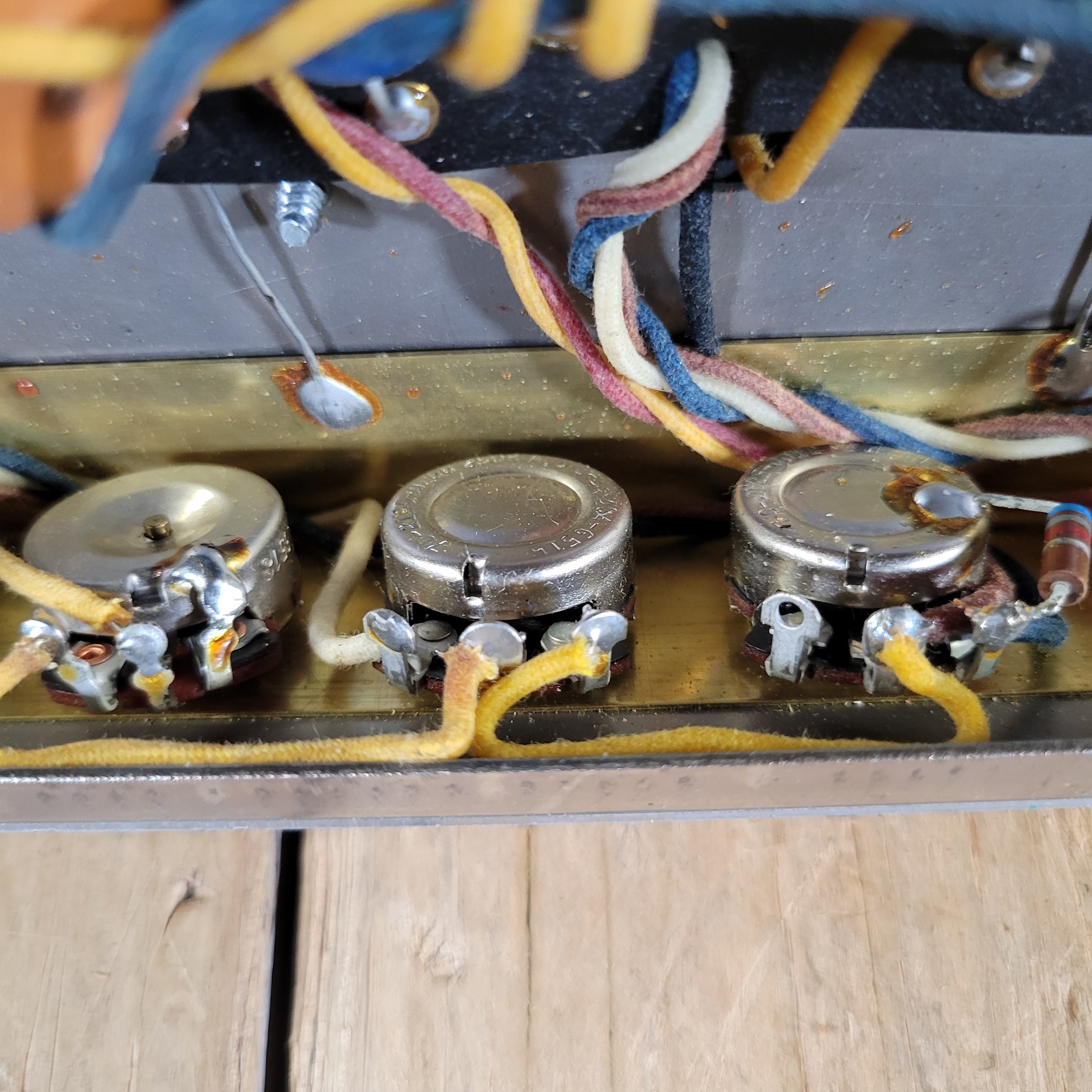

• Potentiometers Original?: yes

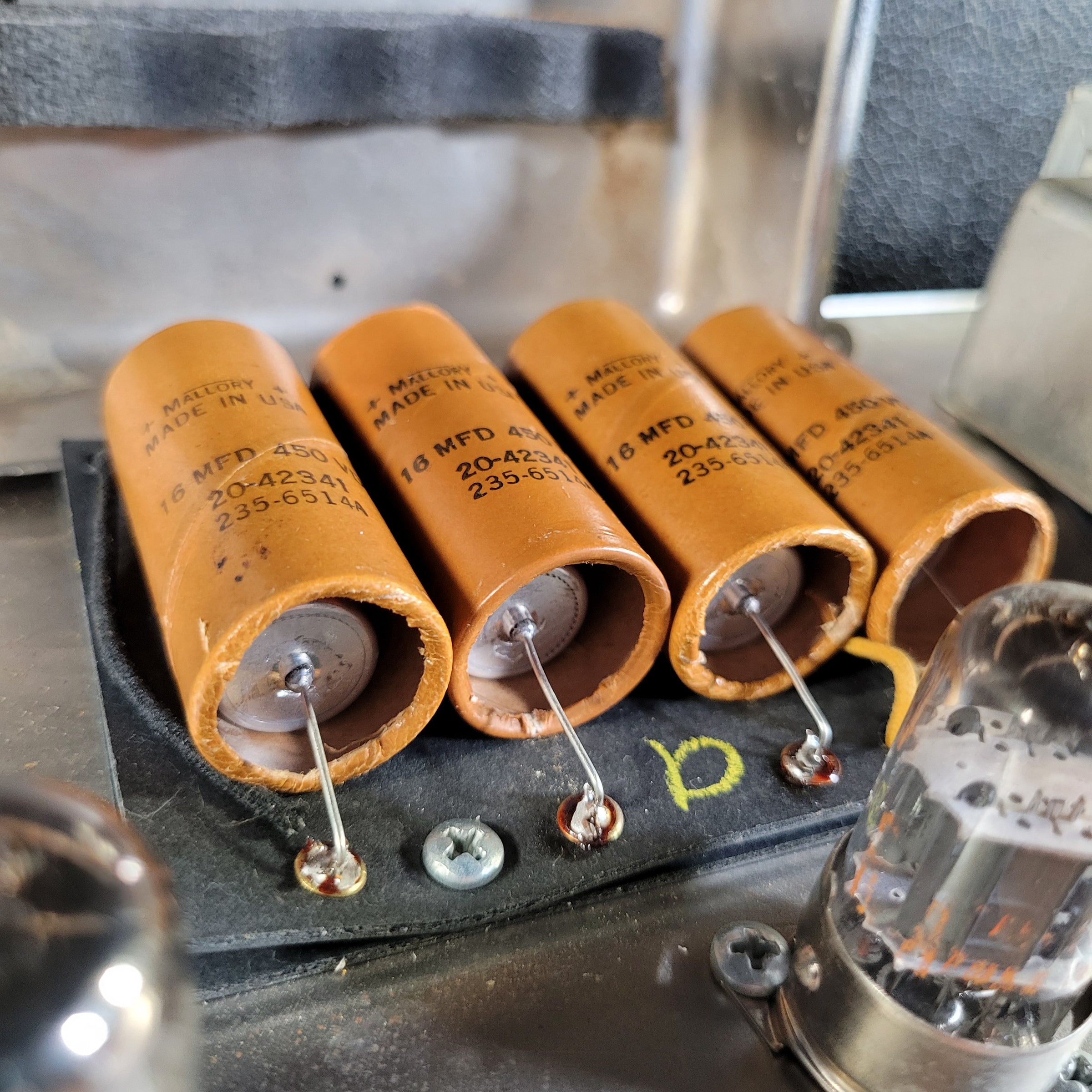

• Filter Caps: replaced
• Internal Repairs: cap job
• Power Cable: grounded upgrade
• Accessories Included: none
• Smells?: none
• Speaker 1 Original?: yes
