DBZ 2014 Diamond Imperial Quilt Top MIK with Case, Very Good

No sales tax for US customers outside California.

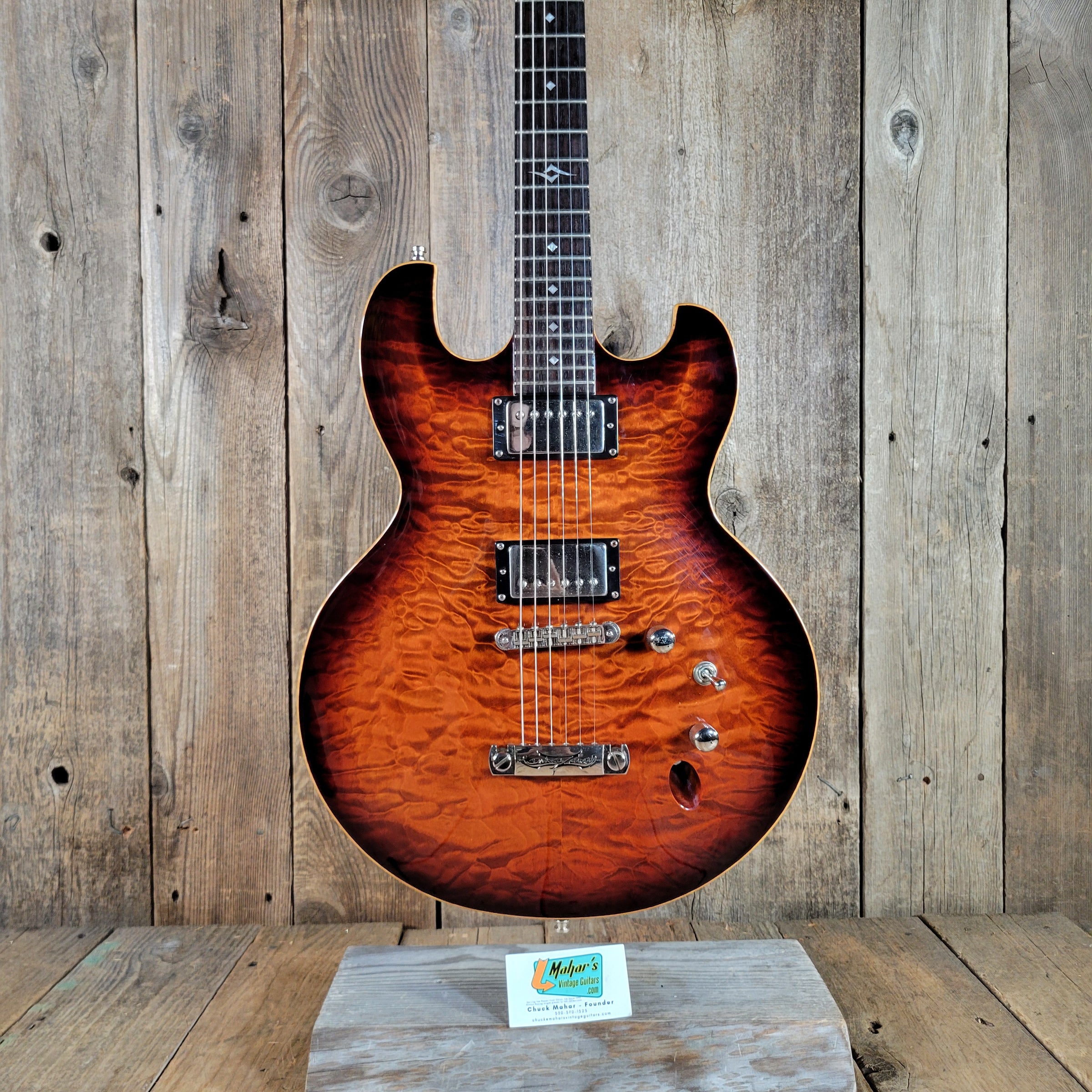

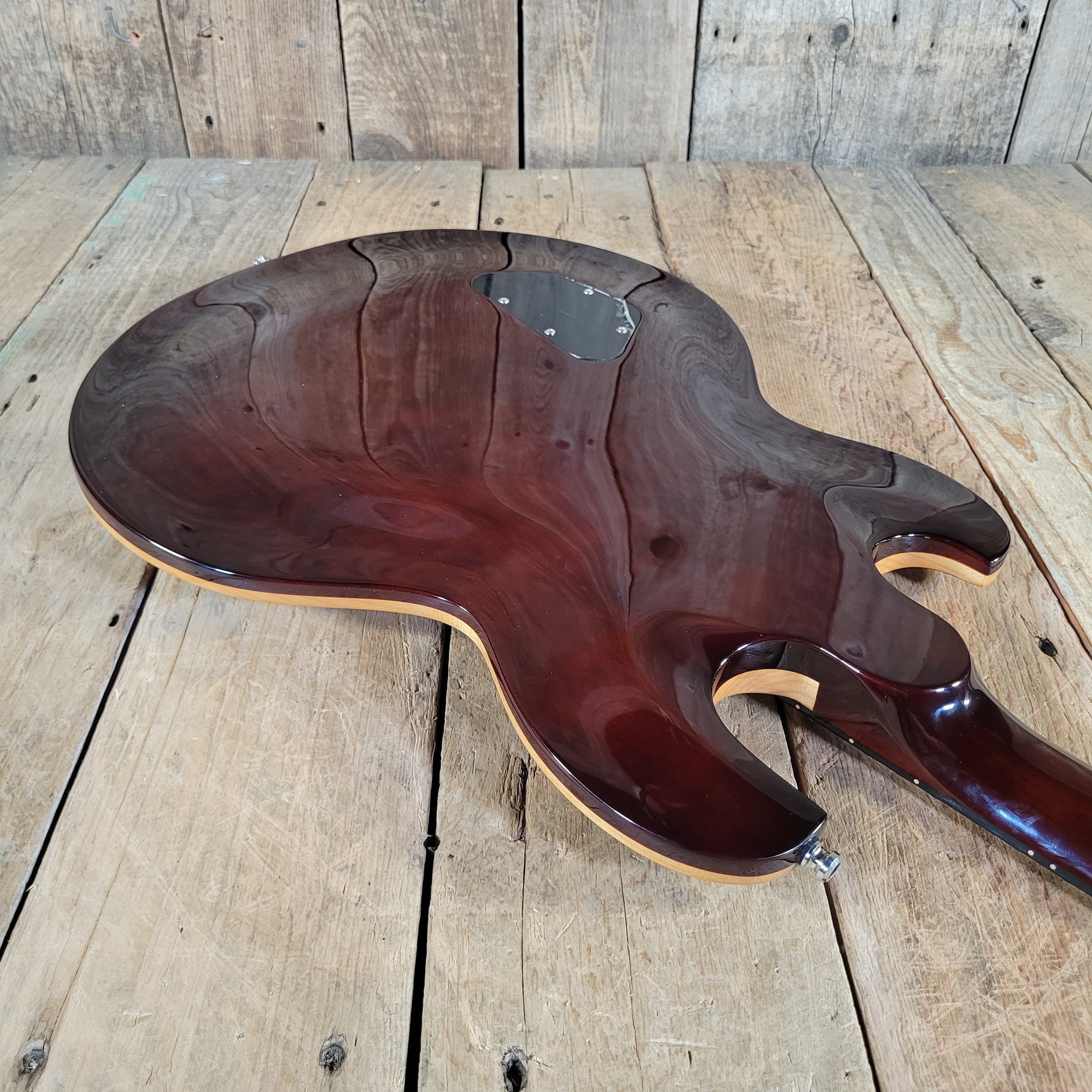

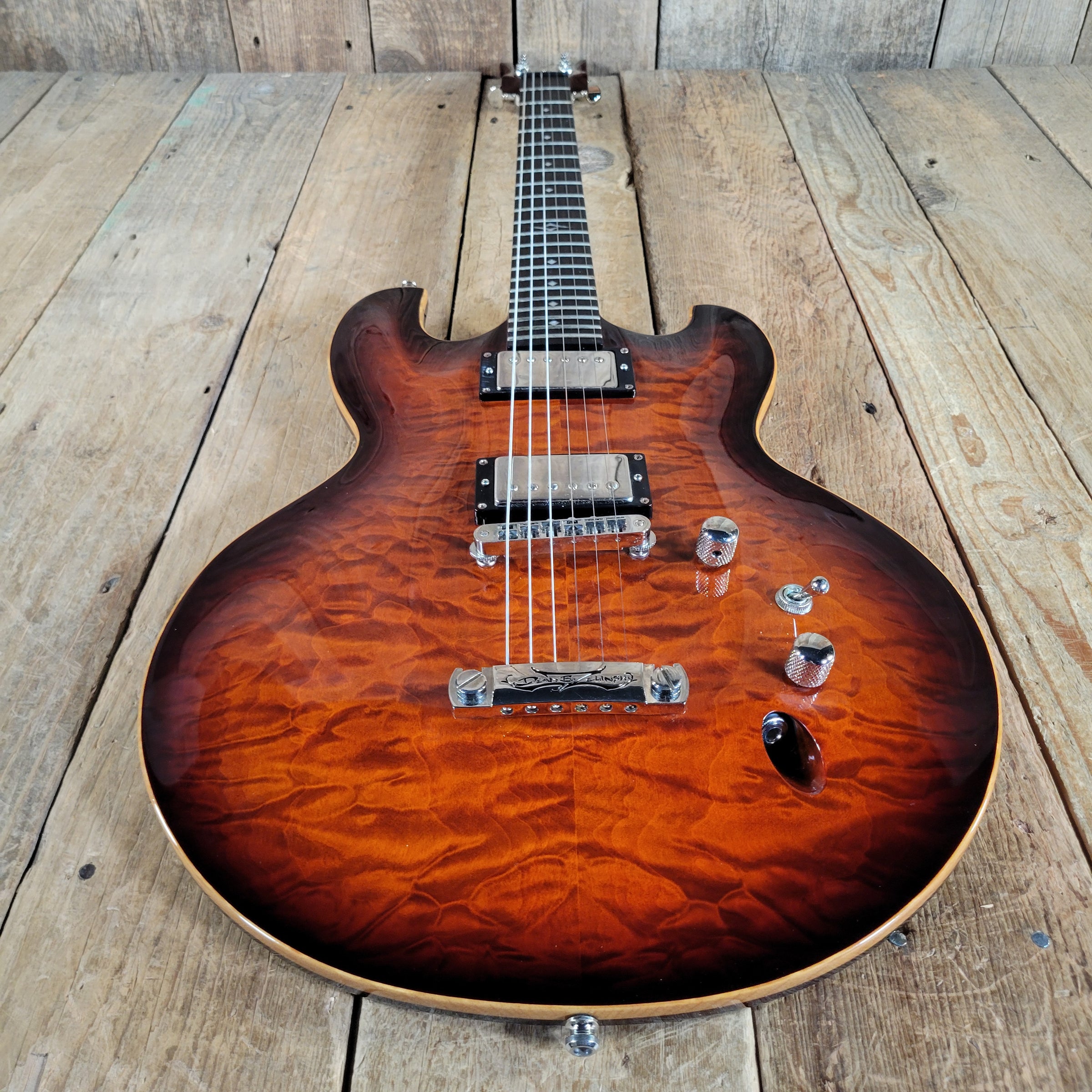

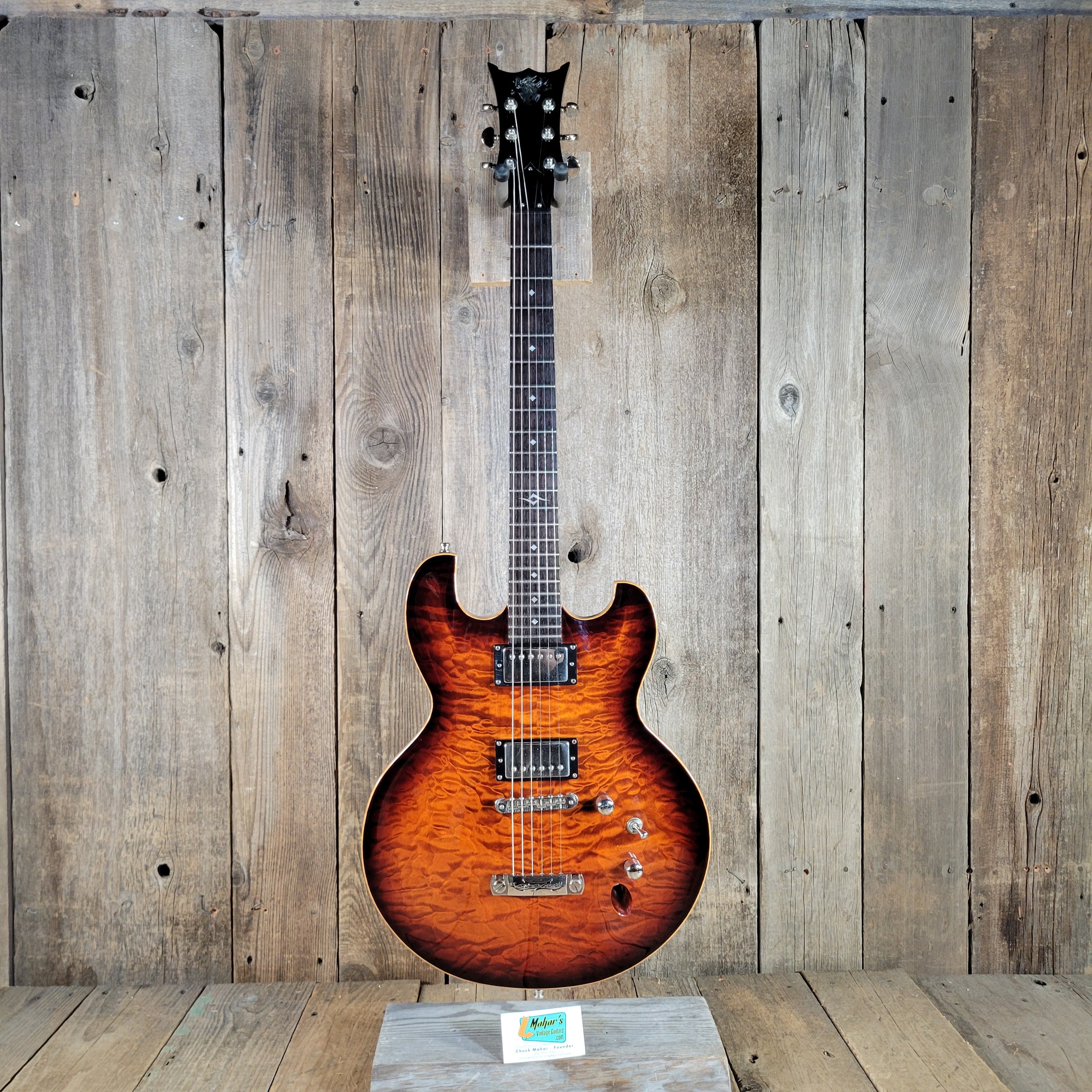

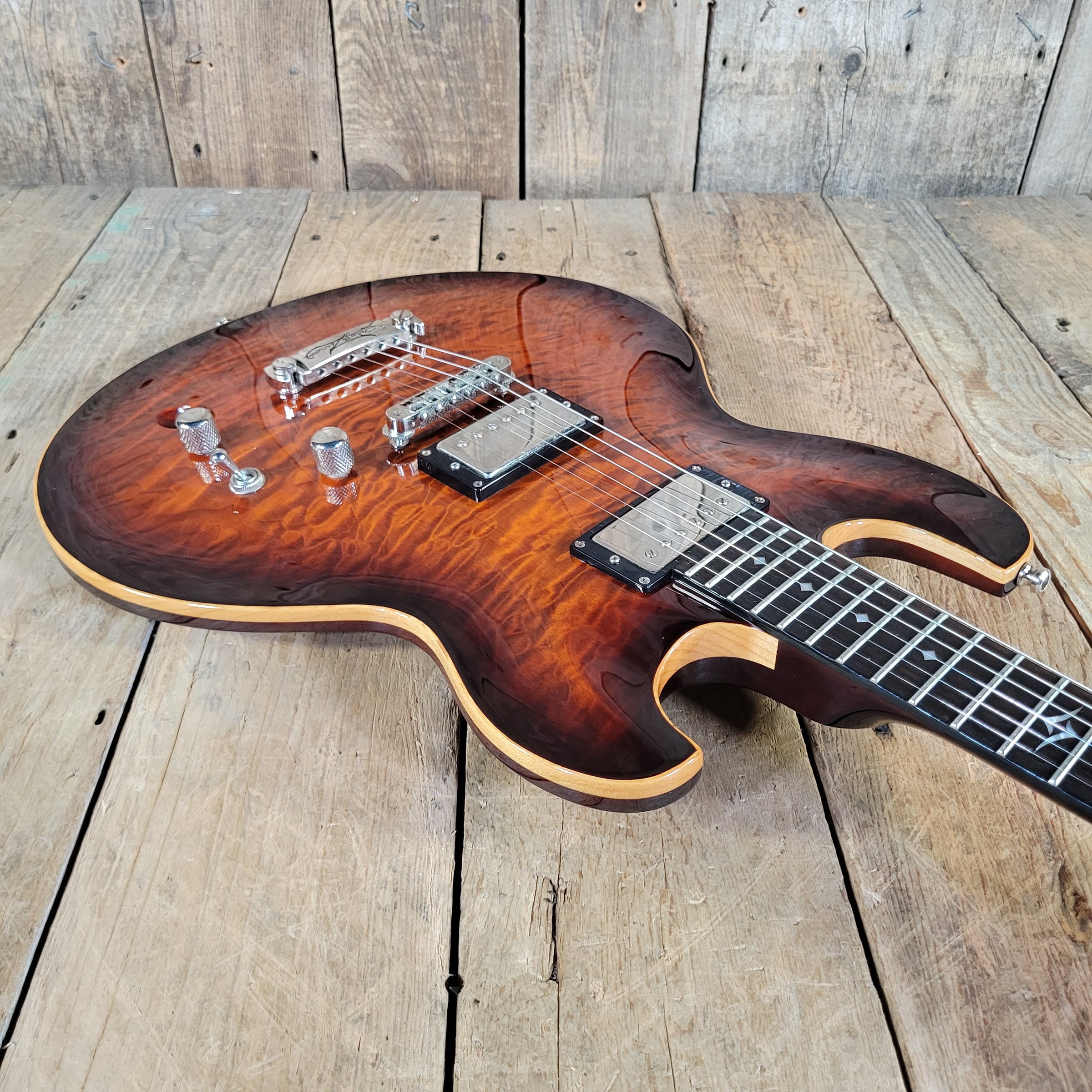

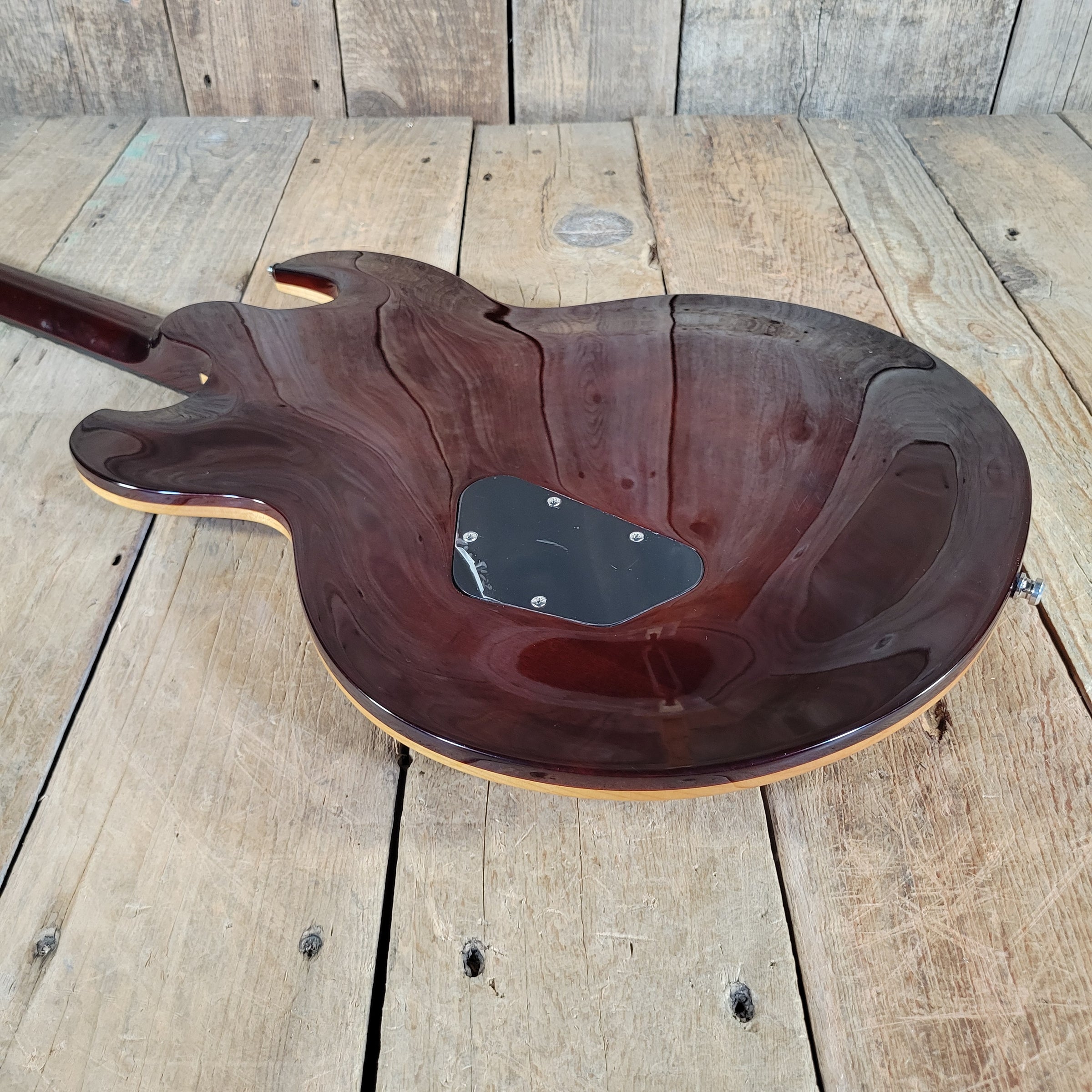

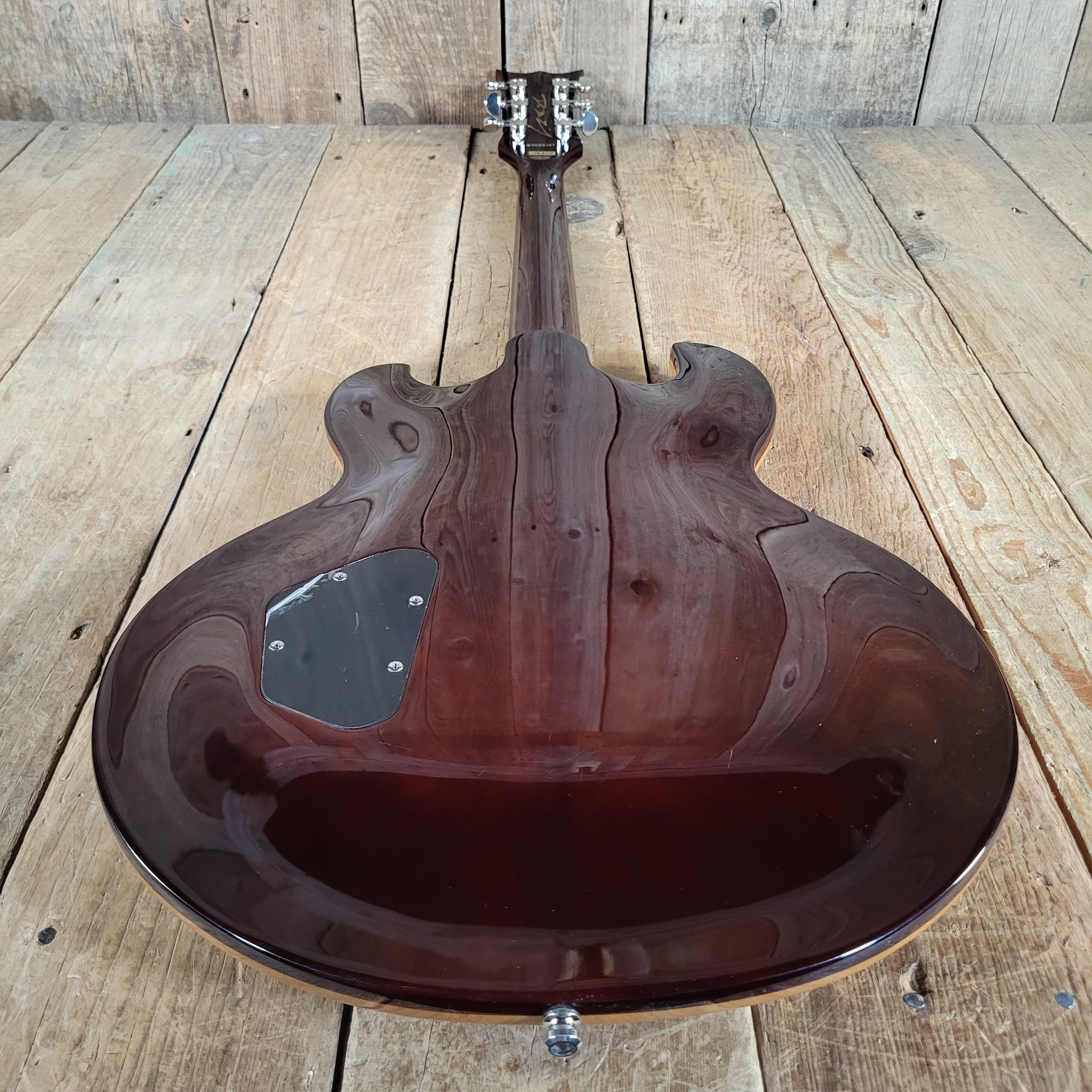

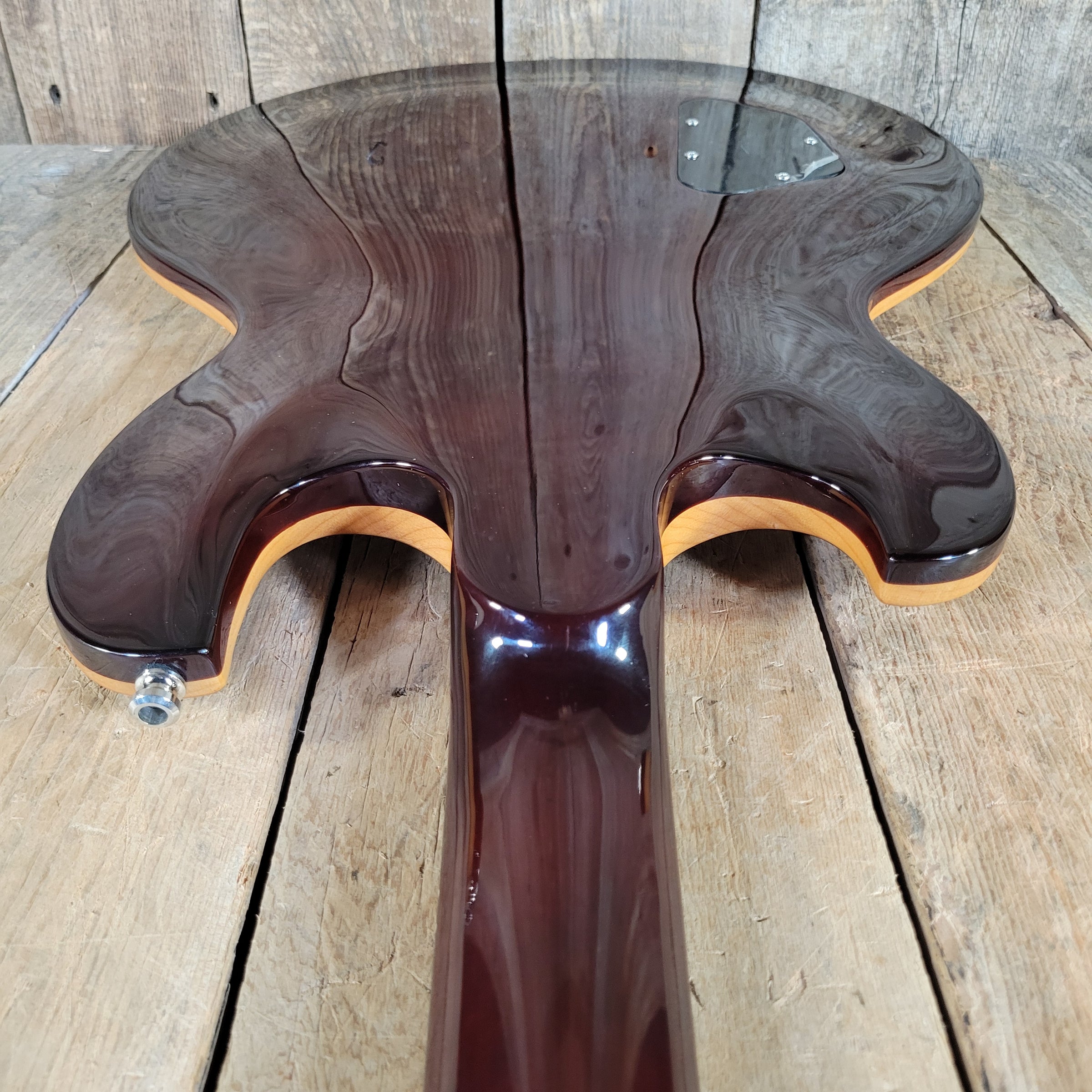

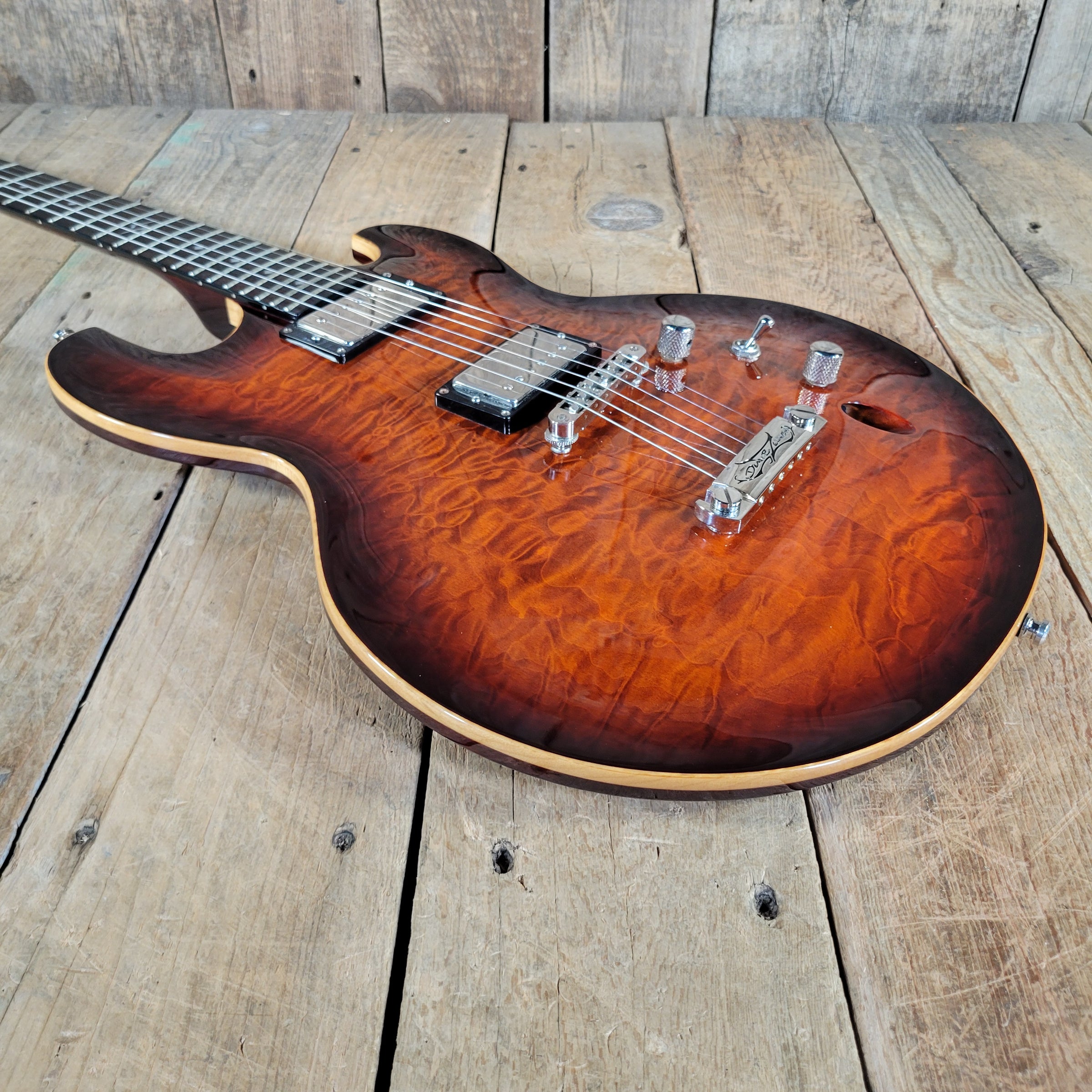

This DBZ Diamond Imperial Quilt Top MIK in Amber Quilt is inexcellent condition aside from the missing logo plate on the headstock, so we're calling it Very Good. It comes with the original DBZ case. The Imperial is built on a mahogany body with a carved quilted maple top — a combination that pairs mahogany's warm low-midrange body with maple's tighter, more defined upper register. At a 24.75" scale and with a soft-V mahogany neck, the guitar sits in familiar LP-style tonal territory: warm and full in the low end, with the carved maple top adding clarity and articulation. The body's chambered thinline profile — tapering from 1.5" to 5/8" at the edge — keeps the weight down to a comfortable 7 lbs 13 oz.

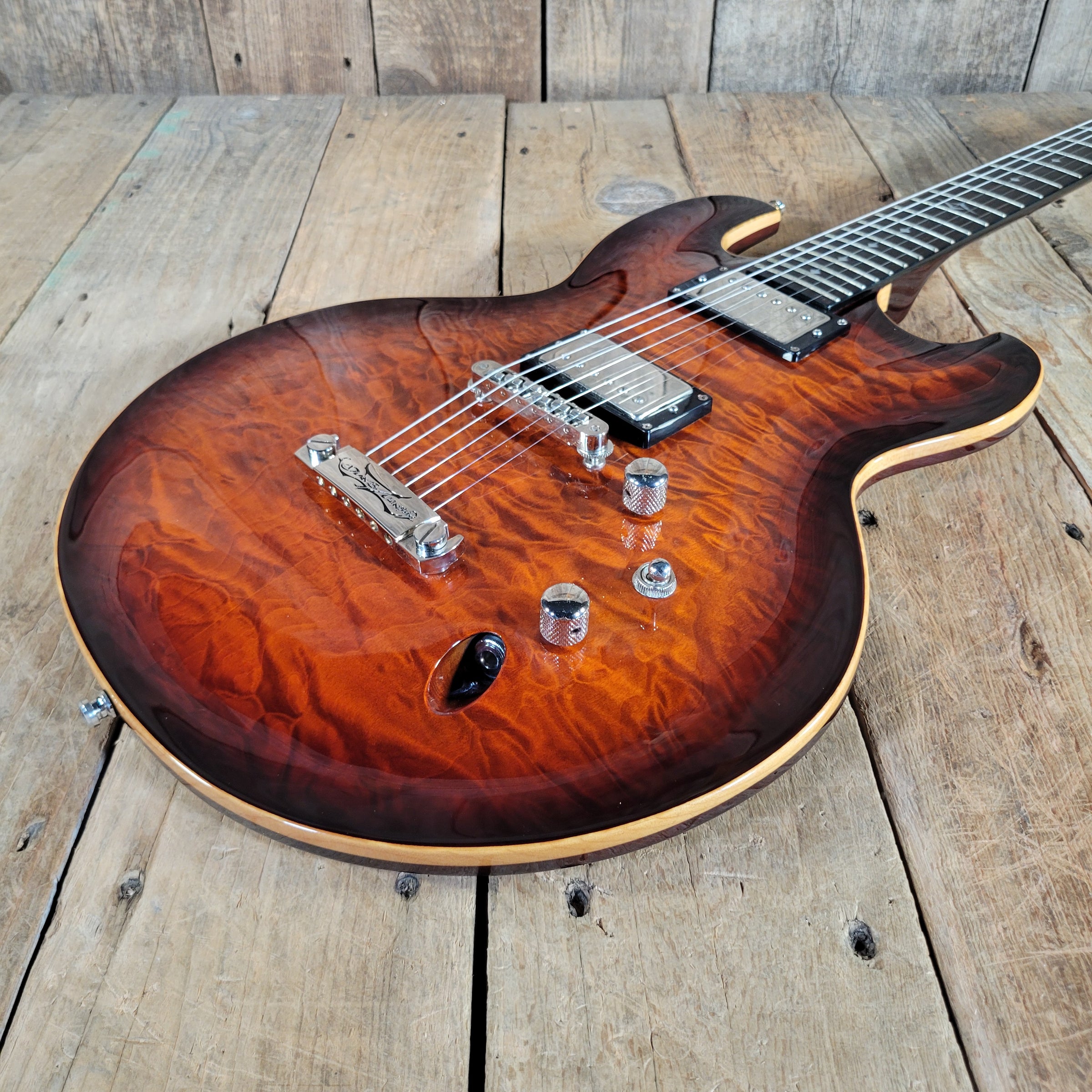

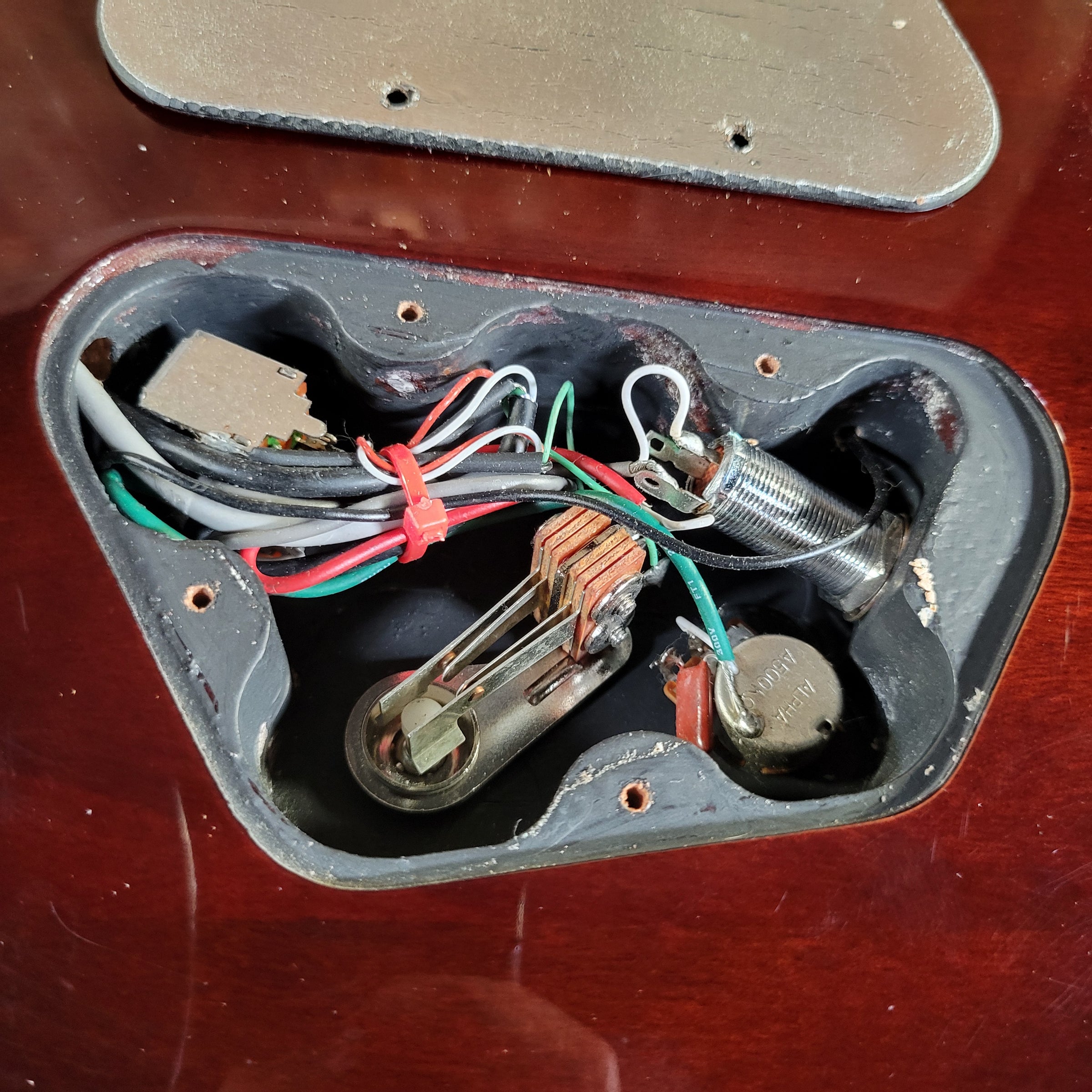

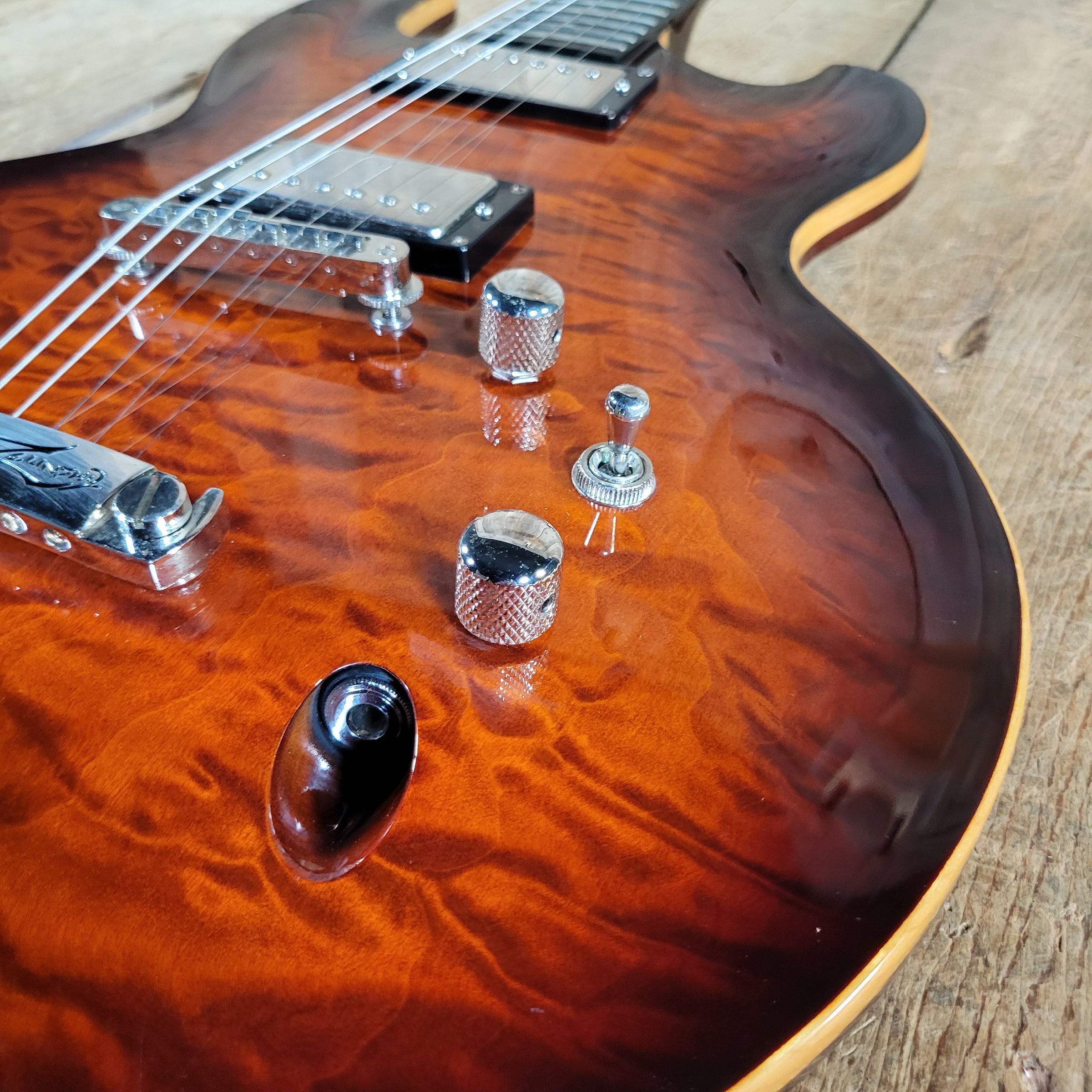

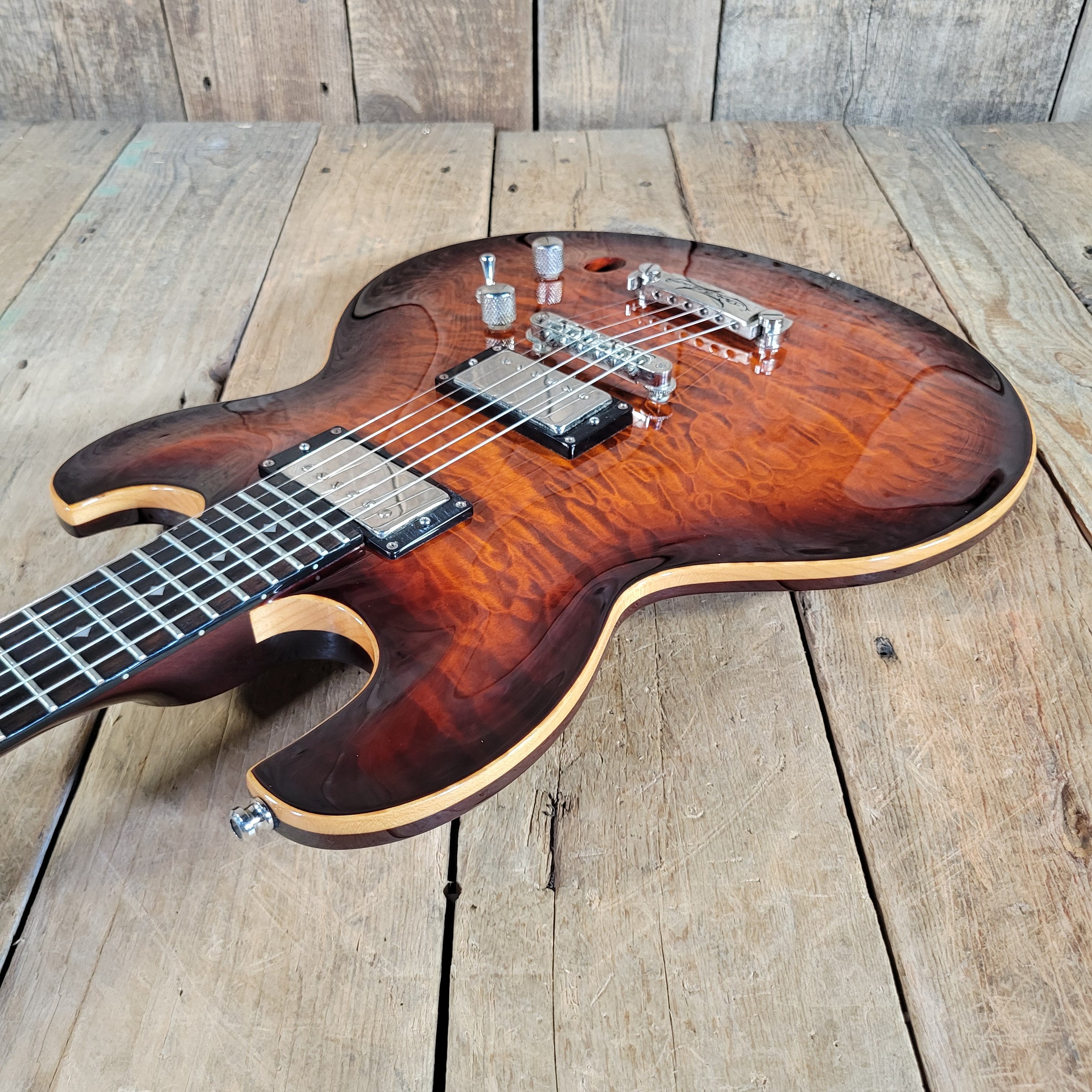

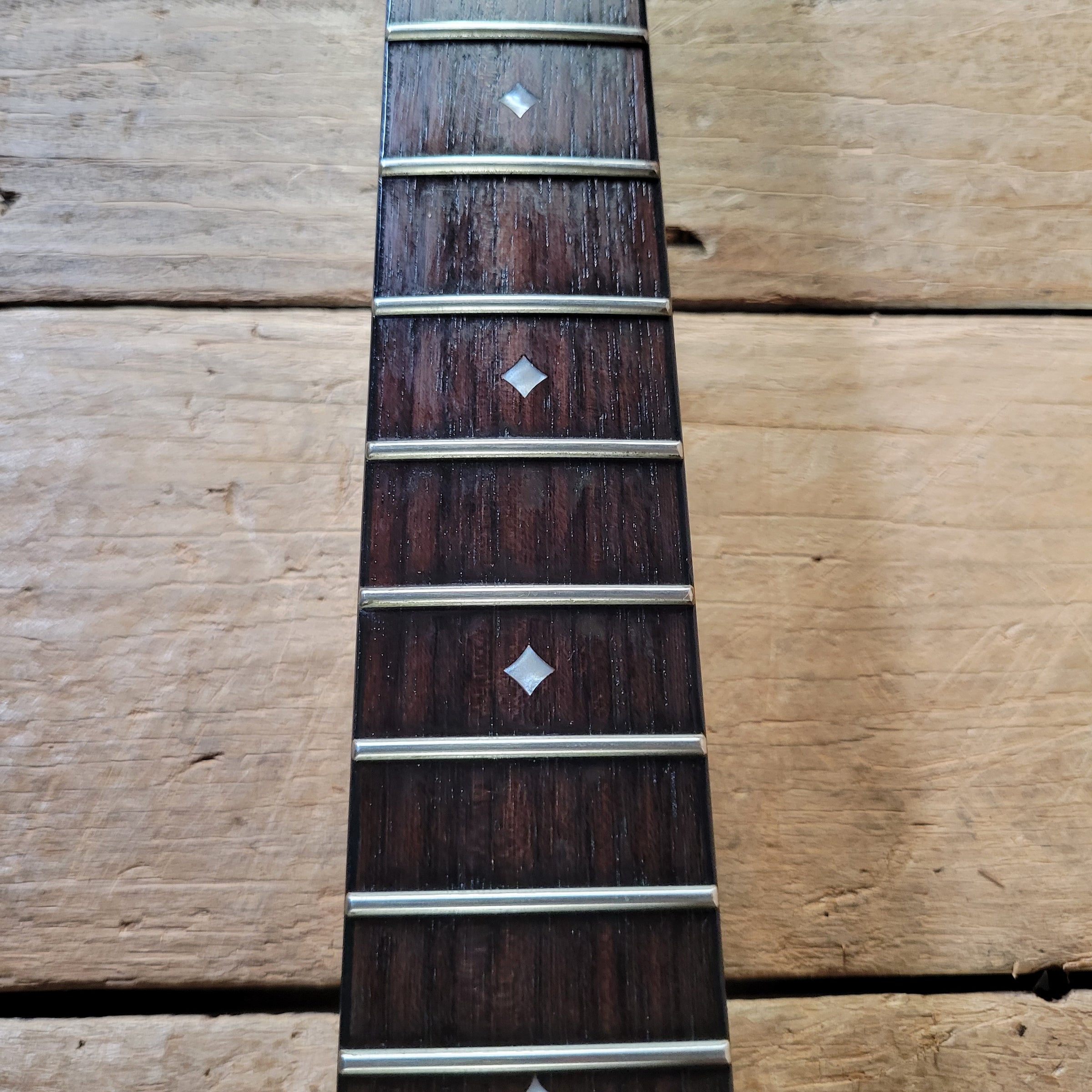

The Imperial's construction centers on an ebonized rosewood fretboard with pearloid diamond inlays and a GraphTech TUSQ nut, over a mahogany neck with a soft-V profile. Electronics are all original: the neck position carries a Diamond Custom N9C humbucker reading 7.85k, and the bridge runs a Diamond Custom R15 humbucker reading 14.92k — a meaningful output gap that positions the bridge pickup for a noticeably hotter, more aggressive voicing. Both chrome pickup covers show some scratching. The control layout is straightforward: two potentiometers, a 3-way toggle switch, and two chrome knobs, all original. Wiring, switch, output jack, and cavity cover are all original. Hardware is equally intact: original Grover tuners, a tune-o-matic style bridge with metal saddles, and DBZ/Diamond's custom extended engraved chrome stop-tailpiece, all original. The finish is original throughout.

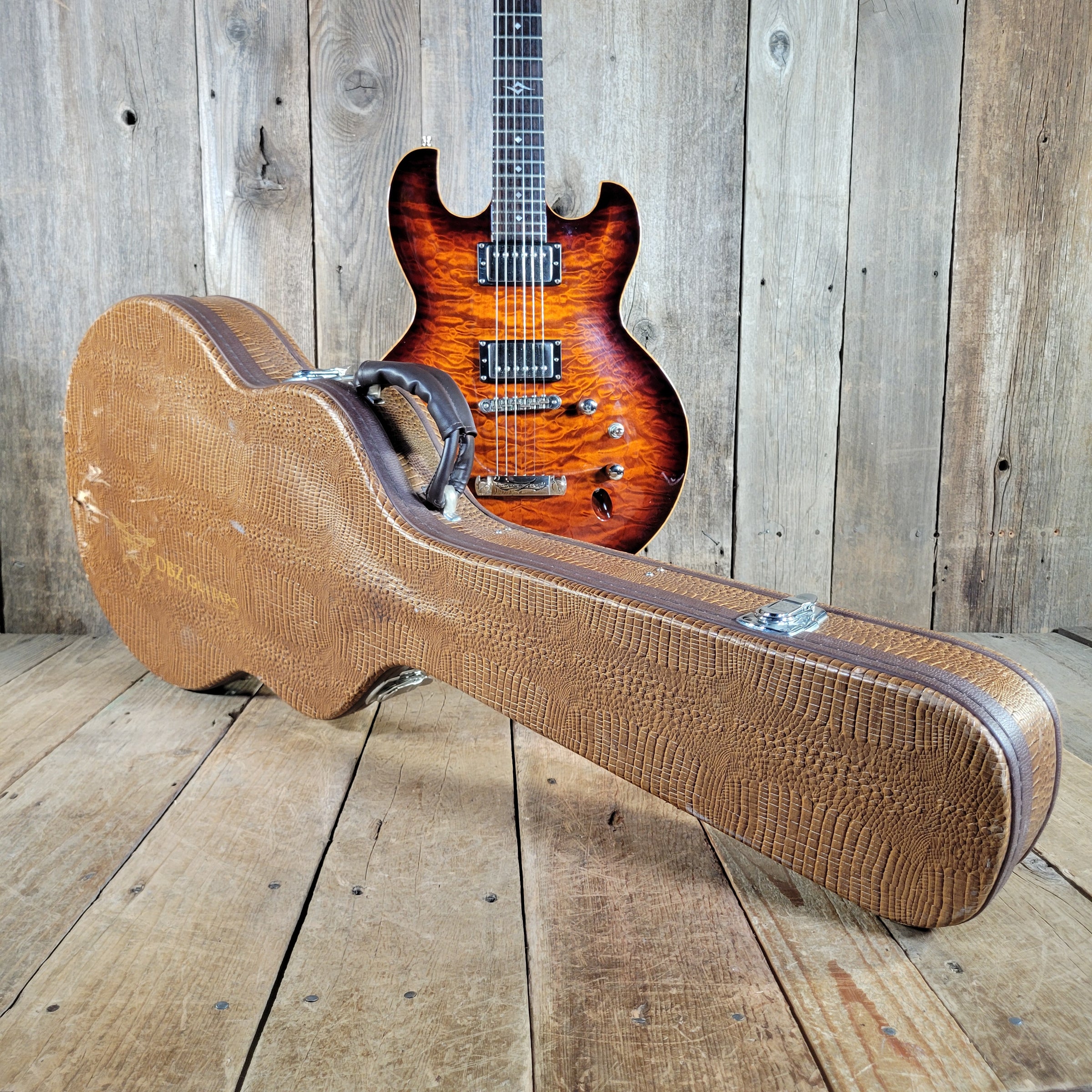

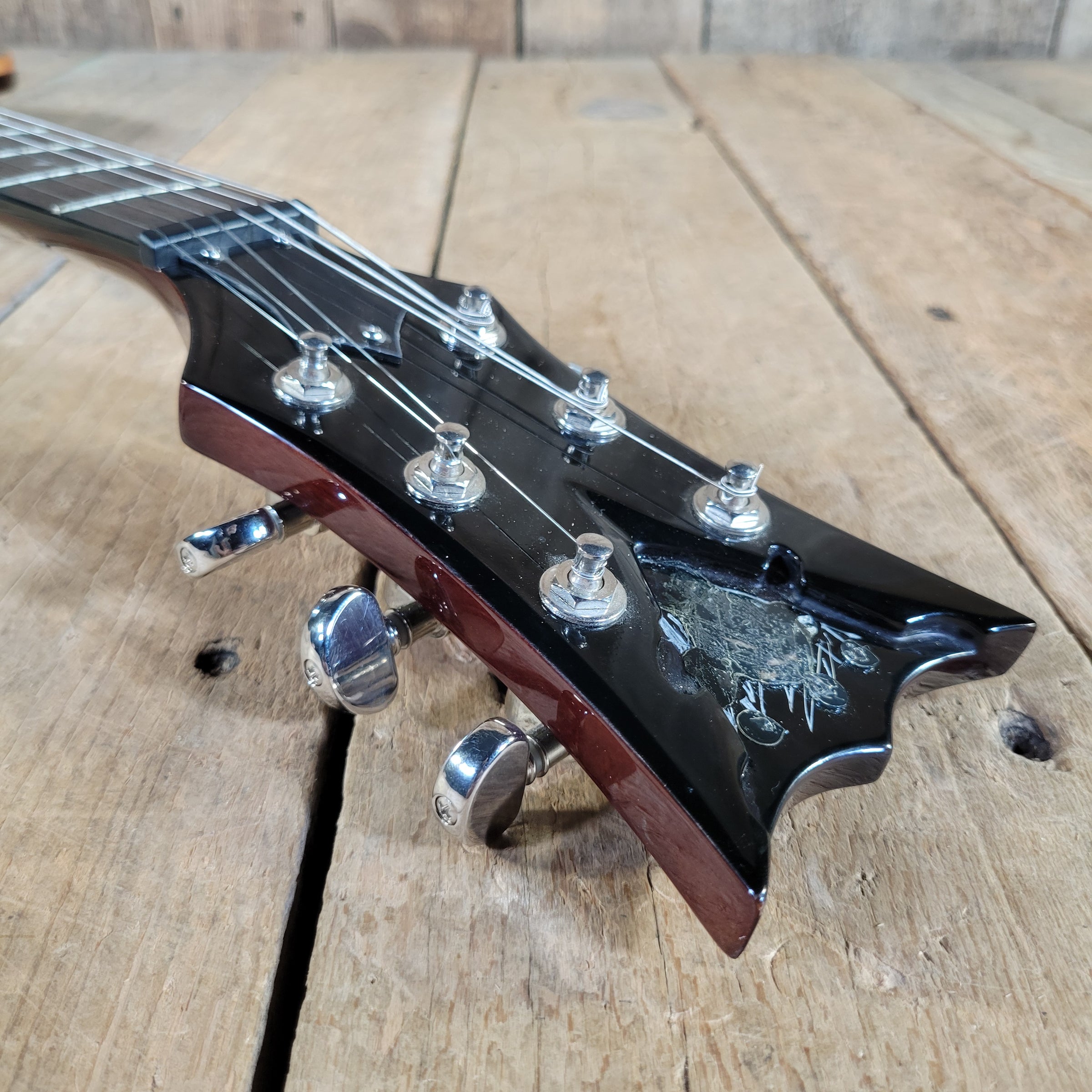

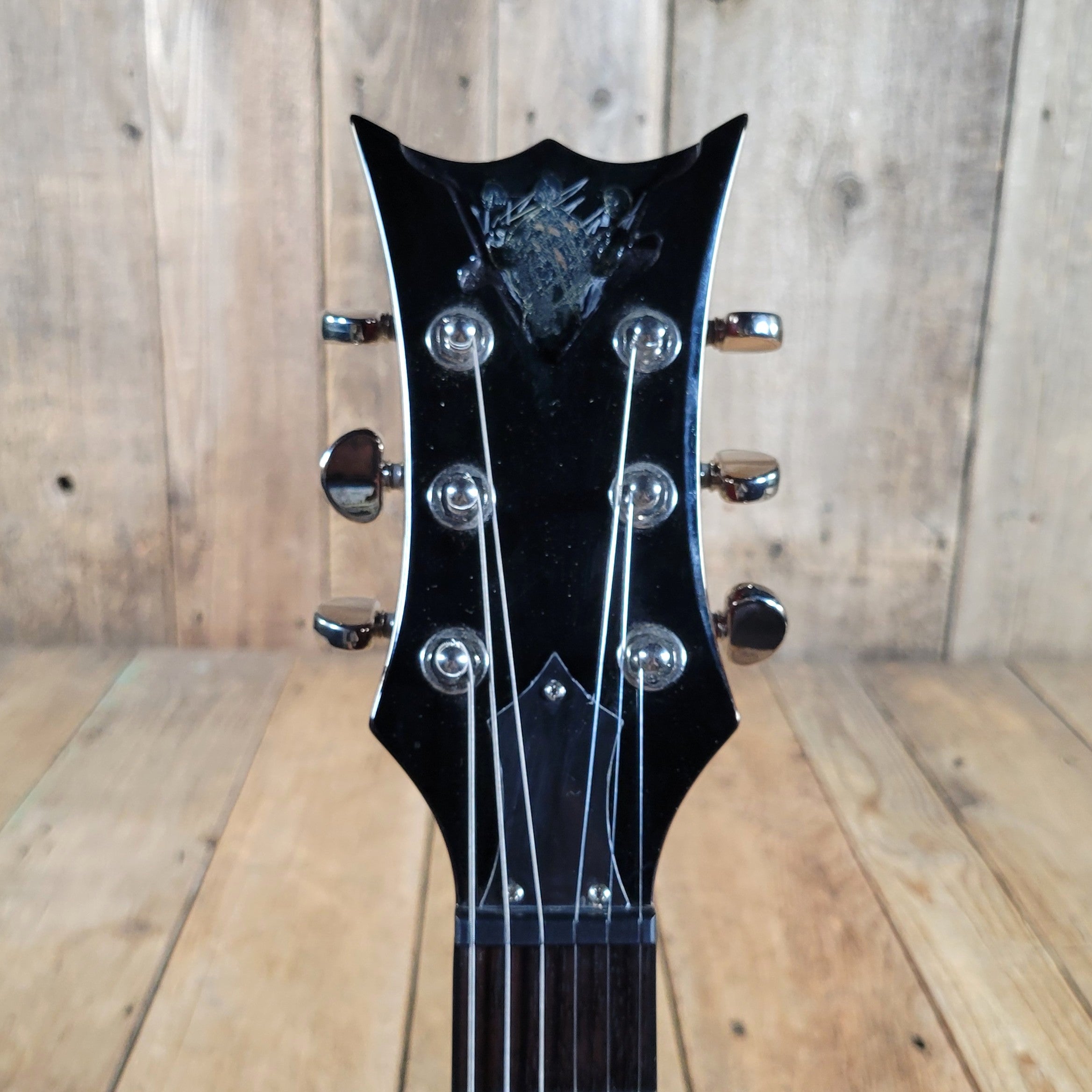

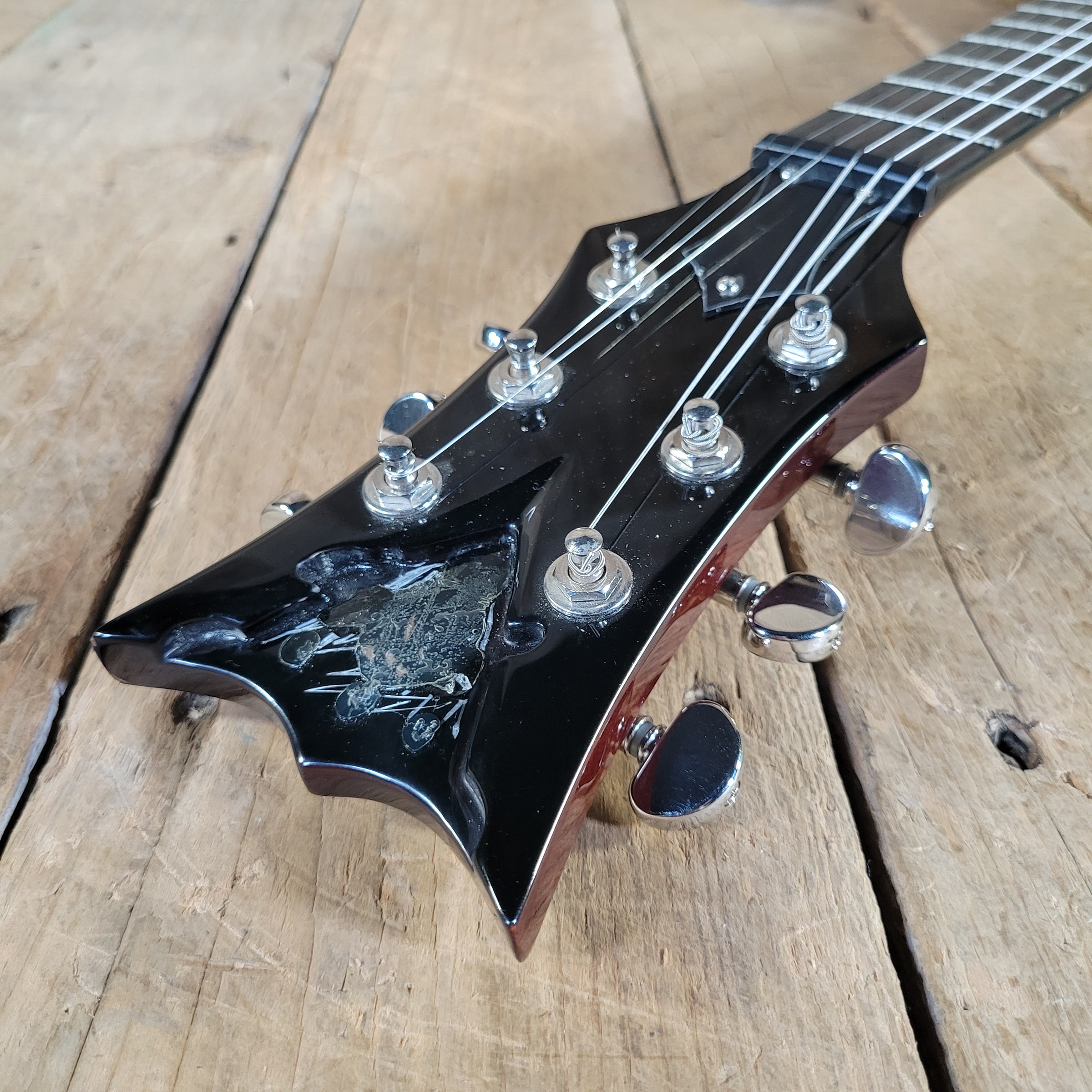

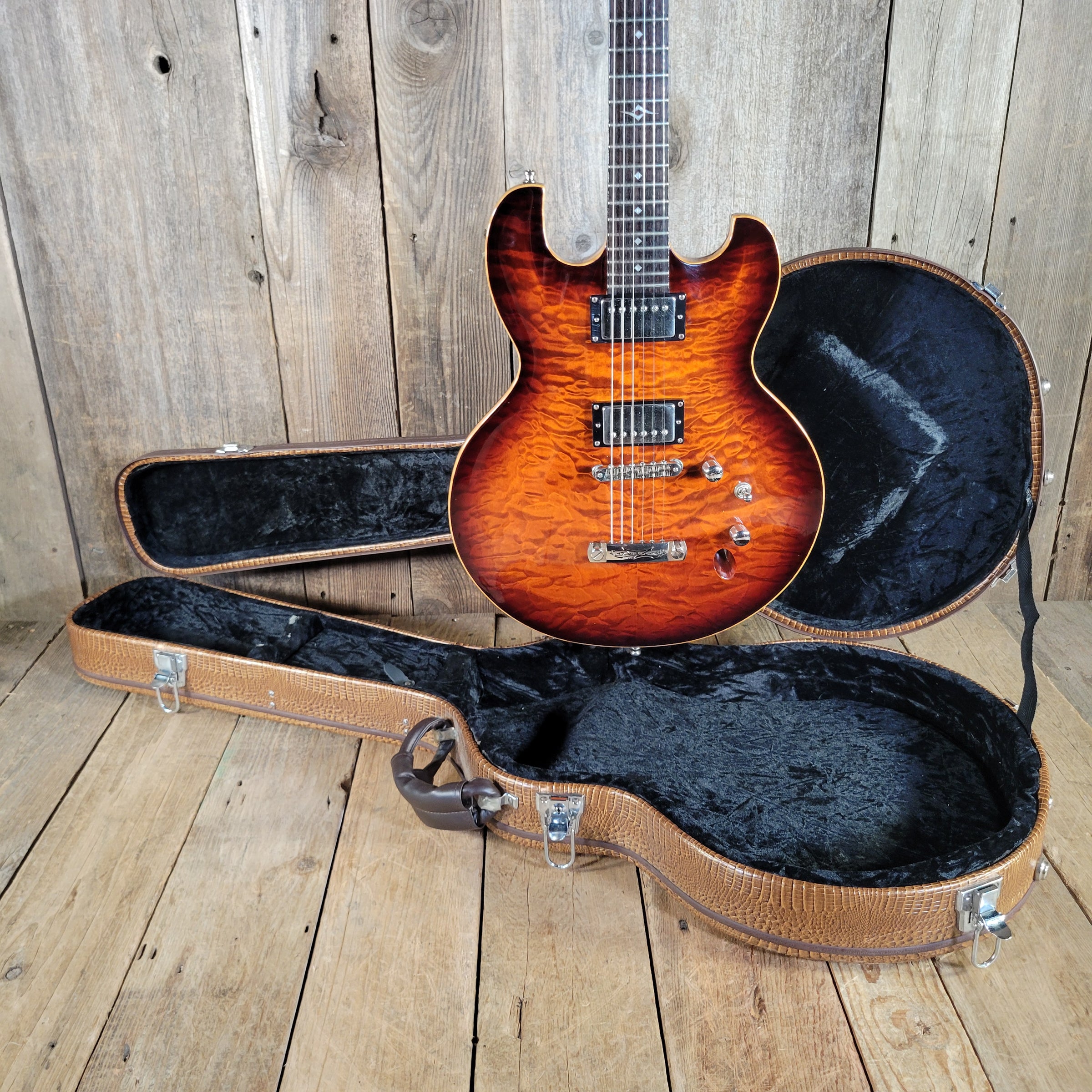

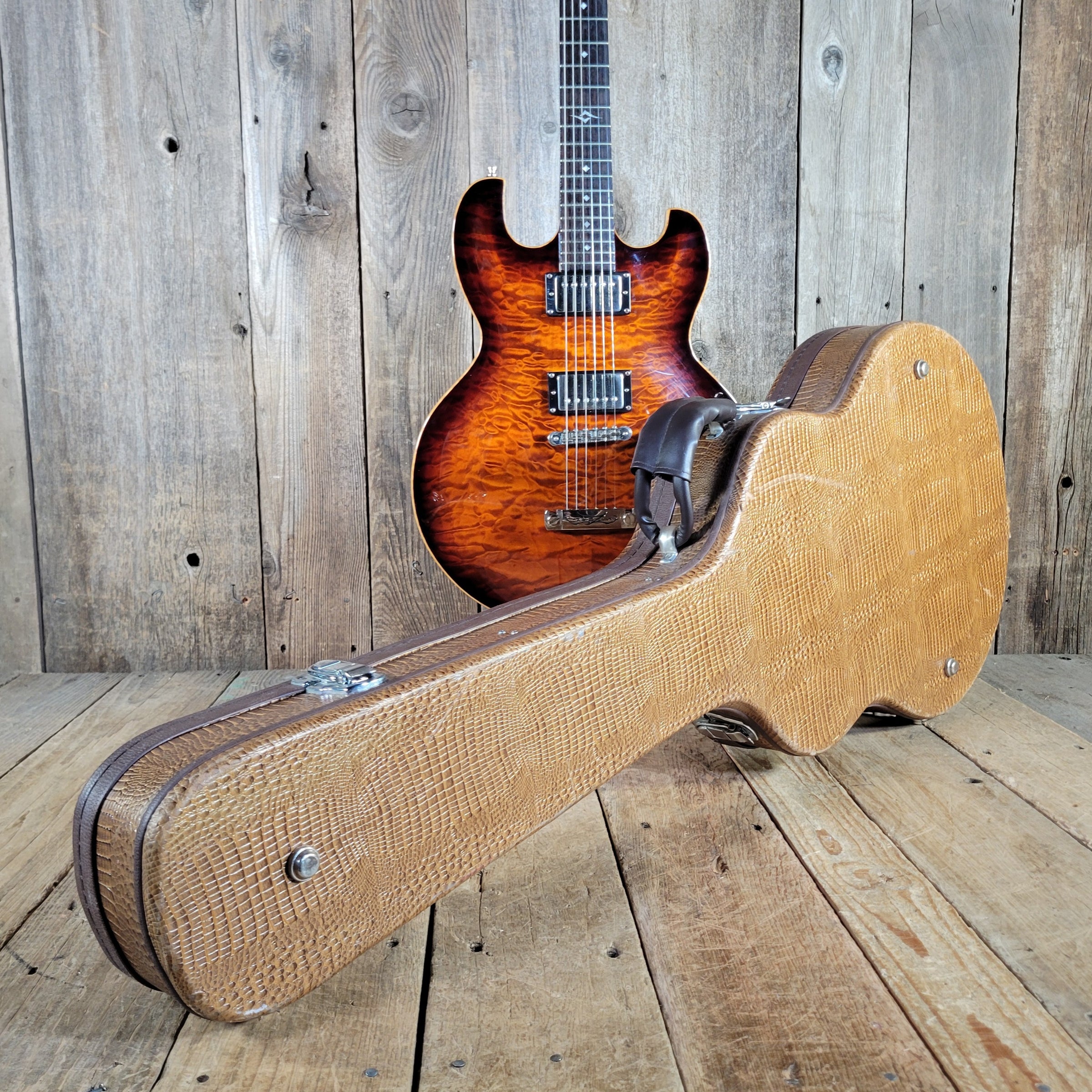

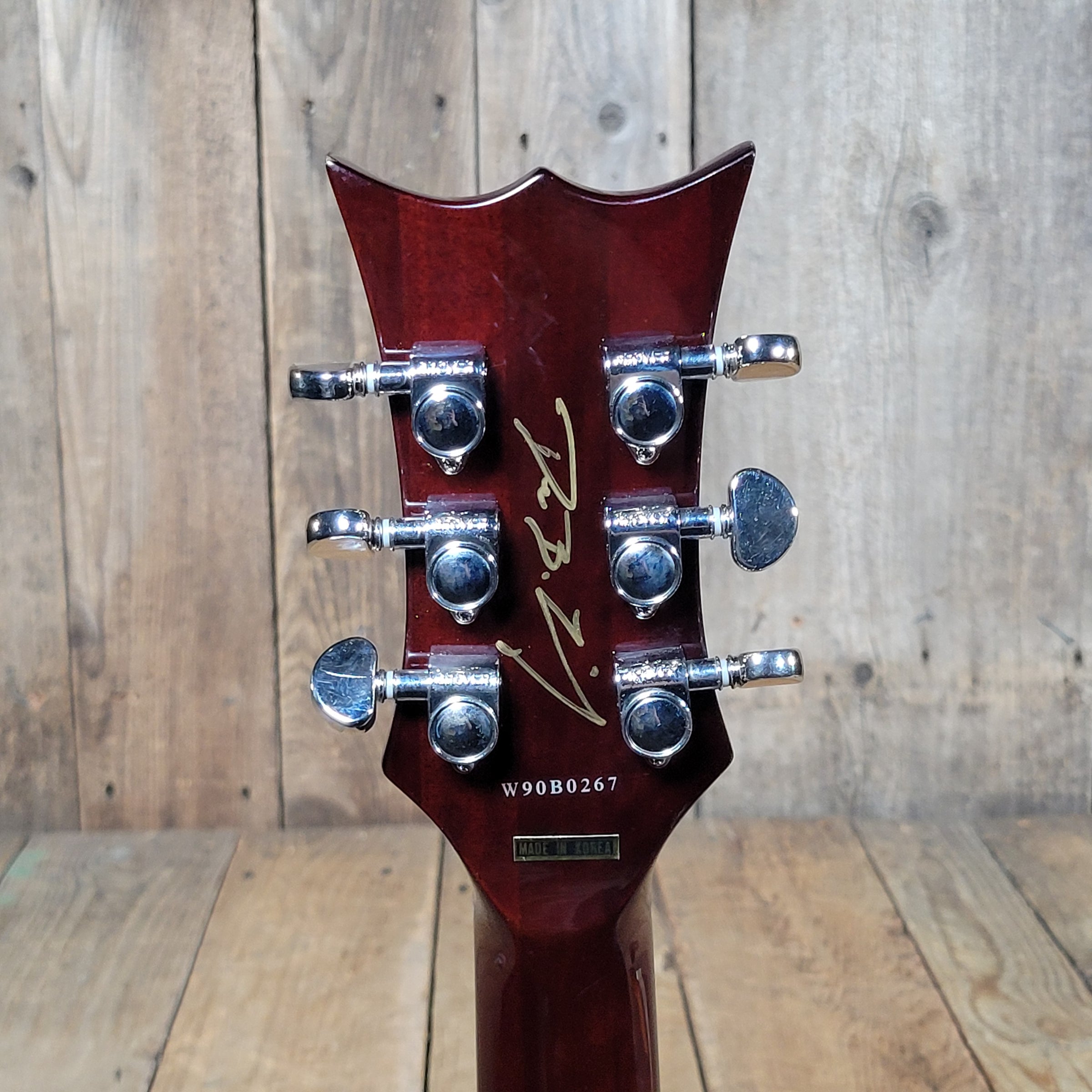

The headstock is missing its logo — noted in the photos. The chrome pickup covers show some scratching. Frets are in good condition. We set the guitar up here in the shop with the action at 2/32" on the 1st string and 2/32" on the 6th string at the 12th fret. The original DBZ case is in good condition.

SPECIFICATIONS

• Color: Amber Quilt
• Finish Original?: yes
• Finish Condition: very good
• Weight: 7lbs 13oz
• Overall Length: 40-1/8"
• Nut Width: 1-11/16"
• String Spacing At Bridge: 2-1/16"
• Scale Length: 24.75"
• Action 1st String At 12th Fret: 2/32"
• Action 6th String At 12th Fret: 2/32"

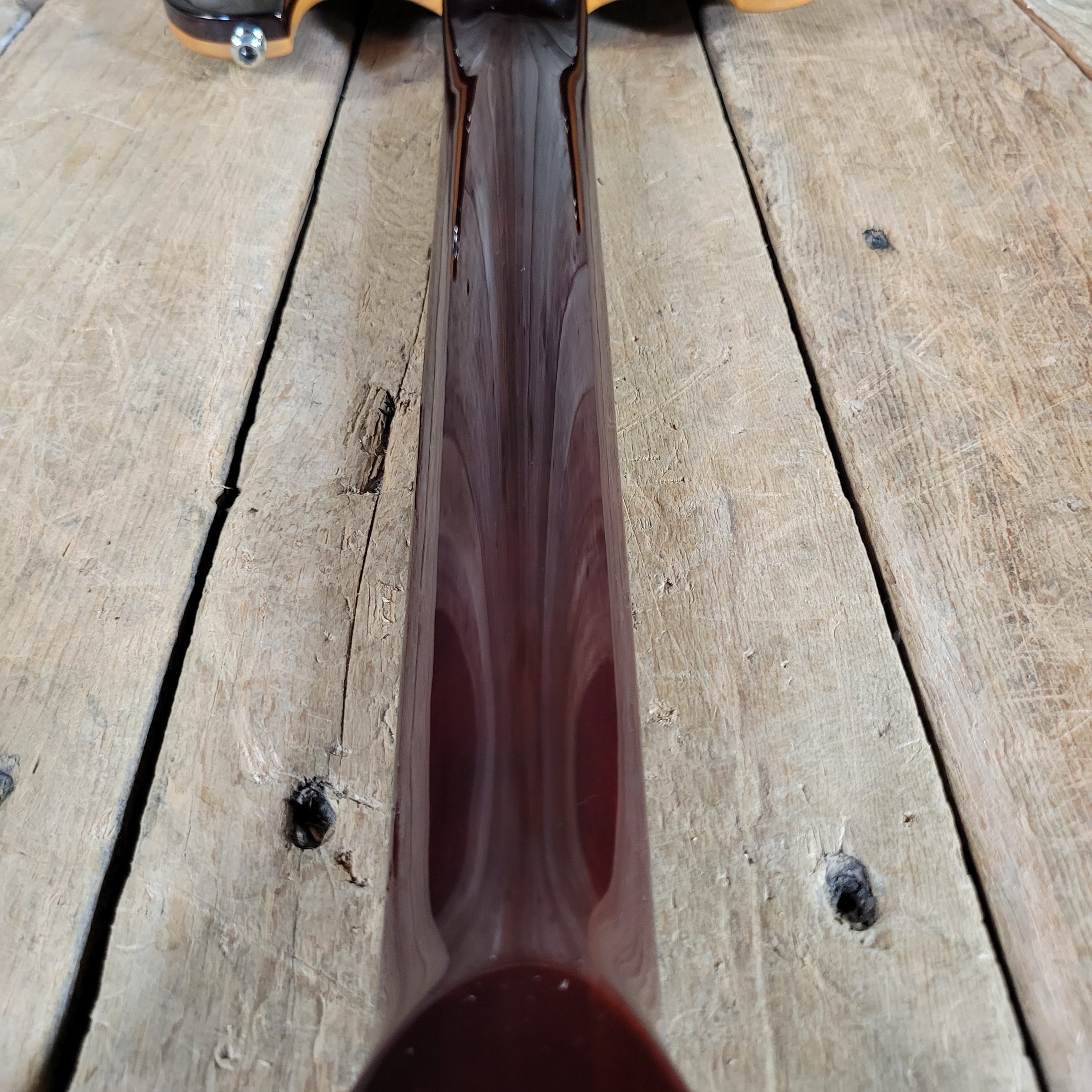

• Neck Profile: soft V
• Neck Material: mahogany
• Inlay: Pearloid diamonds
• Neck Thickness At 1st Fret: .838"
• Neck Condition: good, missing headstock logo
• Neck Repairs: none
• Neck Finish Original?: yes

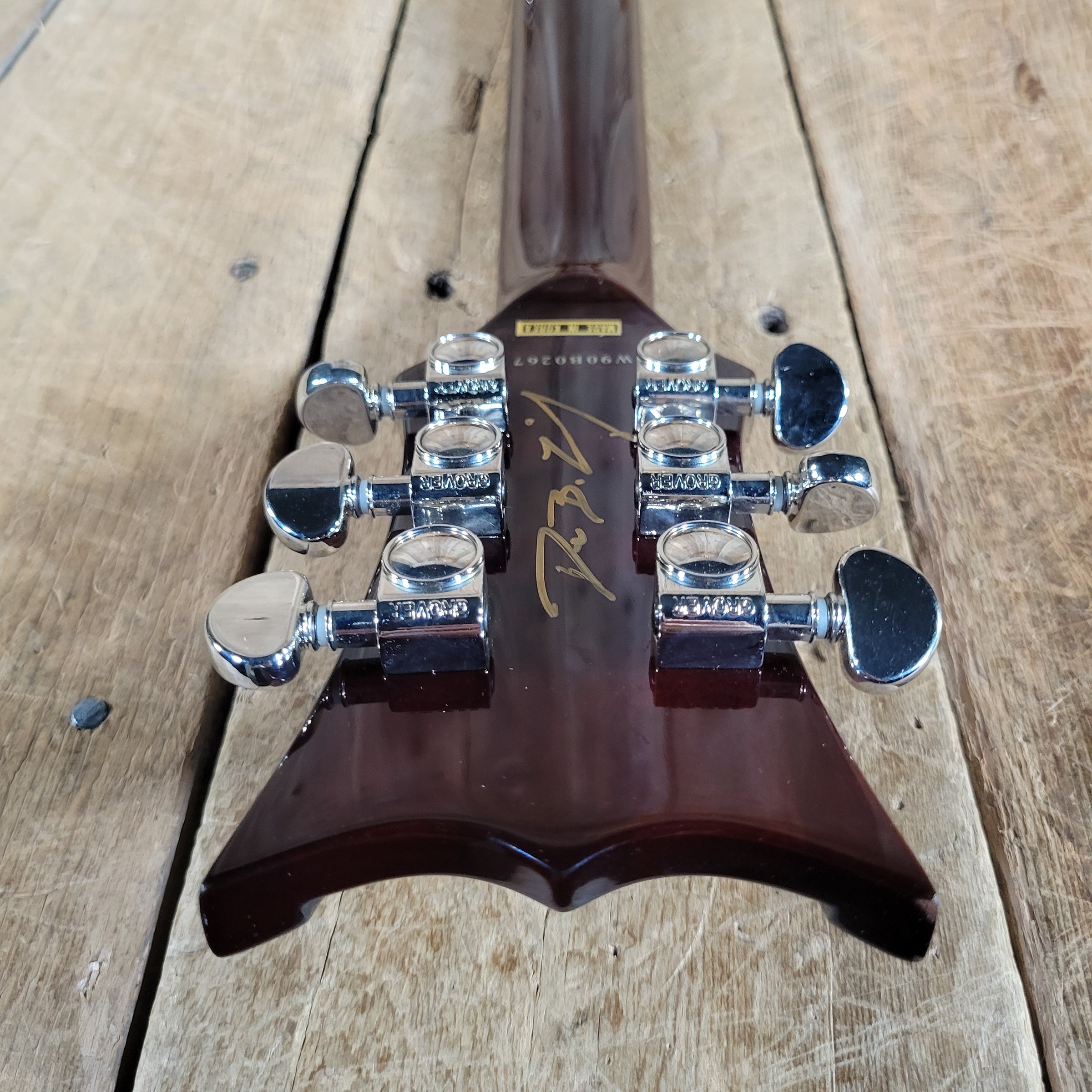

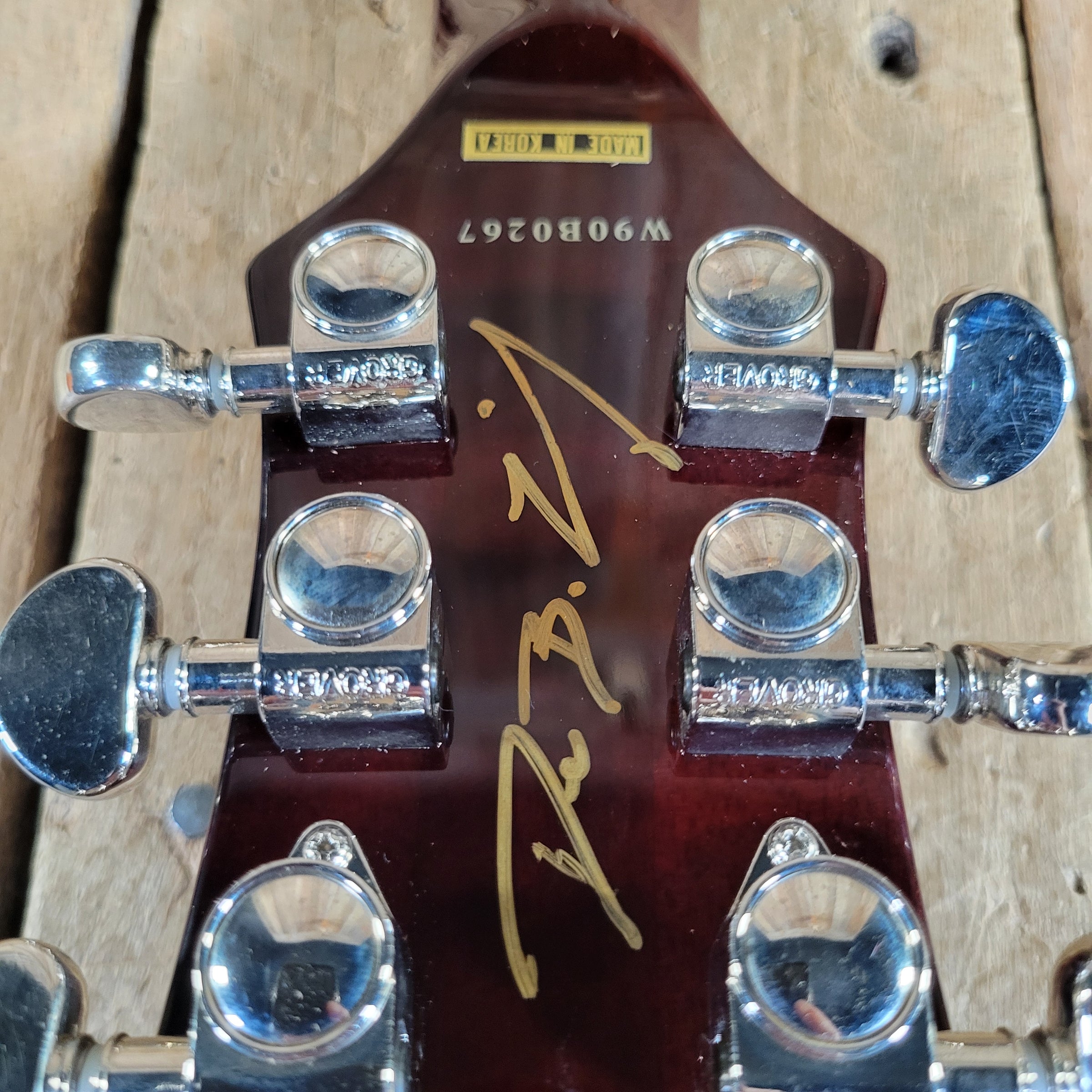

• Tuner Brand And Model: Grover
• Tuners Original?: yes
• Changes To Headstock For Tuners?: none
• Tuner Condition: very good
• Tuner Screws Original?: yes
• Truss Rod Cover: yes
• Nut Material: Graphtech TUSQ
• Nut Repairs: none
• Fretboard Radius: 12"

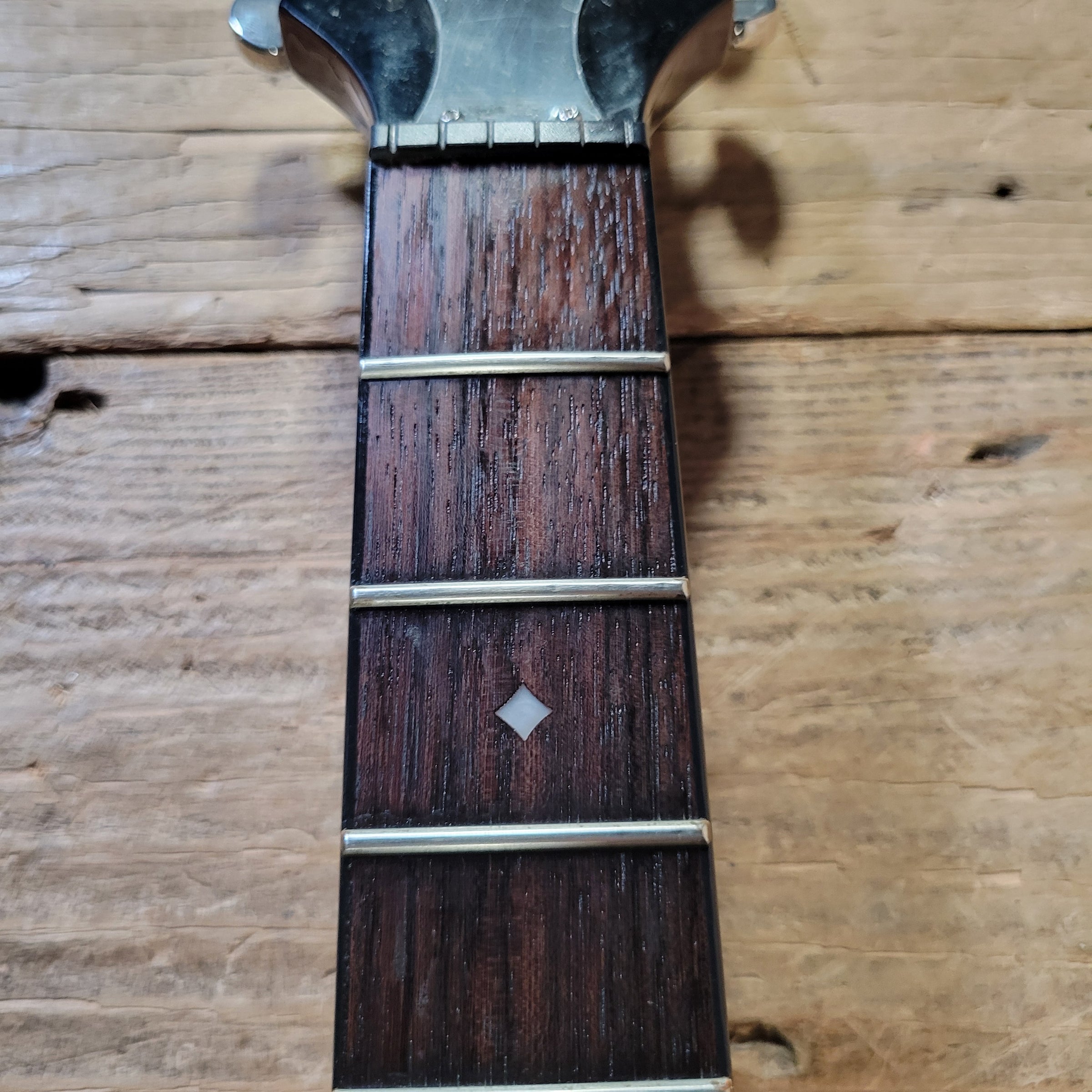

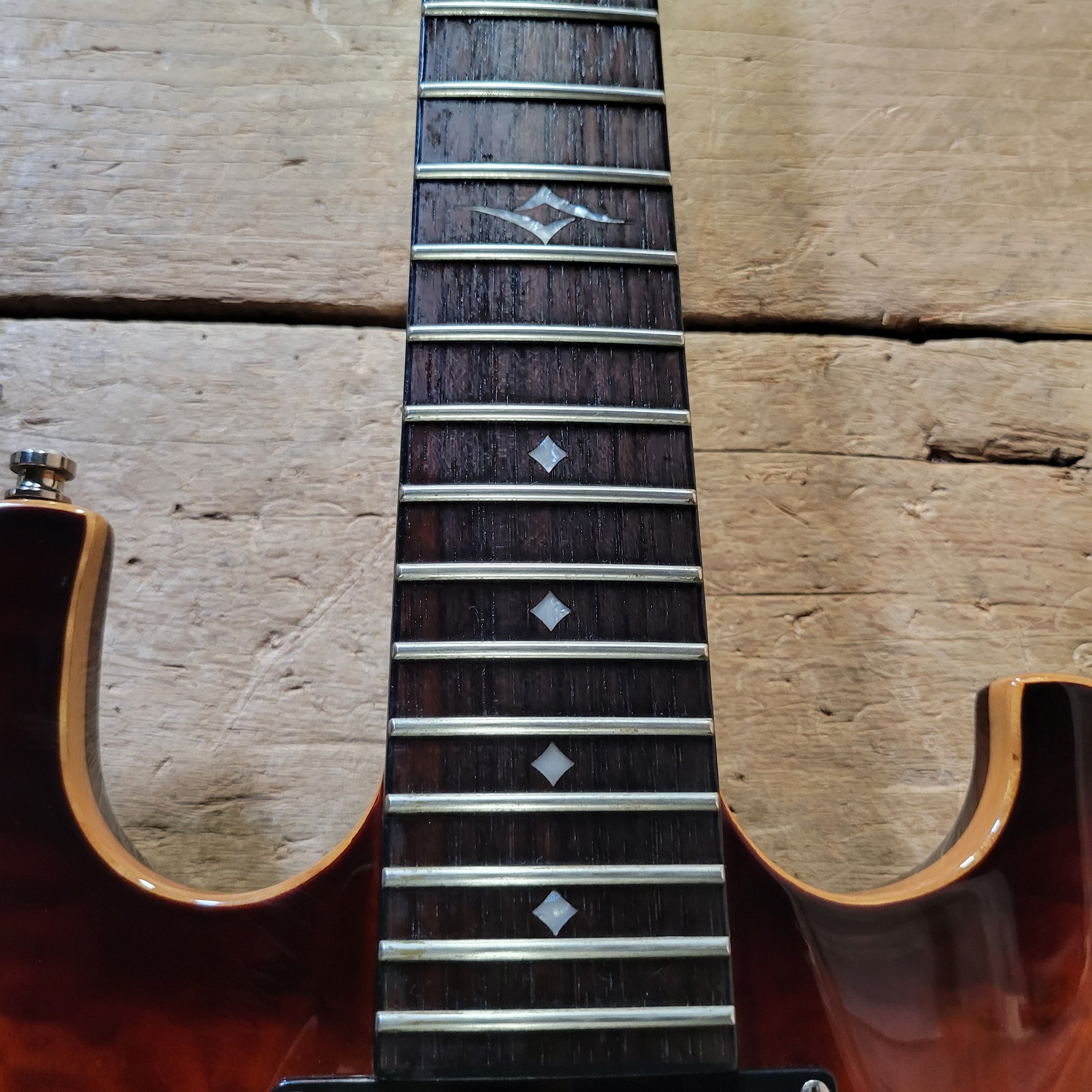

• Fretboard Material: "Ebonized" Rosewood
• Fretboard Condition: very good
• Fretboard Repairs: none
• Fret Condition: good
• Fret Repairs: none
• Fret Count: 22
• Body Material: mahogany with carved quilted maple top
• Body Condition: very good
• Body Length: 19-1/2"
• Lower Bout: 15-1/4"
• Waist: 9"
• Upper Bout: 11"
• Body Depth/Thickness: 1.5" down to 5/8" at the edge
• Bridge Brand: tune-o-matic style
• Tremolo Or Fixed Bridge?: fixed
• Bridge Original?: yes
• Bridge And Saddle Screws Original?: yes
• Bridge Condition: good
• Saddle Material: metal
• Saddles Original?: yes
• Switch Type: 3 way toggle
• Switch Condition: very good
• Switch Original?: yes
• Switch Tip Color: chrome
• Switch Tip Original?: yes
• Neck Pickup Brand: Diamond Custom humbucker N9C
• Neck Pickup Original?: yes
• Neck Pickup Reading: 7.85k
• Neck Pickup Condition: good
• Neck Pickup Screws Original?: yes

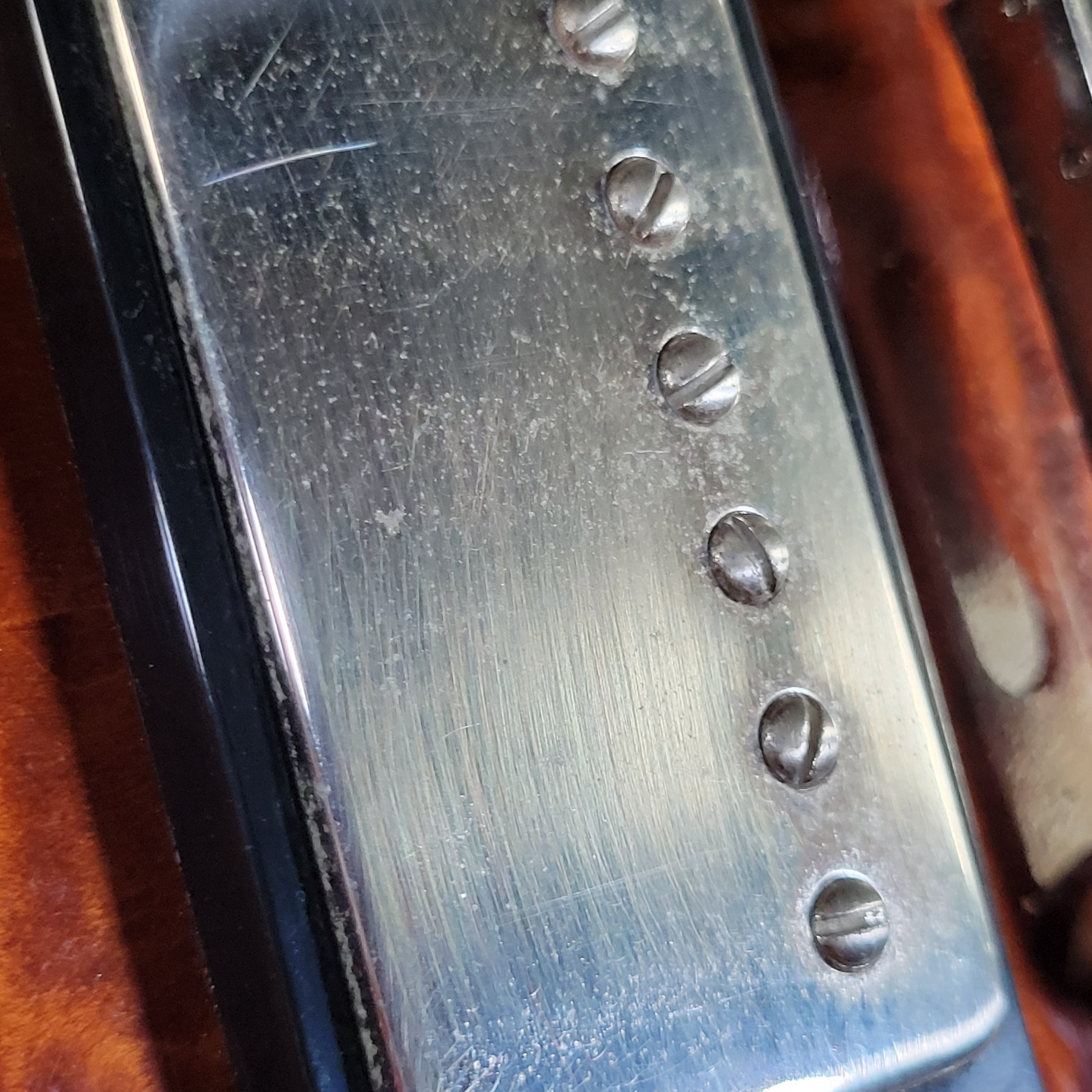

• Neck Pickup Cover Color: chrome, scratched up a bit
• Bridge Pickup Brand: Diamond Custom humbucker R15
• Bridge Pickup Original?: yes
• Bridge Pickup Reading: 14.92k
• Bridge Pickup Condition: good
• Bridge Pickup Screws Original?: yes

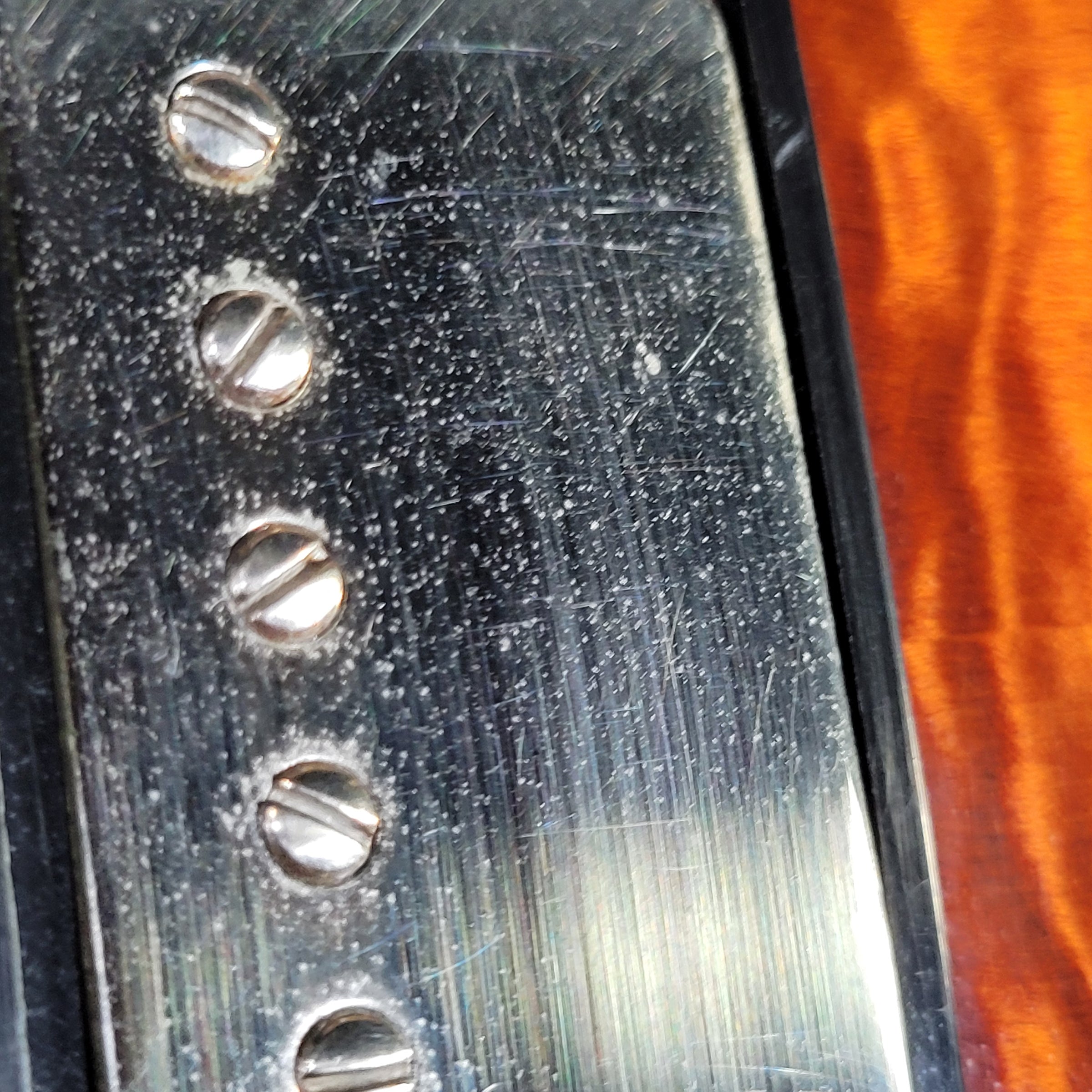

• Bridge Pickup Cover Color: chrome, scratched up a bit
• Solders Original?: yes

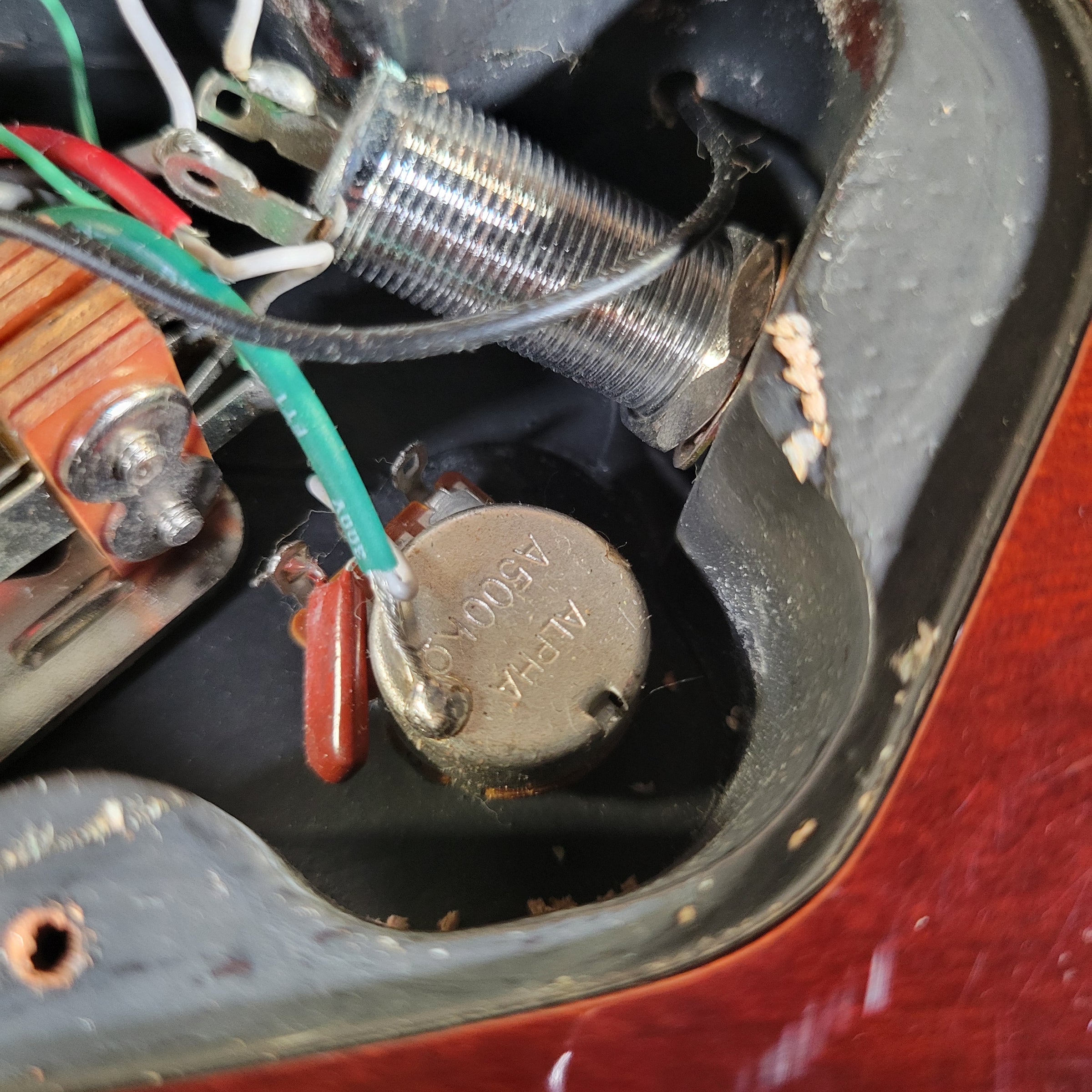

• Wiring Original?: yes

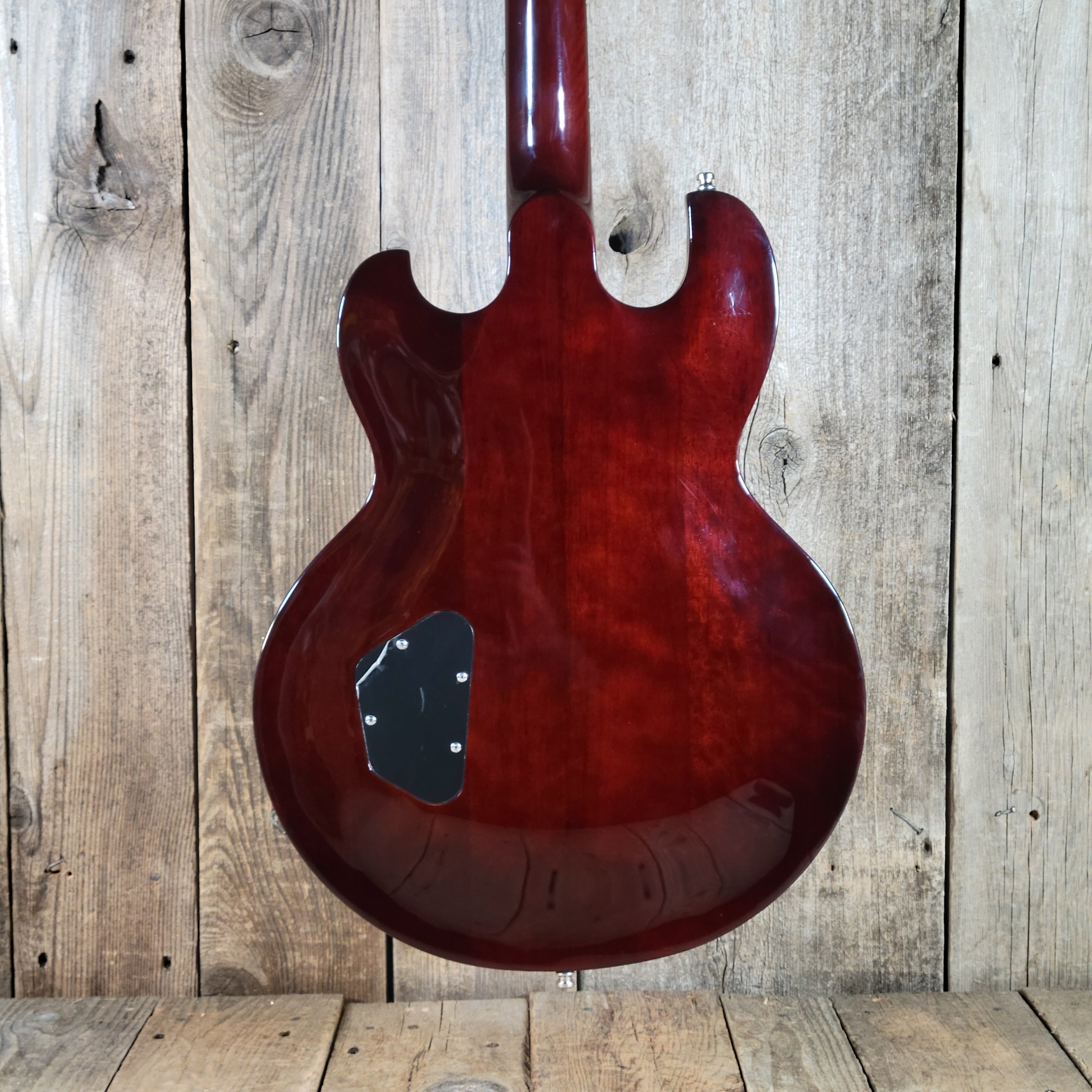

• Control Cavity Cover Original?: yes
• Control Cavity Condition: good
• Potentiometer Count: 2
• Potentiometers Original?: yes
• Potentiometer Condition: good
• Output Jack Original?: yes

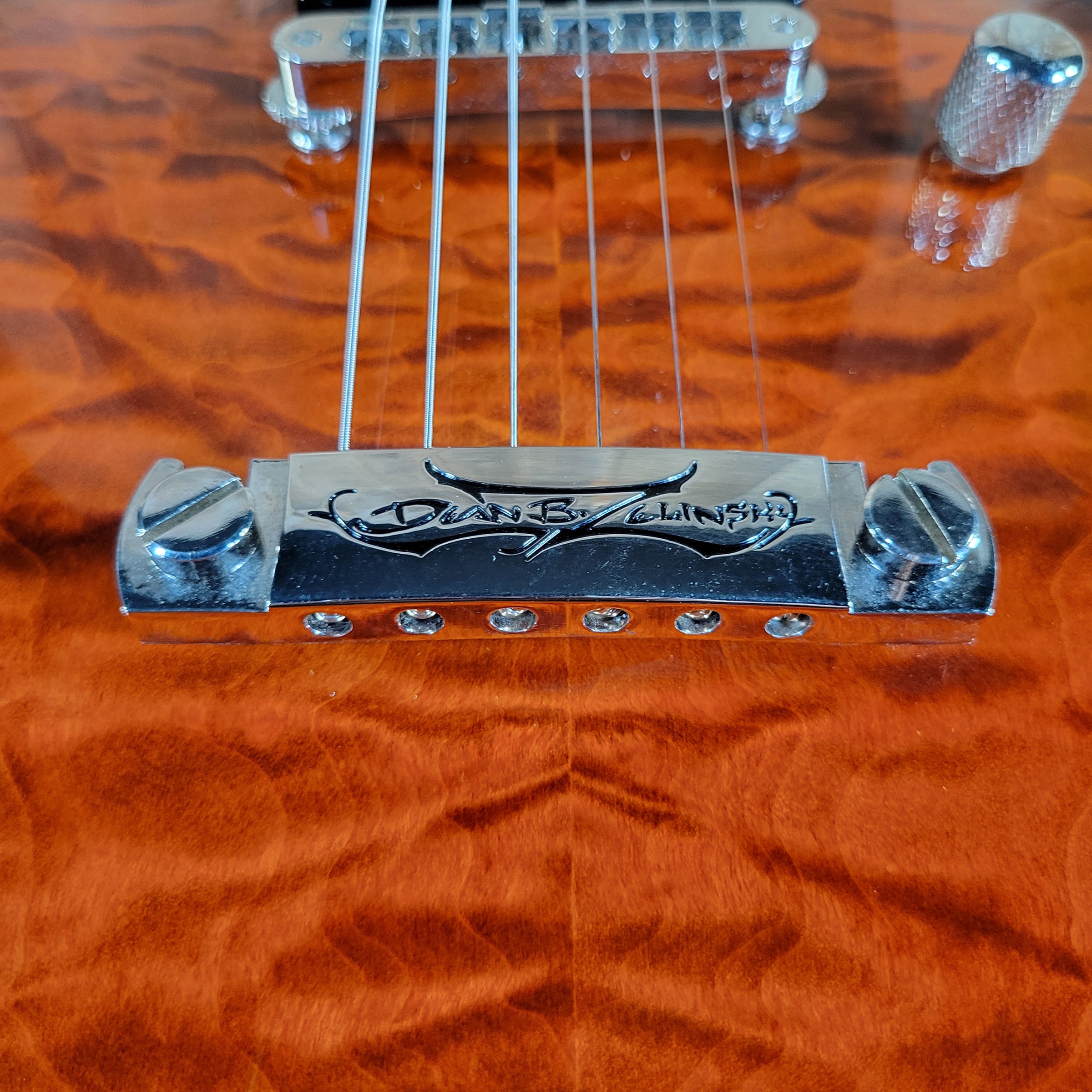

• Tailpiece Brand: DBZ/Diamond custom extended engraved stop-tail piece
• Tailpiece Color: chrome
• Tailpiece Condition: very good
• Tailpiece Original?: yes
• Knob Color: chrome
• Knob Count: 2
• Knobs Original?: yes
• Knob Condition: good

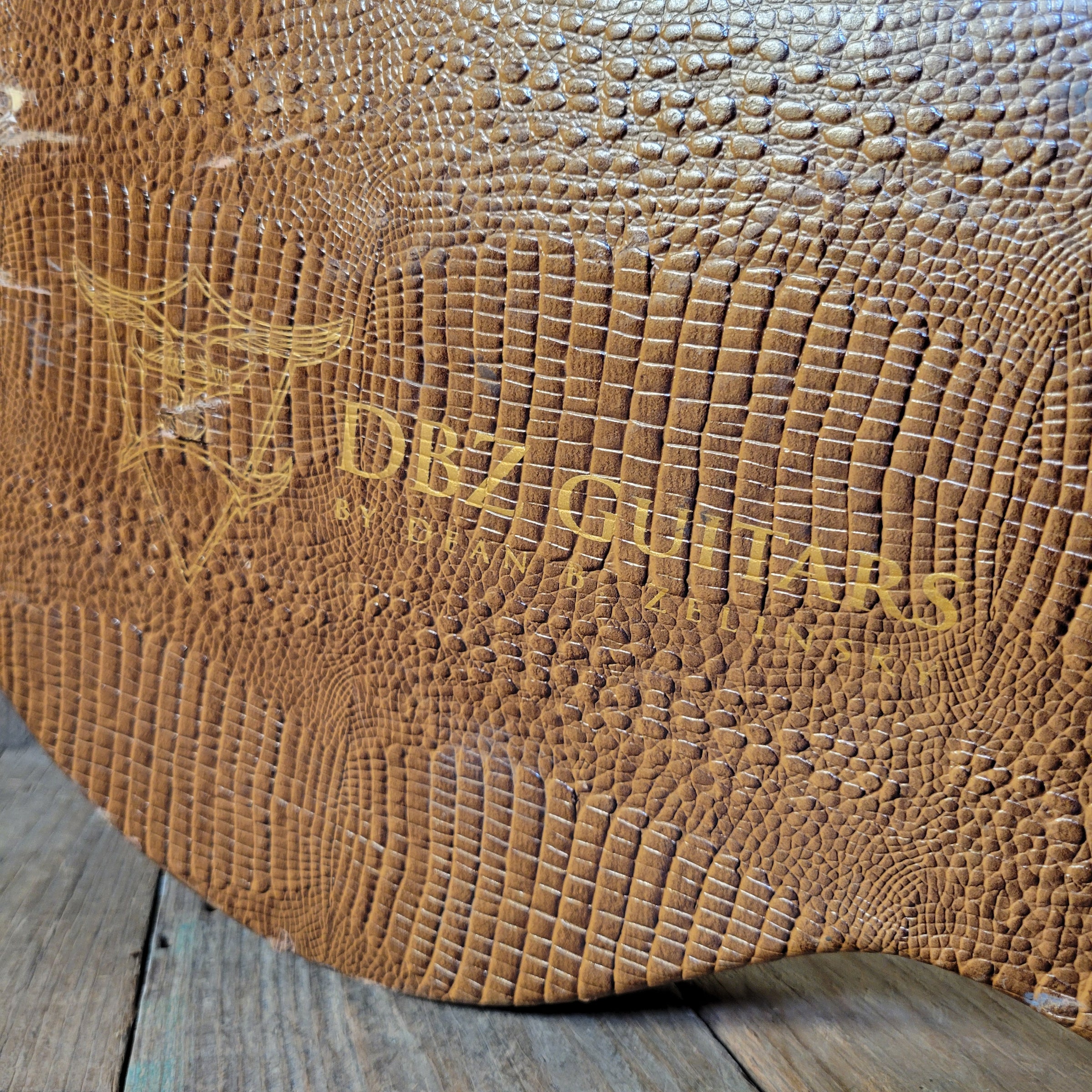

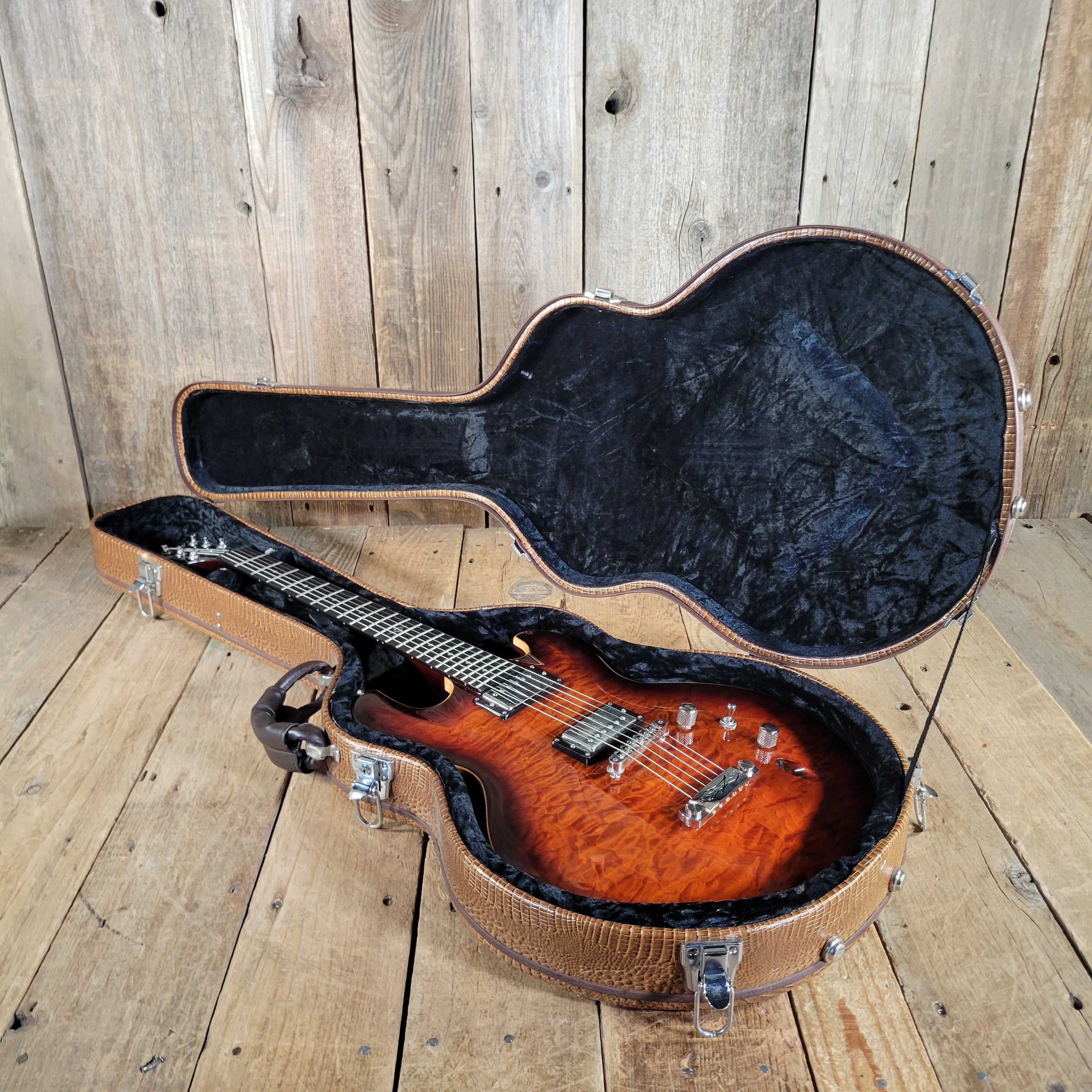

• Case Brand: DBZ
• Case Original?: yes
• Case Condition: good
• Case Smells?: none
• Documentation: none
• Accessories Included: none
• String Gauge: 9-46
• Smells?: none
• Neck Thickness At 12th Fret: .901"
• Nut Original?: yes
