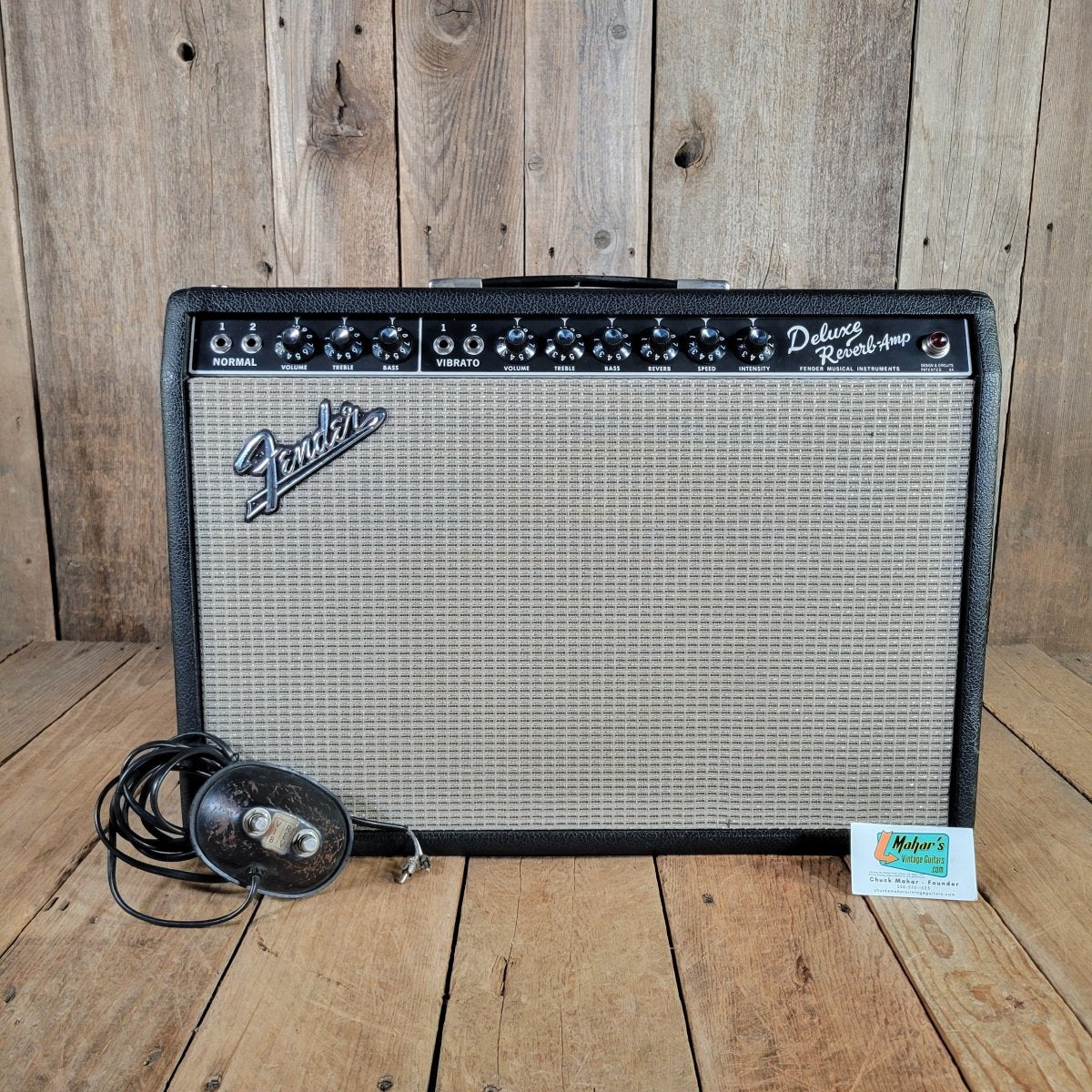

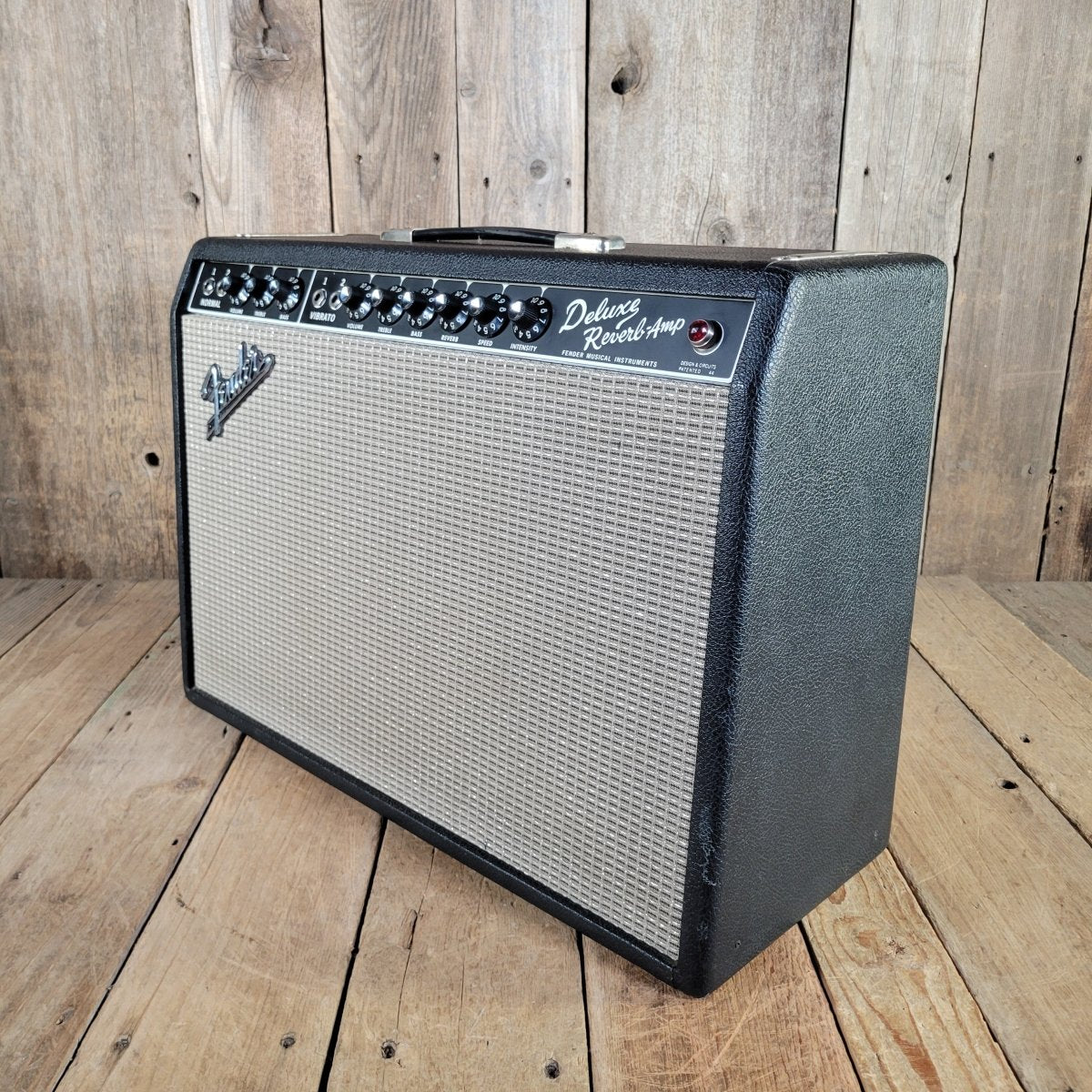

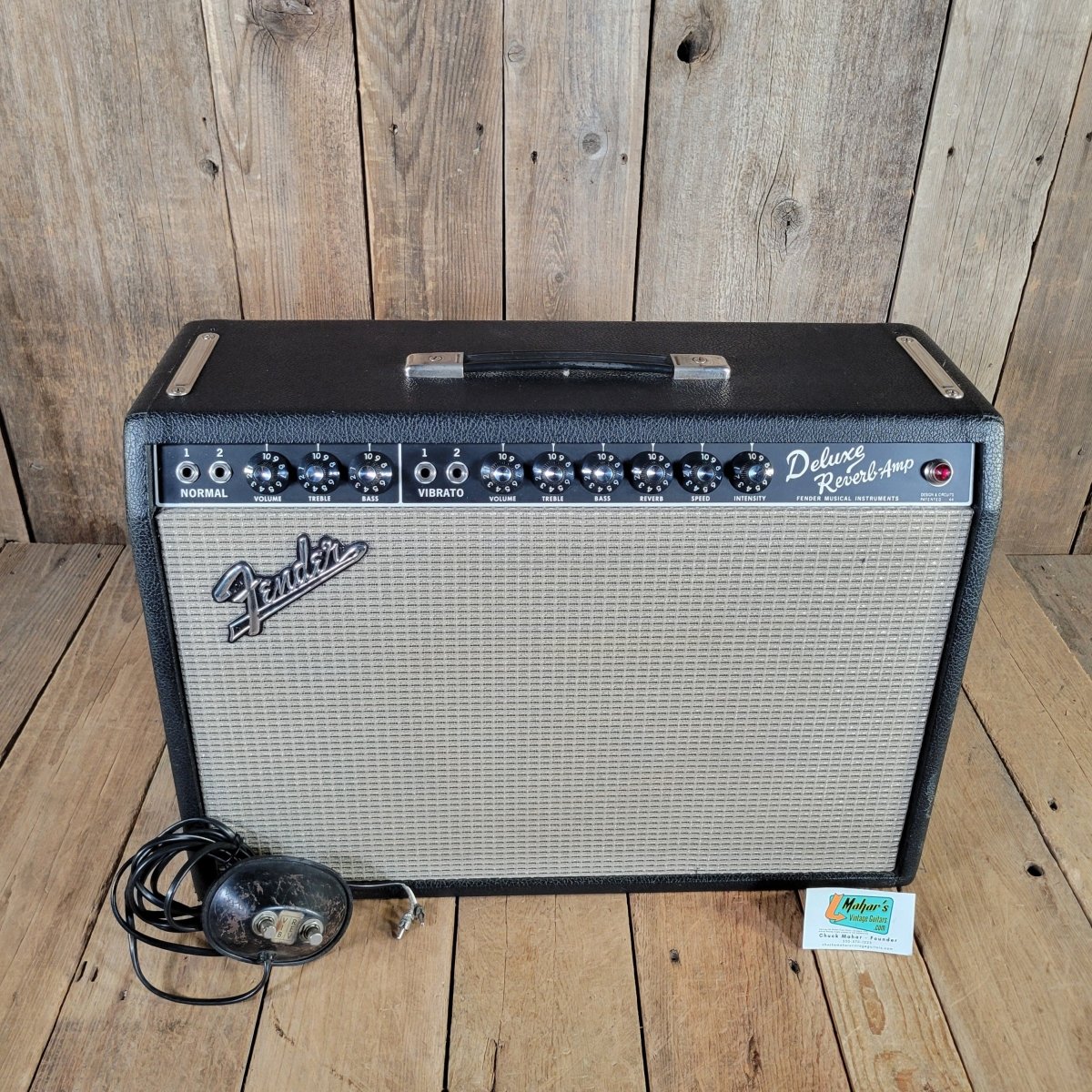

Fender 1967 Deluxe Reverb AB763 Black Panel Amp, Serviced, Excellent

No sales tax for US customers outside California.

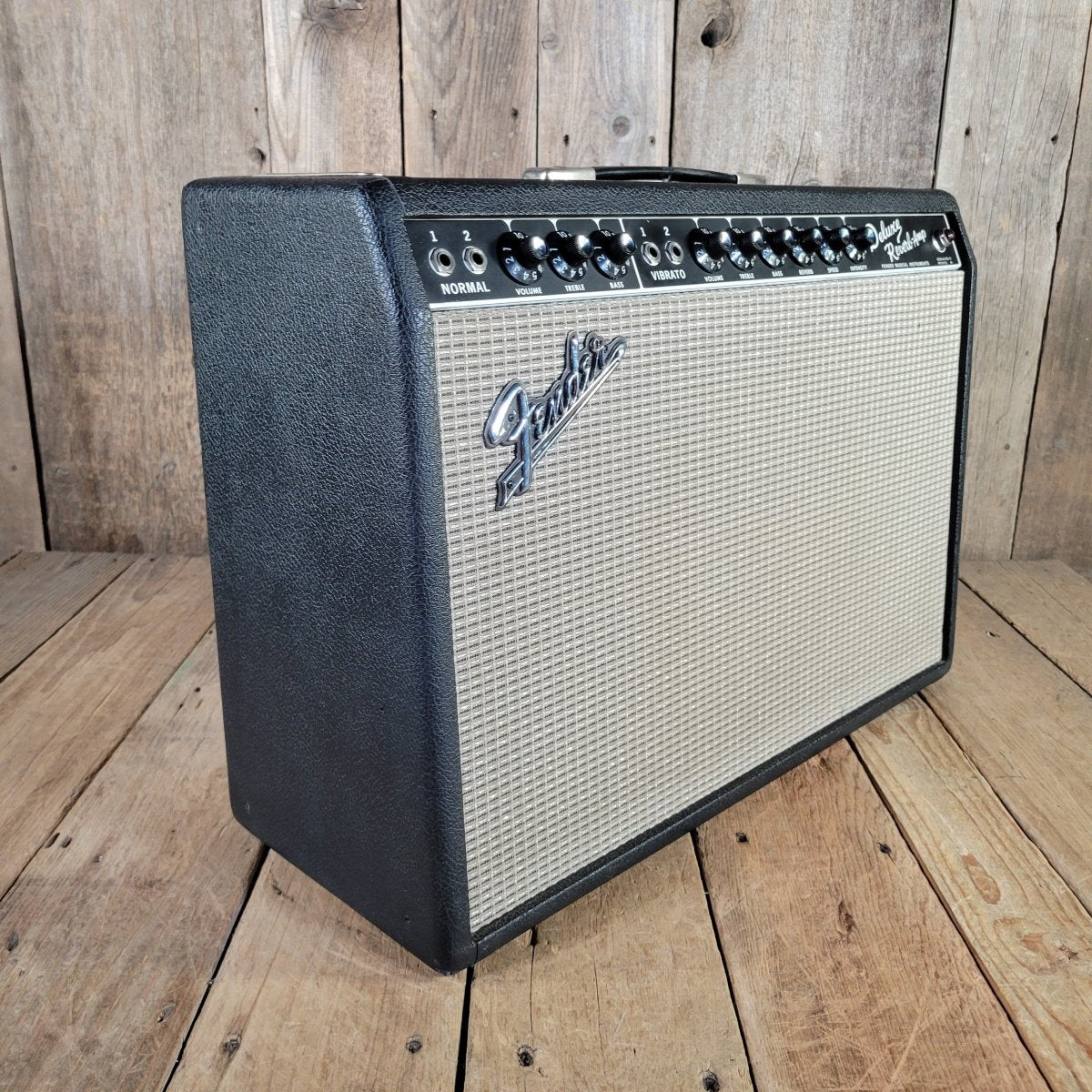

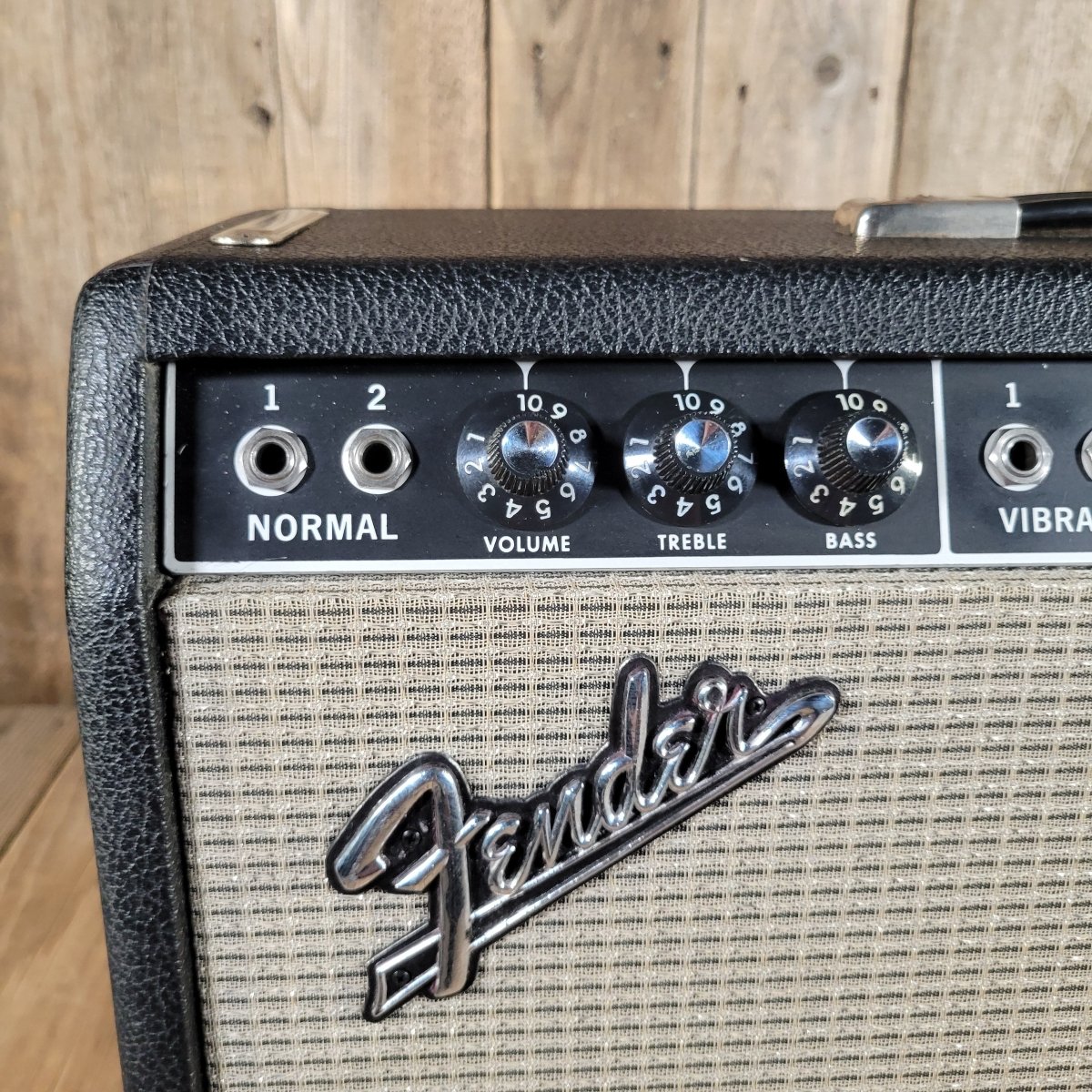

This Fender 1967 Deluxe Reverb AB763 in black is in excellent condition.  The amp was neatly serviced when it arrived here, so I put it on the bench to clean the tube sockets, pots, and jacks, test the tubes, and to check voltages.  The amp is running perfectly, with a low noise floor and strong tone.  The vintage tubes you get with the amp, along with the recent service, add huge value to this piece.  See tube details below.

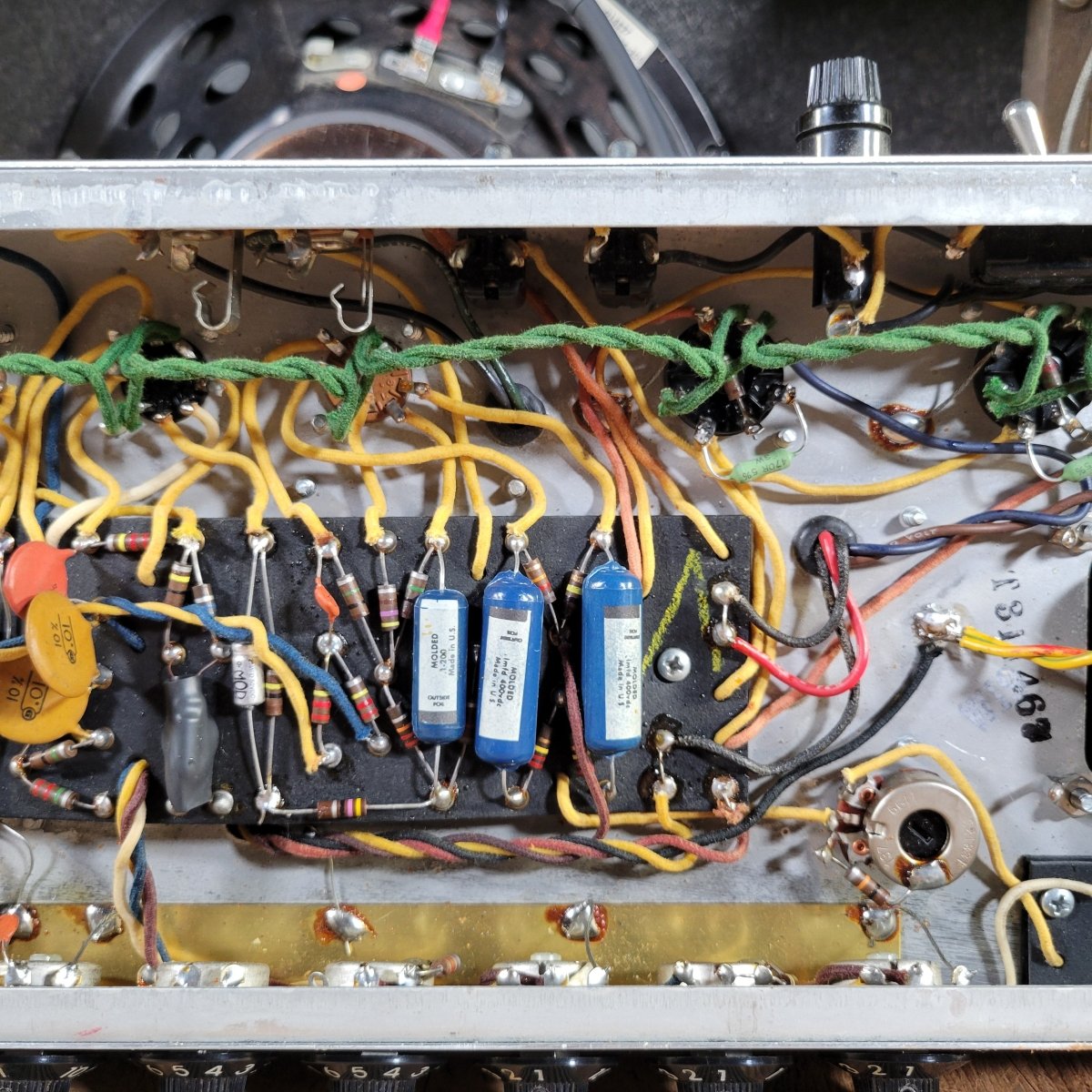

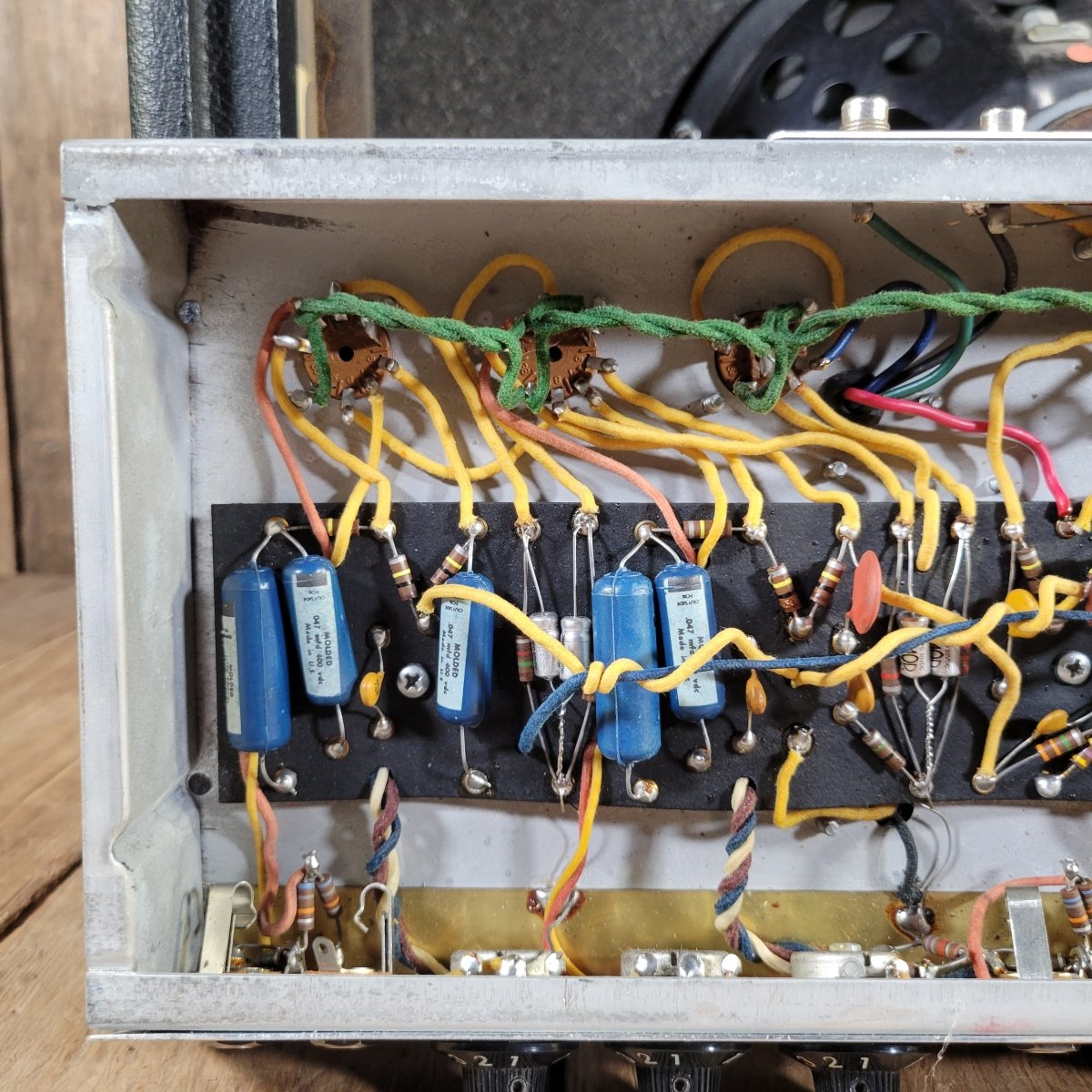

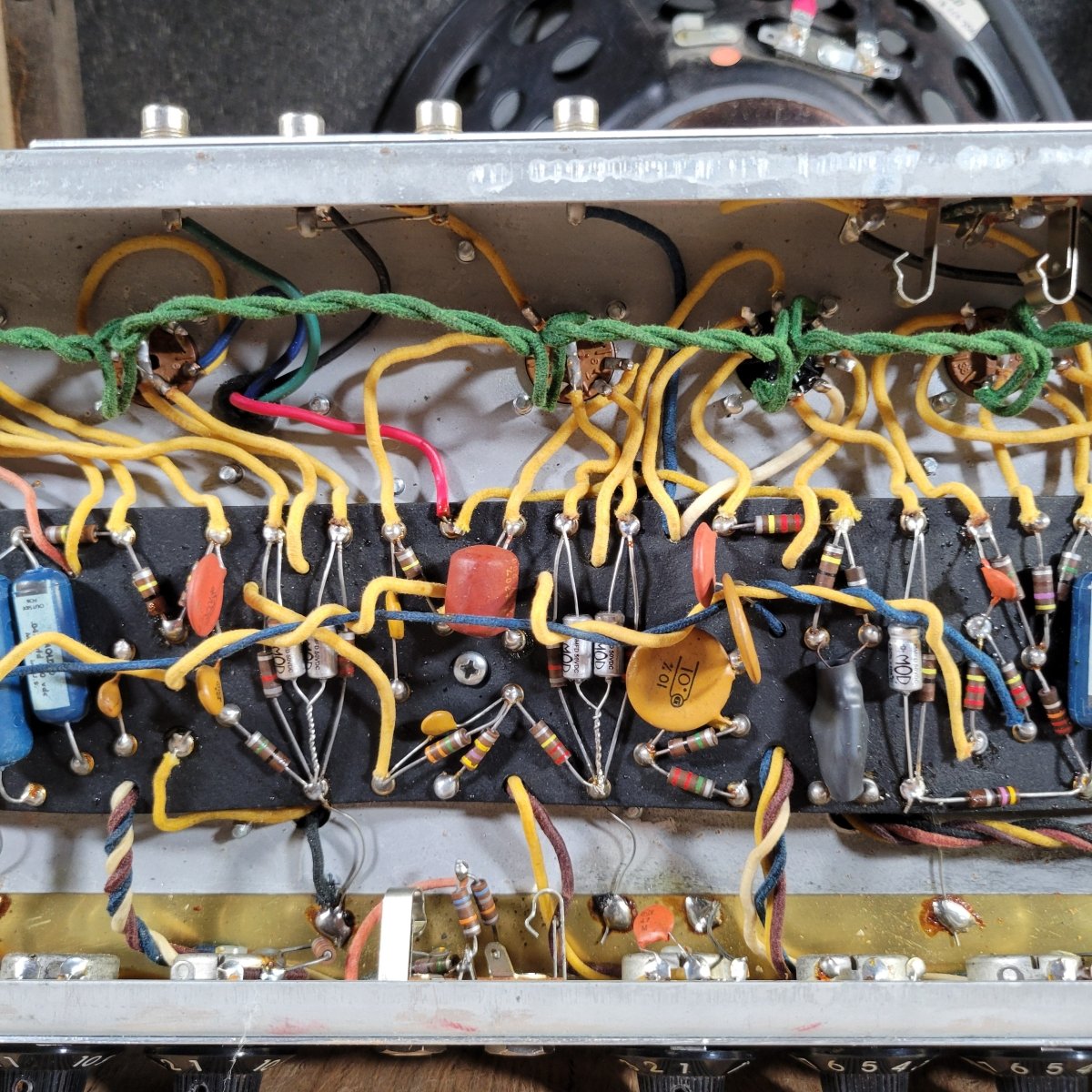

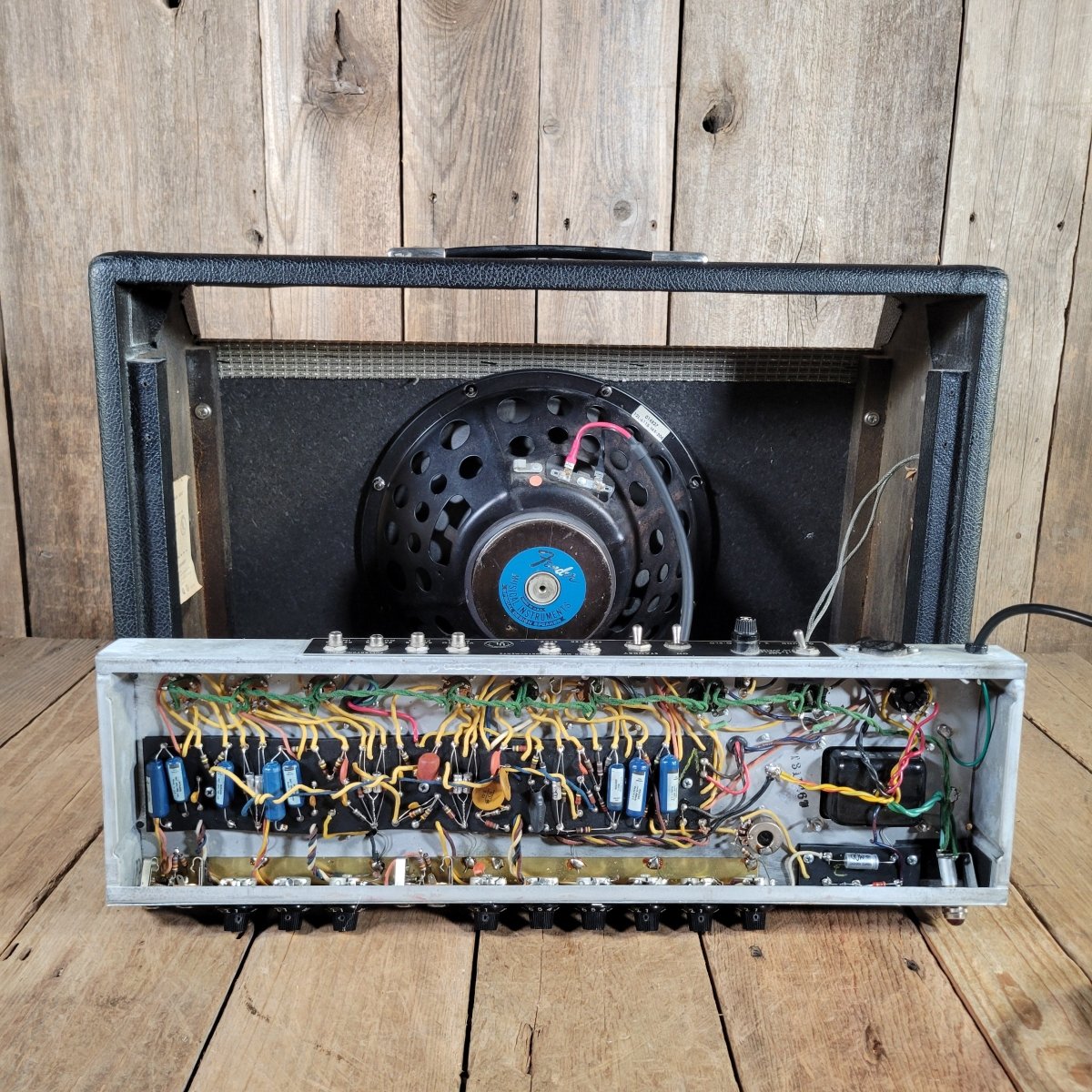

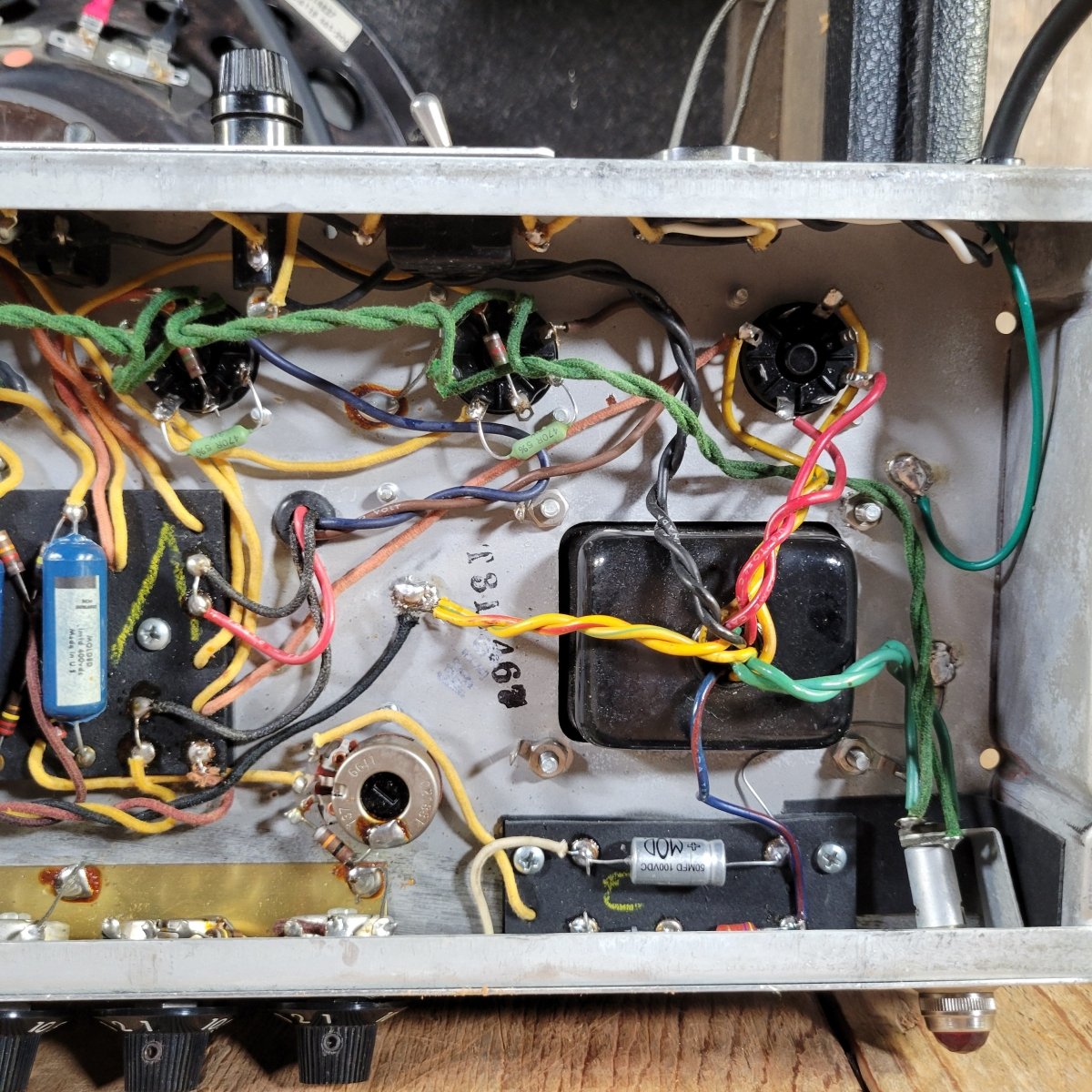

This black panel Deluxe Reverb is a 22-watt amp with onboard reverb and vibrato. It has been responsibly serviced - a cap job and a new power cable. The power, choke, output and reverb transformers are all original Schumacher units, and the reverb tank, potentiometers, chassis, knobs, handle and tolex are original.

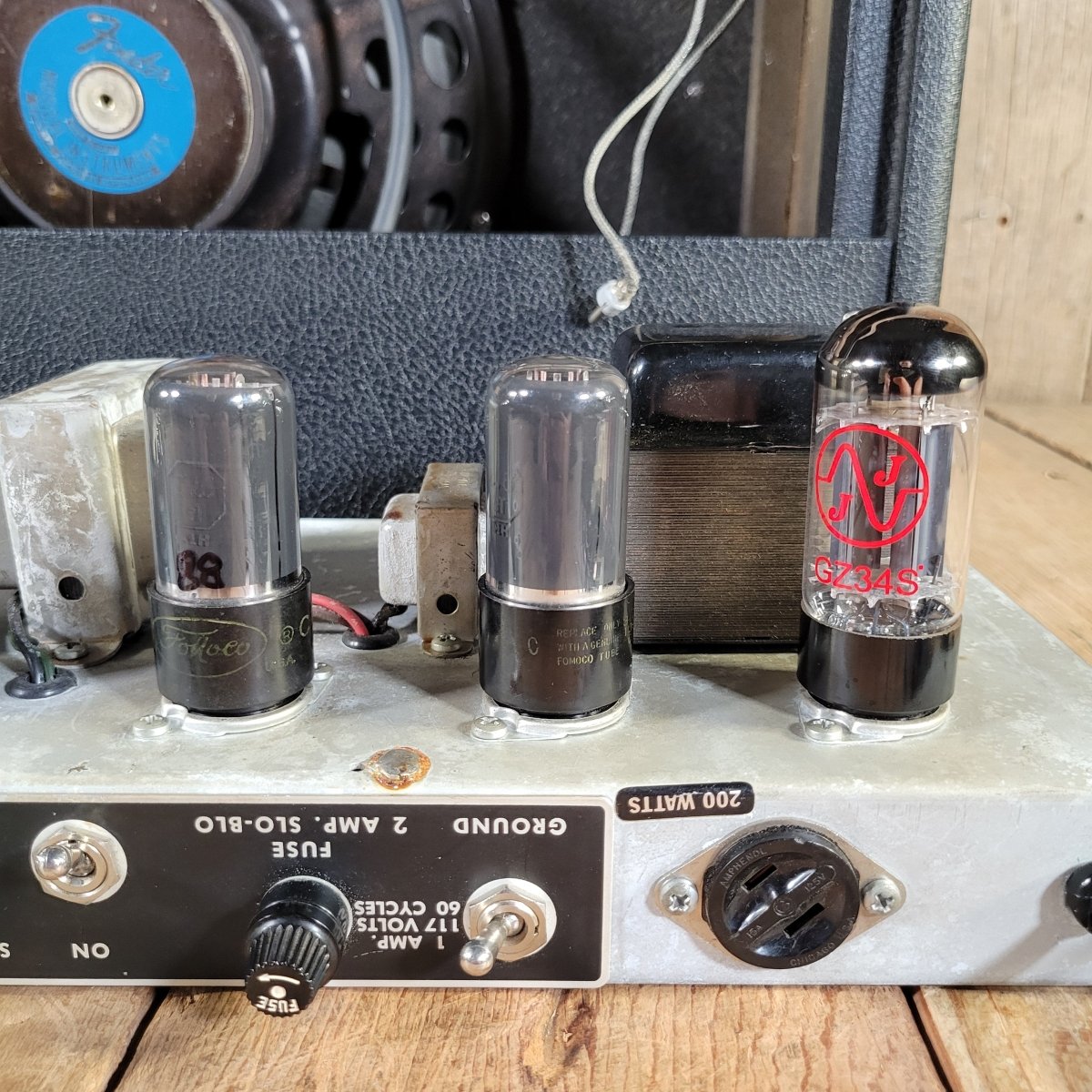

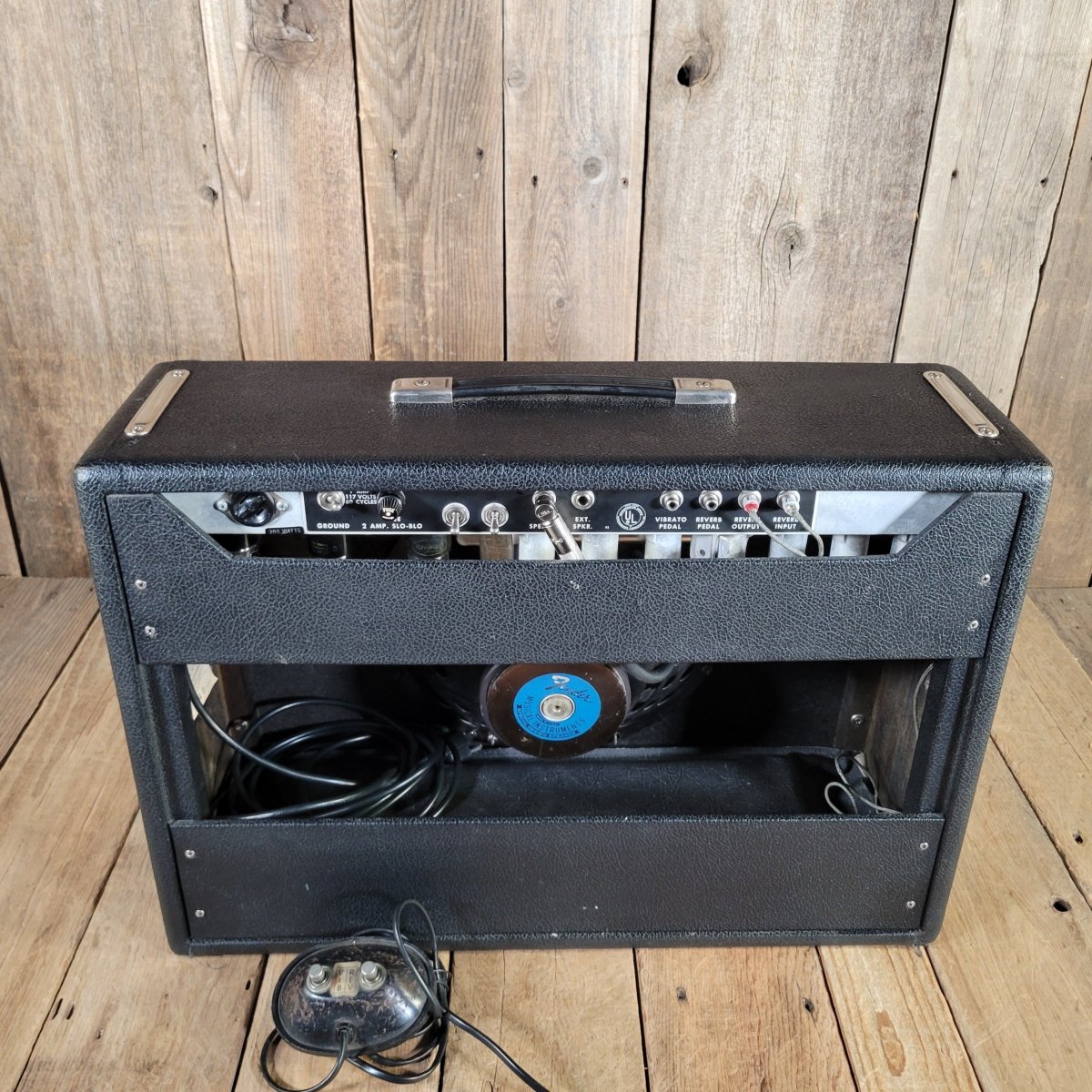

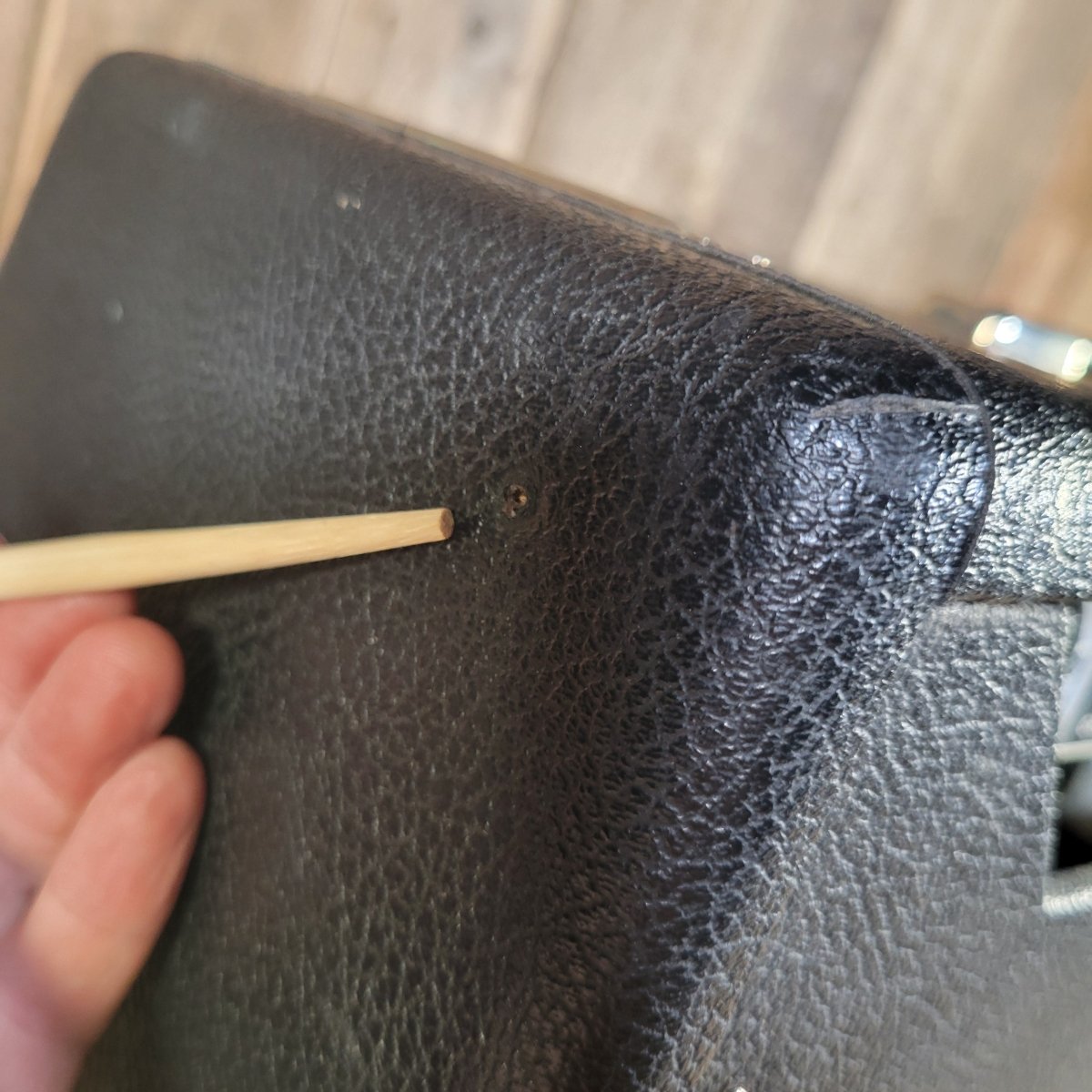

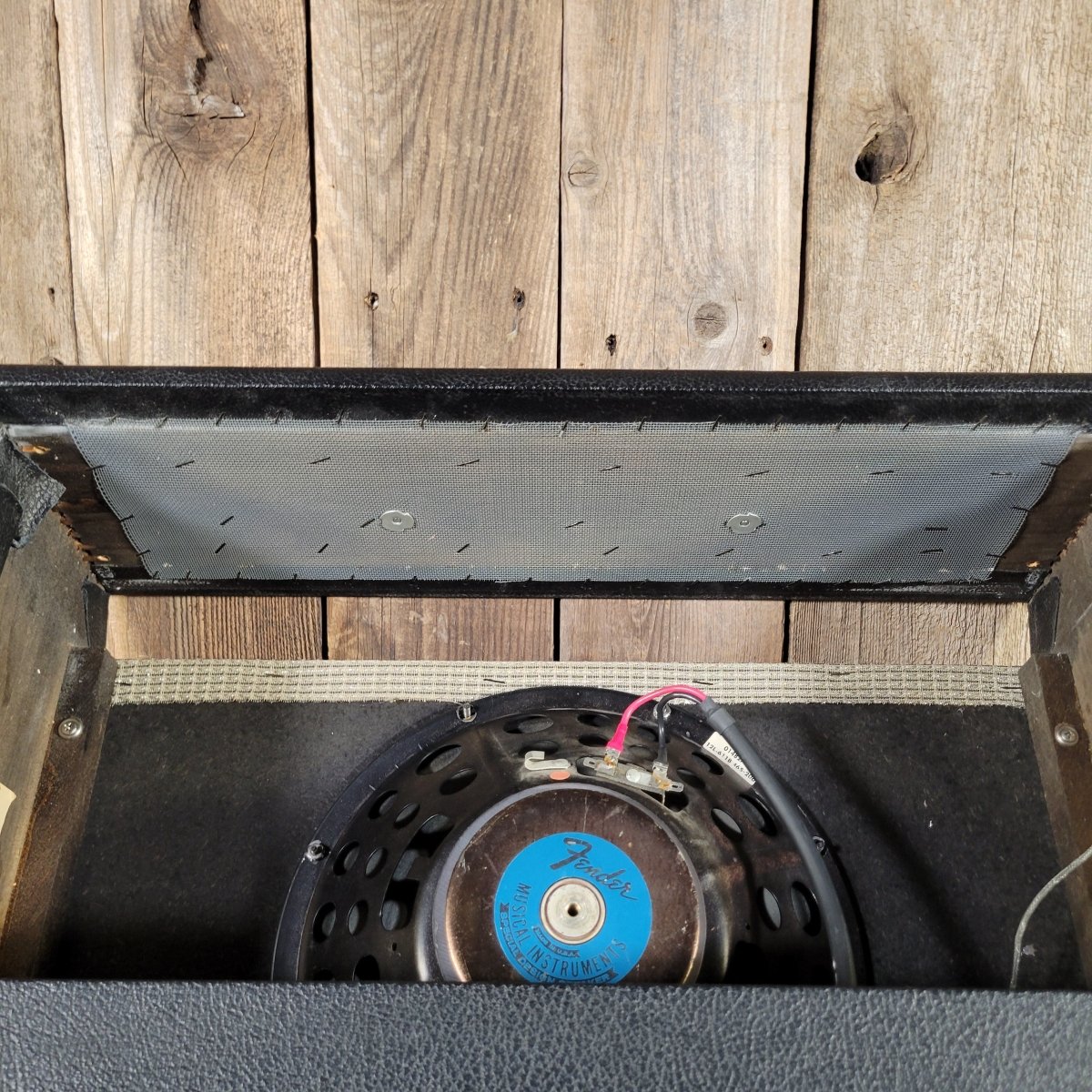

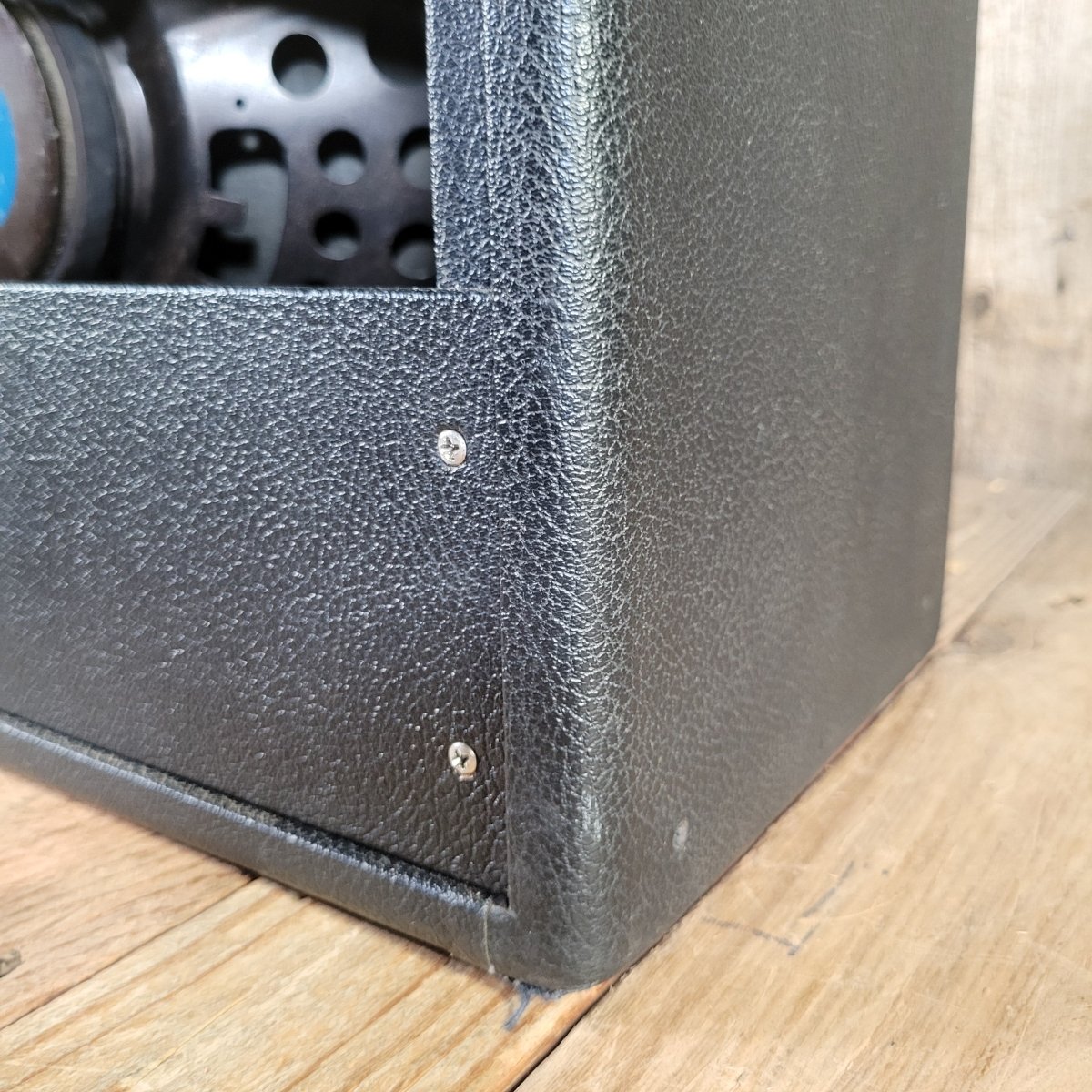

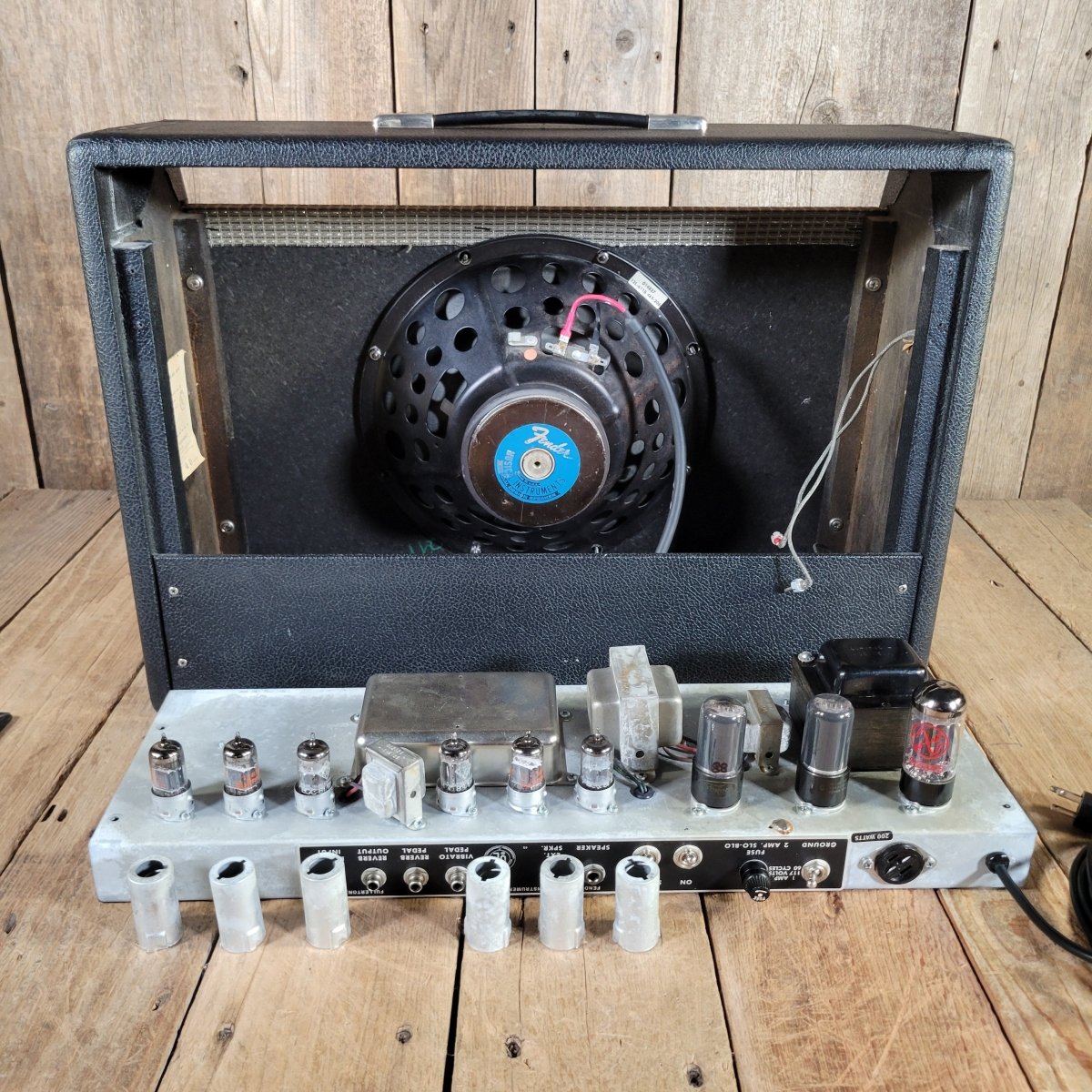

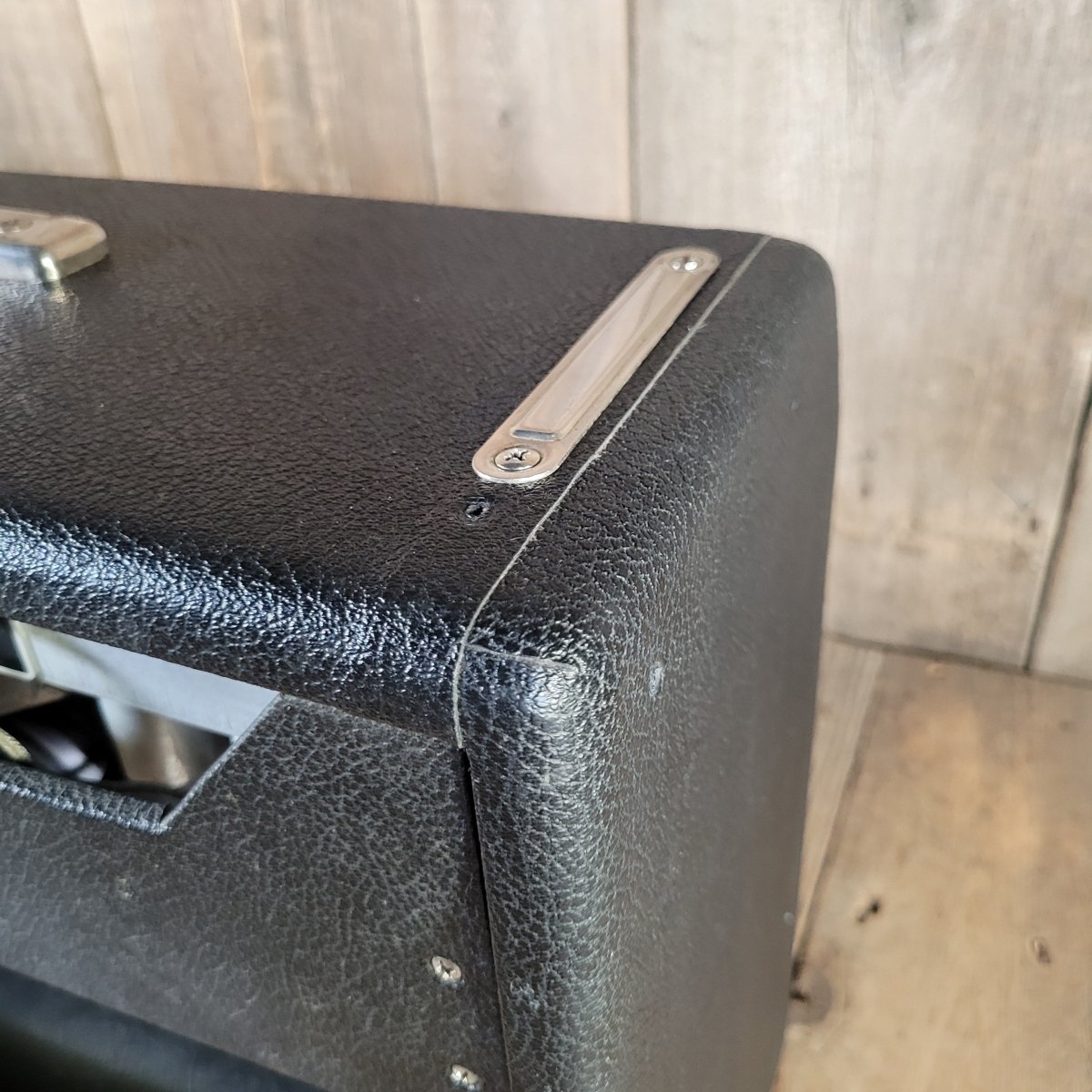

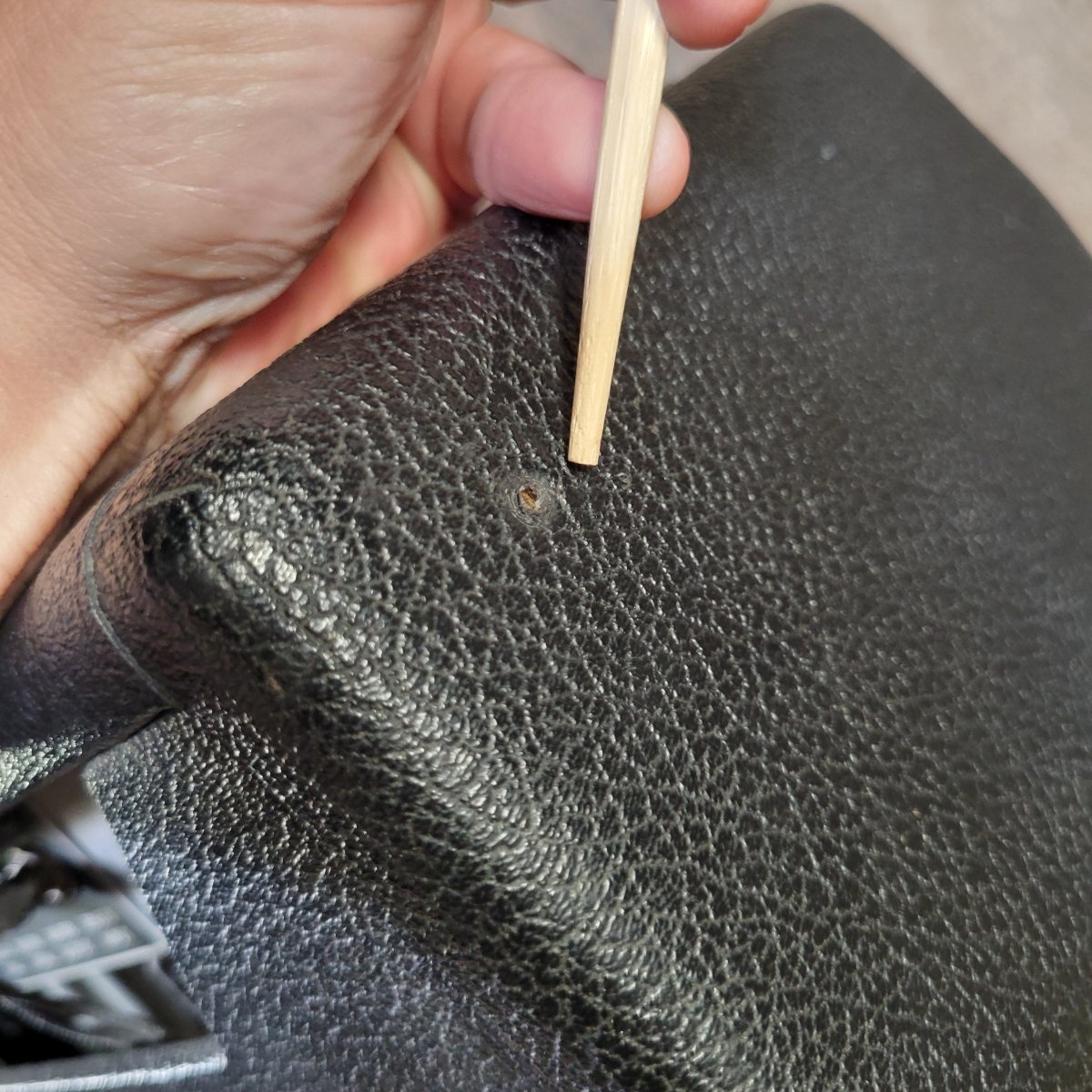

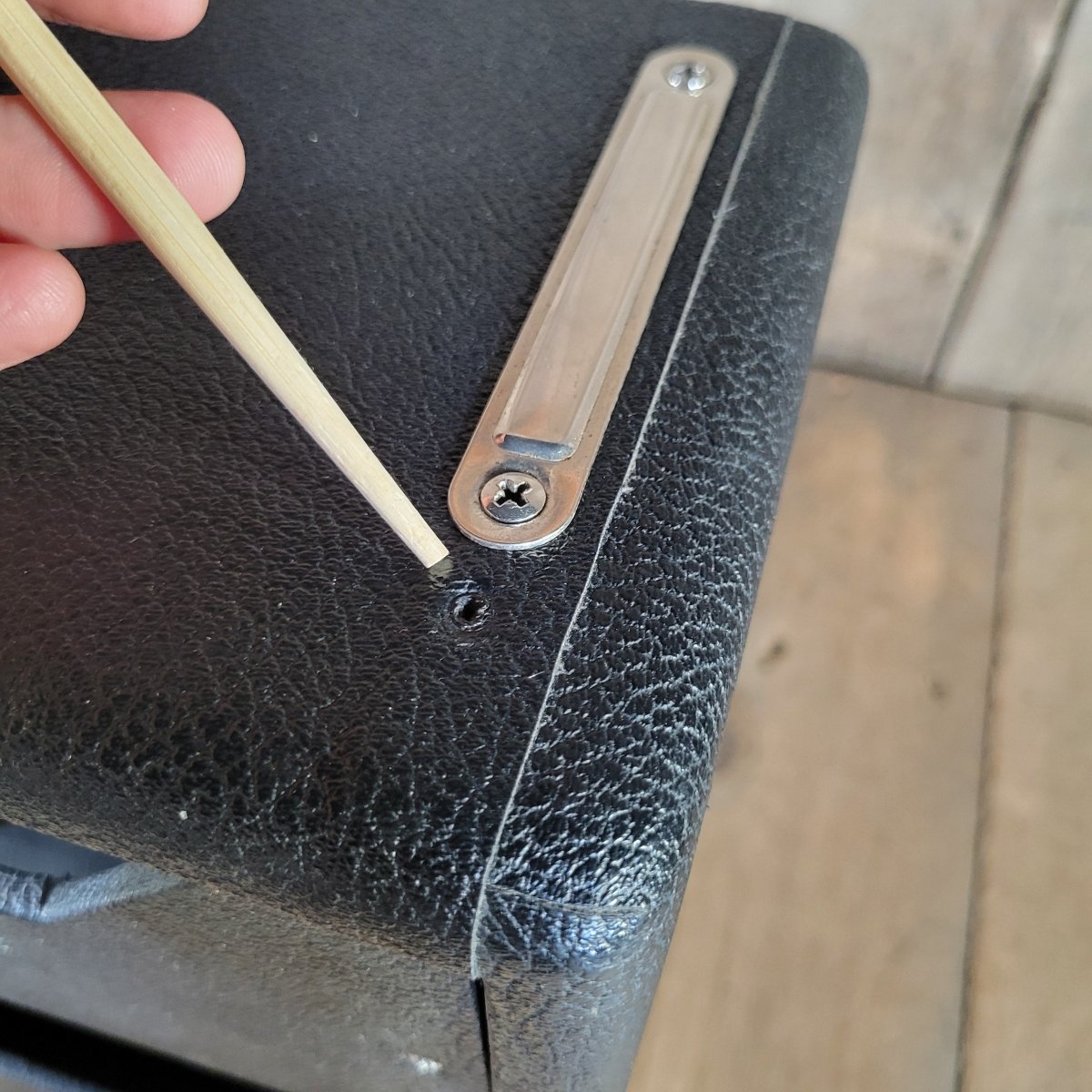

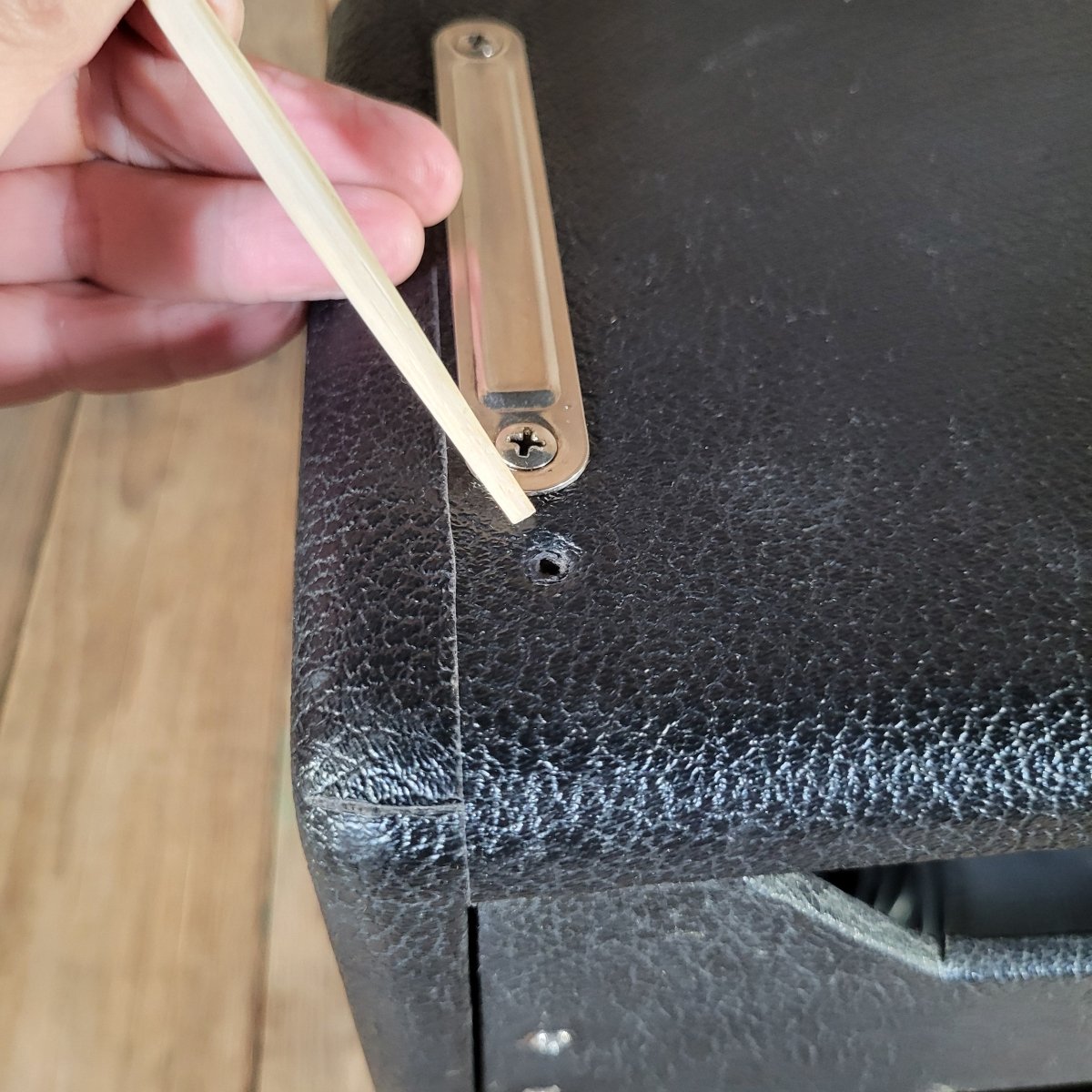

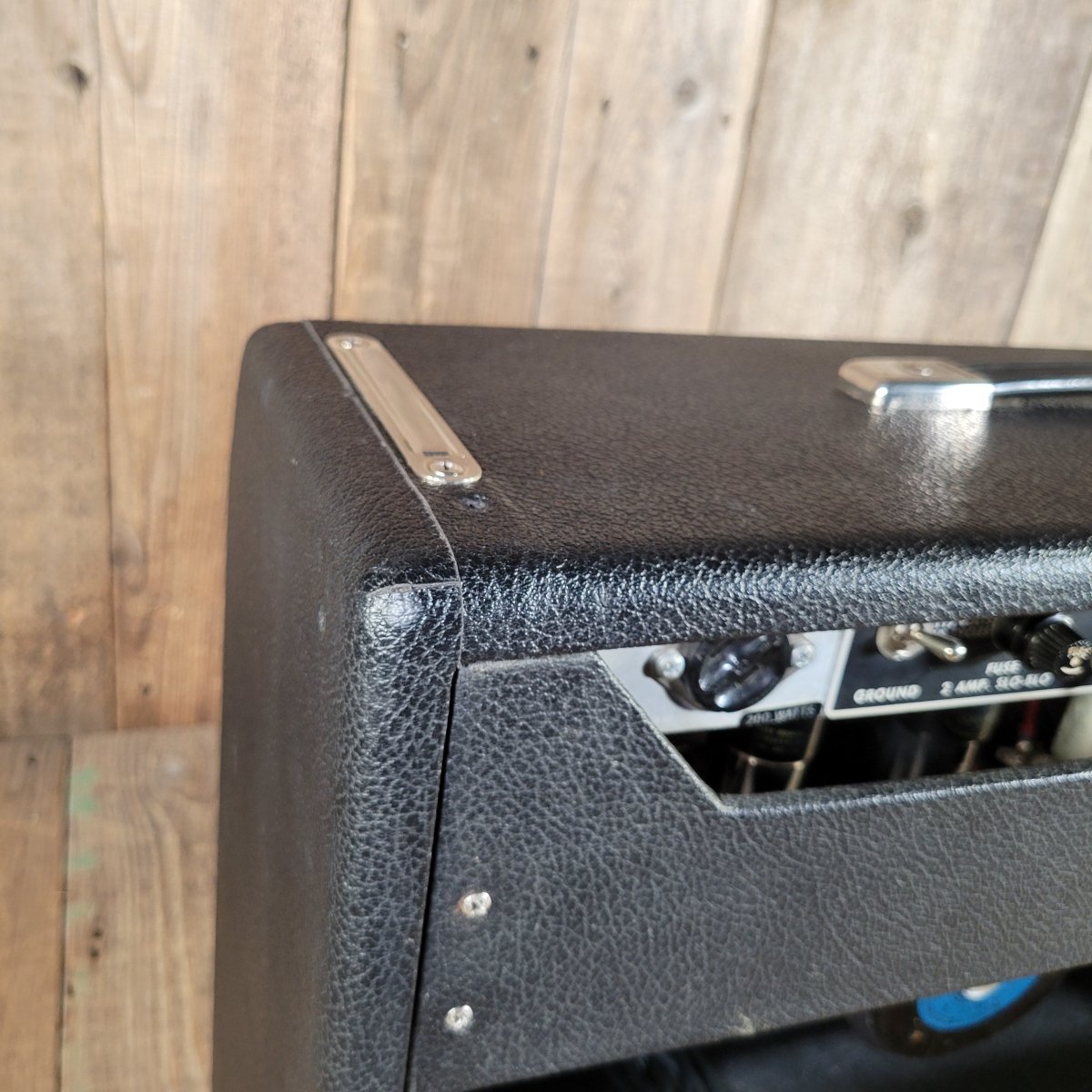

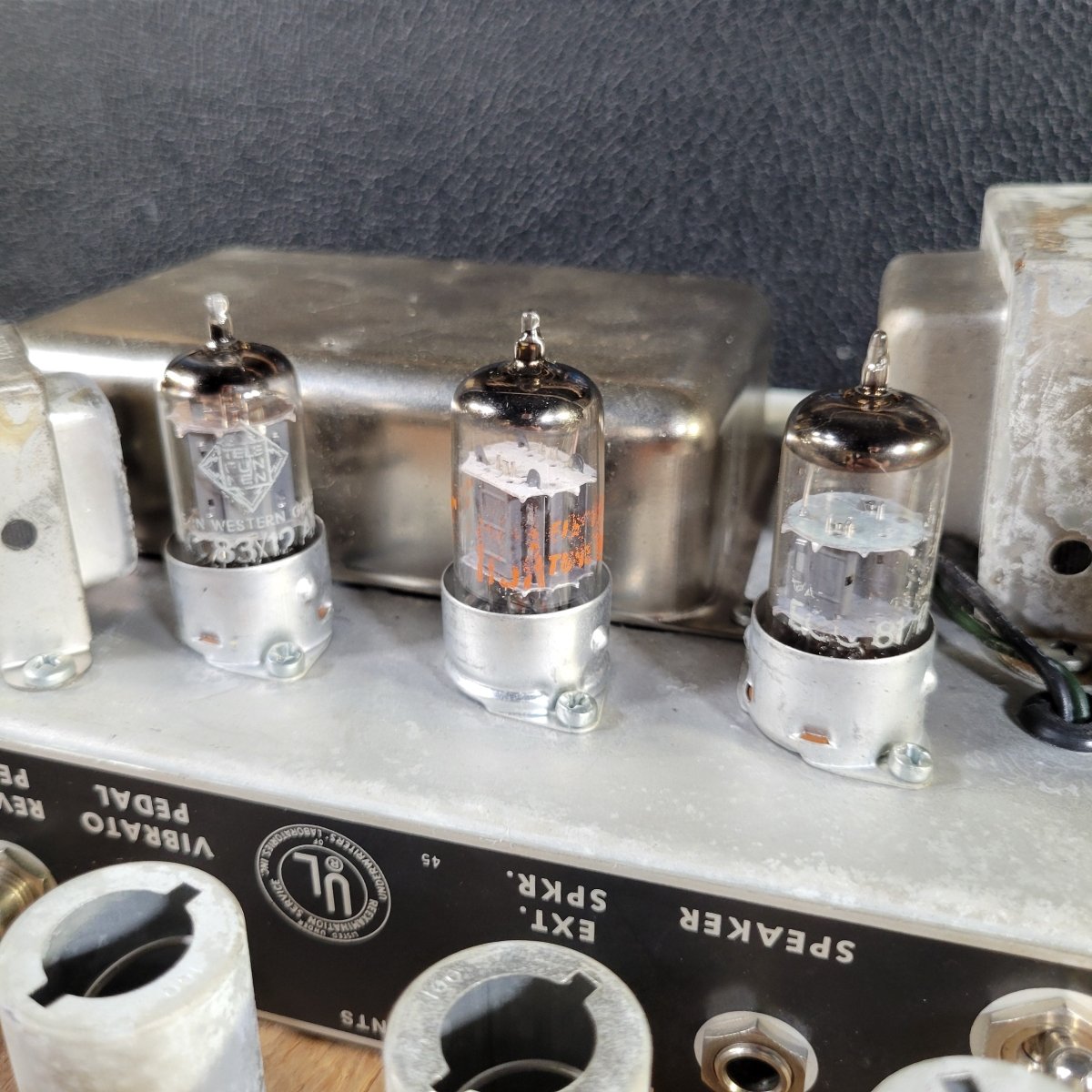

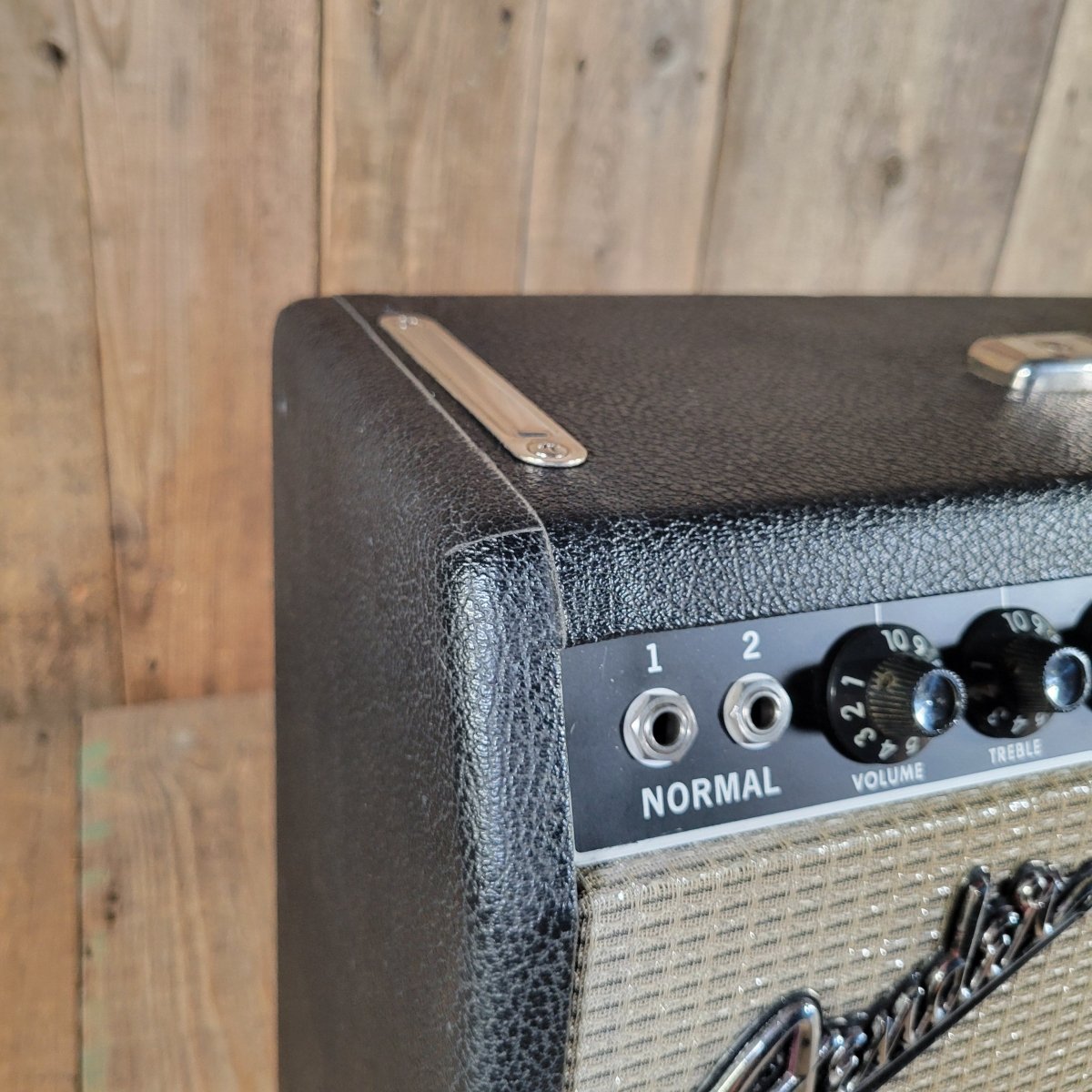

One cosmetic note: the cabinet is rated very good, with four holes in the top rear corners (see pictures) - someone put metal corners on the amp at some point.  The holes do not go through the cabinet and are really hard to see. The 12" Oxford speaker is not original but it is a perfect match for the amp and it sounds great; its date code reads 206 (1972, 6th week). The original footswitch is included, in good condition. Tubes include a JJ GZ34 rectifier, Fomoco (GE tubes with Fomoco branding) 6V6 power tubes, and Telefunken and RCA preamp tubes.

SPECIFICATIONS

• Date: 1967
• Where Is Date Noted?: serial#, codes
• Weight: 37 lbs 1 oz
• Dimensions: w 24-3/4" x h 18" x d 9-1/2"
• Watts: 22 watts
• Case/Cover?: none
• Covering Material: tolex
• Covering Color: black
• Covering Original?: yes
• Cabinet Material: pine

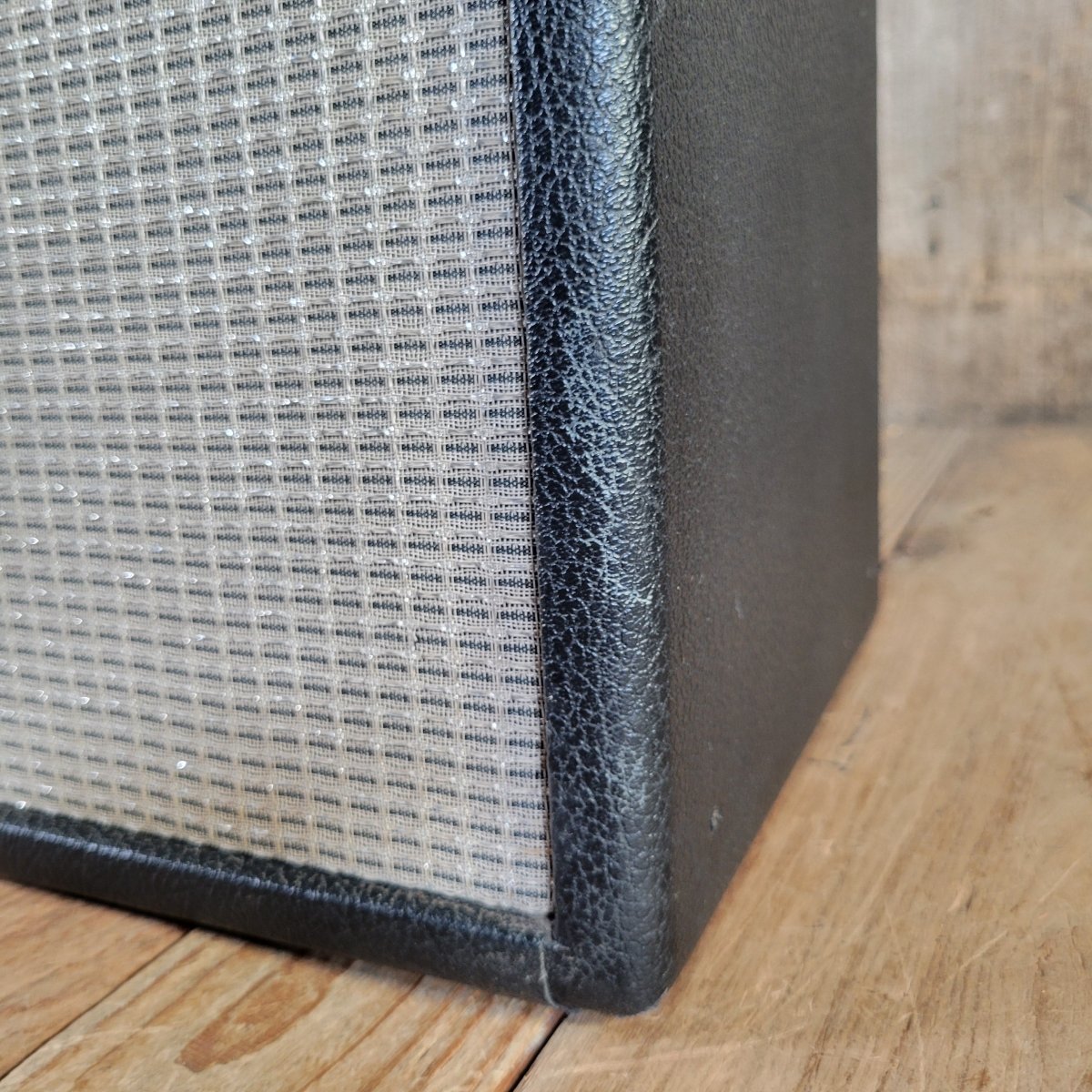

• Cabinet Condition: Excellent
• Cabinet Original?: yes

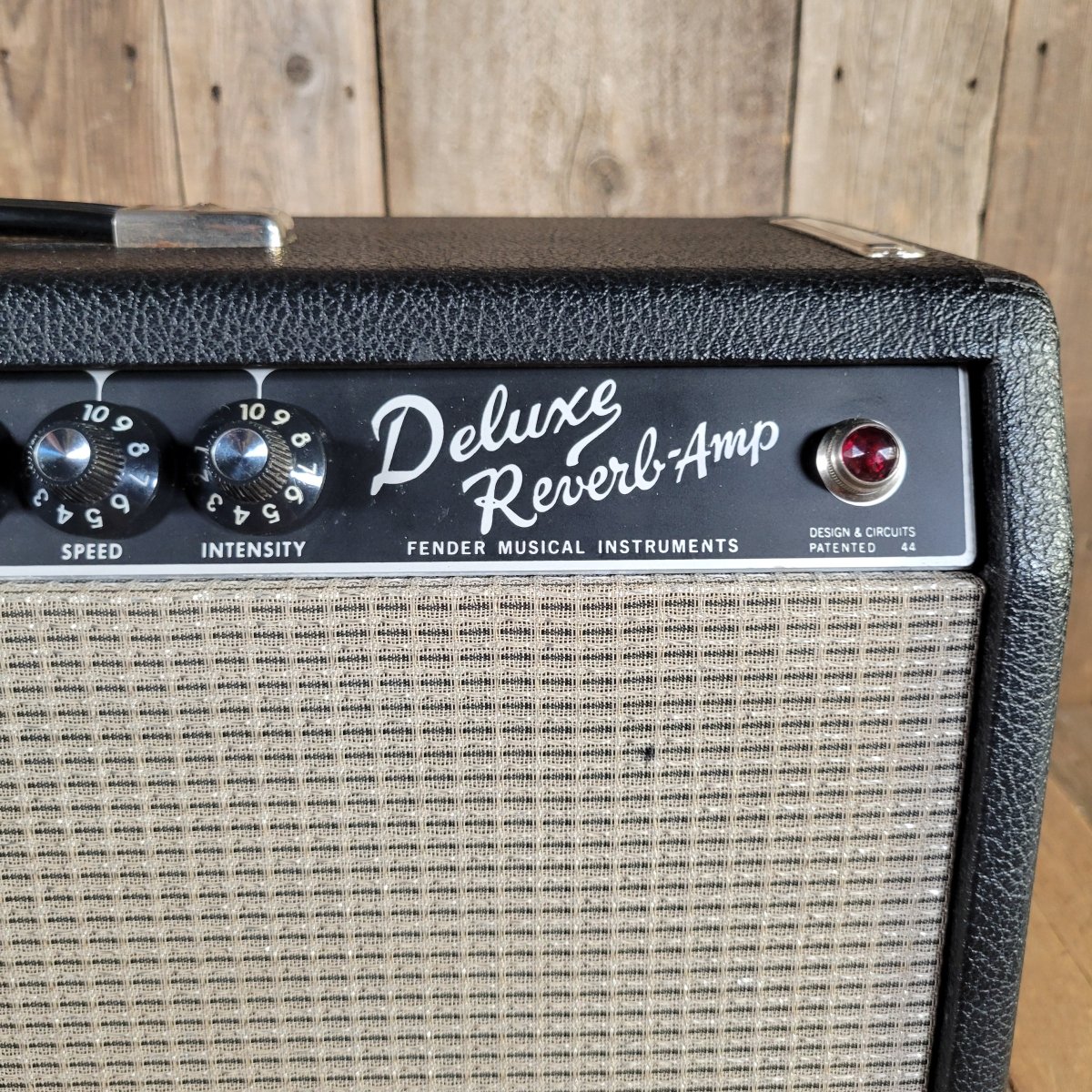

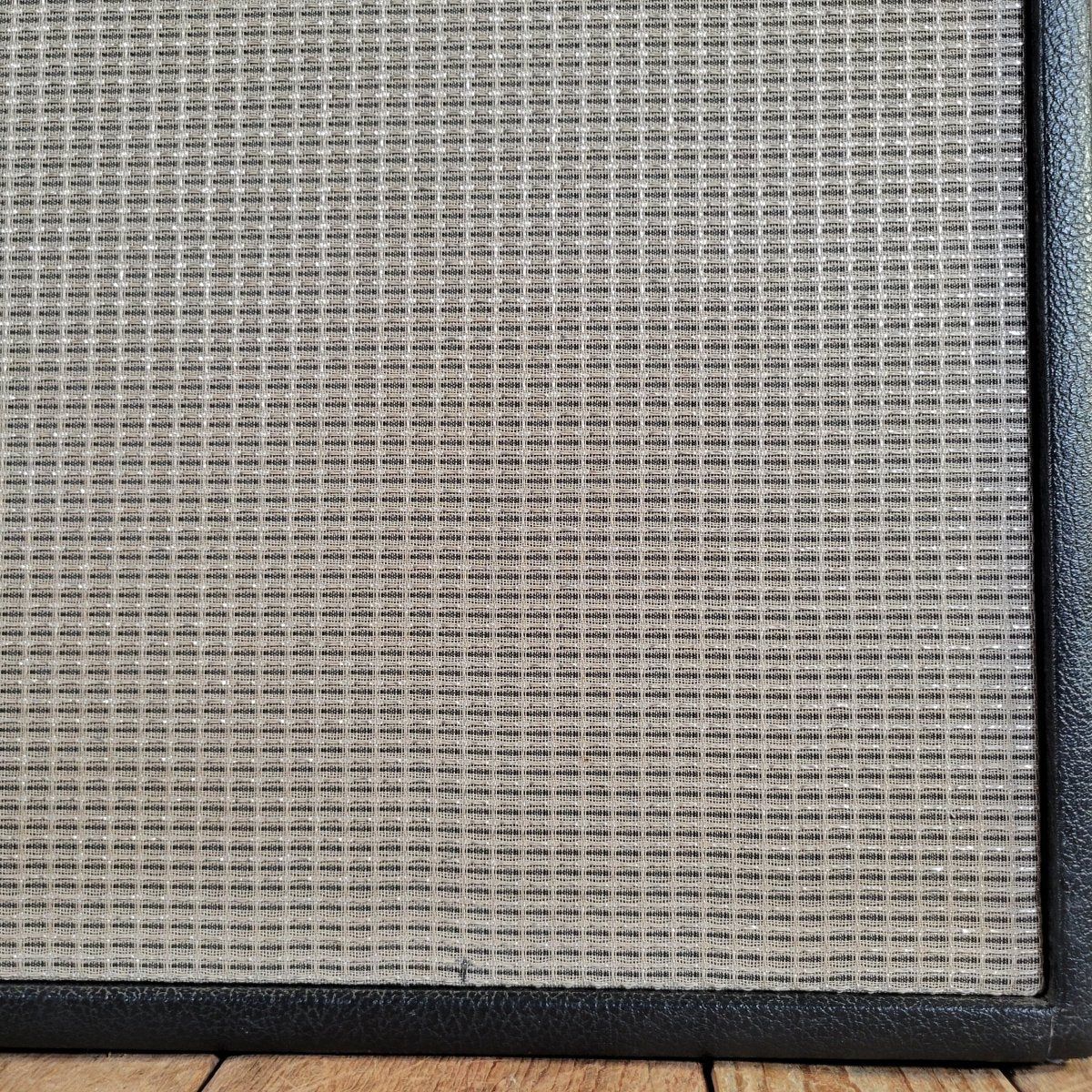

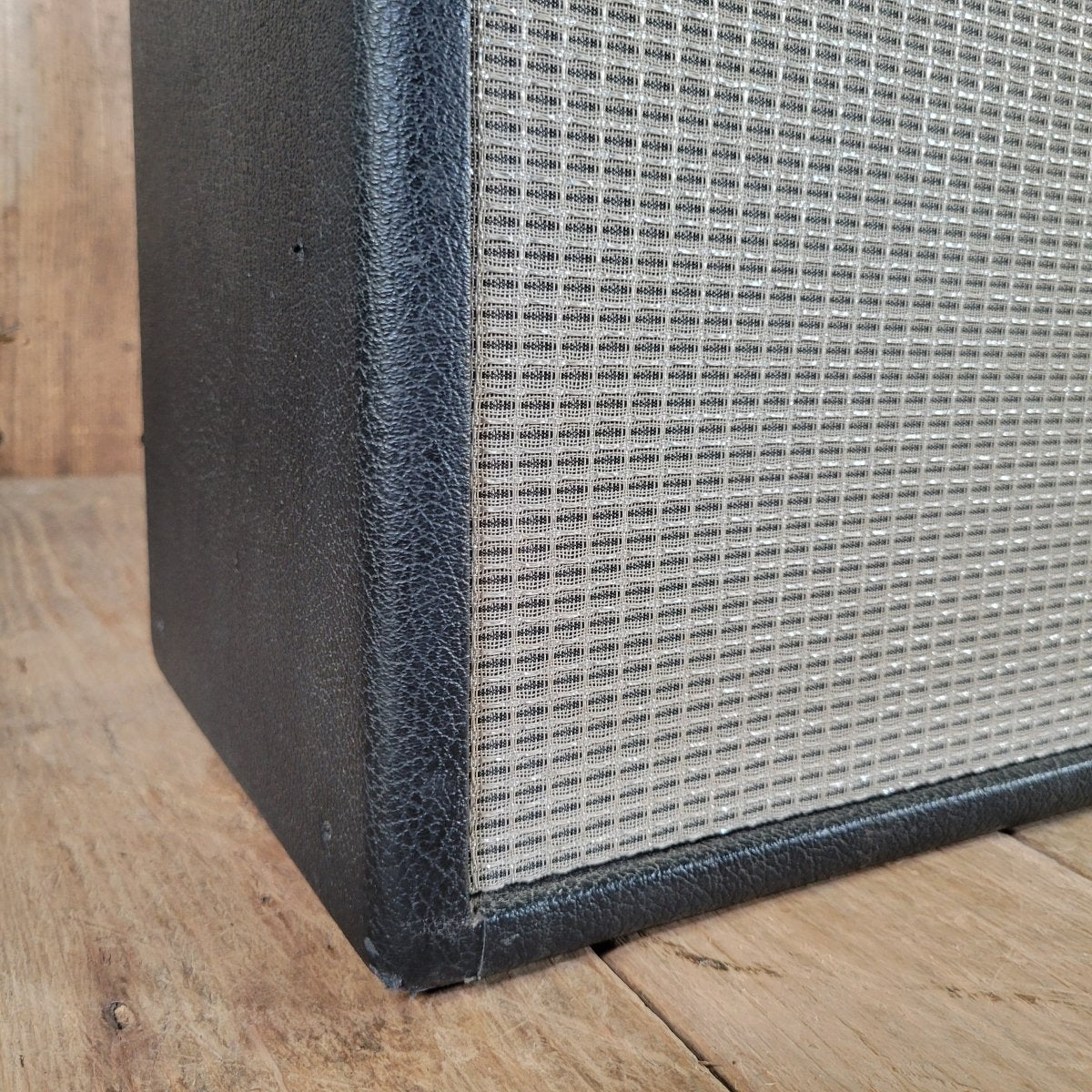

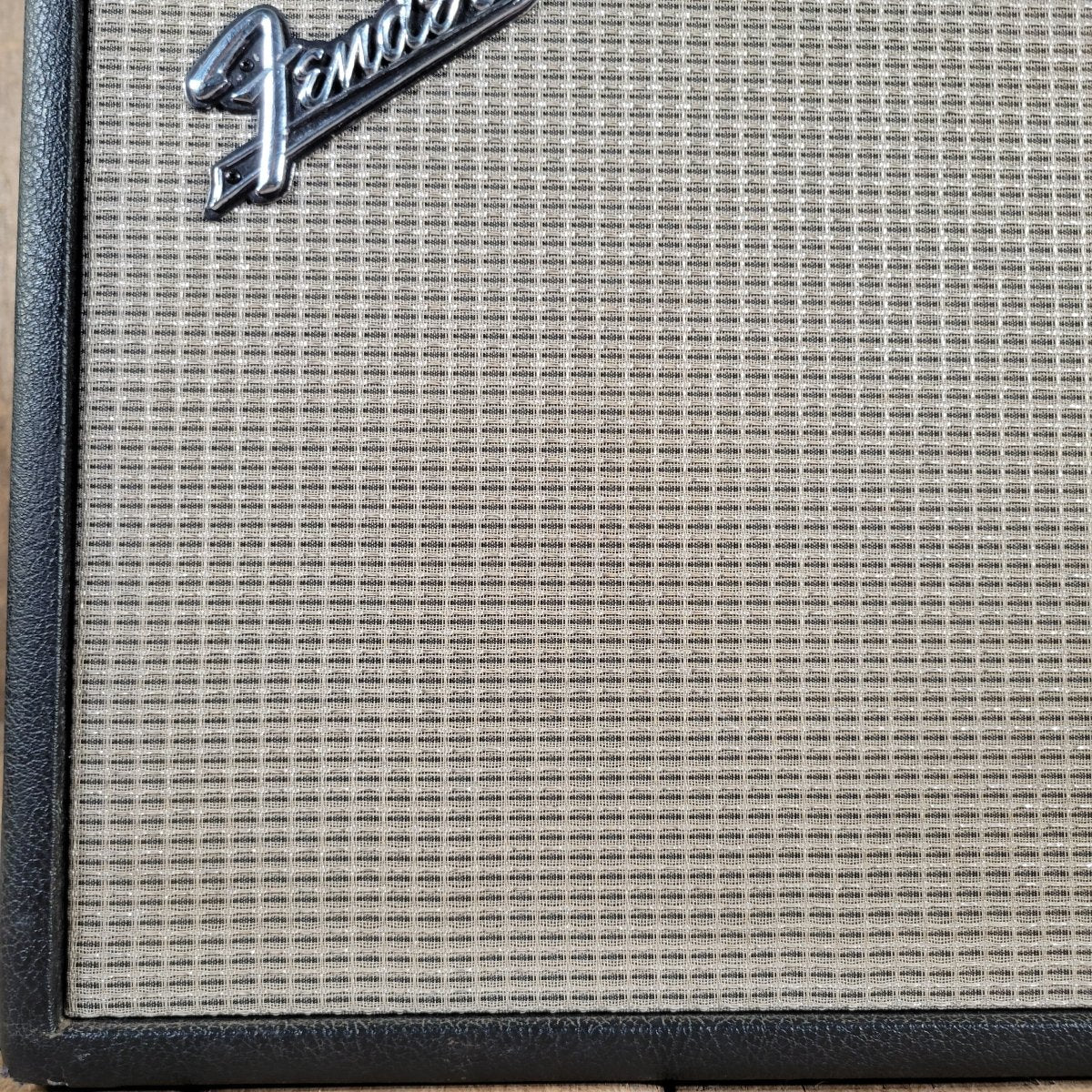

• Grille Style: silver sparkle
• Grille Condition: excellent
• Grille Original?: yes
• Baffle Material: particle board
• Baffle Condition: excellent
• Baffle Original?: yes
• Baffle Repairs/Changes: none
• Chassis Material: metal
• Chassis Condition: excellent
• Chassis Original?: yes
• Chassis Repairs/Changes: none
• Knobs Original?: yes
• Handle Material: rubber
• Handle Original?: yes

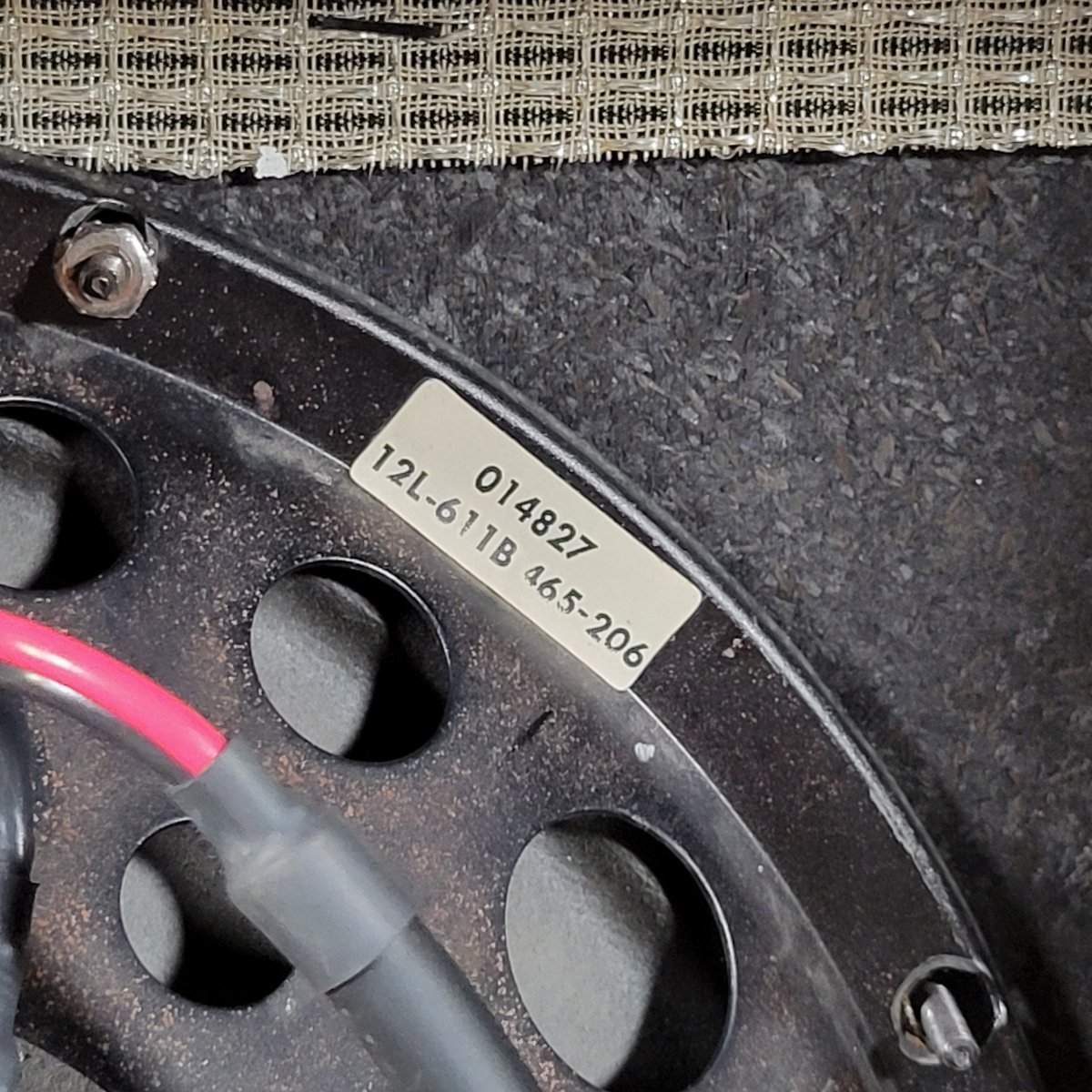

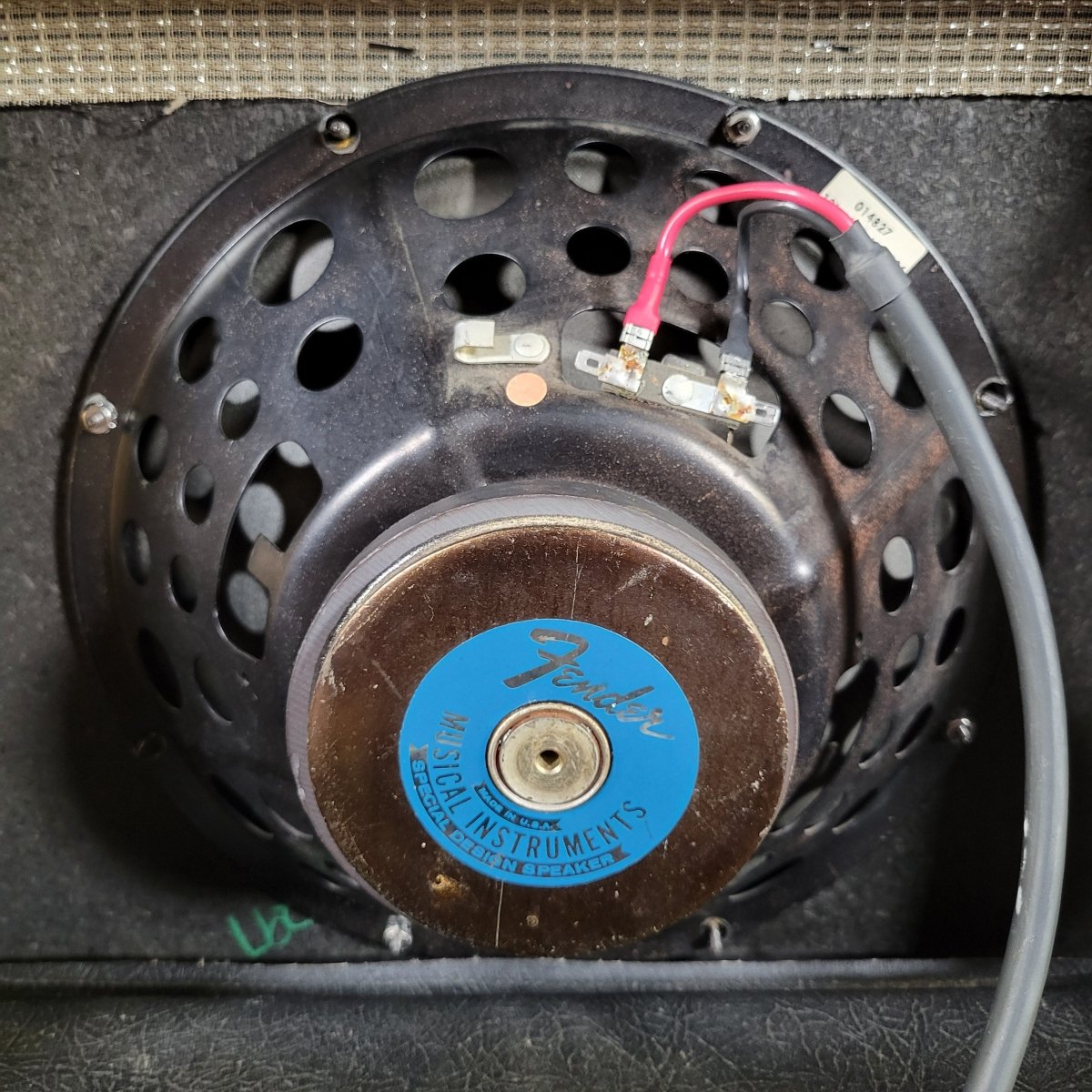

• Speaker 1 Brand: Oxford
• Speaker 1 Size: 12"
• Speaker 1 Manufacturer Code: 465
• Speaker 1 Date Code: 206 (1972)
• Speaker 1 Cone Original?: yes
• Speaker 1 Condition: very good
• Speaker 1 Original?: no

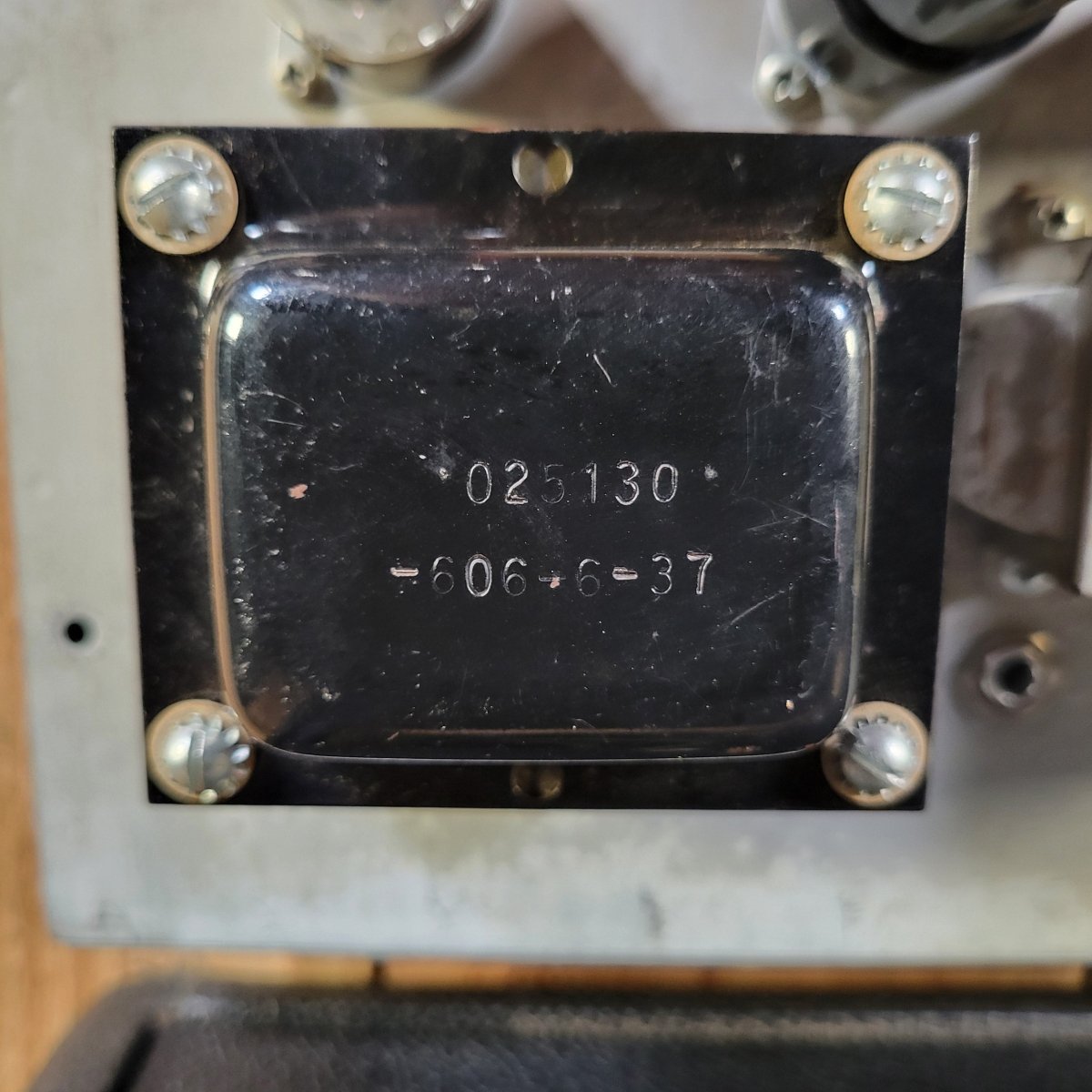

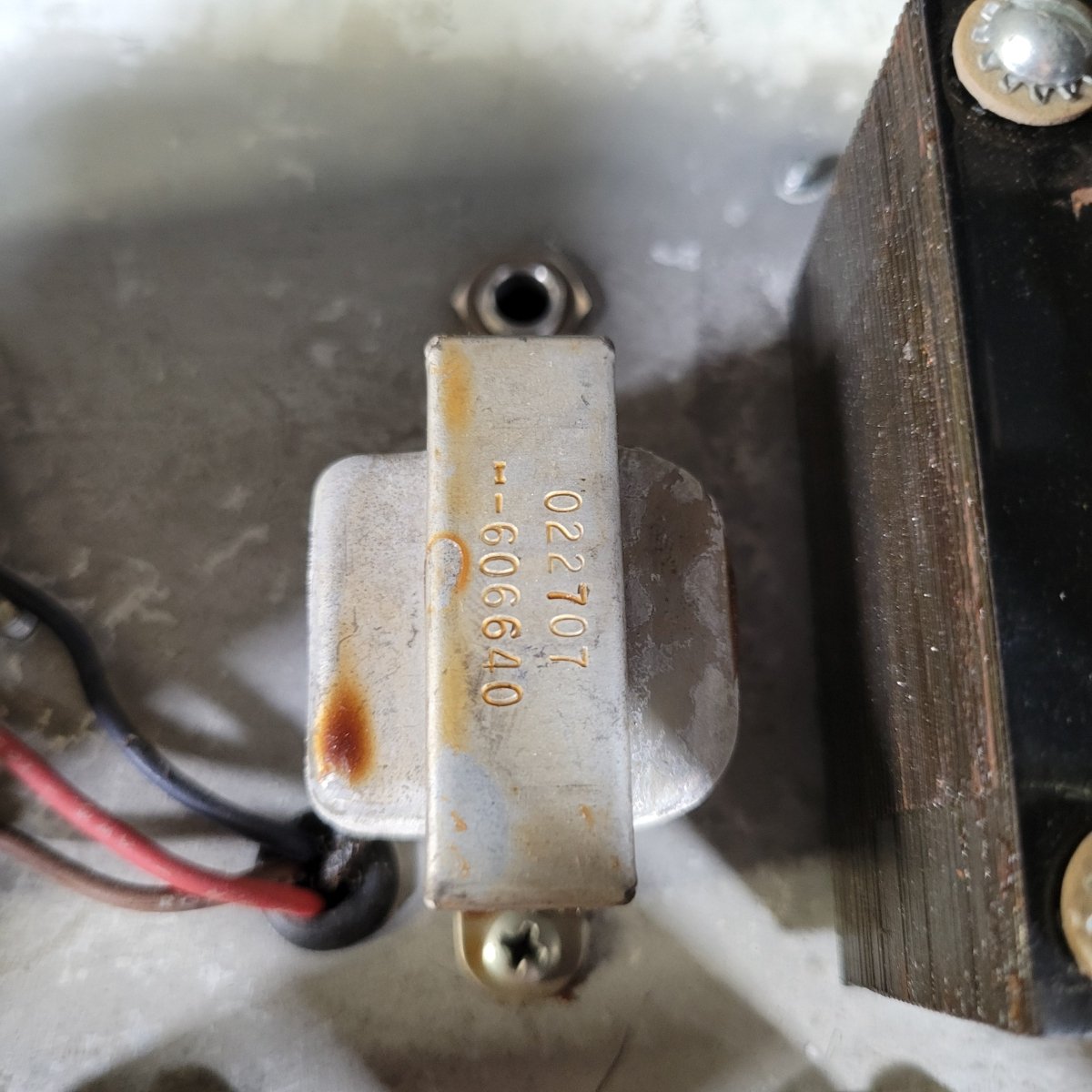

• Transformer Manufacturer: Schumacher
• Transformer Manufacturer Code: 606
• Transformers Original?: yes
• Power Transformer Date Code: 637

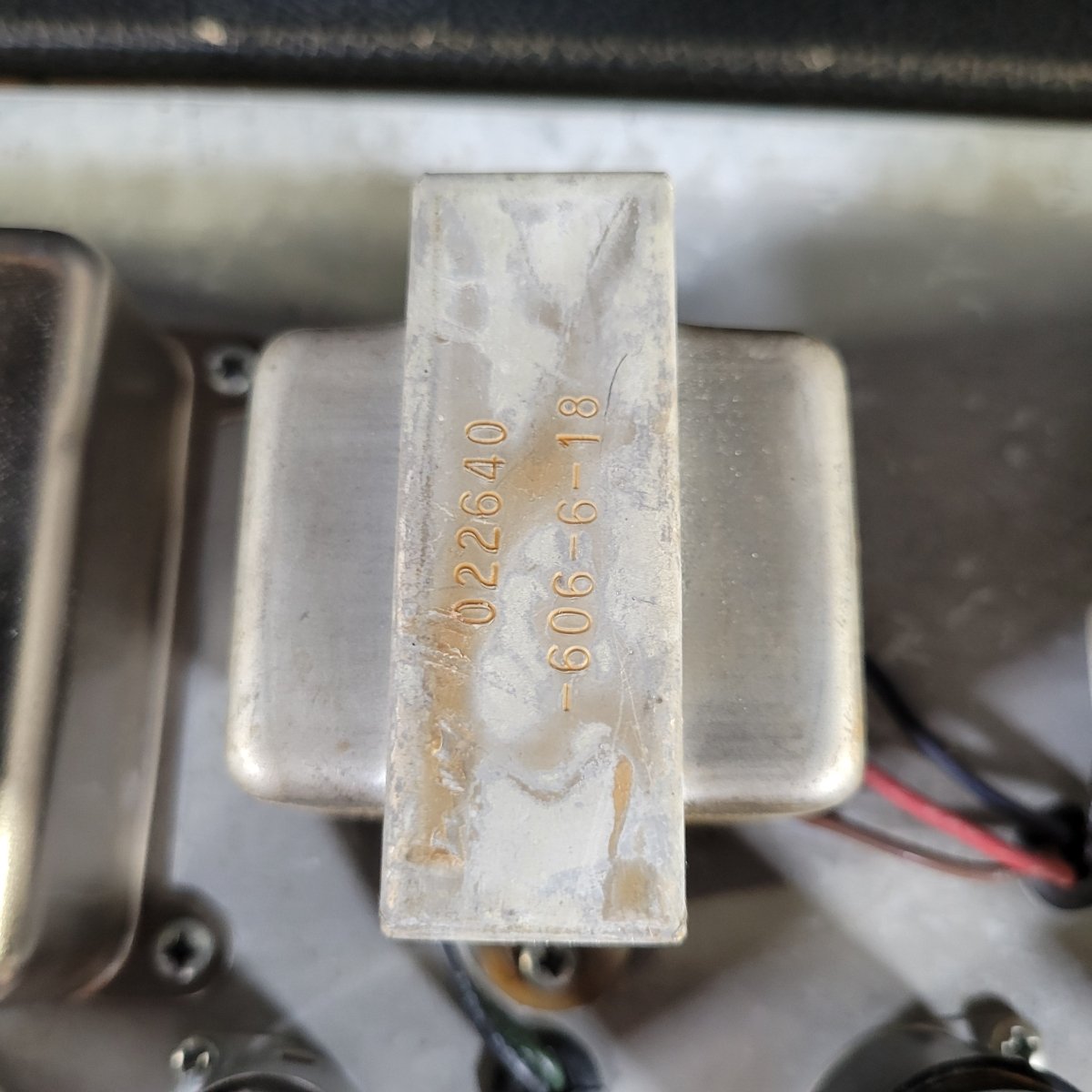

• Choke Transformer Date Code: 640
• Output Transformer Date Code: 618

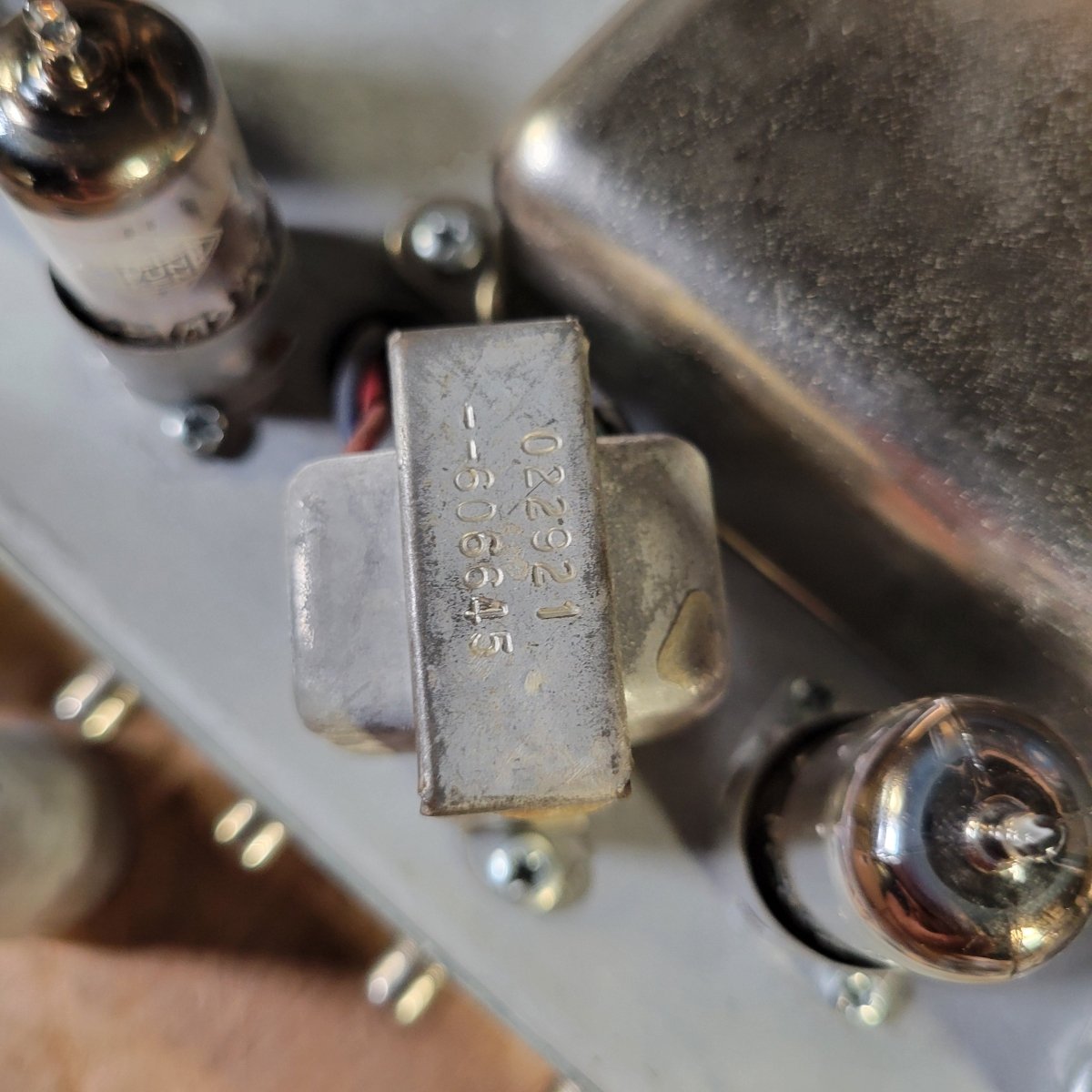

• Reverb Transformer Date Code: 645

• Reverb Onboard: yes
• Reverb Tank Original?: yes
• Tremolo Or Vibrato Onboard: vibrato

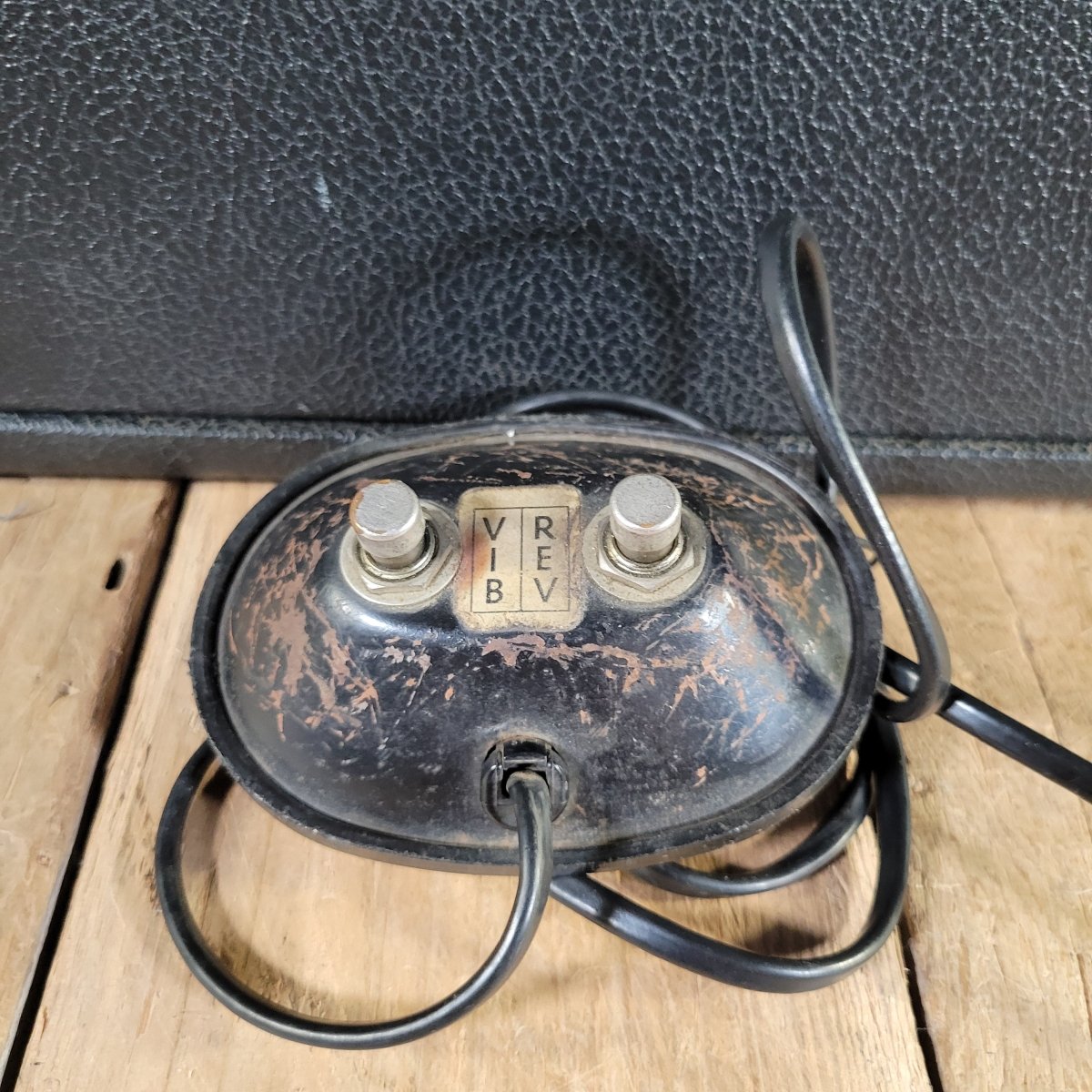

• Pedal Included?: yes
• Pedal Condition: good
• Pedal Original?: yes
• Rectifier Tube: GZ34
• Rectifier Tube Brand: JJ
• Power Tubes: 2 x 6V6
• Power Tube Brand: Fomoco
• Preamp Tubes: 2 x 12AT7, 4 x 12AX7

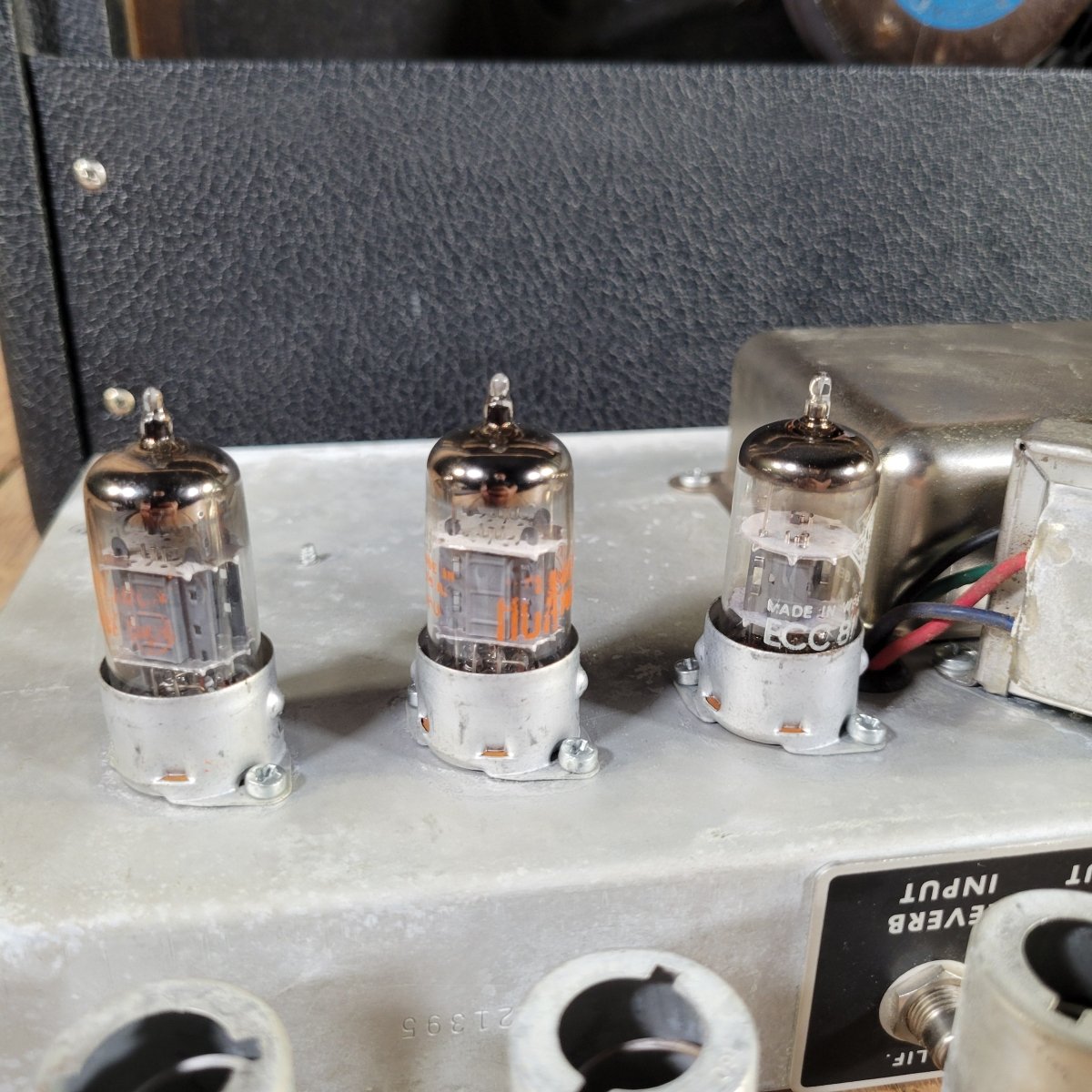

• Preamp Tube Brand: Telefunken, RCA

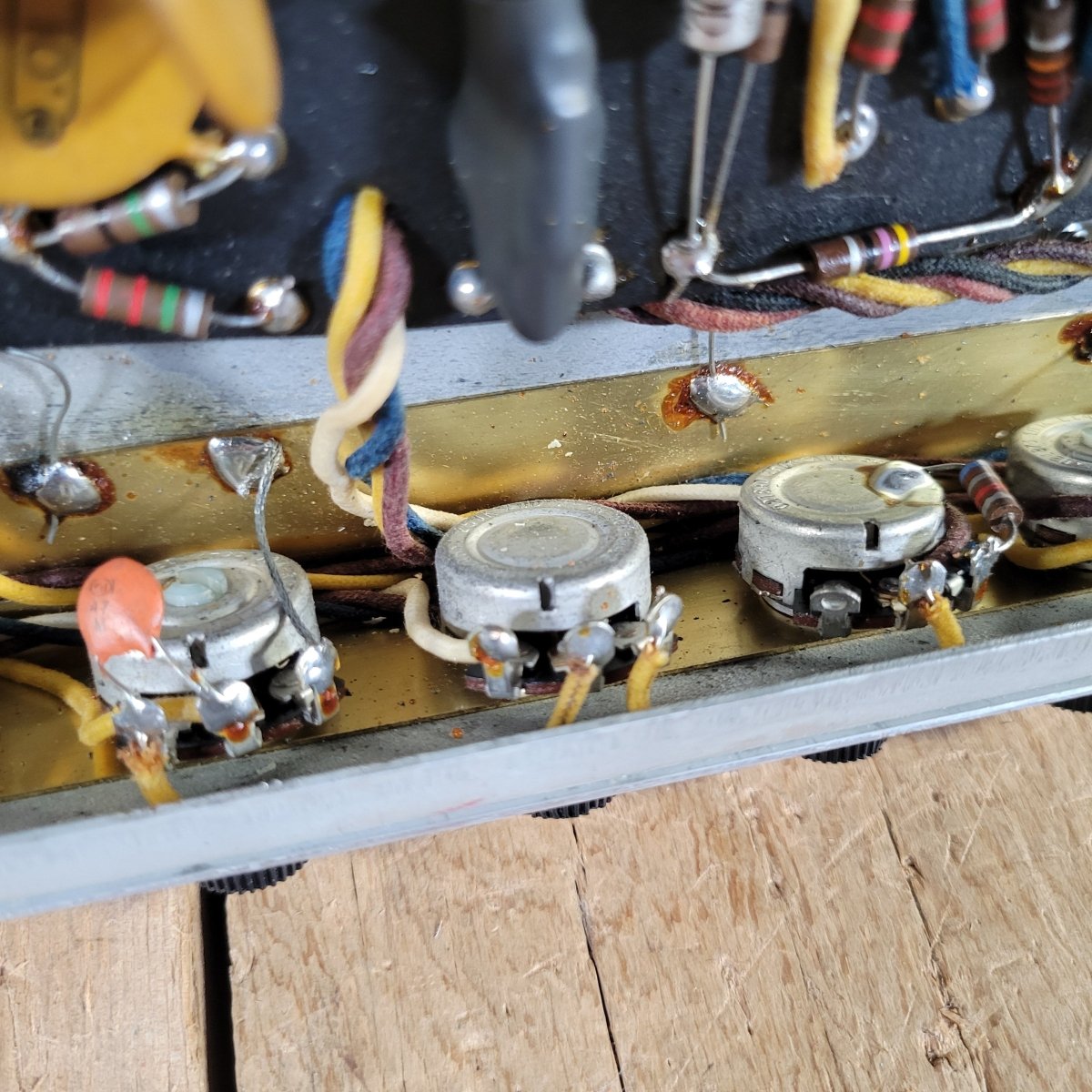

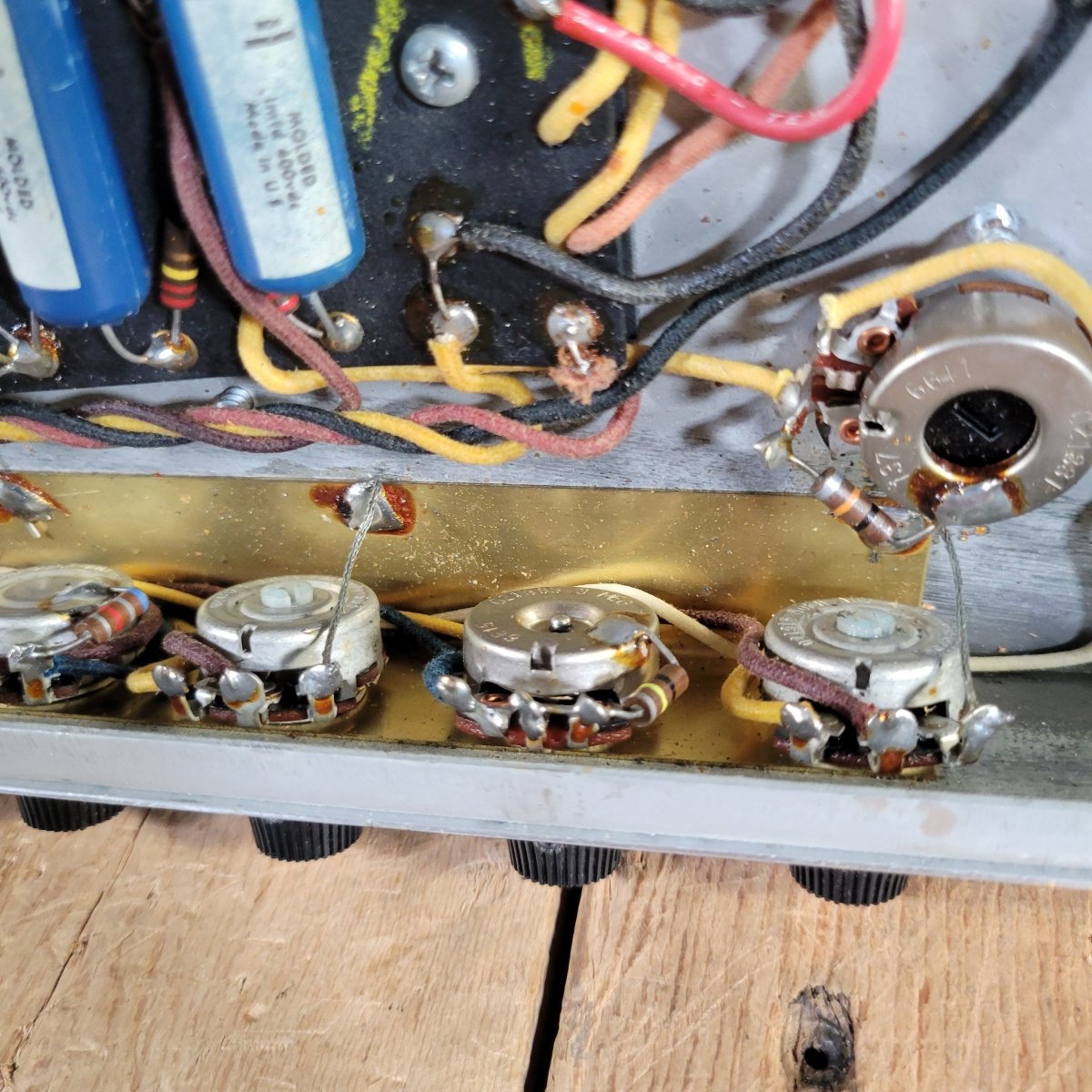

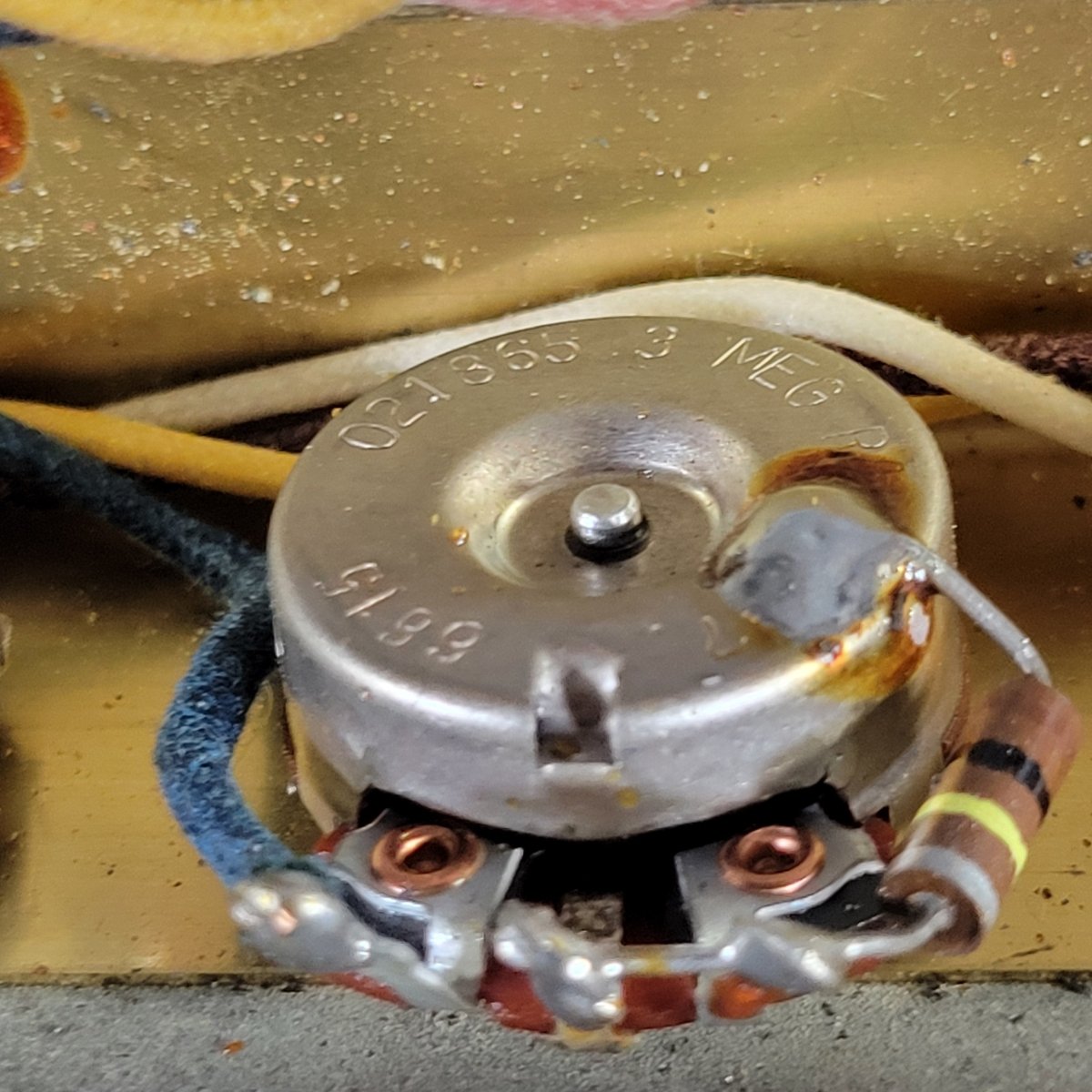

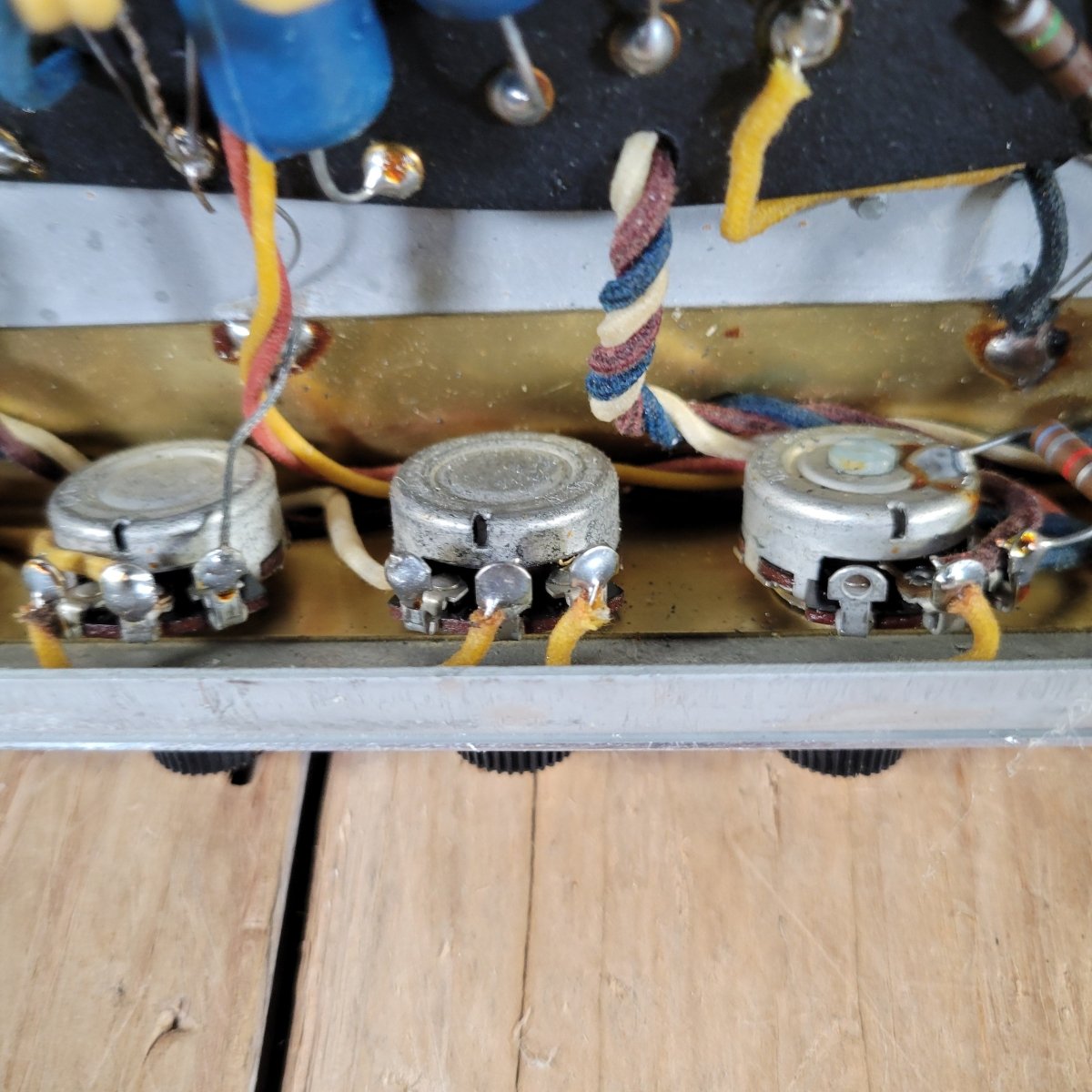

• Potentiometers Original?: yes

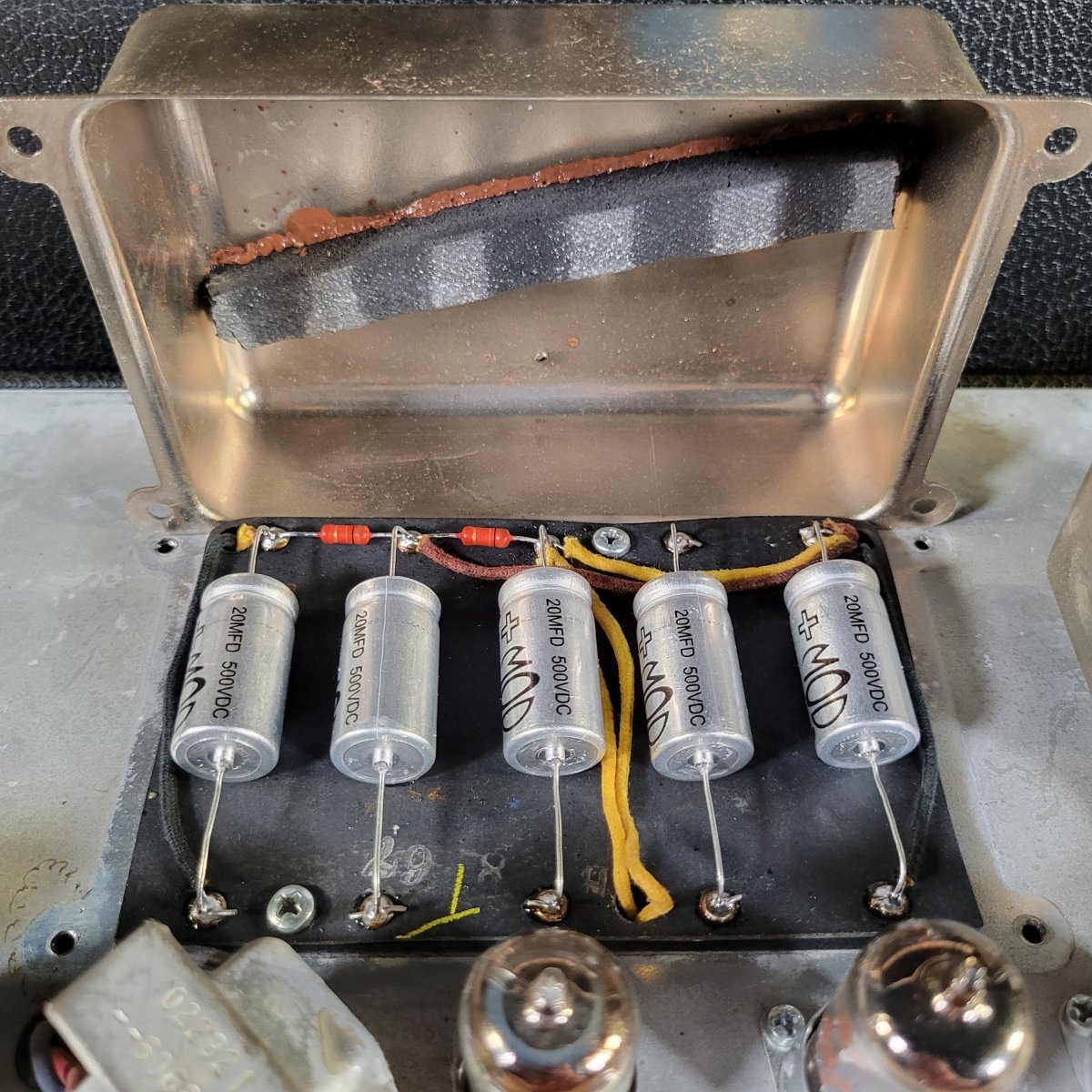

• Filter Caps: replaced
• Internal Repairs: cap job, new power cable
• Power Cable: upgraded
• Smells?: none
