SOLD - Tel Ray Ad-N-Echo Model 1001 Adineko Delay Reverb Unit Oil Can Echo 1969
$0.00SOLD!
Who buys guitar effects pedals? We do!
Call 530-570-1525 or email sales@maharsvintageguitars.com to sell your vintage or used effects pedal, guitar parts, guitar, bass, amplifier, etc - one piece or a collection! We are always ready to buy instruments, amps and effects from Fender, Gibson, Martin, Epiphone, Rickenbacker, Gretsch, Marshall, Vox and just about anything else related to musical instruments. You can also click here for more info on selling us vintage instruments, parts, etc.
No sales tax for customers outside California.

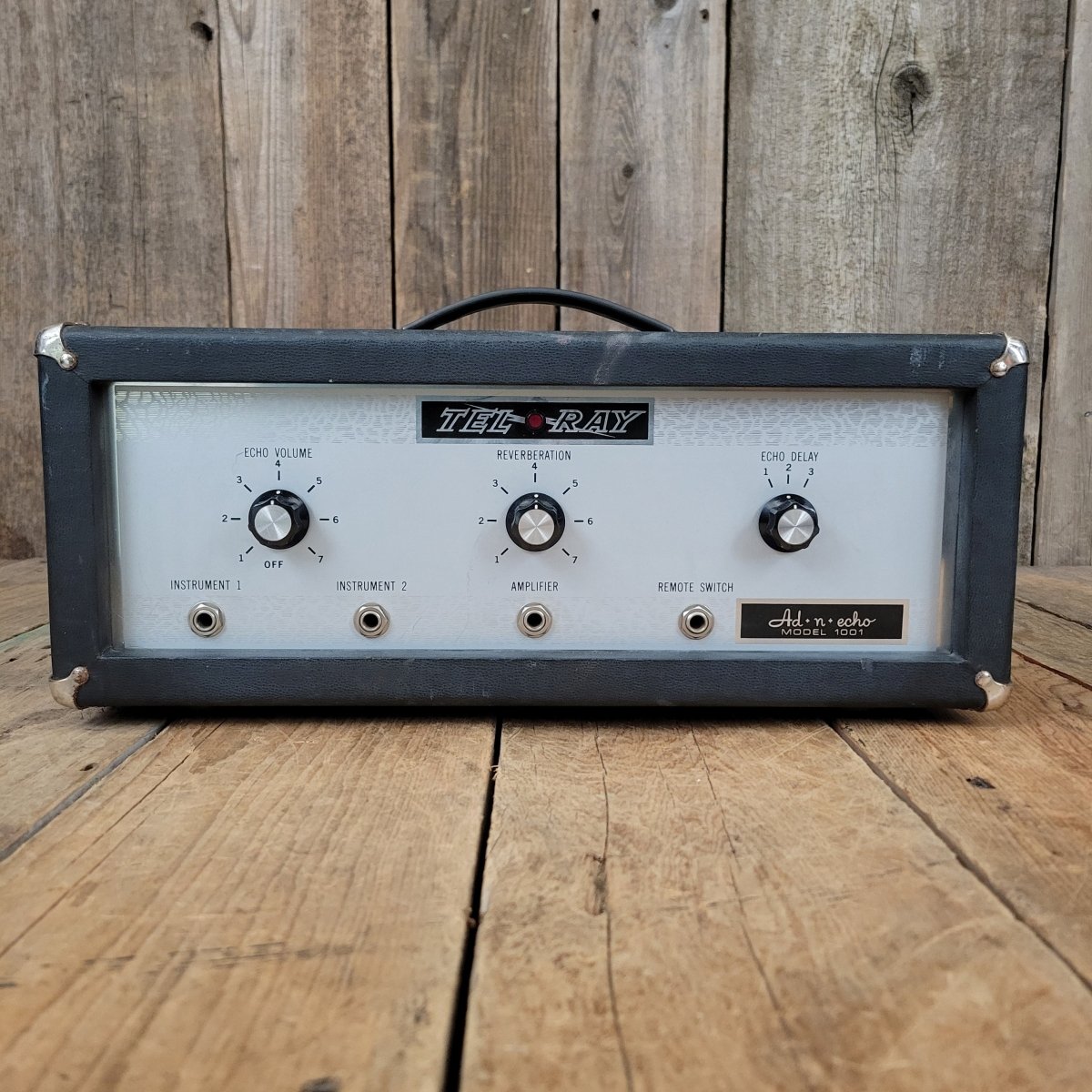

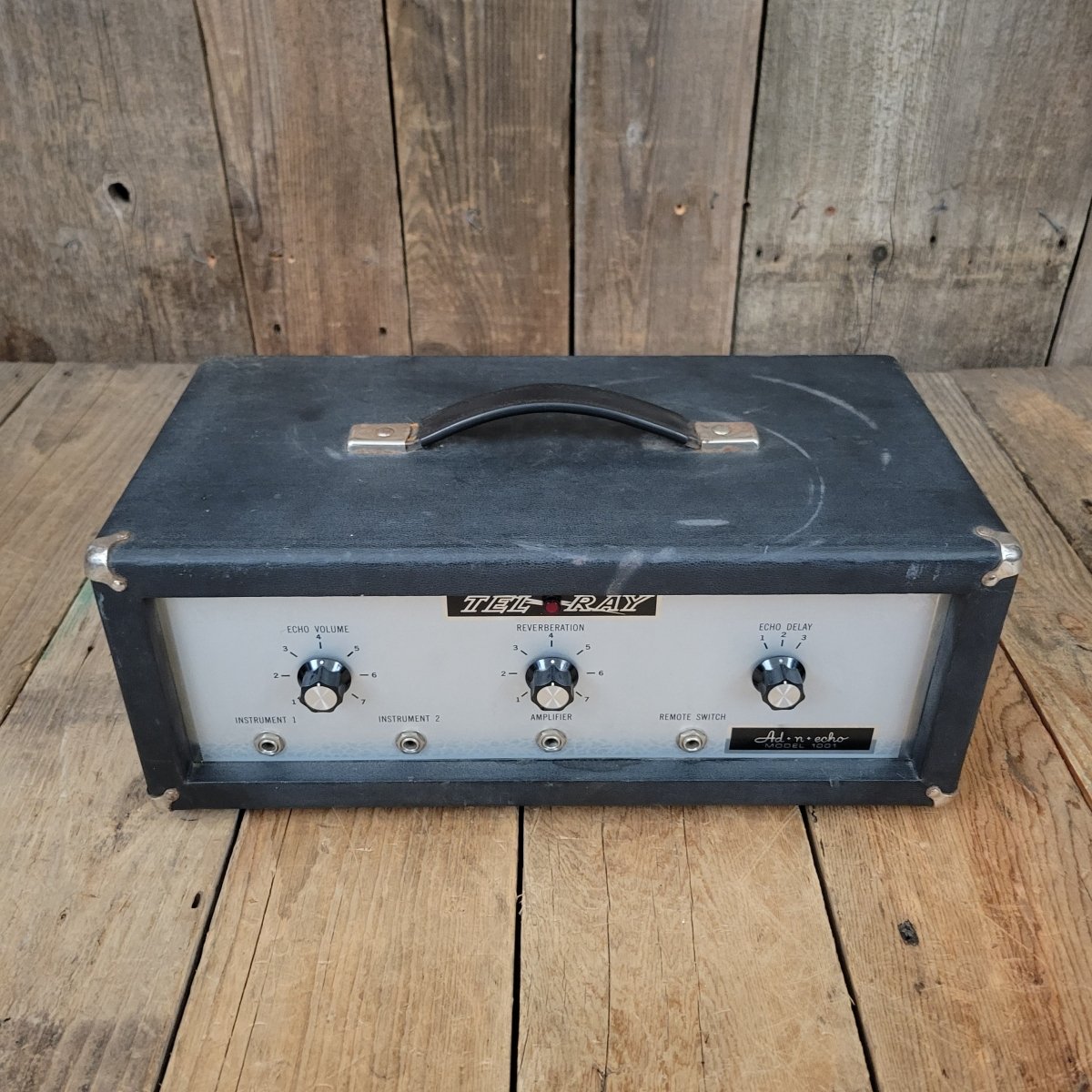

Here we have an early An-N-Echo by Tel Ray, the company that eventually because Morley.
The unit is in excellent functional condition, and it isn't too shabby cosmetically as well.
A great, trippy echo effect that isn't as over the top as you might think by looking at it. It is quite useable and fun to have around the shop.
Here's some history on the unit, stolen from elsewhere on the interwebz:
As guitarists, we’ve all been subject to gimmickry of some kind or another. Over the years, there’s been quite a handful of devices marketed to us from Velcro-laden stick-on accessories to a variety of gels and oils. And although that exact sentiment may ring true with you, even in this calendar year, the gimmickry was afoot well into guitar’s early days. If you think something like a directional cable is silly in the year 2021, imagine what kind of snake oil they were pushing back in guitar equipment’s salad days. One such invention was brought forth that remains an anomaly to this day, but definitely one of the best of the bunch. This is the Tel-Ray Ad-N-Echo.
Though you may not have heard of this unit, you’ve definitely seen its algorithms featured on multi-mode delays, and you’re probably familiar with its color scheme and how it permeates the effects world even today. Even if both of those are nos, I’m positive you’re aware of its place in effects history, if not by the Tel-Ray name, by the colloquial “oil-can delay.” It came to be known as this for its guts, which literally consisted of a can of oil with some other electronic bits and bobbins. Before we talk about what’s in the can, let’s dip back a little further in the effects timeline.
Evolved from modified reel-to-reel tape decks, the first mechanical delay device debuted in the ‘50s, with Ray Butts building them into a guitar amp, called the EchoSonic. Soon, many dedicated tape devices came out, such as the Echoplex. Binson released a magnetic drum echo, the Echorec; this device also included playback and record heads. Other devices came and went featuring both of these configurations, but in the ‘60s, two brothers—Ray and Marvin Lubow—created an entirely new way to delay a signal.
By the time this Ad-N-Echo came out, the first tape delays were starting to need real servicing because they were assembled with tons of moving parts. And with tons of moving parts comes tons of component wear. Musicians and studio guys alike were in constant search of replacement parts, which may have contributed to the sales of the Ad-N-Echo (Adineko). The idea of an easily-portable and less-finicky delay unit that didn’t need as much upkeep was one that many other companies saw as novel and as such, Adineko units were sold under several different brand names back then. Aside from that, it sounded unique and awesome—thick, moody repeats that seamlessly melted into one another.

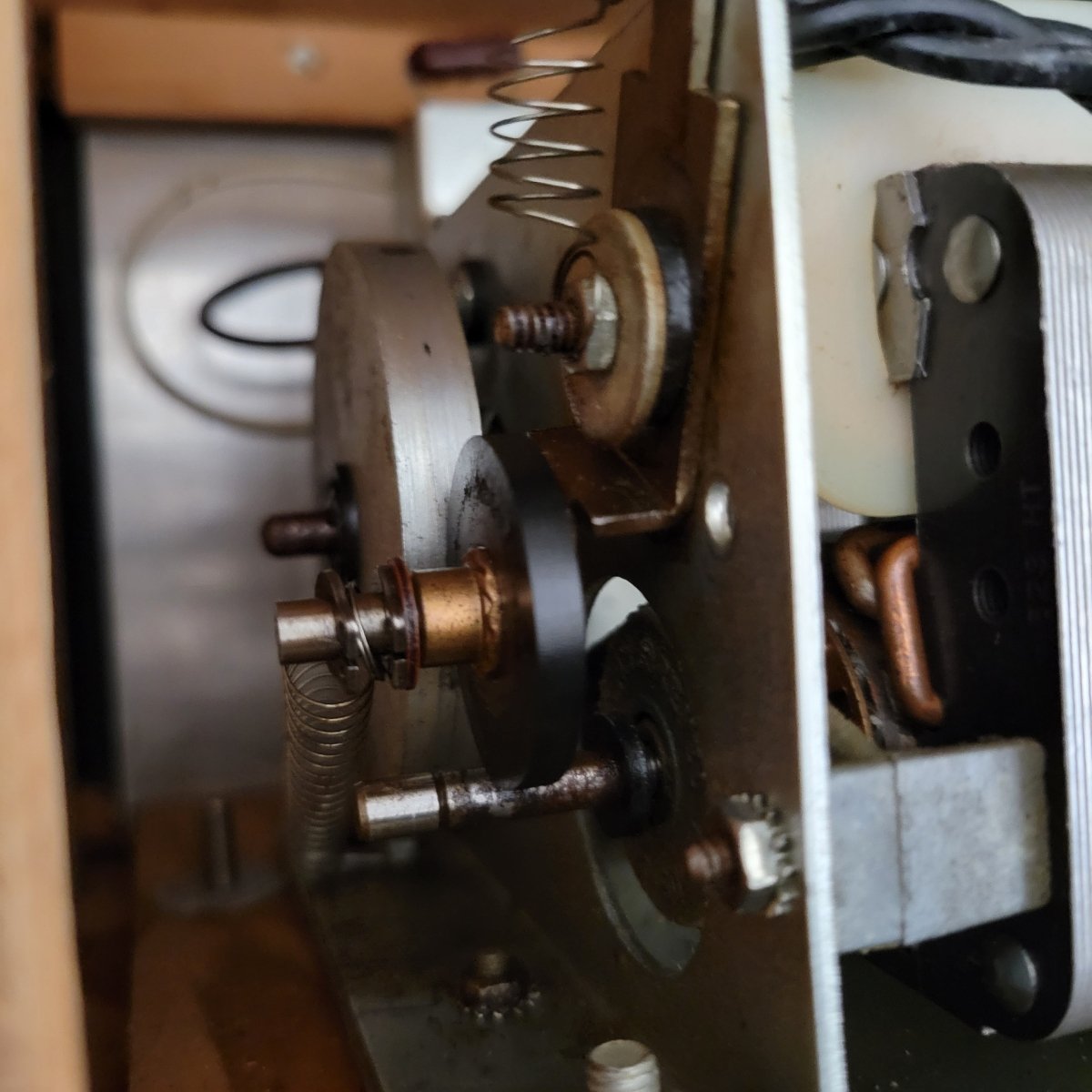

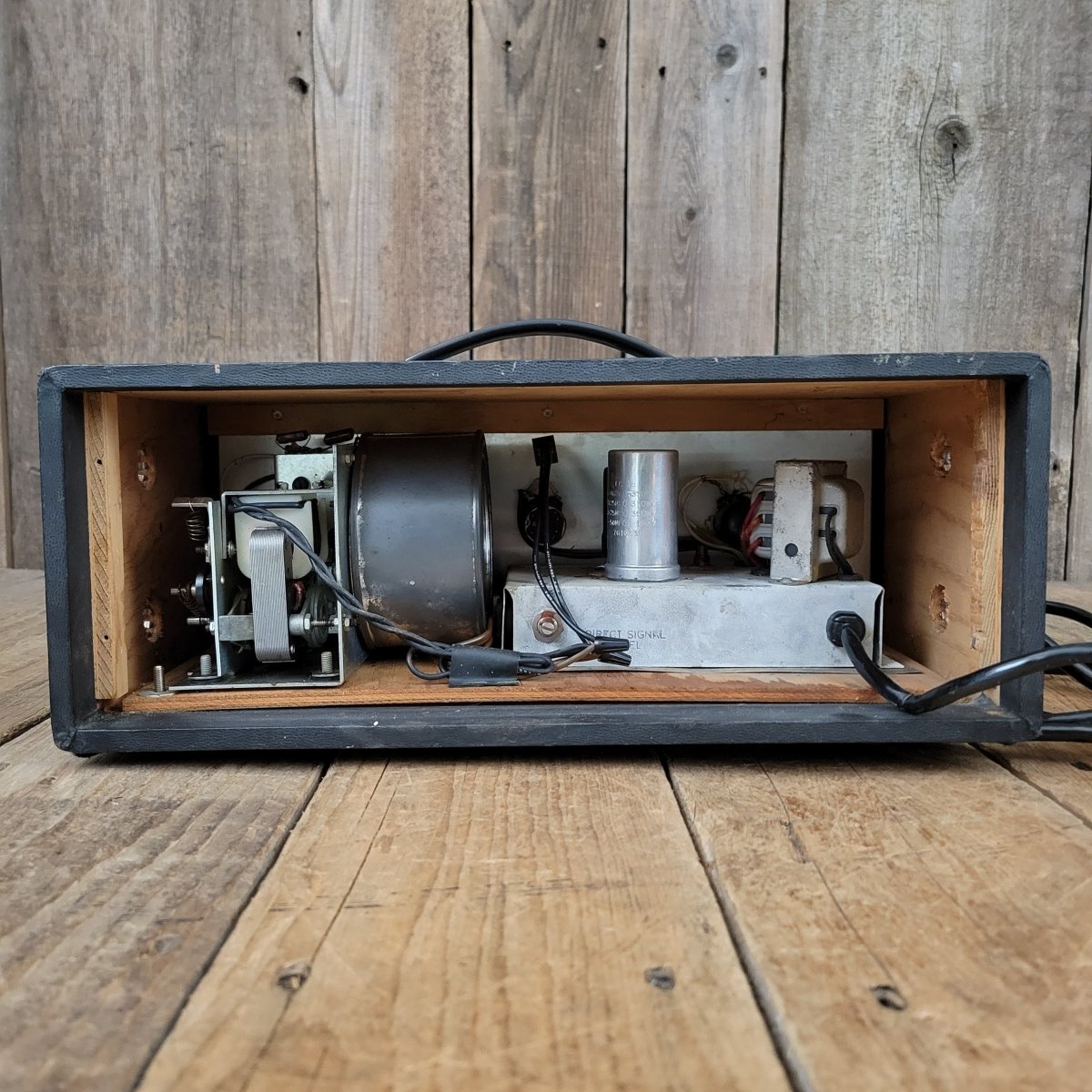

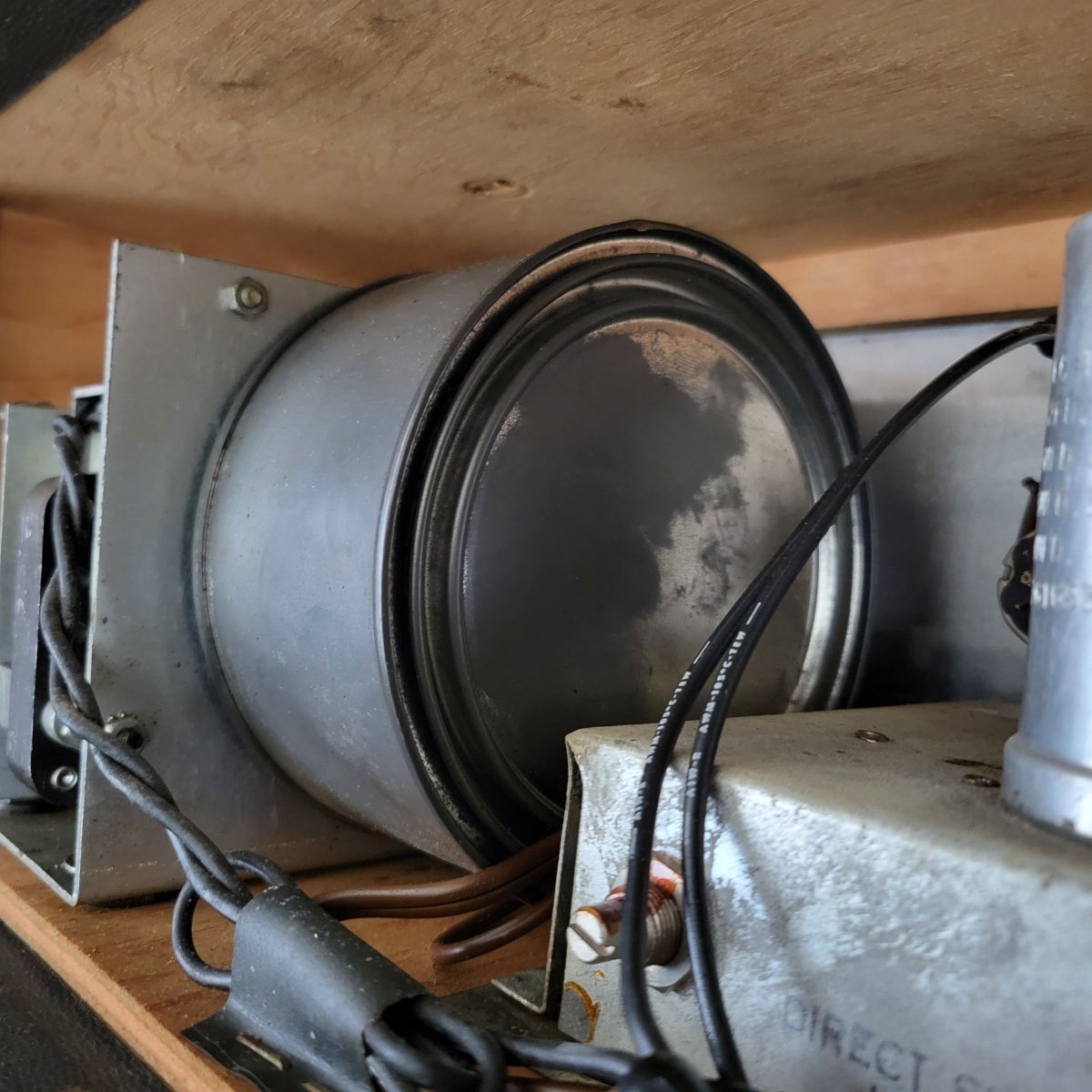

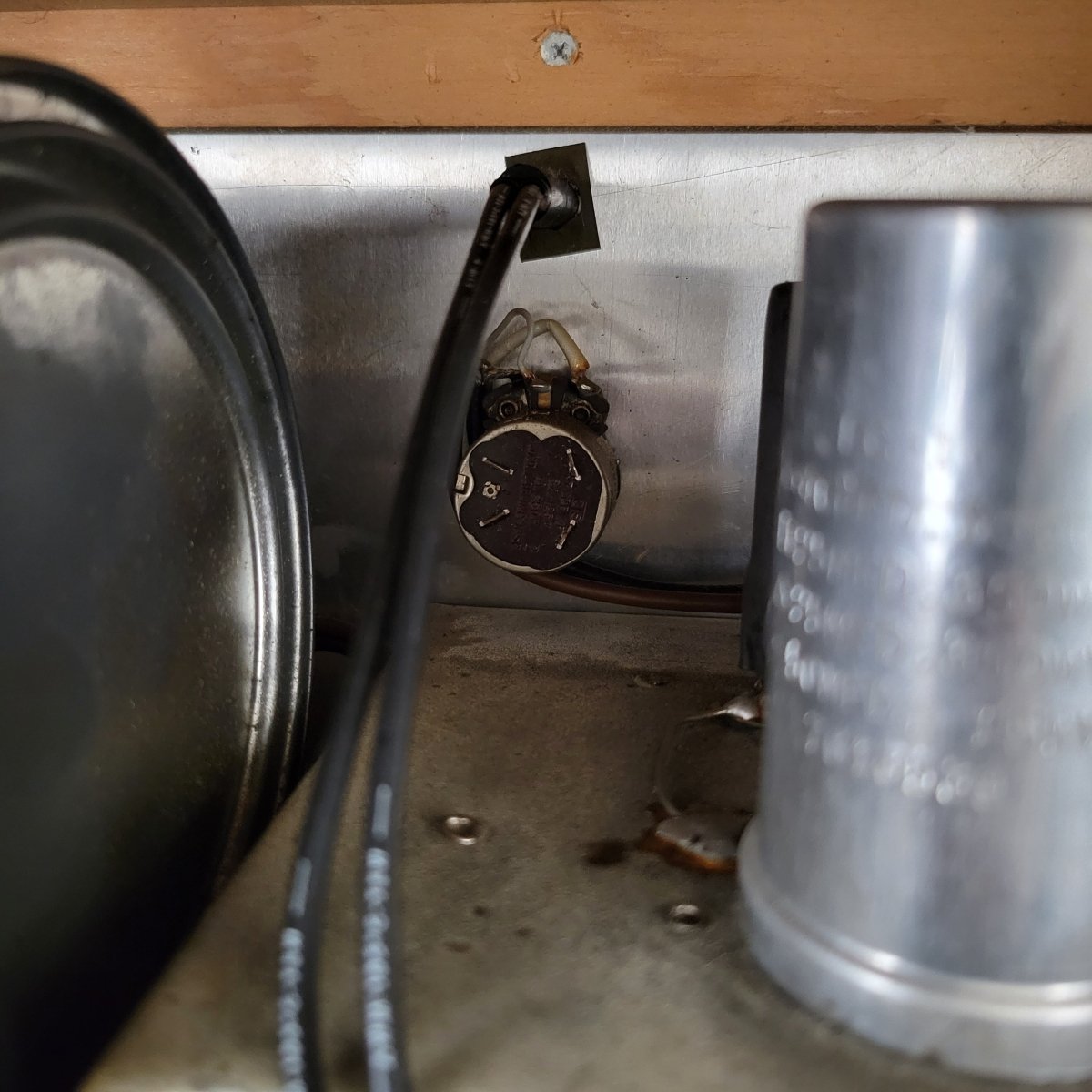

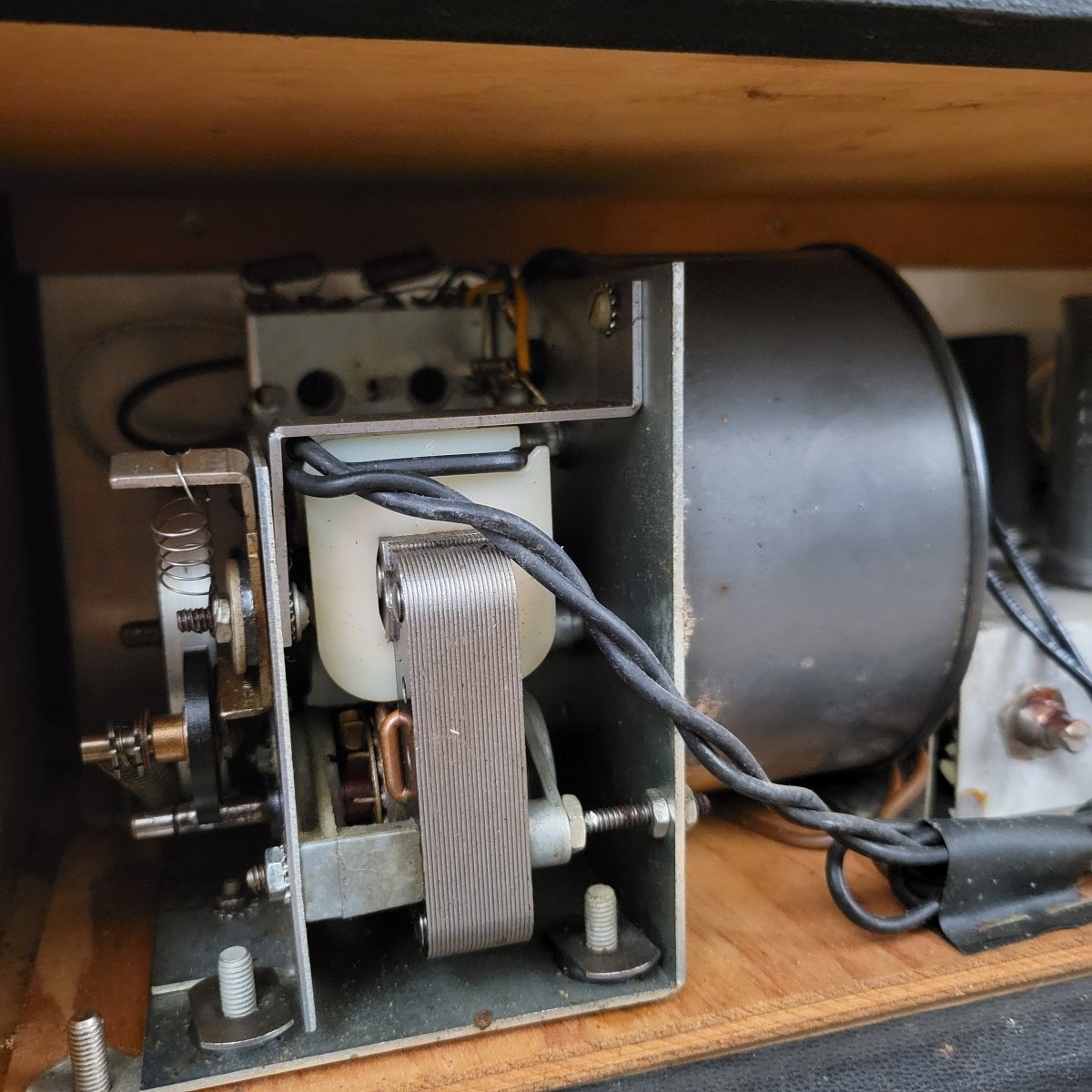

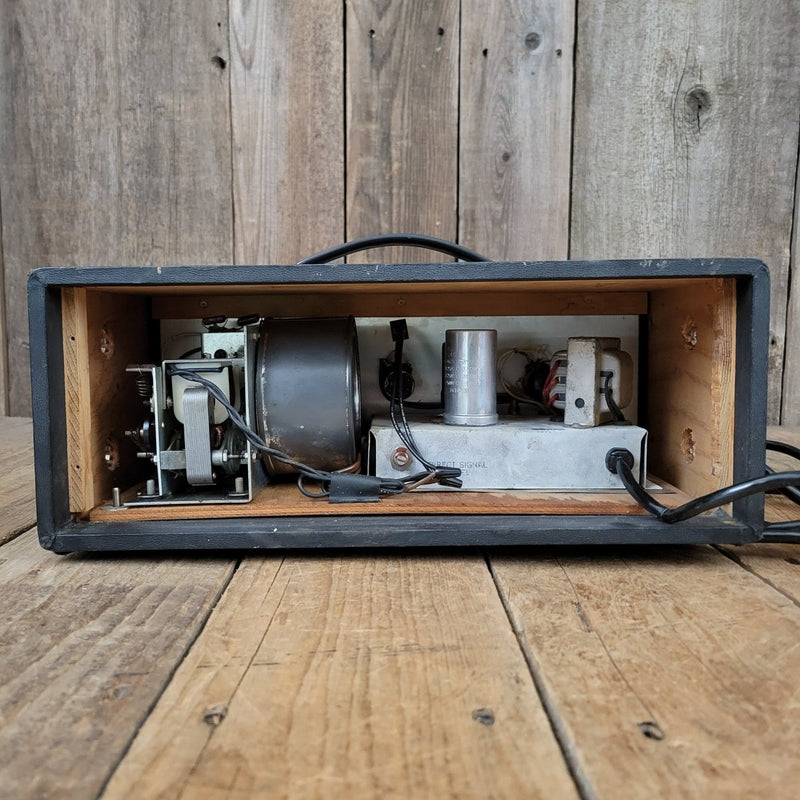

Opening up the back of the unit reveals a can-like device that’s filled with electrolytic oil and equipped with a motor, flywheel and pickup which rotates inside the can, generating echoes as the fluid rotates in the can. The input signal is applied to the rubber belt via a charged wire brush, which then rotates with the motor and deposits a stored voltage onto the belt. Normally this charge would be lost to the surrounding oxygen but the oil keeps the stored charge on the belt and into the rest of the circuit.
As the Adineko technology progressed, Tel-Ray eventually discovered a way to emulate a Leslie rotating speaker using the Adineko. Not ones to be short on jokes, the Lubow brothers changed the name of Tel-Ray to Morley as a pun on the Leslie name (it’s “more”-lie, not “less”-lie, har har). This was perhaps more impactful than the delay, as real Leslies were cumbersome and extremely unwieldy.
Shipping policy:
Shipments will require signature on delivery, no exceptions. If there is damage, the buyer must retain all packing materials intact and picture them immediately and send them to sales@maharsvintageguitars.com. Less than 1% of our shipments are damaged in transit, and we are committed to making sure your item arrives safely, but we are taking these additional measures to make sure you are happy with your purchase.
Tel Ray Ad-N-Echo Model 1001 Adineko Delay Reverb Unit Oil Can Echo 1960s
From the Wiki page about oil can delays:
"The effect resembles an echo, but the whimsical nature of the storage medium causes variations in the sound that can be heard as a vibrato effect. Some early models featured control circuitry designed to feed the output of the read wiper to the write head, causing a [subtle] reverberant effect as well."
