SOLD - Fender Vibroverb AA763 Fender Electric Instrument Co FEIC Pre CBS 1964

Shipping calculated at checkout.


Who buys vintage guitar amps?  We do!

Call 530-570-1525 or email to sell your vintage guitar amp, guitar, bass, amplifier, etc - one piece or a collection!  We are always ready to buy instruments, amps and effects from Fender, Gibson, Martin, Epiphone, Rickenbacker, Gretsch, Marshall, Vox and just about anything else related to musical instruments.   You can also click here for more info on selling us vintage instruments, amps, parts, etc.

No Sales Tax For Customers Outside Of California.

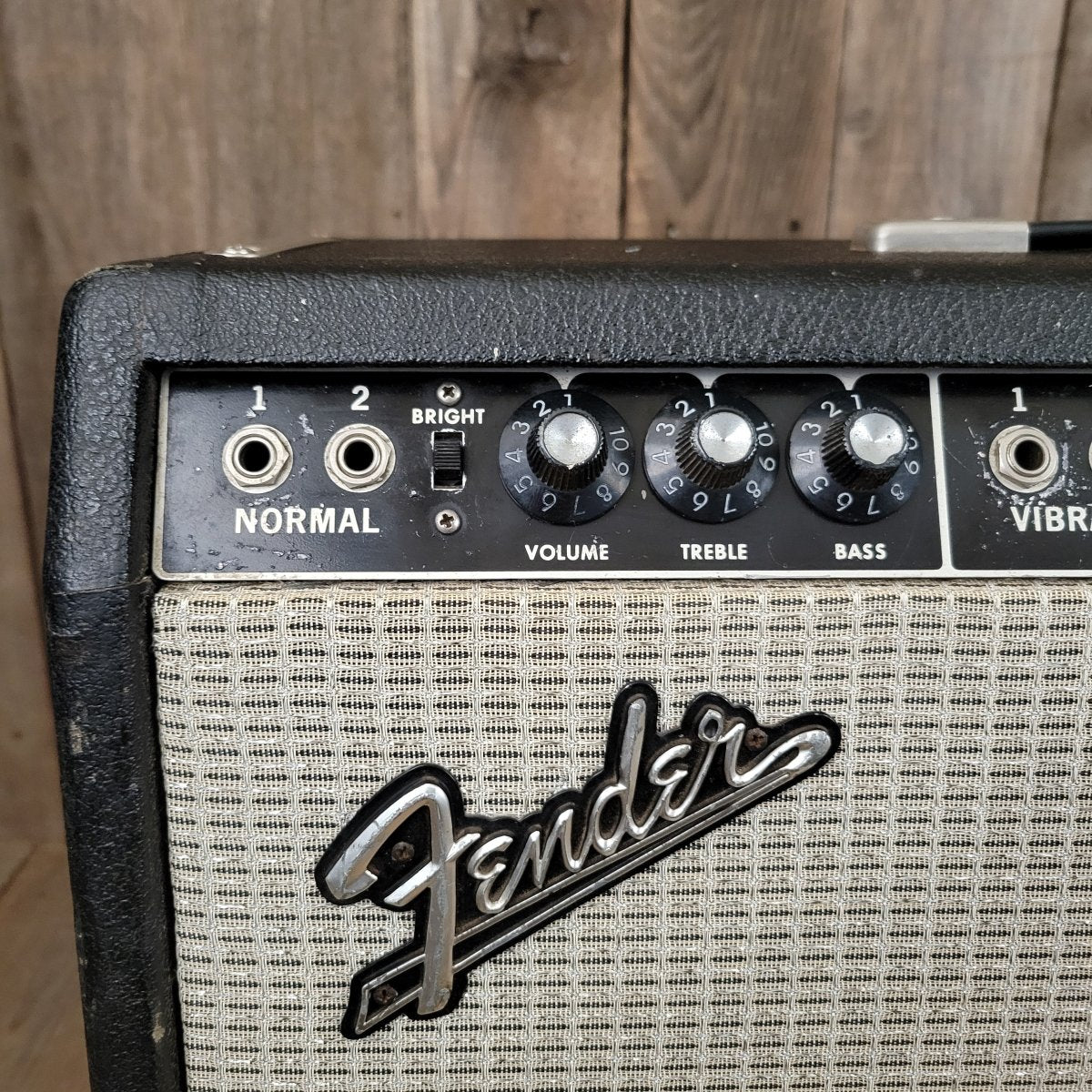

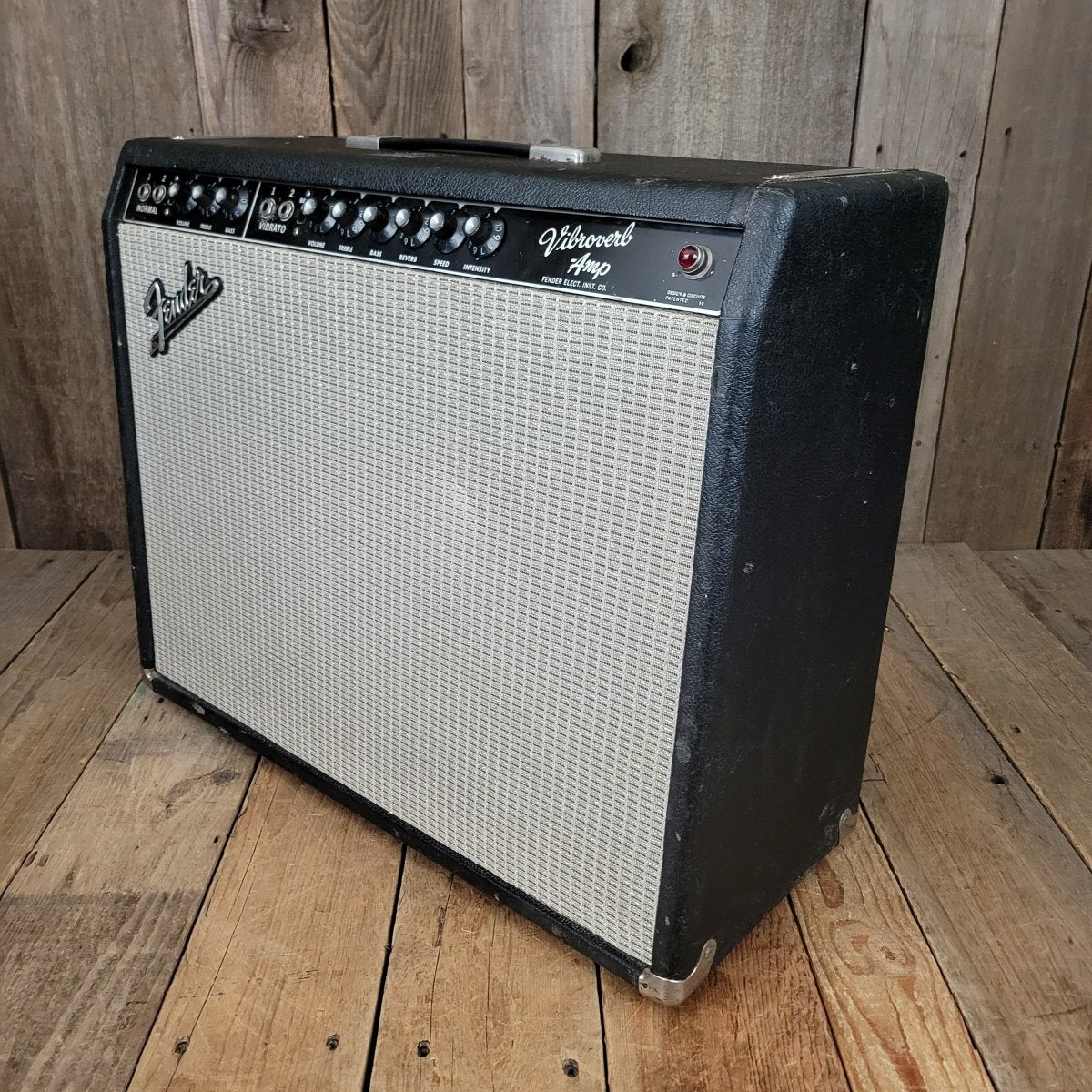

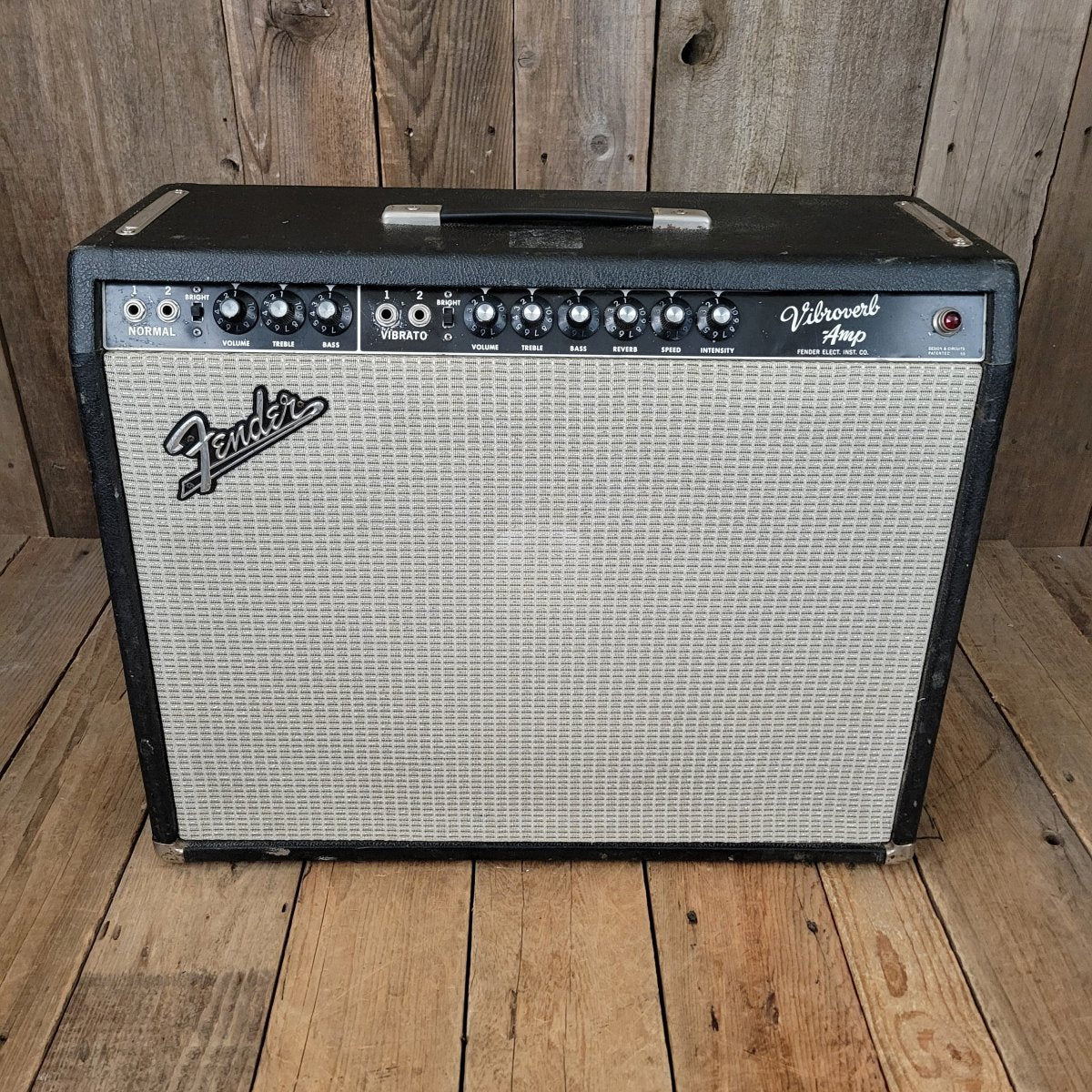

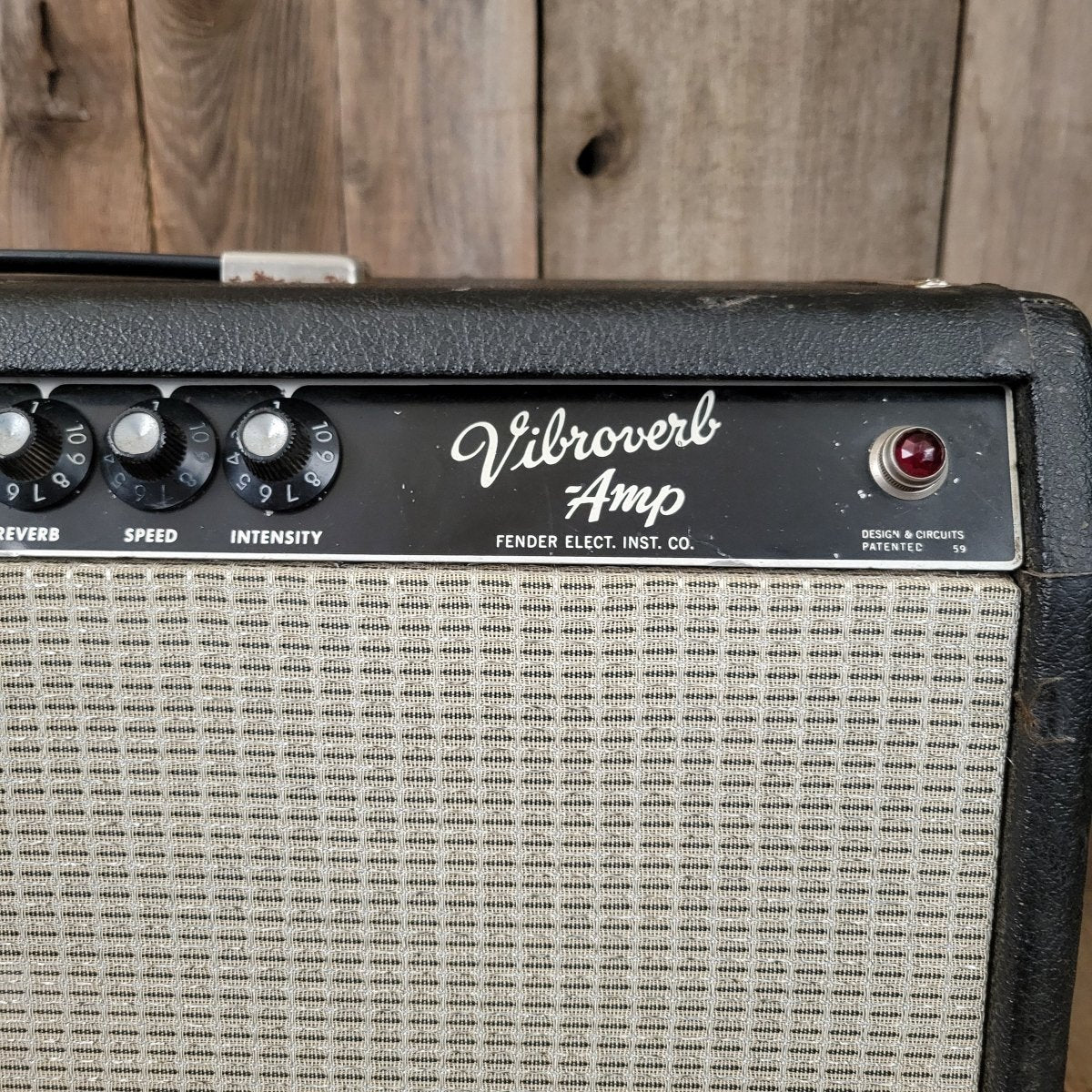

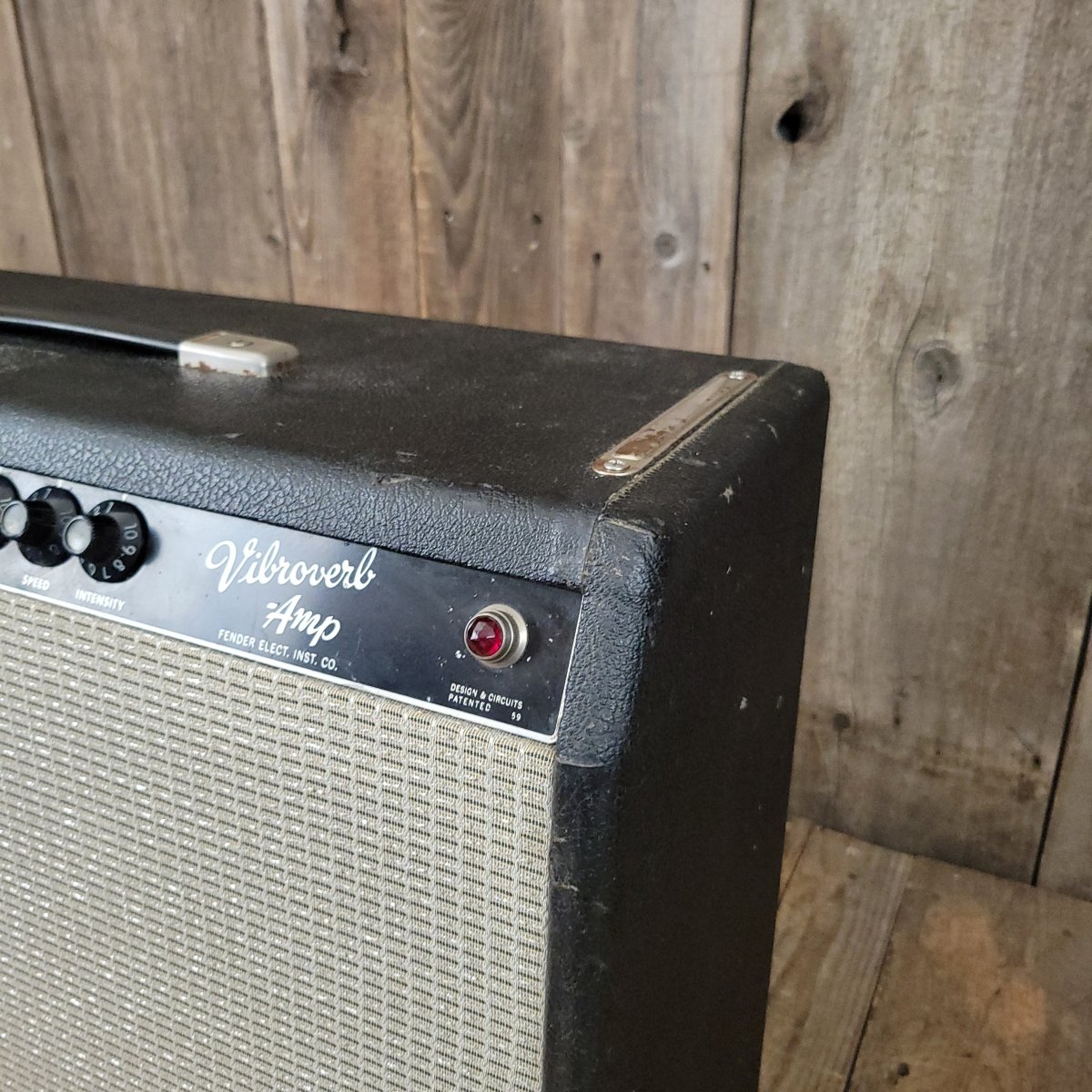

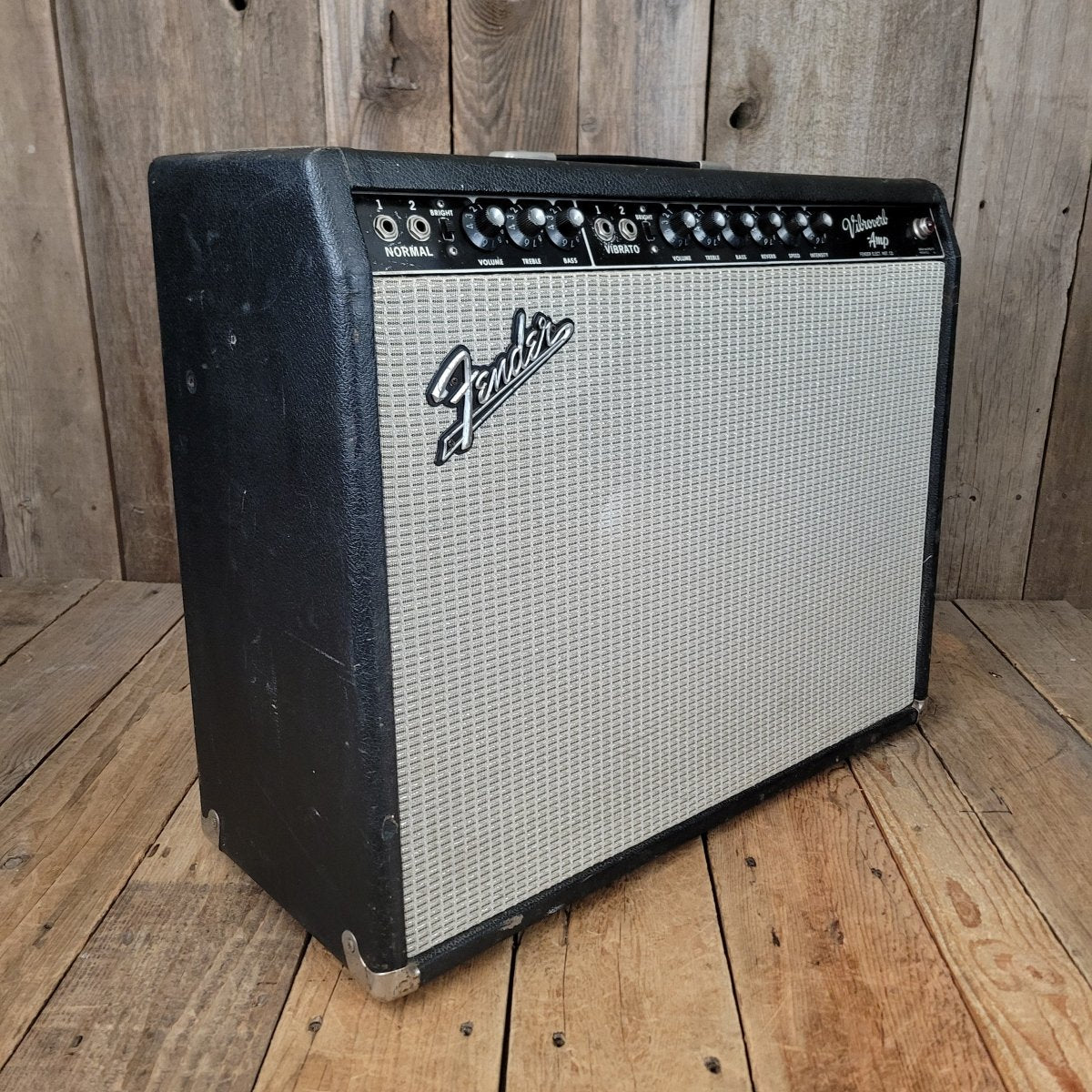

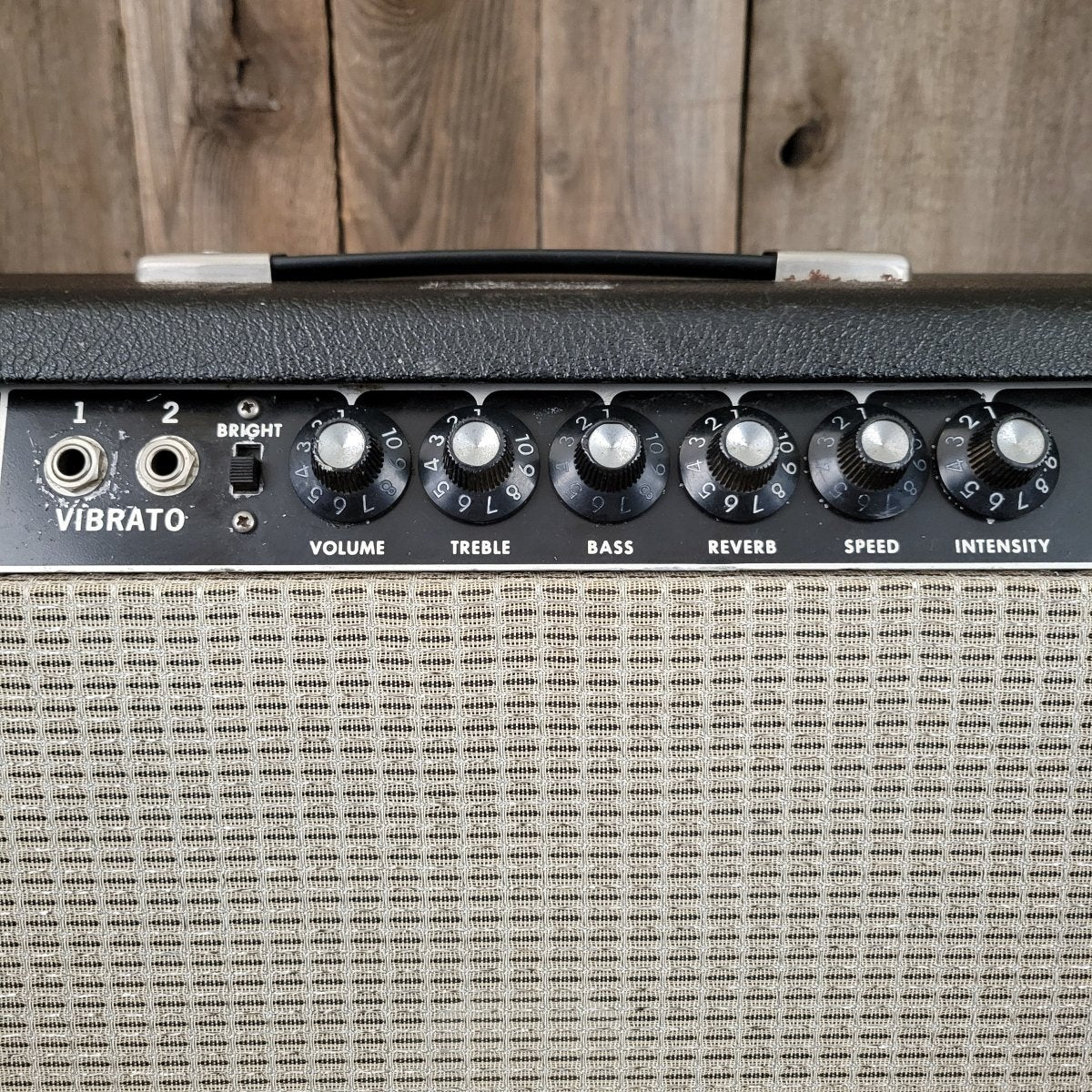

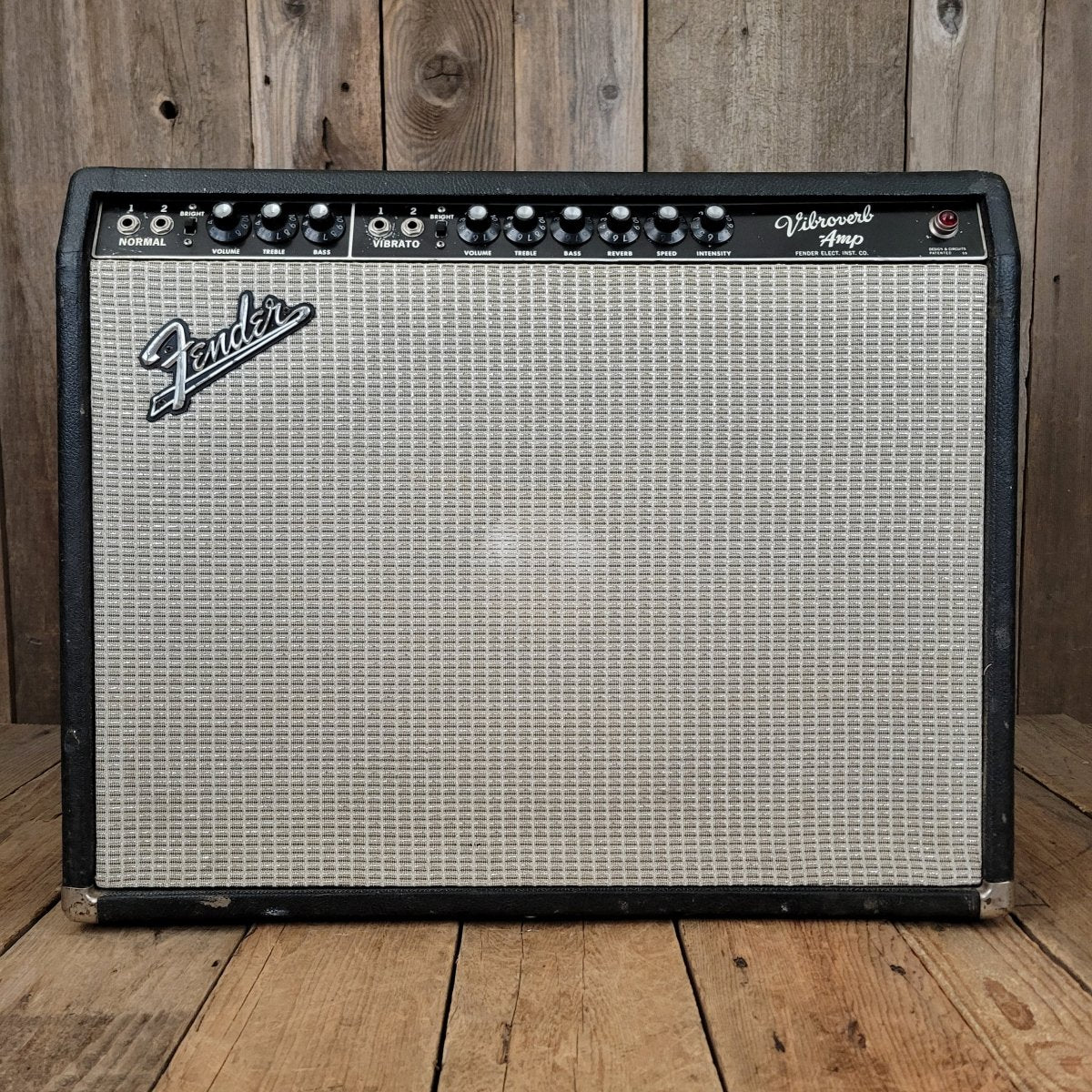

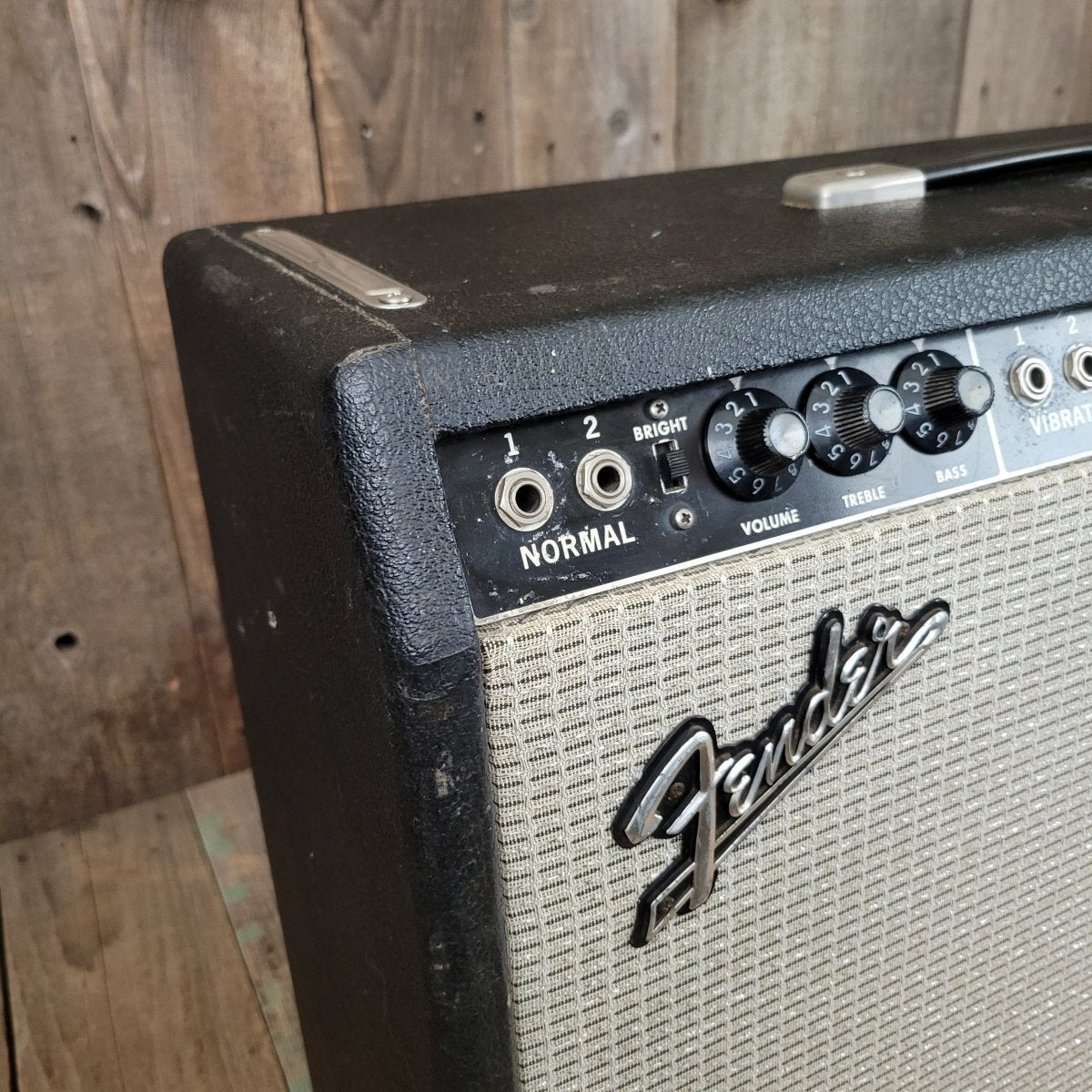

The Fender Vibroverb AA763 is one of the most sought after of the black panel amps.  This is a nice one that has had a little work done, allowing us to price it for mortals.

The amp runs great.  The reverb is deep as it goes. The tone is big and glassy, thanks in part to the original JBL speaker.

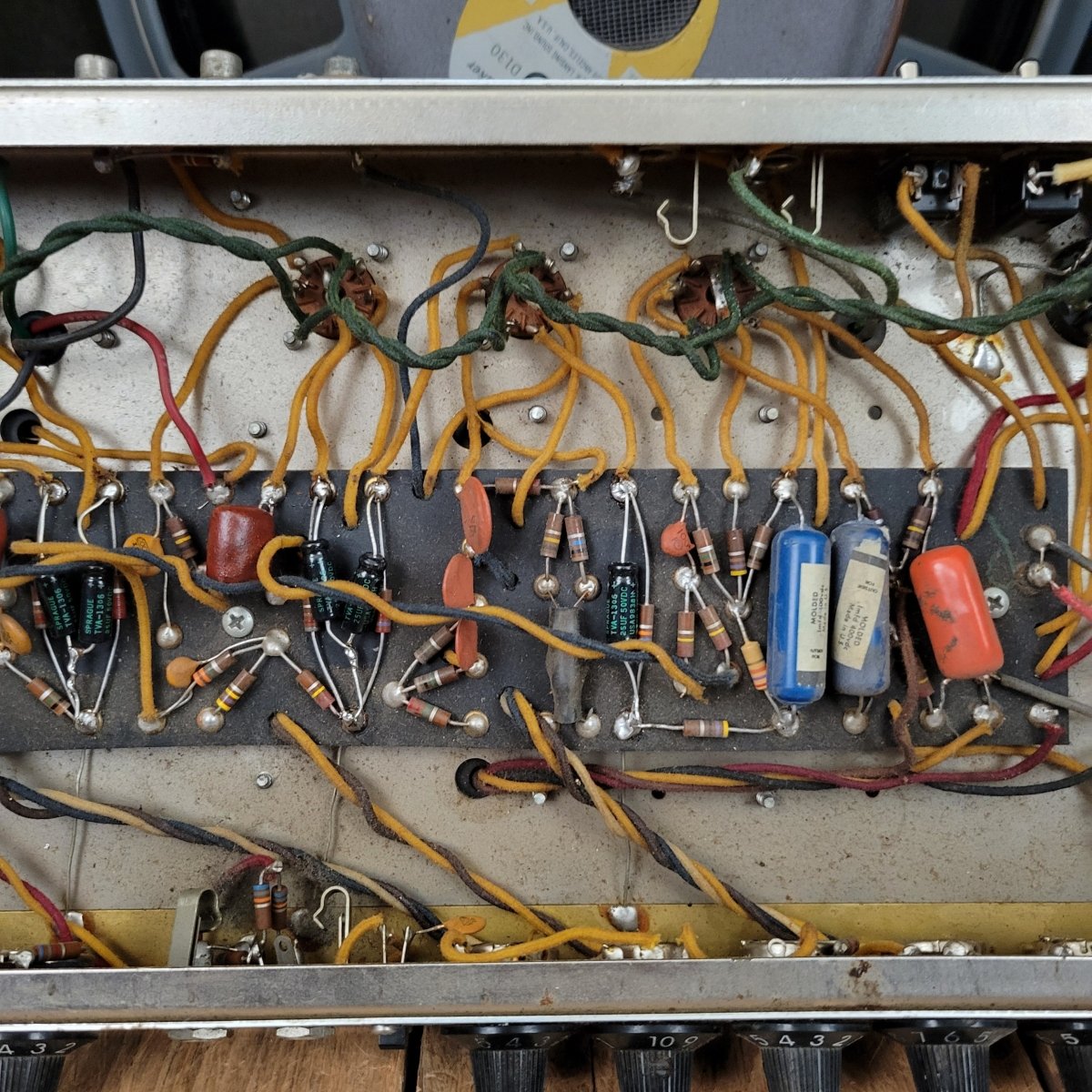

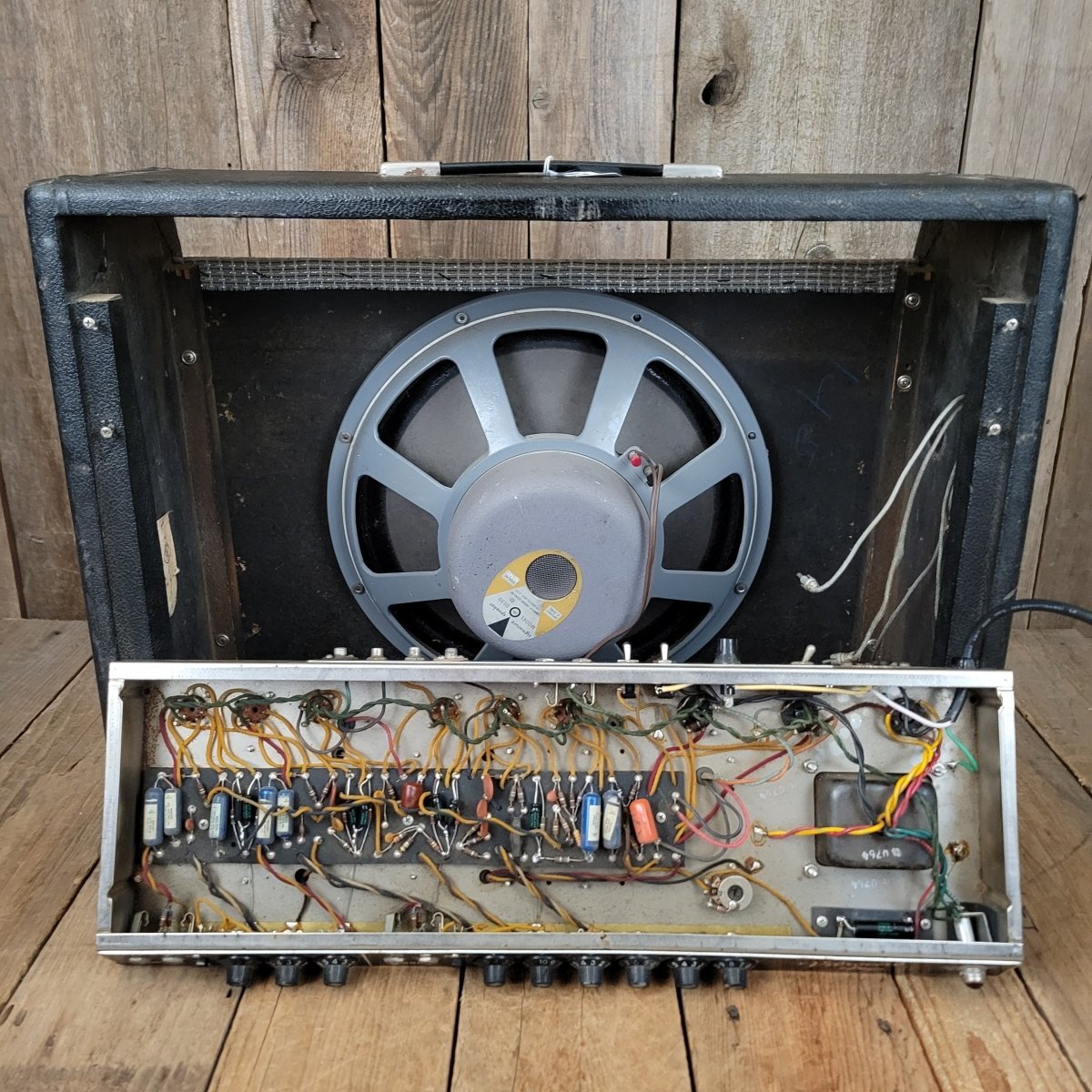

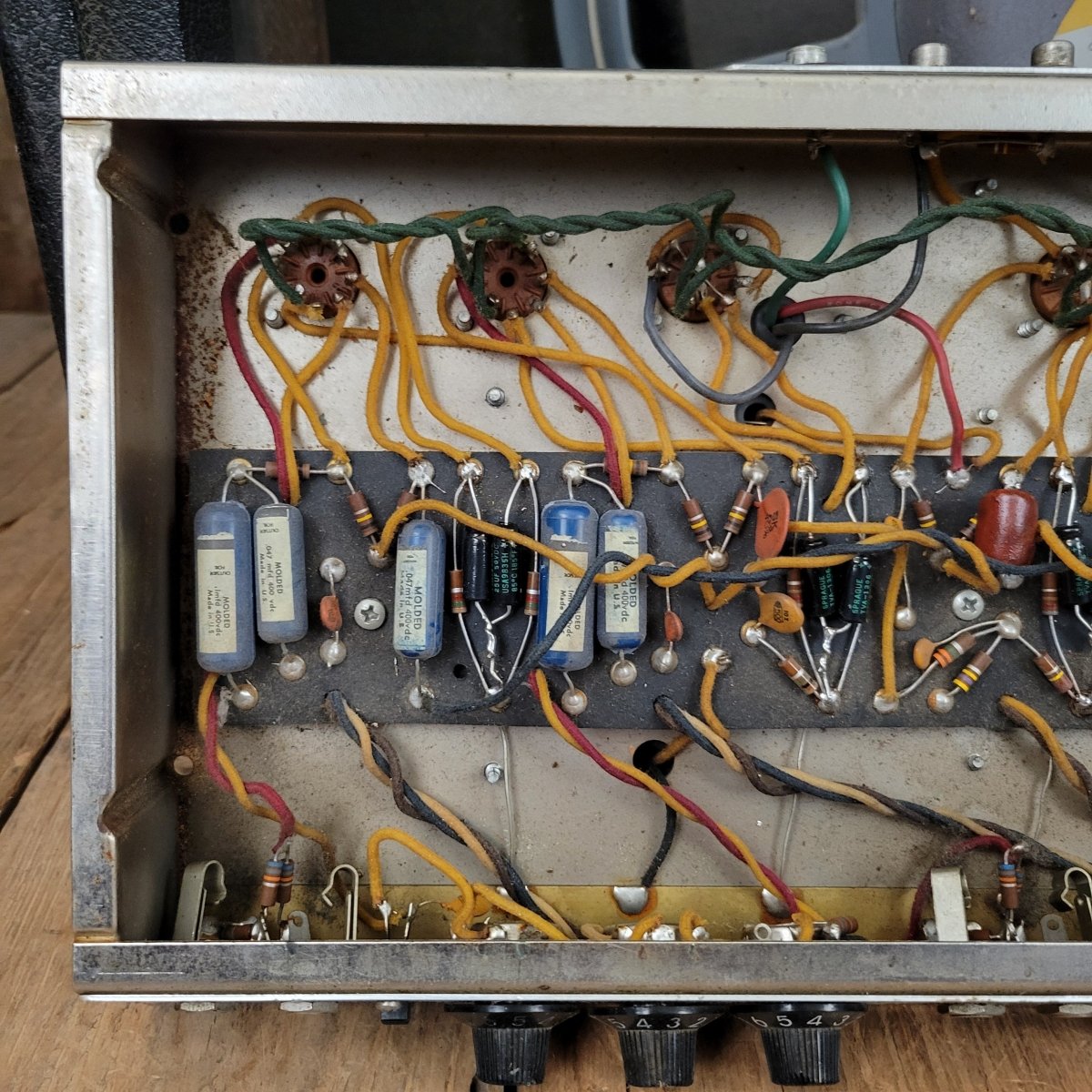

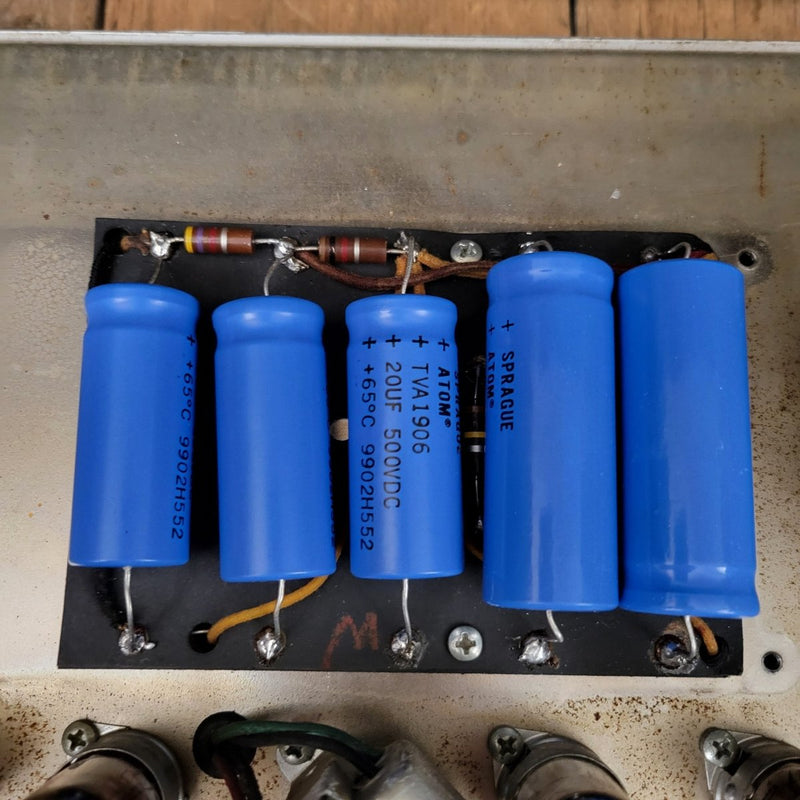

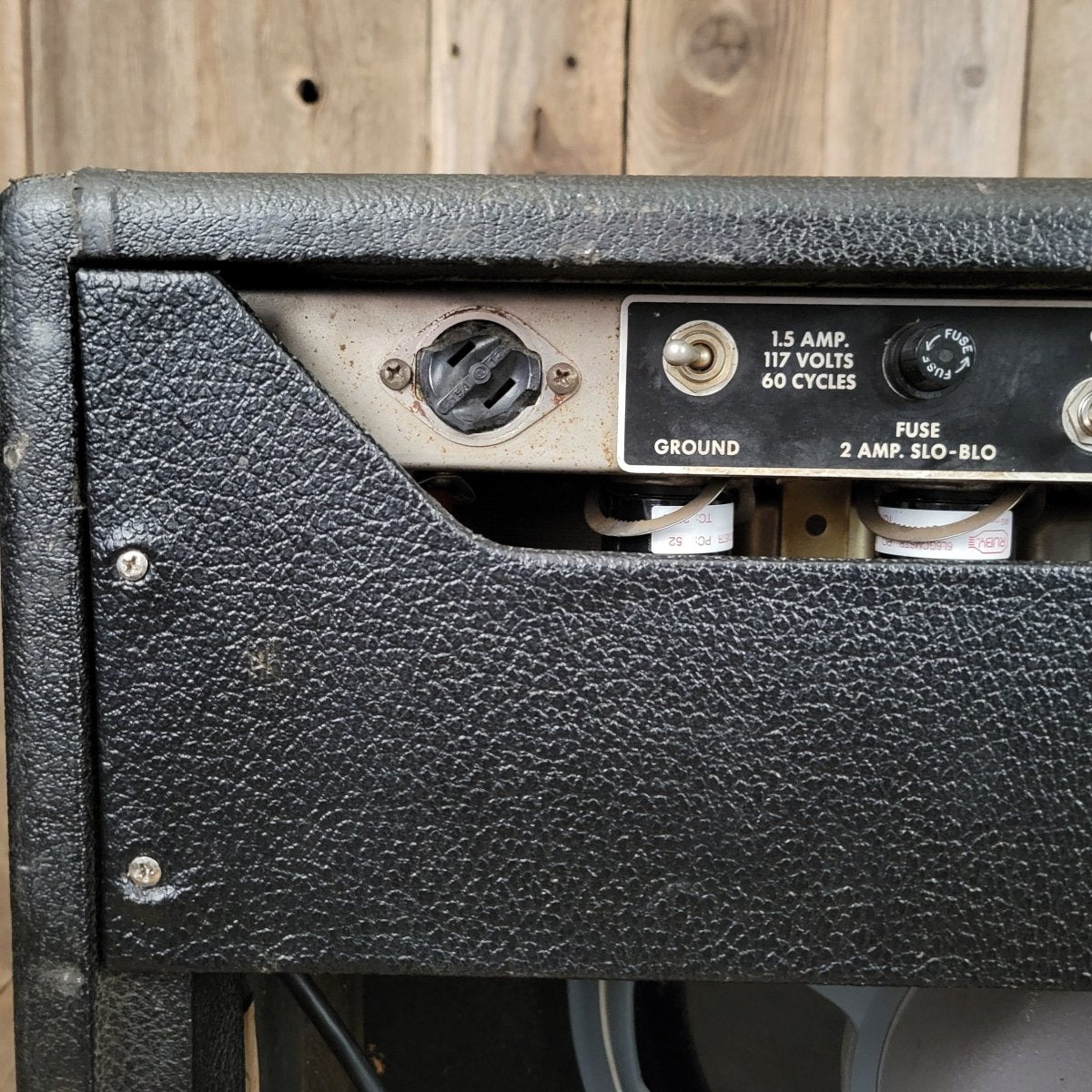

It has seen some beneficial service.  The filter caps have been changed and I just put a new, grounded power cord in - bypassing the ground switch and "death cap".  Electrolytics in the circuit were updated before the amp came to us.

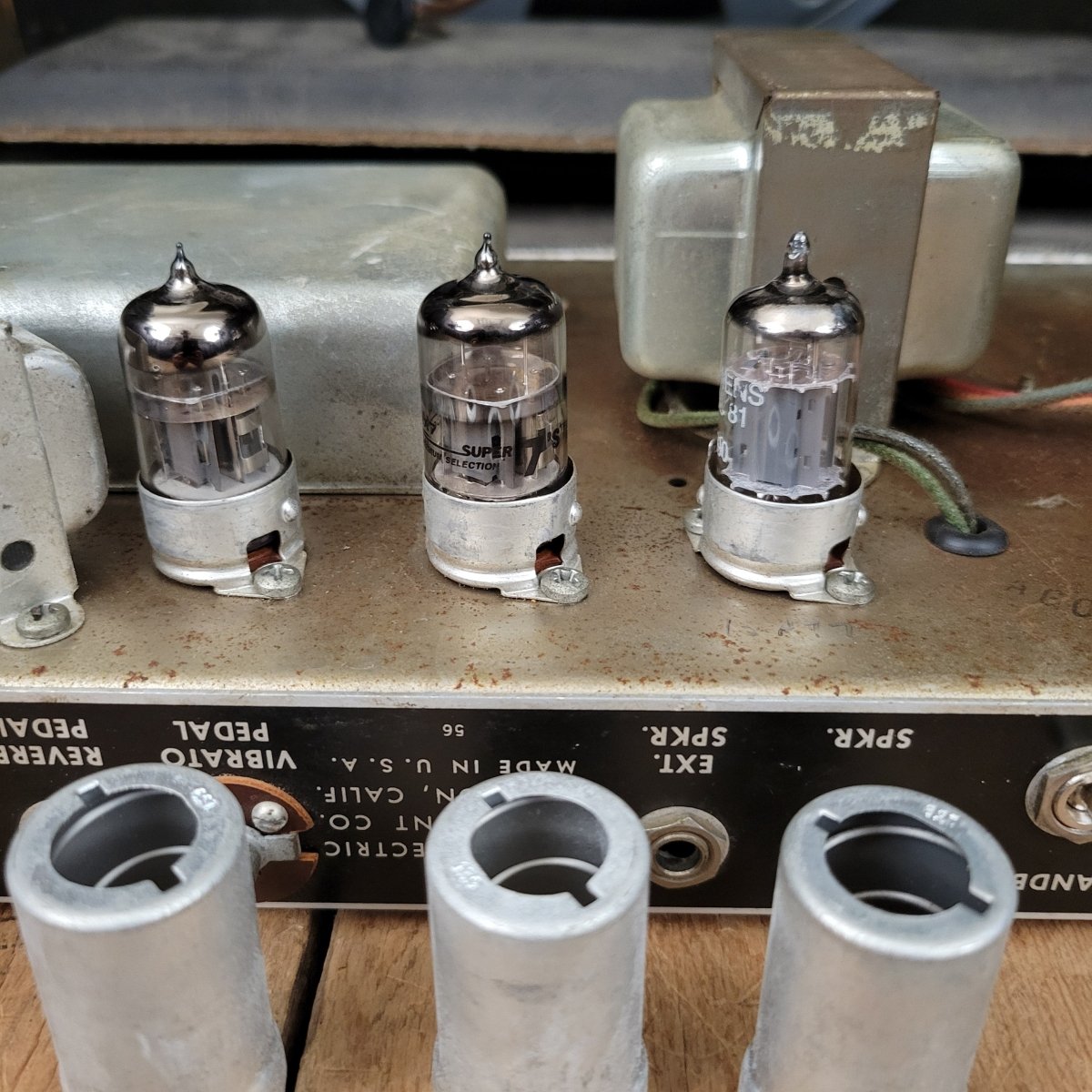

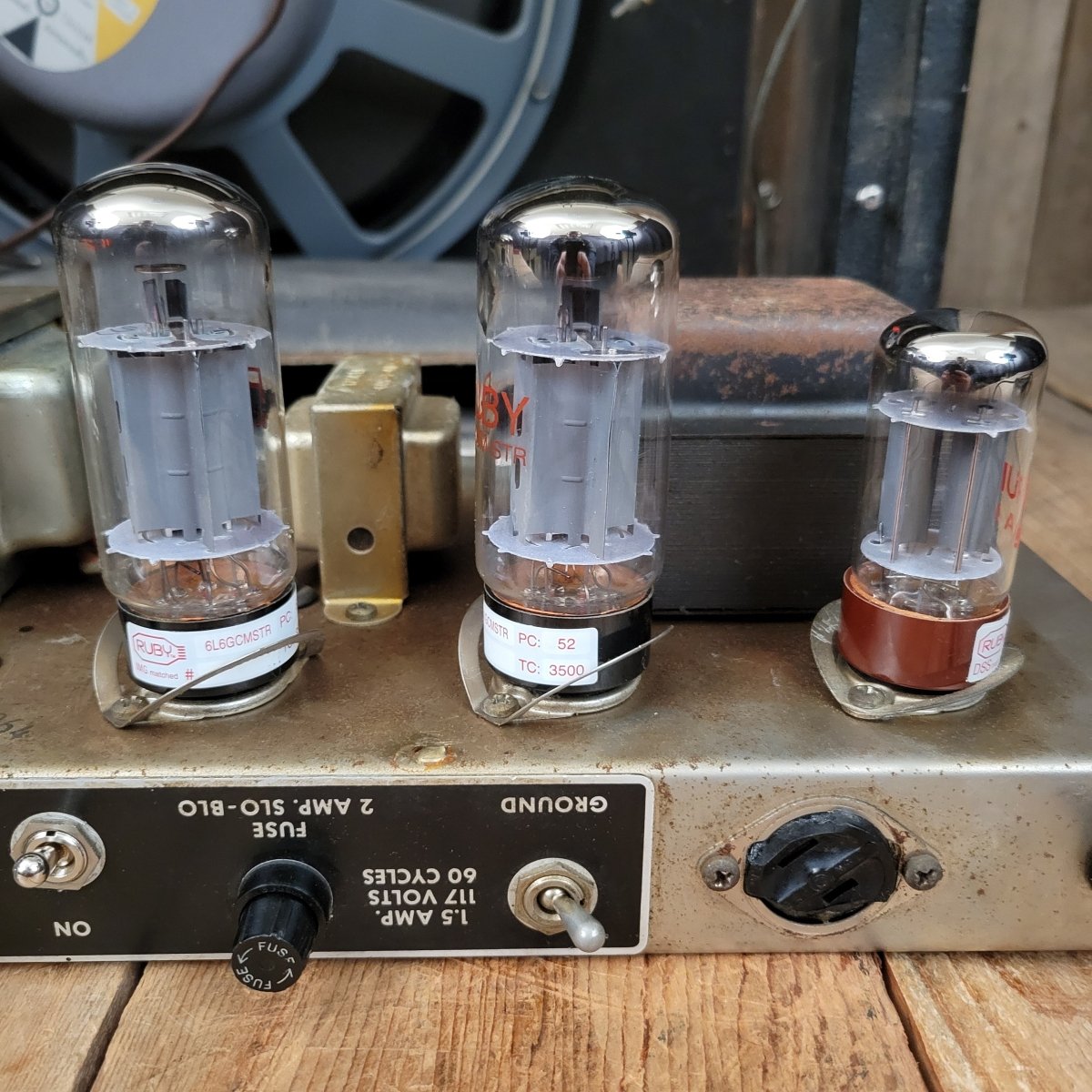

Since these pictures were taken, I replaced the first preamp tube with a Tung Sol reissue 12ax7 and the power tubes with a pair of Sovtek 5881s.  The tubes were just a bit worn and not sounding quite right.  It was a nice improvement.

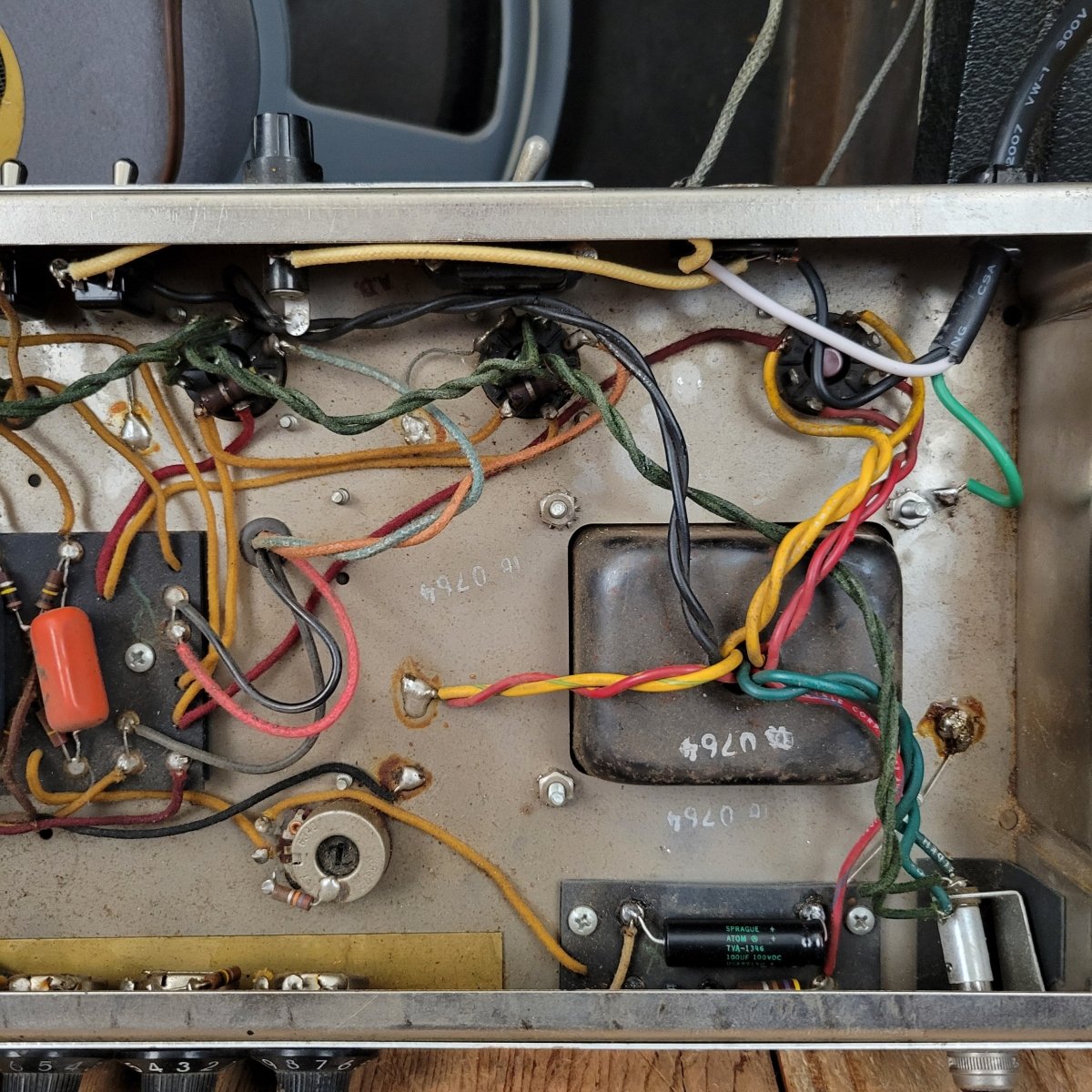

The output transformers in Vibroverbs were under-spec'd from the start, so as you'll see on many of these, the OT is changed.  The replacement is a 1962 Bandmaster output transformer, so it could be worse!  The rest of the transformers are original.

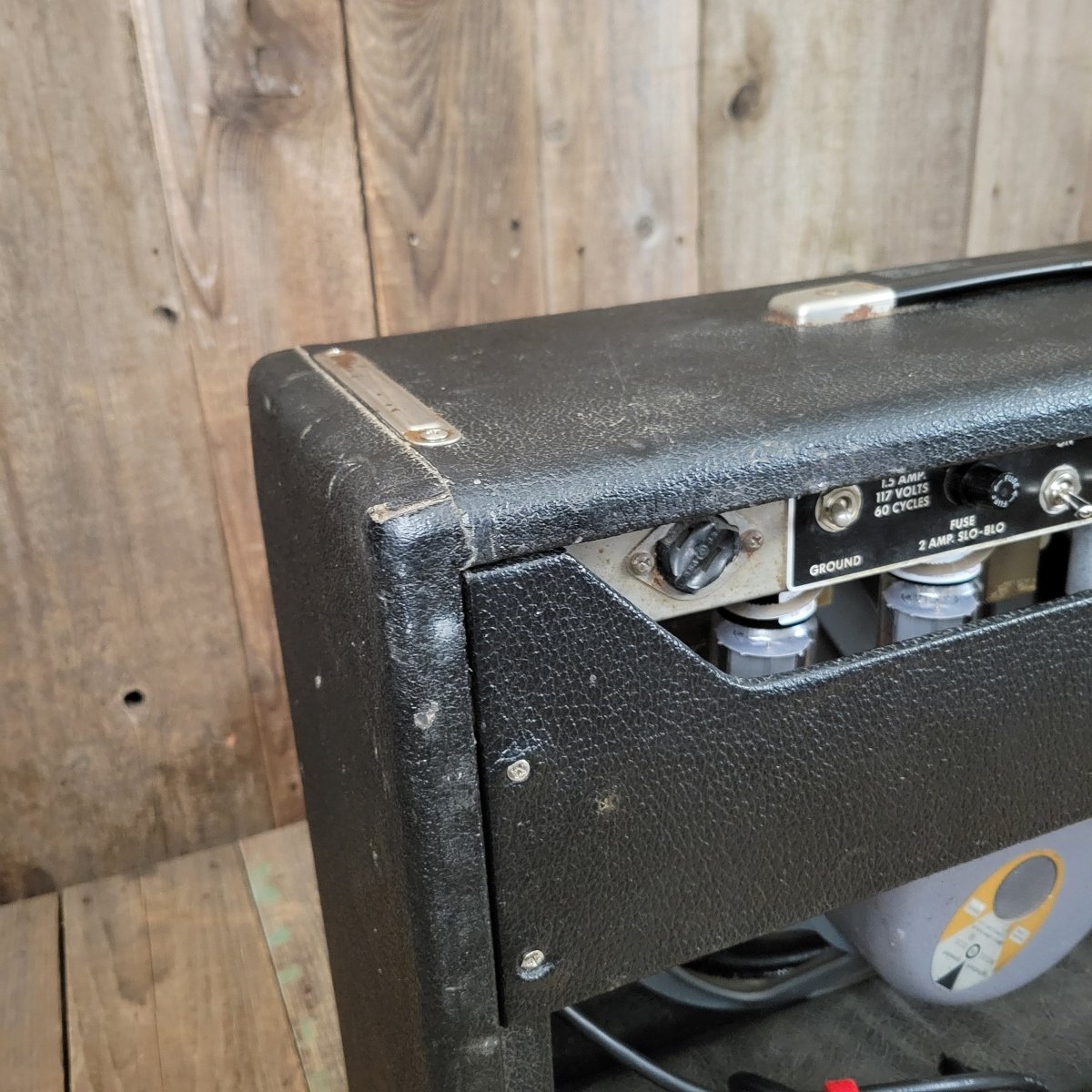

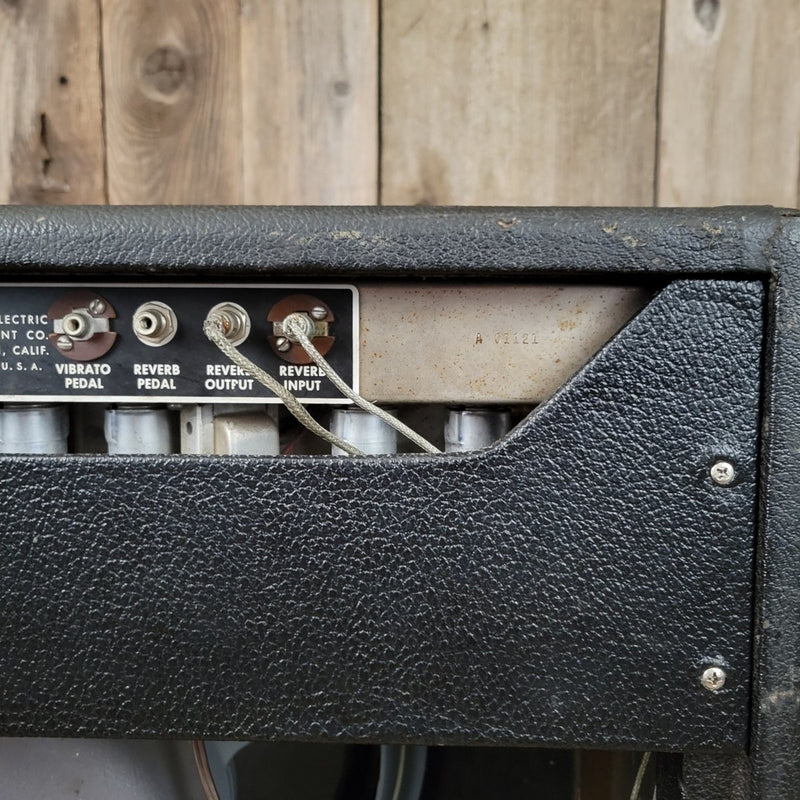

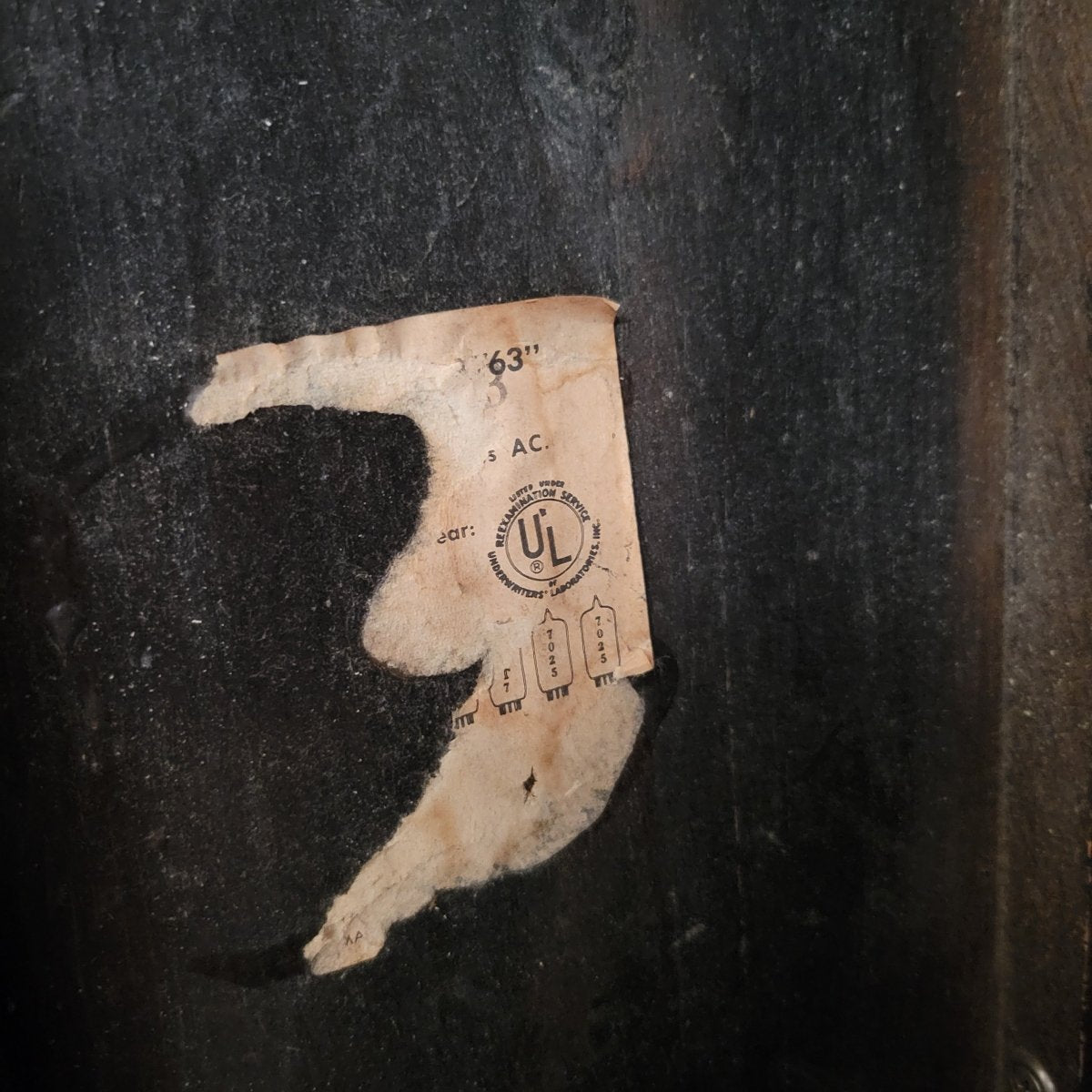

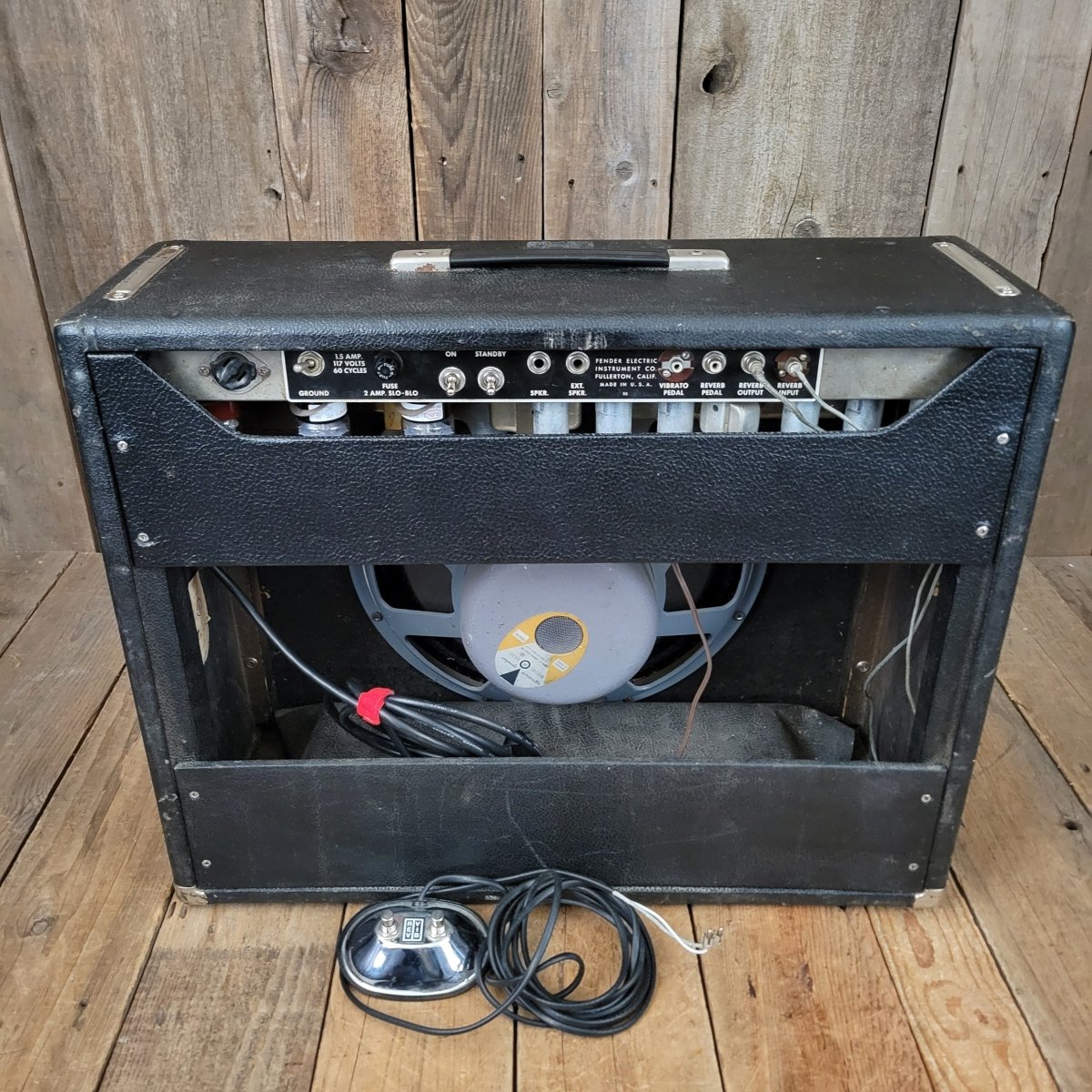

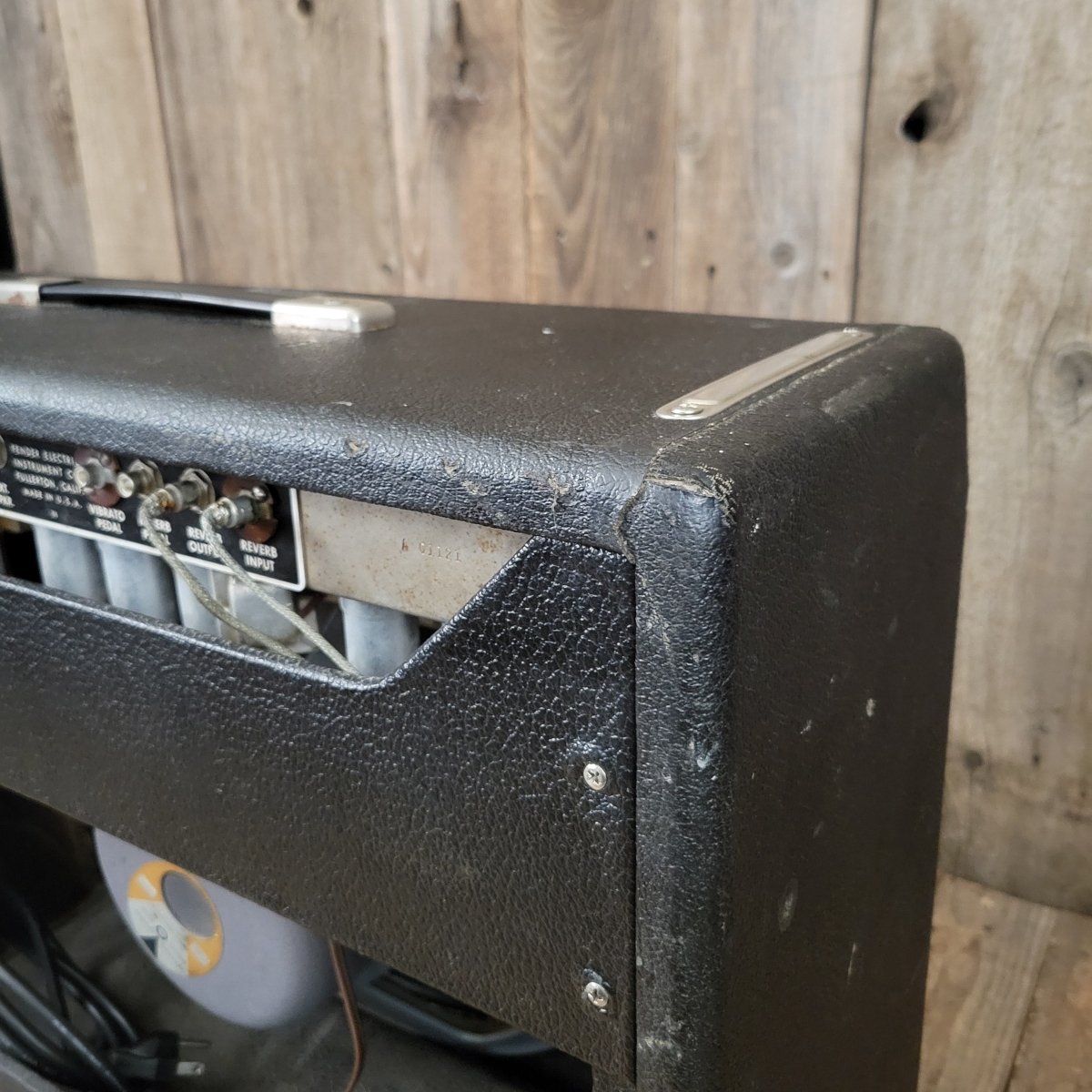

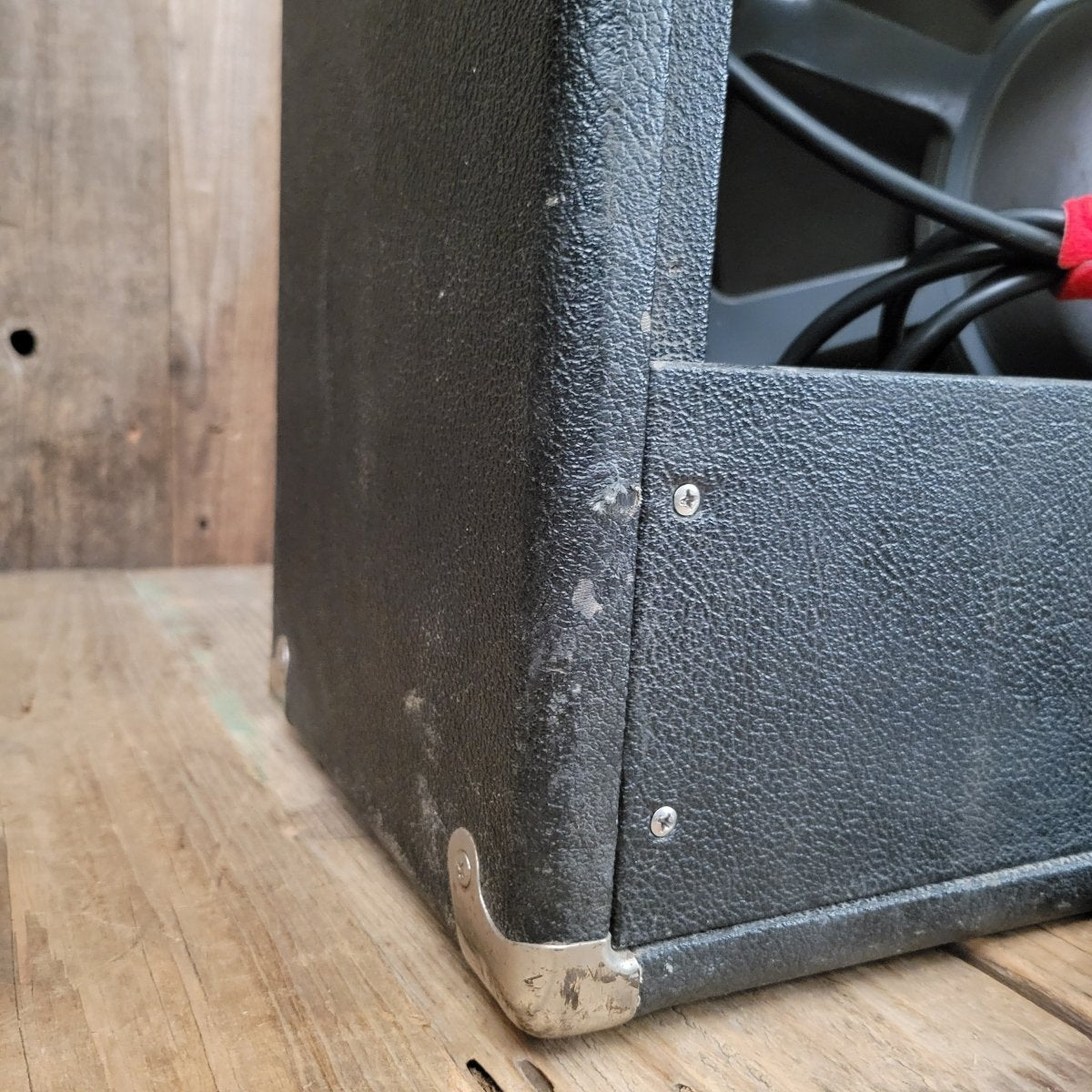

The tube chart was torn years ago, with just a shard remaining.  The upper back panel is a replacement.  The pedal is a recent Fender reproduction.

That is the extent of the changes.

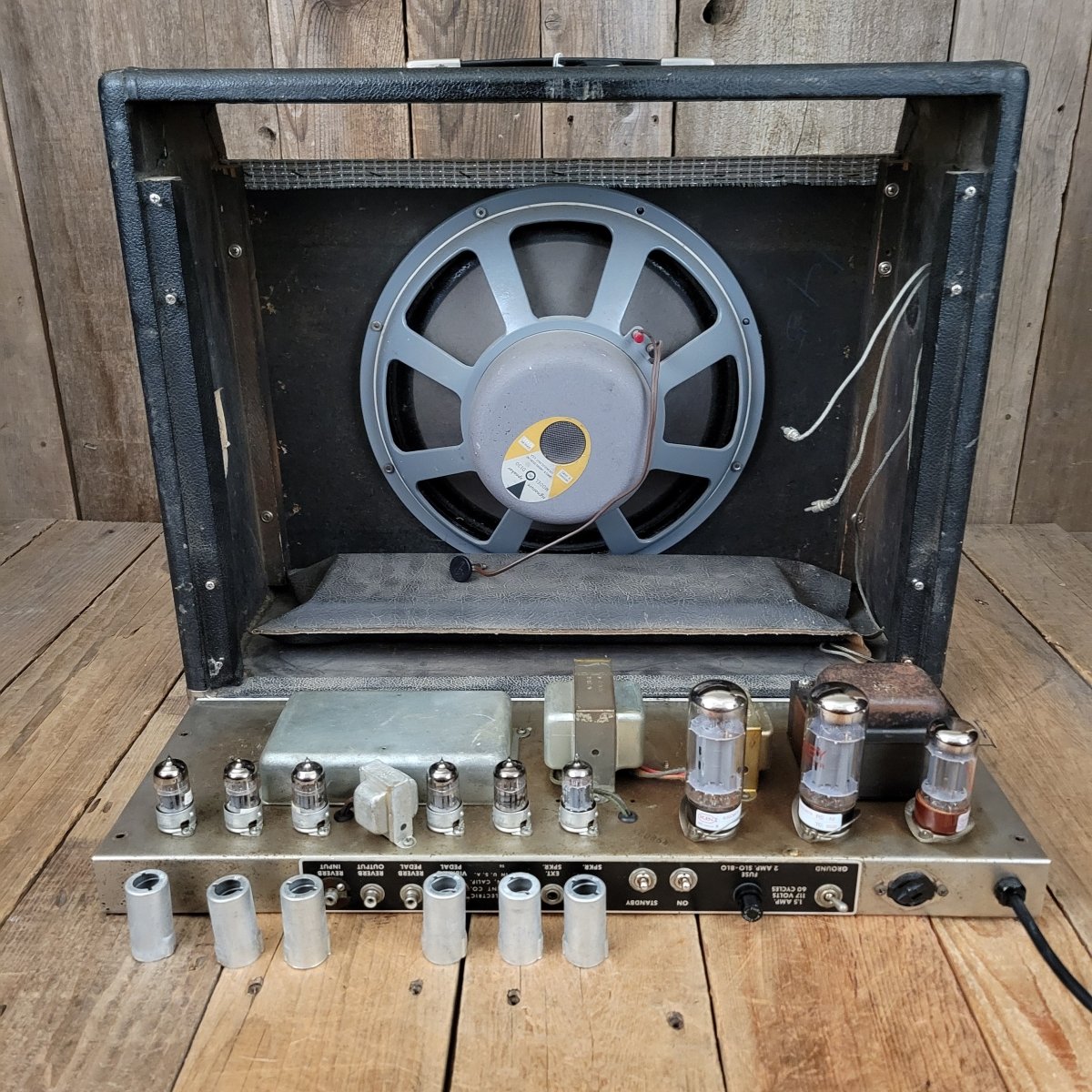

The amp will ship in three boxes and will require reassembly on arrival.  Why you ask?  Based on experience, these amps with larger transformers can take some abuse in shipping, distorting the chassis.  Furthermore, the speaker is large and heavy and could damage the baffle if dropped in transport.  So, three boxes it is.  We can help over the phone with assembly.  It isn't that hard, but don't make the purchase if you aren't down with this - or you can come pick it up in person!

Shipping policy:

Shipments will require signature on delivery, no exceptions.  If there is damage, the buyer must retain all packing materials intact and picture them immediately and send them to  Less than 1% of our shipments are damaged in transit, and we are committed to making sure your item arrives safely, but we are taking these additional measures to make sure you are happy with your purchase.

  • Case/Cover?: No
  • Color: Black
  • Dimensions: H20" x W25-1/8" x 10-1/2"
  • Weight: 55lbs
  • Watts: 40 Watts
  • Date: 1964

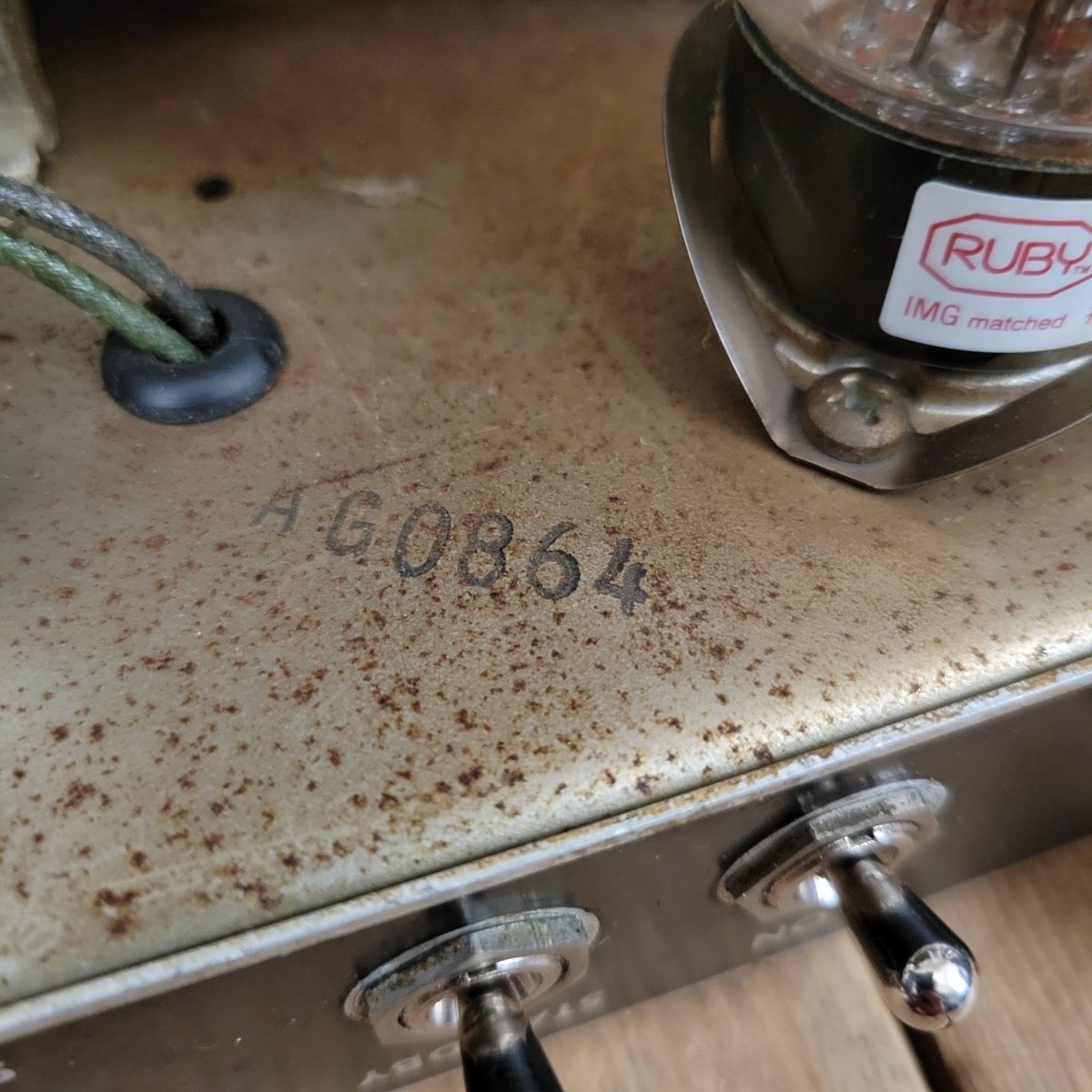

  • Where date is noted: Serial#, pots

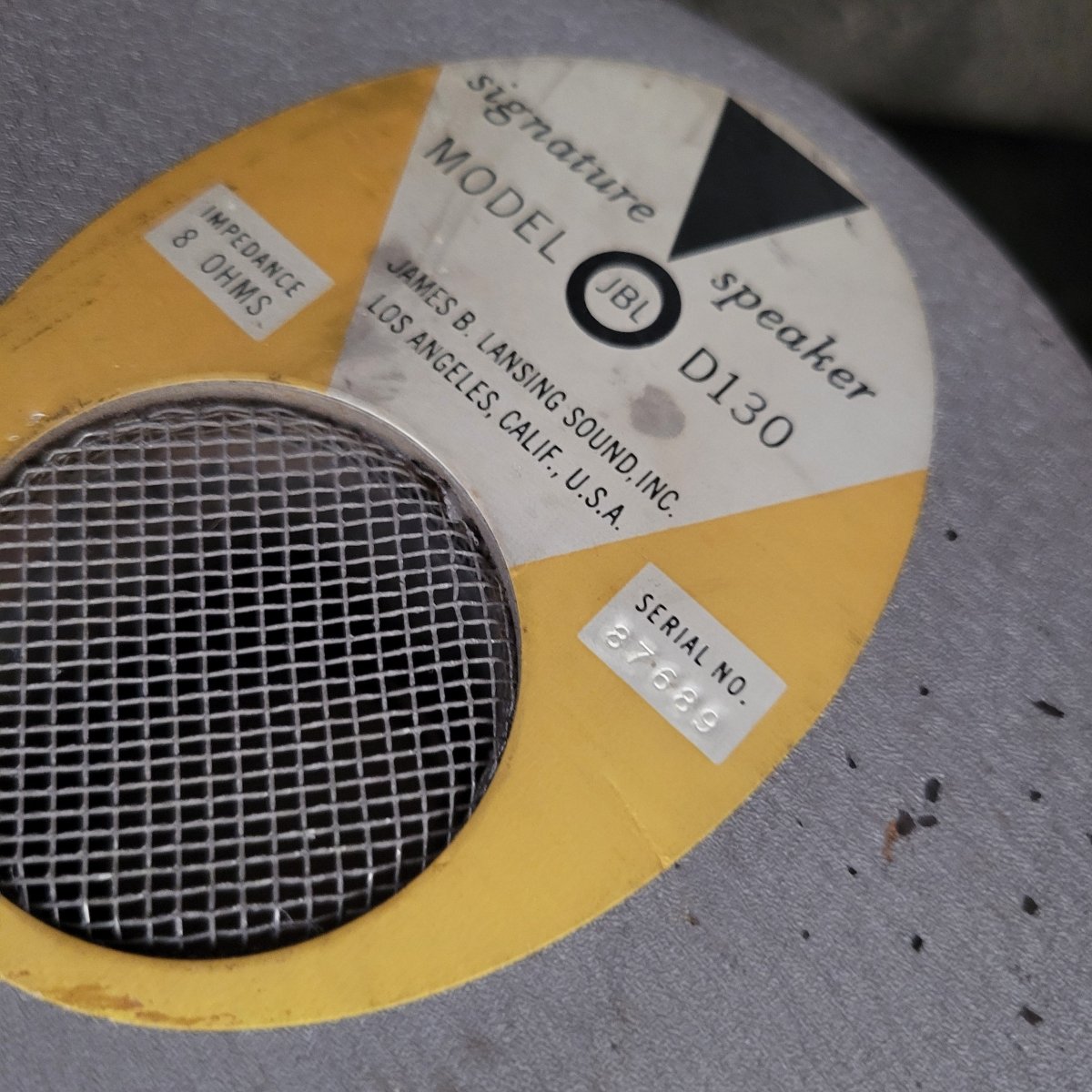

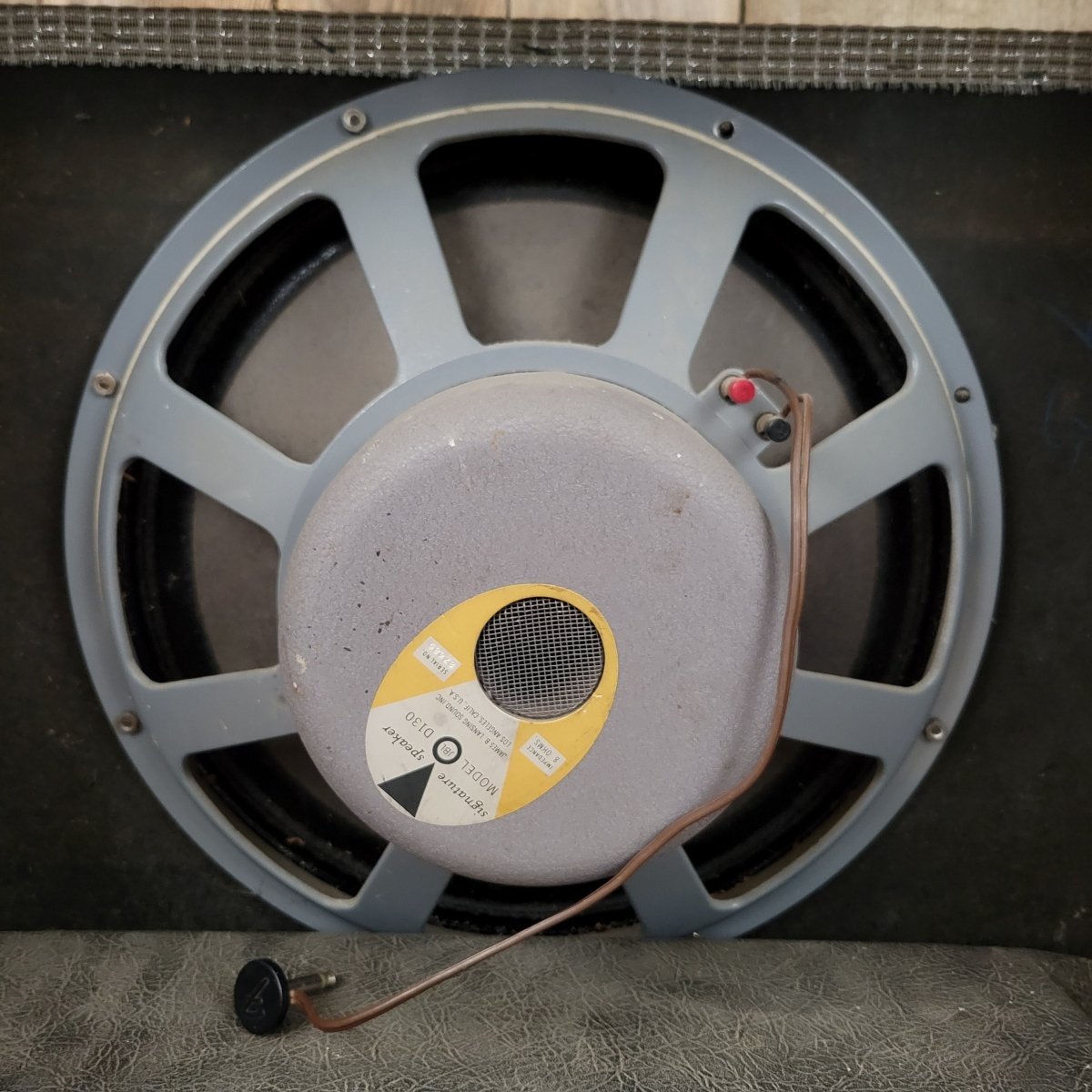

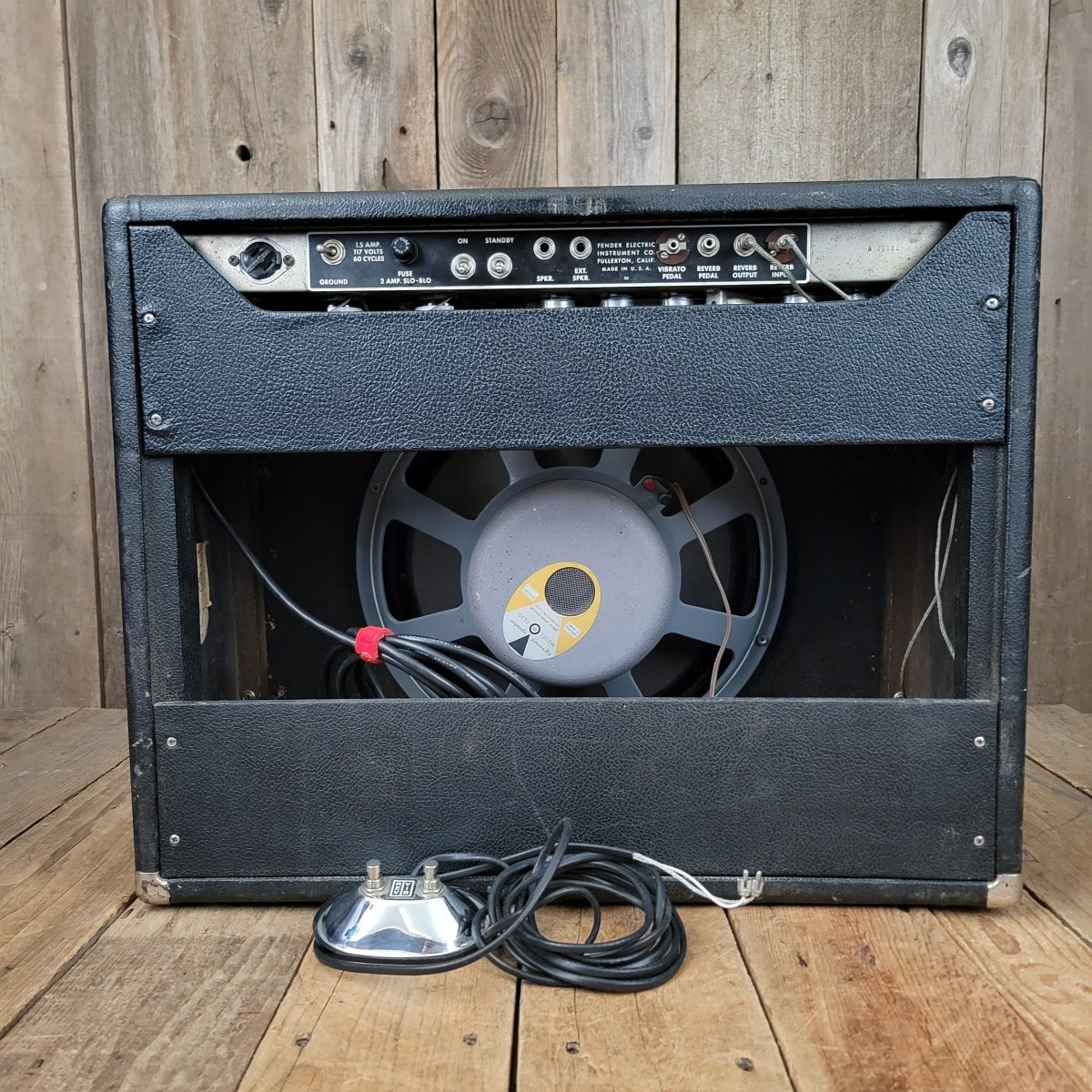

  • Speaker 1 Brand/Model: JBL D130
  • Speaker 1 Size: 15"
  • Speaker 1 Code: Serial# 87689
  • Speaker 1 Cone: Original

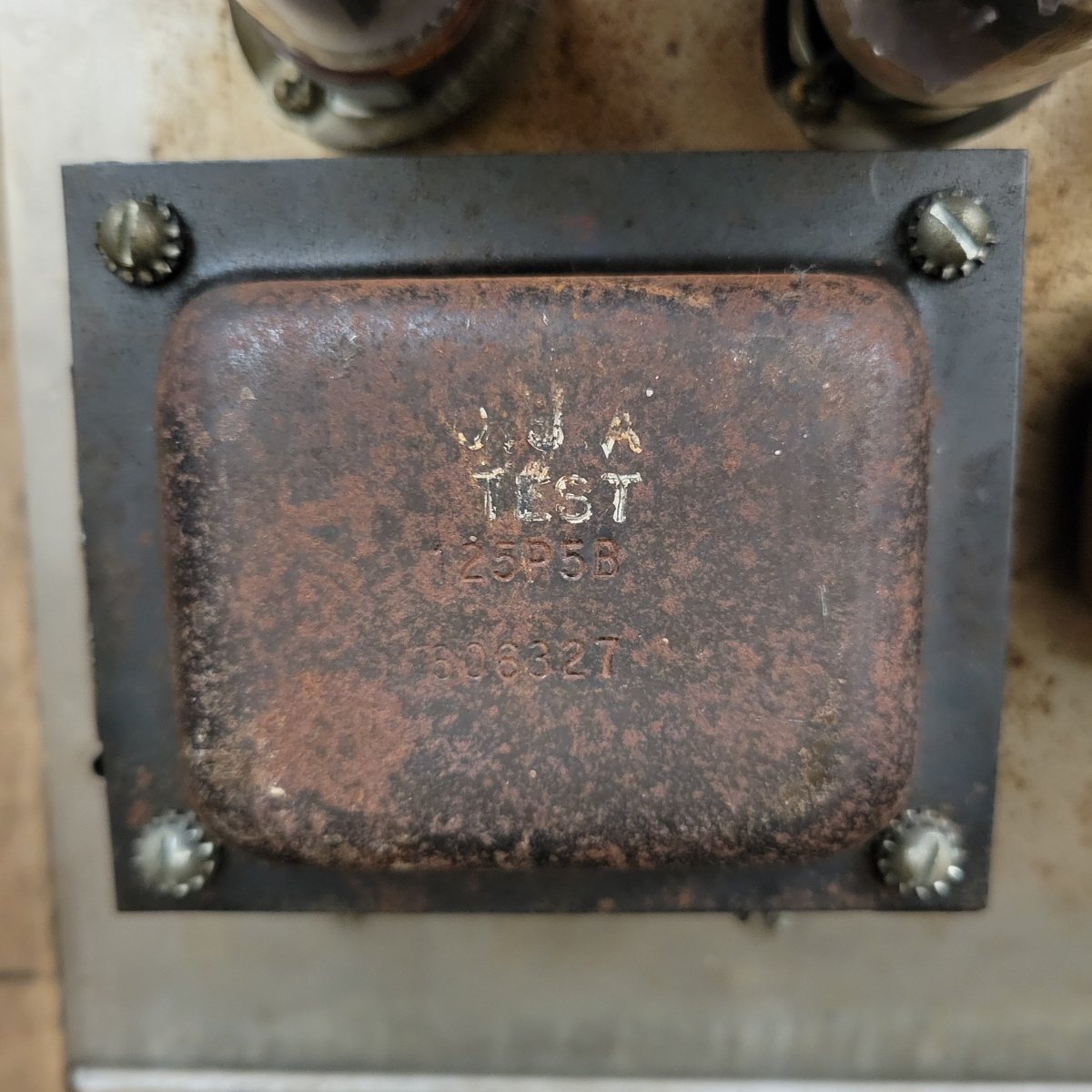

  • Power Transformer brand and/or codes: 125P5B  606327

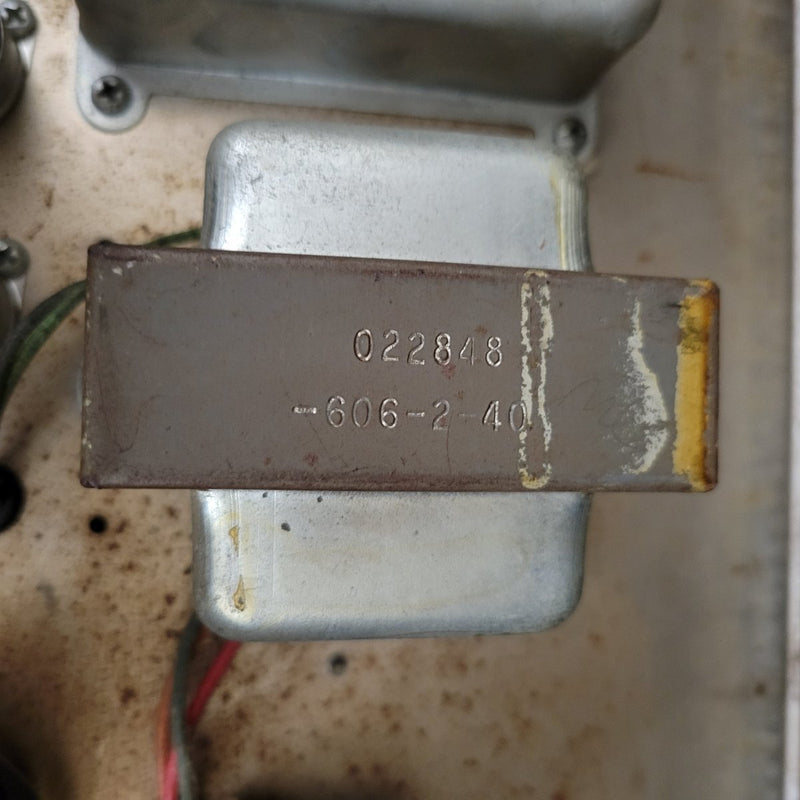

  • Output Transformer brand and/or codes: 0228848  -606-2-40

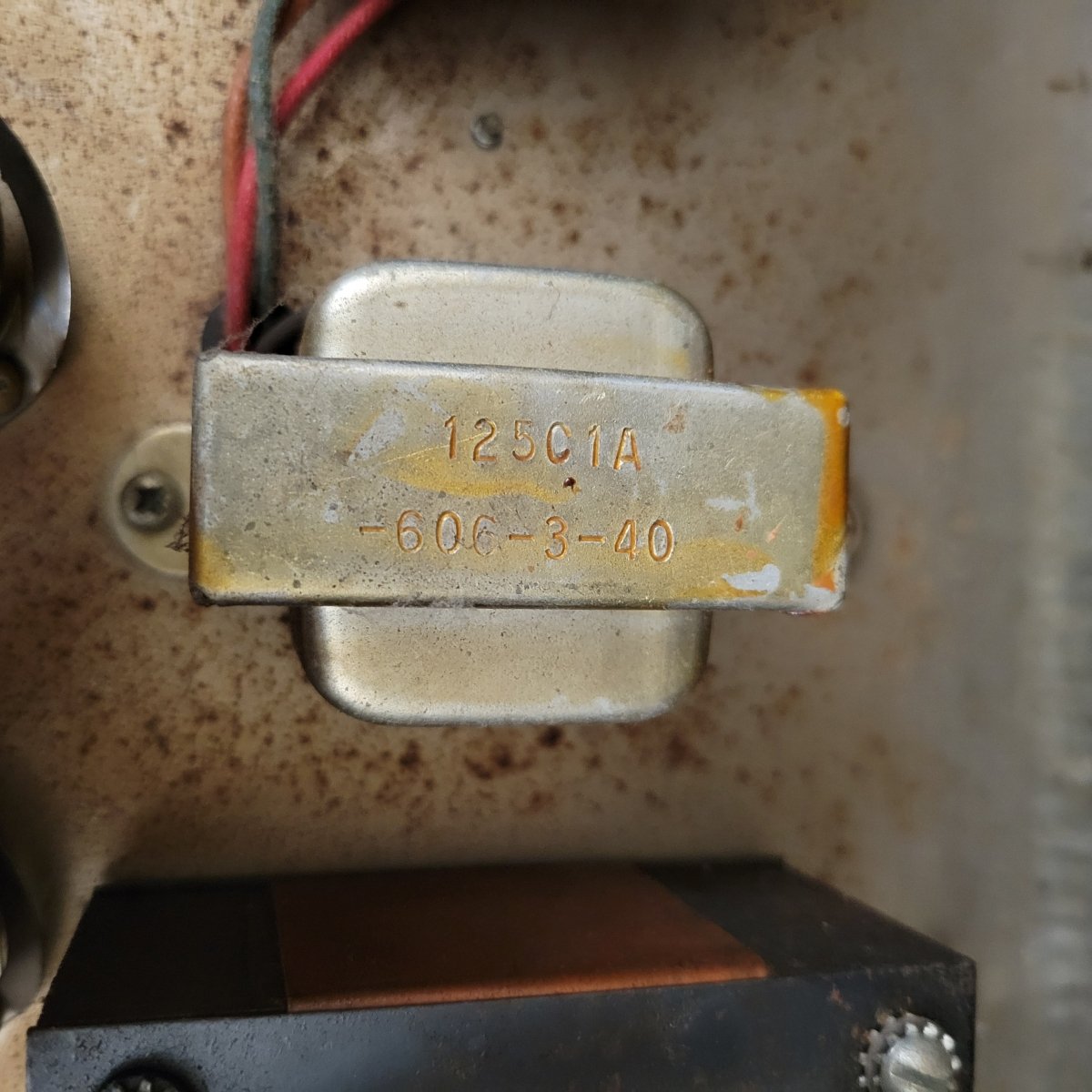

  • Choke Transformer brand and/or codes: 12501A  -606-3-40

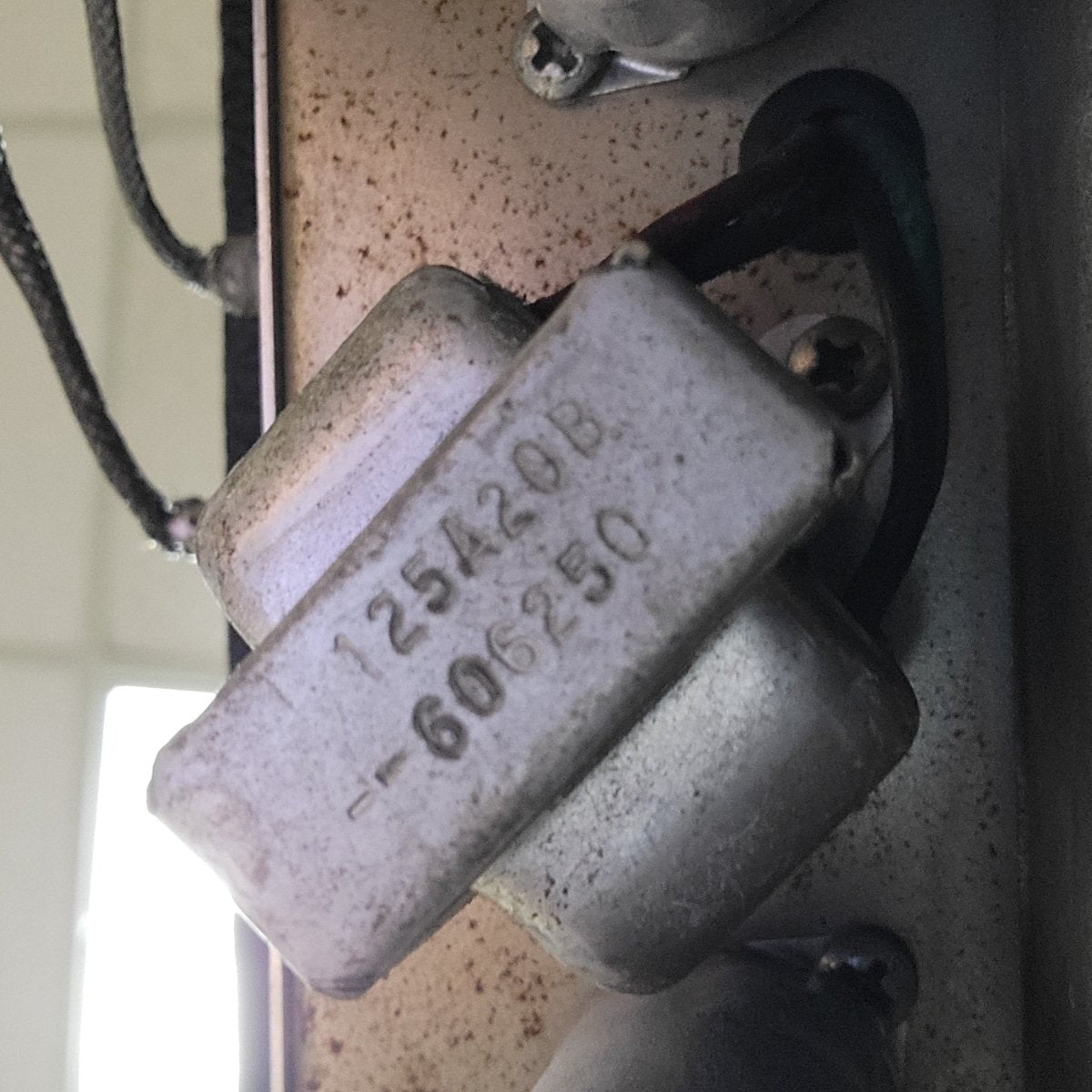

  • Reverb Transformer brand and/or codes: 125A20B  --6066250

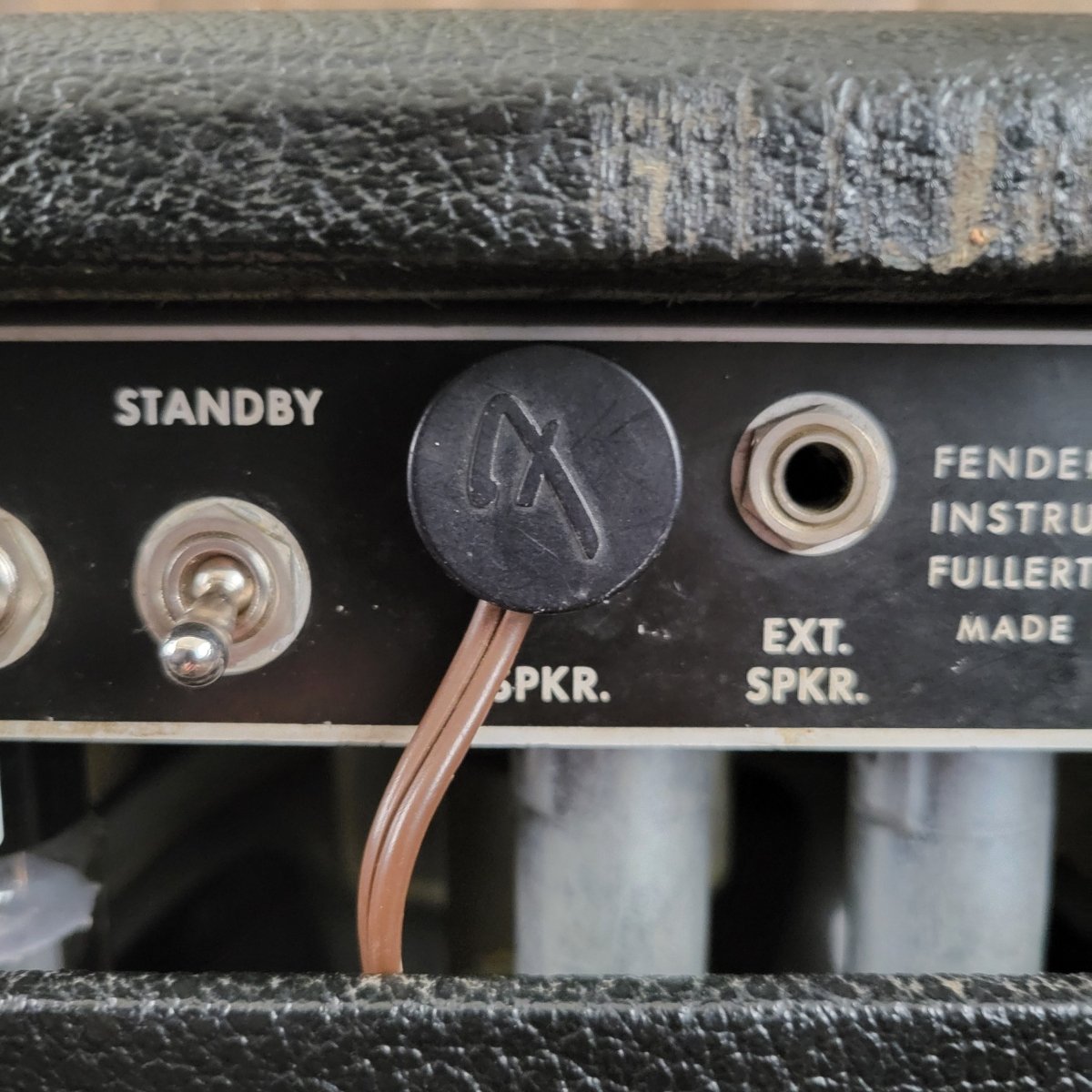

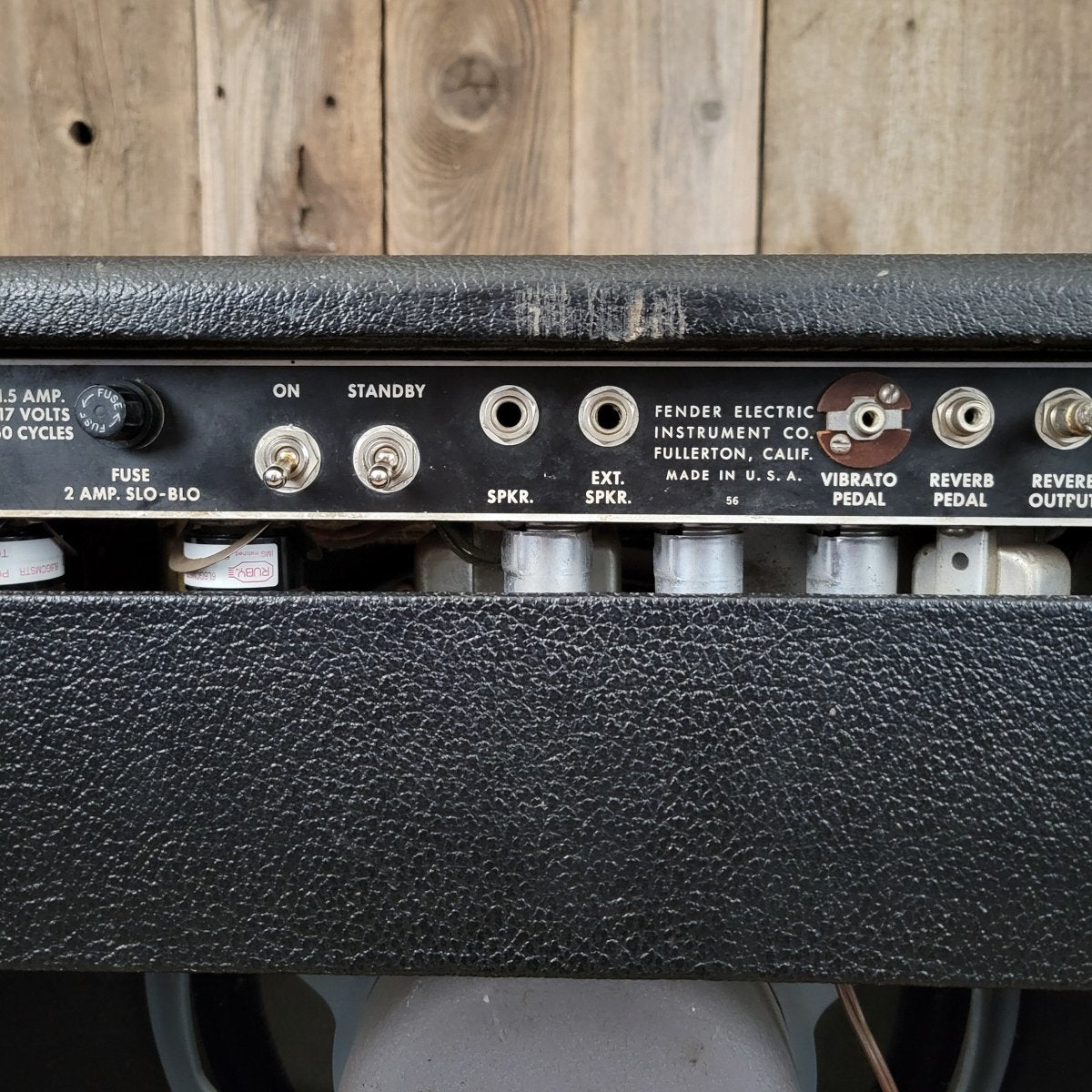

  • Extension Speaker Out? Yes

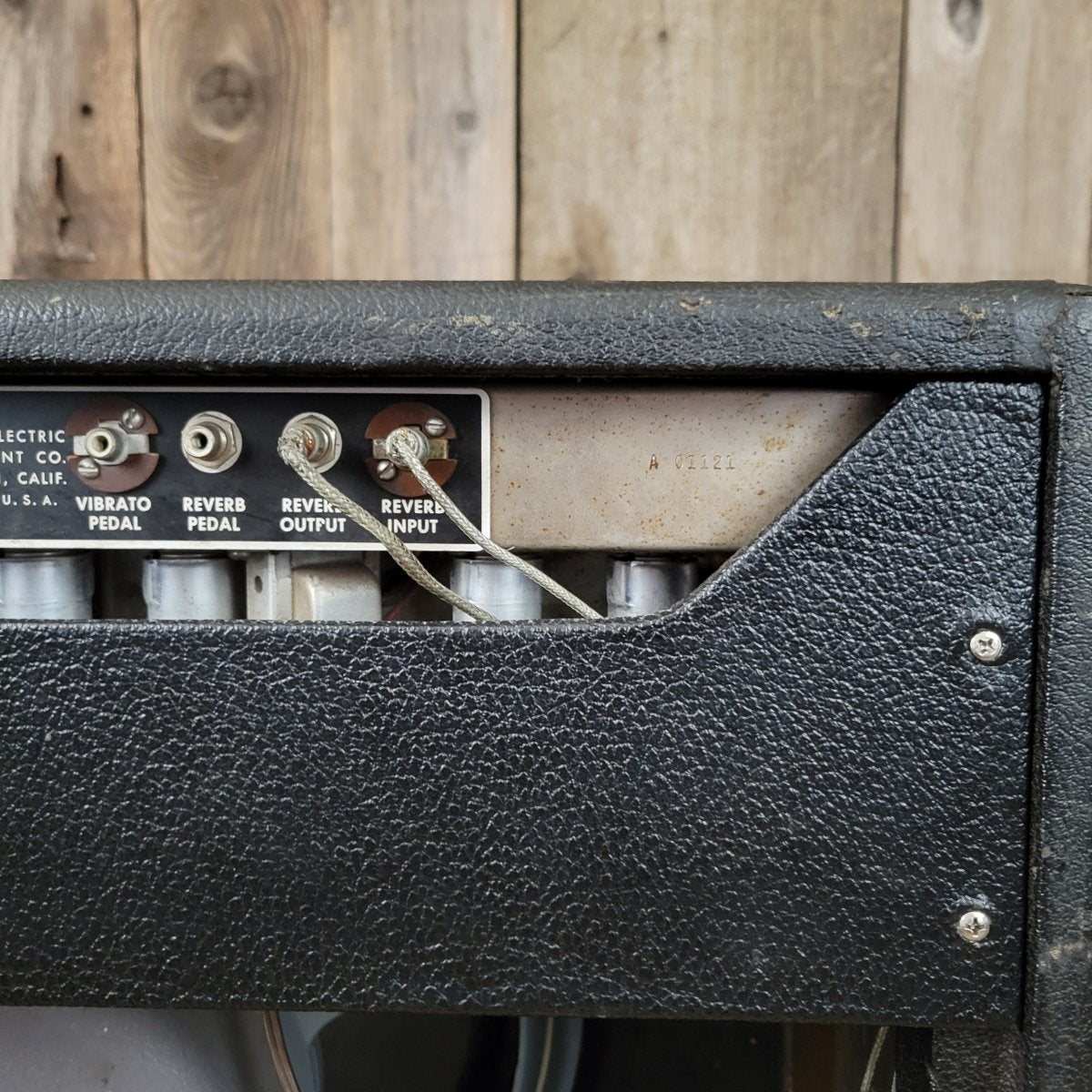

  • Reverb or other effects?: Reverb, Vibrato
  • Rectifier Tube: 5AR4
  • Rectifier Tube Brand: Ruby
  • Power tubes: 2 x 5881
  • Power Tube Brand: Sovtek

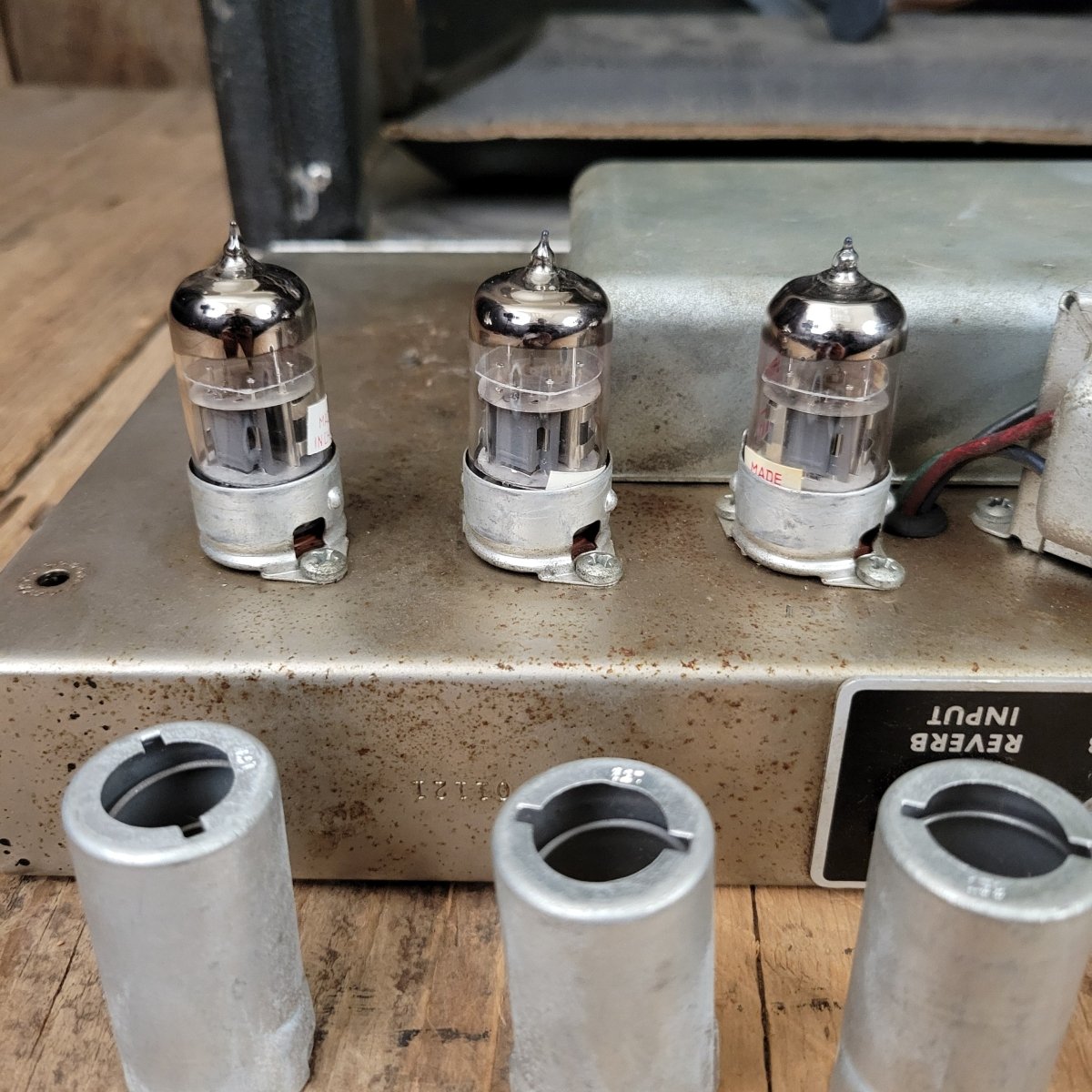

  • Preamp Tubes: ECC81, 3 x 12AX7, 12AT7
  • Preamp Tube Brand: Siemens, Peavey, Mullard reissue
  • Filter Caps: Replaced

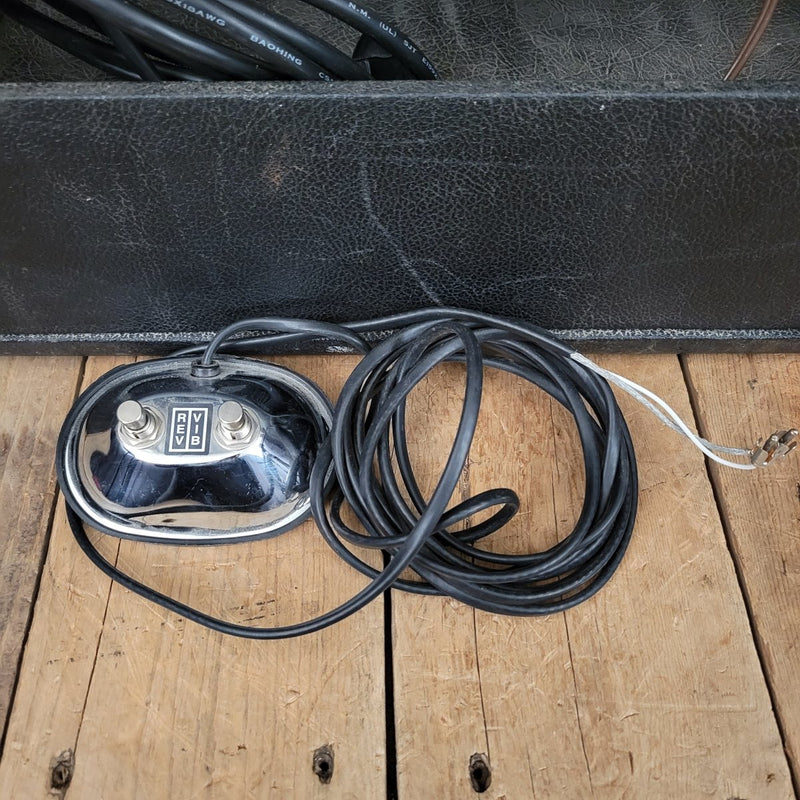

  • Pedal?: Yes, repro

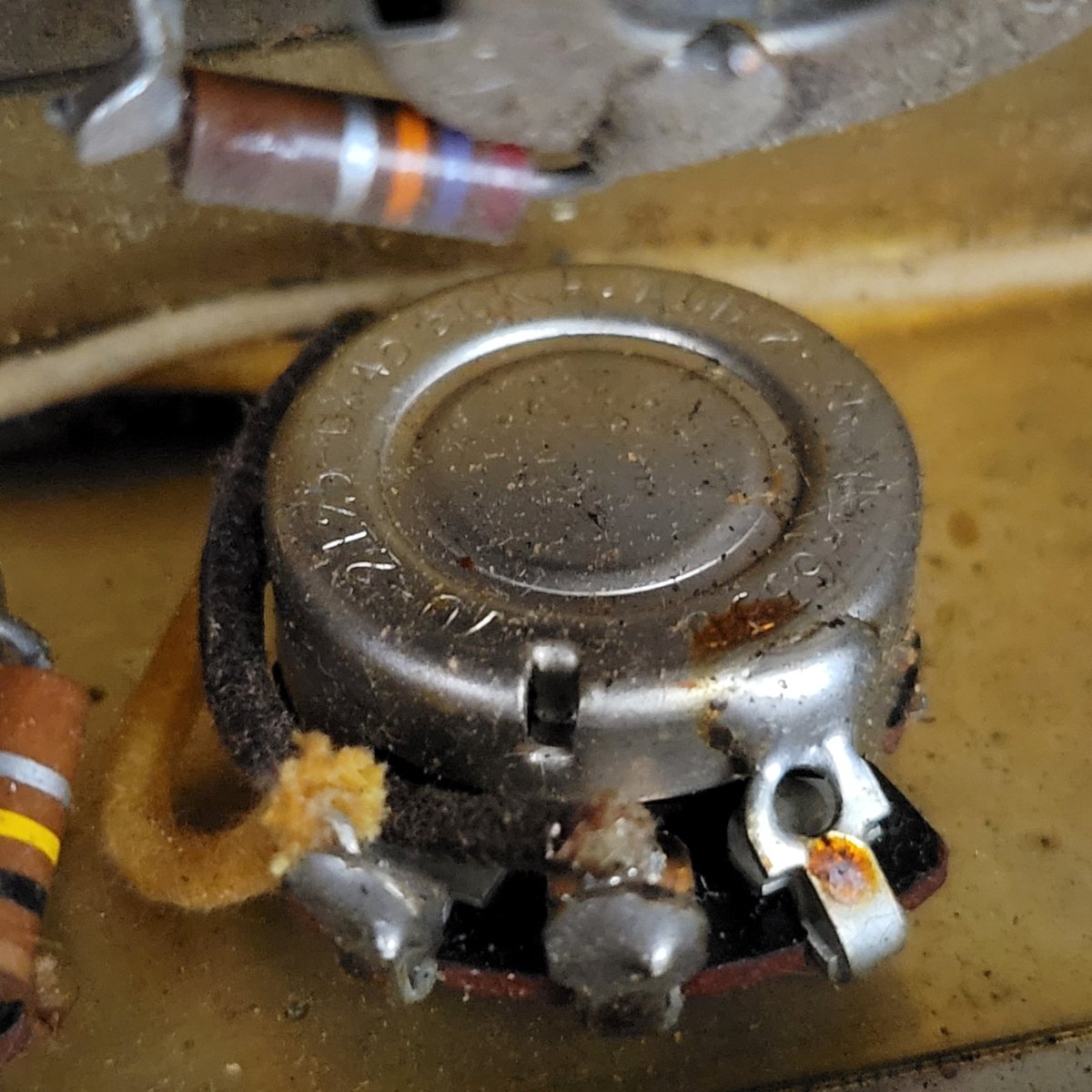

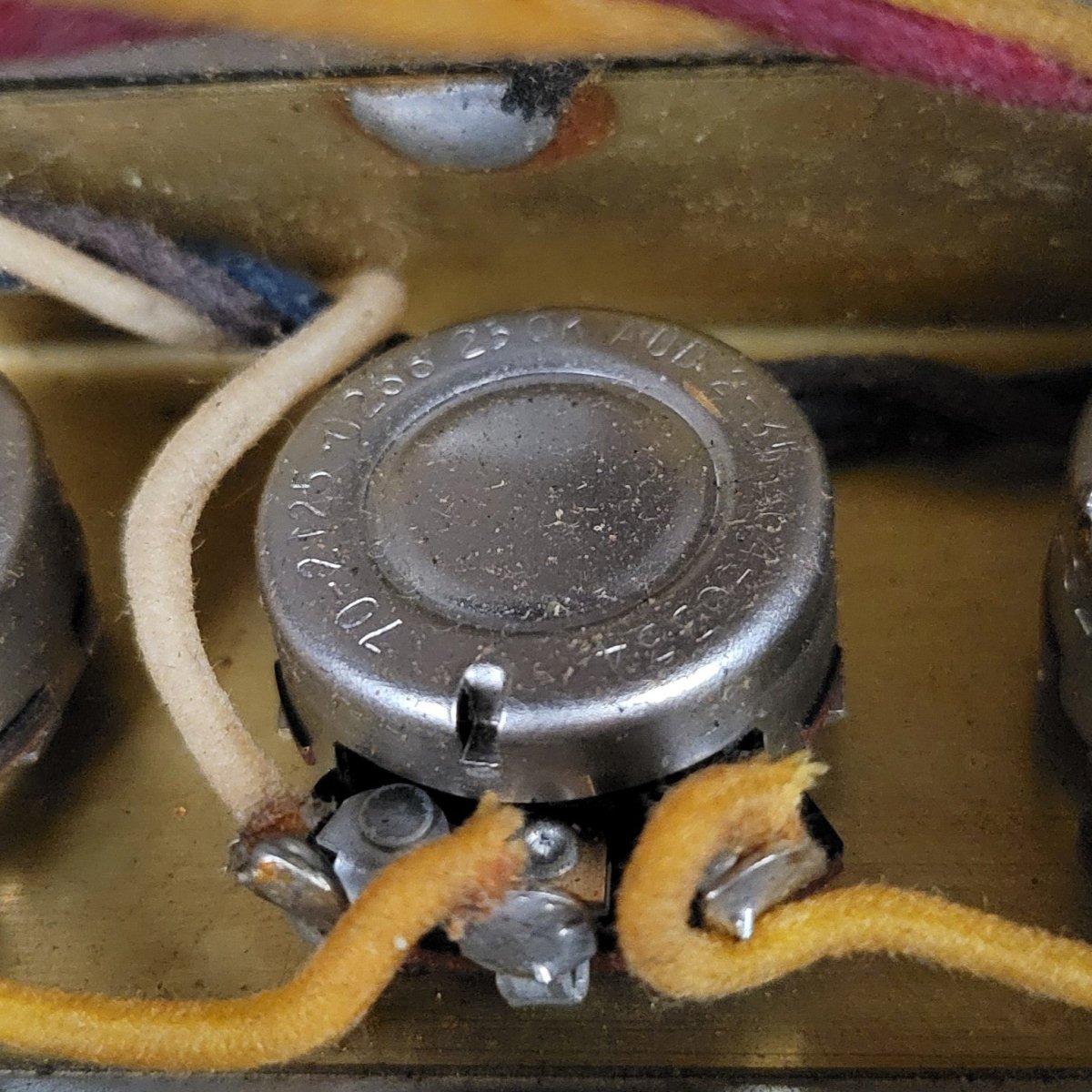

  • Pots, codes: Original 137 6334, 137 6330
  • Tolex: Original

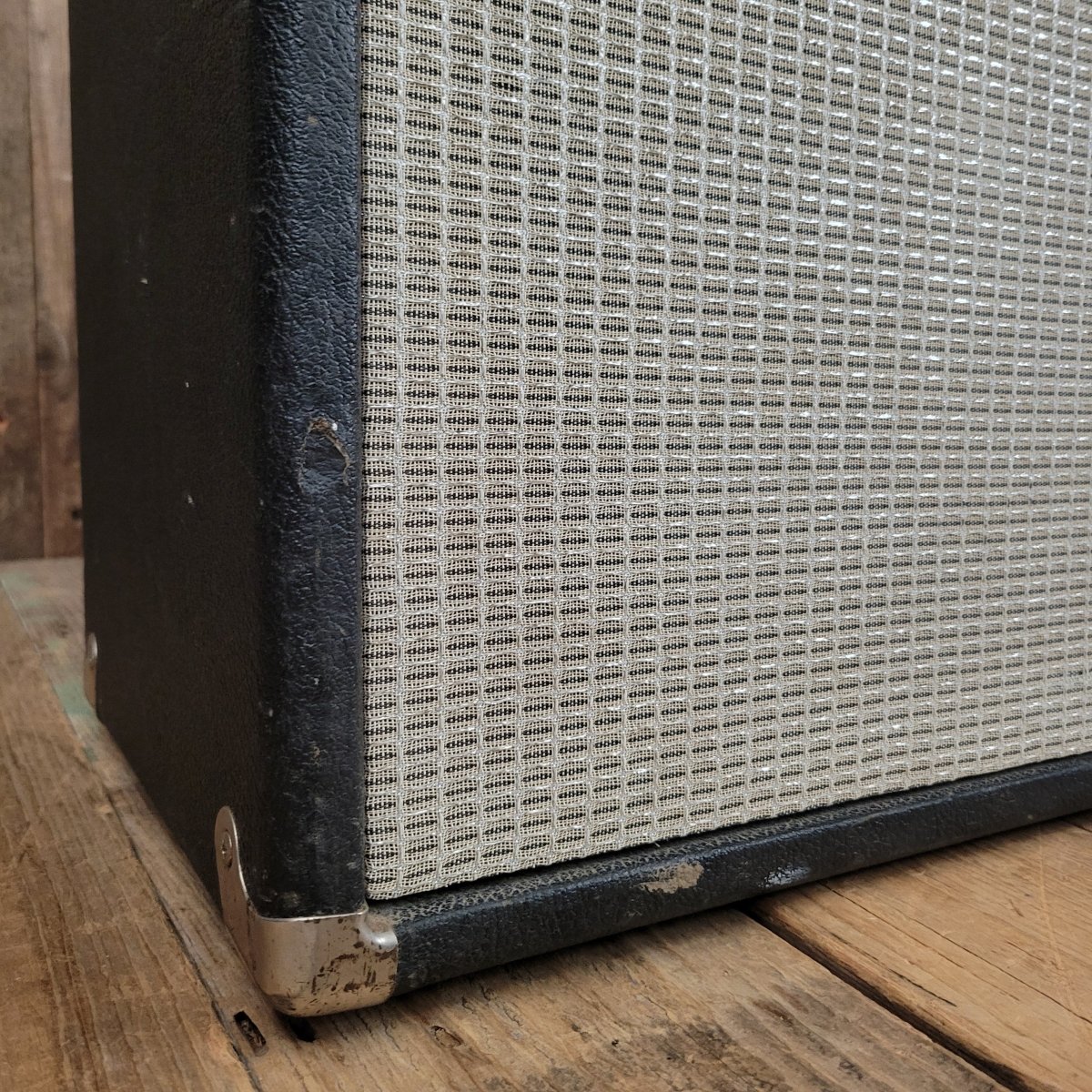

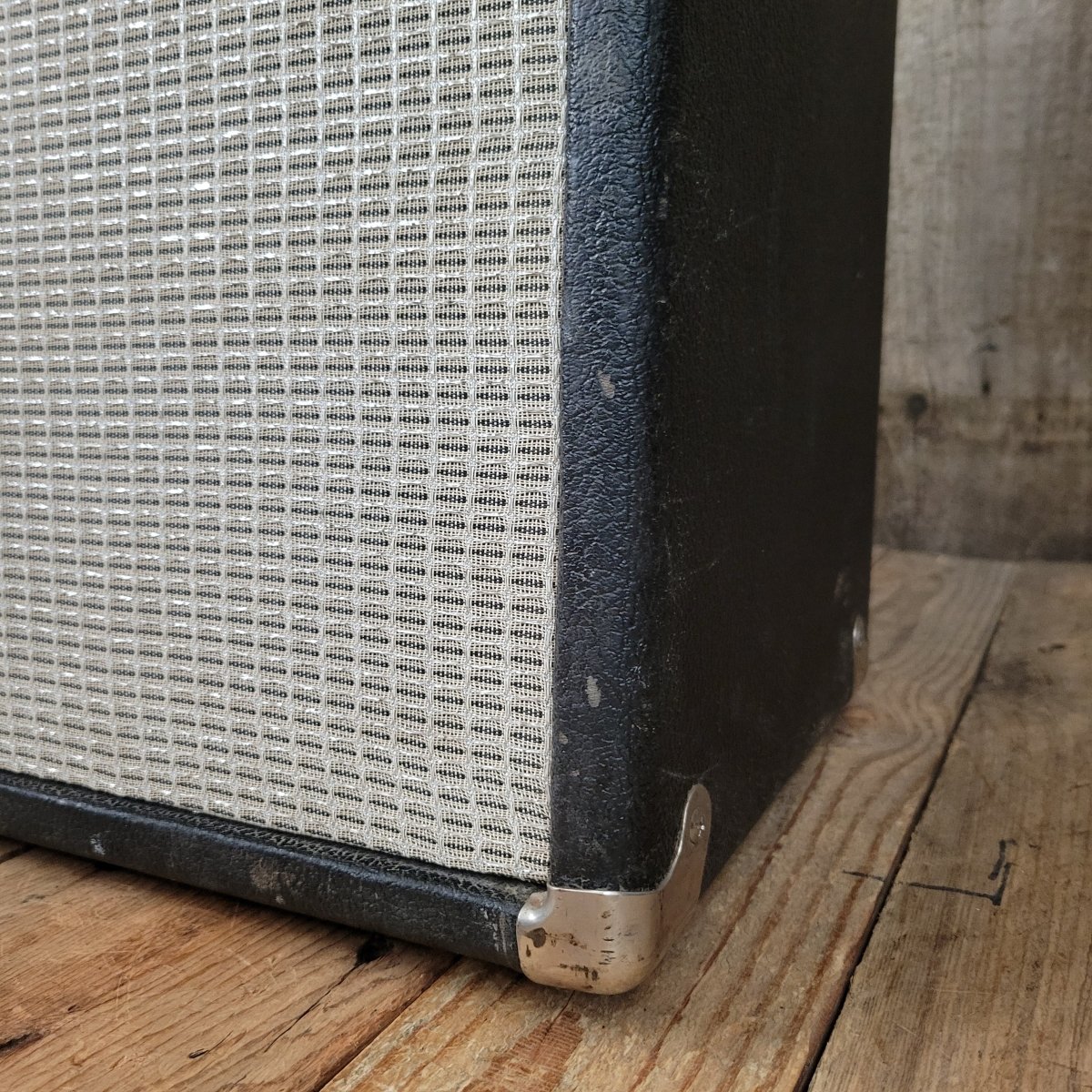

  • Grille: Original
  • Knobs: Original

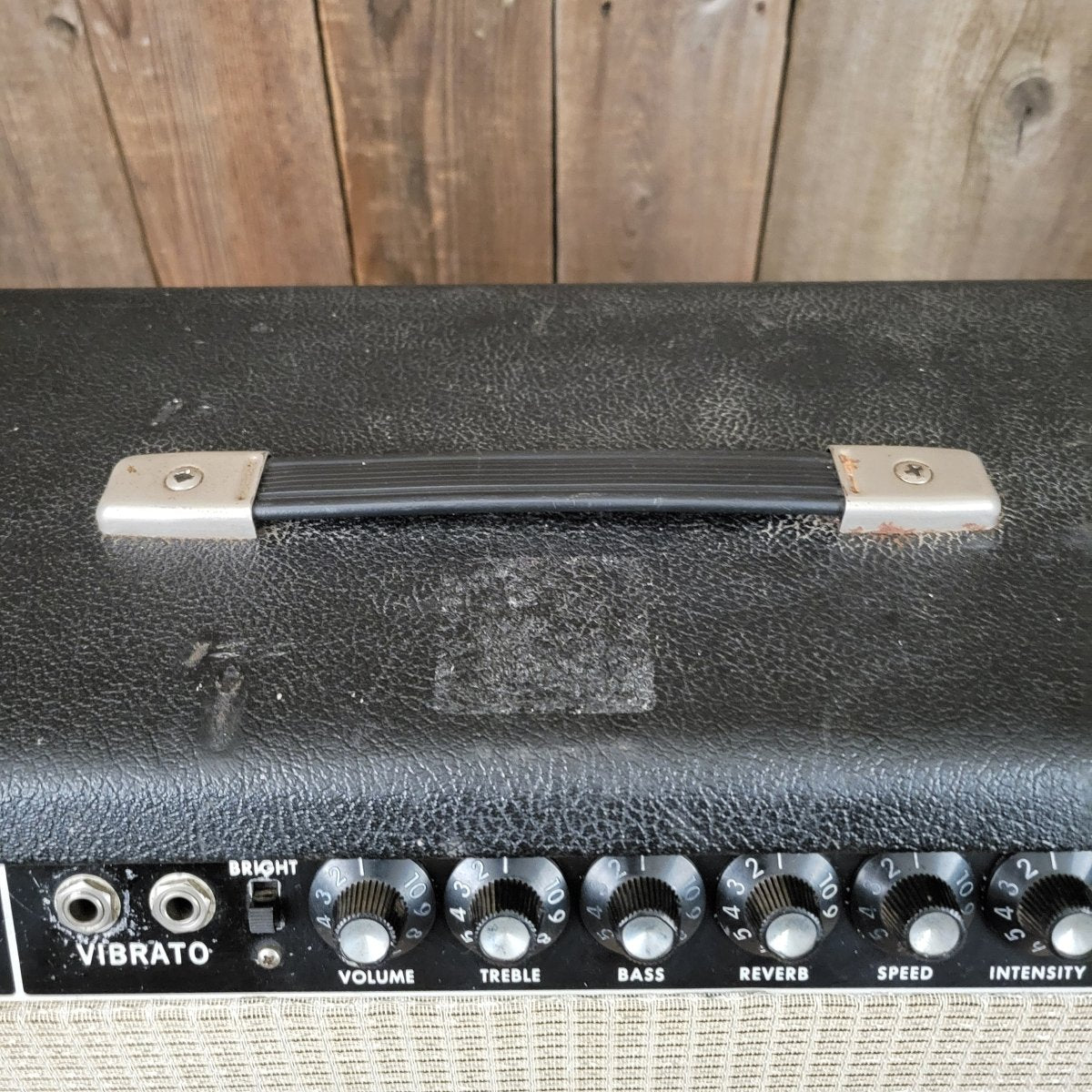

  • Handle: Original

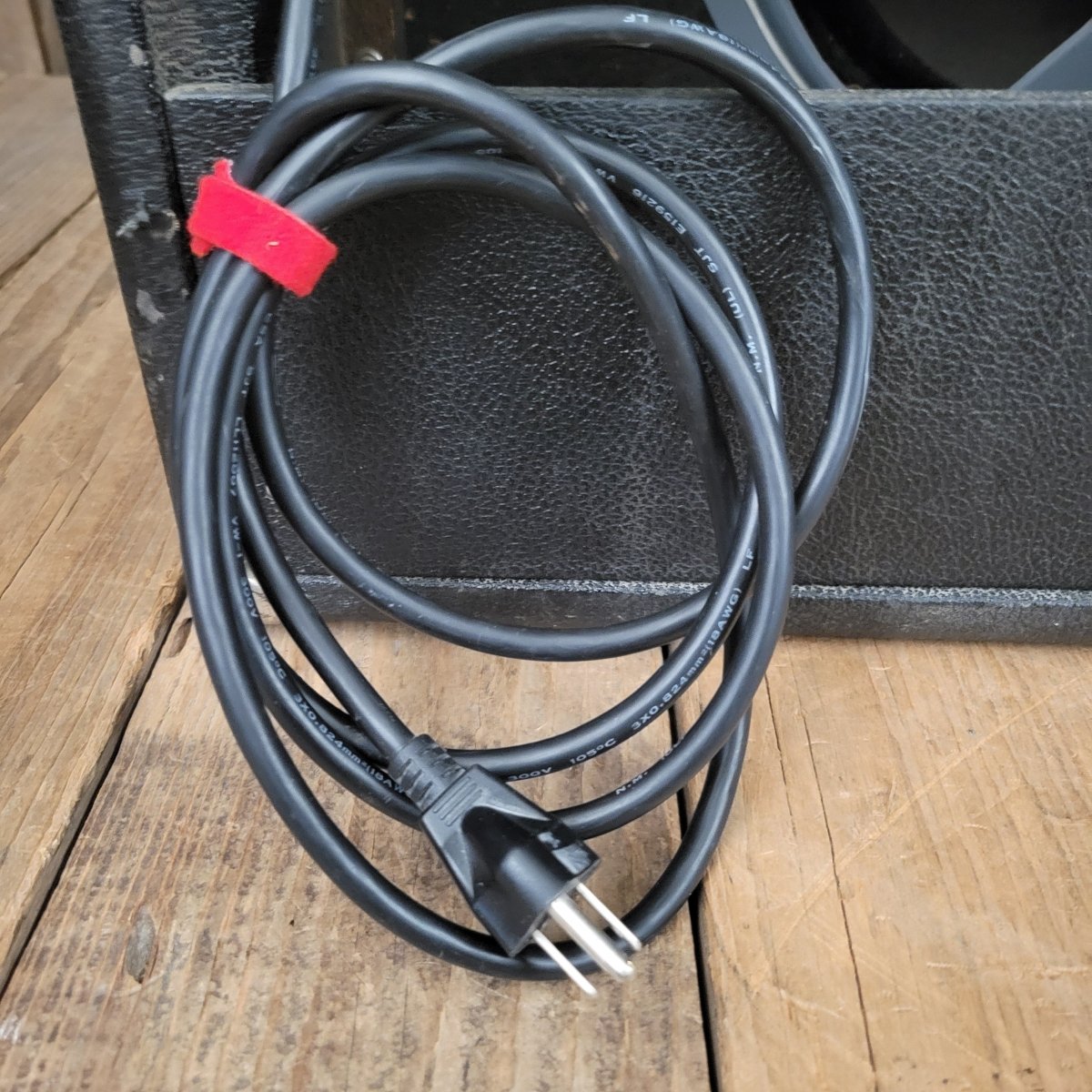

  • Power cord: 3 prong
  • Notes:
