Fender 1964 Pro AA763 Rare Blackpanel Pre CBS 15" Amp Serviced, Excellent

No sales tax for US customers outside California.

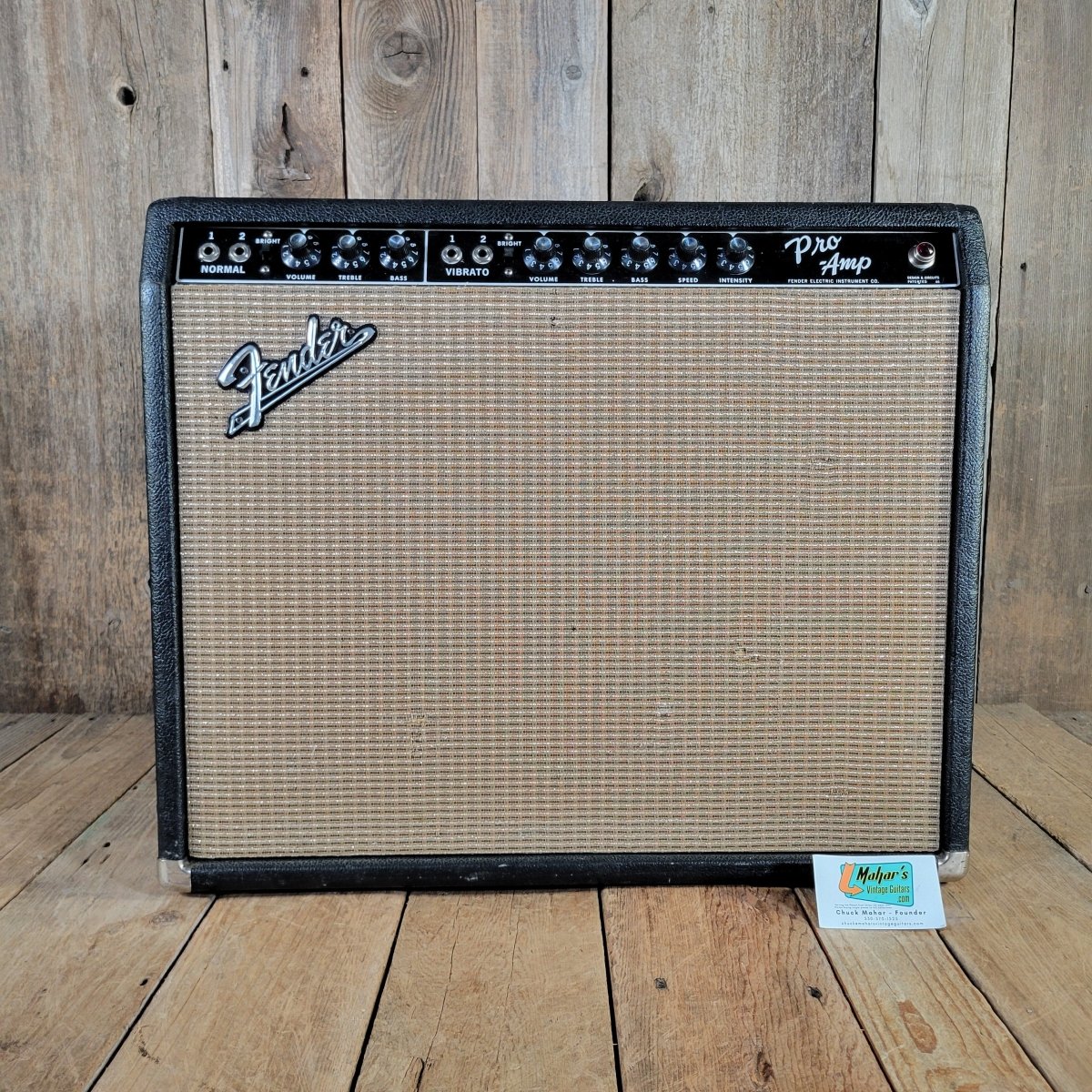

This Fender 1964 Pro AA763 in black is in excellent condition.  Part of a collection of rare 50s and 60s Fender amps that just hit the shop.  I was amazed to see more than one of these rare gems!

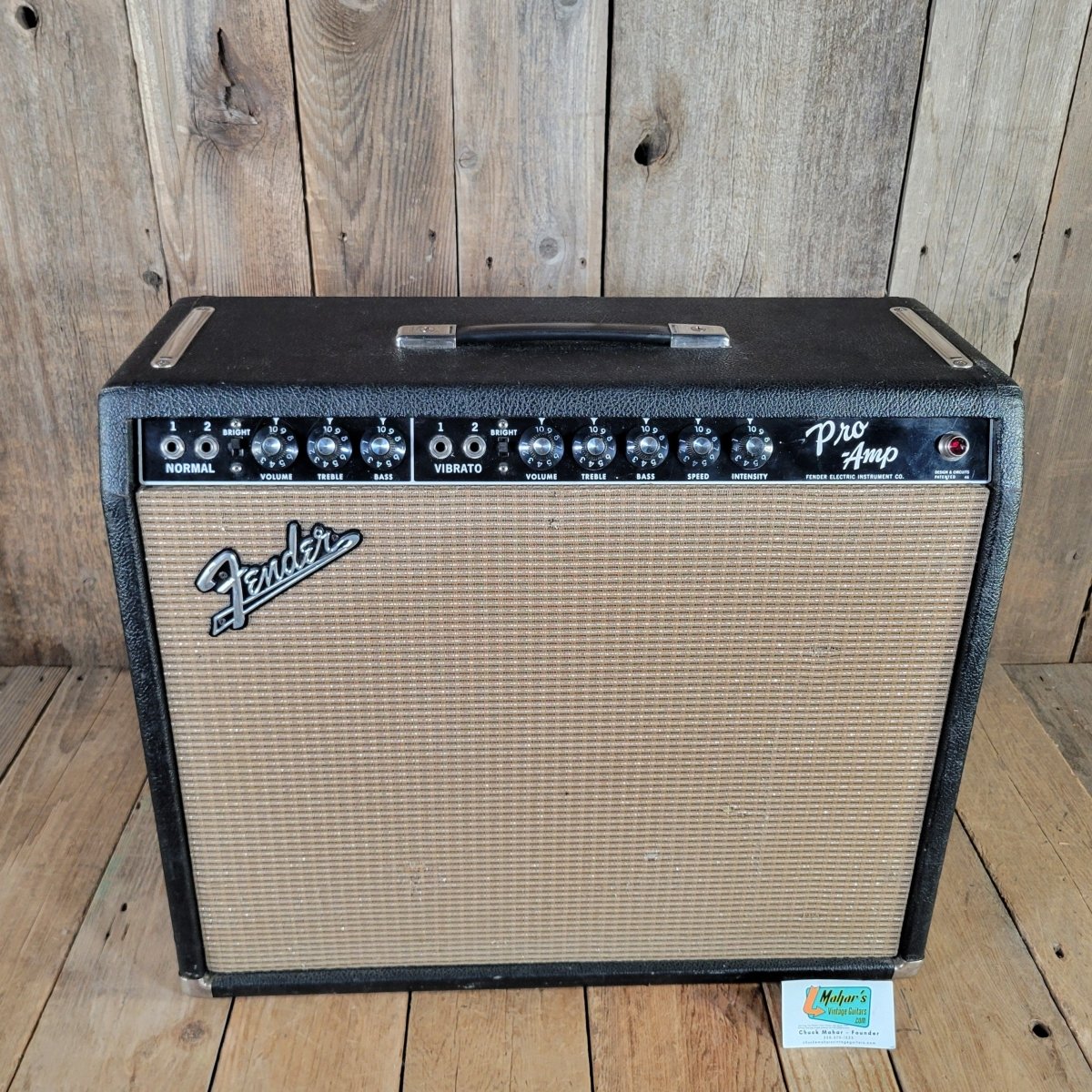

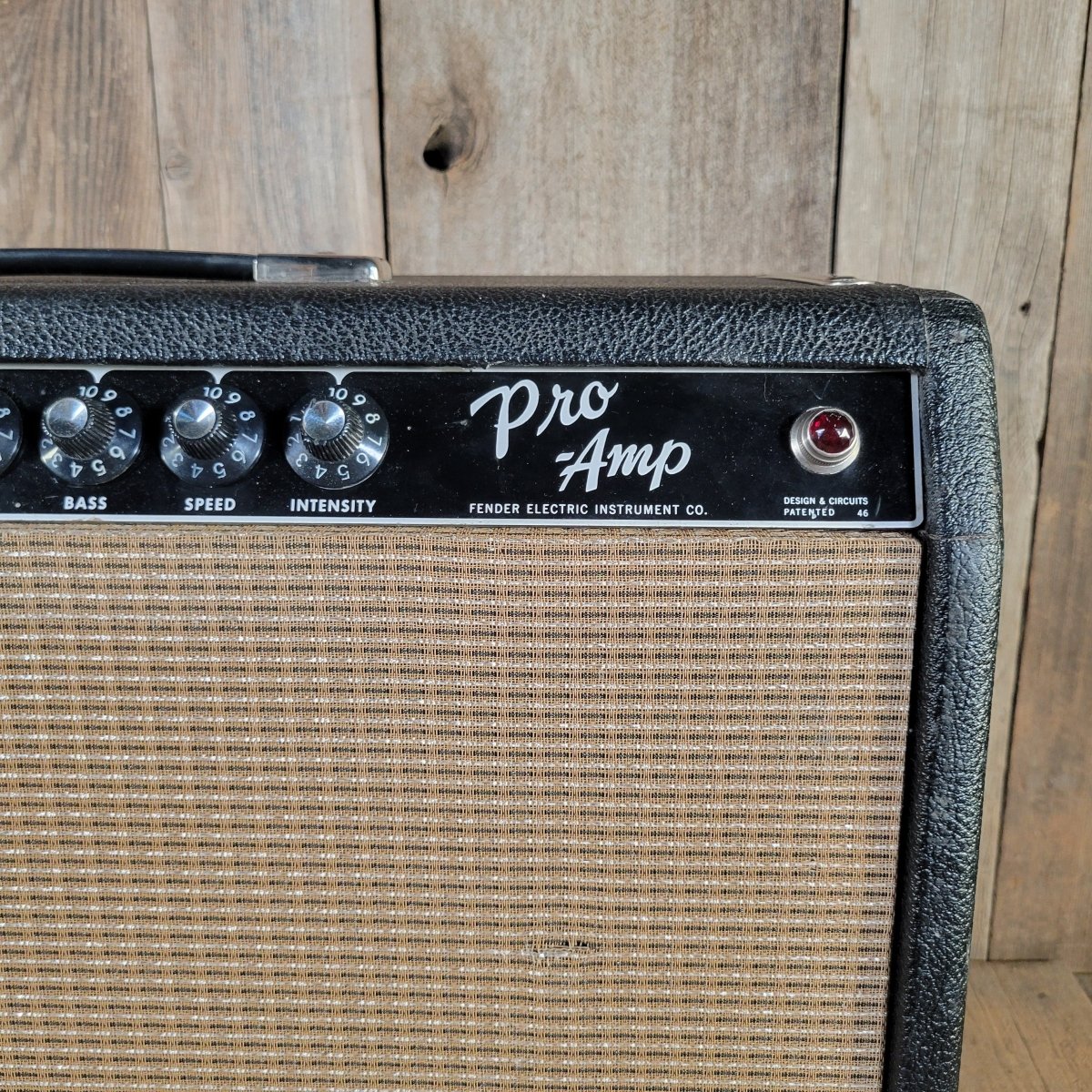

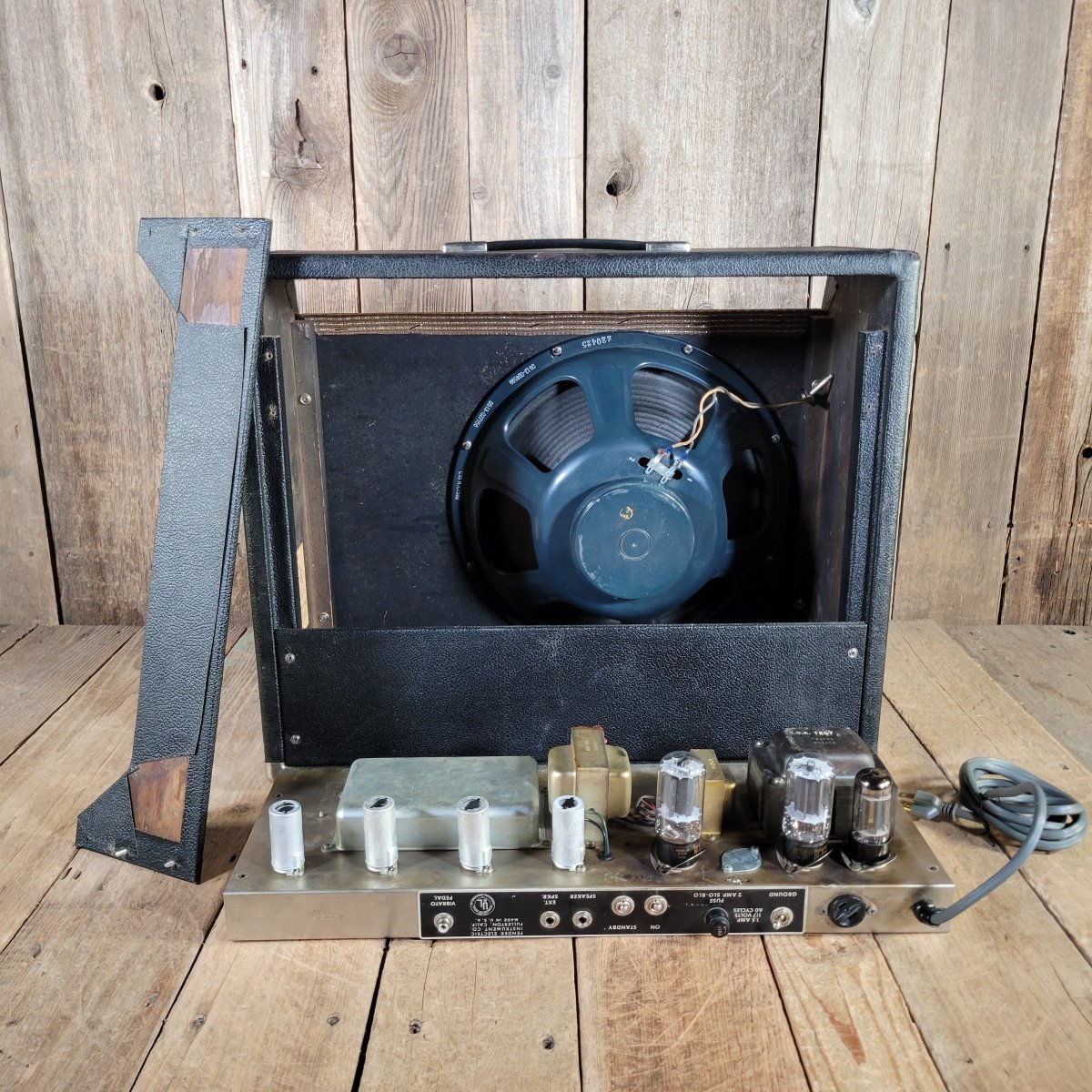

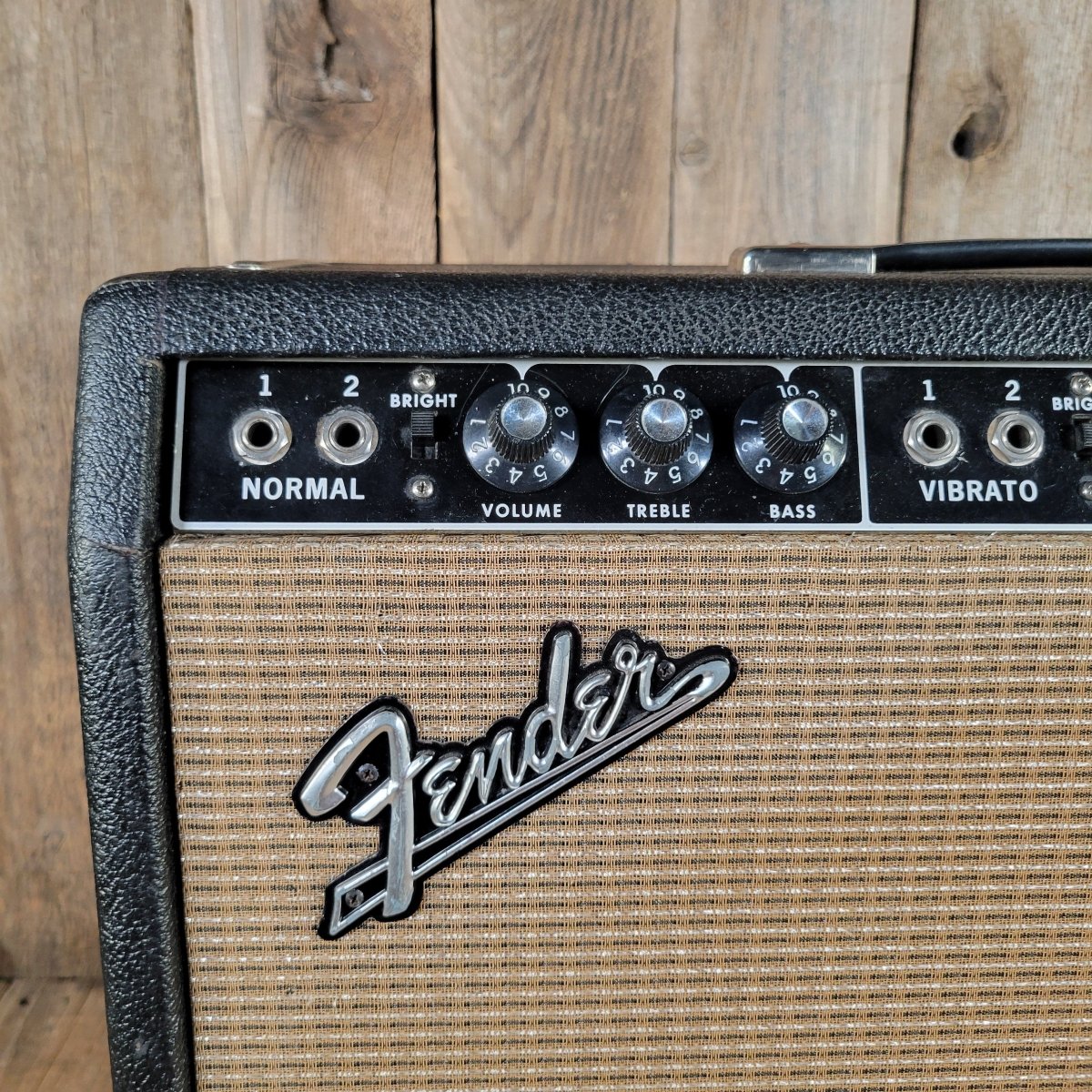

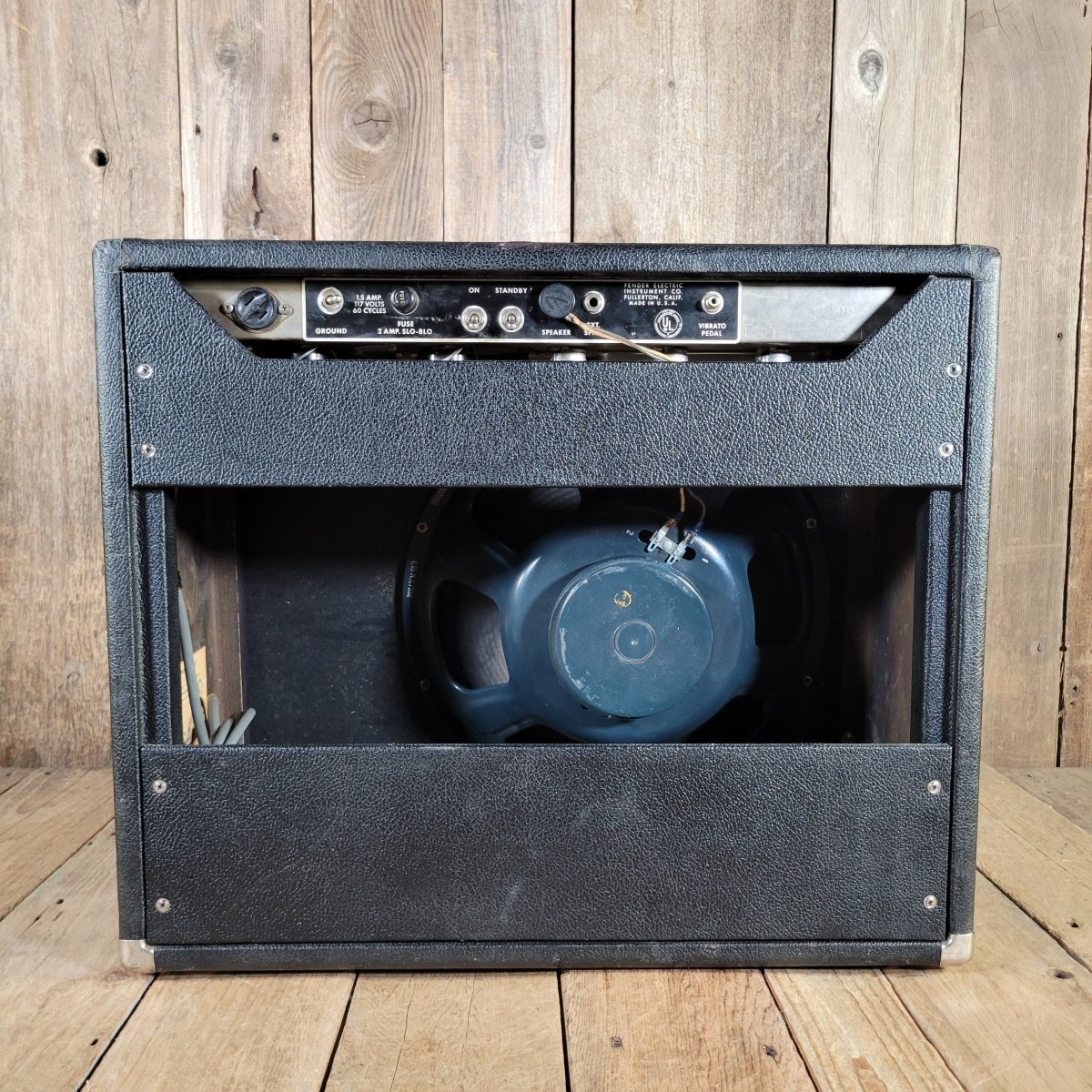

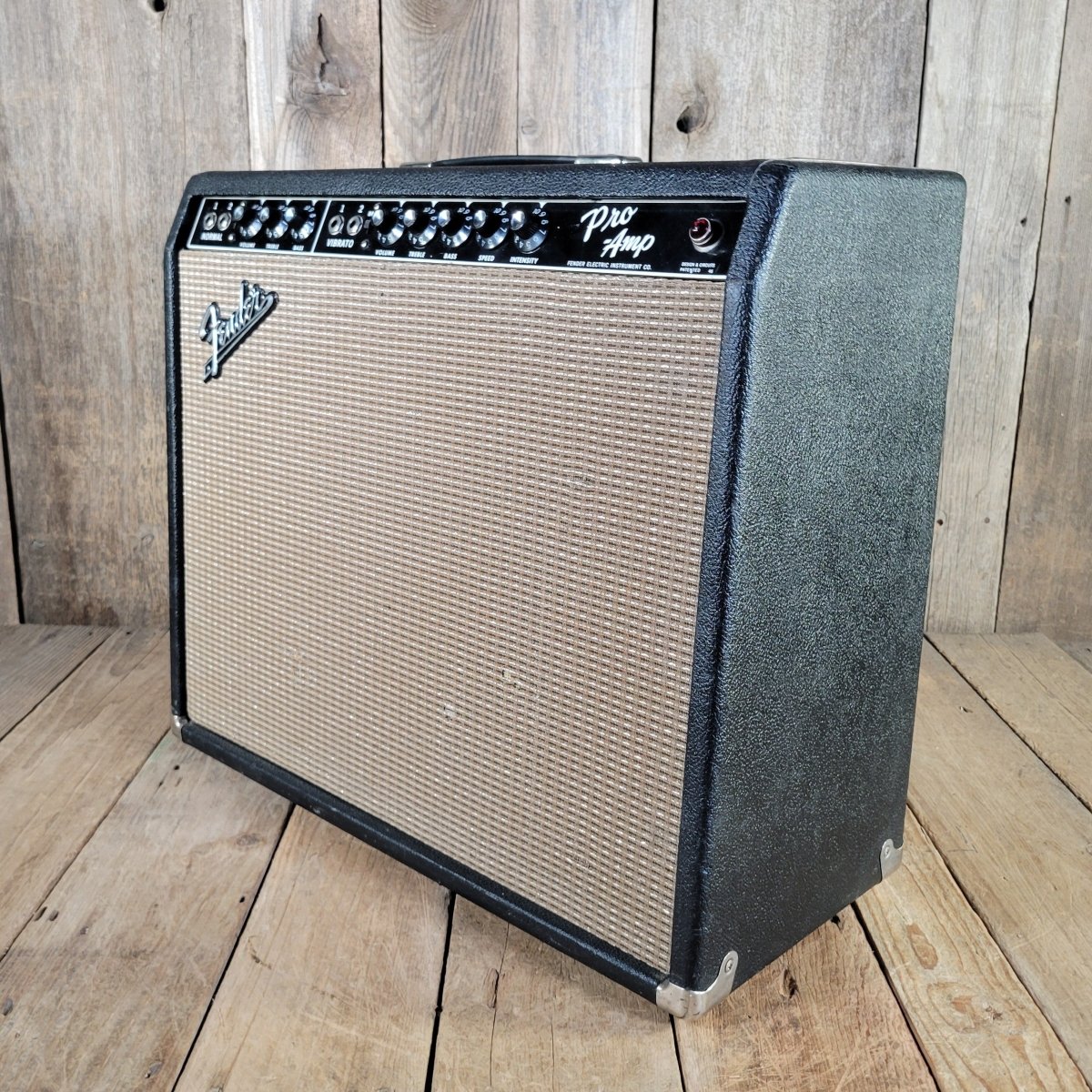

This is a serviced pre-CBS blackpanel Pro, a 40-watt combo with onboard vibrato, original black tolex, and a sparkle grille. It has a single 15" Jensen speaker (manufacturer code 220, date code 425), which is era correct down to the year, but perhaps not original to the amp. Tubes are a Sovtek 5AR4 rectifier, two RCA 6L6 power tubes, a 12AT7, and three 12AX7 preamp tubes (Westinghouse and RCA).  The vintage tubes add to the tone of the amp, and to the value as well.  They were all tested to make sure they are good to go.  An original tremolo footswitch is included, we just forgot to get it in the pictures.

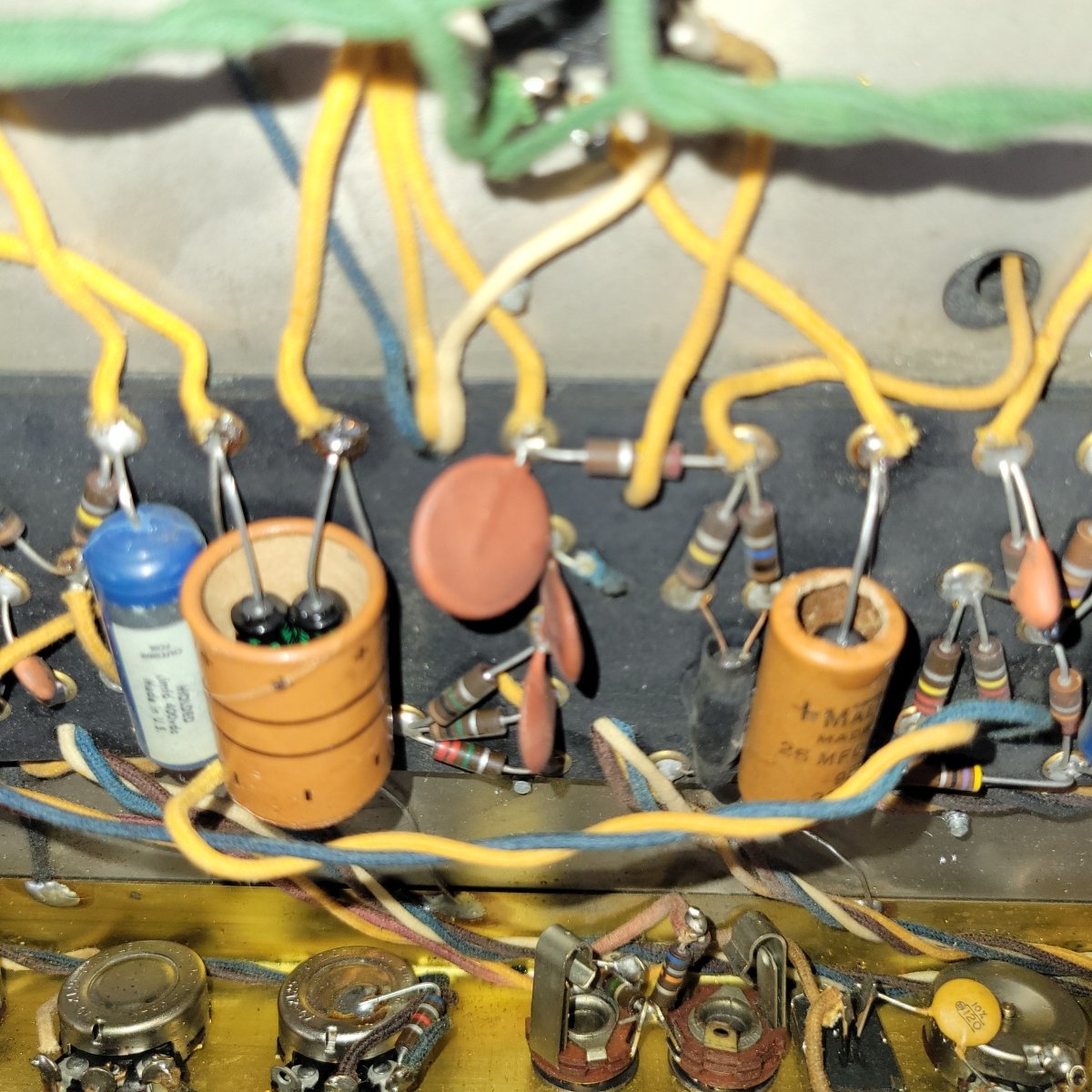

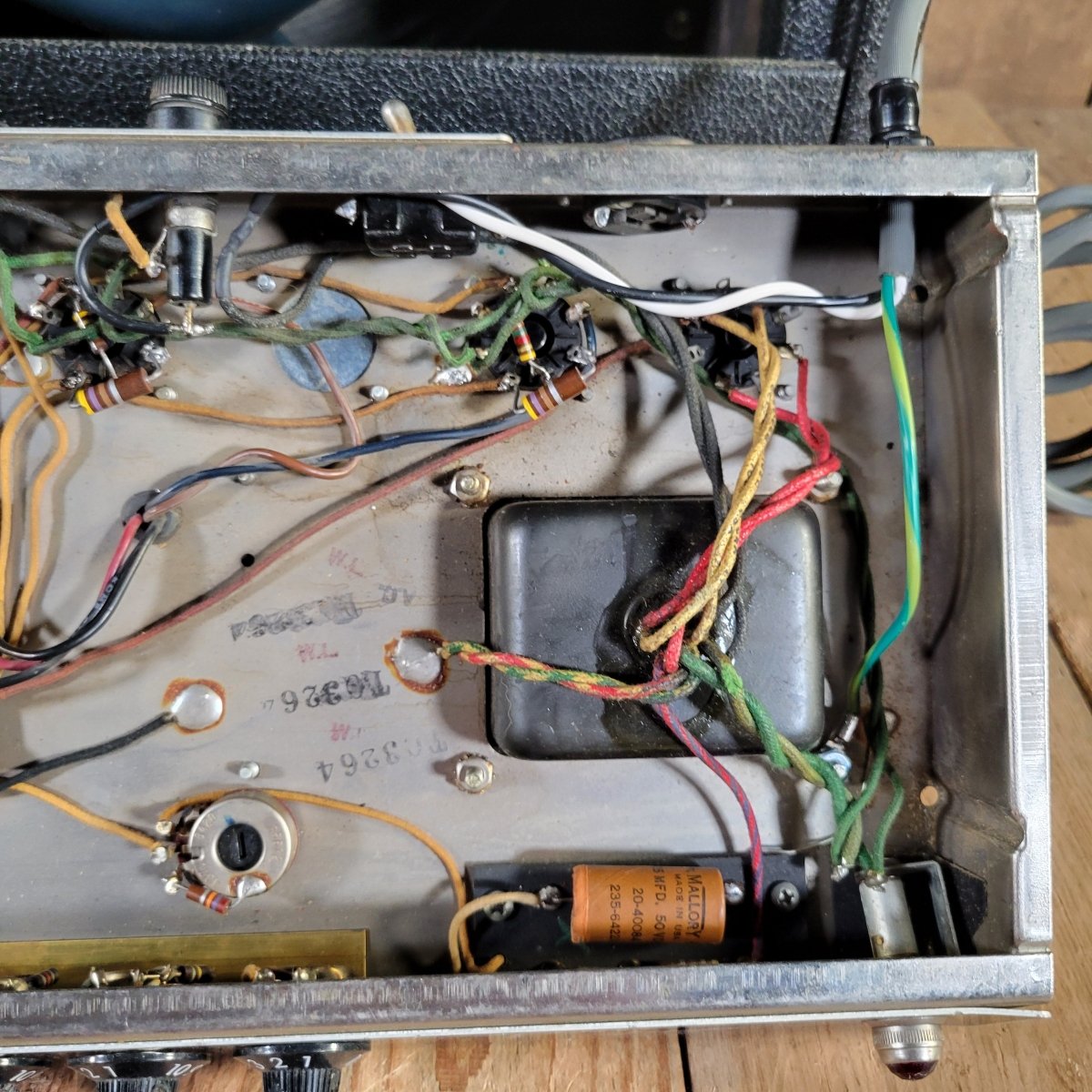

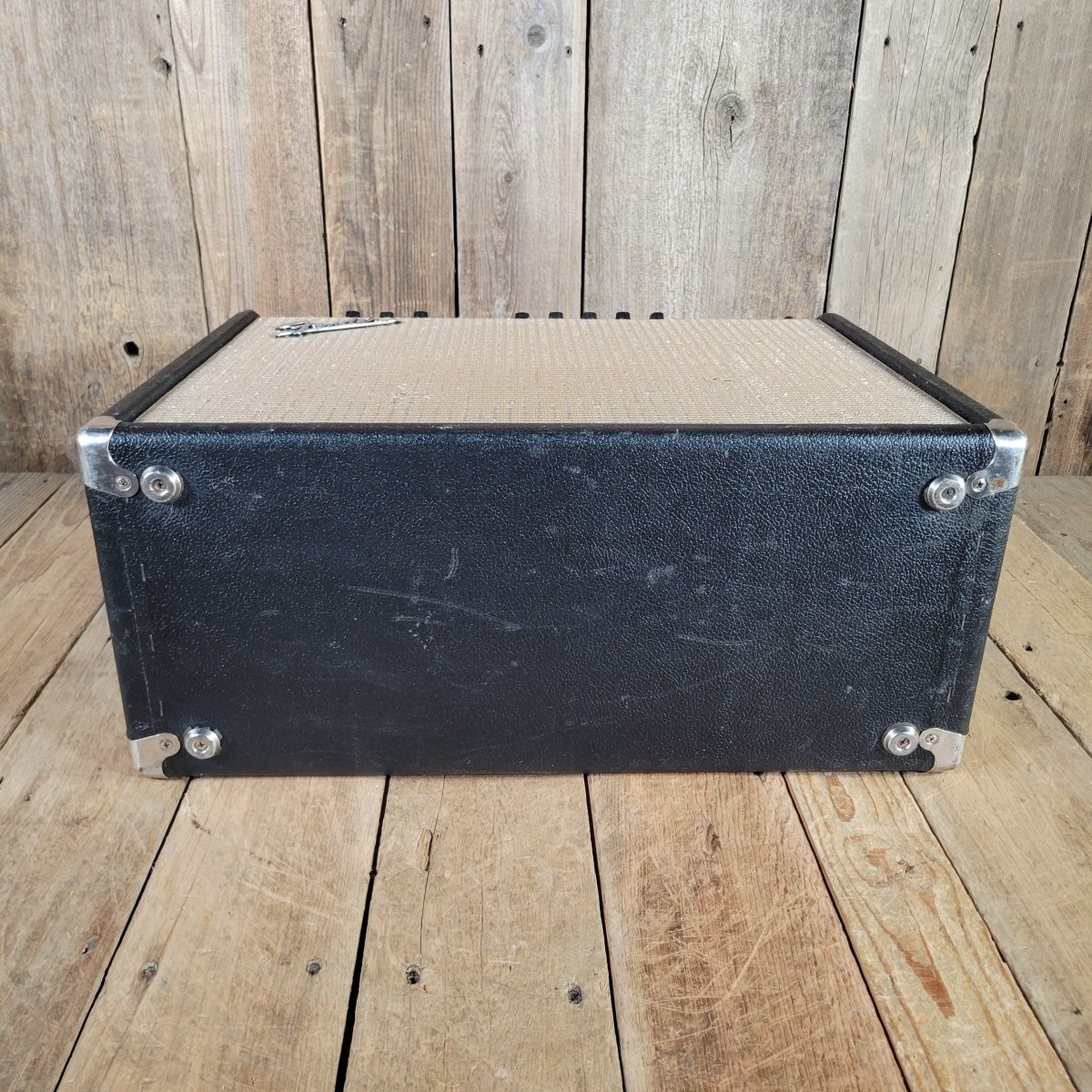

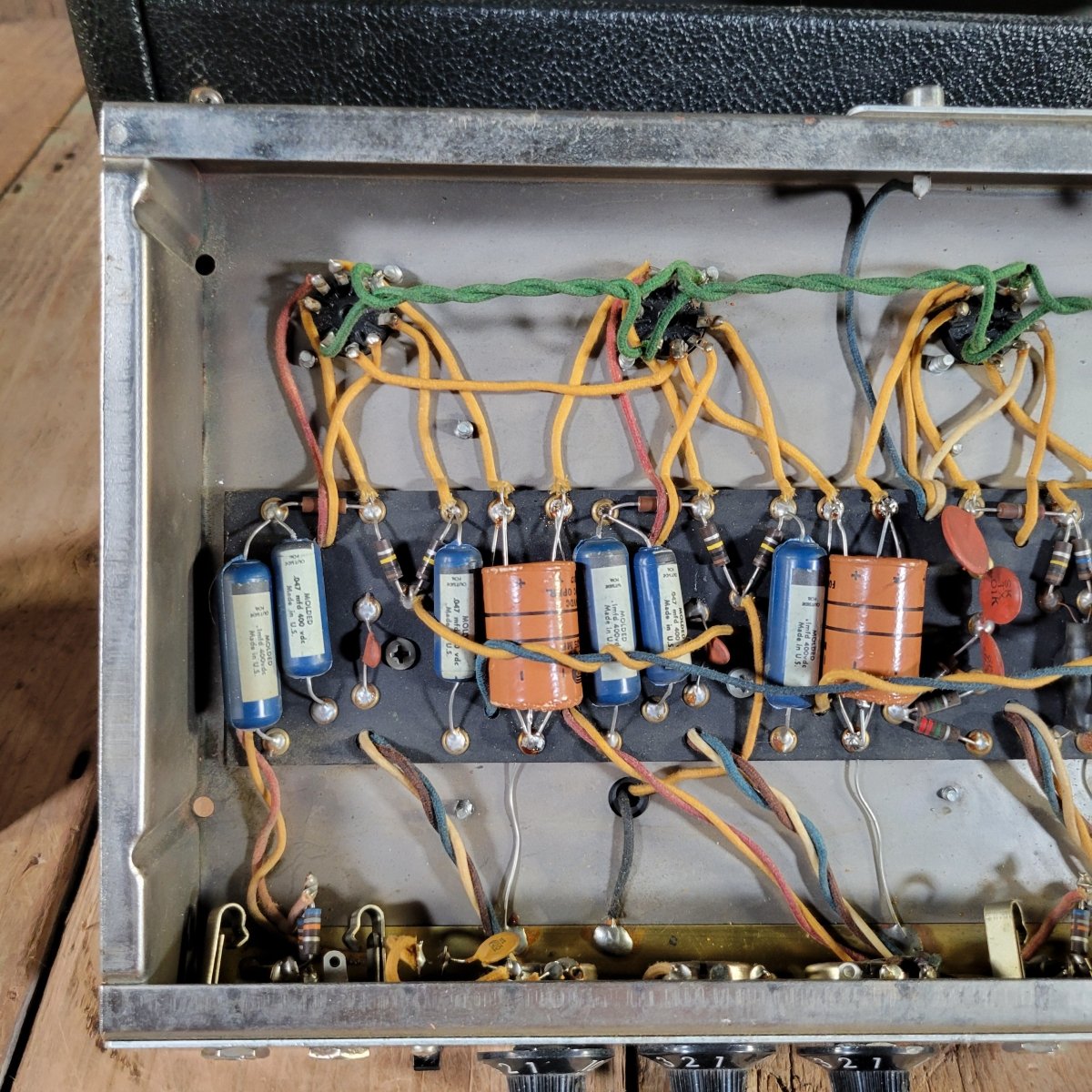

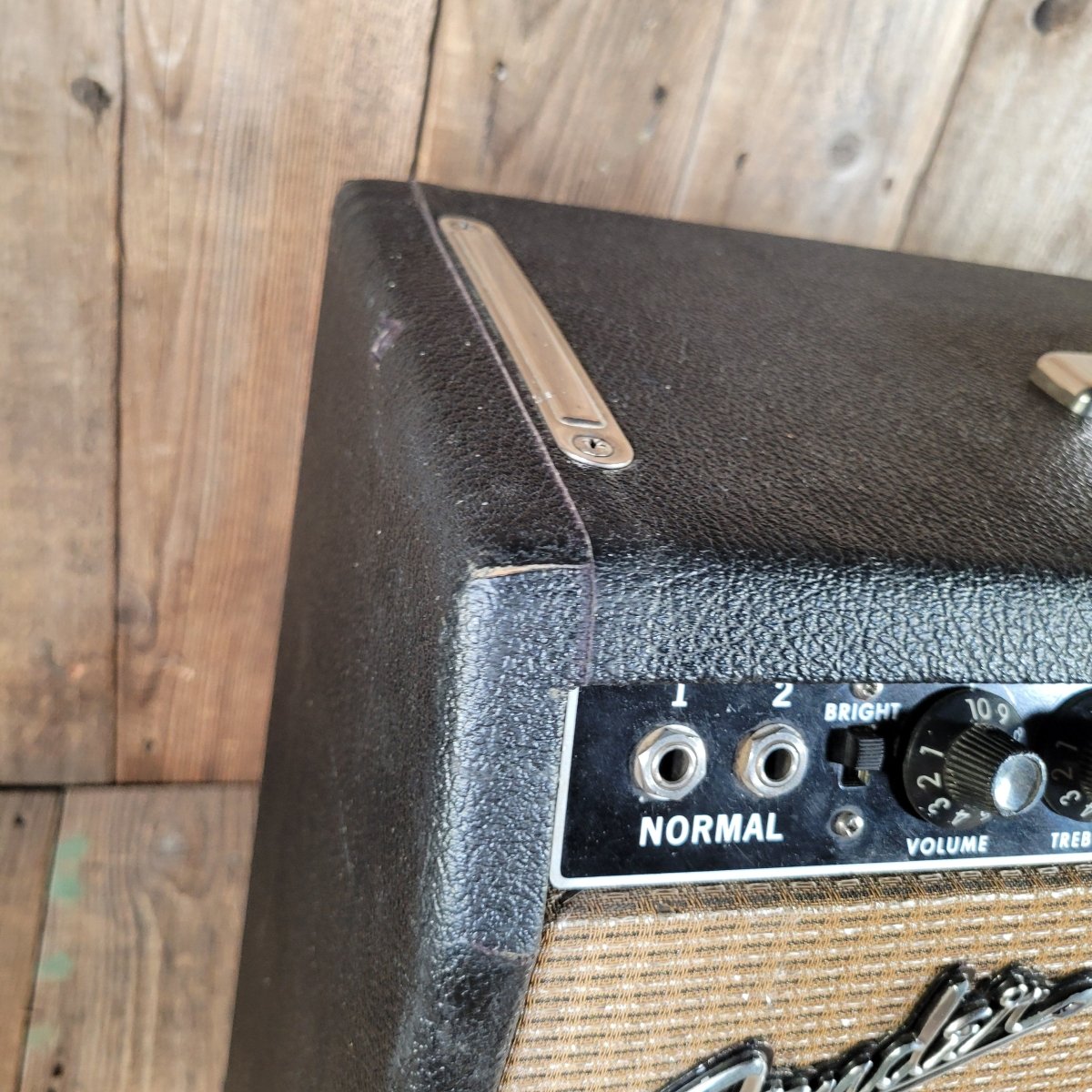

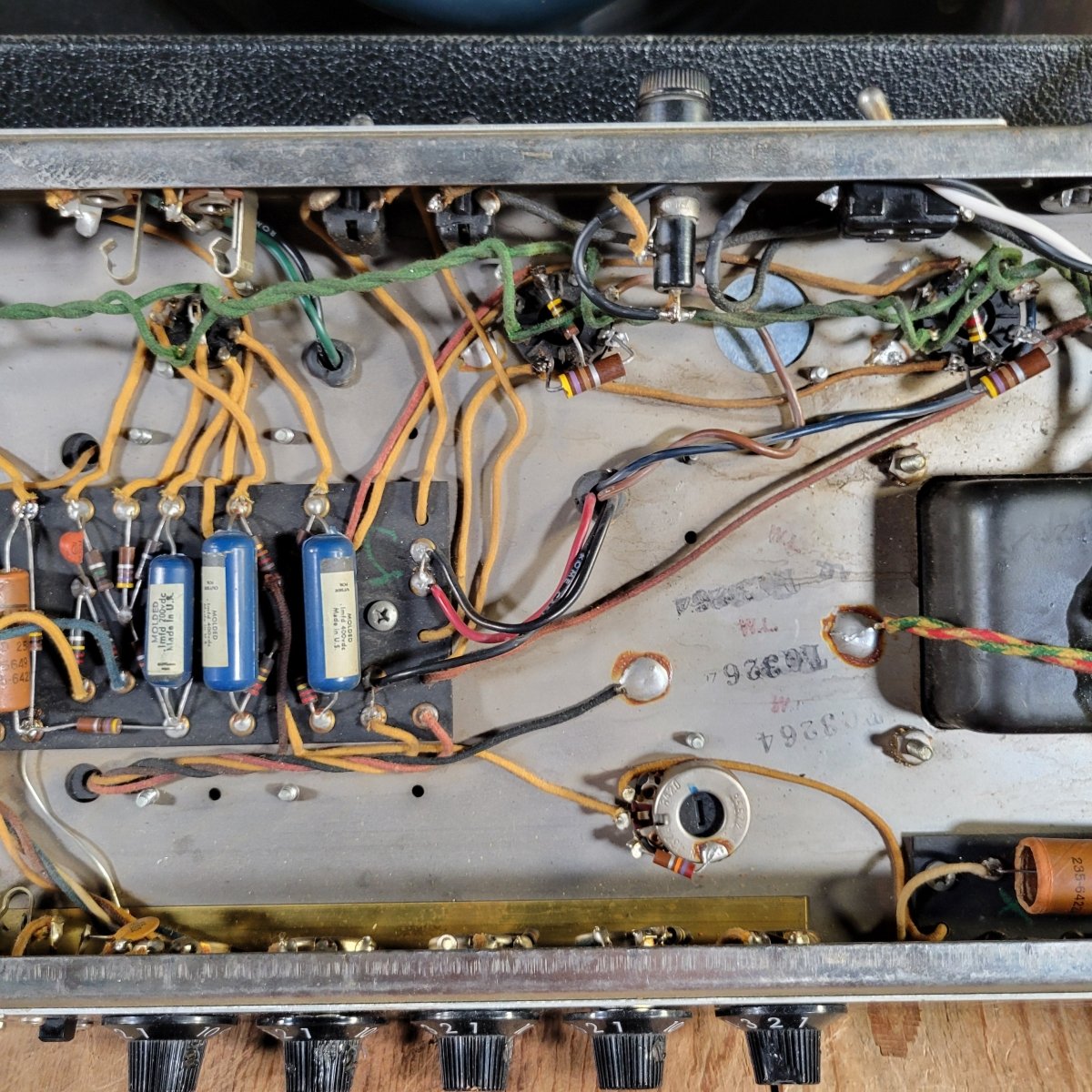

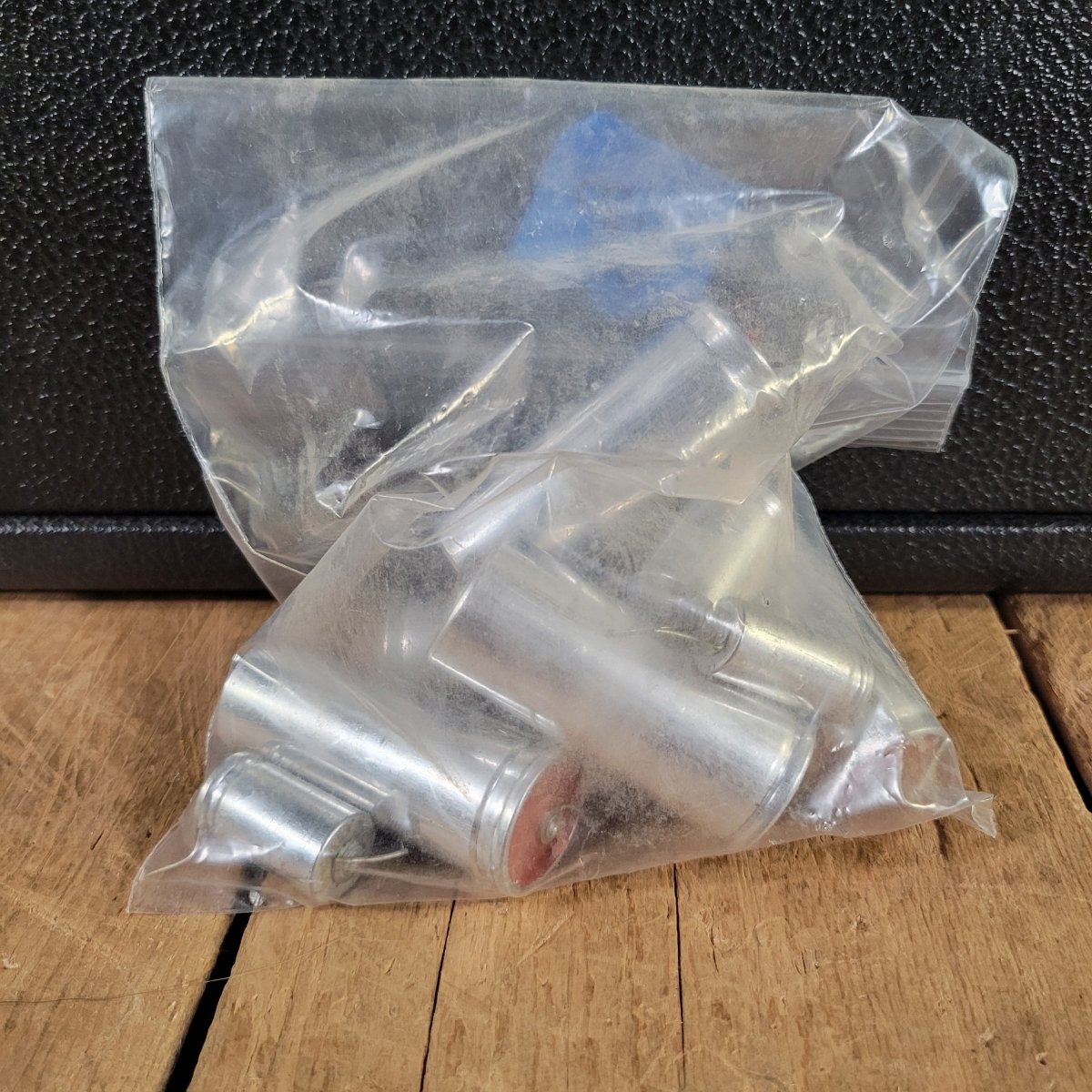

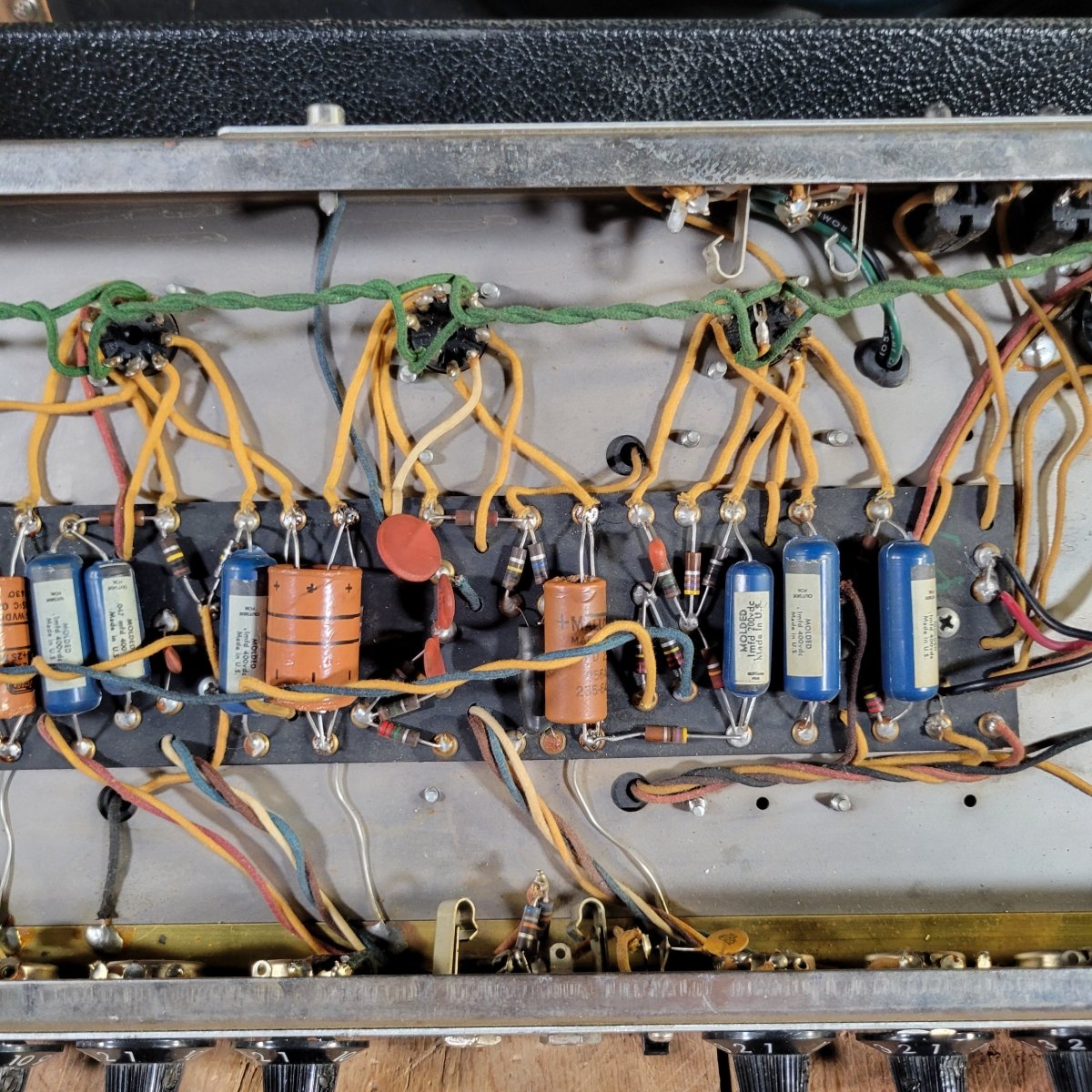

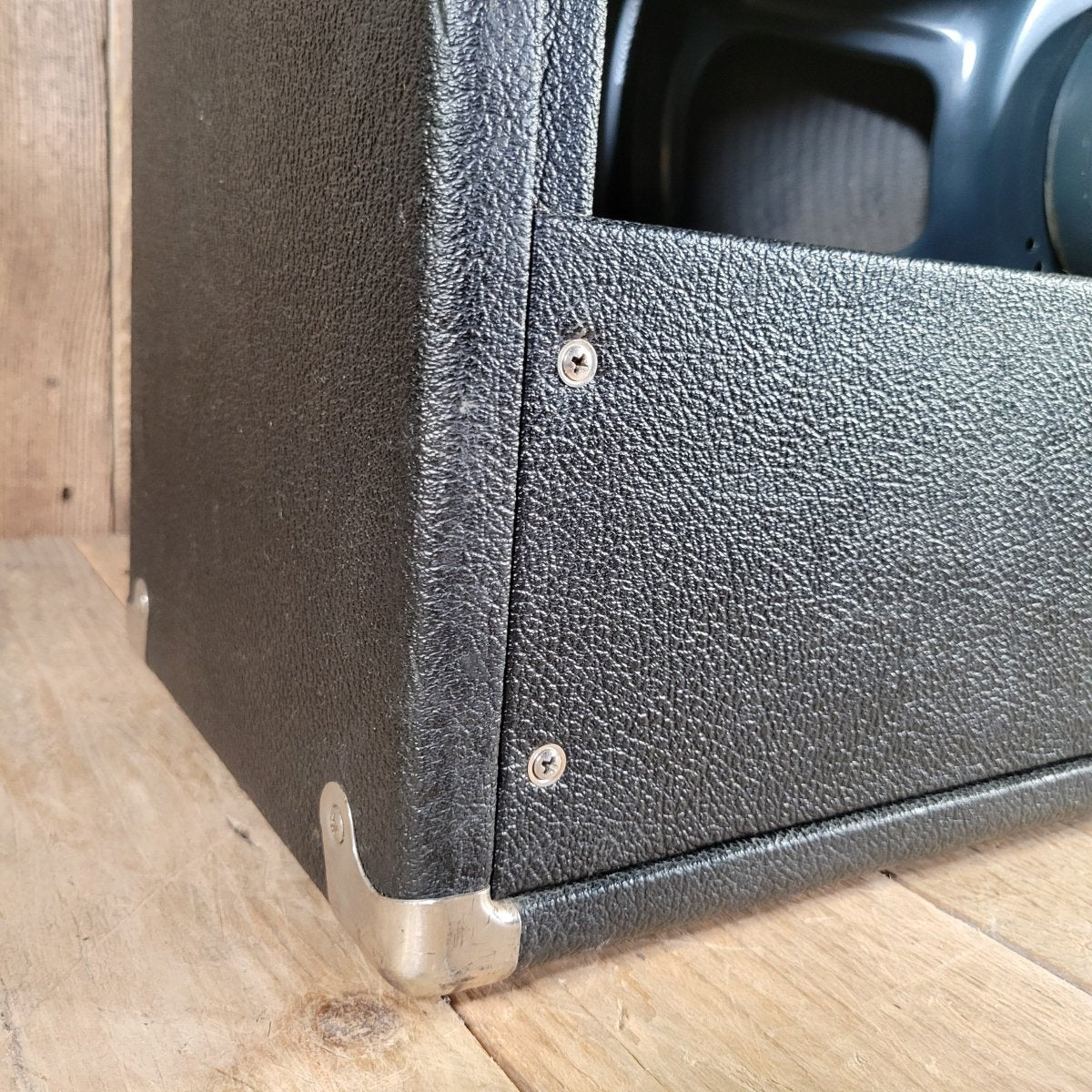

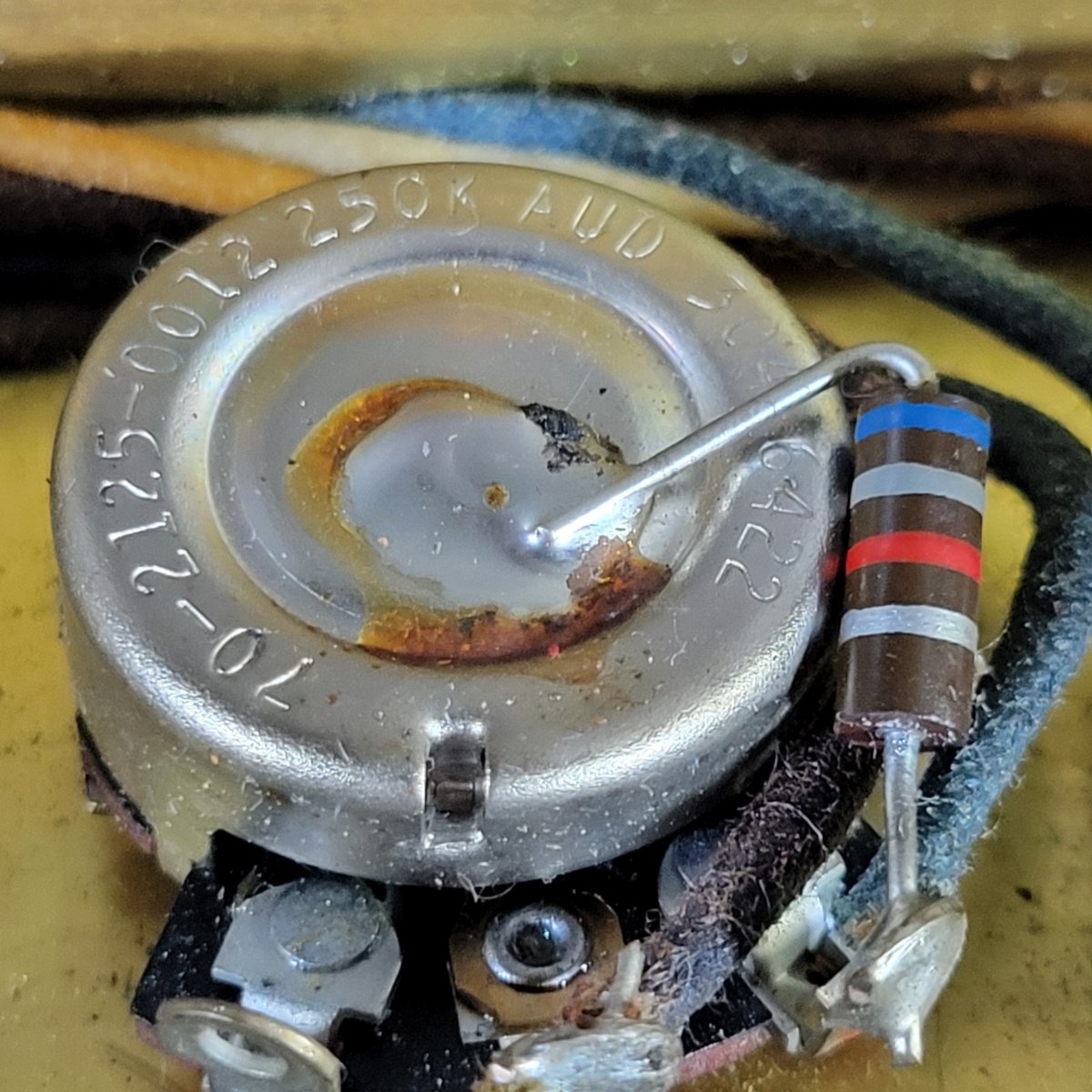

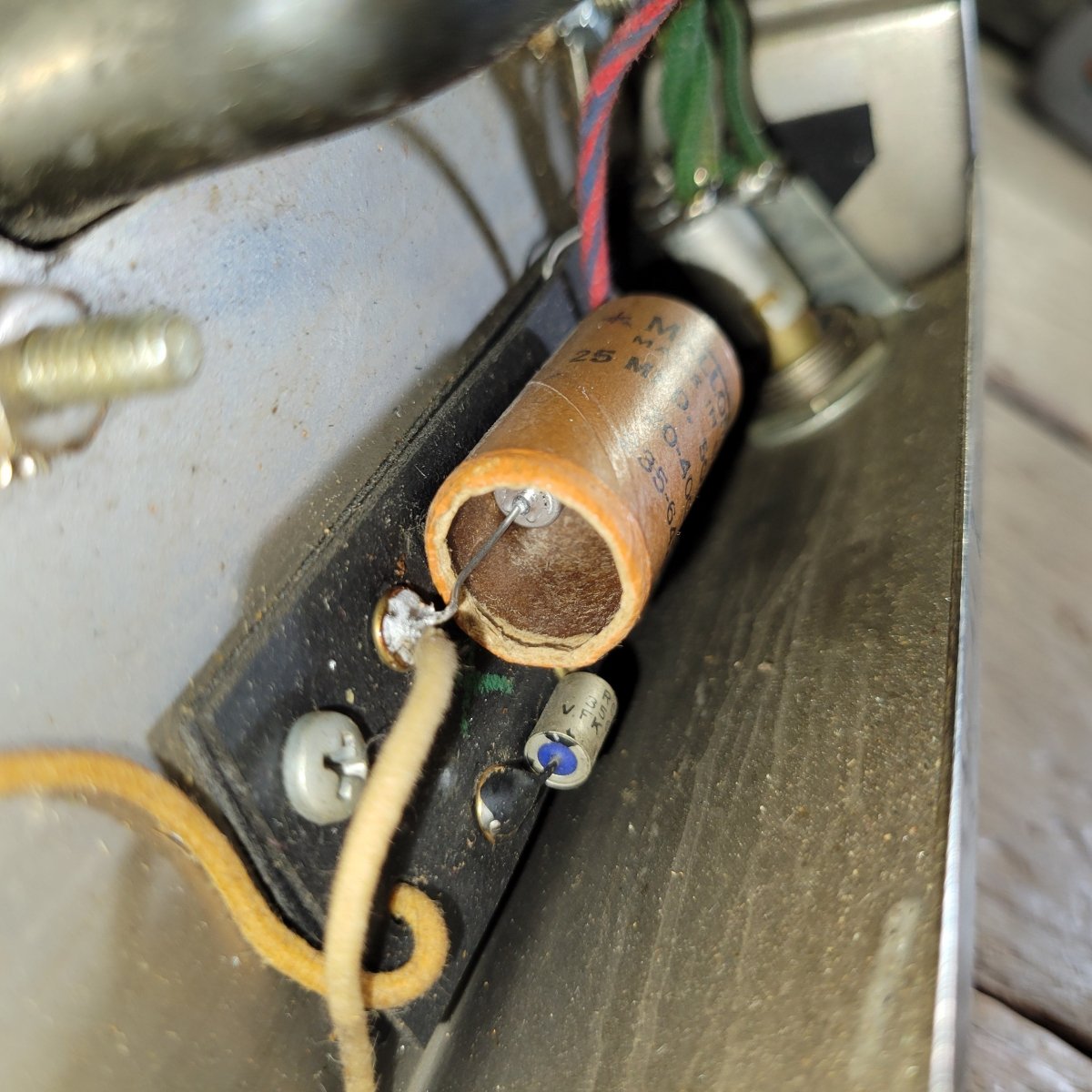

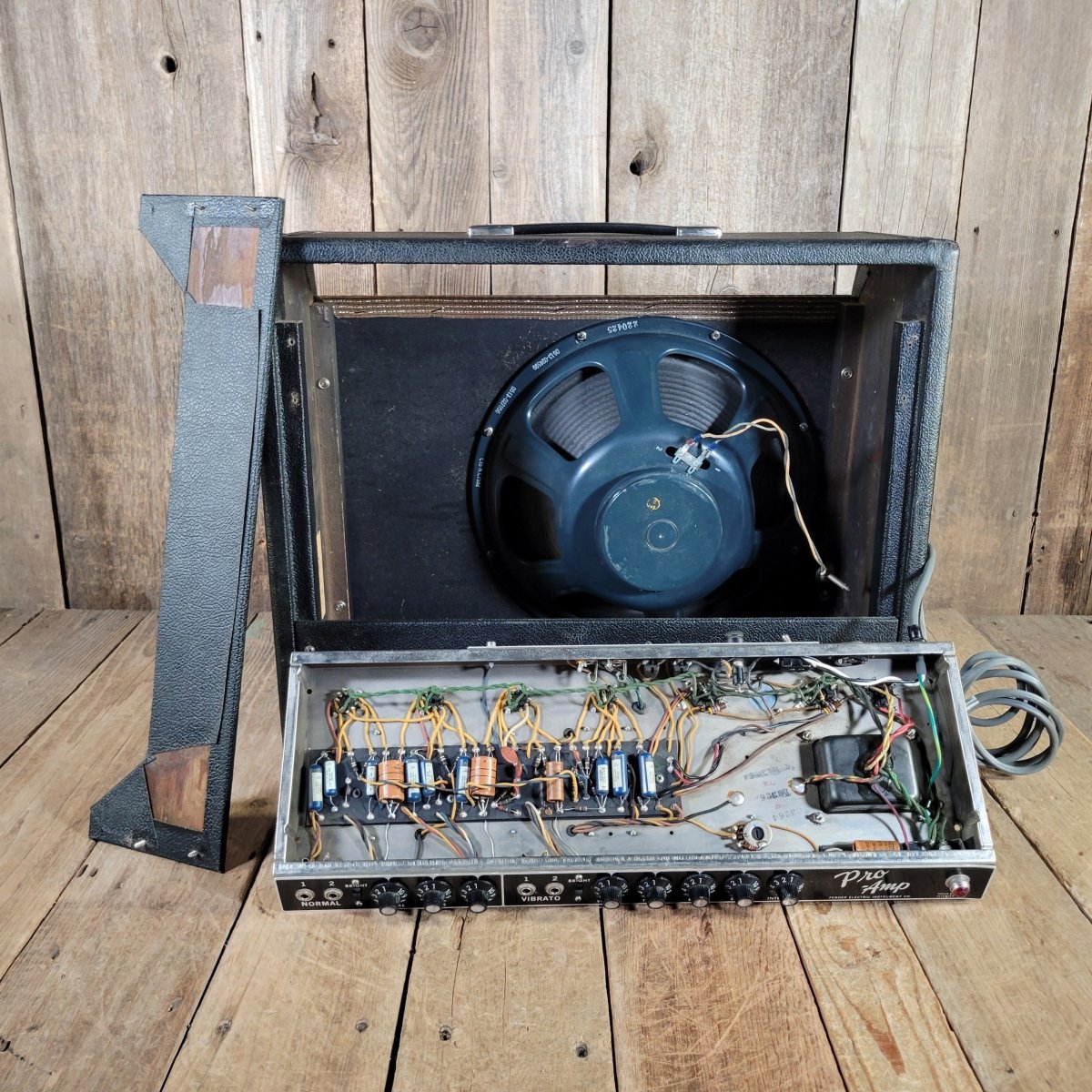

The cabinet, baffle, and chassis rate excellent with no repairs or changes, the grille rates very good with some light wear. The Schumacher power transformer (date code 408), choke transformer (410), and output transformer (409) are original, as are the knobs, handle, and potentiometers. The amp has had a cap job - I did the work here in the shop, and the amp has a new power cable.  The tube sockets, pots, and jacks were all cleaned and the only work performed on the amp is that which is necessary for solid and safe operation.

SPECIFICATIONS

• Date: 1964

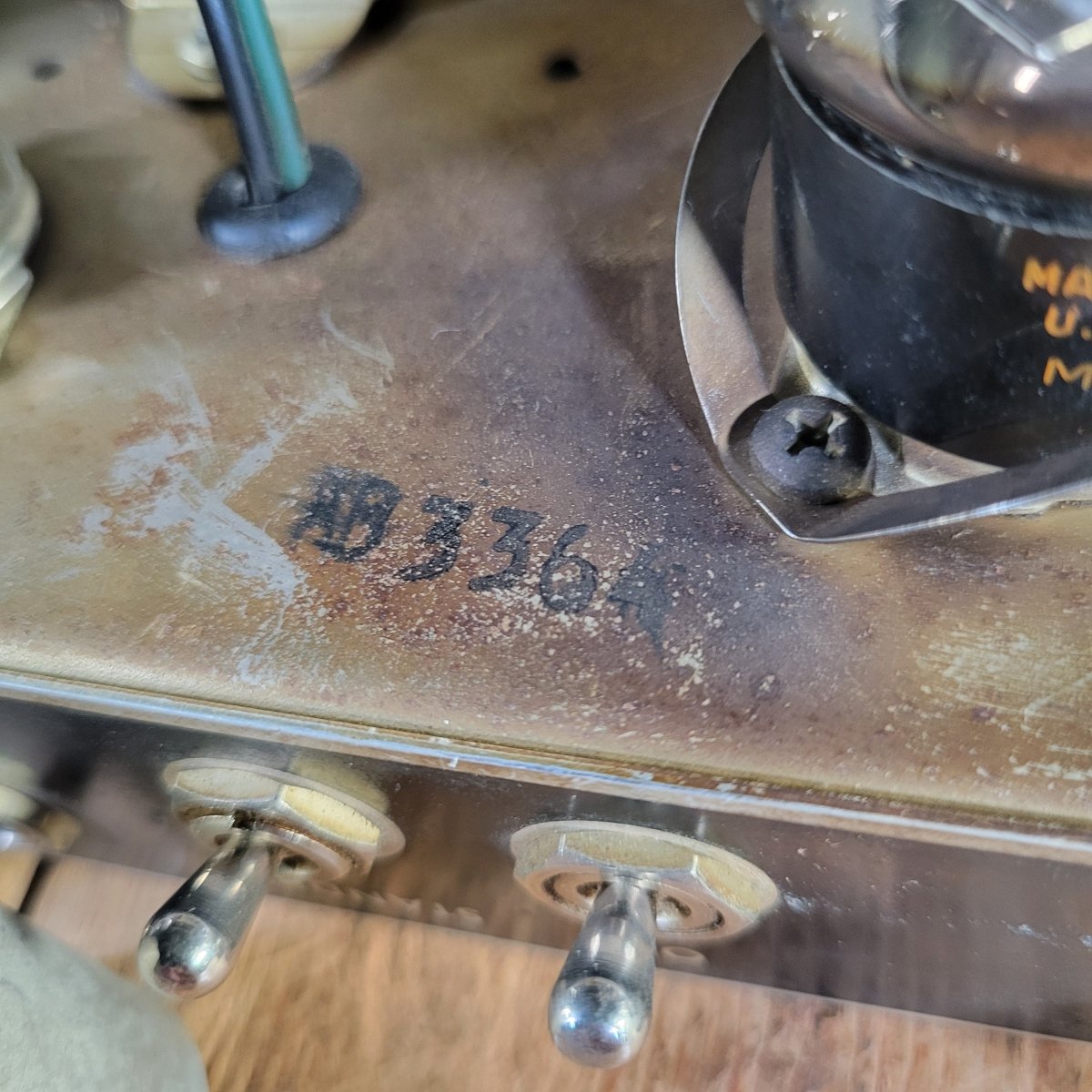

• Where Is Date Noted?: serial#, codes
• Weight: 44 lbs 6 oz
• Dimensions: w 24" x h 20" x d 10-1/2"
• Watts: 40 watts
• Case/Cover?: none

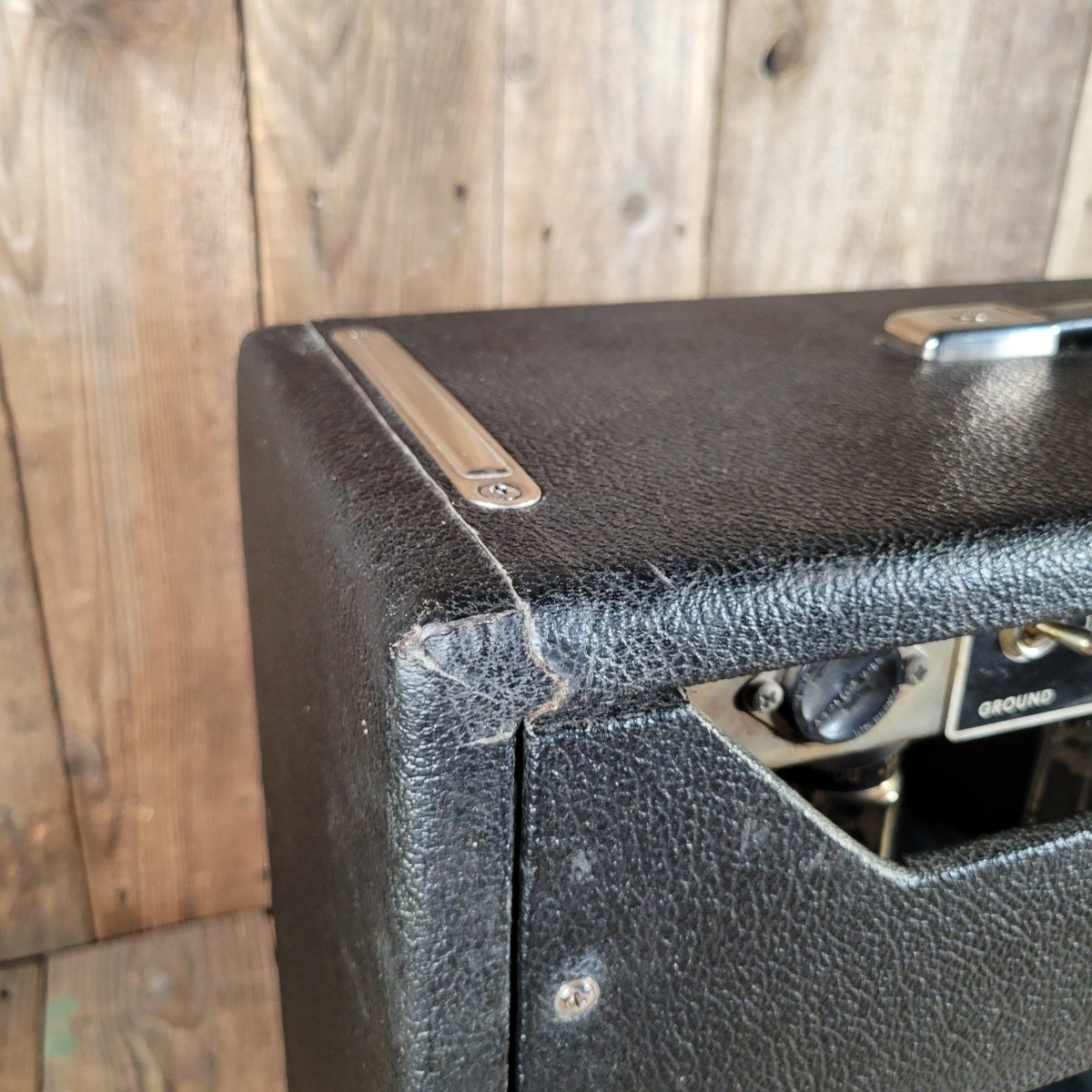

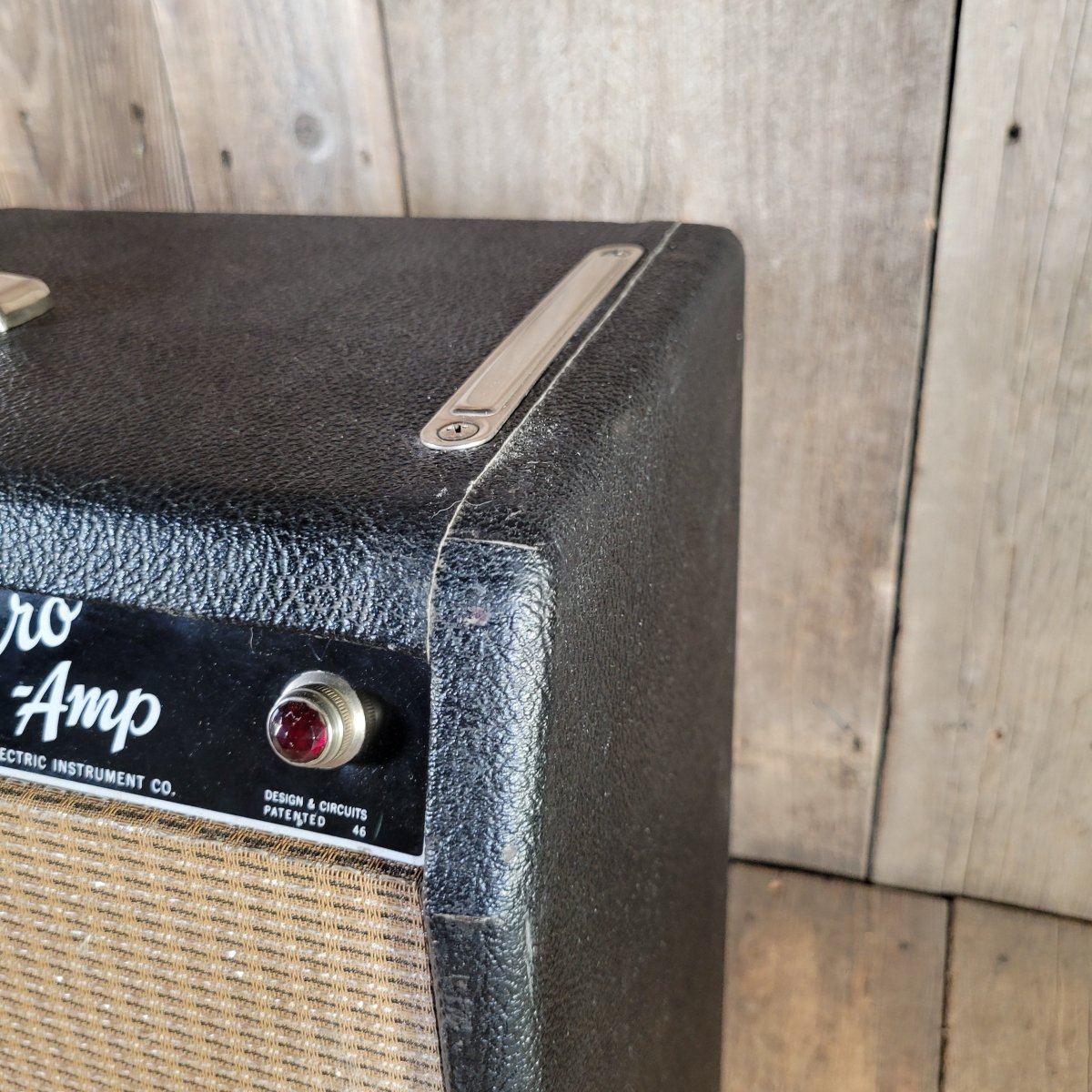

• Covering Material: tolex
• Covering Color: black
• Covering Original?: yes
• Cabinet Material: pine
• Cabinet Condition: excellent
• Cabinet Repairs/Changes: none
• Cabinet Original?: yes

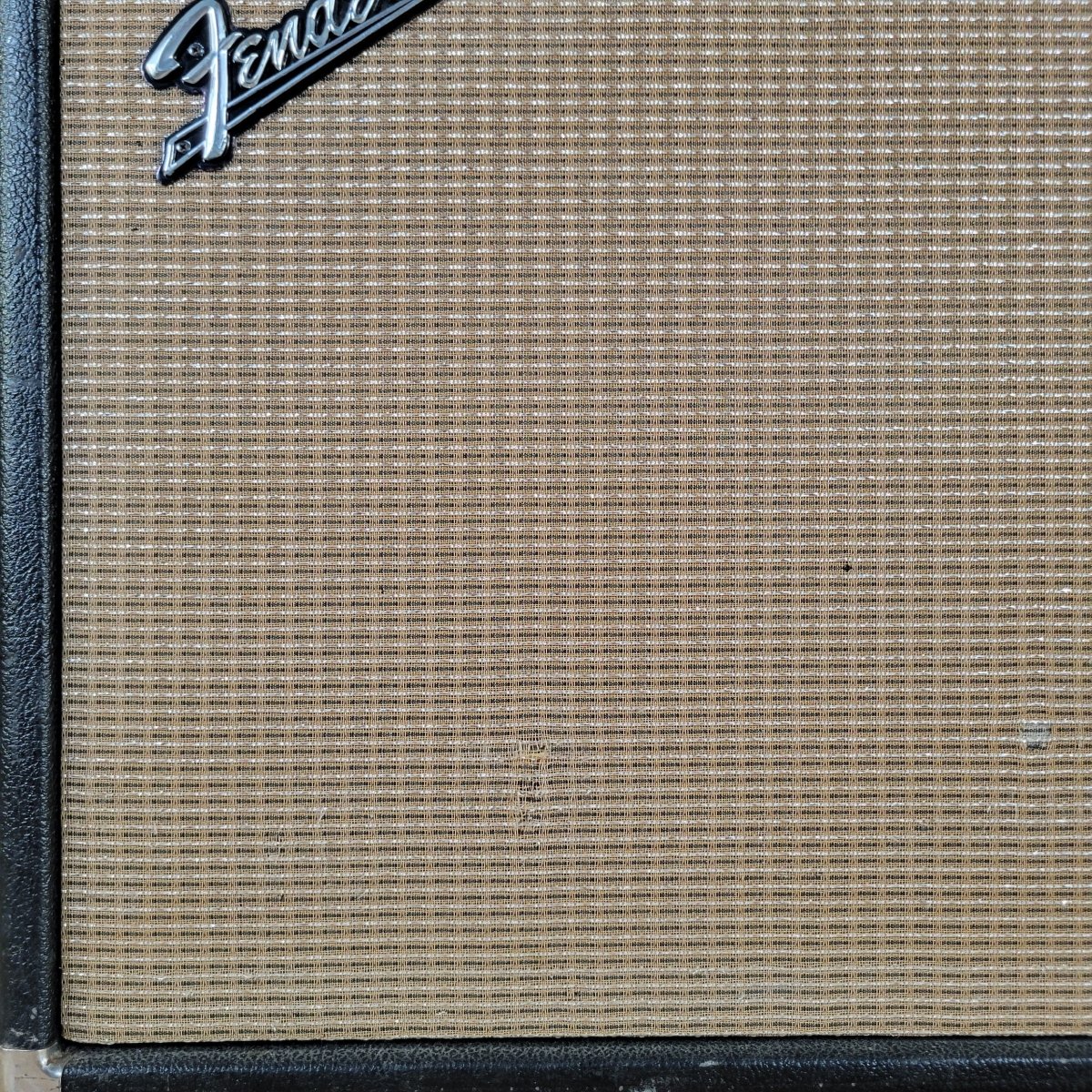

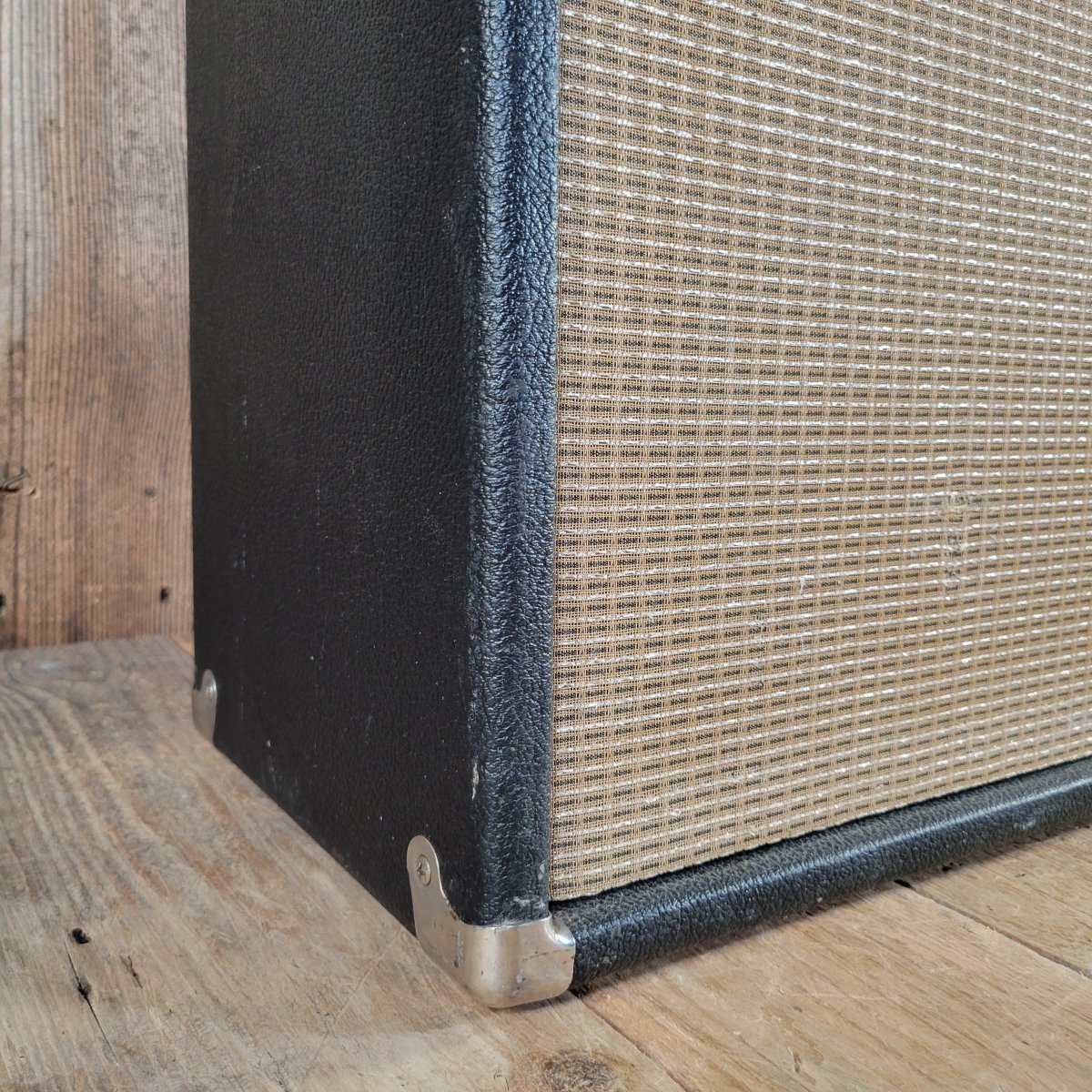

• Grille Style: wheat sparkle

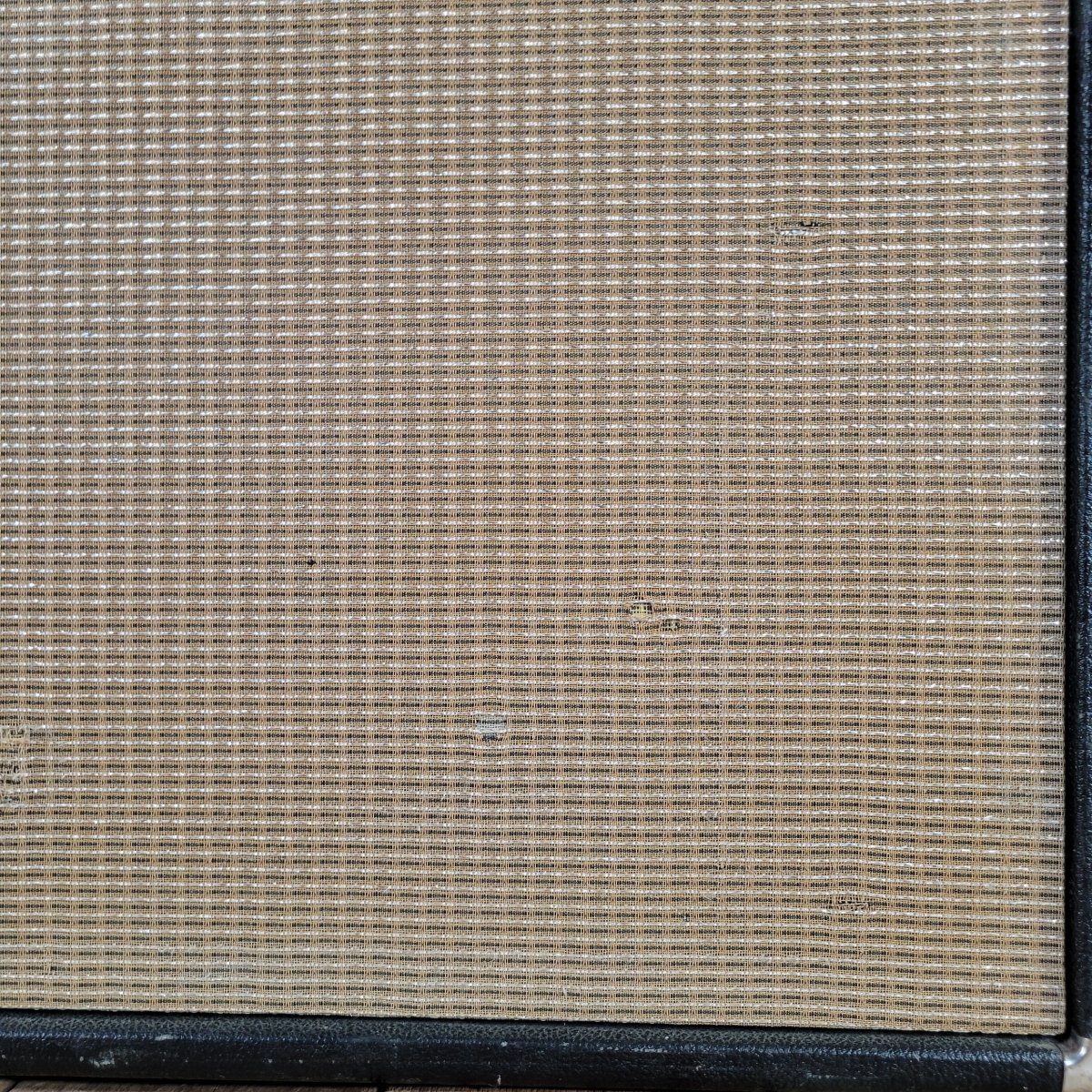

• Grille Condition: very good, some wear
• Grille Original?: yes
• Baffle Material: plywood
• Baffle Condition: excellent
• Baffle Original?: yes
• Baffle Repairs/Changes: none
• Chassis Material: metal
• Chassis Condition: excellent
• Chassis Original?: yes
• Chassis Repairs/Changes: none
• Knobs Original?: yes
• Handle Material: rubber
• Handle Original?: yes

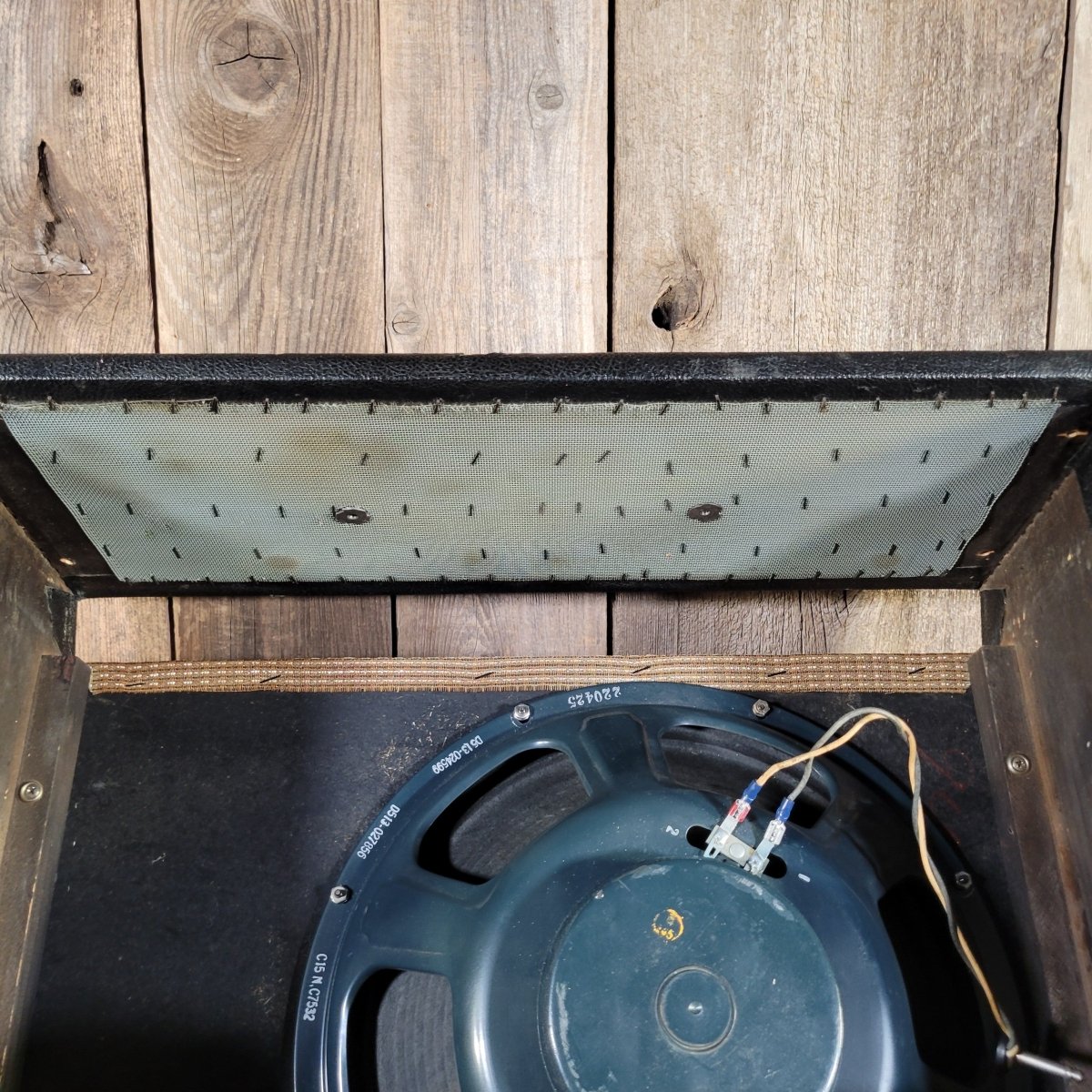

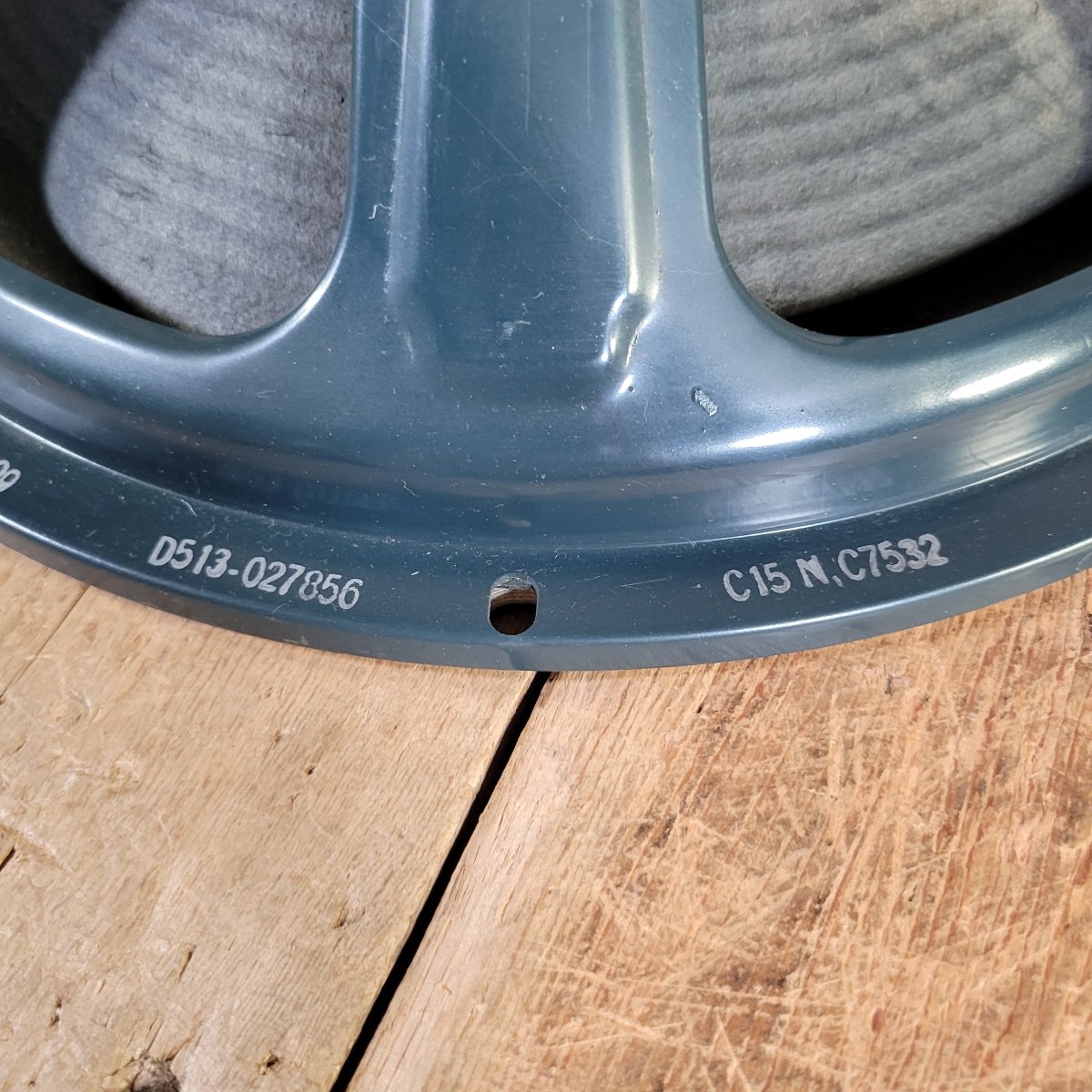

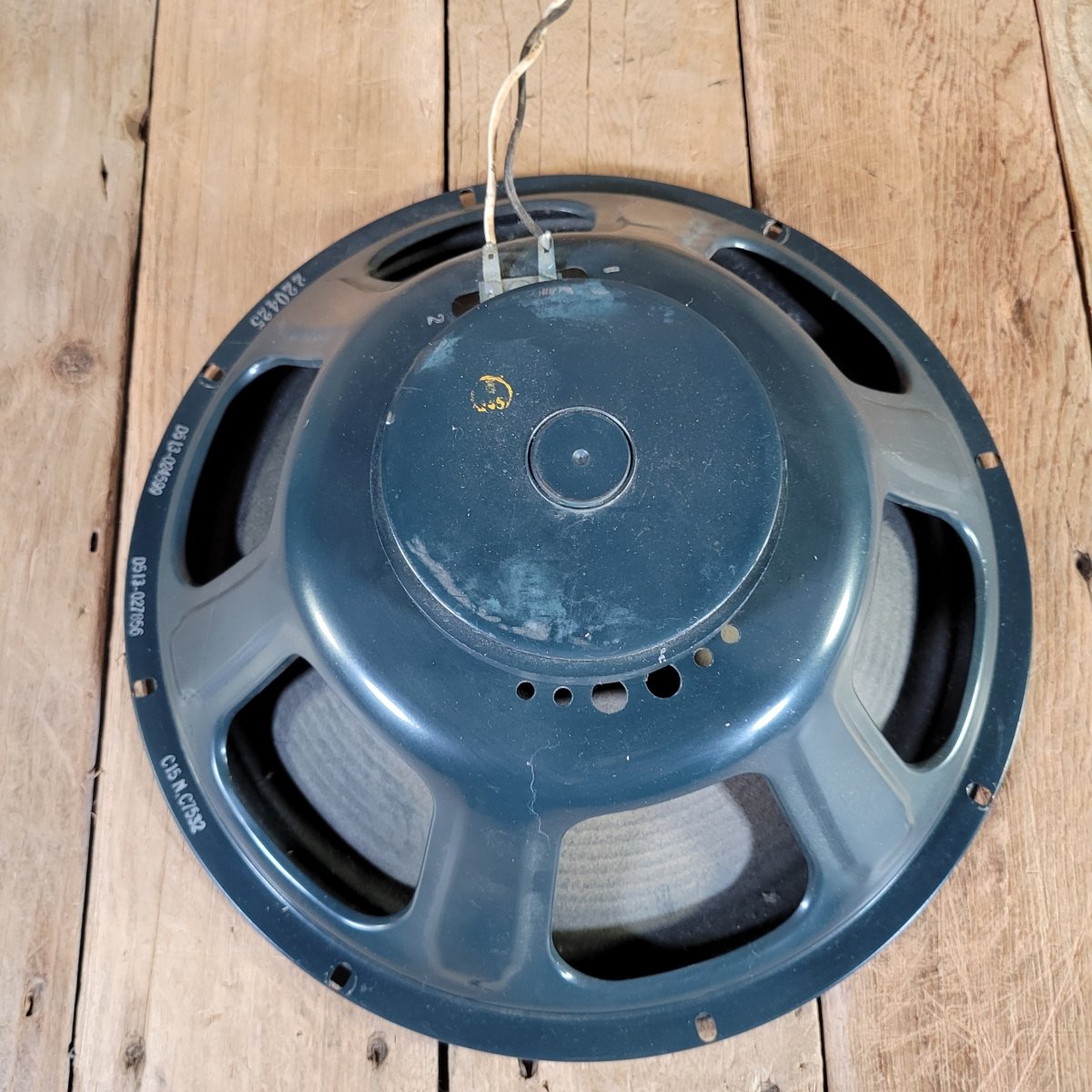

• Speaker 1 Brand: Jensen
• Speaker 1 Size: 15"
• Speaker 1 Manufacturer Code: 220
• Speaker 1 Date Code: 425

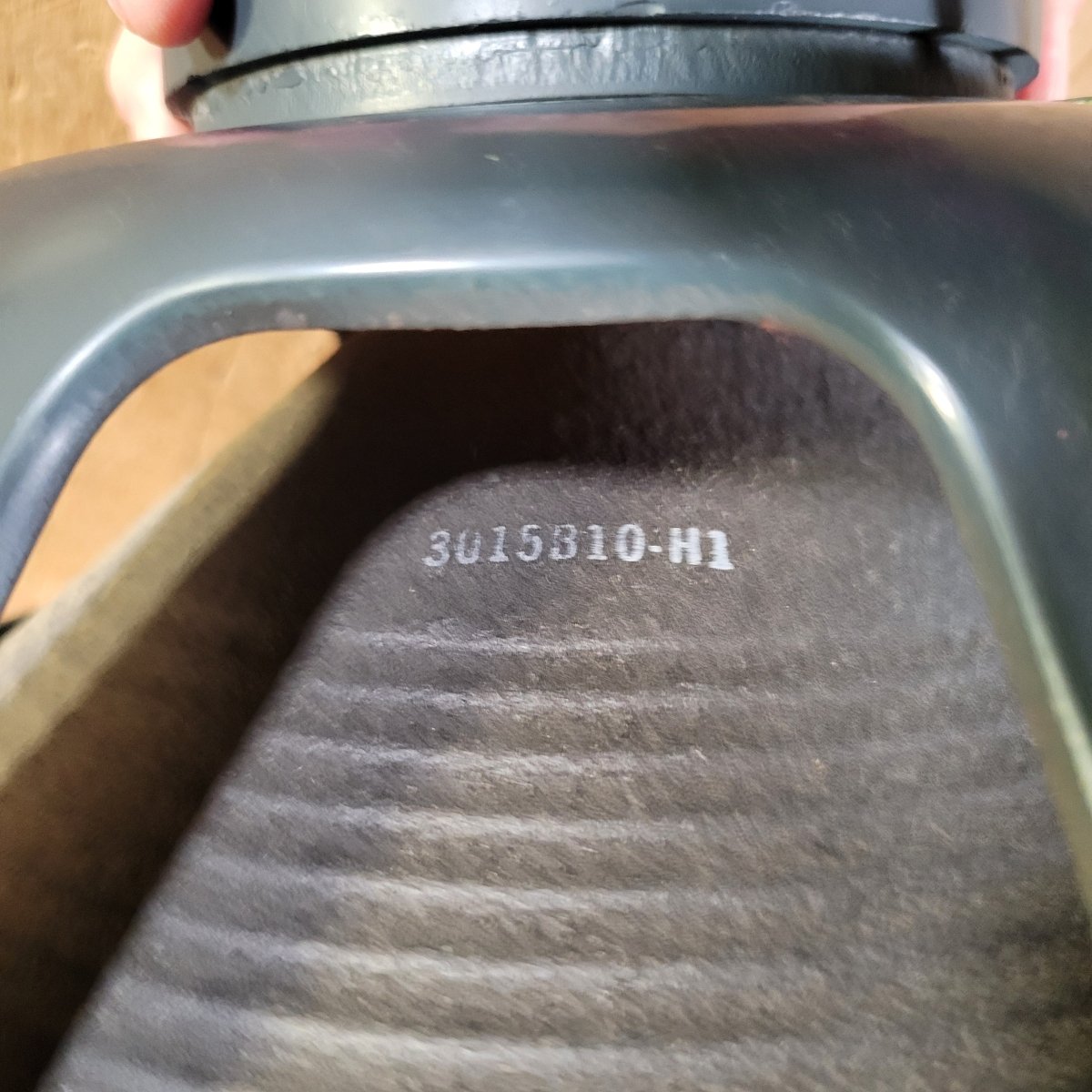

• Speaker 1 Cone Code: 3015310-H1
• Speaker 1 Cone Original?: yes
• Speaker 1 Condition: excellent
• Speaker 1 Original?: Likely not, but it is era correct

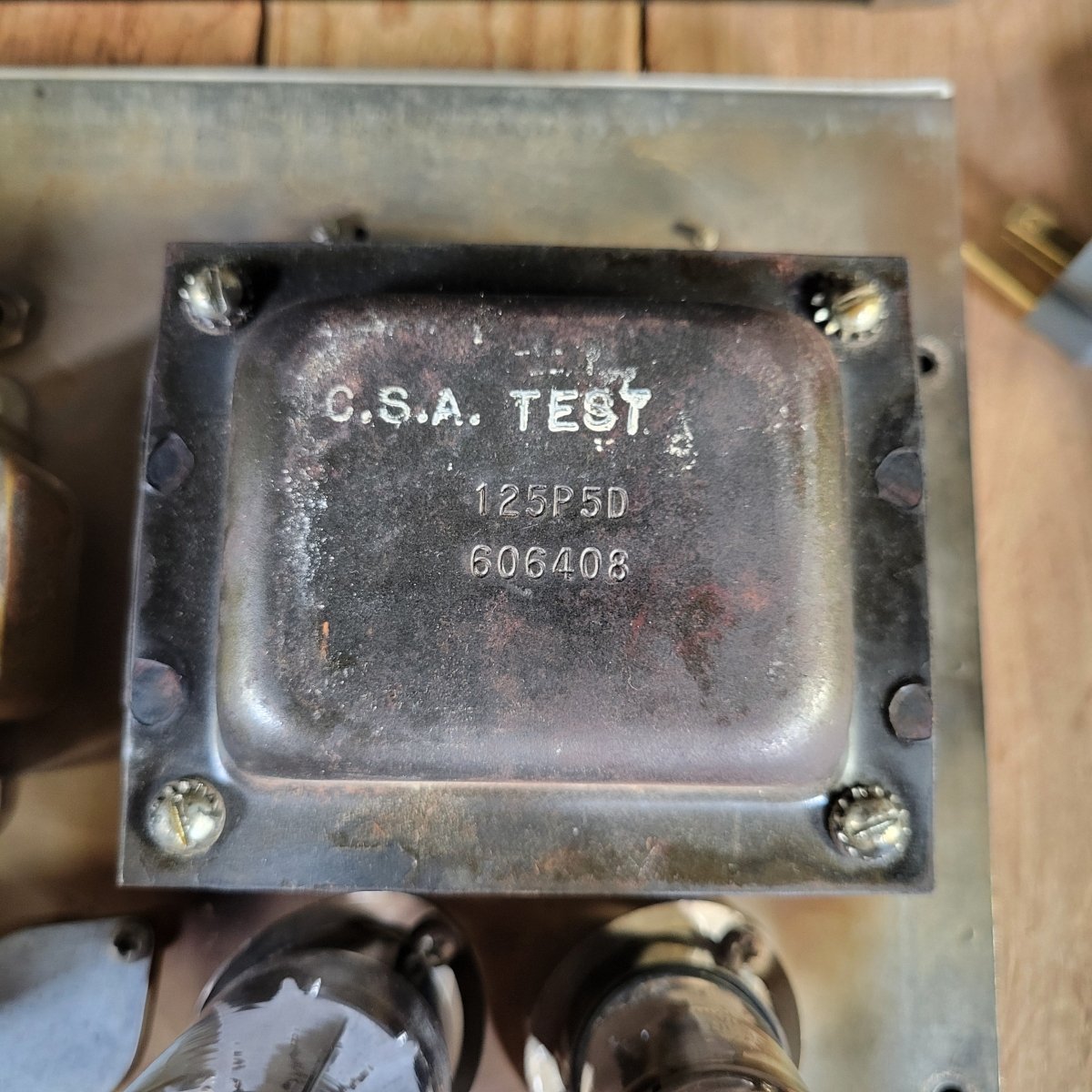

• Power Transformer Manufacturer: Schumacher
• Power Transformer Manufacturer Code: 606
• Power Transformer Date Code: 408
• Power Transformer Original?: yes

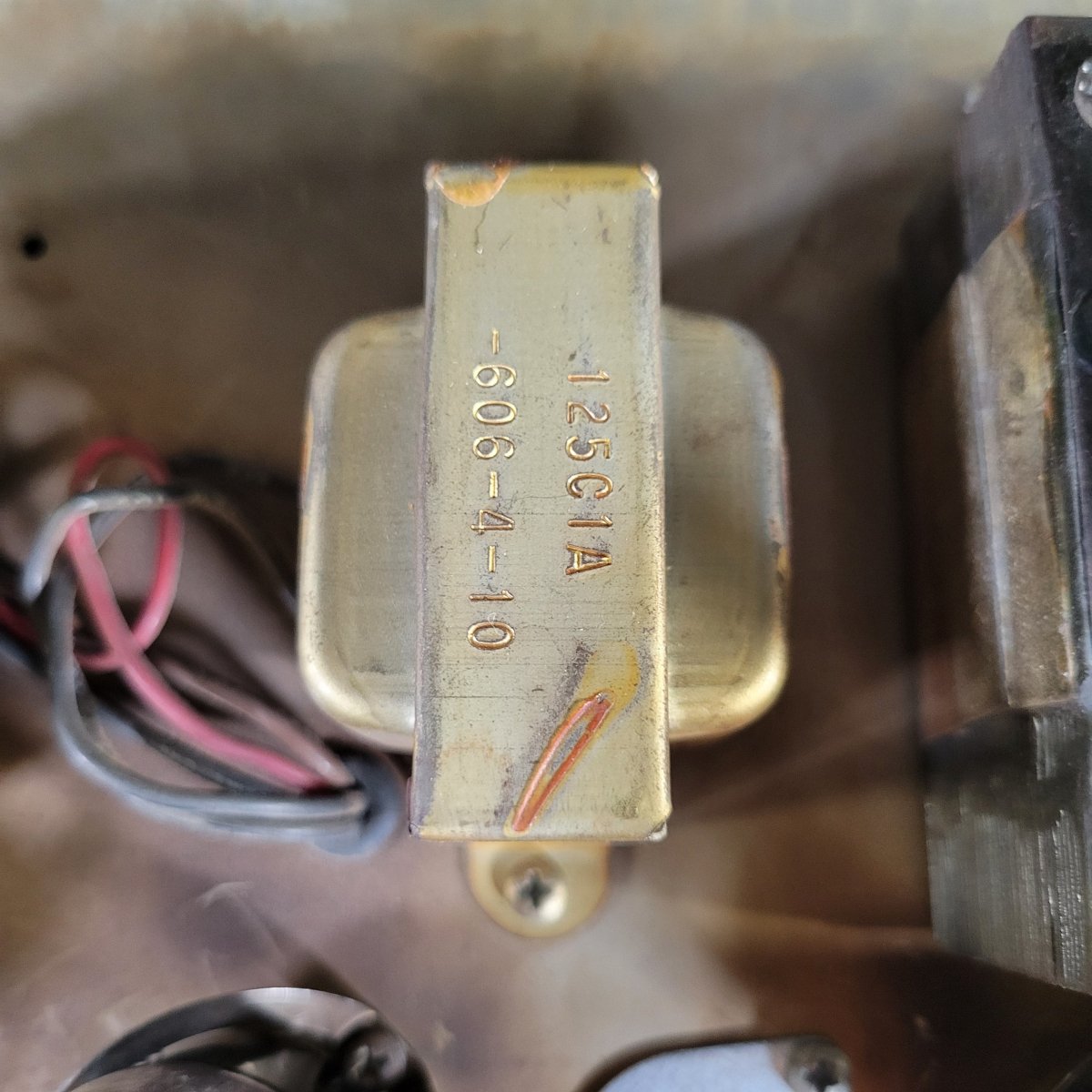

• Choke Transformer Manufacturer: Schumacher
• Choke Transformer Manufacturer Code: 606
• Choke Transformer Date Code: 410
• Choke Transformer Original?: yes

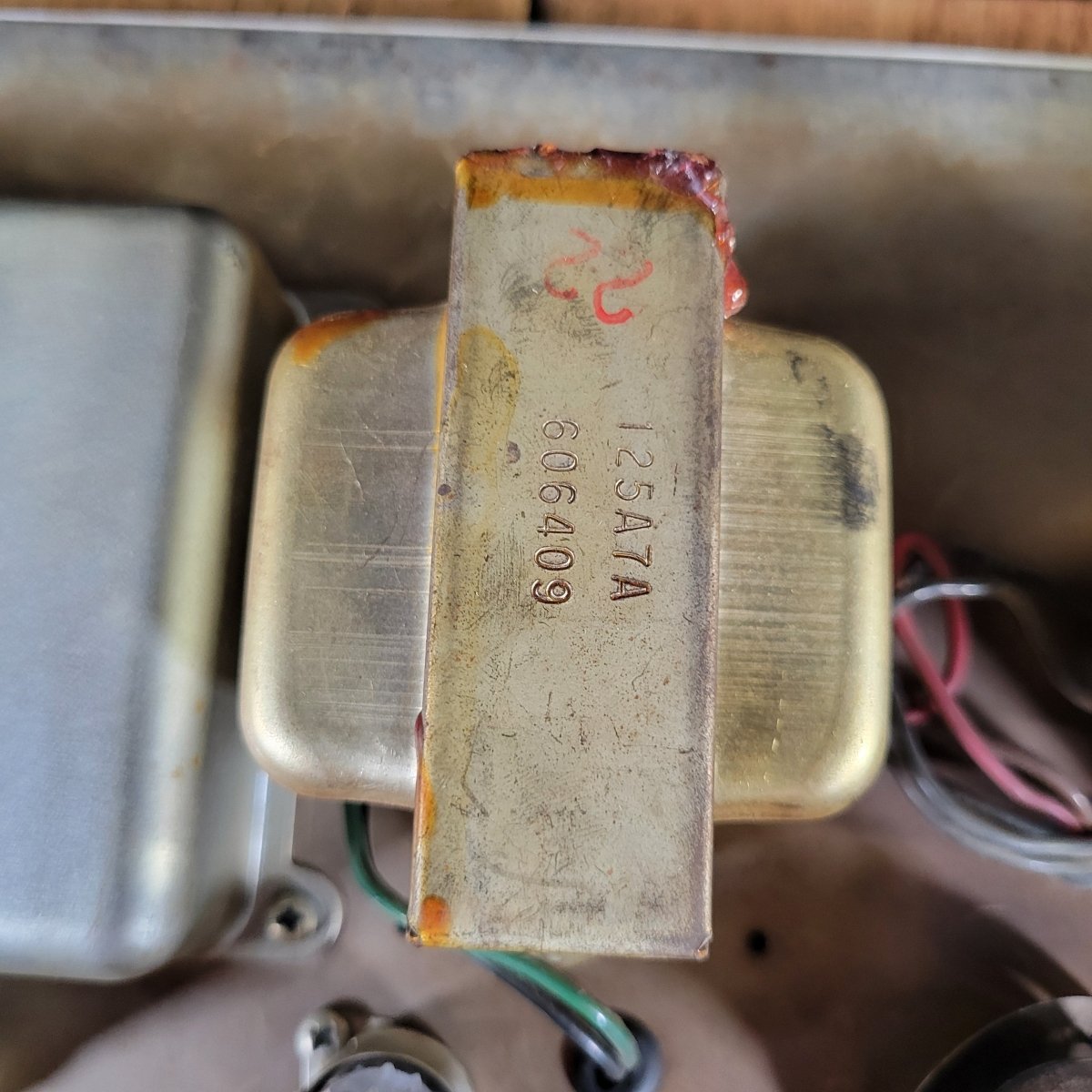

• Output Transformer Manufacturer: Schumacher
• Output Transformer Manufacturer Code: 606
• Output Transformer Date Code: 409
• Output Transformer Original?: yes

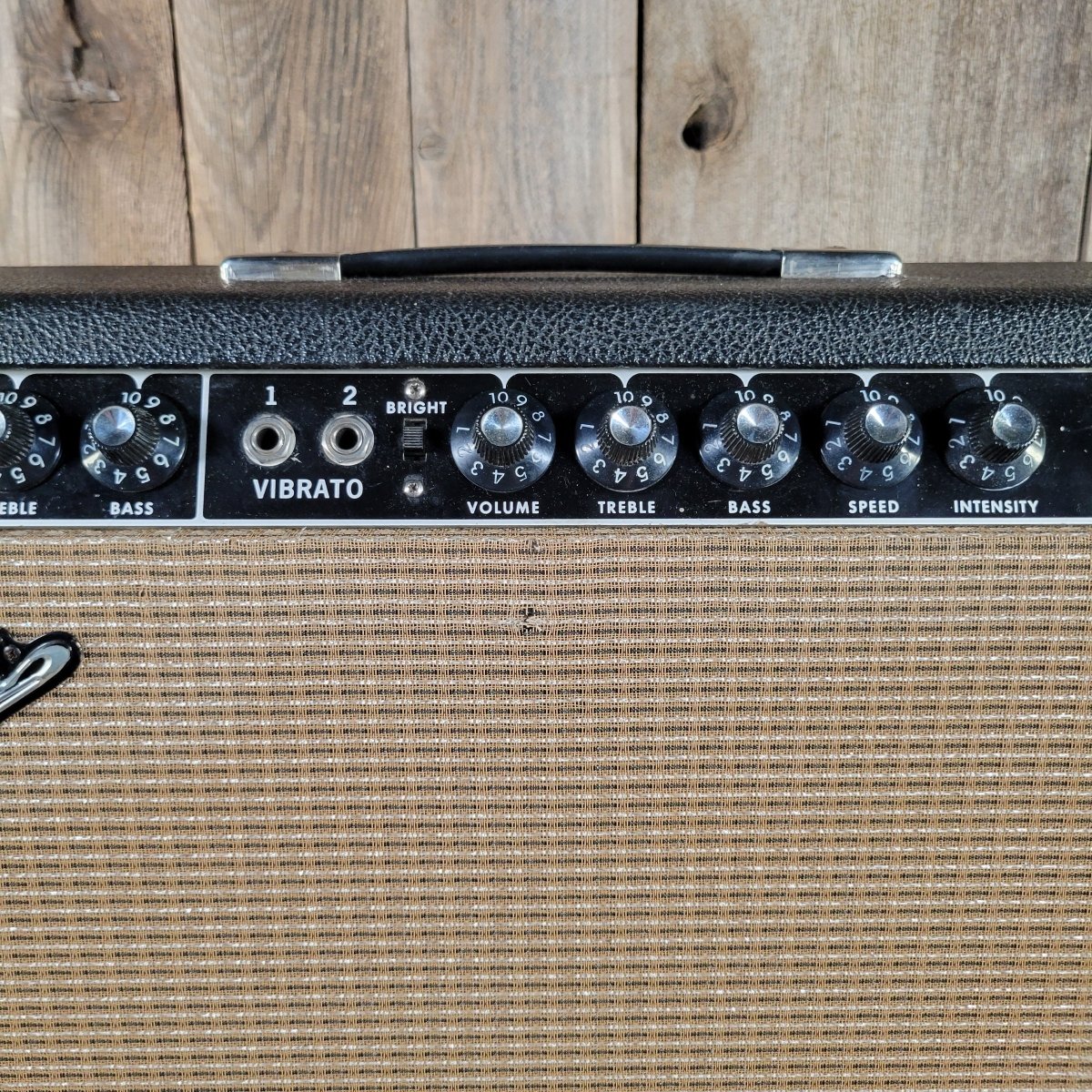

• Tremolo Or Vibrato Onboard: vibrato
• Pedal Included?: Original
• Rectifier Tube: 5AR4
• Rectifier Tube Brand: Sovtek

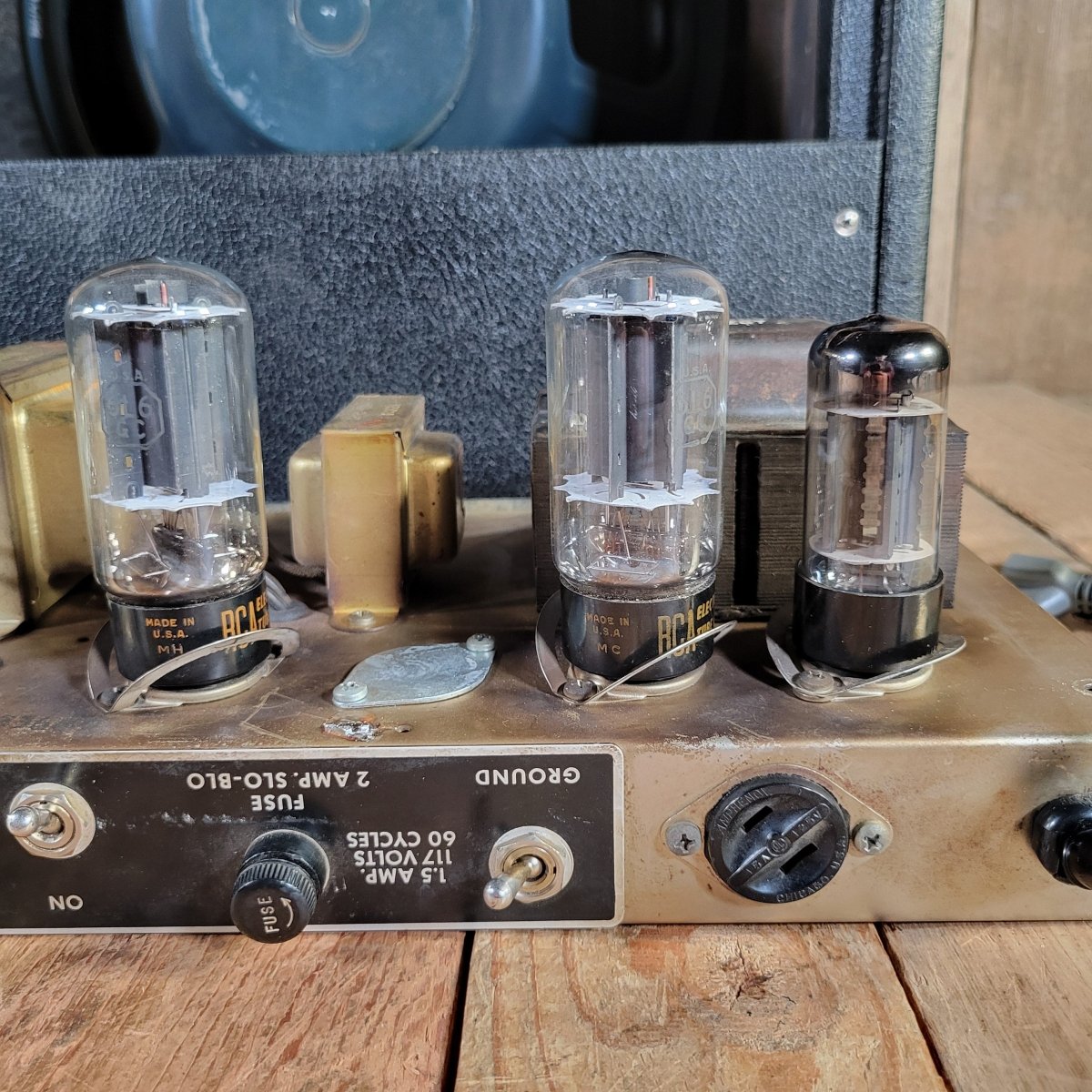

• Power Tubes: 2 x 6L6
• Power Tube Brand: RCA

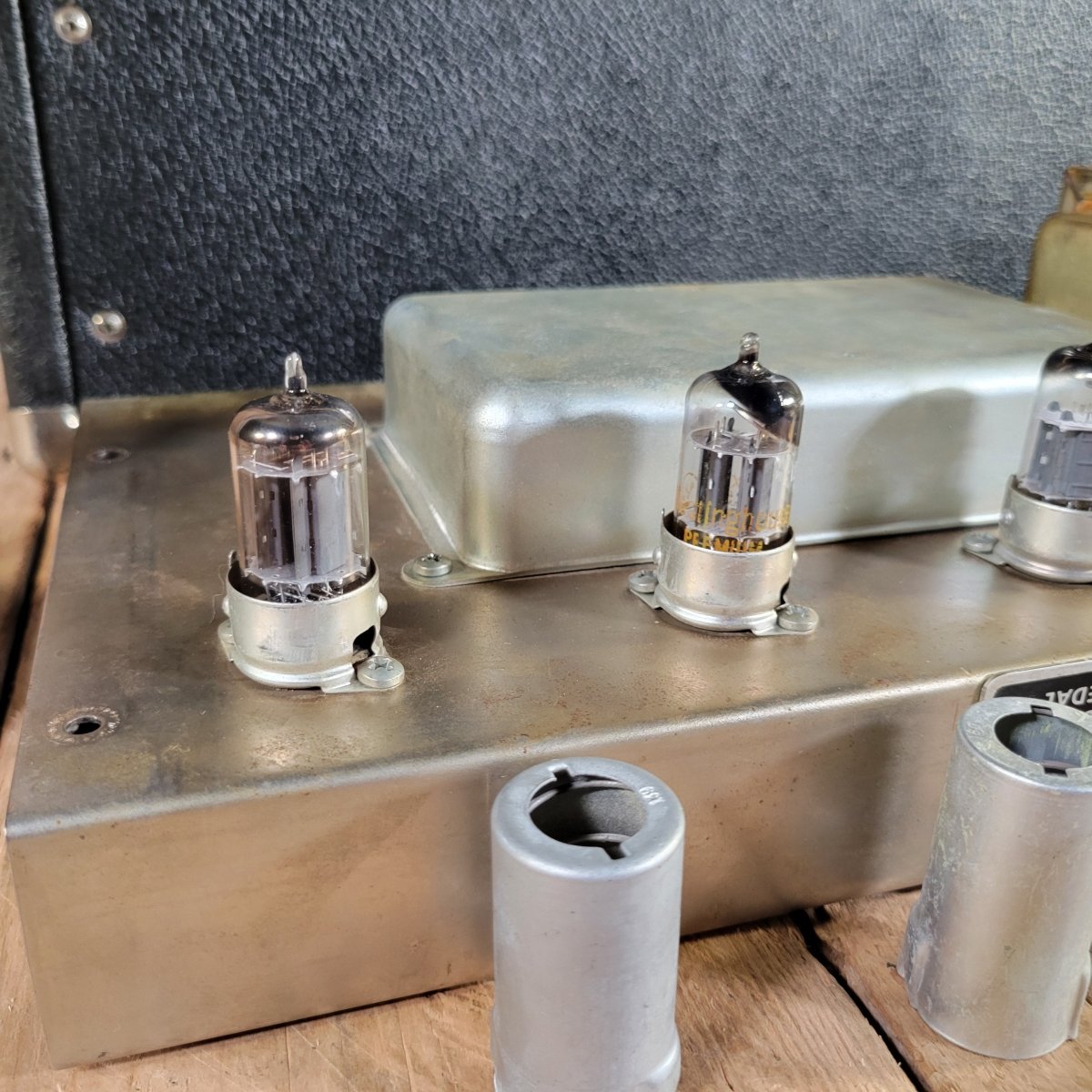

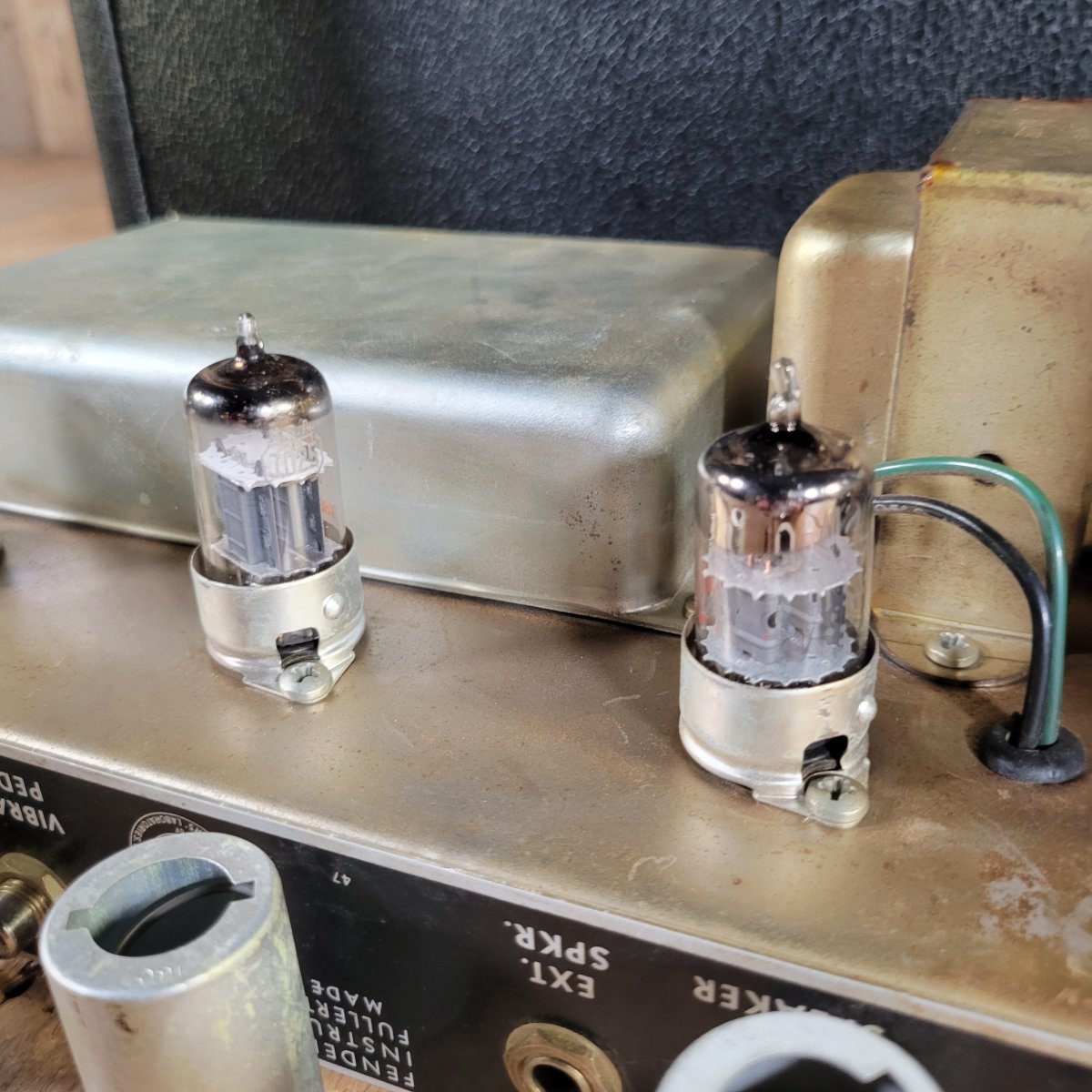

• Preamp Tubes: 12AT7, 3 x 12AX7
• Preamp Tube Brand: Westinghouse, RCA

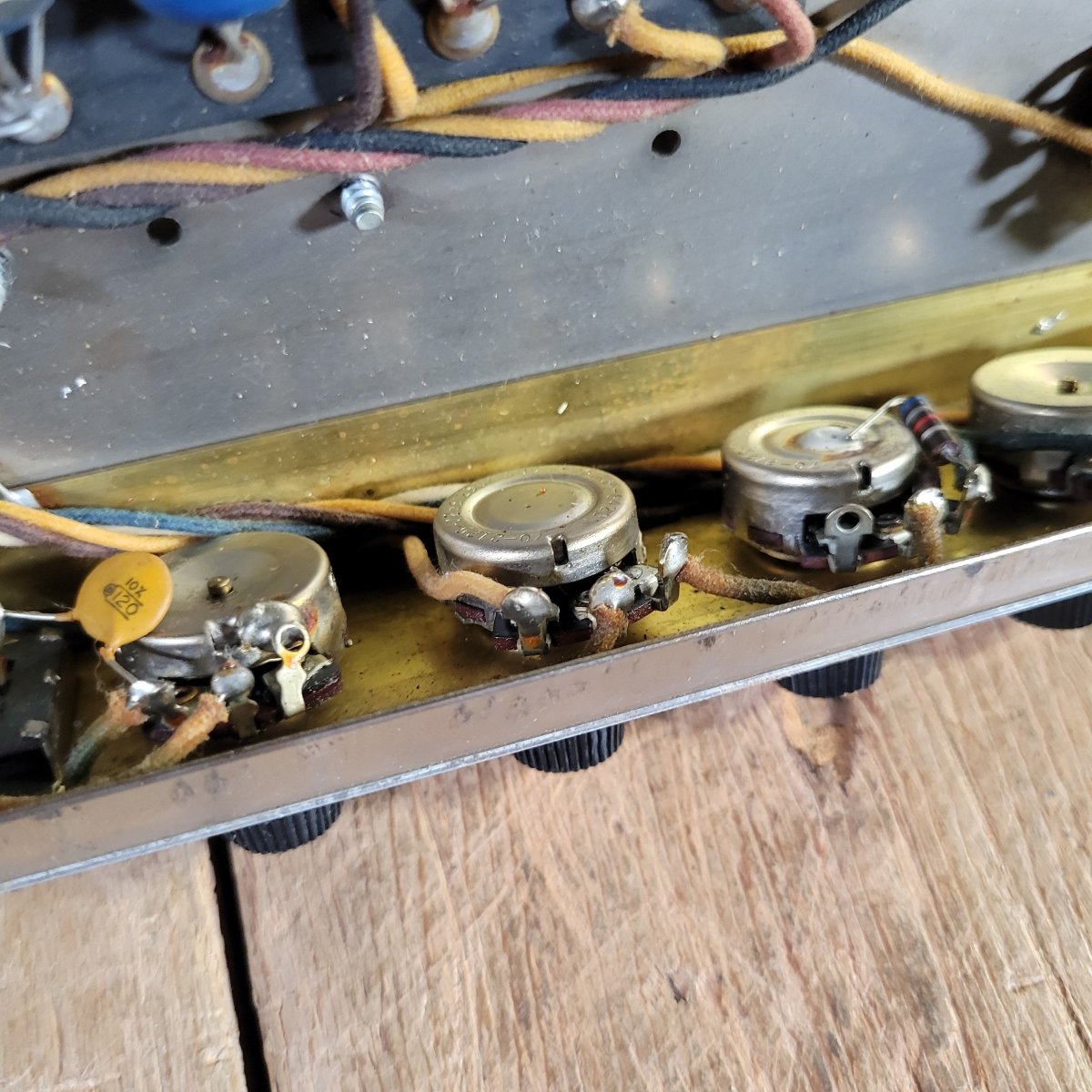

• Potentiometers Original?: yes

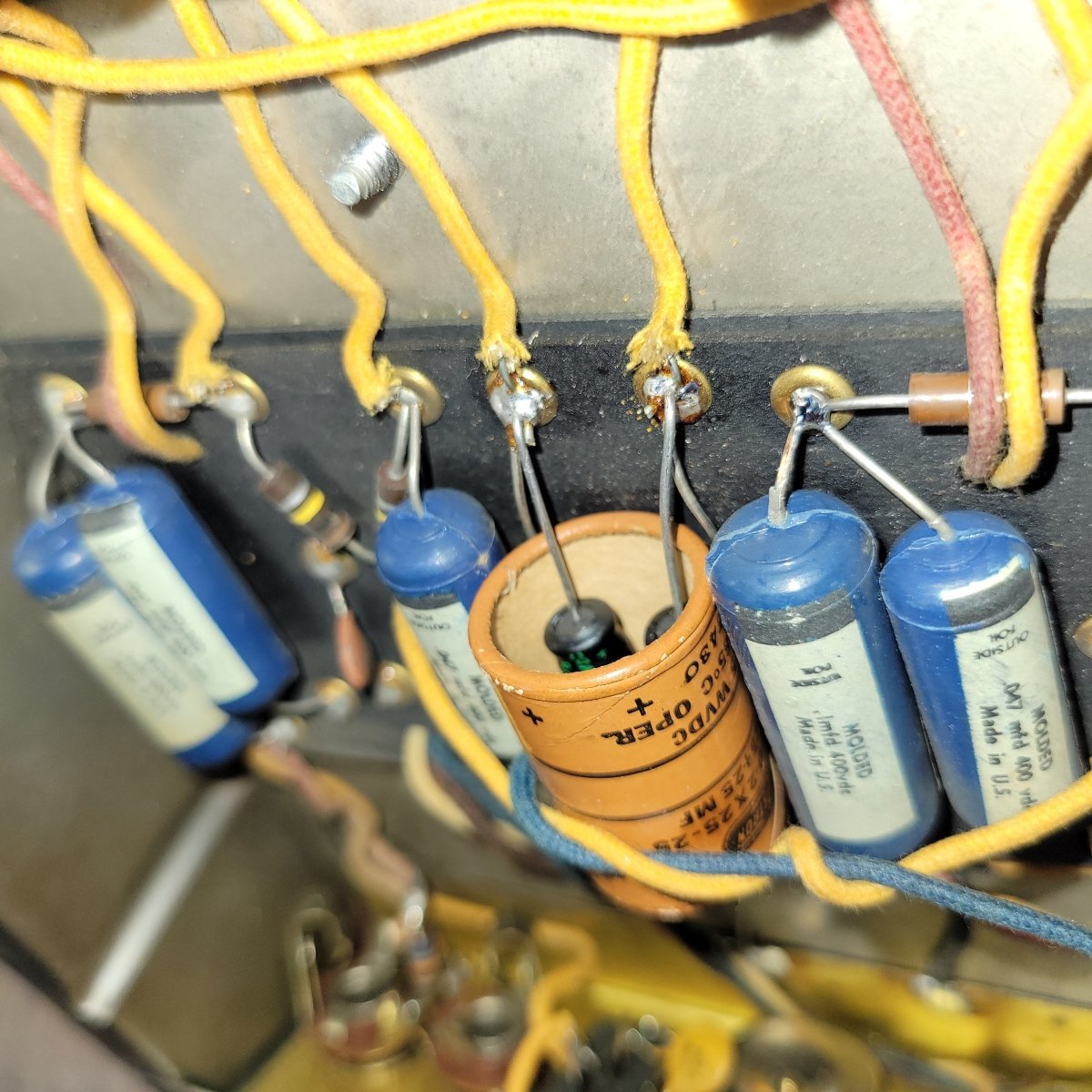

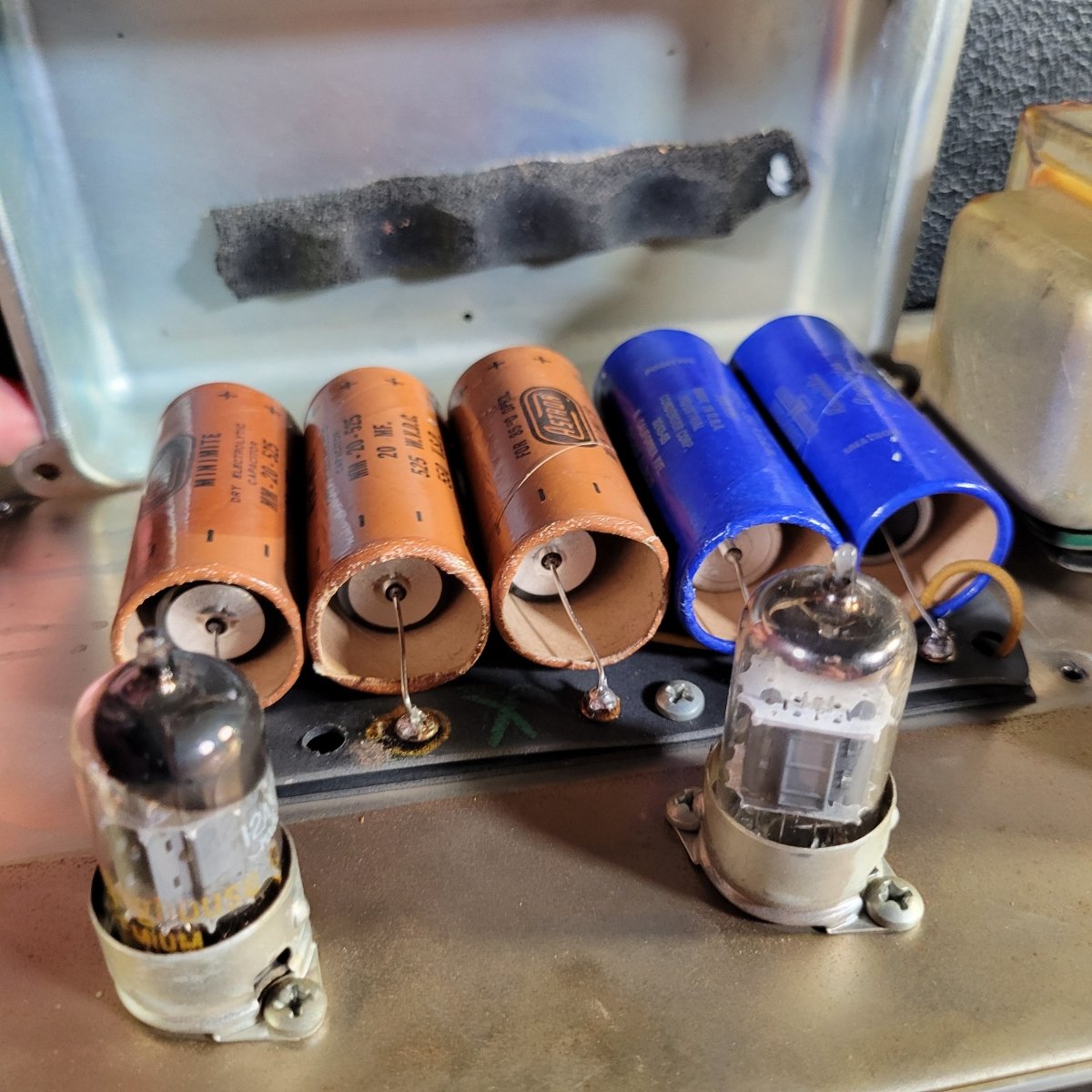

• Filter Caps: replaced
• Internal Repairs: cap job, new power cable
• Accessories Included: none
• Documentation: none
• Smells?: none
